Engine mounts adjustment - Upd: Fixed
Guys,
I replaced the spark plugs recently and lifted up the engine, by removing 2 engine mount nuts (14mm) and lifting with a car jack.
I tightened those 2 nuts back when the car's front end was on the ramps and the engine was off. After that procedure I started noticing a single clunk nouse\thud (from the front end, right side - feel in my legs, JDM car) at the first second if I take off, start moving aggressively.
If I start slowly, there will be no thud. It comes only when I start sharp.
Check and tighter the suspension components - no change.
I am wondering was it ok that I tightened engine mount nuts when the front end was lifted? The car was not horizontal.
Should I tighten the nuts while the engine idling? Seemed like tightened nuts have the same locations as before.
Should I release the upper mount nuts as well?
Please advise how I should re-tighten the engine mounts. THANK YOU Guys.
I replaced the spark plugs recently and lifted up the engine, by removing 2 engine mount nuts (14mm) and lifting with a car jack.
I tightened those 2 nuts back when the car's front end was on the ramps and the engine was off. After that procedure I started noticing a single clunk nouse\thud (from the front end, right side - feel in my legs, JDM car) at the first second if I take off, start moving aggressively.
If I start slowly, there will be no thud. It comes only when I start sharp.
Check and tighter the suspension components - no change.
I am wondering was it ok that I tightened engine mount nuts when the front end was lifted? The car was not horizontal.
Should I tighten the nuts while the engine idling? Seemed like tightened nuts have the same locations as before.
Should I release the upper mount nuts as well?
Please advise how I should re-tighten the engine mounts. THANK YOU Guys.
Last edited by Hauntednsk; 02 October 2022 at 03:45 AM.
#2
Scooby Regular
iTrader: (2)
Ideally cheack the upper mount as it may have slipped slightly. it could be worth loosening all three mounts, just incase youve introduced tension to one if that makes sense, and tighten them again.
You really dont need to lift the engine to do spark plugs though. Done mine multiple times without doing so. The best thing to do is spend a little time experimenting with different length sockets and adaptors, theres even a subaru specific socket out there for spark plugs. Ive never needed it as i have a combination of sockets that work
You really dont need to lift the engine to do spark plugs though. Done mine multiple times without doing so. The best thing to do is spend a little time experimenting with different length sockets and adaptors, theres even a subaru specific socket out there for spark plugs. Ive never needed it as i have a combination of sockets that work
The following users liked this post:
#3
Scooby Regular
iTrader: (2)
Ideally cheack the upper mount as it may have slipped slightly. it could be worth loosening all three mounts, just incase youve introduced tension to one if that makes sense, and tighten them again.
You really dont need to lift the engine to do spark plugs though. Done mine multiple times without doing so. The best thing to do is spend a little time experimenting with different length sockets and adaptors, theres even a subaru specific socket out there for spark plugs. Ive never needed it as i have a combination of sockets that work
You really dont need to lift the engine to do spark plugs though. Done mine multiple times without doing so. The best thing to do is spend a little time experimenting with different length sockets and adaptors, theres even a subaru specific socket out there for spark plugs. Ive never needed it as i have a combination of sockets that work
The following users liked this post:
The following users liked this post:
#5
Scooby Regular
Thread Starter
Ideally cheack the upper mount as it may have slipped slightly. it could be worth loosening all three mounts, just incase youve introduced tension to one if that makes sense, and tighten them again.
You really don't need to lift the engine to do spark plugs though. Done mine multiple times without doing so. The best thing to do is spend a little time experimenting with different length sockets and adaptors, there's even a subaru specific socket out there for spark plugs. Ive never needed it as i have a combination of sockets that work
You really don't need to lift the engine to do spark plugs though. Done mine multiple times without doing so. The best thing to do is spend a little time experimenting with different length sockets and adaptors, there's even a subaru specific socket out there for spark plugs. Ive never needed it as i have a combination of sockets that work
I know some people are able to replace the plugs by not lighting the engine, but as I know, Impreza has more space under the hood, but Forester SG5 has more space limitations.
I tried not to lift the engine and I have a number of extending adapters, but anyway it was not easy to get the spark plugs out. Once I lifted the engine, the process turned out to be so easy.
#6
Scooby Regular
iTrader: (2)
Going to make all the mounts loosen and re-tightened this weekend. Maybe the upper one needs to be tightened.
I know some people are able to replace the plugs by not lighting the engine, but as I know, Impreza has more space under the hood, but Forester SG5 has more space limitations.
I tried not to lift the engine and I have a number of extending adapters, but anyway it was not easy to get the spark plugs out. Once I lifted the engine, the process turned out to be so easy.
I know some people are able to replace the plugs by not lighting the engine, but as I know, Impreza has more space under the hood, but Forester SG5 has more space limitations.
I tried not to lift the engine and I have a number of extending adapters, but anyway it was not easy to get the spark plugs out. Once I lifted the engine, the process turned out to be so easy.
I hope its just the top pitch mount loose, im thinking that when you lifted the engine you probably should have disconnected it anyway.
Id have a look under the top mount IC and make sure its still in 1 piece worst case it snapped and you have to replace it.
Im just struggling to imagine what is moviig so much you can feel when driving!
#7
Scooby Regular
When you lifted the engine you should have disconnect the pitch stop mount too. If this was left connected, when you lowered the engine back into place it could have torqued enough that it’s hung up on a thread. Admittedly it should’ve found itself home, but it’s possible. Just undo the pitch stop mount, and then the two lower engine mounts, jack the engine back up slightly and then lower is again and make sure it’s home properly. Then do up the engine mount nuts and re-fit the pitch stop.
The following users liked this post:
Trending Topics
#8
Scooby Regular
Thread Starter
When you lifted the engine you should have disconnect the pitch stop mount too. If this was left connected, when you lowered the engine back into place it could have torqued enough that it’s hung up on a thread. Admittedly it should’ve found itself home, but it’s possible. Just undo the pitch stop mount, and then the two lower engine mounts, jack the engine back up slightly and then lower is again and make sure it’s home properly. Then do up the engine mount nuts and re-fit the pitch stop.
That single clunking noise\thus can be heard only when I take off sharp, not normally or slowly accelerating. Otherwise, there are no other noises or vibrations. I don't think that pitch stop mount is broken, maybe it slipped and loosen, I believe.
I will try to re-tighten all the mounts tomorrow. Will keep you guys updated...
#9
Scooby Regular
the pitch stop has to be loosened otherwise your fighting against it when you raise the engine..........
have worked on all forms of Subaru for circa 25years and never lifted an engine for plugs
have worked on all forms of Subaru for circa 25years and never lifted an engine for plugs
The following 2 users liked this post by stockcar:
The following users liked this post:
#13
Scooby Regular
Thread Starter
Update:

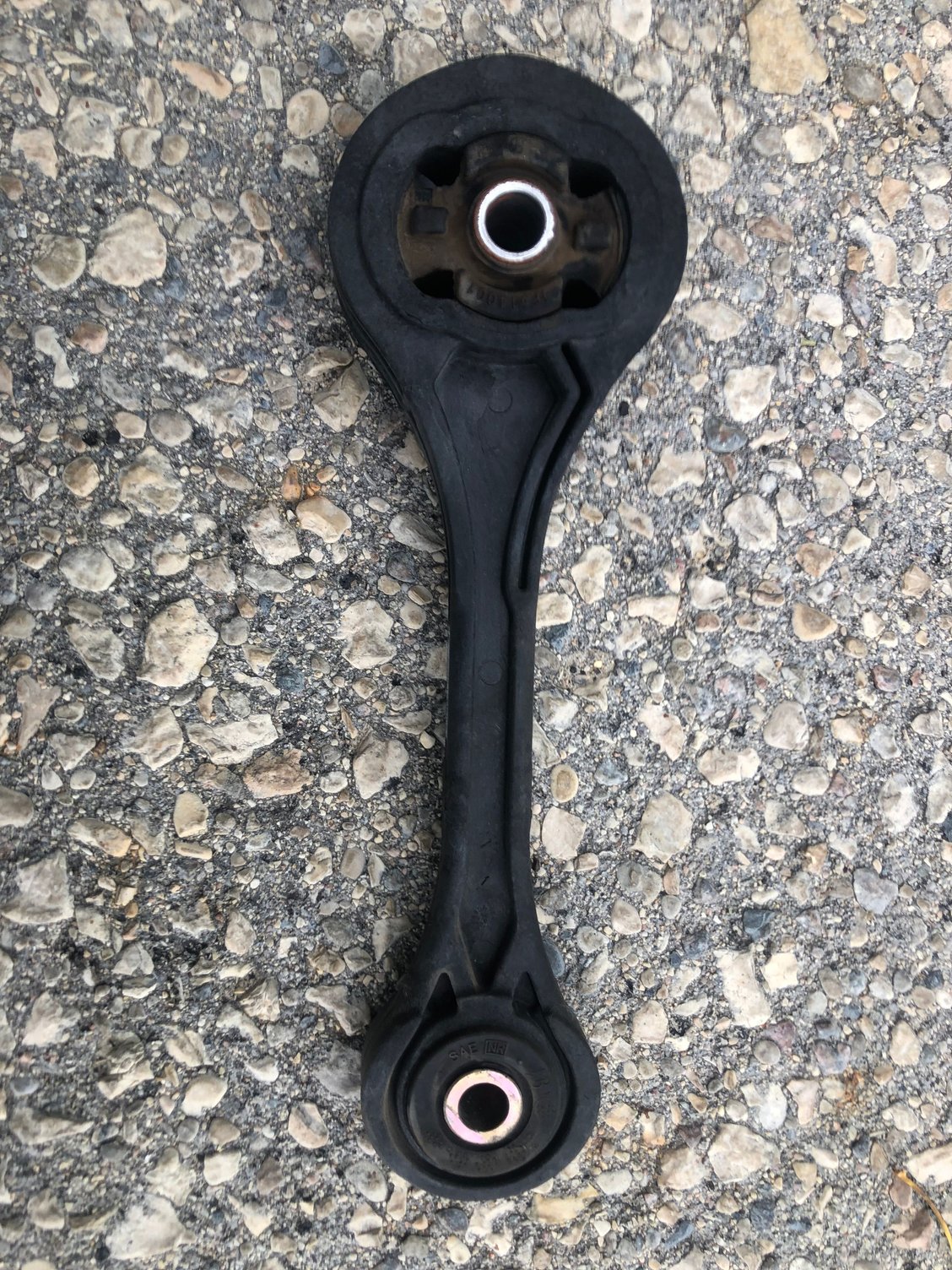

1 Loosened the pitch stop mount, and the two lower mounts. The Pitch stop mount looked absolutely fine.
2. Started the engine for a second (the intercooler was removed so the engine stalled, but worked for a few seconds).
3. Tightened the right lower mount, then the left lower, and finally - the pitch stop mount.
Result: no more thud\clunking noise.
1 Loosened the pitch stop mount, and the two lower mounts. The Pitch stop mount looked absolutely fine.
2. Started the engine for a second (the intercooler was removed so the engine stalled, but worked for a few seconds).
3. Tightened the right lower mount, then the left lower, and finally - the pitch stop mount.
Result: no more thud\clunking noise.
#14
Scooby Regular
iTrader: (2)
Update:
1 Loosened the pitch stop mount, and the two lower mounts. The Pitch stop mount looked absolutely fine.
2. Started the engine for a second (the intercooler was removed so the engine stalled, but worked for a few seconds).
3. Tightened the right lower mount, then the left lower, and finally - the pitch stop mount.
Result: no more thud\clunking noise.
1 Loosened the pitch stop mount, and the two lower mounts. The Pitch stop mount looked absolutely fine.
2. Started the engine for a second (the intercooler was removed so the engine stalled, but worked for a few seconds).
3. Tightened the right lower mount, then the left lower, and finally - the pitch stop mount.
Result: no more thud\clunking noise.
Did you notice if it had moved at all? One of the bolt holes is sloted for adjustment.
