scoobyclinics turbo's just got billet I mean better!
#1501
This is turbo **** at its best !!! i will be back in the fold one day & have a great idea for my next Blues Brothers car back in the uk can you guess what it will be
Keep up the great work guys !!!!!
Keep up the great work guys !!!!!
#1502
KEV when you get time could you post up the graphs for the sc54 and the GT30 billet so can compare spool/peak bhp please and i take it both turbos where tested on your car cheers knibby
#1503
Former Sponsor
Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
Hi,

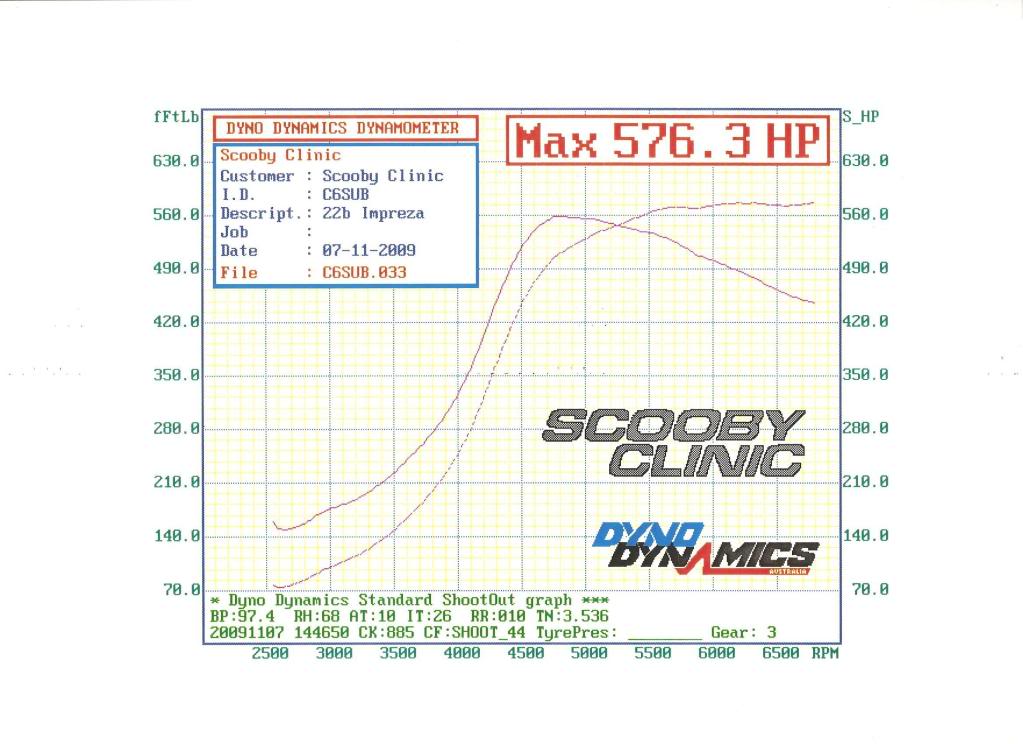

the tests were done on two different cars both running 2.33 engines and on a 20% meth mix, my car (C6 SUB) has DH22 profile cams and ST! 4 heads (ported) running the SC54 direct fit Billet turbo, the other car has standard STI 8 heads and cams with the advantage of avics, and a GT30 Billet, both run the amazing Syvecs ECU.

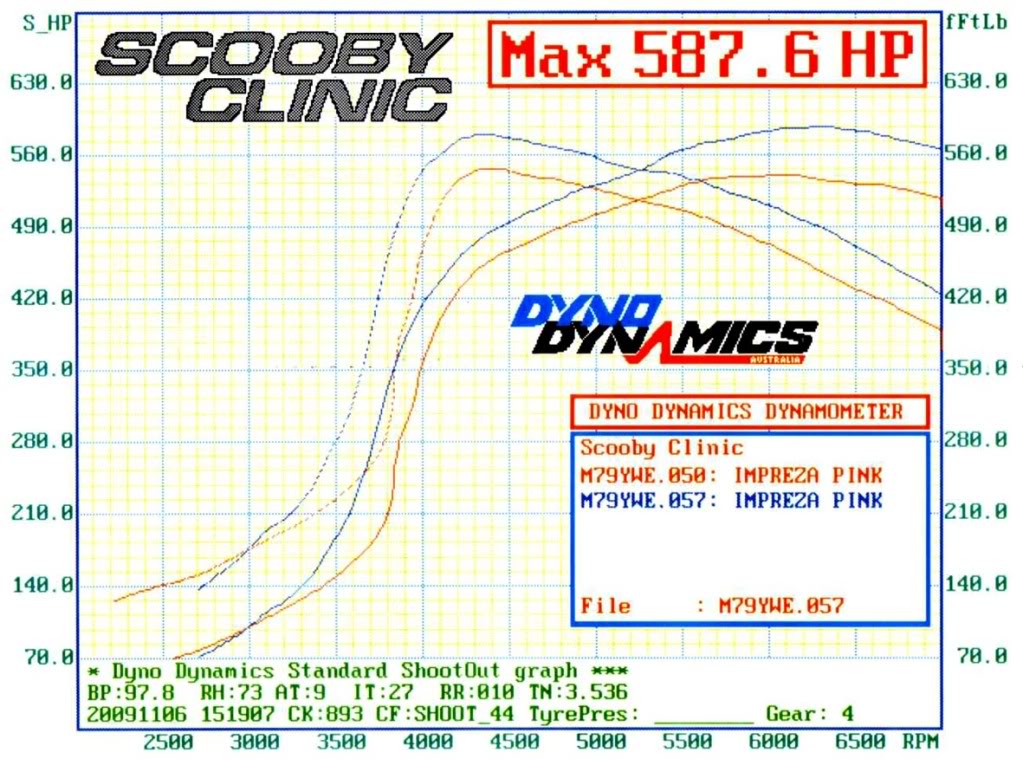

The above graph shows two traces one in red is the standard GT30 the blue trace is the GT30 billet.
The car I referred to earlier with a GT30 billet that made a bar of boost at 3100 RPM and 1.8 bar at 3600 RPM on the road is also a 2.33 but with totally different spec regarding heads and supporting mods.
hope the above helps with your enquiry.
cheers
Kev
#1506
Scooby Regular
Has anyone tried an SC54 on a built 2.5 yet to your knowledge Kev ?
I reckon it would be an awesome combo on a car with dual AVCS.
We have a hatch on the dyno at the moment fitted with the astounding SC46 Billet. With just 5 litres of meth (Not even 10%) mixed with Tesco 99 and 1.5 bar boost we are seeing 491bhp and 480lbft. Going to wind in a bit more boost this morning and see if we can break 500/500.
Martyn
I reckon it would be an awesome combo on a car with dual AVCS.
We have a hatch on the dyno at the moment fitted with the astounding SC46 Billet. With just 5 litres of meth (Not even 10%) mixed with Tesco 99 and 1.5 bar boost we are seeing 491bhp and 480lbft. Going to wind in a bit more boost this morning and see if we can break 500/500.
Martyn
#1507
Former Sponsor
iTrader: (3)
Has anyone tried an SC54 on a built 2.5 yet to your knowledge Kev ?
I reckon it would be an awesome combo on a car with dual AVCS.
We have a hatch on the dyno at the moment fitted with the astounding SC46 Billet. With just 5 litres of meth (Not even 10%) mixed with Tesco 99 and 1.5 bar boost we are seeing 491bhp and 480lbft. Going to wind in a bit more boost this morning and see if we can break 500/500.
Martyn
I reckon it would be an awesome combo on a car with dual AVCS.
We have a hatch on the dyno at the moment fitted with the astounding SC46 Billet. With just 5 litres of meth (Not even 10%) mixed with Tesco 99 and 1.5 bar boost we are seeing 491bhp and 480lbft. Going to wind in a bit more boost this morning and see if we can break 500/500.
Martyn
Nice figures !
Finishing off an SC46 billet on the dyno this lunchtime too on a 2.0L though - should be interesting.
#1508
Scooby Regular
All finished, 510lbft made at 1.7 bar peak boost and 494.4bhp at 1.5 bar top end.
Racerom patches applied inc downshift autoblip, launch control, per gear boost control tweaked and switchable maps sorted.
Martyn
Racerom patches applied inc downshift autoblip, launch control, per gear boost control tweaked and switchable maps sorted.
Martyn
#1509
Hi,
the tests were done on two different cars both running 2.33 engines and on a 20% meth mix, my car (C6 SUB) has DH22 profile cams and ST! 4 heads (ported) running the SC54 direct fit Billet turbo, the other car has standard STI 8 heads and cams with the advantage of avics, and a GT30 Billet, both run the amazing Syvecs ECU.
The above graph shows two traces one in red is the standard GT30 the blue trace is the GT30 billet.
The car I referred to earlier with a GT30 billet that made a bar of boost at 3100 RPM and 1.8 bar at 3600 RPM on the road is also a 2.33 but with totally different spec regarding heads and supporting mods.
hope the above helps with your enquiry.
cheers
Kev
the tests were done on two different cars both running 2.33 engines and on a 20% meth mix, my car (C6 SUB) has DH22 profile cams and ST! 4 heads (ported) running the SC54 direct fit Billet turbo, the other car has standard STI 8 heads and cams with the advantage of avics, and a GT30 Billet, both run the amazing Syvecs ECU.
The above graph shows two traces one in red is the standard GT30 the blue trace is the GT30 billet.
The car I referred to earlier with a GT30 billet that made a bar of boost at 3100 RPM and 1.8 bar at 3600 RPM on the road is also a 2.33 but with totally different spec regarding heads and supporting mods.
hope the above helps with your enquiry.
cheers
Kev
Great results dude !!!
#1510
Scooby Regular
iTrader: (25)
We have a hatch on the dyno at the moment fitted with the astounding SC46 Billet. With just 5 litres of meth (Not even 10%) mixed with Tesco 99 and 1.5 bar boost we are seeing 491bhp and 480lbft. Going to wind in a bit more boost this morning and see if we can break 500/500.
Martyn
Martyn
#1512
Scooby Regular
Your wish is my command, lol.
Awesome doesn't describe it on the road.
Awesome doesn't describe it on the road.
#1515
Former Sponsor
Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
#1518
Scooby Regular
Enginetuner built forged 2.5 motor, stock heads and cams, SC46 billet turbo, Perrin induction hose, AEM CAIK, Cosworth front mount, Helix clutch, fuel system inc underbonnet swirl pot and Bosch 044 external pump, Ecutek 800cc injectors, full 3 inch decat exhaust system, RCM wrapped headers and uppipe, 3 port boost control solenoid, Ecutek Racerom remap @ Enginetuner.
Martyn
Martyn
#1521
Former Sponsor
Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
#1522
I am searching for a turbo that will produce a higher power output for improved elasticity datas at middle and high revs.
The turbo should also have a good spooling response, not much worse than VF35.
Here's my current performance diagram:
http://h-4.abload.de/img/gp_tuning_wrx_sti_my03ooah.jpg
Setup:
-2003 blob-eye type uk
-ej20
-standard internals
-standard tmic
-3" turbo-back
-Bailey Motorsport DV12
-Ecutek
-Green Performance panel filter
-Walbro 255 fuel pump
-VF35 turbo
-98 octane fuel
Which one you would recommend me, when I don't want to change my tmic setup?
By now my car gets only 102 octane fuel
A SC40 billet with sleeve bearing or a SC46 with ball bearing?
I think that the SC36 or SC38 won't perform much better than my actual VF35 setup.
What would be the right turbo for my requirements, the SC46 sounds very good and which injectors could you recommend me, 650cc ones?
The turbo should also have a good spooling response, not much worse than VF35.
Here's my current performance diagram:
http://h-4.abload.de/img/gp_tuning_wrx_sti_my03ooah.jpg
Setup:
-2003 blob-eye type uk
-ej20
-standard internals
-standard tmic
-3" turbo-back
-Bailey Motorsport DV12
-Ecutek
-Green Performance panel filter
-Walbro 255 fuel pump
-VF35 turbo
-98 octane fuel
Which one you would recommend me, when I don't want to change my tmic setup?
By now my car gets only 102 octane fuel
A SC40 billet with sleeve bearing or a SC46 with ball bearing?
I think that the SC36 or SC38 won't perform much better than my actual VF35 setup.
What would be the right turbo for my requirements, the SC46 sounds very good and which injectors could you recommend me, 650cc ones?
Last edited by EqualizerCS; 24 February 2011 at 05:32 PM.
#1523
Scooby Regular
SC46 is great on 2 litre Sti engines too.
One of our recent 2005 UK Sti customers said this "it went on to amaze me the shear acceleration lol and couldn't believe how responsive the sc46 is....it felt quicker response wise and as quick if not quicker to spool as my vf35"
Full details here.
https://www.scoobynet.com/projects-4...in-sheeps.html
One of our recent 2005 UK Sti customers said this "it went on to amaze me the shear acceleration lol and couldn't believe how responsive the sc46 is....it felt quicker response wise and as quick if not quicker to spool as my vf35"
Full details here.
https://www.scoobynet.com/projects-4...in-sheeps.html
#1524
And speak of the devil ay martyn lol yes that sc46 with the supporting mods (thread above) is awsome, as i have said before it spools the same if not better than my vf35 and thats with the perrin fmic on instead of the sti top mount aswell its happy days......
#1525
#1526
Former Sponsor
Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
Hi,
we only do the XTR billet wheel.
We have developed them and the range of turbo's to suit over the last 2 years with Blouch turbo's , as you can see from the size of this thread how much testing and development work has been carried out, in the end it was well worth it.
cheers
Kev
#1527
Former Sponsor
Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes
on
0 Posts
Hi,
somewhere on this forum its been claimed that billet wheels are in fact heavier than their standard counterparts.
here are the results of a weigh in to of our wheels proving otherwise.
18 G....standard 71g billet 48g
20 G....standard 72g billet 49g
35 R....Standard 120g billet 83g
37 R....Standard 132g billet 86g
They look considerably lighter to me.
Cheers
Kev
somewhere on this forum its been claimed that billet wheels are in fact heavier than their standard counterparts.
here are the results of a weigh in to of our wheels proving otherwise.
18 G....standard 71g billet 48g
20 G....standard 72g billet 49g
35 R....Standard 120g billet 83g
37 R....Standard 132g billet 86g
They look considerably lighter to me.
Cheers
Kev
