I can't req these turbos enough
Overjoyed with my new (that's how it feels)Scooby
Mick



37R ?



How do you think a Billet core (as seen in the SC turbos) makes more power.... effective longer blade as the shaft is smaller in diameter but core is effectively the same overall diameter.... so the blade is longer. Shifts more air, so takes longer to spool to maximum hoof.

The part throttle response improvement comes from the lighter core, so initial response is improved, since it needs less energy for that initial "flick".

That's what I understand it as...... no doubt someone will come along as say I'm talking bollocks!!



x 2



Is that running meths? Almost 500hp from a 46billet on a 2.5forge motor sounds great to me!!!



Yes, approx 8%, or 5 litres in a 60 litre tank.

Martyn



Hi,

its a Billet T04Z with an 84mm billet wheel which we will be testing shortly.

Its also available with a choice of 35R rear end or a custom rear end capable of flowing 77llbs of air.

All we need now is a name for it as Garratt do a 37R billet, to avoid confusion we may call it a 38 Billet, best wait for testing though as we can name it in line with what it produces.

Now to find a test mule.

cheers
Kev



Hey there I bought a sc46 last year. It on a 2 ltr Jdm. With other mods. I'm currently running at 465 bhp with 375 torque. Well happy with this turbo.



Hi,

glad to hear it.

The SC46 Billet is our best selling turbo, we have sent them all over the world, Australia, Sweden, Finland and Dubai to name a few, they dont seem fussy and tend to work on 2.0 ltr cars, 2.1 strokers, 2.2ltr, 2.33 ltr and the 2.5ltr all with stunning results.

Thank you for your interest in this on going thread, there is more to come I can assure you.

cheers
Kev



Kev,

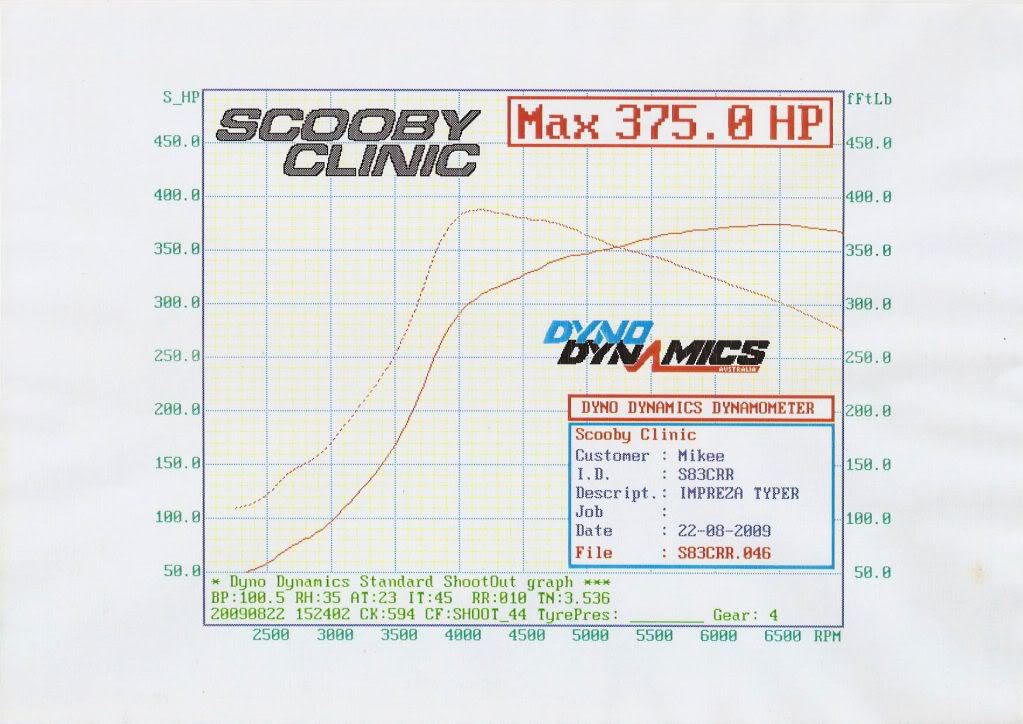

Apologies if this has already been shown on a graph (I'm a lazy **** lol), but have you before and after plots between a VF36 Newage and then with your SC46 Billet?

I'm personally interested in this comparison as you never know!



I have this one Shaun, stock VF43 Hawkeye UK turbo vs SC46 single scroll and the SC46 was on a front mount and still outspooled the stock unit on the road and dyno.




Martyn



Hi Kev:
Is there only one Single Scroll SC46 version or are there two versions having different turbines, one for the 2.0L with a slightly smaller turbine and a different one for the 2.5L with a 60mm turbine?

Thanx



Hi,

no the SC46 Billet is the same one throughout, as stated earlier its not fussy seems to work on any cc.

We do have an alternative exhaust housing due for testing soon but we dont want to upset the turbo's karma.

Keep you posted.

cheers
Kev



I hope so. Can't add to much more at the moment. Not unless I go for a stroker kit.



Hi Shaun,

do you mean the 46 billet twin scroll as the VF36 is a twin scroll unit ?

cheers
Kev



Hi KeV
I would be interested in comparisons of either tbh, as long as the reference set-up is the vf36 on a newage 2ltr. Pump fuel on both if available.



Go on Shaun,,,,, you know you want one

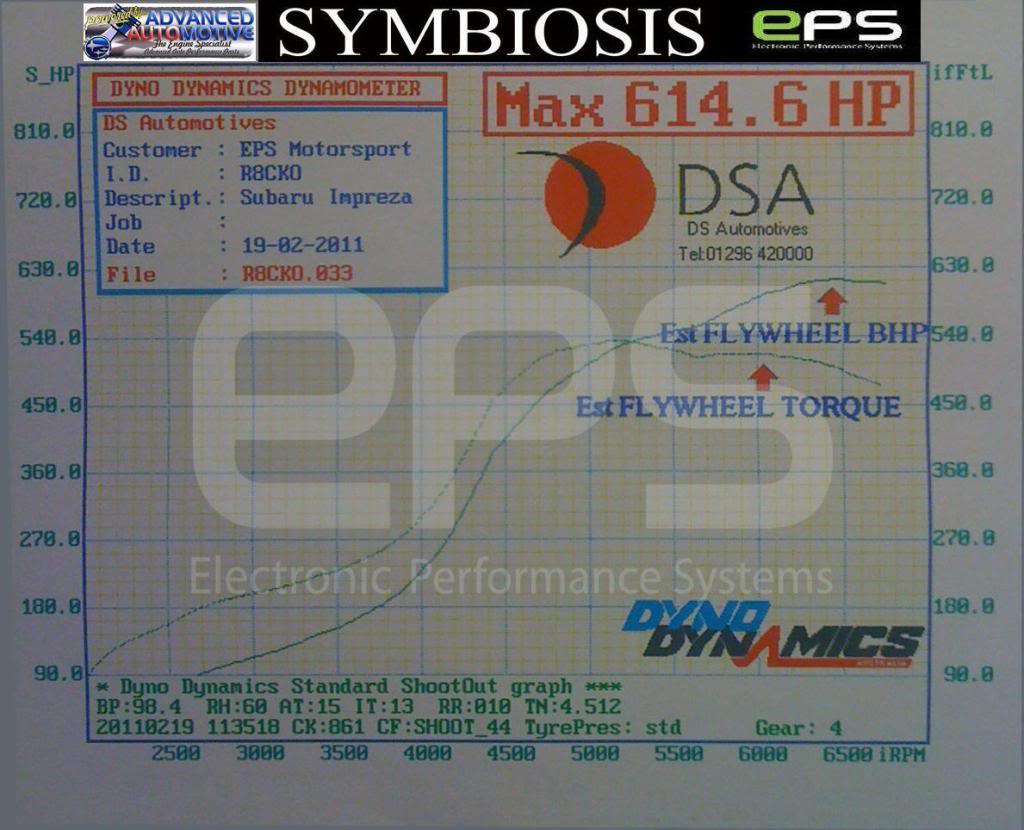

Just Like to say Big thanks to Kev and the boys at Scooby Clinic ..

For supplying me a GT35 billet for my 2.1 Stroker Built but Nick From Advanced Automotive



As you can imagin ime Happy Chappie



What was the fuel used here ? And 0.82 ?

Clive



GT35 . 63 housing

On vpower .. @ 2.1 bar boost



Impressive on a .63 ! Nice result that.



Yeh well chuffed .. was only aiming for 550 .. was blown away

Dave rowe Recons there Another 35 bhp on v power .. If i let him push it ..

So when ime brave .. one day .. ill give him the keys lol



Not ideal to push on VP but with a meth mix



Never really had any dealing with meths .. mmmm got me thinking now lol



No brainer mate 20% mix can be good for 10% power, however your .63 may be the limiting factor



Hi,

nice result, well done.

From big power turbo's to the baby of the bunch, SC36 Billet, just put one on a 22B,

1 bar at 2750 RPM, and 1.4 bar at 3100, 345 BHP and 360 ft lbs, doesn't sound much but WOW the thing flys, excellent spool gives the kick in the right place and holds it nicely in the usable power band, its not all about big numbers especially on a road car, we restrained it a little so as not to destroy the standard gearbox.

Cheers
Kev

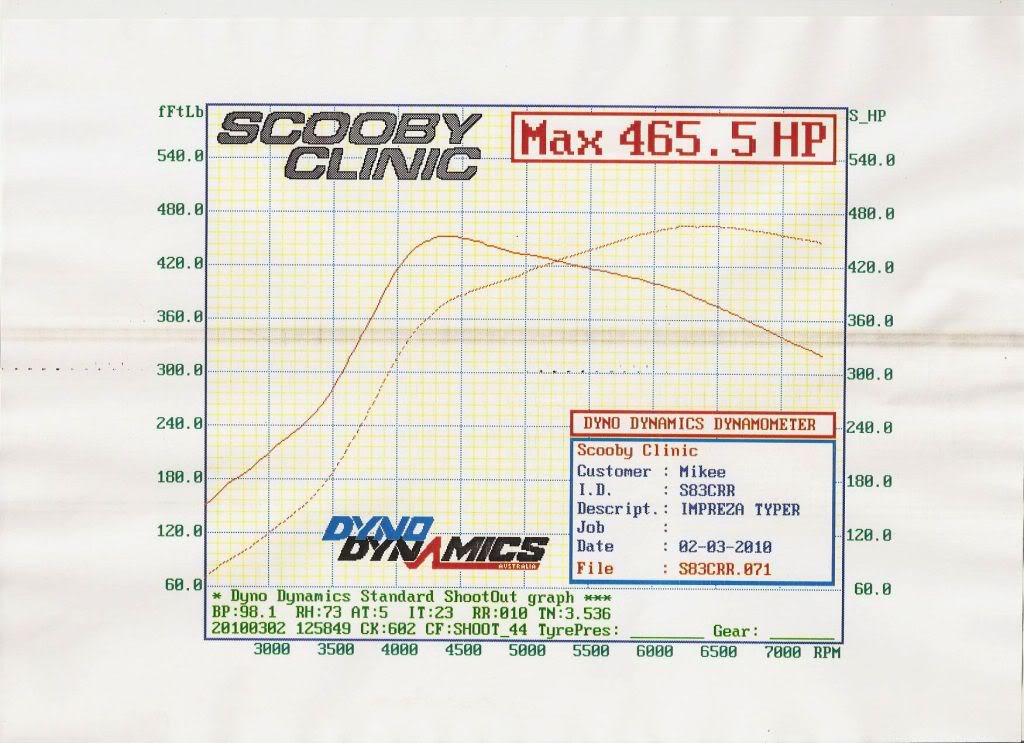

Hi,

best I can do is the following but they are on E 85.






The car is retro fitted with a spec C engine running Syvecs.


Hope they help you.

cheers
Kev



Hi keV
I assume both are e85?

Is the last one single or twin scroll?



Hi both E85, both twin scroll.

Thought that was the whole point of me posting them, had the whisky session started early.

cheers
Kev



Have you got the boost graphs for both of those?
