Default scoobyclinics turbo's just got billet I mean better!

The ultimate bolt-on turbo just got better! Introducing our new XT-R
turbo range, now with billet compressor wheels!

Scoobyclinic have been working together with Blouch Performance Turbo
over the past few months to improve on our already class leading
turbos and are proud to announce our new, fully machined, billet,
state-of-the-art, aerodynamic compressor wheels that out perform our
existing trend setting turbos. These compressor wheels are stronger
and 33% lighter than before and all test results indicate that these
high efficiency wheels make more horsepower at less boost pressure
than our current turbos. This translates into quicker spool while
producing greater horsepower and torque - what more could you ask for!
You will not find this cutting edge technology anywhere else.

And if that wasn't enough, we have also developed an improved one
piece exhaust housing that can be applied across the board to our existing
turbo product line to reduce turbine inlet pressure (negative pressure
differential) and increase peak horsepower.

Initial results comparing the current SC50 to the new billet
version have shown an increase of +35bhp and +45ft/lb with similar
spool, even with a bigger turbine housing!! We are hoping to get some
of our own dyno results up in the next few days from our Gaffer's
22B and our 2009 ScoobySprint winning race car. We will let our 2010
results with these turbos speak for themselves, like this year's did
and the year before that!

For a limited time only, the new range of billit turbos will be
available for just 100 above our current turbo prices!

Billit direct fit turbos available:

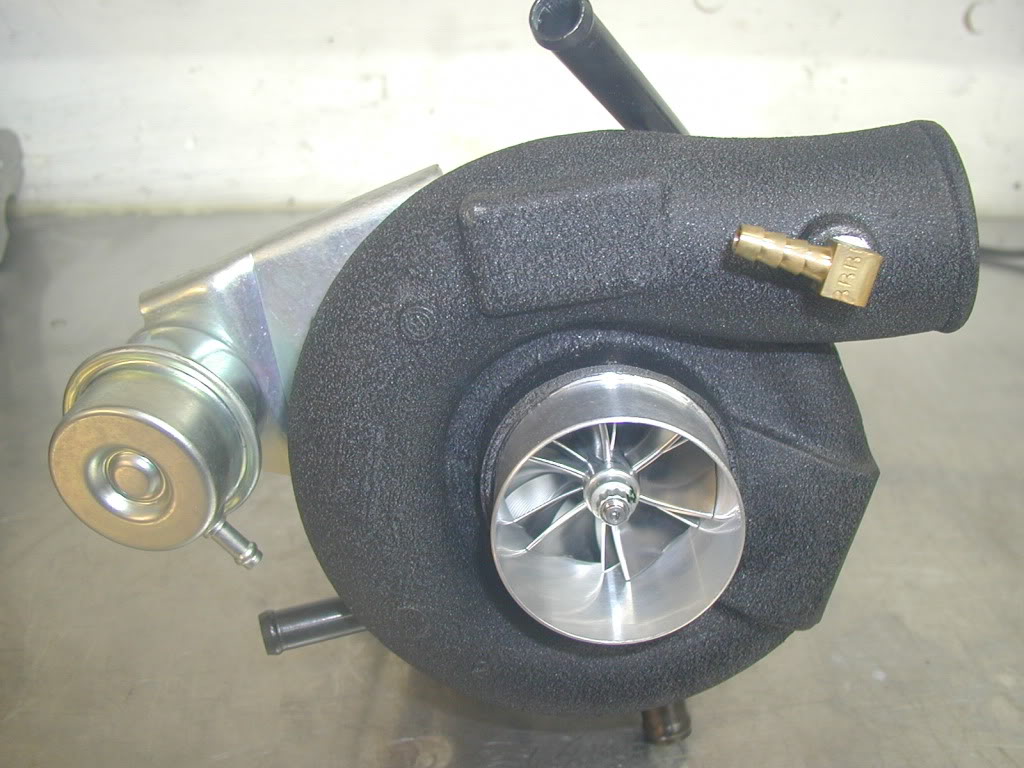

Name:  P1010014-4.jpg
Views: 0
Size:  126.0 KB

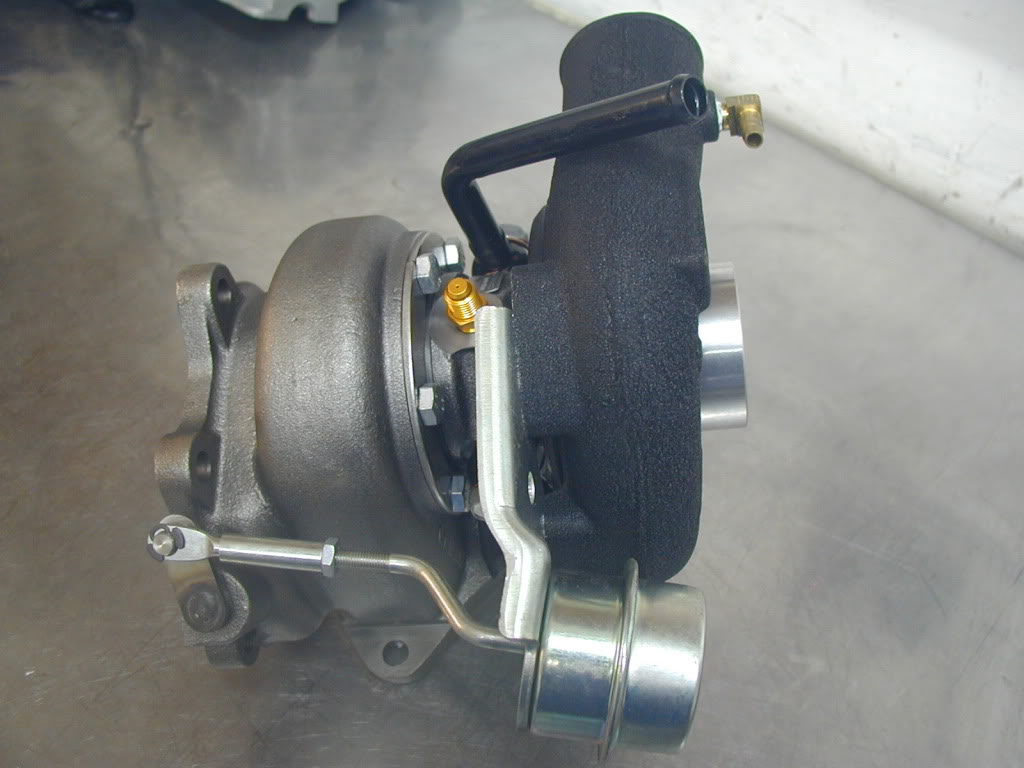

Name:  P1010016-5.jpg
Views: 0
Size:  89.0 KB

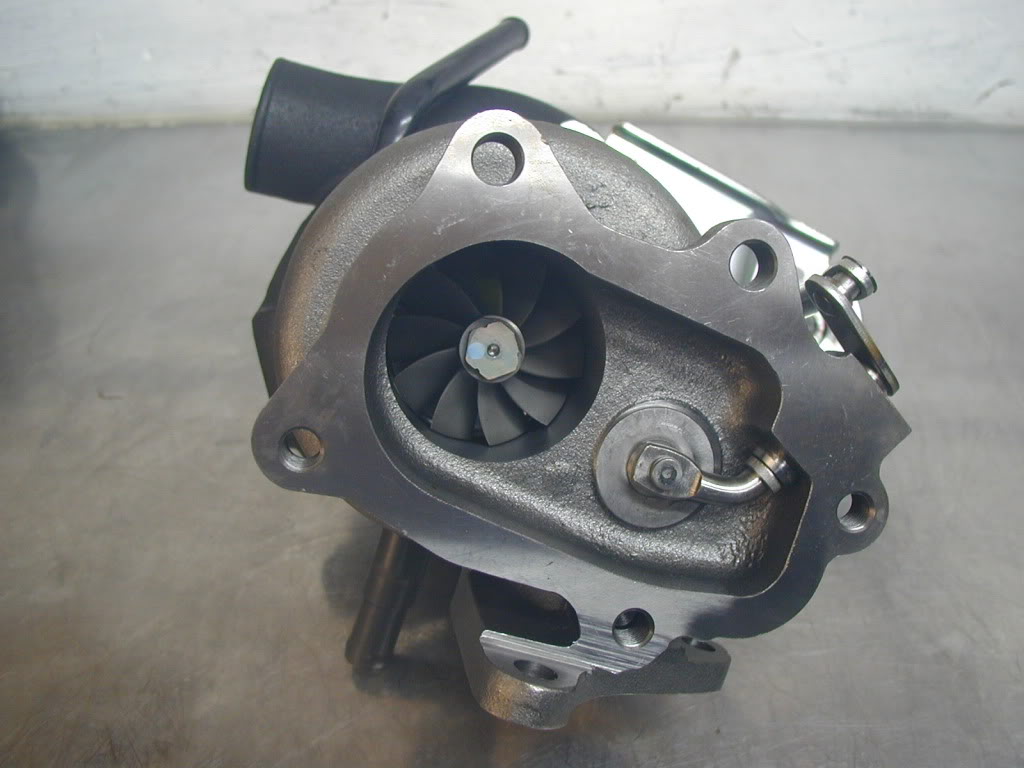

Name:  P1010017-4.jpg
Views: 0
Size:  90.6 KB

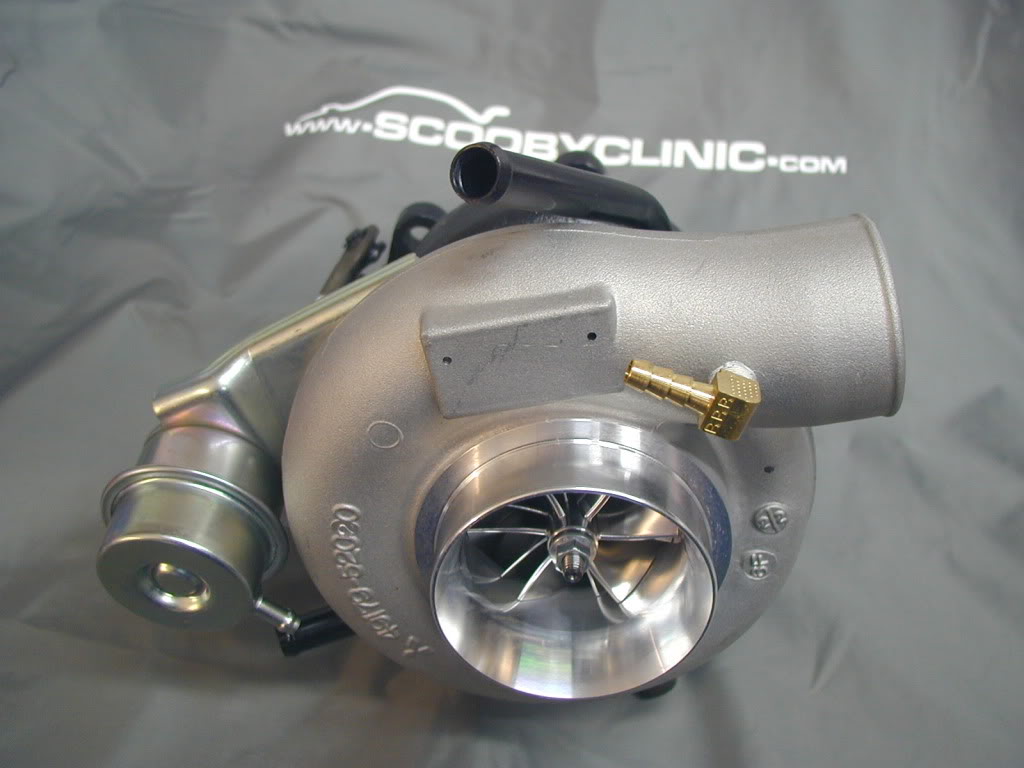

Name:  sc54billet1.jpg
Views: 0
Size:  84.5 KB

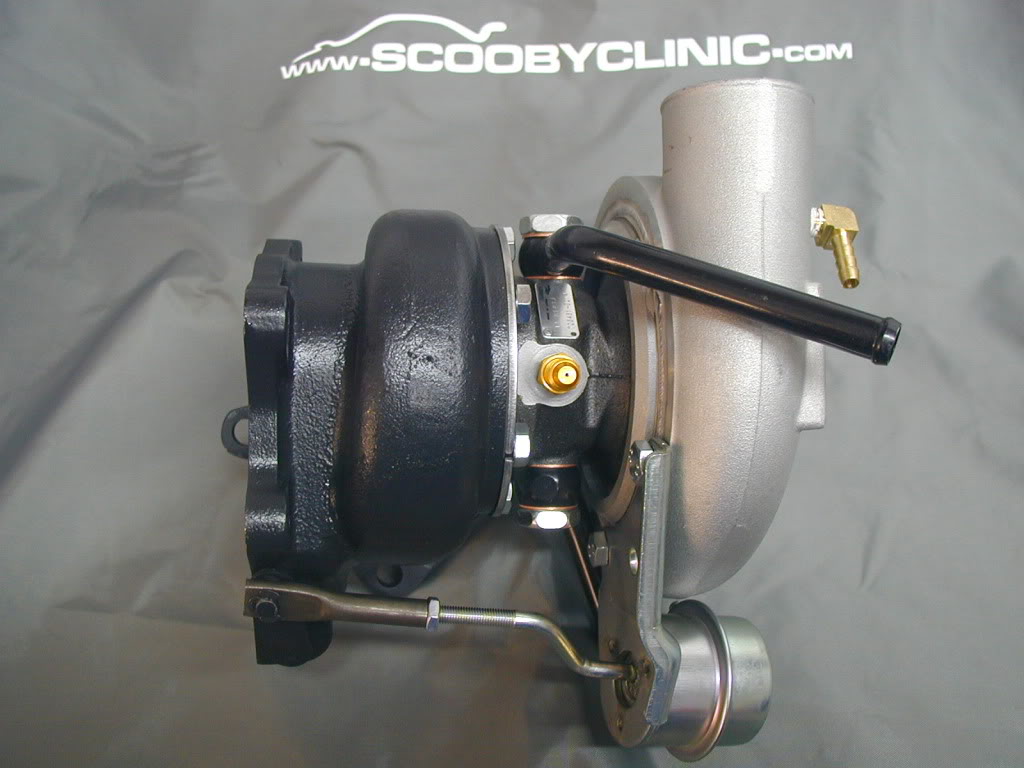

Name:  sc54billet2.jpg
Views: 0
Size:  93.0 KB

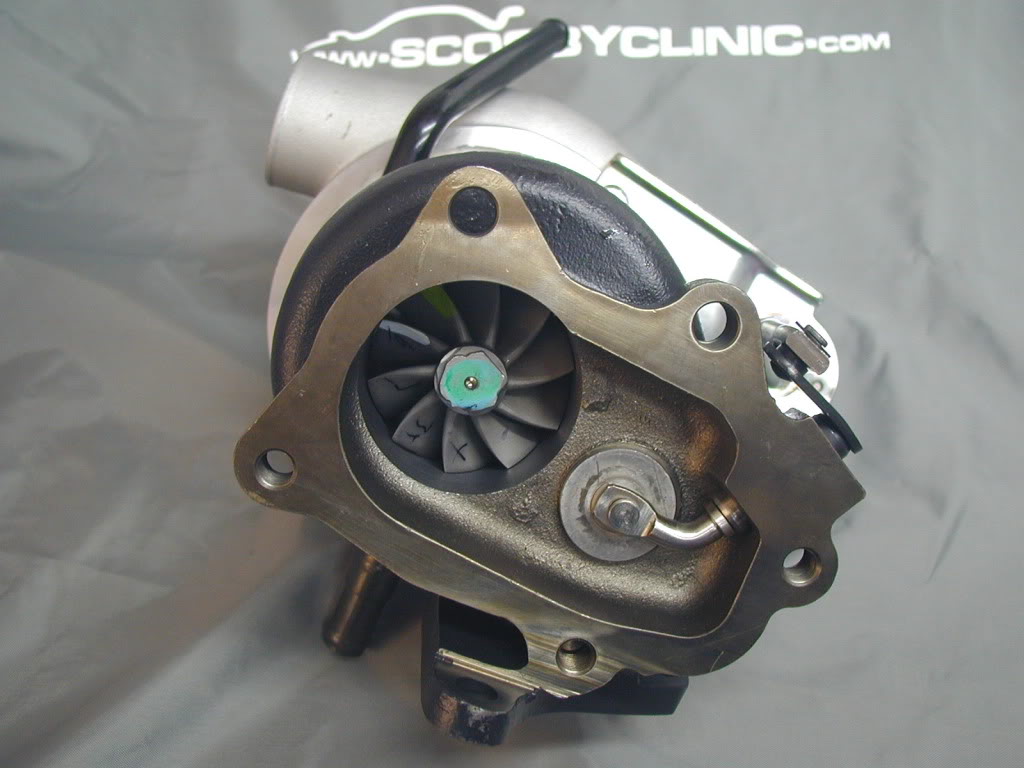

Name:  sc54billet3.jpg
Views: 0
Size:  92.8 KB

SC46 XTR Billet.........1400.00 new lower price = 1295!
SC50 XTR Billet.........1450.00 New lower price = 1350!
SC54 XTR Billet.........1495.00 New lower price = 1425!

The XT-R billet wheels are also available for our rotated turbos:

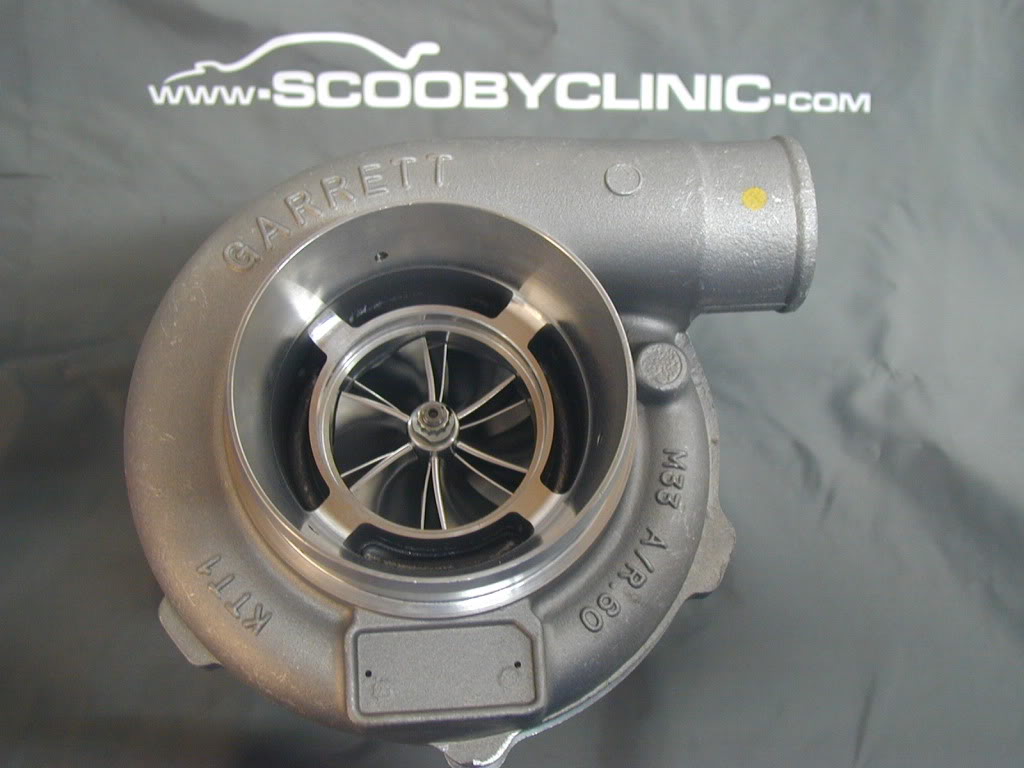

Name:  garrett1.jpg
Views: 0
Size:  89.9 KB






GT30 XT-R Billet (upto 550bhp)..........1125
GT33 XT-R Billet (upto 600bhp)..........1250
GT35 XT-R Billet (upto 650bhp)..........1195

Just to recap

SC46 XTR Billet.........1400.00 new lower price = 1295!
SC50 XTR Billet.........1450.00 New lower price = 1350!
SC54 XTR Billet.........1495.00 New lower price = 1425!

all prices + vat

Trade enquires welcome.

cheers
Ads

Last edited by specialx; 27 February 2010 at 09:37 AM. Reason: new pricing info
specialx is offline
Old 06 November 2009, 11:41 AM
  #2
specialx
Former Sponsor
Thread Starter

Join Date: Apr 2003
Location: WWW.SCOOBYCLINIC.COM
Posts: 4,313
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi,

today we press on fitting the new SC54 billet turbo, as you can see from the following pictures it genuinely is a direct fit, compressor outlet faces the right way, its on a standard up and down pipe and there is no need to remove lumps of block or bell housing to make it fit, in fact you can actually see on one of the photo's where part of the block and bell housing were removed years ago when this car (The Gaffers 22 B) was testing out the MD series of turbo's.

One of the SC turbo design briefs was to avoid block or bell housing chopping to facilitate fitment.









Printouts to follow
specialx is offline
Old 06 November 2009, 04:26 PM
  #3
specialx
Former Sponsor
Thread Starter

Join Date: Apr 2003
Location: WWW.SCOOBYCLINIC.COM
Posts: 4,313
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi,

we decided to run our first back to back tests on the new SC billet range, the first victim was our scoobysprint and scoobyshoot winning car, the same car that took us to time attack victory in 2008.

This morning we ran the car showing a healthy 540.8 bhp


Name:  DynoprintpinkcarGT30R.jpg
Views: 0
Size:  89.3 KB

We simply swapped out the turbo for our new billet version shown here on the left

Name:  billet-normal35R.jpg
Views: 0
Size:  148.0 KB

We then ran the car again

Name:  DynoprintpinkcarXT-RGT30R.jpg
Views: 0
Size:  88.5 KB

No adjustments were made this was a straight forward back to back test on the same day with same atmospheric conditions this gave us quicker spool, 46.8 bhp, 30 ftlbs of torque, all on pump gas, we expect to see 600 bhp from this once mapped, and I stress all on pump gas.

Result

cheers
Ads

Last edited by specialx; 06 November 2009 at 06:00 PM.
specialx is offline
Old 06 November 2009, 05:31 PM
  #4
wrx9181
Scooby Regular
iTrader: (2)

wrx9181's Avatar

Join Date: Nov 2005
Location: South Yorkshire
Posts: 4,155
Likes: 0
Received 0 Likes on 0 Posts
Default

sweet as im coming for a chat deff
wrx9181 is offline
Old 06 November 2009, 05:59 PM
  #5
frayz
Essex Area Moderator
iTrader: (7)

frayz's Avatar

Join Date: Sep 2005
Location: "Engineering Perfection in Essex"
Posts: 19,928
Likes: 0
Received 0 Likes on 0 Posts
Default

Pump gas as in E85?

590bhp from a GT30R?

What size exhaust housing ?

Still a 52lb min compressor wheel?

What boost?

Impressive performance but we need more info
frayz is offline
Old 06 November 2009, 06:09 PM
  #6
specialx
Former Sponsor
Thread Starter

Join Date: Apr 2003
Location: WWW.SCOOBYCLINIC.COM
Posts: 4,313
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by frayz View Post
Pump gas as in E85?

590bhp from a GT30R?

What size exhaust housing ?

Still a 52lb min compressor wheel?

What boost?

Impressive performance but we need more info

Hi,
morrisons finest, and yes 590 bhp on a 30R with a 0.63 hot side

Compressor wheel is custom made to our specs, its a billet wheel caperble of flowing 55 llbs of air and is 33% lighter than the original Garratt wheel. Boost wise it was running 1.9 bar, as soon as we get the time, possably tomorrow, we will map it to see where it max's out

Hope the above helps
cheers
Ads

Last edited by specialx; 06 November 2009 at 06:12 PM. Reason: forgot to answer boost question
specialx is offline
Old 06 November 2009, 06:17 PM
  #7
stealthy55
Scooby Regular

Join Date: Sep 2008
Posts: 1,103
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by specialx View Post
Hi,
morrisons finest, and yes 590 bhp on a 30R with a 0.63 hot side

Compressor wheel is custom made to our specs, its a billet wheel caperble of flowing 55 llbs of air and is 33% lighter than the original Garratt wheel. Boost wise it was running 1.9 bar, as soon as we get the time, possably tomorrow, we will map it to see where it max's out

Hope the above helps
cheers
Ads
do it
stealthy55 is offline
Old 06 November 2009, 06:27 PM
  #8
Granby
Supporting Member
iTrader: (5)

Granby's Avatar

Join Date: Feb 2004
Location: S E London........ 555 Wagon Sqn
Posts: 5,389
Likes: 0
Received 0 Likes on 0 Posts
Default

So when you say Morrisons finest you are actually meaning E85 and not super unleaded
Granby is offline
Old 06 November 2009, 06:34 PM
  #9
frayz
Essex Area Moderator
iTrader: (7)

frayz's Avatar

Join Date: Sep 2005
Location: "Engineering Perfection in Essex"
Posts: 19,928
Likes: 0
Received 0 Likes on 0 Posts
Default

Morrisons finest is E85 mate

.63 hotside is interesting?

1.9bar flat or is that at the redline? What did it run in the middle?

Whats the spec of the motor, cc, headwork, avcs, cams, manifolds etc?
frayz is offline
Old 06 November 2009, 06:46 PM
  #10
Granby
Supporting Member
iTrader: (5)

Granby's Avatar

Join Date: Feb 2004
Location: S E London........ 555 Wagon Sqn
Posts: 5,389
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by frayz View Post
Morrisons finest is E85 mate
It's not in all parts of the country
Granby is offline
Old 06 November 2009, 07:02 PM
  #11
frayz
Essex Area Moderator
iTrader: (7)

frayz's Avatar

Join Date: Sep 2005
Location: "Engineering Perfection in Essex"
Posts: 19,928
Likes: 0
Received 0 Likes on 0 Posts
Default

Agreed
frayz is offline
Old 07 November 2009, 09:54 AM
  #12
TH3_5T1G
Scooby Regular
iTrader: (14)

TH3_5T1G's Avatar

Join Date: Jul 2009
Location: Somewhere halfway between heaven and hell, some call it earth!
Posts: 1,266
Likes: 0
Received 0 Likes on 0 Posts
Default

Still no testing of the SC54 on a 2.0ltr?
TH3_5T1G is offline
Old 07 November 2009, 10:47 AM
  #13
The Gaffer
Former Sponsor

Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by frayz View Post
Morrisons finest is E85 mate

.63 hotside is interesting?

1.9bar flat or is that at the redline? What did it run in the middle?

Whats the spec of the motor, cc, headwork, avcs, cams, manifolds etc?

Hi,
I have printed the boost curve against the bhp for you to take a look at


Name:  boostandBHP30Rbillet.jpg
Views: 0
Size:  88.5 KB


Spec is ..........

2.35 ltr using our stroker kit https://www.scoobynet.com/trader-ann...obyclinic.html

Standard STI 8 heads
Standard cams
Solaris ecu
GT 30R billet turbo
E85 fuel

Hope the above helps,
Thanks for your interest.

Cheers

Kev
The Gaffer is offline
Old 07 November 2009, 10:51 AM
  #14
The Gaffer
Former Sponsor

Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by TH3_5T1G View Post
Still no testing of the SC54 on a 2.0ltr?

Hi,
to be fair I think it would be very laggy and not worth doing, we are about to test the SC 46 Billet, which I feel will be a far better candidate for you, as soon as we have results we will post them up.

Cheers
Kev
The Gaffer is offline
Old 07 November 2009, 02:17 PM
  #15
TH3_5T1G
Scooby Regular
iTrader: (14)

TH3_5T1G's Avatar

Join Date: Jul 2009
Location: Somewhere halfway between heaven and hell, some call it earth!
Posts: 1,266
Likes: 0
Received 0 Likes on 0 Posts
Default

Great, thanks for the update
TH3_5T1G is offline
Old 07 November 2009, 03:41 PM
  #16
The Gaffer
Former Sponsor

Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi,
as promised yesterday ( Friday ) we have run our new SC 54 XTR billet turbo, fitted to our 22B.

Result





This is achieved on Shell V power, not race fuel just plain old pump gas


Boost and AFR showing power at the wheels.


Name:  SC54billetboostandAFR.jpg
Views: 0
Size:  85.1 KB

All this on a direct fit turbo, a true direct fit turbo, wonder what it will do on a 10% meth mix

Up date coming soon.

cheers
Kev
The Gaffer is offline
Old 07 November 2009, 03:46 PM
  #17
Granby
Supporting Member
iTrader: (5)

Granby's Avatar

Join Date: Feb 2004
Location: S E London........ 555 Wagon Sqn
Posts: 5,389
Likes: 0
Received 0 Likes on 0 Posts
Default

I know there isn't a exact answer but what % power increase would you expect with a 10% meth mix
Granby is offline
Old 07 November 2009, 04:04 PM
  #18
The Gaffer
Former Sponsor

Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi,
I hate to speculate but I expect we will see around 550 bhp, maybe 560 bhp thats done it now, just jinxed it

cheers
Kev
The Gaffer is offline
Old 07 November 2009, 05:50 PM
  #19
frayz
Essex Area Moderator
iTrader: (7)

frayz's Avatar

Join Date: Sep 2005
Location: "Engineering Perfection in Essex"
Posts: 19,928
Likes: 0
Received 0 Likes on 0 Posts
Default

Cheers for the info Kev.

Ive a 3076R going on my build. Impressive power concidering its on stock heads and cams.
frayz is offline
Old 07 November 2009, 07:26 PM
  #20
MartynJ
Scooby Regular

Join Date: Jan 2006
Location: Enginetuner Plymouth for 4wd RR Mapping Apexi Ecutek Alcatek Proper Garage More than just a laptop!
Posts: 2,625
Received 0 Likes on 0 Posts
Default

Originally Posted by The Gaffer View Post
Hi,
as promised yesterday ( Friday ) we have run our new SC 54 XTR billet turbo, fitted to our 22B.

Result





This is achieved on Shell V power, not race fuel just plain old pump gas


Boost and AFR showing power at the wheels.




All this on a direct fit turbo, a true direct fit turbo, wonder what it will do on a 10% meth mix

Up date coming soon.

cheers
Kev
Very nice figures guys.
Purely out of interest I will pop the dyno correction figures shown on the graph onto our dyno on Monday to see the overall correction factor. It may be interesting to apply the same corrections to all our graphs in future .
MartynJ is offline
Old 07 November 2009, 08:07 PM
  #21
SMA01 - black scoob
Scooby Regular

SMA01 - black scoob's Avatar

Join Date: Nov 2008
Posts: 187
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by MartynJ View Post
Very nice figures guys.
Purely out of interest I will pop the dyno correction figures shown on the graph onto our dyno on Monday to see the overall correction factor. It may be interesting to apply the same corrections to all our graphs in future .
be interesting to see the comparisons on a like for like basis martyn, be even better when you have something different to compare over the next few weeks

scott
SMA01 - black scoob is offline
Old 07 November 2009, 08:38 PM
  #22
Shaun
1st - ScoobySprint Final

Shaun's Avatar

Join Date: Mar 2000
Location: 5 beats 4 - RS3 Rulez!!!
Posts: 8,567
Likes: 0
Received 1 Like on 1 Post
Default

Impressive figures guys! Well done!

I best make sure we use high boost then, in the Spec C, for the 2010 ScoobySprint Championship!
Shaun is offline
Old 08 November 2009, 12:37 AM
  #23
Jolly Green Monster
ECU Specialist
iTrader: (4)

Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by MartynJ View Post
Very nice figures guys.
Purely out of interest I will pop the dyno correction figures shown on the graph onto our dyno on Monday to see the overall correction factor. It may be interesting to apply the same corrections to all our graphs in future .
I was annoyed the other week as I ran the same car on the same map at surrey rolling road and at scoobyclinic on different days and there was 0.4bhp difference on a car producing just over 500bhp.. disgraceful lol

Simon
Jolly Green Monster is offline
Old 08 November 2009, 01:21 AM
  #24
MartynJ
Scooby Regular

Join Date: Jan 2006
Location: Enginetuner Plymouth for 4wd RR Mapping Apexi Ecutek Alcatek Proper Garage More than just a laptop!
Posts: 2,625
Received 0 Likes on 0 Posts
Default

Originally Posted by Jolly Green Monster View Post
I was annoyed the other week as I ran the same car on the same map at surrey rolling road and at scoobyclinic on different days and there was 0.4bhp difference on a car producing just over 500bhp.. disgraceful lol

Simon
I don't doubt that for a second Simon, but when was the last time you saw a Barometric pressure reading of 978mb in this country ?
MartynJ is offline
Old 08 November 2009, 02:16 AM
  #25
pat
Scooby Regular

Join Date: Aug 1999
Posts: 679
Likes: 0
Received 0 Likes on 0 Posts
Default

when was the last time you saw a Barometric pressure reading of 978mb in this country
Errrr... last time we looked at the weather station, shortly before playing around with the map. Not all of us live at sea level Martyn...

Just as a sanity check I popped the post code into the Met Office weather database. It didn't have data for our exact location, closest was Nottingham Watnall and that read 992hPa at the time of the run. This site is 117m above mean sea level. According to Ordnance Survey the buildings at Scoobyclinic are 205m above mean sea level, some 88 metres higher.

Pressure altitude calculations suggest that an 88 metre difference would result in about 10.5hPa difference in station pressure, which would give a "verified" station pressure of 981.5hPa at Clinic today, compared to the weather station reading of 978, a difference of only 3.5hPa, and that doesn't take into account the fact that the verified reading was a few miles away, ie there could easily have been a 3.5hPa pressure gradient, but I'm happy enough to accept that as an instrumentation error, the basic accuracy of weather stations is not on par with the lab grade stuff the Met Office use.

Cheers,

Pat.
pat is offline
Old 08 November 2009, 10:25 AM
  #26
BIG FUD
Scooby Regular
iTrader: (84)

BIG FUD's Avatar

Join Date: Jan 2004
Location: In my own world..
Posts: 7,918
Likes: 0
Received 0 Likes on 0 Posts
Default

Pat is the man simple as.......
BIG FUD is offline
Old 08 November 2009, 11:26 AM
  #27
MartynJ
Scooby Regular

Join Date: Jan 2006
Location: Enginetuner Plymouth for 4wd RR Mapping Apexi Ecutek Alcatek Proper Garage More than just a laptop!
Posts: 2,625
Received 0 Likes on 0 Posts
Default

Originally Posted by pat View Post
Errrr... last time we looked at the weather station, shortly before playing around with the map. Not all of us live at sea level Martyn...

Just as a sanity check I popped the post code into the Met Office weather database. It didn't have data for our exact location, closest was Nottingham Watnall and that read 992hPa at the time of the run. This site is 117m above mean sea level. According to Ordnance Survey the buildings at Scoobyclinic are 205m above mean sea level, some 88 metres higher.

Pressure altitude calculations suggest that an 88 metre difference would result in about 10.5hPa difference in station pressure, which would give a "verified" station pressure of 981.5hPa at Clinic today, compared to the weather station reading of 978, a difference of only 3.5hPa, and that doesn't take into account the fact that the verified reading was a few miles away, ie there could easily have been a 3.5hPa pressure gradient, but I'm happy enough to accept that as an instrumentation error, the basic accuracy of weather stations is not on par with the lab grade stuff the Met Office use.

Cheers,

Pat.
992 was the reading stated on the met office, if you are MUCH higher above sea level than the reading for the surrounding areas, then I apologise .

Did you happen to note the overall correction factor stated on the dyno for the runs ? Not that it matters of course as anyone with a DD dyno can type in the numbers at the bottom of the graph and see it for themselves.
MartynJ is offline
Old 08 November 2009, 11:40 AM
  #28
Granby
Supporting Member
iTrader: (5)

Granby's Avatar

Join Date: Feb 2004
Location: S E London........ 555 Wagon Sqn
Posts: 5,389
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by BIG FUD View Post
Pat is the man simple as.......
He is............i just wish i could understand what he was explaining
Granby is offline
Old 08 November 2009, 11:47 AM
  #29
RA Dunk
Orange Club

RA Dunk's Avatar

Join Date: Aug 2005
Location: My turbo blows, air lots of it!!
Posts: 9,074
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Granby View Post
He is............i just wish i could understand what he was explaining
Same here, But hey it look's good
RA Dunk is offline
Old 08 November 2009, 03:40 PM
  #30
The Gaffer
Former Sponsor

Join Date: Jul 2003
Location: www.scoobyclinic.com
Posts: 1,411
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi,
as promised, meth mix

Seems I didnt jinx it


Name:  SC54Billetmethmix.jpg
Views: 0
Size:  86.1 KB


Boost and AFR showing power at the wheels


Name:  BoostAFR.jpg
Views: 0
Size:  84.5 KB


This was achieved on V power and a 10% meth mix, all at 205m above mean sea level,

Shall we try it on race gas,

Cheers
Kev
The Gaffer is offline

Thread Tools
Search this Thread
Quick Reply: scoobyclinics turbo's just got billet I mean better!


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
