Not sure how mine fitted then without modding pipes
all pipes beaded and all joiners stayed on



I don't think all the kits are the same, the earlier kits seem to have slightly different pipework. There ain't massive differences just a couple of angles and lengths have changed on the later ones.

I'm gonna have another play with it in the morning as some of the pictures that have been posted on this thread have given me ideas. I'll post my results! lol

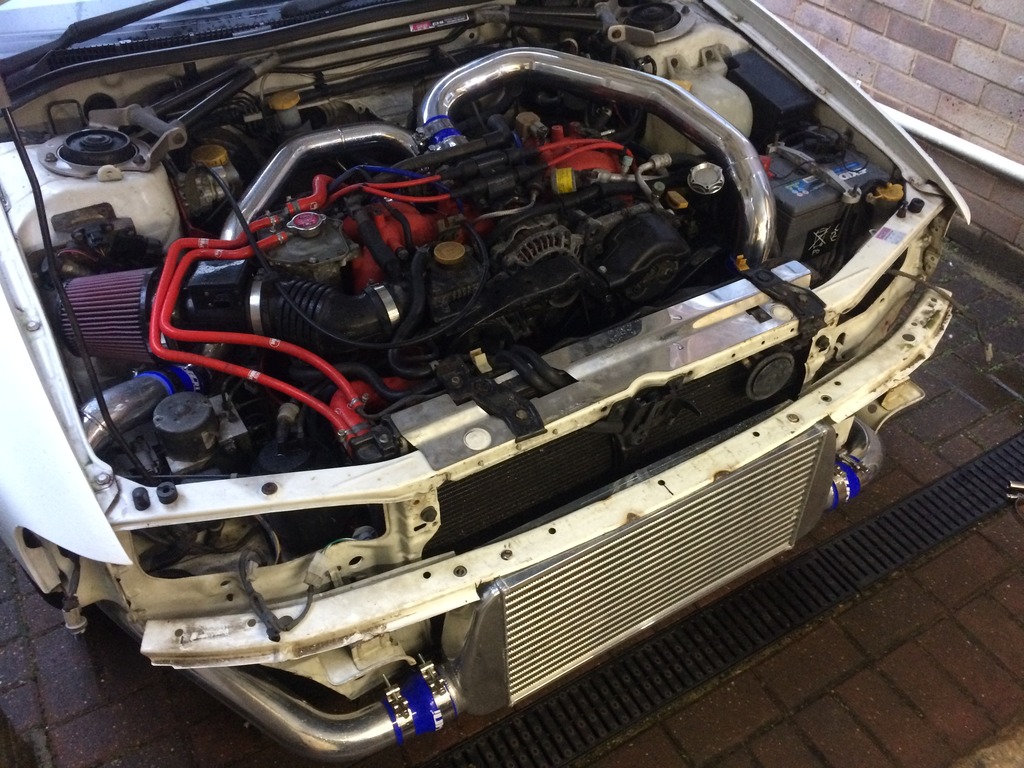

Post some pics of the pipework you have. You might have pipework for a newage car. They don't run the same way as a classic from memory.



I have a few pipes clamps and joiners left over should you need them



Right, I'm finally getting somewhere



Still not 100% happy with the fitment so still adjusting a few things but hopefully should have it sorted tomorrow morning

Cheers for your help and advice guys!!



Looks like youre making progress at last If you need more pics let me know.
Anyone can make one fit but its hard to make a neat job of it. Be very mindful of the long pipe touching the live battery terminal. I wrapped the pipe with silicone hose so the pipe does chafe the boot on the live.



Womens hair spray is supposed to be the trick for stopping the silicone pipes blowing off.



****ing hell that's a bit sketchy. I wouldn't fancy that pipe being that close to the battery terminal.



Id also put a clip on the FPR line.... Dont want that popping off!



Mine did this and melted the wire. Luckily it didnt set on fire or blow anything up! Scariest day off my life lol



The fpr is vacuum pressure only. The pipe is a tight fit. All the cheap after market cooler pipes are danger close to the battery terminals.



your choice, but if it pops off then you could be saying good bye engine.... for the sakeof a cable tie i wouldnt chance it



[QUOTE=edsel;11774531]The fpr is vacuum pressure only.
The fpr hose is connected to the manifold then lots pressure in it on boost



Ready to reverse inlet know



Yeah, I bet that wasn't much fun.



May I suggest?



Lol tbh it was my fault. No battery clamp, and no insulation around the pipe. Was bound to happen



As said earlier in the thread, the core itself is decent but the pipework is poor. I would imagine the pipework is the same found in the japspeed kits which is all ebay tat.



They changed the pipe work on later kits to snap ring clamps with '0' ring seal's
I know this of newage so I expect classic fitment would also have a upgrade ?
So on that basis I would say this is a early kit
Might be worth trying to source some updated pipes for your core as that fitment looks bad
