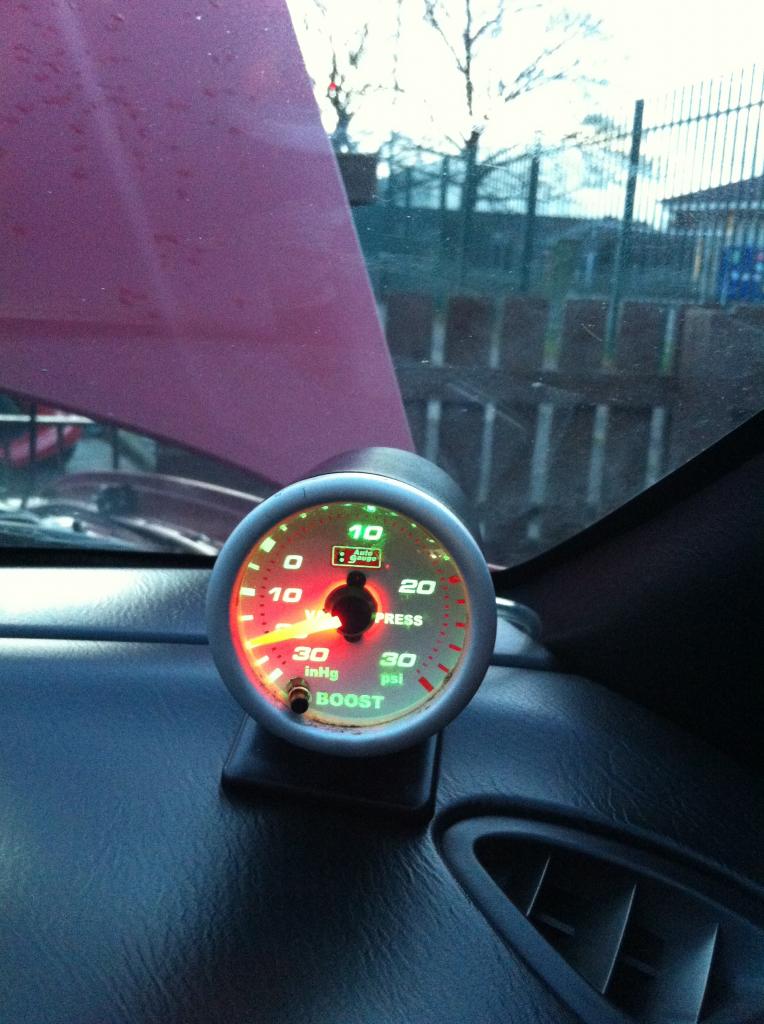

Hi all really sorry for this post as i know it will have been answered before ,i have just fitted a boost gauge today and carnt work it out ,when i start the car on tickover it sits here
i have not been out in car yet but when i rev it it goes down then up but not that far ,when does it go to 1 bar ,sorry for eing thick
