SuperPro Drop Link Issues
#1
Scooby Regular
Thread Starter
iTrader: (4)
Join Date: Sep 2007
Location: JDM MY97 Type R - 2.1 Stroker
Posts: 1,008
Likes: 0
Received 0 Likes
on
0 Posts
SuperPro Drop Link Issues
Just finished installing an exhaust system on the car, when doing the downpipe I noticed that the OSF SuperPro drop link has come adrift.
I took off the drop link and popped the bush back in, reinstalled and went for a short drive.
Checked again and found that it has popped out again!!!
The ARB is also a SuperPro item, it moves from side to side when one drop link is removed, I assume thats normal?
Any ideas?
I took off the drop link and popped the bush back in, reinstalled and went for a short drive.
Checked again and found that it has popped out again!!!
The ARB is also a SuperPro item, it moves from side to side when one drop link is removed, I assume thats normal?
Any ideas?
#3
Scooby Regular
iTrader: (31)
I'm not a fan of them links on a classic, fit the original style ones with ajustable arms and they is too much of a tilt on them link IMO on classics.
Too much tilt strain has caused it to pop off. Also as said above giant washer should be used on the outer bolts where exposed just like you have on top bolt.
Superpro do a oe type link with rose joint arms, that's what I have fitted, or whiteline ajustable
Too much tilt strain has caused it to pop off. Also as said above giant washer should be used on the outer bolts where exposed just like you have on top bolt.
Superpro do a oe type link with rose joint arms, that's what I have fitted, or whiteline ajustable
#7
Scooby Regular
Thread Starter
iTrader: (4)
Join Date: Sep 2007
Location: JDM MY97 Type R - 2.1 Stroker
Posts: 1,008
Likes: 0
Received 0 Likes
on
0 Posts
Cheers chaps, didn't know it was a bad idea to fit solid link to alloy arms.
Busta, are those WhiteLine drop links?
EDIT* Just seen you have SuperPro ones.
Busta, are those WhiteLine drop links?
EDIT* Just seen you have SuperPro ones.
Last edited by DoZZa; 03 October 2016 at 10:40 PM.
Trending Topics
#11
Scooby Regular
iTrader: (9)

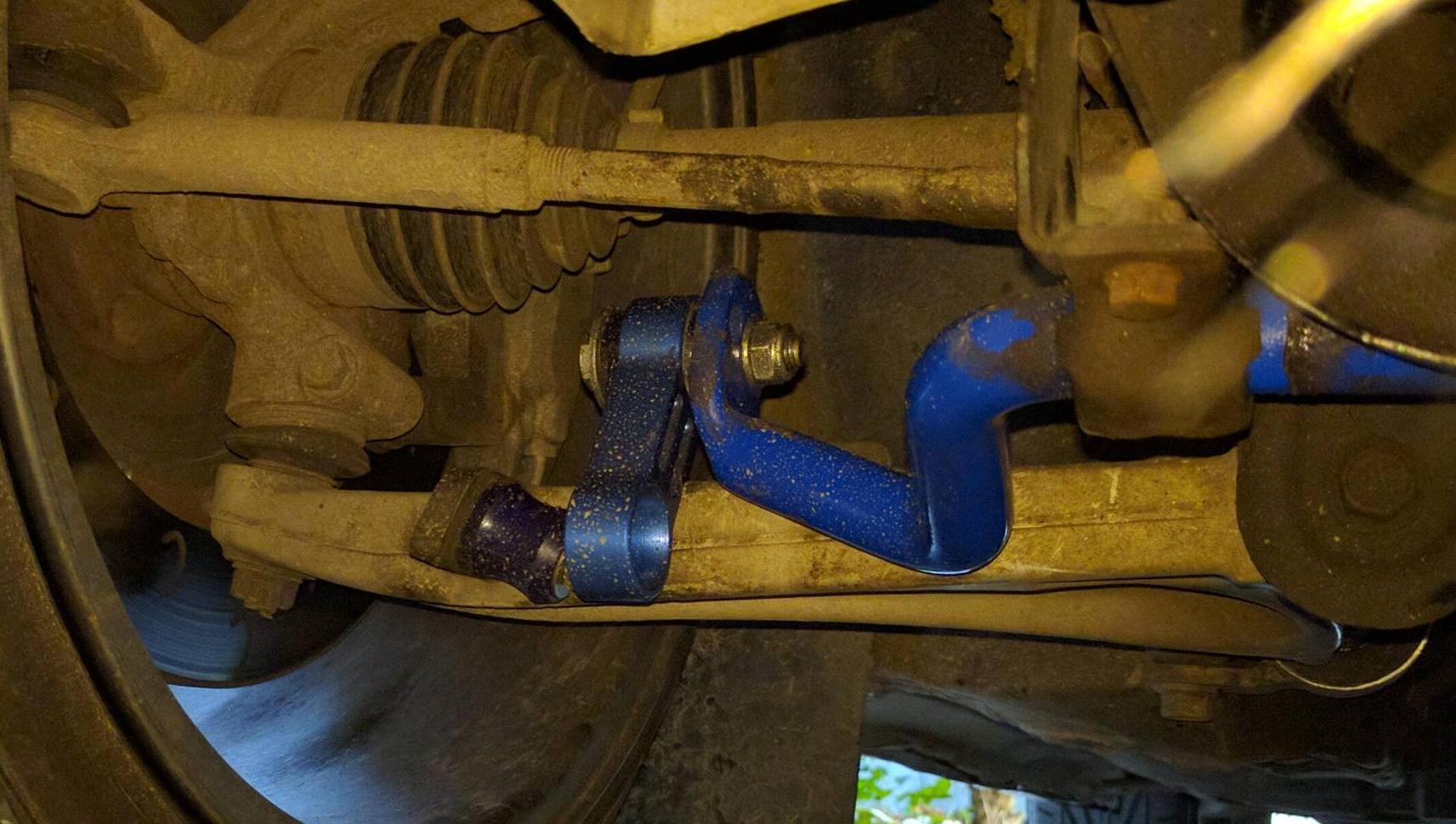

Droplinks look absolutely perfect given manufacturing tolerances of bar and assembly tolerances of the car. Look how the mounting tab on the control arm is pretty much parallel to the face of the droplink. Its about the same for the bar end to the droplink too. Properly mounted droplinks do not sit completely vertical, they are canted inwards a bit, as seen in the pic. Good to go there.
These are on my 330bhp Type R and are 5 years old and still good
These are on my 330bhp Type R and are 5 years old and still good
#12
Scooby Regular
iTrader: (6)
i disagree based on better lateral movement the ball/socket type allow for but thats just opinions
whiteline adjustable ones are not necessary either unless you are heavily lowered and need to adjust the height of rollbar to stop fouling
saying that...you can make your own for about £50 all in...heres ones i made only my old spec D for a bit of craic albeit i put them on rear but nowt stopping you doing a set for the front
http://i5.photobucket.com/albums/y18...psb296d75c.jpg
http://i5.photobucket.com/albums/y18...psda1b2ca2.jpg
http://i5.photobucket.com/albums/y18...ps835632ff.jpg
whiteline adjustable ones are not necessary either unless you are heavily lowered and need to adjust the height of rollbar to stop fouling
saying that...you can make your own for about £50 all in...heres ones i made only my old spec D for a bit of craic albeit i put them on rear but nowt stopping you doing a set for the front
http://i5.photobucket.com/albums/y18...psb296d75c.jpg
http://i5.photobucket.com/albums/y18...psda1b2ca2.jpg
http://i5.photobucket.com/albums/y18...ps835632ff.jpg
#13
Scooby Regular
iTrader: (31)
Droplinks look absolutely perfect given manufacturing tolerances of bar and assembly tolerances of the car. Look how the mounting tab on the control arm is pretty much parallel to the face of the droplink. Its about the same for the bar end to the droplink too. Properly mounted droplinks do not sit completely vertical, they are canted inwards a bit, as seen in the pic. Good to go there.
These are on my 330bhp Type R and are 5 years old and still good
These are on my 330bhp Type R and are 5 years old and still good
Correct me if im wrong or wrong person, I believe arnie was also on said thread.
Manufacturers of aftermarket parts will say anything to sell a product imo, may work, but doesn't look right imo.
They even sell these droplinks for alloy and steel arms and only difference is washers
#14
Scooby Regular
iTrader: (9)
i disagree based on better lateral movement the ball/socket type allow for but thats just opinions
whiteline adjustable ones are not necessary either unless you are heavily lowered and need to adjust the height of rollbar to stop fouling
saying that...you can make your own for about £50 all in...heres ones i made only my old spec D for a bit of craic albeit i put them on rear but nowt stopping you doing a set for the front
http://i5.photobucket.com/albums/y18...psb296d75c.jpg
http://i5.photobucket.com/albums/y18...psda1b2ca2.jpg
http://i5.photobucket.com/albums/y18...ps835632ff.jpg
whiteline adjustable ones are not necessary either unless you are heavily lowered and need to adjust the height of rollbar to stop fouling
saying that...you can make your own for about £50 all in...heres ones i made only my old spec D for a bit of craic albeit i put them on rear but nowt stopping you doing a set for the front
http://i5.photobucket.com/albums/y18...psb296d75c.jpg
http://i5.photobucket.com/albums/y18...psda1b2ca2.jpg
http://i5.photobucket.com/albums/y18...ps835632ff.jpg
Did they hold up ok?
#15
Scooby Regular
iTrader: (9)
Im pretty sure you posted/created a thread of something simlar couple of years back and i think you also agreed with what im saying, you posted a picture of 3 dropliinks side by side showing how much strain on each droplink had.
Correct me if im wrong or wrong person, I believe arnie was also on said thread.
Manufacturers of aftermarket parts will say anything to sell a product imo, may work, but doesn't look right imo.
They even sell these droplinks for alloy and steel arms and only difference is washers
Correct me if im wrong or wrong person, I believe arnie was also on said thread.
Manufacturers of aftermarket parts will say anything to sell a product imo, may work, but doesn't look right imo.
They even sell these droplinks for alloy and steel arms and only difference is washers
#16
Scooby Regular
iTrader: (6)
held up for a year (daily driver) before i got a rattle in one. i assume water/dirt got in past the wee rubber dust seal - i reckon if you packed the dust seal with marine grade grease theyd hold up no bother, rose joints themselves are self lubricating.
come to think of it i used BMW e39 rear droplinks for the front as they are a fraction of the price but identically the same as STI fronts
come to think of it i used BMW e39 rear droplinks for the front as they are a fraction of the price but identically the same as STI fronts
