Battery and handbrake light

Thread Tools

Search this Thread

Old 15 April 2021, 08:53 PM
  #1
BrokenSpring
Scooby Regular
Thread Starter

BrokenSpring's Avatar

Join Date: Jun 2015
Location: Glossop
Posts: 75
Received 6 Likes on 5 Posts
Default Battery and handbrake light

Hello All

I have a weird issue. Most times i start the car i have the battery and handbrake lights flash on and off at me for the first few minutes of a drive. They eventually stop and stay off. On 2 occasions in the last 3 months they have just come on and stayed on till i switch the car off. Once off and i switch the car back on they stay off. They seem to flash on when i press the accelerator pedal sometimes but could be coincidence.

My battery is good and tested ok.

Only thing i have done is add a double din to the car.

Anyone have any intermittent issues with those lights or know what could be causing them to light up on starting?
And can anyone suggest a place to start tracking down the odd issue?
Old 15 April 2021, 11:27 PM
  #2
NOSSY_89
Scooby Regular

NOSSY_89's Avatar

Join Date: Oct 2011
Location: Birmingham
Posts: 2,910
Received 447 Likes on 371 Posts
Default

Sounds like an earthing issue, check the double din and the earths.
The following users liked this post:
Old 16 April 2021, 08:23 AM
  #3
BrokenSpring
Scooby Regular
Thread Starter

BrokenSpring's Avatar

Join Date: Jun 2015
Location: Glossop
Posts: 75
Received 6 Likes on 5 Posts
Default

Originally Posted by NOSSY_89
Sounds like an earthing issue, check the double din and the earths.
I moved the cage and earth wire from the og stereo to the double in so should be no prob in theory.
Hmm i will take the double din out and check all the cables.

Could it be anything with brakes or an earth somwhere elese?
Old 16 April 2021, 09:20 AM
  #4
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 7,558
Received 746 Likes on 619 Posts
Default

The parking brake warning light is also the brake fluid low level warning light.
It could also indicate poorly adjusted handbrake lever/cables not allowing the handbrake switch to fully open

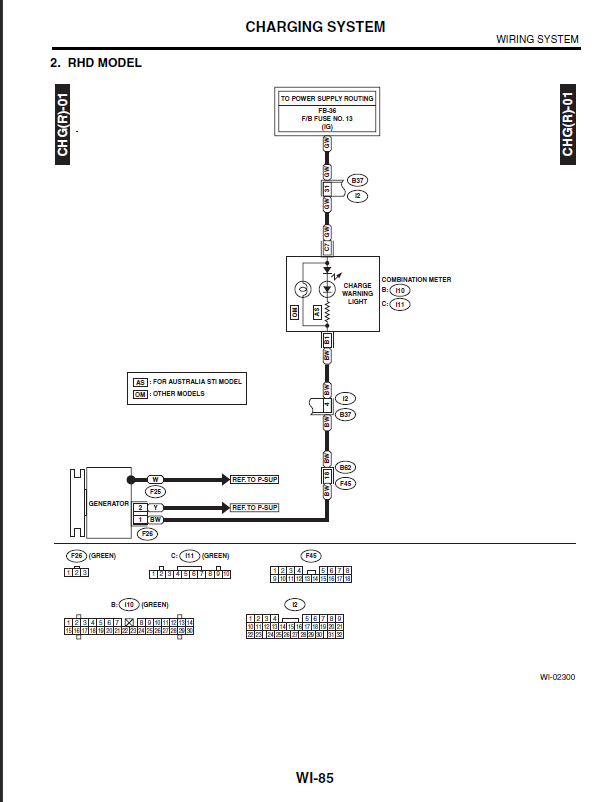

It could also be the reason for the battery charging light illuminating as both systems are inter connected.



Last edited by Don Clark; 16 April 2021 at 09:52 AM.
The following users liked this post:
Old 16 April 2021, 10:56 AM
  #5
NOSSY_89
Scooby Regular

NOSSY_89's Avatar

Join Date: Oct 2011
Location: Birmingham
Posts: 2,910
Received 447 Likes on 371 Posts
Default

Don to the rescue

Looks like I was wrong
