Assistance please
26 February 2005, 08:22 PM
#1
Scooby Regular
Thread Starter
Join Date: May 2002
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
Assistance please
Can someone plz tell me the colour of the two wires from the ecu for:
1.tacho/speed wire (for turbo timer inc shiftlight)
2.oygen sensor wire(for afr gauge)
Car is a Wrx Sti v4 type R
Have asked the question many times and done a search but no1 seems to no
1.tacho/speed wire (for turbo timer inc shiftlight)
2.oygen sensor wire(for afr gauge)
Car is a Wrx Sti v4 type R
Have asked the question many times and done a search but no1 seems to no
27 February 2005, 08:24 PM
#3
Scooby Regular
Join Date: Apr 2002
Location: Bournemouth - 5x Ex Impreza owner. 997 GT3 CS.
Posts: 7,333
Likes: 0
Received 0 Likes
on
0 Posts
Cant tell you colours but....
1) Not sure as there are 2 places you can get that from. Would suspect Pin 4 on plug B135
2) Pin 5 on plug B136 for O2 reading
Hope that helps.
MB
1) Not sure as there are 2 places you can get that from. Would suspect Pin 4 on plug B135
2) Pin 5 on plug B136 for O2 reading
Hope that helps.
MB
Last edited by Dark Blue Mark; 27 February 2005 at 08:31 PM.
27 February 2005, 09:11 PM
#5
Scooby Regular
Join Date: Jan 2003
Location: Isle of Man
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
This was my reply to your previous request, thought I would re post as pics may help.

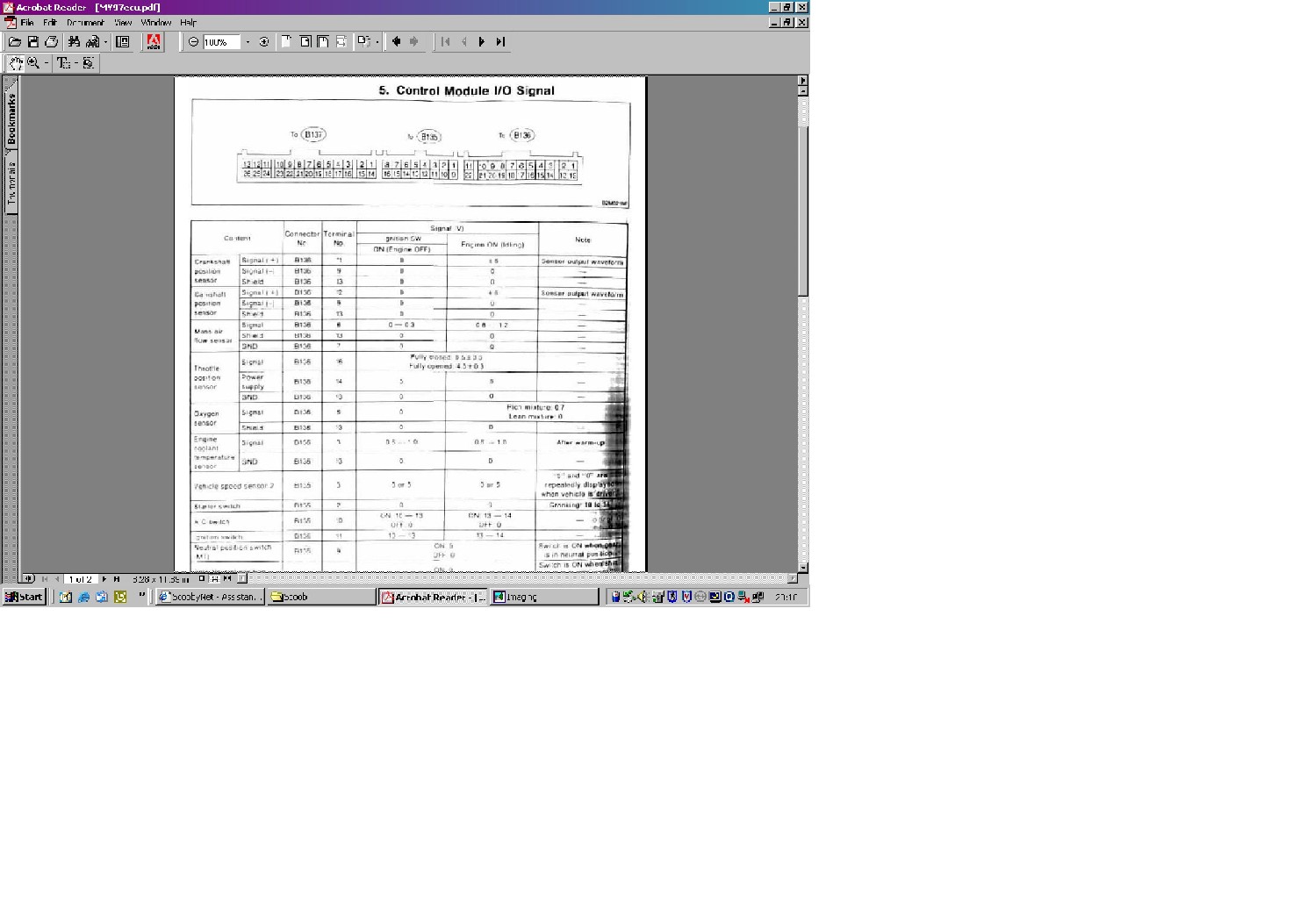

Here's a Pin Out of the ECU with Oxygen & RPM marked.
http://img.photobucket.com/albums/v9...ECUPinout2.jpg

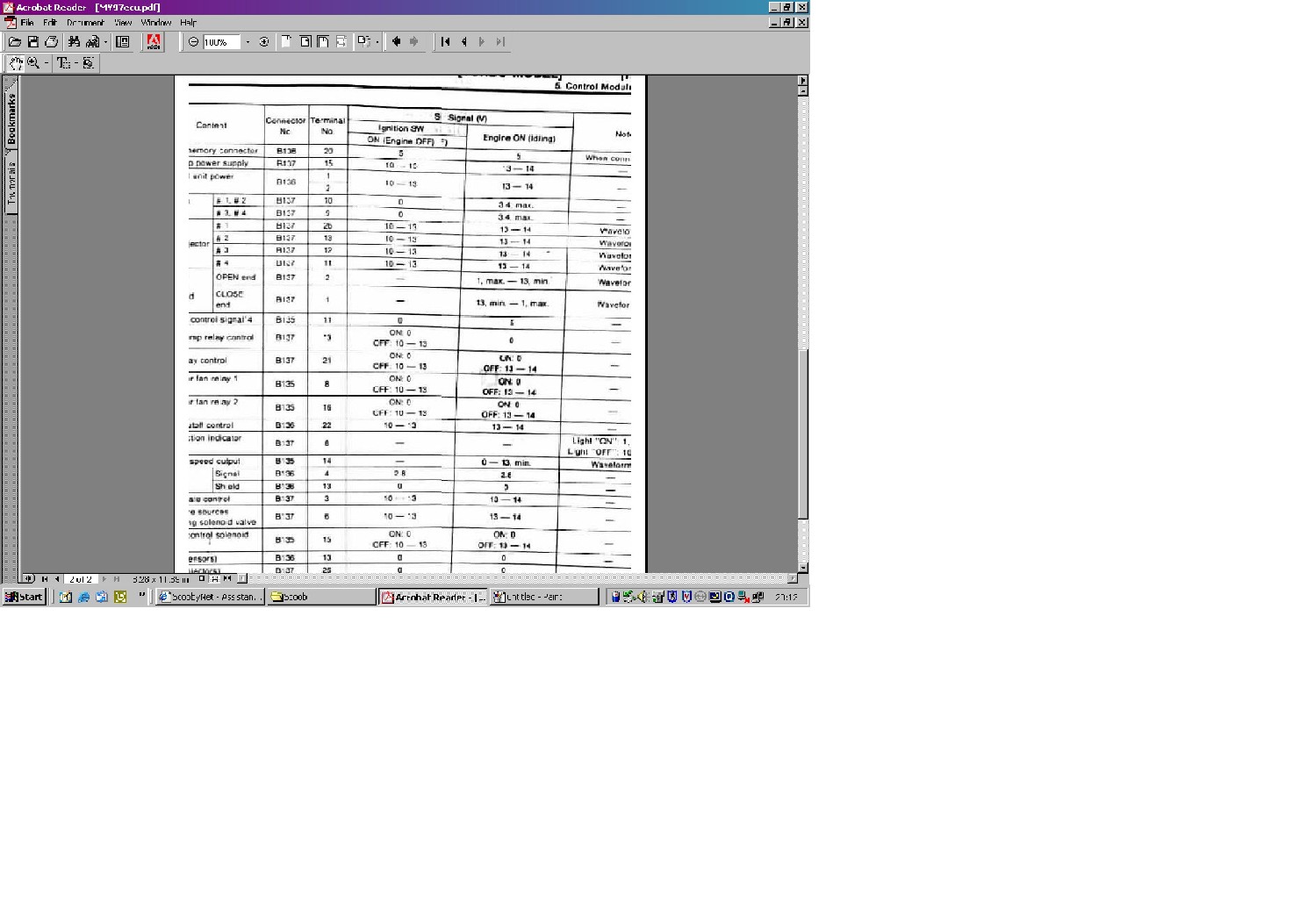

Oxygen is blue with silver dots & RPM I think, going by picture below off my V4 Type R, is blue with green stripe.
http://img.photobucket.com/albums/v9...CUPinOuts1.jpg
Typical photobucket is down, well it might help when it comes back up.
Here's a Pin Out of the ECU with Oxygen & RPM marked.
http://img.photobucket.com/albums/v9...ECUPinout2.jpg
Oxygen is blue with silver dots & RPM I think, going by picture below off my V4 Type R, is blue with green stripe.
http://img.photobucket.com/albums/v9...CUPinOuts1.jpg
Typical photobucket is down, well it might help when it comes back up.
Last edited by Dave.K; 27 February 2005 at 10:35 PM.
27 February 2005, 09:41 PM
#6
Scooby Regular
Thread Starter
Join Date: May 2002
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dave.K
This was my reply to your previous request, thought I would re post as pics may help.
Here's a Pin Out of the ECU with Oxygen & RPM marked.
http://img.photobucket.com/albums/v.../ECUPinout2.jpg
Oxygen is blue with silver dots & RPM I think, going by picture below off my V4 Type R, is blue with green stripe.
http://img.photobucket.com/albums/v...ECUPinOuts1.jpg
Typical photobucket is down, well it might help when it comes back up.
Here's a Pin Out of the ECU with Oxygen & RPM marked.
http://img.photobucket.com/albums/v.../ECUPinout2.jpg
Oxygen is blue with silver dots & RPM I think, going by picture below off my V4 Type R, is blue with green stripe.
http://img.photobucket.com/albums/v...ECUPinOuts1.jpg
Typical photobucket is down, well it might help when it comes back up.
Cheers m8,Photobucket seems to be down@ the mo
Will check pic when back online. Thanx again for help
