Knocklink display location
I'm gonna be getting a knocklink fitted to my UK MY97 Scooby - the pre-face lift dash version.
Can anyone suggest a good location to fit the display? It's not exactly the most attractive piece of kit, and it obviously needs to be in an easily visible place. I'm thinking on top of the steering column, but fitting it neatly might be an issue.
Can anyone suggest a good location to fit the display? It's not exactly the most attractive piece of kit, and it obviously needs to be in an easily visible place. I'm thinking on top of the steering column, but fitting it neatly might be an issue.
28 January 2005, 11:05 AM
#2
Twatful
Join Date: Apr 2003
Location: Grew up and don't drive Scoobs anymore!
Posts: 9,050
Likes: 0
Received 0 Likes
on
0 Posts
The sticky pad supplied is not that sticky
I bought some adhesive velcro, heated the dash with a hairdry and used this to stick my KL on.
It also means its easily removed due to the velcro
You can see it through the steering wheel
I bought some adhesive velcro, heated the dash with a hairdry and used this to stick my KL on.
It also means its easily removed due to the velcro
You can see it through the steering wheel
28 January 2005, 11:27 AM
#5
Scooby Regular
Join Date: Nov 2002
Location: Birmingham
Posts: 3,282
Likes: 0
Received 0 Likes
on
0 Posts
A few ideas here:-
http://bbs.scoobynet.co.uk/showthrea...ight=knocklink
I'll be mounting mine above the tacho, hidden in the cowl.
http://bbs.scoobynet.co.uk/showthrea...ight=knocklink
I'll be mounting mine above the tacho, hidden in the cowl.
28 January 2005, 12:48 PM
#6
Scooby Regular
Join Date: Jun 2003
Posts: 461
Likes: 0
Received 0 Likes
on
0 Posts
I re-worked mine and put the LEDs on long wires, then drilled holes and fitted them into my A-pillar boost gauge pod, between the edge of the gauge and the pillar. The actual box is behind the dash. This avoids having the ugly Knocklink box on display either obscuring your instuments or blocking and air vent, and it gets the lights at a good height to catch your eye whilst driving. I've done the same thing to the Lambda link but mounted the LEDs in the bottom left corner of the binnacle, just below the temp gauge.
28 January 2005, 05:45 PM
#7
Scooby Regular
Join Date: May 2002
Location: Taunton
Posts: 1,178
Likes: 0
Received 0 Likes
on
0 Posts
I mounted mine in a very easy, and yet easy-to-see and not too ugly way. Basically it's in the dash, underneath the speedo, with only the led's visible. Doing it like this meant that absolutely no modification was required to the knocklink apart from removing the case.
The down side is that the row of lights are lined up towards you (with greens at back and red at front) and this is not ideal to see how many greens/oranges light up.
It was easy though and is very easy to see while driving hard. I will send a picture but I don't have my car at the moment.
The down side is that the row of lights are lined up towards you (with greens at back and red at front) and this is not ideal to see how many greens/oranges light up.
It was easy though and is very easy to see while driving hard. I will send a picture but I don't have my car at the moment.
Trending Topics
28 January 2005, 08:53 PM
#11
Scooby Regular
Join Date: Jan 2003
Location: Isle of Man
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
How about putting it in a A-pillar pod like this.
http://img.photobucket.com/albums/v9...AFRInstall.jpg
http://img.photobucket.com/albums/v9.../KLInstall.jpg
http://img.photobucket.com/albums/v9...AFRInstall.jpg
http://img.photobucket.com/albums/v9.../KLInstall.jpg
28 January 2005, 09:01 PM
#13
Scooby Regular
Join Date: Nov 2002
Location: Birmingham
Posts: 3,282
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dave.K
How about putting it in a A-pillar pod like this.
http://img.photobucket.com/albums/v9...AFRInstall.jpg
http://img.photobucket.com/albums/v9.../KLInstall.jpg
http://img.photobucket.com/albums/v9...AFRInstall.jpg
http://img.photobucket.com/albums/v9.../KLInstall.jpg
28 January 2005, 09:12 PM
#14
Scooby Regular
Join Date: Jan 2003
Location: Isle of Skye
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
28 January 2005, 09:14 PM
#15
I've put mine in the cowl, directly in front of my eyes.......above the speedo (UK Car)....rev counter in the Sti's.
Wires were long enough and all I had to do was remove the cowl, open up the Knocklink, use the box as a drilling guide, drill correct sized holes in the cowl, push the LED's through the holes (nice neat fit) and leave the box off the Knocklink. Refitted the cowl and everything is lush!!
It's directly in my line of sight, but unobtrusive.
I actually damaged one of the LED's whilst removing the innards from the Knocklink box, as I'd used some glue for the previous mounting and it had stuck the LED in place. Not too worried, as it is the one before the big warning one, so if I get activity approaching that, I've already backed off!!
Marty
Wires were long enough and all I had to do was remove the cowl, open up the Knocklink, use the box as a drilling guide, drill correct sized holes in the cowl, push the LED's through the holes (nice neat fit) and leave the box off the Knocklink. Refitted the cowl and everything is lush!!
It's directly in my line of sight, but unobtrusive.
I actually damaged one of the LED's whilst removing the innards from the Knocklink box, as I'd used some glue for the previous mounting and it had stuck the LED in place. Not too worried, as it is the one before the big warning one, so if I get activity approaching that, I've already backed off!!
Marty
28 January 2005, 09:35 PM
#16
Twatful
Join Date: Apr 2003
Location: Grew up and don't drive Scoobs anymore!
Posts: 9,050
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dark Blue Mark
Nice head unit Richie
MB
MB
Also now use an ipod with an itrip so bye bye cds
Last edited by richiewong; 28 January 2005 at 10:55 PM.
29 January 2005, 02:54 PM
#18
Scooby Regular
iTrader: (2)
Join Date: Apr 2000
Location: Bristol-ish
Posts: 2,085
Likes: 0
Received 0 Likes
on
0 Posts
On the pre-facelift dash there is a ridge near the screen.
I've velcro'd my knocklink to this, along with afr and boost gauges.
This keeps everything nicely in the line of sight, although possibly looks a bit more DIY than some efforts!
I've velcro'd my knocklink to this, along with afr and boost gauges.
This keeps everything nicely in the line of sight, although possibly looks a bit more DIY than some efforts!
29 January 2005, 03:20 PM
#19
Scooby Regular
Join Date: Jun 2003
Location: London SW1
Posts: 169
Likes: 0
Received 0 Likes
on
0 Posts
29 January 2005, 04:49 PM
#20

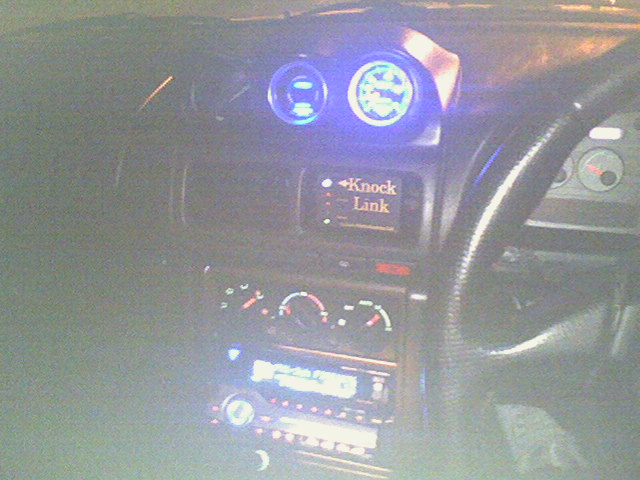

http://img.photobucket.com/albums/v4.../Scooby002.jpg
Just need somewhere for the lambdalink know lol
Just need somewhere for the lambdalink know lol
02 February 2005, 11:50 PM
#24
Do you guys not need air then!
All seem to block off the air inlet vents, ( I would say from air con or climate cotrol ... but not all of you have it! ).
Mine sits on the lower part of the double din unit on the cente console...
All seem to block off the air inlet vents, ( I would say from air con or climate cotrol ... but not all of you have it! ).
Mine sits on the lower part of the double din unit on the cente console...
03 February 2005, 08:42 AM
#26
Former Sponsor
iTrader: (4)
Join Date: Jan 2001
Location: ECU Mapping - www.JollyGreenMonster.co.uk
Posts: 16,548
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by Fuzz
There is also the factory fitted option of the large pane of glass either side of your head that will over power any poxy vents.
Andy
Andy
air con weighs too much..
