Hi,

Still waiting for me pasty.

I am sure in these sub zero temps one would survive its journey north.



Cheers

Kev



jesus!!!!. no wonder the courier hasnt delivered my ECU



2.1 enginetuner



Hi,

I see Martyns turned up the wick for you.

I know you were happy with the engine before but you must be well happy now.

Nice one fella's.

cheers

Kev



Nice graph great torque curve!!



Hi Daz,

your Graphs look pretty good to.

The 30 Billet is a belter, spool is amazing, as for the 33 Billet we have one sat on a 2.33 ready for testing but due to the snow we have not yet managed to get the car round to the dyno.

We also have some of the new Garratt Billets on the way for testing back to back, we expect bigger top end figures but spool may be sacrificed to achieve this, we will wait and see.

Cheers
Kev



Liking the look of that 2.1
I don't know how to read graphs but trying to learn but does the 2.1 graph above show peak hp at around 4000 rpm?



Or is it 5500 rpm
Can't see very well



The power curve is the one sitting at the right-most side and which doesn't tail off as much. (Torque curves are the ones which always plateau earlier, and for longer, over a greater portion of the rev range).

Peak power by 5700 (held across 5700-5900rpm, pretty much)



i am still having a problem holding boost 1.8 dropping to 1.5 should have more to come



martyn book me in for a sc46 billet get alan to send me the costs asap.

mark with the blue classic by the way...



Will do Mark !
KEV, get your order book out



Many thanks!

What's the Full spec of this awesome 2.1 sc46 billet combo ?



2.1 cdb 800cc injecter simtec rcm headers rcm 3" exhaust rcm oil catch tank hks fillter zero sport induckion pipe maff less cdf pulleys hks bv sc46 turbo walbro 255 feeding swirl pot and 044 bosch pump v3 sti heads on 6 speed box



might have to get some rcm headers on there then...

im on standard heads too... martyn- is this going to make a difference in spool?

also what clutch you running mate?



I would upgrade the headers too Mark, heads will be fine if you aren't after every last ounce of power.
I used the Helix 6 puck paddle clutch for 18 months and much abuse.
I would also recommend an upgraded intake hose for your Mark getting rid of the stock plastic version and replacing it with an SFS silicone one. From memory your air filter looks a little restrictive too, so it may be worthwhile swapping that for something better.
Give me a call today and we will discuss it and beat the VAT increase.

Martyn



yeh quite a few bits that will need adressing I'll give you a call around lunchtime.



Hi,

On site is a customers spec C, which is currently fitted with a Hydra ecu, its new owner already has a syvecs ecu taken from his previous car, opportunity for a back to back test.

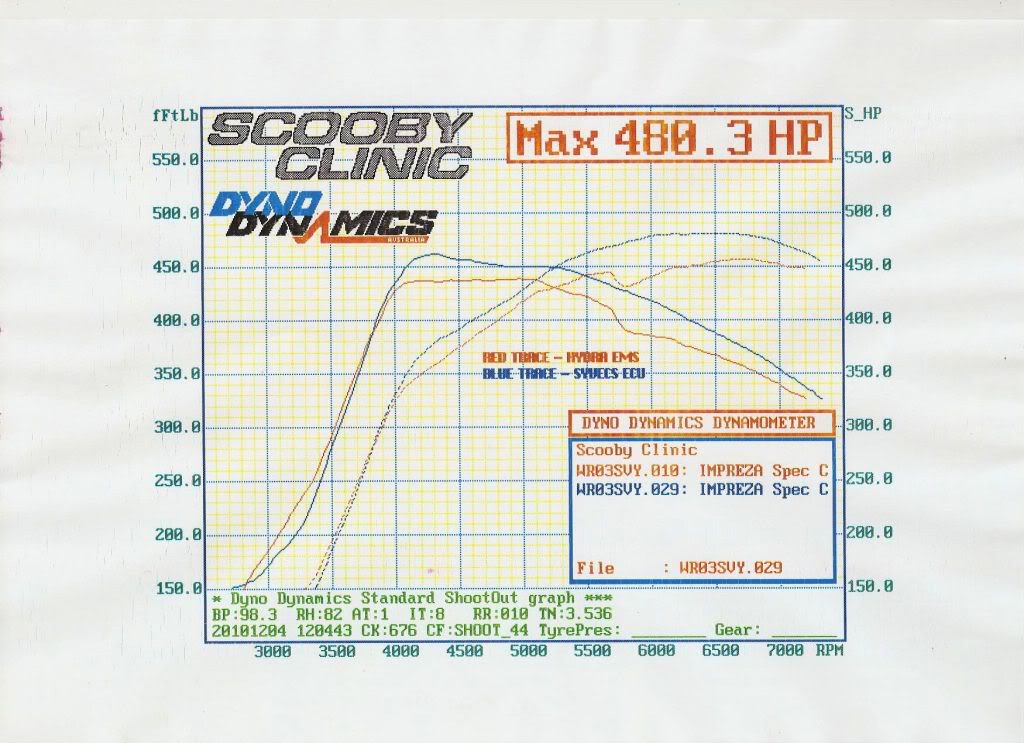

We decided to firstly run the car on both low and high boost settings with the Hydra then swap it out for the Syvecs and go again, heres the low boost graph.

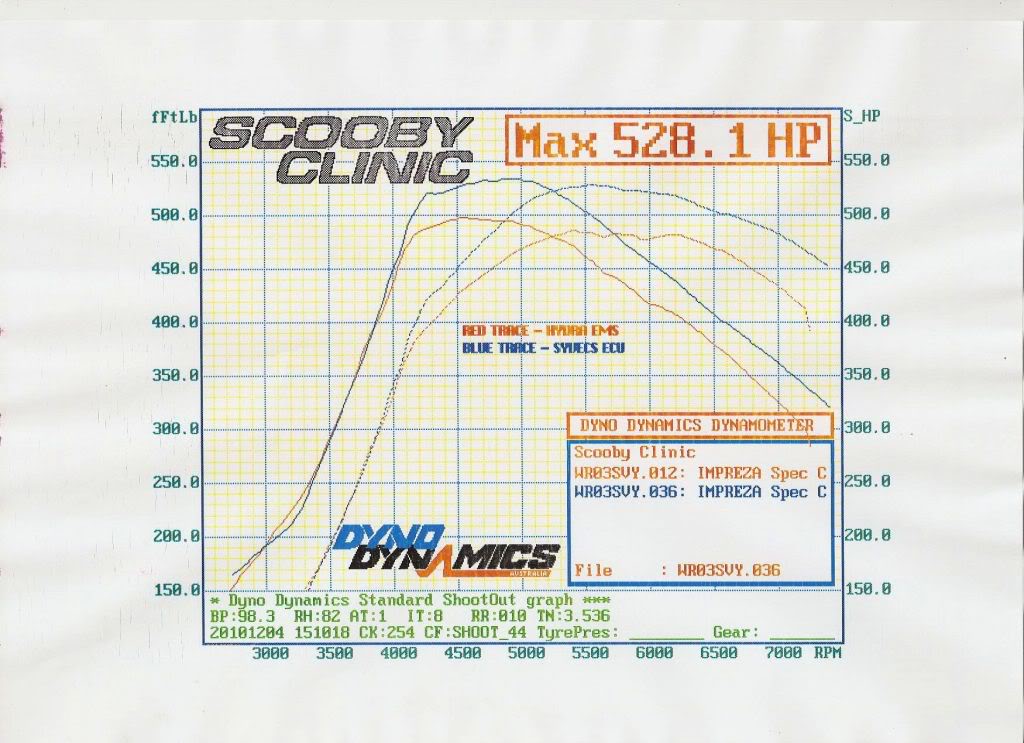

Red trace the hydra, blue trace the Syvecs running identical boost, heres the high boost traces.





Again red trace the hydra and blue trace the syvecs, note an increase of 50 BHP and 30 ftlbs of torque, this shows just how good the syvecs is.



Cheers
Kev



Kev,
I wonder who used to own that Spec C then!

I would suggest something has gone amiss since I owned it as I recorded over 500bhp on road fuel on numerous occasions an various RR's on the high boost setting. It even achieved 528bhp on Area52's Dyno Dynamics RR last October...... the map had not been changed since then for high boost.

Regardless.... power curves look great on the Syvecs and is another rr printout showing even on older turbo technology that Spec C delivers the goods for a standard fit AET GT30 core turbo!

Would be good to see a comparison with one of your Billet's Kev, on this engine set-up.



There is a thread on 22B where this back to back would be of interest Kev Is fuel just VP ?

Is this Shauns old car btw ?



LOL Shaun you were quick there



Hi Shaun,

the car has not been touched, simply filled up with fresh V power and ran on the dyno as it was, then we changed the ecu.

We will swap out the turbo for one of our billets later this week and see what happens.

cheers

Kev



Which Billet Kev, 54 ?



Kev,
I was not suggesting you changed anything (in case anyone thinks that's what I meant). Does seem strange on the before figures though. Who cares... as long as the owner is happy.... which he should be!

I would be genuinely interested in the difference with a change of turbo..... the current AET (non Billet) matches your best (SC54?) on your Billet doesn't it? If your other Billet figures are anything to go by..... this set-up with one of your turbos may see another mega VPower high for a bolt on.



Hi Shaun,

I didnt think you were suggesting any changes had been made.

It really was a case of no customers due to snow and a car sat here waiting for an ecu swap, perfect opportunity for a bit of testing.

We will, later this week, do a back to back with the turbo, but to be fair its done well on the AET turbo as is, spools pretty good too.

cheers
Kev



No problem Kev..... I look forward to seeing the results on one of your Billets. Fingers crossed it does the business..... the owner will be over the moon regardless I suspect!

I loved that engine set-up.... it was / is a great car!!!!



Hi,

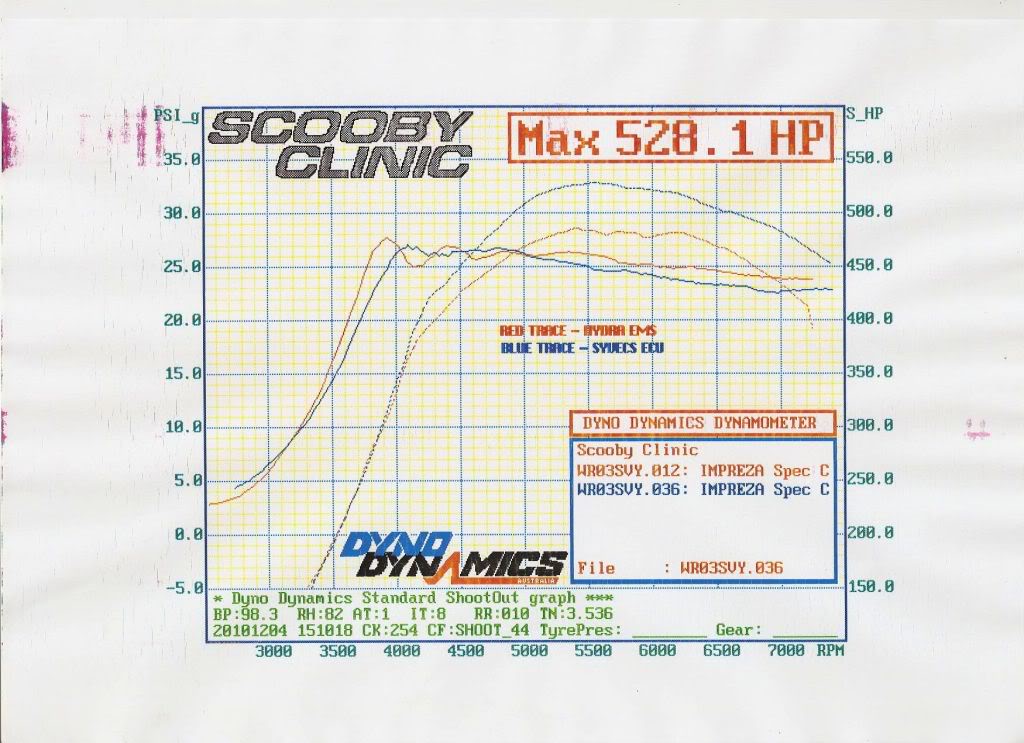

best put up the boost graphs before someone asks.

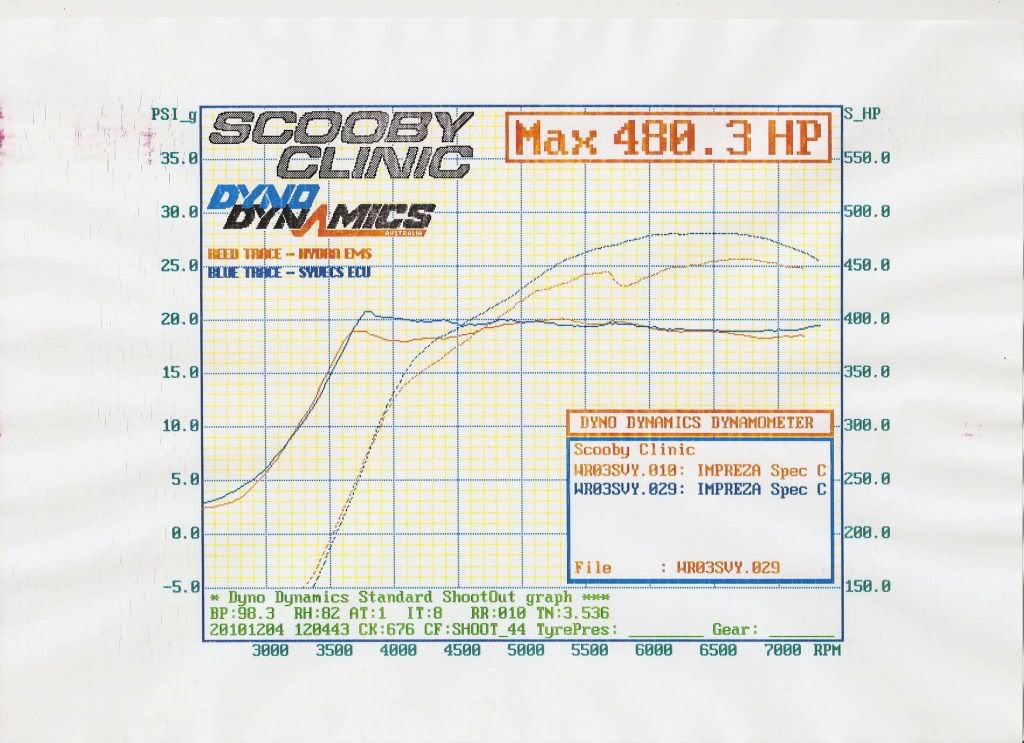

Boost and BHP low setting.





Red trace Hydra, blue trace syvecs.





One hydra up for offers.

cheers
Kev



Seeing those graphs Shaun makes me realise just how quickly my Billet 35R is spooling.
I think it may be time to sell the 35R Billet and get a 30 billett. I'm sure I could achieve the same power but further improve spool. It will make an awesome sprint car thats for sure.



That turbo does not want to hold boost does it, Impressive though on relatively low boost. Roll on a billet



Hi,

I know the ecu test is not what this thread is about but it will end up with another turbo test.

Shaun has pointed out that the Spec "C" has switchable maps, we knew this and assumed the low octain map was for "V" power and the high octain map for "race gas" as highlighted below on the vehicles spec sheet.





The saying goes "assumption is the mother of all f**k ups"

Crack out the champers, the re-hydration worked, graphs to follow.

cheers
Kev
