Well got me car back from clinic and cant say thank you enough to kev and the lads,

06 hawkeye, sc46 on a forged 2.5, wrx heads, sti inlet manifold, perrin intake pipe, perrin in wing induction kit, walbrough 400 fuel pump, 740 injectors, scr race decat exhaust and sti top mount.

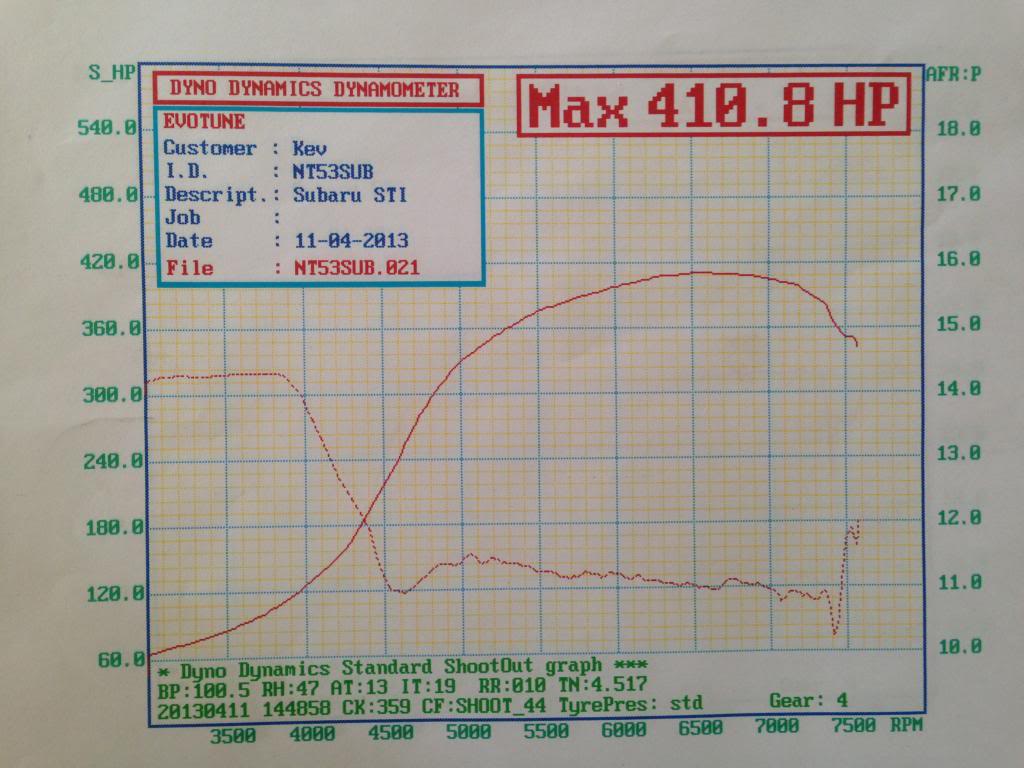

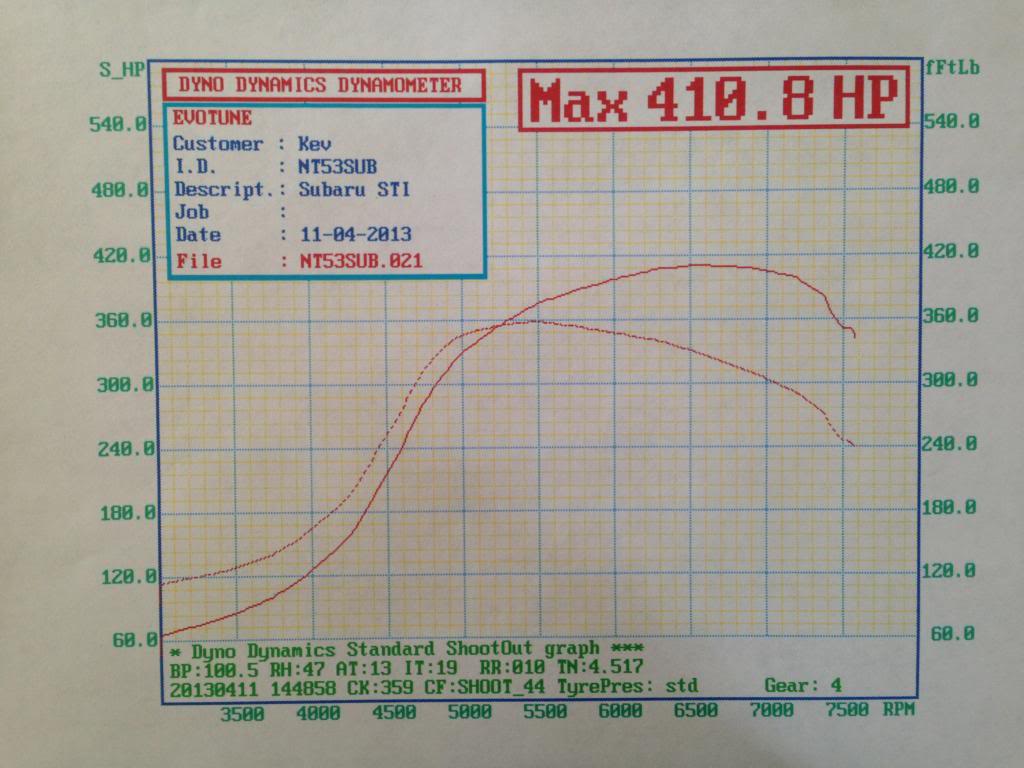

Was final figure due to maxing out the top mount



Get a chevron top mount add another 100bhp

Sc turbo is the way forward



:l ol1:



You know you want one big man! Lol



Hi,

glad you are happy, goes extremely well on the road,

You contacted James regarding tickover, if you blip the throttle when coming to rest, just a little blip, not red line it will be fine, its an "issm" running a large powerfull turbo on an airflow based ecu.

Syvecs and a decent intercooler and 450 + BHP on tap.

cheers
Kev



Nice results there, kev can I ask why swap the ecu out for a syvecs ecu. I was under the impression the stock ecu was up to the job on Newage cars?

Also side not how much to fit a perrin fmic?



Hi,

the Syvecs runs speed density rather the the O/E air flow meter based engine management, hence Syvecs is superior on all counts.

Didn’t quite understand the Perrin question but I assume its a price to fit, if so the inter-cooler kit is £1150.00 and fitting is £300.00, and what a kit it is.

Cheers
Kev



I know they don't come much better than the syvecs but you can also run SD on the OEM Ecu with most of the aftermarket features as well.



Lets not start this argument again
About ecu and boost please !!
Next thing Shaun will be along arguing something or other



wrx9181 - you think I speak bollocks about the OEM ecu then?



..OHHHH NOOOO MICK WHAT YA DONE.



Well I think you do Shaun



I think its amazing what you can do with one these days,



What? Bollocks?

prodriverules,





Lol
Na Shaun just couldn't resist a dig lol



Awesome kev, thanks



Ah ok, i tightened up the DVand that seem to help a bit.

but oo kev, your such a tease,,,,,,


hahahahaha



just had my sc42 fitted and mapped,2.1 engine



Had mine mapped by Duncan at Racedynamix a week or so ago and couldn't recommend him enough
UK Blob STi with SC42 Billet, Deatschwerks injectors, AEM Intake, GT Spec2 headers and up pipe and FMIC

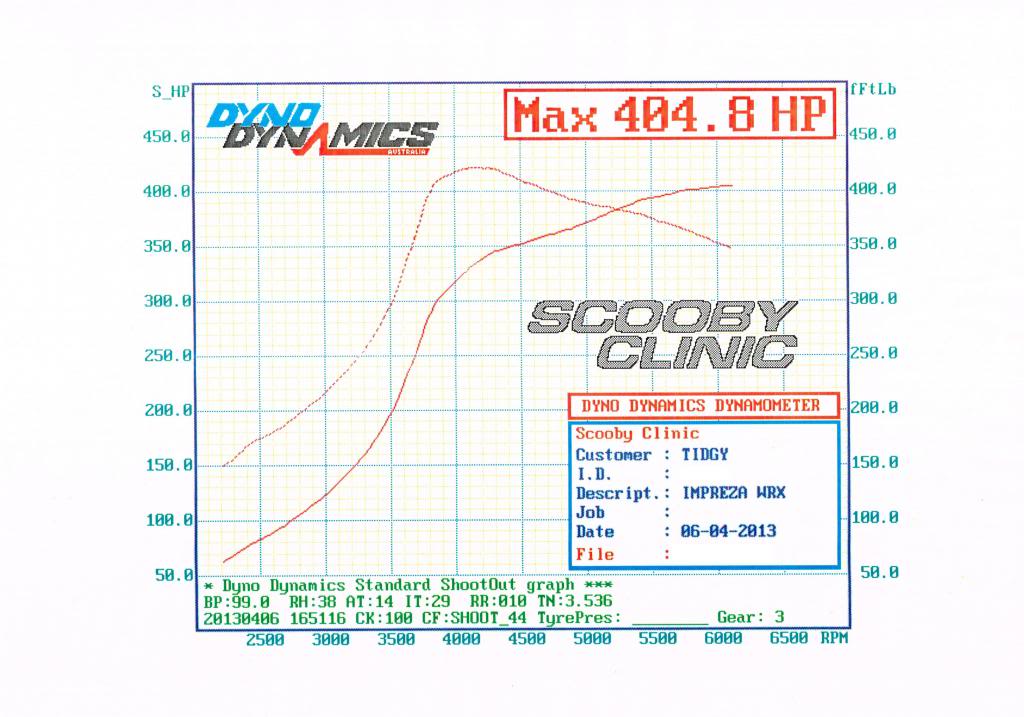

The above graph look extremely laggy for an sc42 tbo.can you post the fueling/boost graph please?



It does a bit, Is that peak torque of 360 lbft at 5.5k Rpm?

I realise it could behave different on the road though, Gaz.

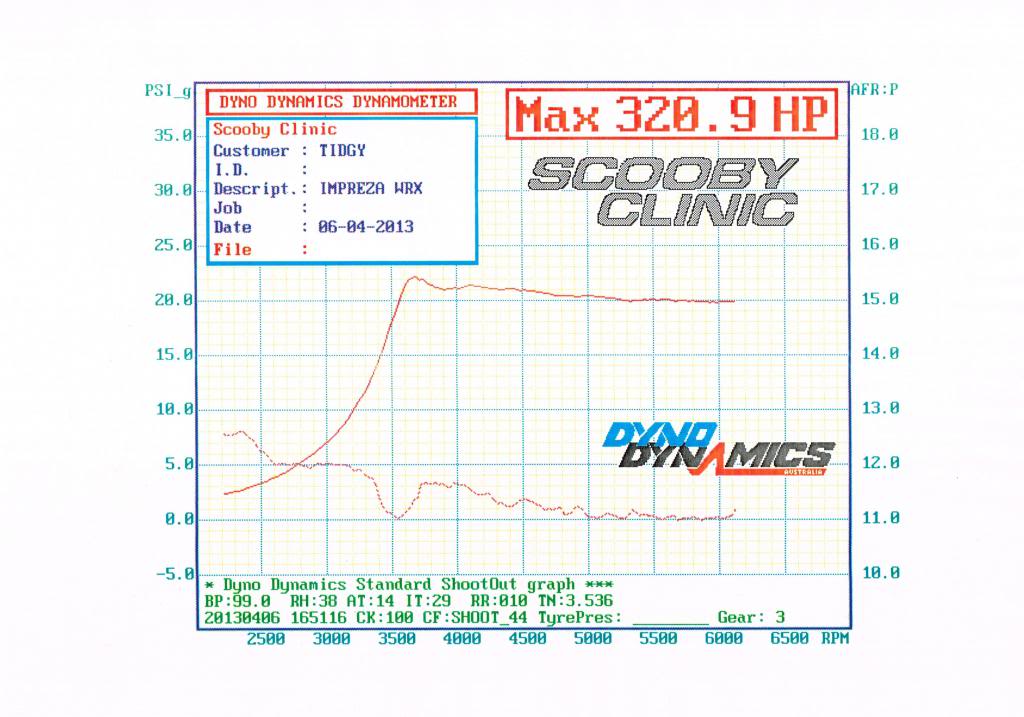

It feels good on the road. A little laggier than I'd have hoped but not bad. I have no idea what this graph means, but here it is

It is 360lb ft at 5500rpm



It does seem slow to spool as my SC54 billet hits 1 bar at 4750rpm on my 2.1 but as long as your happy how it drives that all that matters.



Kev
What psi as doesn't say on graph
Says hp?



Does look laggy but also possible the rpm doesnt match correctly.

Might be worth a dyno run somewhere else to check.



I've been thinking about a bigger turbo but don't want to affect the OEM spool so have held off buying one, To give you a comparison my VF36 peak torque is around 380lbft @ 3800rpm on a twinscroll spec-c, Keep looking at the SC42 TS but can't find any graphs for a standard bolt on upgrade with Top mount, airbox etc for a JDM Spec-C apart from immys but that was on a hatch.



WRX9181 - It is running 22psi of boost

JGM - What do you mean about the rpm not matching correctly?

I have a feeling that the turbo is being restricted slightly by the Turbo Inlet Pipe, I bought it from Eclipse Performance before I was aware of there workmanship, or lack of!



I've had to reinforce one or 2 of their hoses in the past, so I only fit Perrin inlet pipes now.
It does look a bit down on spool for an AVCS equipped car, are you sure the AVCS is working as a lack of it would explain that nicely ?



The wheel speed to rpm is set on the dyno, if its slightly out it will make it look more laggy
