It's the 4" tail pipes do it for me.



Patiently waiting now on milltek sportcat downpipe and cosworth system arriving



Picture request, can someone with a hatch please post a picture of there boot, I want to see if you have hooks on the sides to fit a rear cargo net as I cant seem to locate them on my car?



http://techinfo.subaru.com/proxy/634...f551sfg101.pdf
http://techinfo.subaru.com/proxy/634...f551sfg201.pdf



Finished off the mapping today ,, not sure of the torque but it made 506bhp so I'm well chuffed and it goes like stink now lol



Has anyone retro-fitted front fogs? I'm thinking of fitting a facelift bumper with the fogs in, which mine doesn't have, and was wondering if there is anything other than connecting the lamps and getting a new stalk that needs doing? I assume the relay is already in place? The ICP kit on ebay only shows the lamps and stalk.

To that end, anyone got a part number for the stalk?



Couple pics of my hatch trying some new shoes on.



Look goods. I think the colour works well with the blue. What width and offset are they?



Very nice :-)

Did you do the back lights yourself also?



Thanks Don, seems my car is missing the area to hook the bottom of the net onto if that makes sense, eaby she goes then!



If it fits the saloon and you're flogging it, let me know.



I've got the red and smoked ovetlays for sale on eBay.



It would appear that the "hooks" depend on whether you have a full size spare or the temporary space saver.




hook part number
Hook, 94072FG000MG



You can swap the clips over that are fixed to the net from the bottom to the top and use on the saloon, not perfect but works!



Thanks Don I have a space saver and not a full size rear and they are definately missing on my car, I also don't know or cant tell if they can be retrofitted into the panel if they werent originally there if that makes sense? Thanks for the part number, but could they be retrofitted, this is the net that is closest to the seat backs?



I don't see why not.

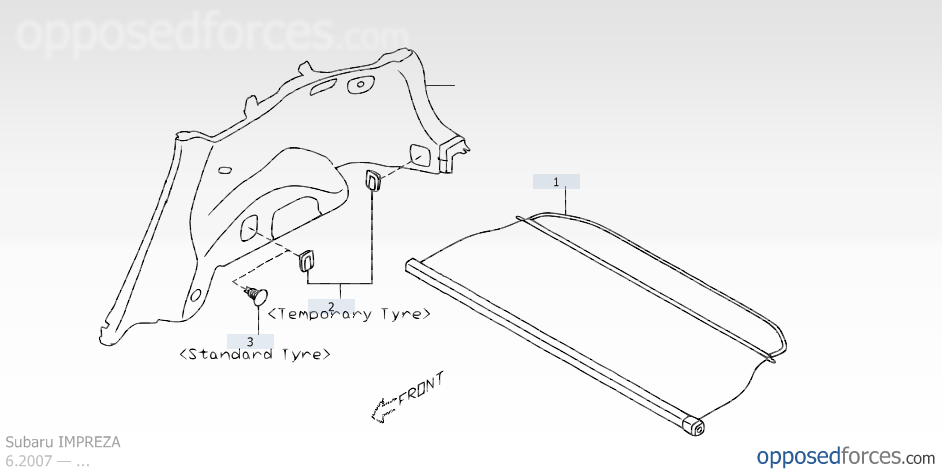

Instead of just the "firtree trim" clip (item3 on the diagram above) the "hook" sits in the recess and is probably held in place with a screw which expands the rear of the fitting to keep it in place.



Removal procedure in the workshop manual, states "bolts"




Without looking, there may be a captivated nut into which the firtree trim clip pushes or the hook assembly bolts into.


Current part numbers are:-

94072FG010MG - charcoal gray (MY08)
94072FG010JC - off black (MY09 onwards)


A couple of pictures of a broken one....... central cover reveals retaining screw



I'll bet it shifts! Is that without meth? What spec are you running?



Yeah mate it does go very well ,, yes without any meth as I'm not into mixing any fuels just whatever is in the pumps lol

Bit of the engine spec , full spec in my hatchback thread


Fully forged engine , wossner pistons , Carrillo rods , closed deck inserts , acl bearings , 2ltr sump and pick up , 14mm head studs , 12mm oil pump ,
Forced performance red turbo (none billet)
Forced performance 84mm inlet pipe
Forced performance turbo oil feed
TGV delete and air pump delete
HRC 340 fuel pump
Asnu 800cc injectors
GT spec 3 bolt headers coloured white
3" japspeed exhaust
Teg sport custom made front mount intercooler (sprayed with perrin logo)
RCM 80mm indutcion kit & custom 80mm maf housing
Classic 3 post boost solenoid
Perrin 4bar map sensor



2010 model wrx few thing in mind



Are they easy to fit?



Just looked at replacing my sidelights with LED ones and the workshop manual says I need to take the bumper off to remove the headlight assembly. That can't right can it

Does anyone have a quick and easy way to get at the sidelights?



Release the wheelarch liner at the front and ease it back so you can get your arm in to the back of the headlight. Then you should be able to feel your way to the side lamp holder, it's a bit fiddly but possible. Main problem is getting the LEDs in with the right polarity, I removed my bulbs both sides then turned on the sidelights so I could see when I'd got the lamps the right way round.



Advertised my hatch for sale!

https://www.scoobynet.com/subaru-444/1032151-2009-red-hatch-sti-441bhp.html



Took a short video of mine today so I can compare current exhaust which is just the Remus backbox to that off the full 3inch getting fitted his week



Has anyone got any pics of a dark grey hatch with Rota Grids? Trying to decide what colour wheels to buy!



Here you go mate these are bronze force drift on dark grey



My graph , 506/488



Looking good. Think it's between matt bronze and gunmetal at the moment.



yep.. watch this...
