Radiator fans not coming on properly
Oct 31, 2024 | 08:08 PM
Joined: Oct 2024
Posts: 12
Likes: 0
From: Damascus
Quote:
Originally Posted by
Don Clark
If it had a 3 plug ECU it would have been an H4SO without Onboard Diagnostics (ODBII) support
This is an old ECM, please send me a schematic for it. Thank you.
pls need pinout ecu
Nov 1, 2024 | 09:05 AM
Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
AFAIK the attached pin out applies
Nov 6, 2024 | 05:30 PM
Joined: Oct 2024
Posts: 12
Likes: 0
From: Damascus
Thx for help
Quote:
Originally Posted by
Don Clark
AFAIK the attached pin out applies
Please help I want a firmware bin for this ecm but my engine is 2.0 without oxygen sensors and egr I have throttle cable and not electric and immo off
Nov 6, 2024 | 06:41 PM
Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Quote:
Originally Posted by
Subaru2004
Please help I want a firmware bin for this ecm but my engine is 2.0 without oxygen sensors and egr I have throttle cable and not electric and immo off
You are unlikely to get it from anyone on this forum.

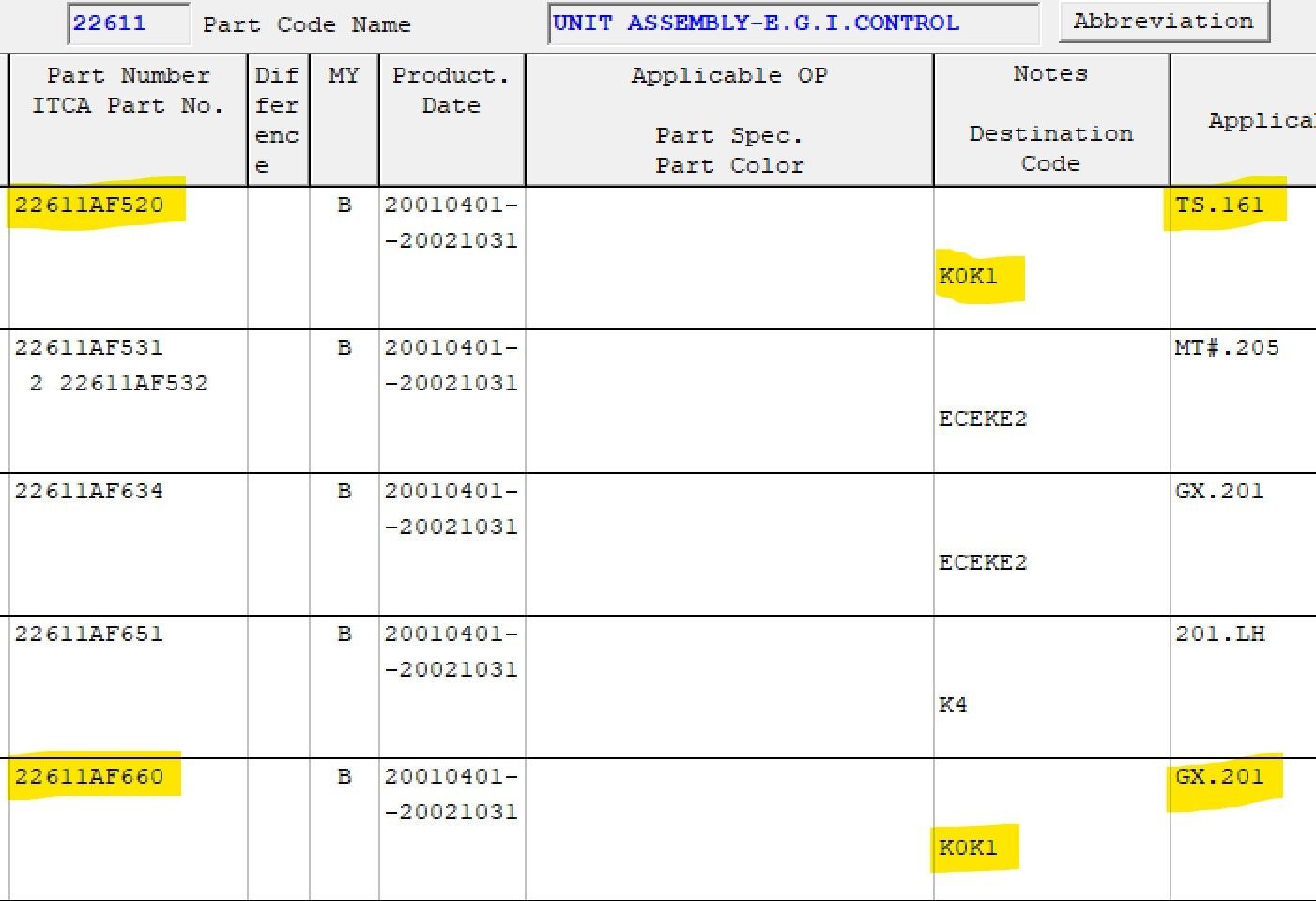

However the equivalent 2.0L N/A ECU version is as shown below:-
Nov 6, 2024 | 06:44 PM
Joined: Oct 2024
Posts: 12
Likes: 0
From: Damascus
Quote:
Originally Posted by
Don Clark
You are unlikely to get it from anyone on this forum.
However the equivalent 2.0L N/A ECU version is as shown below:-
Thank you for the quick reply.
Nov 6, 2024 | 06:47 PM
Joined: Oct 2024
Posts: 12
Likes: 0
From: Damascus
What is the equivalent of this old?
Quote:
Originally Posted by
Subaru2004
Thank you for the quick reply.
Nov 14, 2024 | 01:41 PM
Joined: Oct 2024
Posts: 12
Likes: 0
From: Damascus
Thx for help
Quote:
Originally Posted by
Subaru2004
Thank you for the quick reply.
I want a pin diagram for this ecm number for matching thanks for your help
Nov 14, 2024 | 03:28 PM
Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Quote:
Originally Posted by
Subaru2004
I want a pin diagram for this ecm number for matching thanks for your help
In theory it should be the same as already posted in post #32 (same as the 520 version)
Last edited by Don Clark; Nov 14, 2024 at 03:29 PM .
