Blob WRX Wagon 2.1 Stroker Project

Old 23 August 2015, 07:28 PM
  #271
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Full droop?
boosted is offline
Old 23 August 2015, 07:29 PM
  #272
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Yeah had both front wheels up so I could spin the shafts around when required.
ScottyPPP is offline
Old 28 August 2015, 04:32 PM
  #273
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Sorted the driveshaft earlier, span it 180 and the pin fitted correctly. The old pin I put in was still in there nice and solid so I doubt it would have gone anywhere but it's on right now. Also stuck a new set of rear brake pads on it.
ScottyPPP is offline
Old 28 August 2015, 06:10 PM
  #274
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

What was wrong with your old shaft? Bit dubious of the cheap rubber that only lasts a year on the non genuine ones. The hard plastic on OE cv joints is far supirior.
boosted is offline
Old 28 August 2015, 06:52 PM
  #275
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

The inner cv boot had split, cracked and perished and had flung all the grease out. The J&R shaft I've put in is very very good quality. The rubbers look better than OEM to be honest.
ScottyPPP is offline
Old 28 August 2015, 07:35 PM
  #276
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

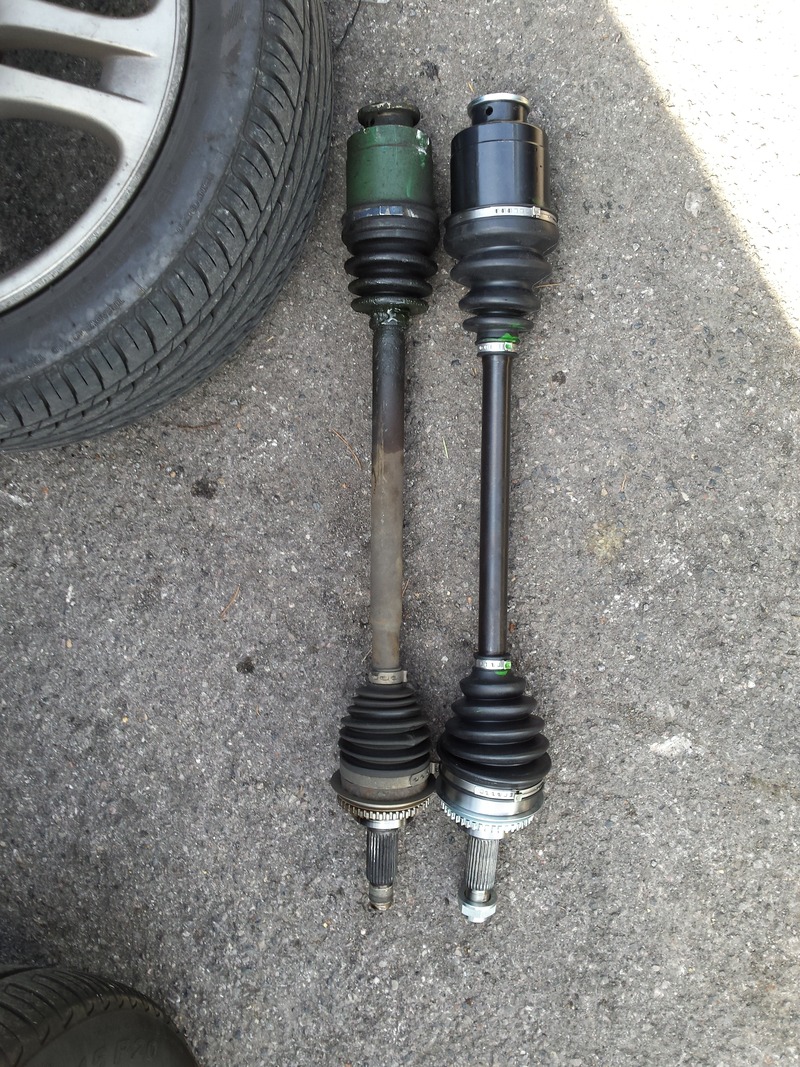

This is the old and new side by side:

Name:  20150822_103908_zps0dlqqzmz.jpg
Views: 0
Size:  432.5 KB
ScottyPPP is offline
Old 28 August 2015, 08:55 PM
  #277
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Don't get me wrong I'm using JR audi inner joints and boots on front of my car because they were cheap. But there's no way the rubber will last 12 years! I've already had to replace one CV boot! (Just bought another JR one, in fact bought a complete spare joint as it was only 14 &#128514
I'd also paint that shaft and joint as it has no rust protection on it at all except oil.
Still, rediculously cheap aren't they?!
boosted is offline
Old 28 August 2015, 09:06 PM
  #278
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

If you look at the old shaft it's covered in rust. I think it'll be fine. Got a 2 yr guarantee anyway. I might reboot the old shaft and keep it as a spare as the joint is fine.
ScottyPPP is offline
Old 31 August 2015, 07:31 AM
  #279
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 1,036
Default

that new shaft actually looks slimmer than the original oem one...
Ste333 is offline
Old 31 August 2015, 07:34 AM
  #280
JGlanzaV
Scooby Regular
iTrader: (3)

Join Date: May 2009
Posts: 5,021
Default

Originally Posted by Ste333 View Post
that new shaft actually looks slimmer than the original oem one...
I'd say it looks slimmer because it is! don't go mad with the launches lol....

Last edited by JGlanzaV; 31 August 2015 at 07:36 AM.
JGlanzaV is offline
Old 31 August 2015, 08:27 AM
  #281
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Originally Posted by JGlanzaV View Post
I'd say it looks slimmer because it is! don't go mad with the launches lol....
Don't think it will be a problem! Not much drive going tu the front wheels in a launch, 15-20% maybe
boosted is offline
Old 31 August 2015, 08:34 AM
  #282
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Plus you will probably did that the pattern shaft is no smaller than the smallest dia in the OE one, they thin down a lot at the ends. A long thin shaft all the same size is actually stronger than one that is thin-fat-thin
boosted is offline
Old 31 August 2015, 10:06 PM
  #283
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Been fine so far running 330+ lbs ft. It's no thinner than the OEM shaft at its thinnest points (at either end).
ScottyPPP is offline
Old 31 August 2015, 10:17 PM
  #284
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

In other news, I was in talks with someone regarding an Andy Forrest 20G, I was waiting for it to be removed from a car and have pictures sent. But having seen the pics the exhaust side looks rather too oily too me and it looks like it needs a rebuild. I'll post the pics shortly.
ScottyPPP is offline
Old 31 August 2015, 10:29 PM
  #285
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

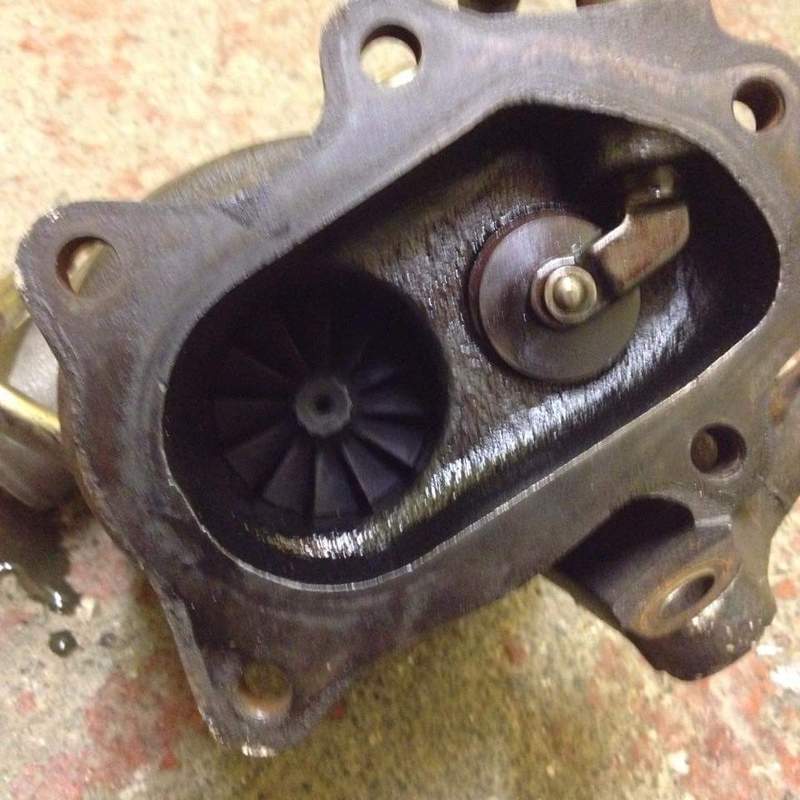

Name:  received_10207822793507116_zpsey886hmh.jpeg
Views: 0
Size:  66.6 KB

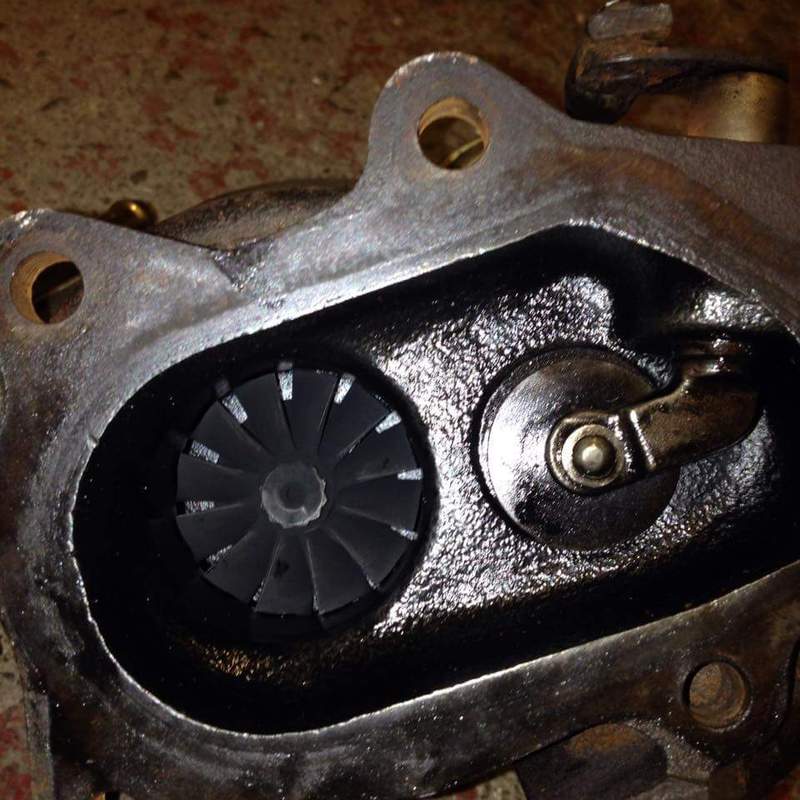

Name:  received_10207822793827124_zpsukkiyahl.jpeg
Views: 0
Size:  80.0 KB

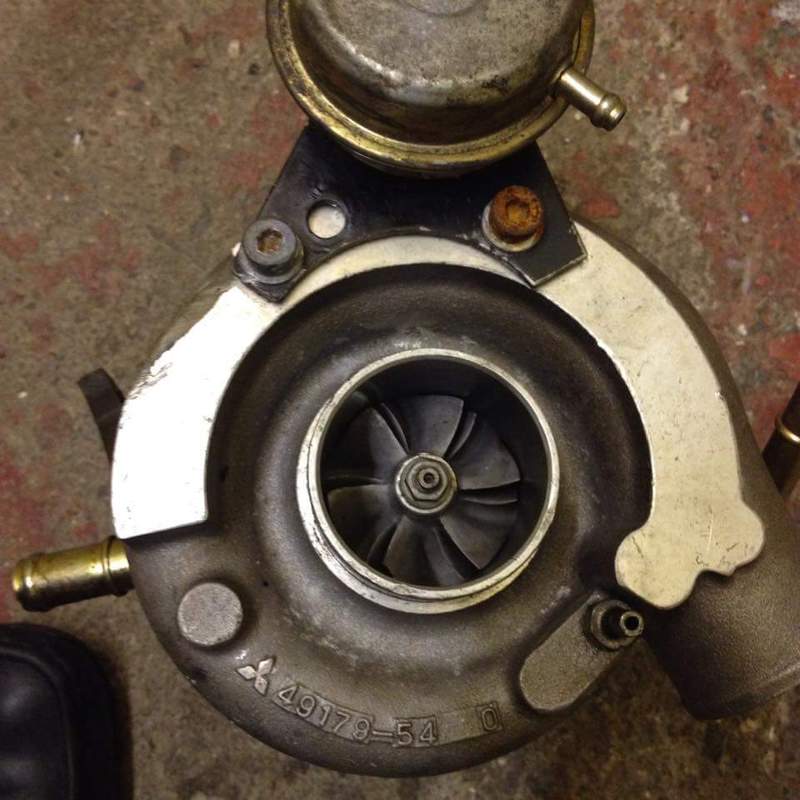

Name:  received_10207822795267160_zps1mjhx6cx.jpeg
Views: 0
Size:  67.9 KB

The seller claims coolant got into the housing when it was removed, but its the oily sheen on the heatsheild behind the turbine wheel that concerns me most.
ScottyPPP is offline
Old 31 August 2015, 11:10 PM
  #286
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

I also think its time for another set of plugs, the current iridium's have done about 10k now and I think they're getting a little tired (they don't seem to last all that well running more power and boost). I think they're over heating after driving the car hard for a while as the power delivery in boost starts to feel a little off. Drive off boost for a while and it resolves itself.

I think I'm going to start using some BCPR7ES plugs and just change them every other oil change as the iridium's don't last and the coppers are 7.20 for a set of 4.
ScottyPPP is offline
Old 01 September 2015, 08:20 AM
  #287
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Originally Posted by ScottyPPP View Post
I also think its time for another set of plugs, the current iridium's have done about 10k now and I think they're getting a little tired (they don't seem to last all that well running more power and boost). I think they're over heating after driving the car hard for a while as the power delivery in boost starts to feel a little off. Drive off boost for a while and it resolves itself.

I think I'm going to start using some BCPR7ES plugs and just change them every other oil change as the iridium's don't last and the coppers are 7.20 for a set of 4.
That's exactly what the Cossy boys used to do. Nothing wrong with that.
How much is that turbo?
You can rebuild it your self for 20, I did my big 16g a couple months ago now. Unusual for it to need a rebuild TBH, quite hardy turbos the mitsubishi ones
boosted is offline
Old 01 September 2015, 09:20 AM
  #288
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Originally Posted by boosted View Post
That's exactly what the Cossy boys used to do. Nothing wrong with that.
How much is that turbo?
You can rebuild it your self for 20, I did my big 16g a couple months ago now. Unusual for it to need a rebuild TBH, quite hardy turbos the mitsubishi ones
PM'ed you.
ScottyPPP is offline
Old 01 September 2015, 09:34 AM
  #289
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Originally Posted by ScottyPPP View Post
PM'ed you.
I doubt it needs a rebuild, there's coolant on the floor in the first picture. If they seller was trying to hide something he would of cleaned it up with brake cleaner.
There is no damage to the compressor wheel or turbine wheel. I would buy with confidence.
Your cars going to fly with this on!
What manifold you running with it?
boosted is offline
Old 01 September 2015, 09:41 AM
  #290
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Not decided what else I would change yet. I think I'll need a new inlet pipe, it's on OEM headers with an STI decat up pipe at the moment.

I was thinking new inlet pipe, sell the prodrive sports cat and fit a full decat and bolt it on and see what it does?
ScottyPPP is offline
Old 01 September 2015, 10:29 AM
  #291
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Definatly need a full decat system, it get the best you will need a nice set of headers, should see close to 400bhp, but the power will be pushed up the rpm range. Think of it like this where your boost drops off from 1.5 bar now it will hold 1.5 bar all the way, so where you loose the power due to boost dropping you will gain with the 20g, but you will need headers for the flow I think
boosted is offline
Old 01 September 2015, 10:44 AM
  #292
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

I'm not too fussed about maxing the absolute bollocks off of it, 380+ would be plenty because the torque that comes with it will be rather epic. Staying on the 565cc injectors as they should be good for 400 anyway. 380 Bhp and 370 lbs ft roughly would be more than enough.
ScottyPPP is offline
Old 01 September 2015, 01:13 PM
  #293
boosted
Scooby Regular

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Default

Originally Posted by ScottyPPP View Post
I'm not too fussed about maxing the absolute bollocks off of it, 380+ would be plenty because the torque that comes with it will be rather epic. Staying on the 565cc injectors as they should be good for 400 anyway. 380 Bhp and 370 lbs ft roughly would be more than enough.
Any gains will be higher up the RPM range, 4000 rpm onwards, real gains will be 5500-7000.
You will obviously loose torque below 3500.
I think a FPR and tubular manifold along with full decat has to be considered for the full benefit of this turbo.
It's exactly this reason I stuck with my big 16g, keep the power circa 350, the boost and torque high

Last edited by boosted; 01 September 2015 at 01:15 PM.
boosted is offline
Old 01 September 2015, 01:24 PM
  #294
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Duncan thinks the difference in Spool won't be that noticeable. Headers etc can be done further down the line if required. It's going to make a big difference as it is. I'm thinking of fitting it in the 2nd half of October (After its MOT), then having it mapped to suit.

I think in the new year I might do some other upgrades like FMIC, headers etc and get it tweaked again as they should see a result and it'll keep me interested lol.
ScottyPPP is offline
Old 01 September 2015, 07:26 PM
  #295
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Turbo is paid for, should have it later this week.
ScottyPPP is offline
Old 04 September 2015, 02:37 PM
  #296
JGlanzaV
Scooby Regular
iTrader: (3)

Join Date: May 2009
Posts: 5,021
Default

Good shout Its always exciting waiting for new bits
JGlanzaV is offline
Old 04 September 2015, 03:00 PM
  #297
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Turbo has arrived..

I think it'll need a new compressor wheel as one of the inducer fins has a bit missing from the corner, looks like it's just chipped off. Play wise there is nothing front to back, just the normal TD05 rock side to side, not enough for the blades to touch the housing though and it spins smoothly. So bearing wise it seems fine. I'll get a pic up of the fin chip.
ScottyPPP is offline
Old 04 September 2015, 03:02 PM
  #298
JGlanzaV
Scooby Regular
iTrader: (3)

Join Date: May 2009
Posts: 5,021
Default

Get a Kinugawa rebuild kit for it? Billet upgrade wheel etc.... should be a nice turbo!
JGlanzaV is offline
Old 04 September 2015, 03:03 PM
  #299
ScottyPPP
Scooby Regular
Thread Starter

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Default

Only needs a wheel I think. Rest of it seems fine. So just comp housing off, wheel off, new wheel on and back together.
ScottyPPP is offline
Old 04 September 2015, 03:06 PM
  #300
JGlanzaV
Scooby Regular
iTrader: (3)

Join Date: May 2009
Posts: 5,021
Default

Happy days. Coming along nicely! Getting jealous of all these build threads now!
JGlanzaV is offline
