EJ25 ENGINE SUBARU SAYS 2.5L
Hi all, i rang subaru chandlers local garage for price on some water pipes (well over price) but gave them my engine number for quotes.
Because i had technical difficuly with an issue i was passed over to the tech team,he asked what engine i had i said EJ25 of which he replied 2.5l ,i said no 20l ,is this true the EJ25 is a 2.5l not 2.0l confused.
Because i had technical difficuly with an issue i was passed over to the tech team,he asked what engine i had i said EJ25 of which he replied 2.5l ,i said no 20l ,is this true the EJ25 is a 2.5l not 2.0l confused.
Trending Topics
15 April 2010, 06:42 PM
#8
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
No mate my vin says EJ20 but checked the block its defo EJ25 on my00 classic,so when i came to order parts the schematic drawings he sent me obviously wouldn't tally up (breather under inlet manifold) as he saw the pic i sent him via email he noticed the EJ25 on my block and said its 2.5l not 2.0l SO THATS WHAT THROUGH ME .
I'm assuming all the original componants are still fitted to the main block ie inlet manifold TD04 TURBO,ETC ETC....
I'm assuming all the original componants are still fitted to the main block ie inlet manifold TD04 TURBO,ETC ETC....
15 April 2010, 07:32 PM
#11
Scooby Regular
iTrader: (3)
Join Date: Aug 2000
Location: 1600cc's of twin scroll fun :)
Posts: 25,565
Likes: 0
Received 2 Likes
on
2 Posts
Did you not check the engine number with the v5 when you bought the car
Also as Dunx has said, breach of T&C's so speak with your insurance co asap to correct the issue, but if the previous owner didnt say it has a 2.5 lump in there.... hmmmm
Tony
Also as Dunx has said, breach of T&C's so speak with your insurance co asap to correct the issue, but if the previous owner didnt say it has a 2.5 lump in there.... hmmmm
Tony
15 April 2010, 07:54 PM
#12
Scooby Regular
iTrader: (2)
Join Date: Feb 2010
Location: Colchester,Essex
Posts: 1,037
Likes: 0
Received 0 Likes
on
0 Posts
Are the classic and new age 2.0 WRX engined both called 'EJ20' then? I thought the new age car had revised engines in them, did they not change the name of the engine for them?
15 April 2010, 08:20 PM
#13
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
So before you all jump down my throat making accusations that i'm driving an illegal car that my insurance dosnt know about think again i'm a law abiding citizen and wouldn't do anything of the such,what if i hit a small child with no insurance because of undecleared mods no thanks they will be notified as and when ,but thanks for pointing that out for me !
15 April 2010, 08:26 PM
#14
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
15 April 2010, 08:44 PM
#15
Scooby Regular
iTrader: (3)
Join Date: Aug 2000
Location: 1600cc's of twin scroll fun :)
Posts: 25,565
Likes: 0
Received 2 Likes
on
2 Posts
Oh and your going to need a remap, but you probably already knew that
Tony
15 April 2010, 09:10 PM
#16
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
15 April 2010, 10:05 PM
#17
Scooby Senior
iTrader: (3)
Join Date: Jun 2006
Location: Slowly rebuilding the kit of bits into a car...
Posts: 14,333
Likes: 0
Received 0 Likes
on
0 Posts
No implication of illegality, just the possibility repeat, possibility of your cover being deemed in breach of contract.
Don't be quite so touchy over a little bit of free advice, meant only as a warning for your benefit...
I know a guy paying out a substantial sum each month (since 1980) due to him not knowing that the insurance terms deemed him not covered when he paralysed his mate in an accident.
Not that I'm implying you could/would take the risk.
dunx
P.S. You've got a 2.5 be happy ! I'd like one....
Don't be quite so touchy over a little bit of free advice, meant only as a warning for your benefit...
I know a guy paying out a substantial sum each month (since 1980) due to him not knowing that the insurance terms deemed him not covered when he paralysed his mate in an accident.
Not that I'm implying you could/would take the risk.
dunx
P.S. You've got a 2.5 be happy !
I'd like one....
15 April 2010, 10:16 PM
#19
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
Not being touchy bud,but the more i look into my car the more it suprises me ,the history i have is none existant,i now know it has a 2.5l block not sure if the heads are standered or not ,i found that there is no crankshaft breather on the EJ20 but there is one on the EJ25 so do i block this off or bodge it like it was before .
The inlet manifold is off the car at the moment as i'm awaiting info on water pipes from header tank but the breather is giving me problems checked previous posts and have read that it should be blocked off.
Why has someone put a newer block in the car and used all other parts ,why not change the complete engine cant understand !need some help on this one i think
The inlet manifold is off the car at the moment as i'm awaiting info on water pipes from header tank but the breather is giving me problems checked previous posts and have read that it should be blocked off.
Why has someone put a newer block in the car and used all other parts ,why not change the complete engine cant understand !need some help on this one i think
15 April 2010, 10:31 PM
#21
Scooby Regular
Join Date: Jun 2008
Location: Essex
Posts: 434
Likes: 0
Received 0 Likes
on
0 Posts
crank case breather you can just vent to atmosphere if you want, or put it in a catch can, im sure the 2.0's have a breather too just goes into the inlet hose, someone will tell me if im wrong about that, it may just be a shortblock or it may be a long engine that was replaced, dont realy matter much, it can be sorted easily as long as its all working ok,
15 April 2010, 10:41 PM
#22
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts

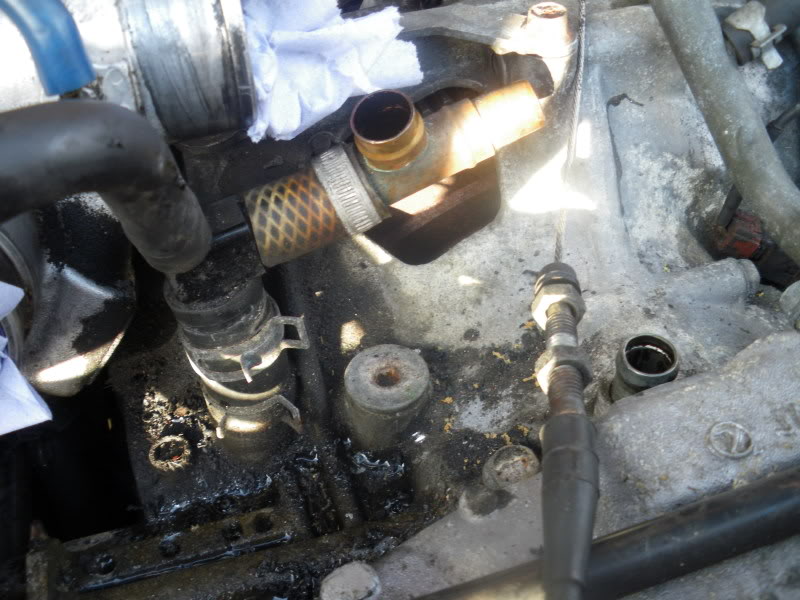

As you can see in pic the open breather this was connected to a copper t piece that went via garden hose to the plastic tee on the left,so i can just blank this off then.
16 April 2010, 11:15 AM
#24
Scooby Regular
Join Date: Jun 2008
Location: Essex
Posts: 434
Likes: 0
Received 0 Likes
on
0 Posts
where does the black hose that dissapers out of the pic go?
you cant totaly block the crank case breather, it either vents into the inlet hose or you can do away with all that stuff and run a hose to a can/atmosphere straight from the breather outlet i think as standard it comes from the block into a t peice 1 hose goes into the inlet pipe and one goes to the pcv valve its a 1 way valve that i think is just under the throttle body on the intake manifold, I diddnt look at one for a while
you cant totaly block the crank case breather, it either vents into the inlet hose or you can do away with all that stuff and run a hose to a can/atmosphere straight from the breather outlet i think as standard it comes from the block into a t peice 1 hose goes into the inlet pipe and one goes to the pcv valve its a 1 way valve that i think is just under the throttle body on the intake manifold, I diddnt look at one for a while
Last edited by Badbird; 16 April 2010 at 11:56 AM.
17 April 2010, 08:33 PM
#25
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
The hose that dissapears out of view goes to the turbo intake pipe the top spout,is all this standered on both 2.0l and 2.5l then im thinking only the block has been changed but why im not sure are the EJ25 blocks cheap then is it worth selling and putting back the EJ20 .
17 April 2010, 09:15 PM
#26
Looks like you've got a bitsa car (made with bits off this, bits off that ). Something to keep close eye on classic imprezas these days.
Can't really help but I can sympathise;
My Kawasaki H1 is just that; Didn't realise until I started taking it apart ; Engine out of a later model yet with the older original oil pump, two original carbs, one carb off an earlier bike (and thus jetted incorrectly), Two exhaust silencers off god knows what (reproduction or maybe a KH250), and one original, one original baffle and two home made things that look like they've come out of an industrial furnace. Strangely, even with an odd carb and odd baffles/silencers it actually seemed to run ok
Can't really help but I can sympathise;
My Kawasaki H1 is just that; Didn't realise until I started taking it apart
; Engine out of a later model yet with the older original oil pump, two original carbs, one carb off an earlier bike (and thus jetted incorrectly), Two exhaust silencers off god knows what (reproduction or maybe a KH250), and one original, one original baffle and two home made things that look like they've come out of an industrial furnace. Strangely, even with an odd carb and odd baffles/silencers it actually seemed to run ok
17 April 2010, 09:31 PM
#27
Scooby Regular
Thread Starter
iTrader: (37)
Join Date: Jan 2005
Location: never far away from my impreza
Posts: 7,843
Likes: 0
Received 0 Likes
on
0 Posts
im thinking sell the lot to fund a replacement/reconditioned Ej20 motor ive seen recondition for sale £995 whats your thoughts
17 April 2010, 10:38 PM
#30
Scooby Regular
Join Date: Aug 2003
Location: Sheffield; Rome of the North
Posts: 17,582
Likes: 0
Received 0 Likes
on
0 Posts
The EJ25 engine was a 160PS/158BHP 2,457cc normally aspirated engine which was used in the BG9 Legacy (available for the 1995-1998 model years).
It looks as though this block has been used when your engine has been repaired. The capacity could depend on the crank used...
Simon
It looks as though this block has been used when your engine has been repaired. The capacity could depend on the crank used...
Simon
