Ok so I'm finally getting round to fitting this, it's the defi bf advanced range and I need abit of advise...
Basically there are only 2 wires that come off the controller unit for the tacho gauge....
1 ... Speed signal
2... Tachometer signal
I'm just wondering where I take these from as I can find nothing online I mean do I take from directly behind the main cluster or else where...
Helps pls peeps
Basically there are only 2 wires that come off the controller unit for the tacho gauge....
1 ... Speed signal
2... Tachometer signal
I'm just wondering where I take these from as I can find nothing online I mean do I take from directly behind the main cluster or else where...
Helps pls peeps
#4
Ok so should be able to pick up from behind instrument cluster thanks, now I just need to no which colour wires to tap into as at the moment I really have got no clue
Nothing wrong with the current tachometer just wanted somthing alittle higher and with peak wearing functions as for some reason they left it of my Motorsport version blob spec c
#7
Scooby Regular
iTrader: (2)
If you remove the instruments and use the printed circuit board to help, you'll be able to trace which pins the speed wire and the tach wire go to, then find the colours at the plugs.
TBH, it's almost always a waste of time asking for wire colours on here as what you FIND isn't always what they SAY you will find. Wiring looms are a law unto themselves, they often used whatever colour they had and it can change from year to year despite being same model.
Tracing back is the only sure-fire method. Removing the clocks is ten minutes.
TBH, it's almost always a waste of time asking for wire colours on here as what you FIND isn't always what they SAY you will find. Wiring looms are a law unto themselves, they often used whatever colour they had and it can change from year to year despite being same model.
Tracing back is the only sure-fire method. Removing the clocks is ten minutes.
Trending Topics
#8
Ok got this sorted just thought I'd update incase anyone needs for future reference

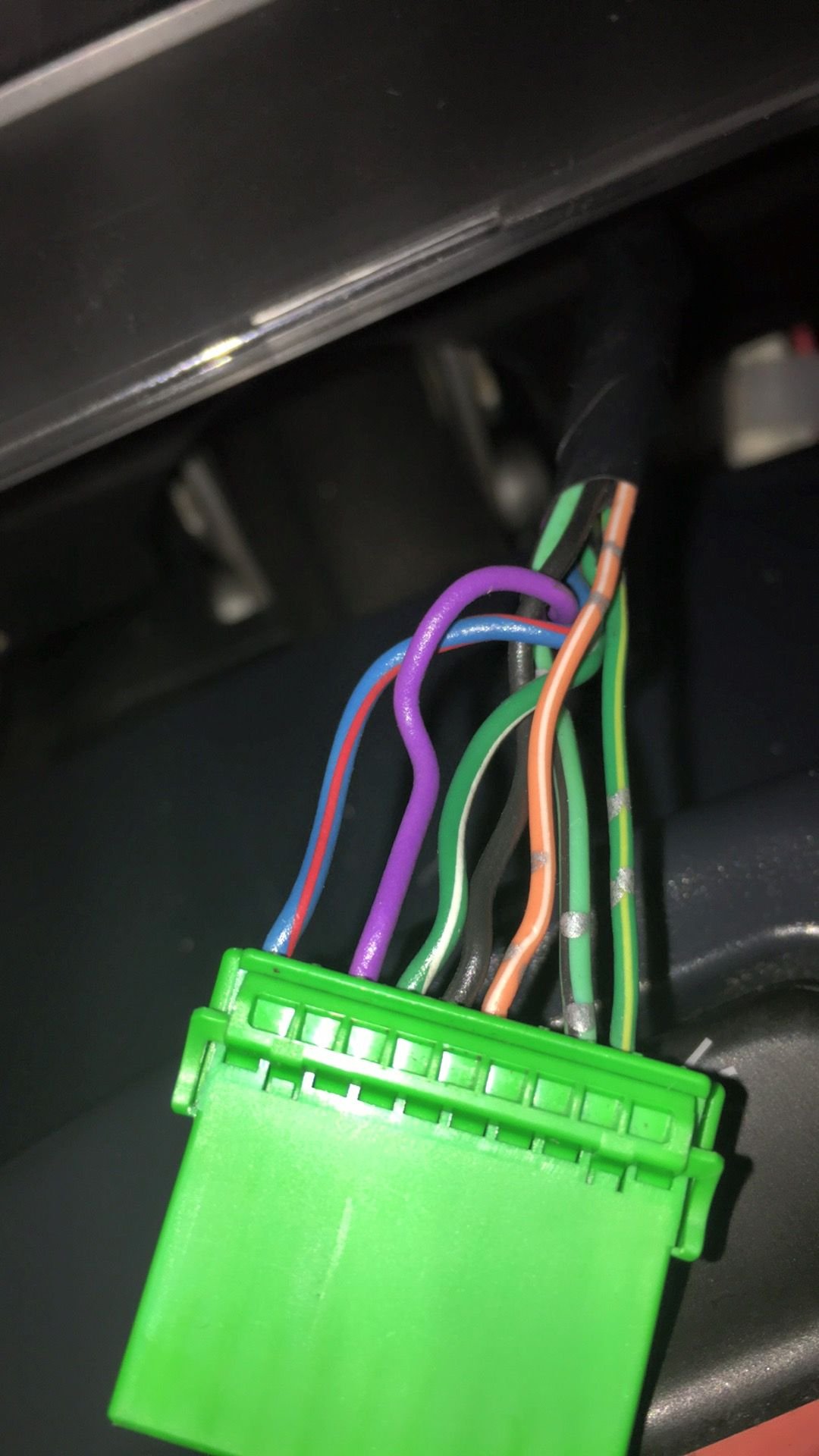

I managed to get a Jdm newage wiring diagram and figure it out with abit of help.. Anyways it turned out to be the plug in the back of the dash cluster closest to the driver side door...
speed signal = green with yellow line
Tacho signal = orange with white line

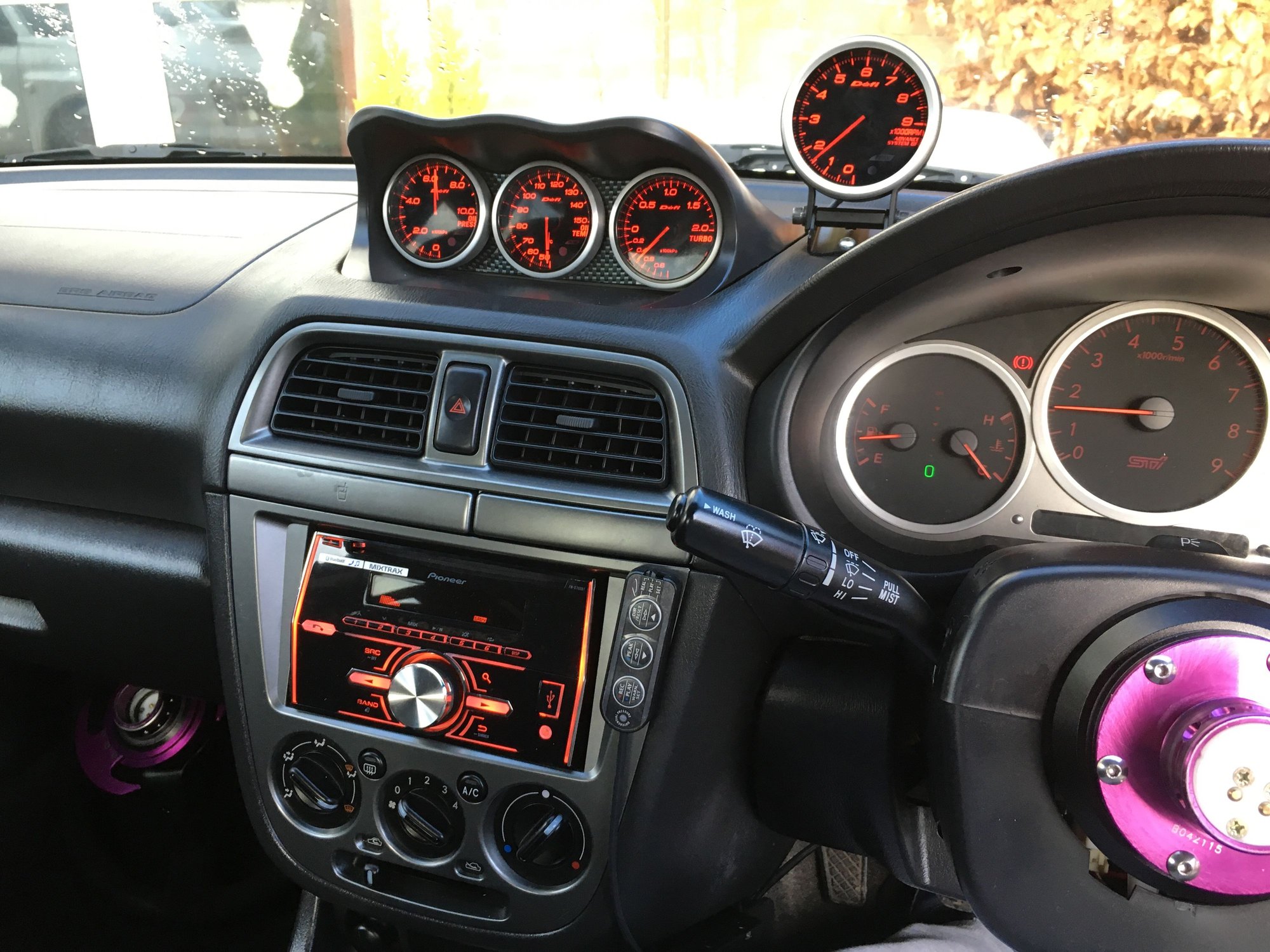

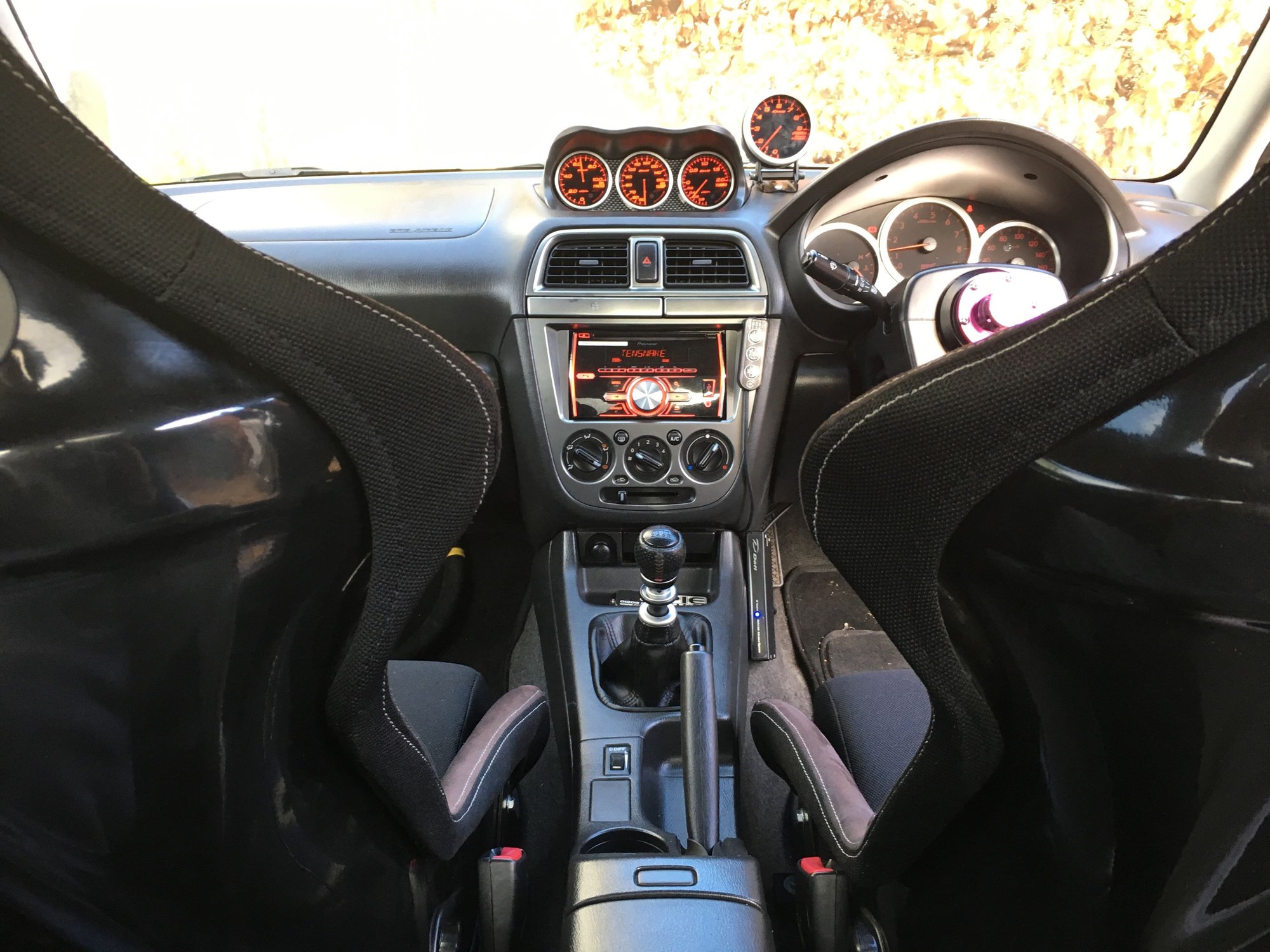

Finished artical
