Default my v6 sti project..

well I thought I would start a thred about my project, the plans are ever changing as the project continues and what started out as a nice cheapish daily is now transforming into a track / fast road car!

car is being built by Nick @ car & custom garage in Bristol (www.carandcustomgarage.co.uk) with lots of custom work being done.

basically im trying to build a car using the best affordable and sourceable parts from the impreza range over the years, plus aftermarket parts of course!

right so the car...

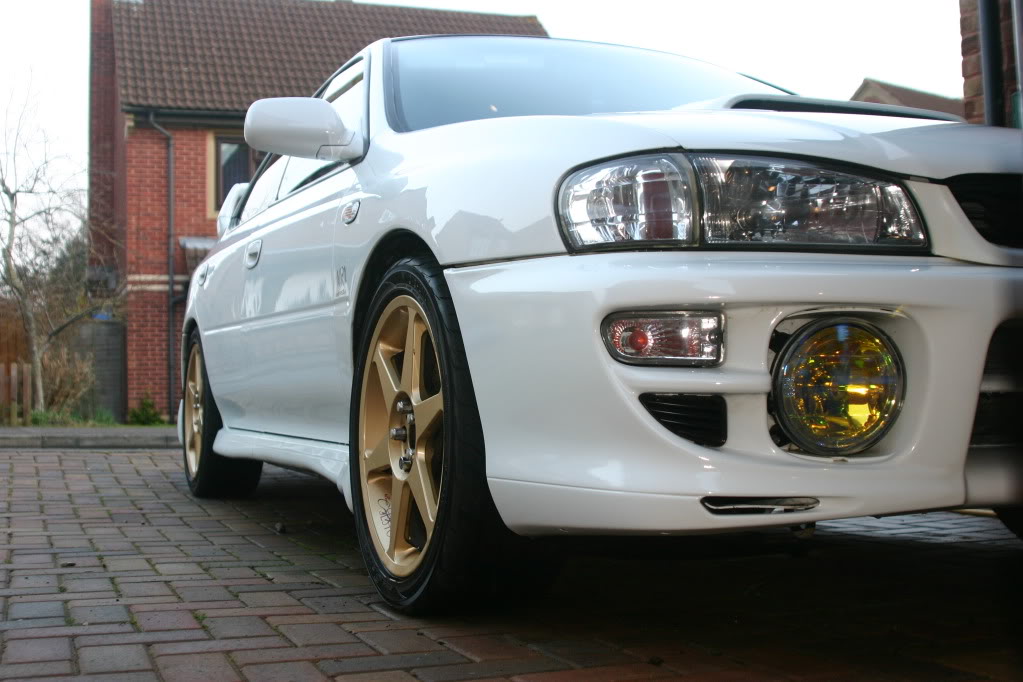

I bought it as at the time I had sold my car and was on the look for a nice cheapish gc8 and this came up

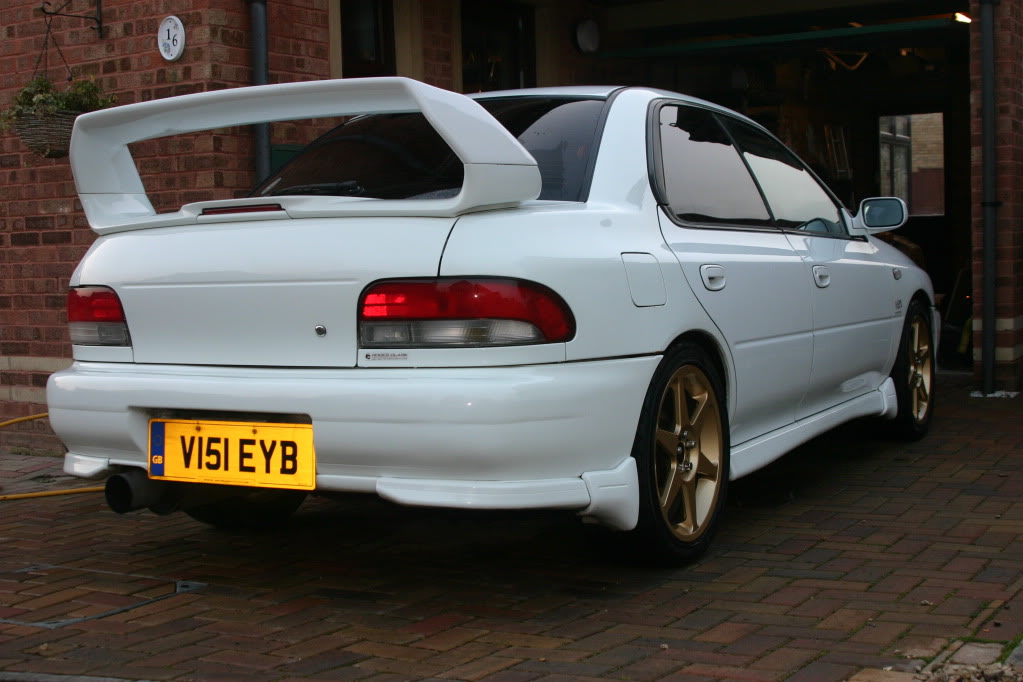

Name:  IMG_2398.jpg
Views: 0
Size:  110.8 KB

Name:  IMG_2409.jpg
Views: 0
Size:  102.6 KB

v6 gc8 wich had rays wheels on and a power flow exhaust system, but the engine was freshly re-built using rcm parts, forged pistons, zero sports stat, etc etc so wil little miles on the engine I was happy to buy the car, and thought it would be a good basis for a few mods....

wasn't long after having it the modifications started..

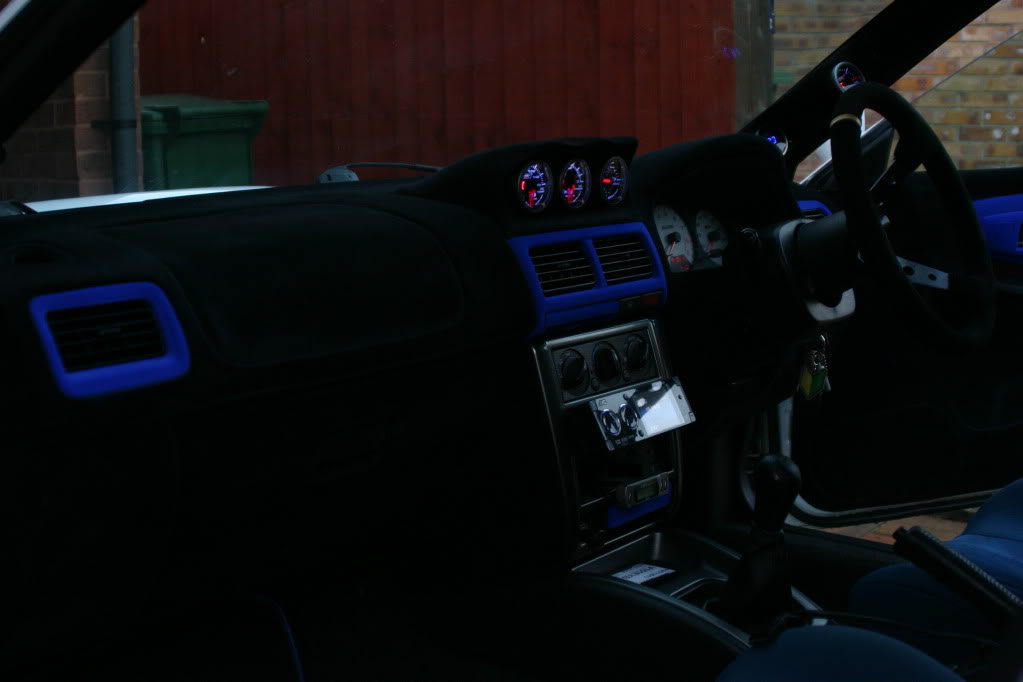

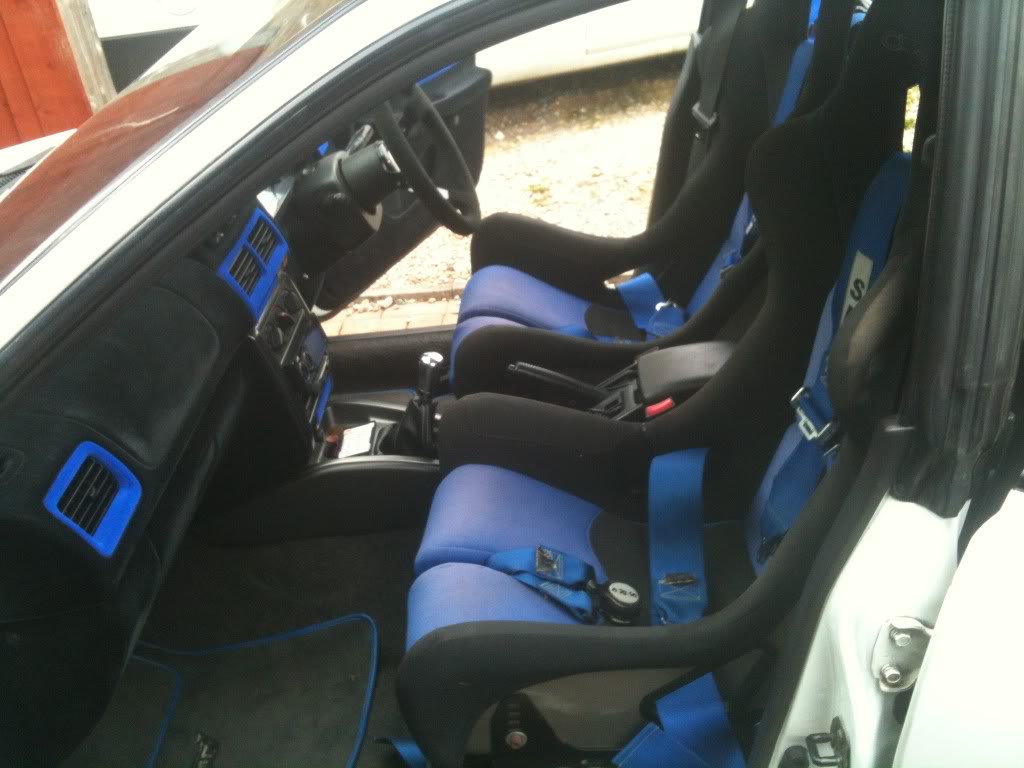

interior was completely changed to full flocked set up, cobra suzuka gt seats, harnesses and a harness bar, plus set of prosports, wide band, knock link, new stereo, speakers, 18" inovit alloys, genuine 22b bonnet vents, tein flex coilovers with edfc, front lip splitter, zunsport grilles ra roof vent etc

Name:  IMG_0104.jpg
Views: 0
Size:  80.4 KB

Name:  IMG_2380.jpg
Views: 0
Size:  44.6 KB

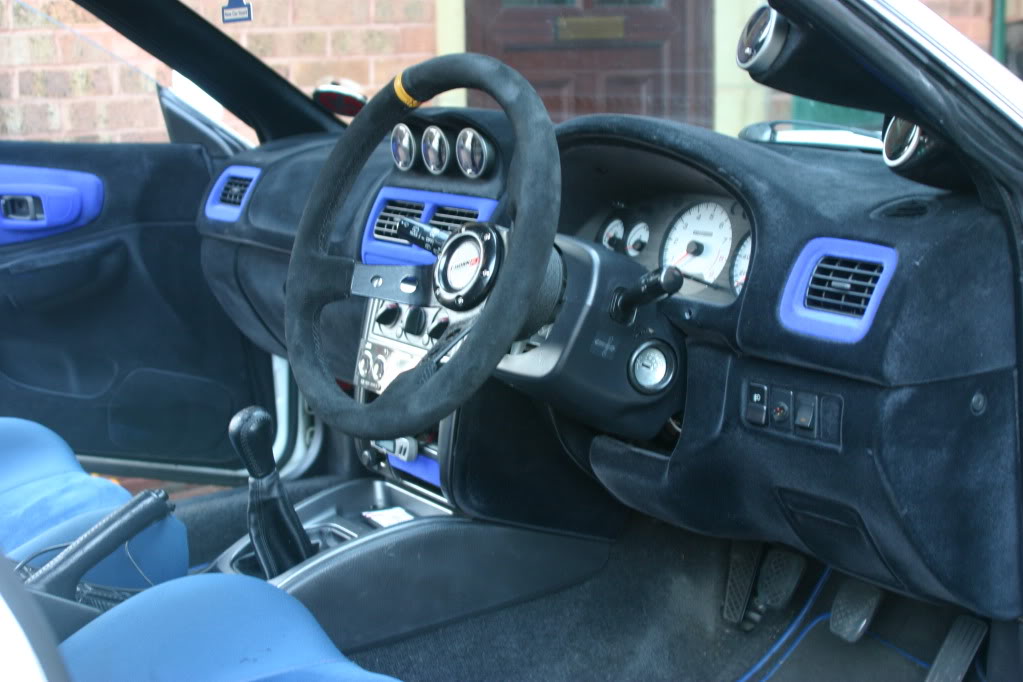

Name:  IMG_2376.jpg
Views: 0
Size:  90.6 KB

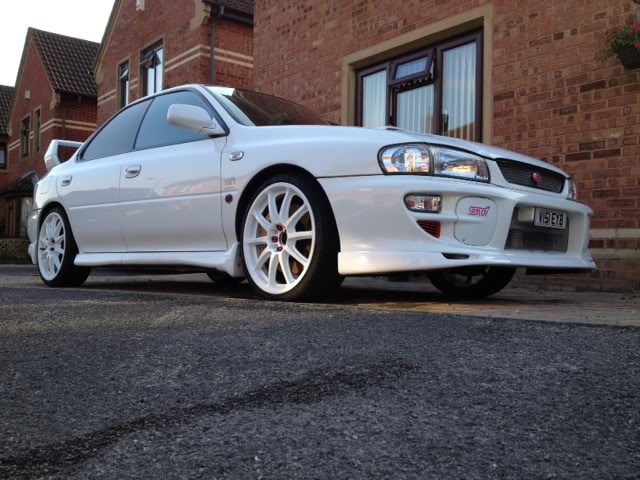

Name:  car1.jpg
Views: 0
Size:  73.8 KB

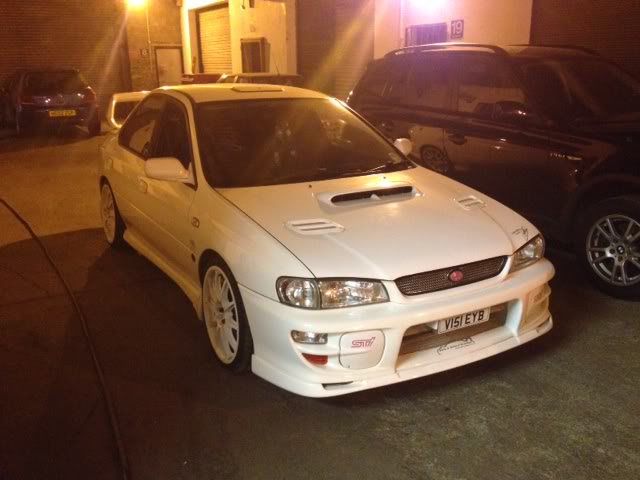

Name:  car.jpg
Views: 0
Size:  42.5 KB

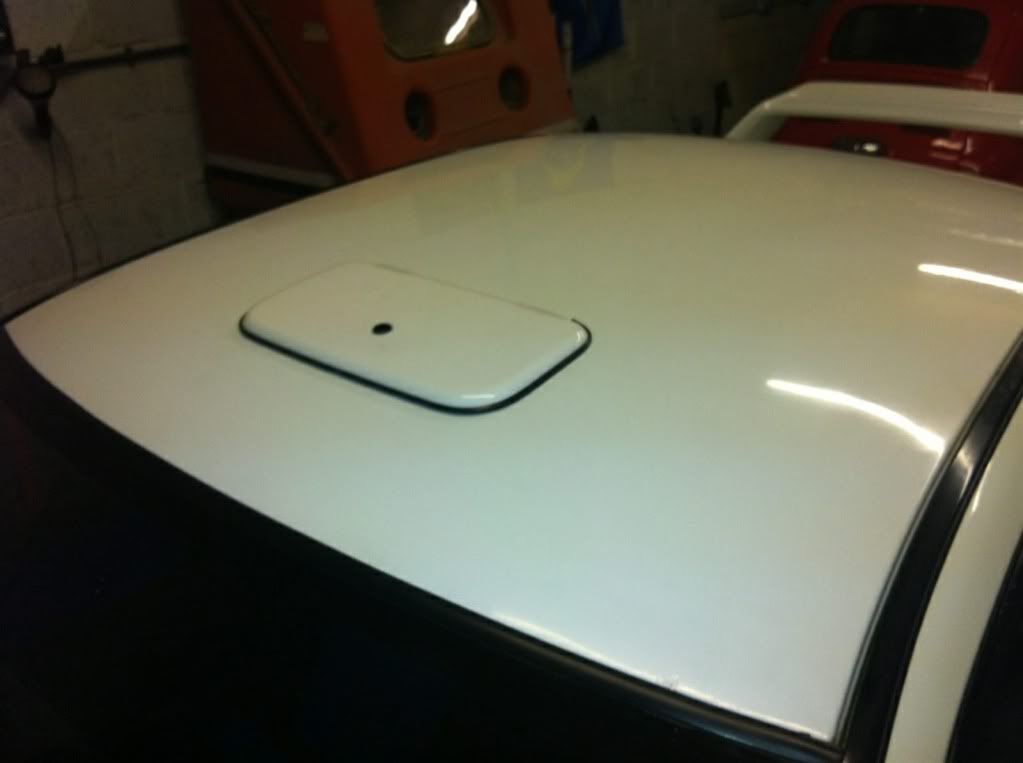

Name:  vent.jpg
Views: 0
Size:  34.9 KB



after that stage I wanted to up grade the underside of the car to get better handling,

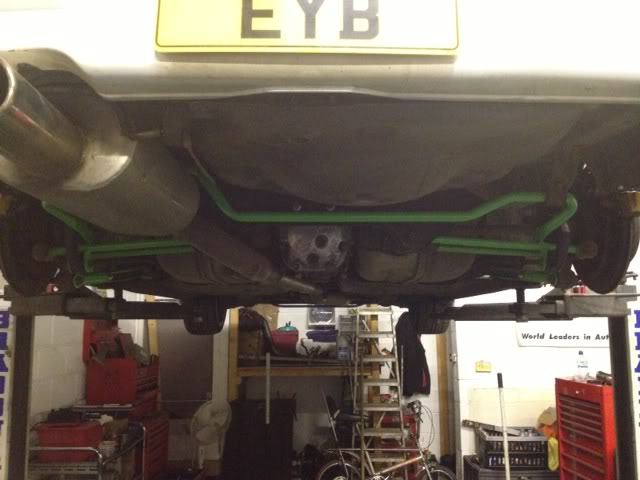

so fitted was a full newage sti rear end, sub frames, arms, hubs etc with a plated r180 4.44 rear diff, and a full set of brembo brakes also added.

plus I changed the exhaust to a haywood and scott down pipe, hks up pipe, and full haywood and scott system.

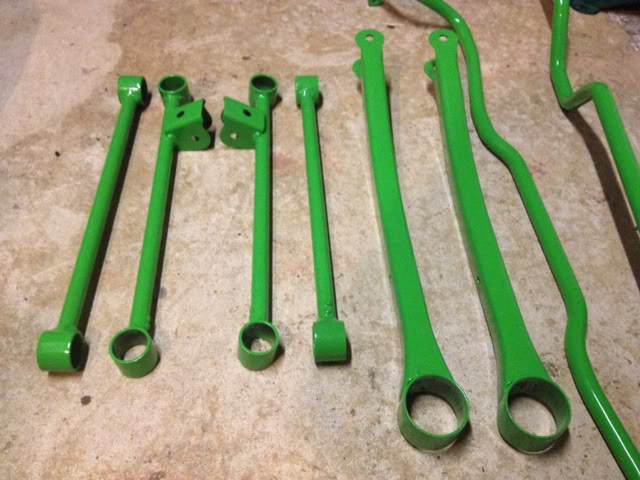

also all the arms etc I had powder coated, and completely polybushed with uprated zero sports arb

Name:  powdercoated.jpg
Views: 0
Size:  57.0 KB

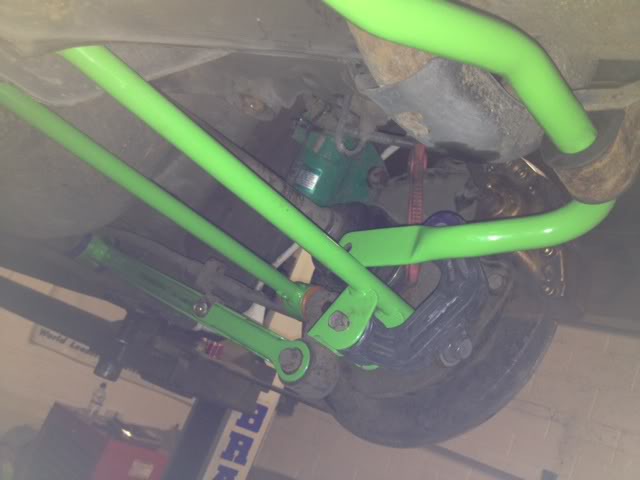

Name:  car3.jpg
Views: 0
Size:  29.5 KB

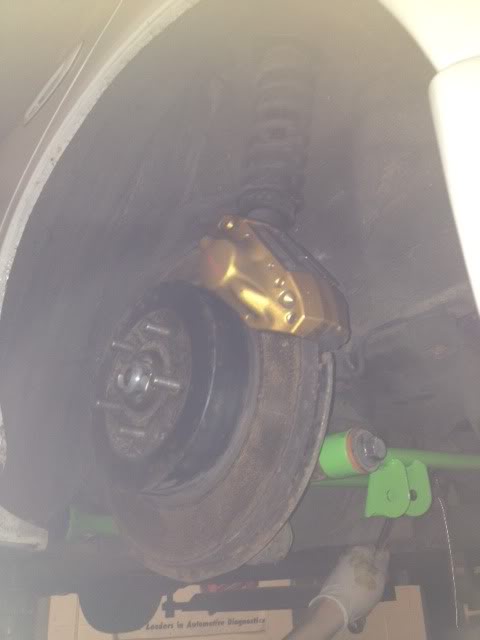

Name:  car4brembo.jpg
Views: 0
Size:  22.3 KB

Name:  carrearlast.jpg
Views: 0
Size:  41.3 KB

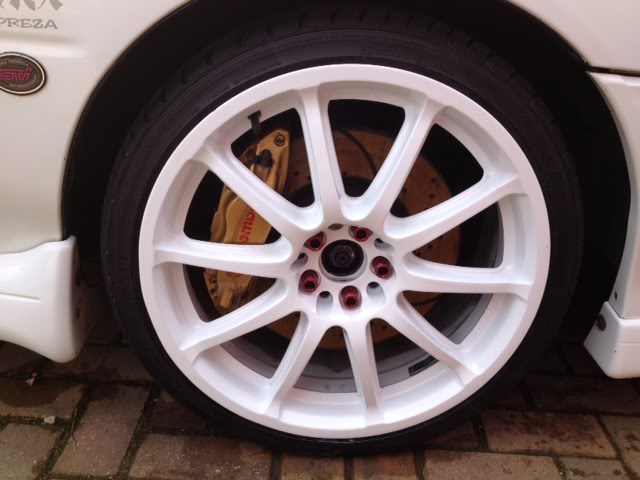

Name:  brembo.jpg
Views: 0
Size:  43.5 KB

with the rear end all night and happy we altered the camber to a couple of degrees negative on the rear and it handled amazing! what a difference a diff makes!!

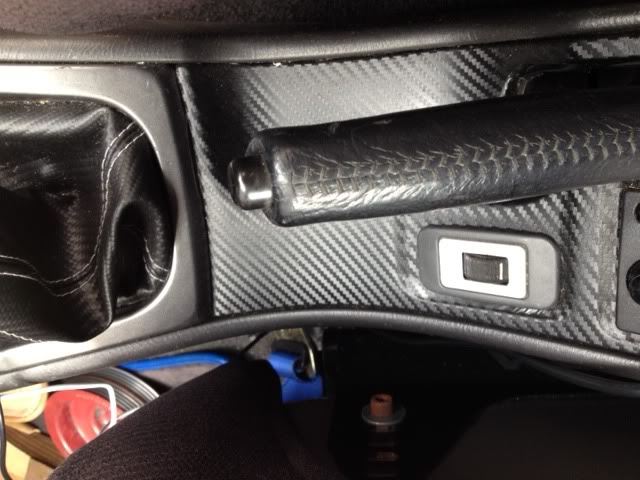

also changed the gearbox to a type r 4.444 box with dccd so she was nice and tail happy!!

Name:  dccd.jpg
Views: 0
Size:  65.6 KB

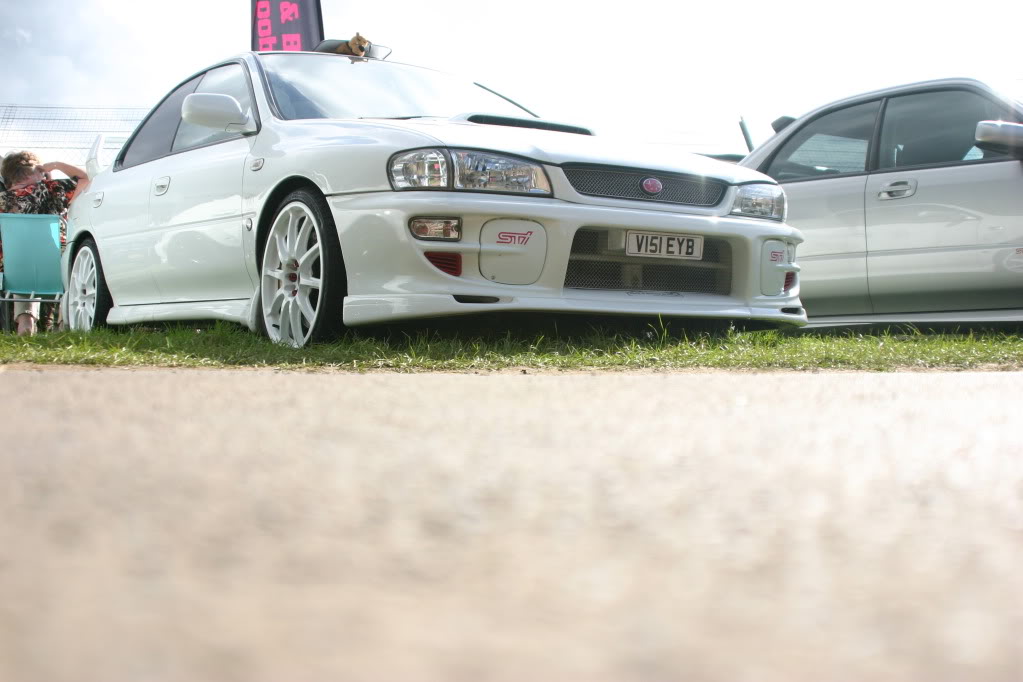

this is then how she sat!
Name:  IMG_3244.jpg
Views: 0
Size:  81.7 KB

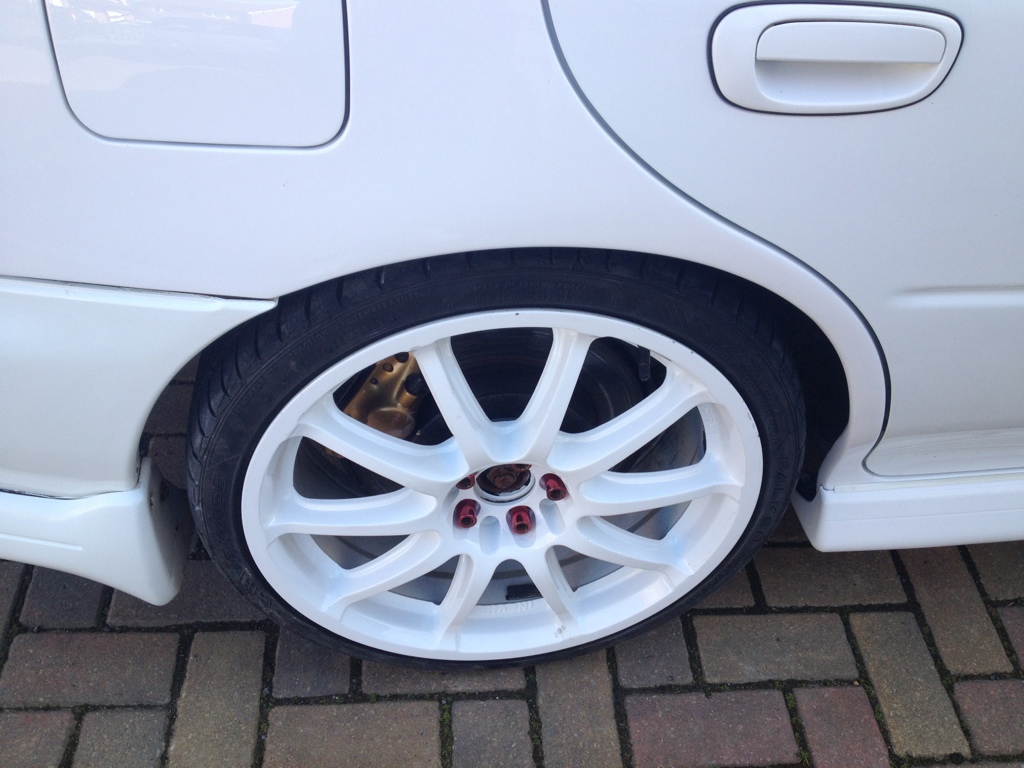

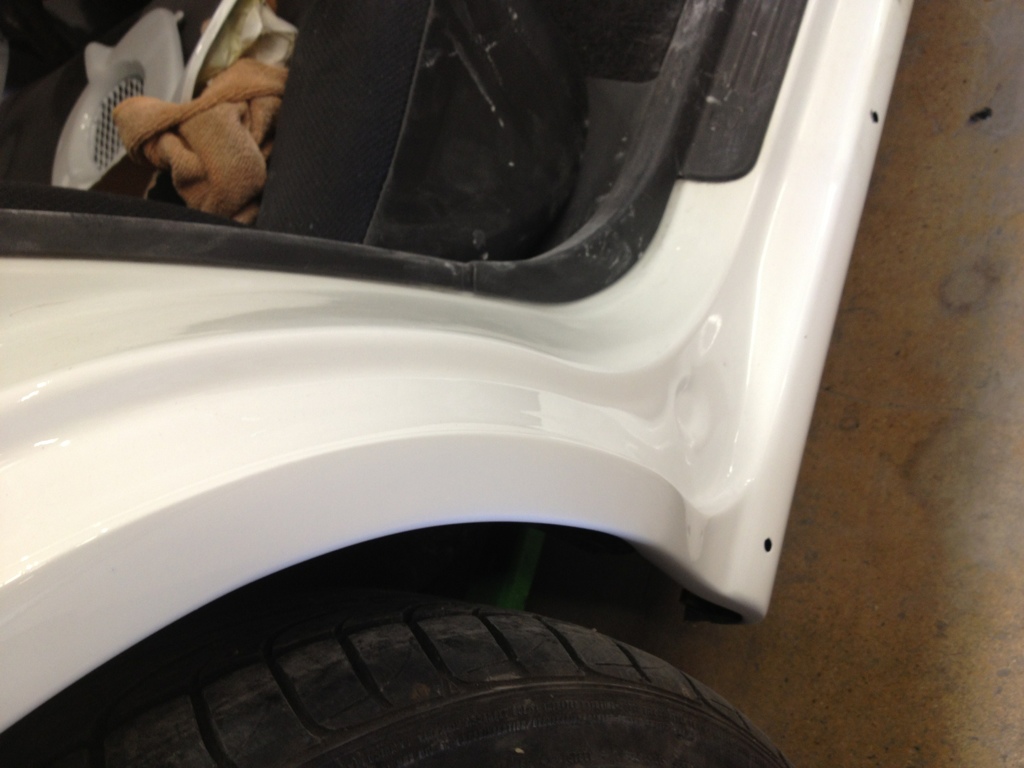

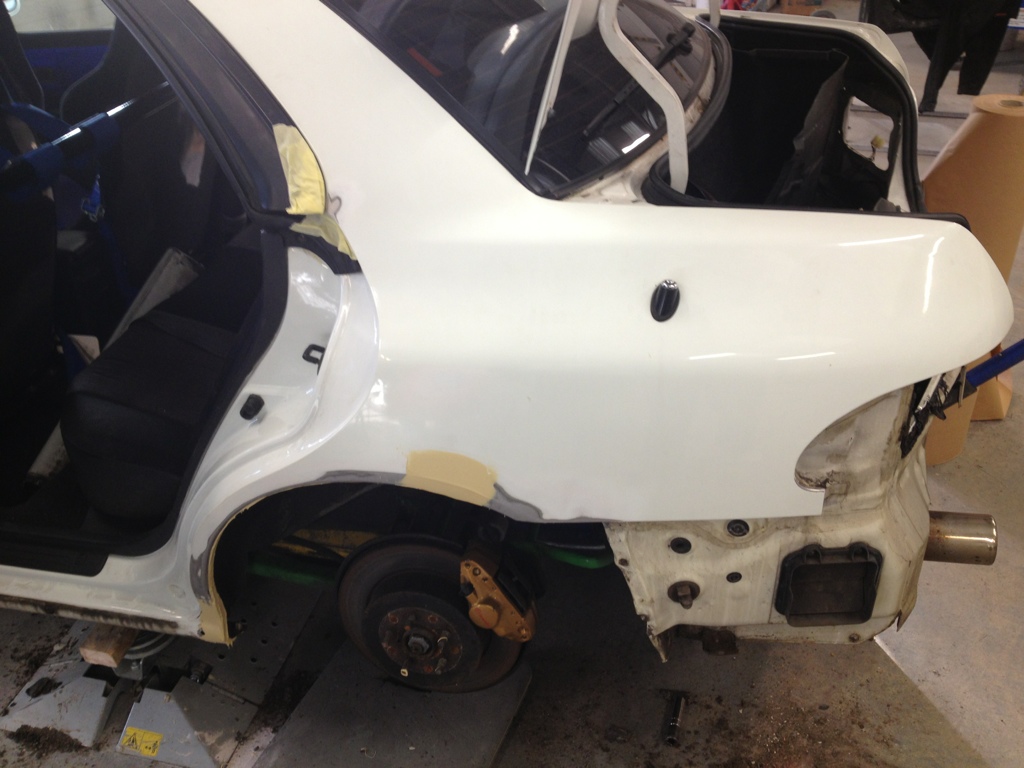

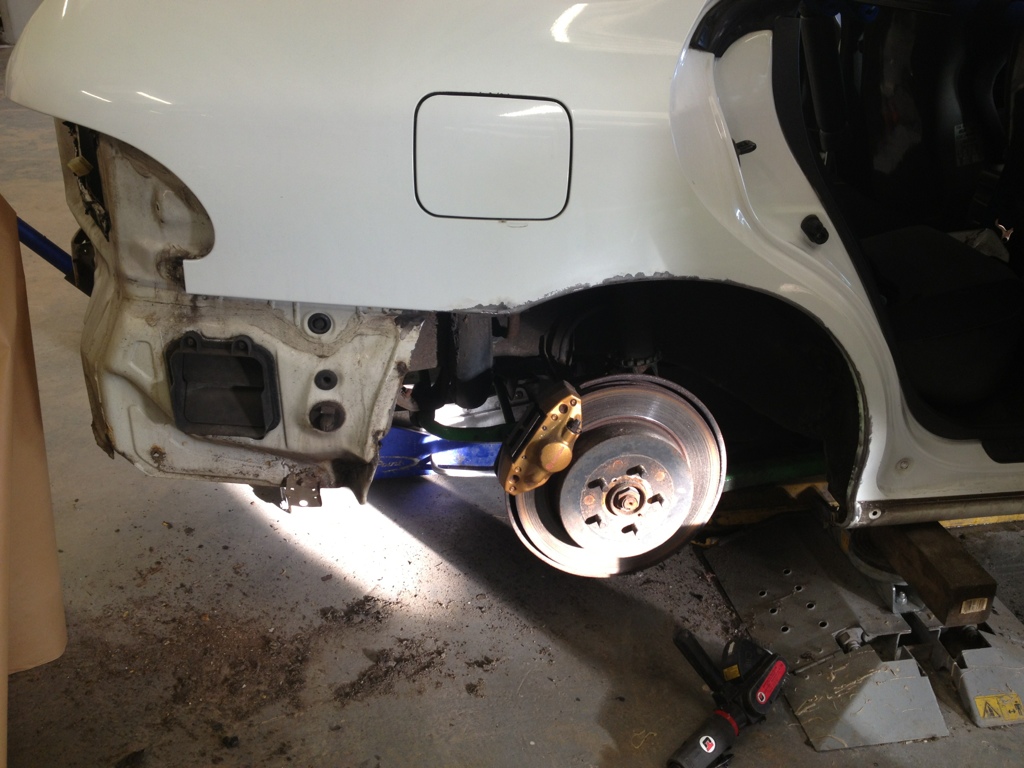

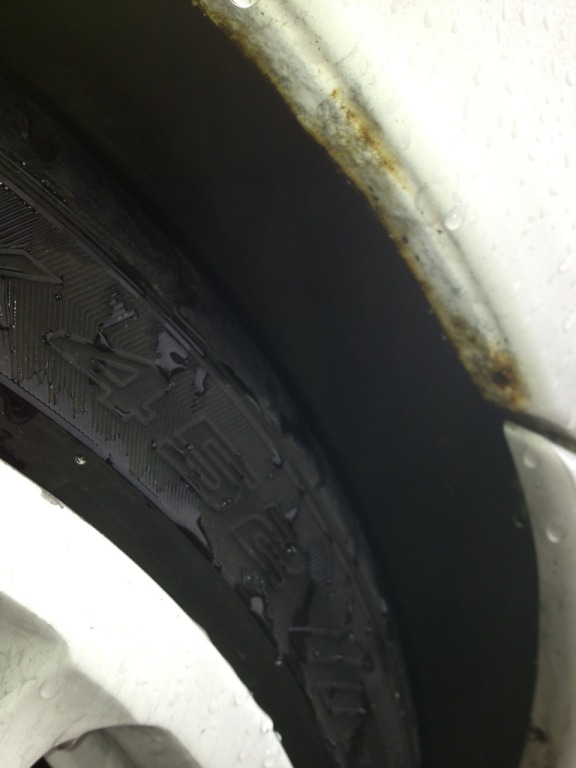

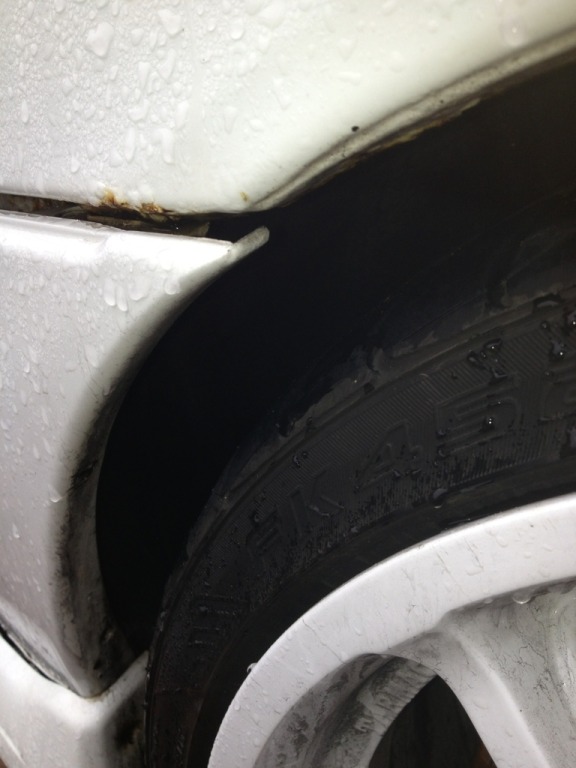

after driving around like this for a bit, there were a couple of issues with the dreaded rear arches. so off she went to the body shop to have them sorted

Name:  41DE8508-918D-4CD5-8301-EC9DD9A49663-11317-00000DDC3447648E_zpsd193c1b8.jpg
Views: 0
Size:  56.7 KB

Name:  BCC536B3-B5D5-418D-BEA5-7A0ACD6B406E-11317-00000DDC3EBCE863_zpsdee84e47.jpg
Views: 0
Size:  72.5 KB

Name:  F4FCE320-C9E8-44C7-B4C6-0D4807E4203D-11317-00000DDC4F30257A_zps51172be3.jpg
Views: 0
Size:  238.1 KB

Name:  0714F184-CBCC-4301-8520-D5436D4D396A-11317-00000DDC5F627CD7_zpsa2b18b4e.jpg
Views: 0
Size:  209.3 KB

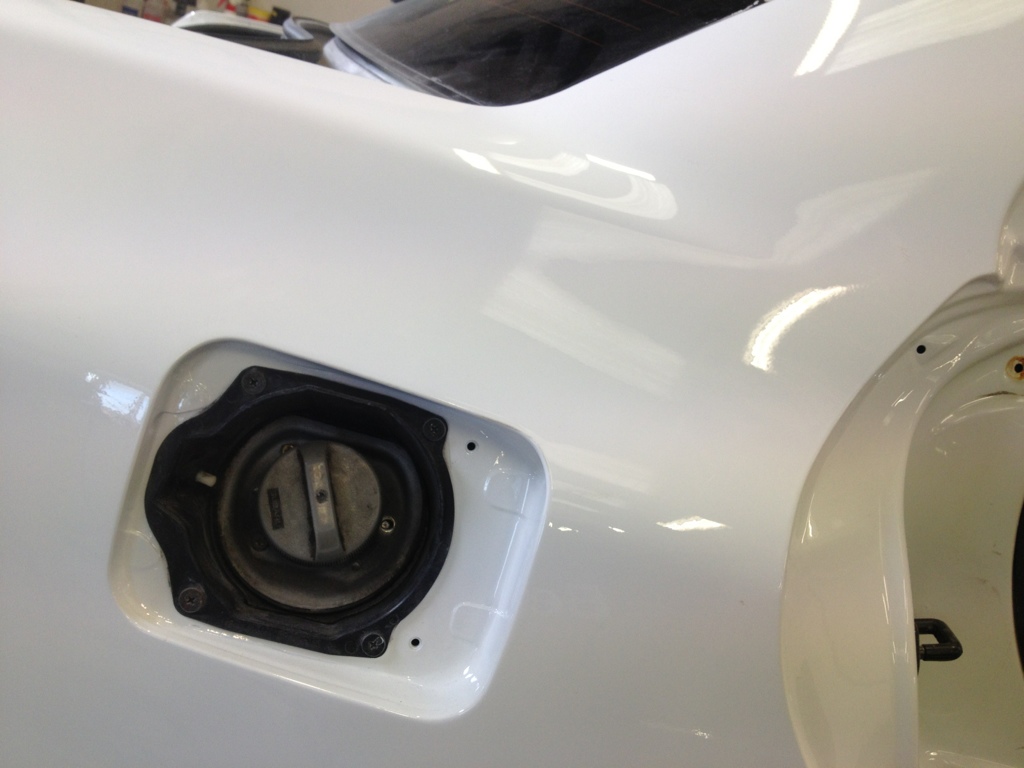

Name:  0ED58D47-7830-4B1D-9536-82727FBD1B16-7040-000008D599209DAC_zps7d3e9292.jpg
Views: 0
Size:  164.0 KB

Name:  2EDE07A5-477A-4498-BBED-C3E52B0301CA-7040-000008D5A2D54314_zps395c9d2b.jpg
Views: 0
Size:  175.4 KB

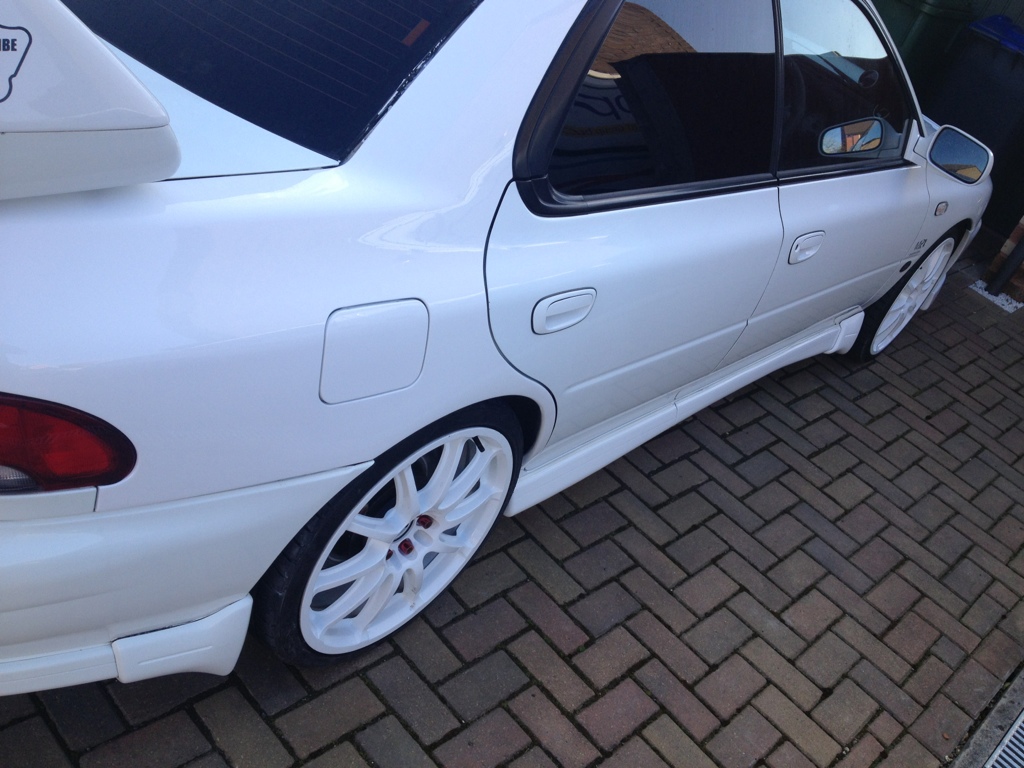

Name:  3E2482CB-1E0D-4693-84EA-FBBBC054CB91-7040-000008D58CAC4516_zpsfaa259e4.jpg
Views: 0
Size:  254.5 KB

Name:  628EC469-DB5E-4FFE-BB92-FB6E700ADBF5-7040-000008D584E25818_zps3a05efb5.jpg
Views: 0
Size:  238.4 KB

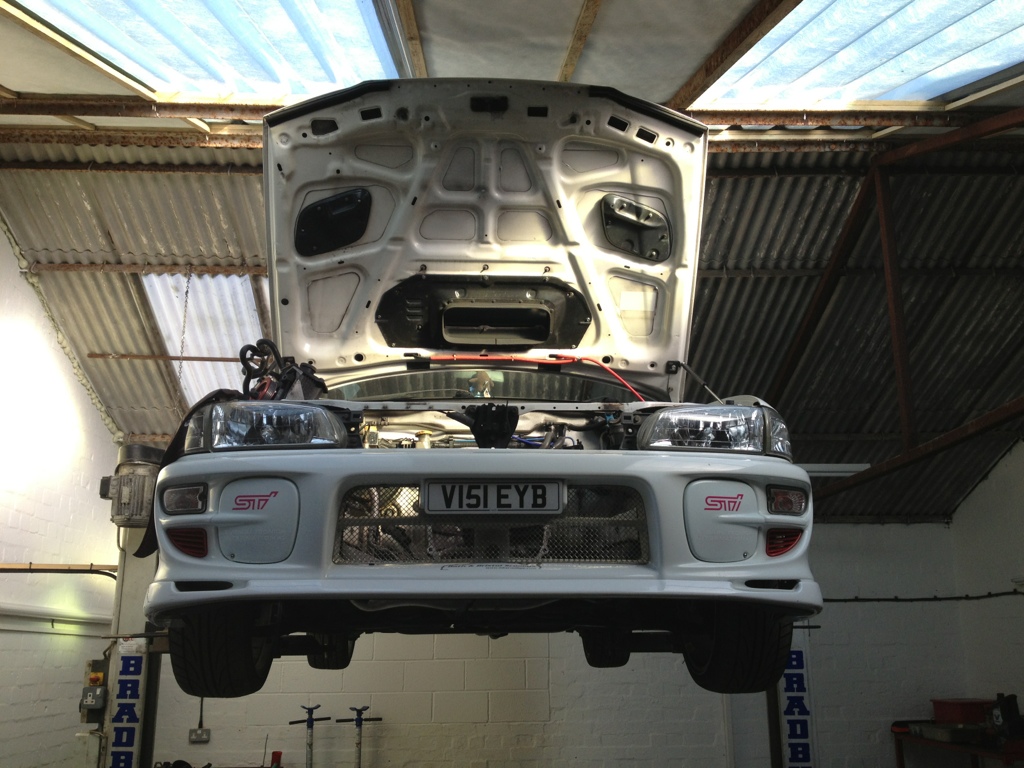

after that was all done, I drove her about for a bit and as usual got bored, so sat down and decided I would build a nicer engine bay, sort some rust issues around the screen, etc so back in the garage she went...

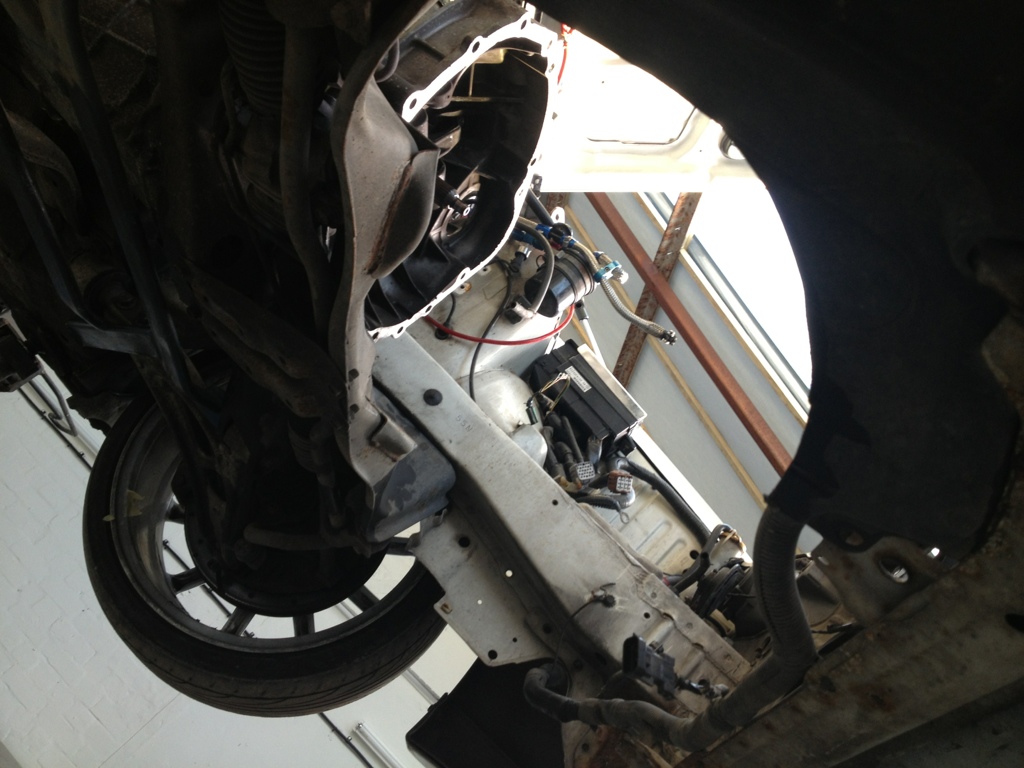

engine was taken out...

Name:  224B7854-9333-4EAB-9B86-777F589D13E6-8470-00000A8B8FAEBF76_zps95a0890a.jpg
Views: 0
Size:  284.4 KB

Name:  AA366FAA-B02E-4D79-A8CB-61FB5F472656-8470-00000A8B9F763255_zps8c1440eb.jpg
Views: 0
Size:  224.1 KB

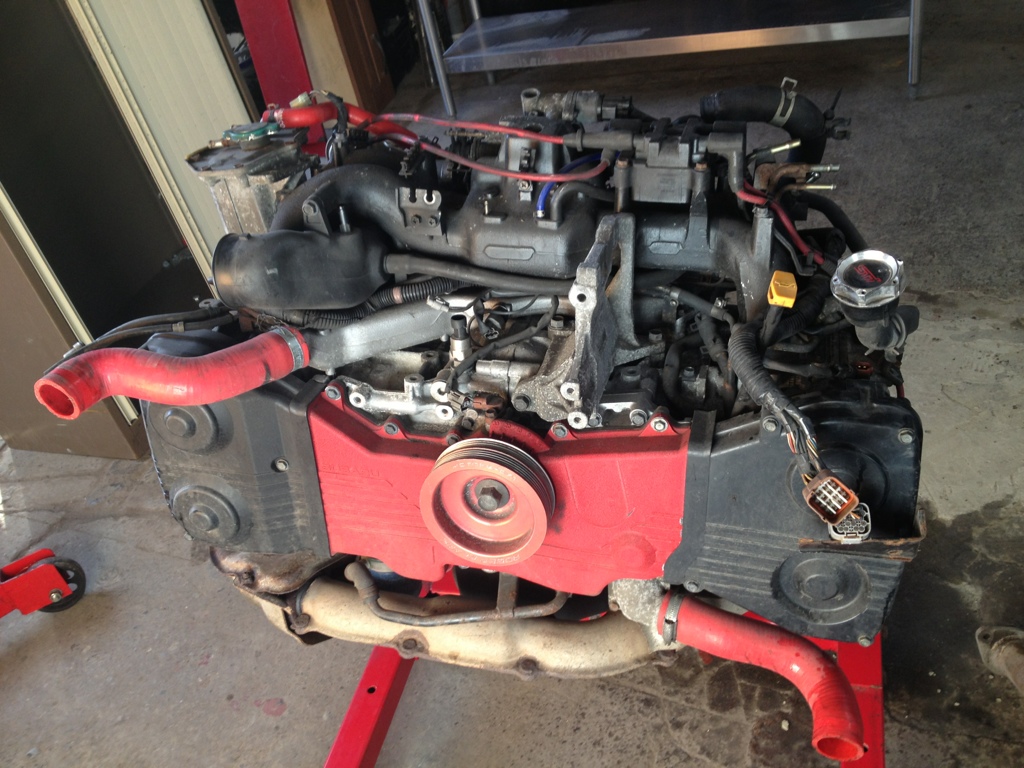

Name:  7BCC2F7D-5A57-4F0C-8BB3-14DF4C90615B-8470-00000A8B739E38C0_zps253c73aa.jpg
Views: 0
Size:  311.9 KB

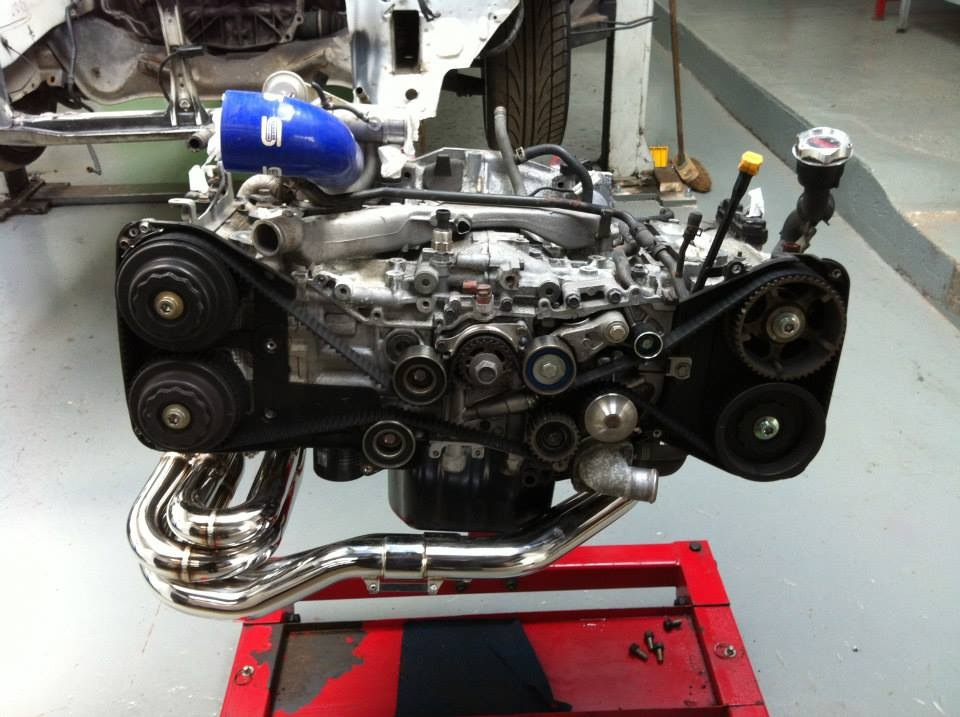

whilst engine was out I thought bollox to it, and decided to go the whole hog, and so now having a full wrc multi weld in cage put in, engine has been stripped and currently being done up with..

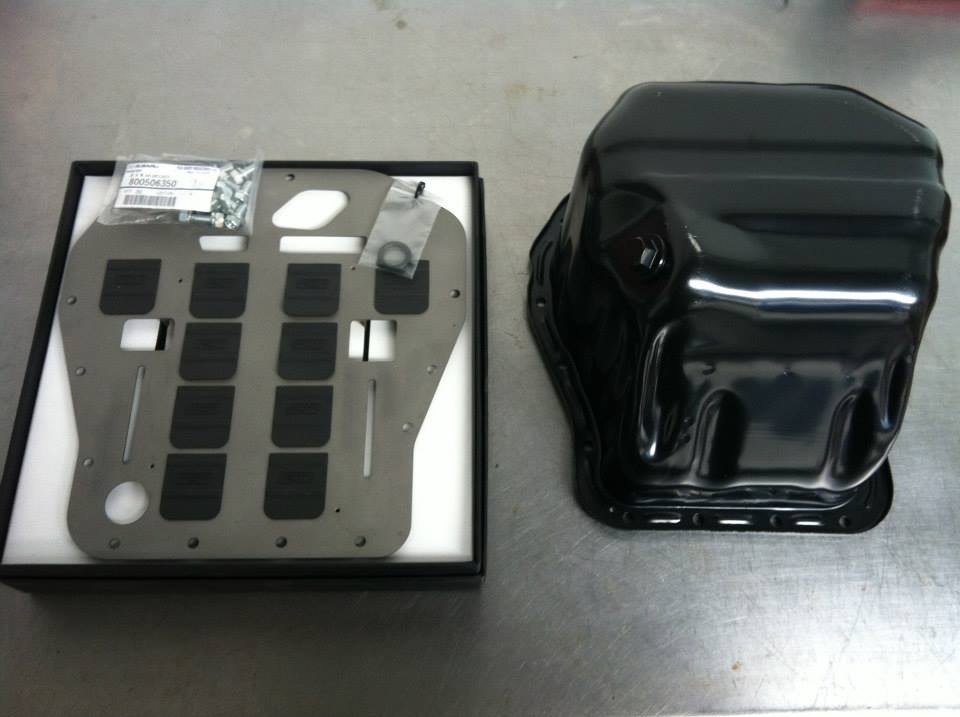

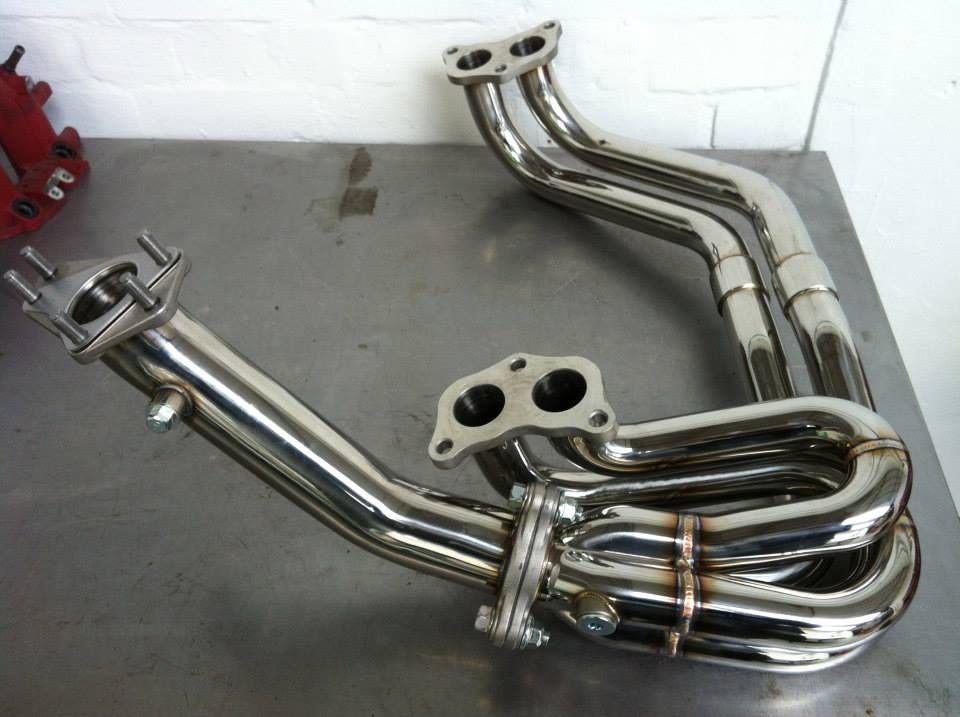

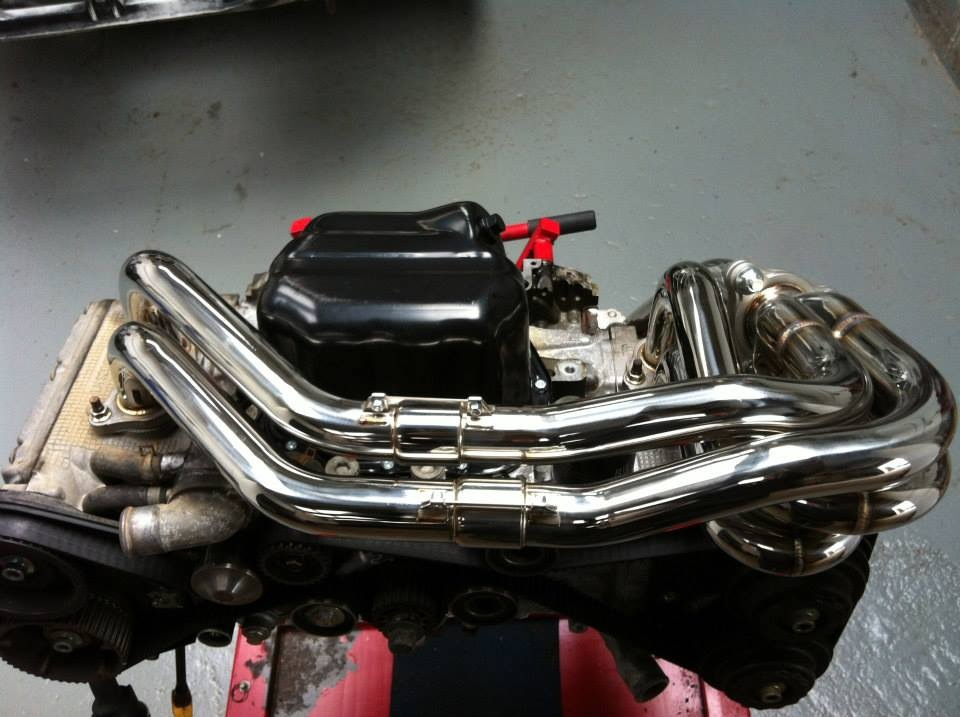

new rcm headers, rcm baffled sump kit, fresh vf34 turbo, toyo sports new fmic core inverted, custom stainless cooler pipes, setrab oil cooler, thermal spacers, polished inlet, new samcos, new rcm pullys, excedy stage one pink box, alcatek with l.c and a.l, 12mm oil pump, lateral rcm fuel pump, spec c anti serge swirl pot with -6 fittings, braided lines, etc etc etc etc lots being done, but as she stands now shes having the cage put in and being sprayed inside and out with new p2000 carbon spoiler being put on, morettes, 22b narrow bumper,

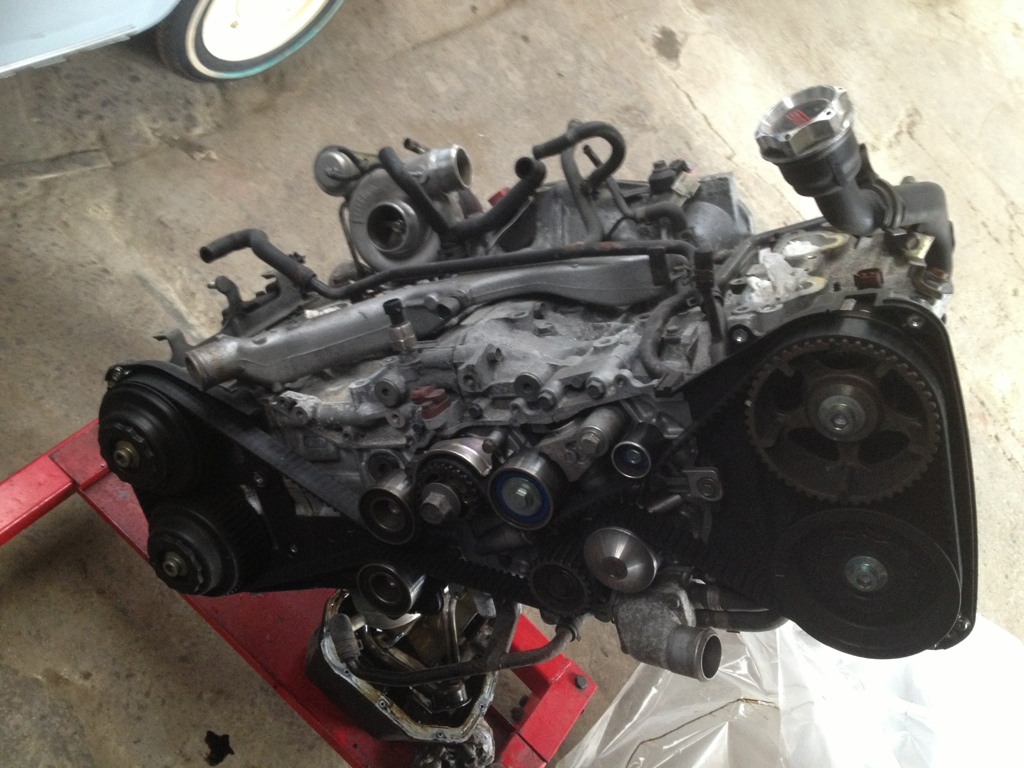

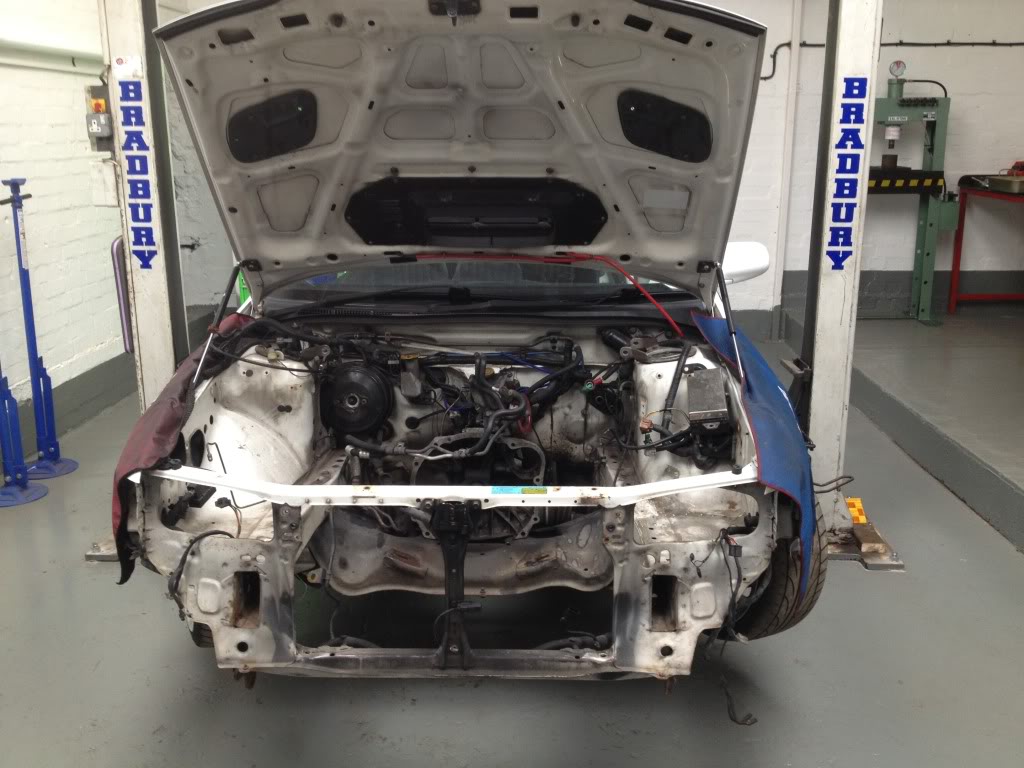

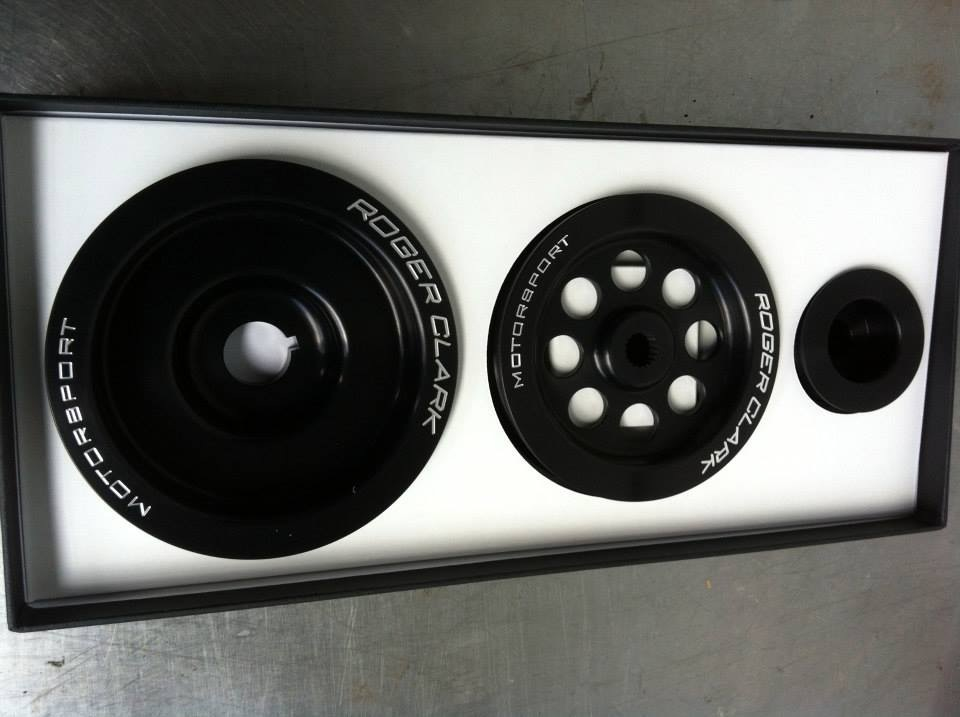

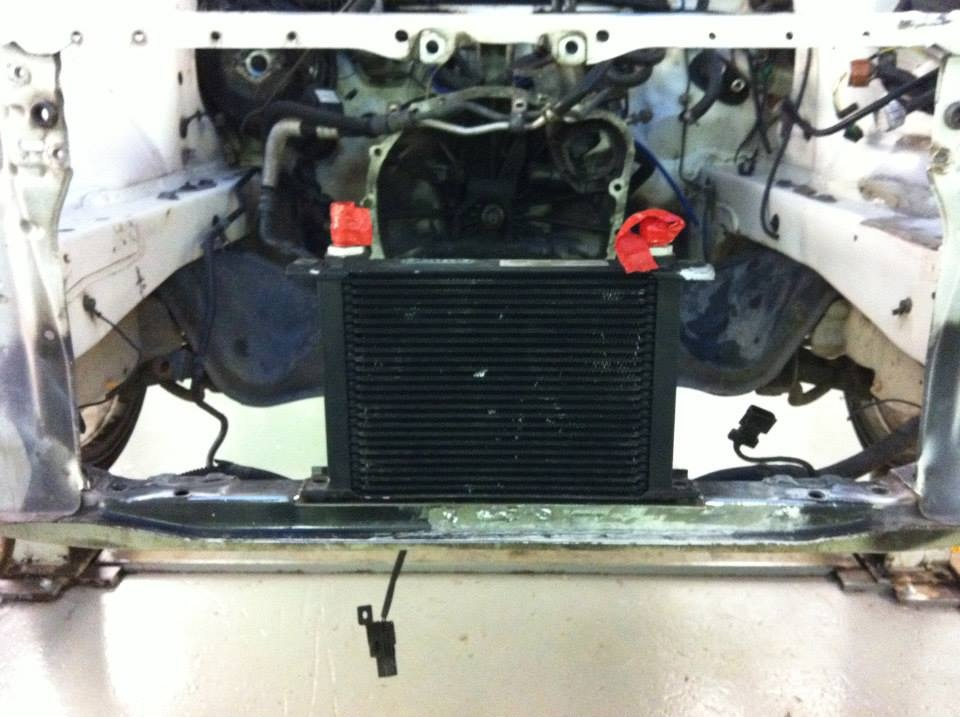

heres some random pix of different things,

Name:  A773D6DF-8847-45AC-A72B-E203E87BFEEA-11718-00000EEF4477A84E_zps6186a29d.jpg
Views: 0
Size:  272.7 KB

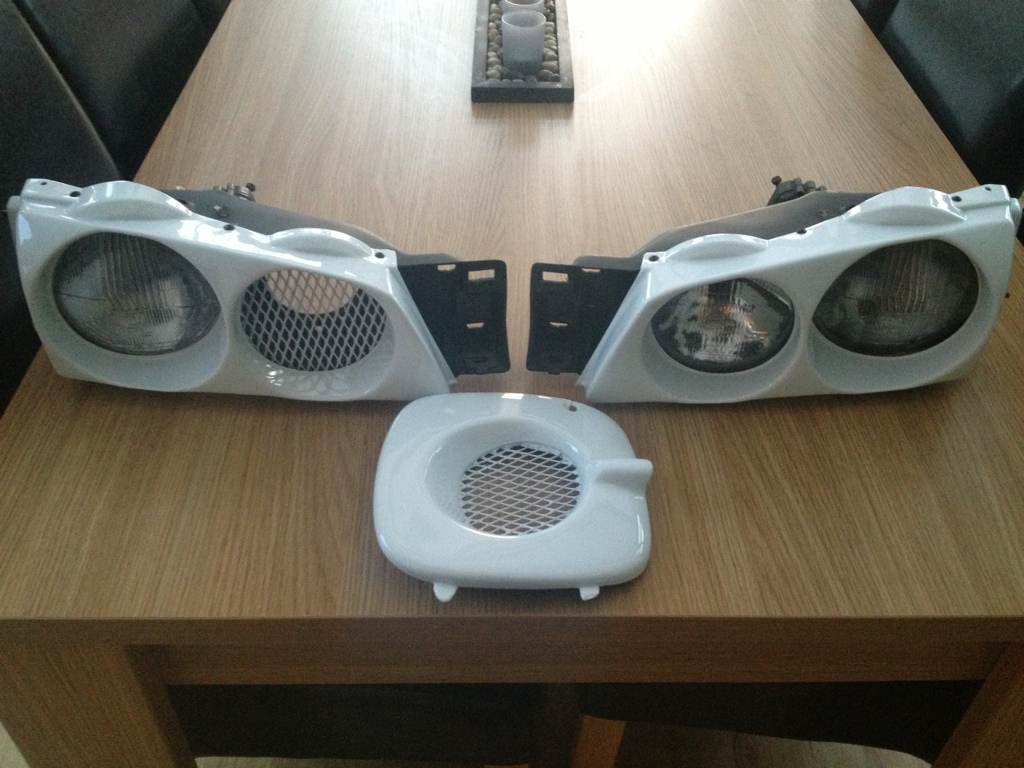

Name:  FAF1EF85-4B56-490B-8F52-3C784BFC8753-7283-000008F82ED0F2C9_zps0ce6e6e9.jpg
Views: 0
Size:  290.7 KB

Name:  0D88F56E-547F-46A1-B458-F37187231765-13065-000010EF3597A677_zps0f5026a0.jpg
Views: 0
Size:  112.5 KB

Name:  02f2f43ed8009527fb1079a09664dc74_zps37d6f979.jpg
Views: 0
Size:  331.4 KB

Name:  18fb76a581785593b8adef5b00c28a44_zps6dbe7022.jpg
Views: 0
Size:  355.9 KB

Name:  bb50eea304a61ba923dbe016920f9ec6_zps2b3fd026.jpg
Views: 0
Size:  319.7 KB

Name:  03687dcac94213732135e271ccf64f0a_zpsc9bf4774.jpg
Views: 0
Size:  281.8 KB

Name:  544855fcee316d4896907a40e95e8879_zpsc4f41da0.jpg
Views: 0
Size:  197.9 KB

Name:  e0a13f4902c00503fab6aa8ab3f68d1c_zpsf3ead3a8.jpg
Views: 0
Size:  213.4 KB

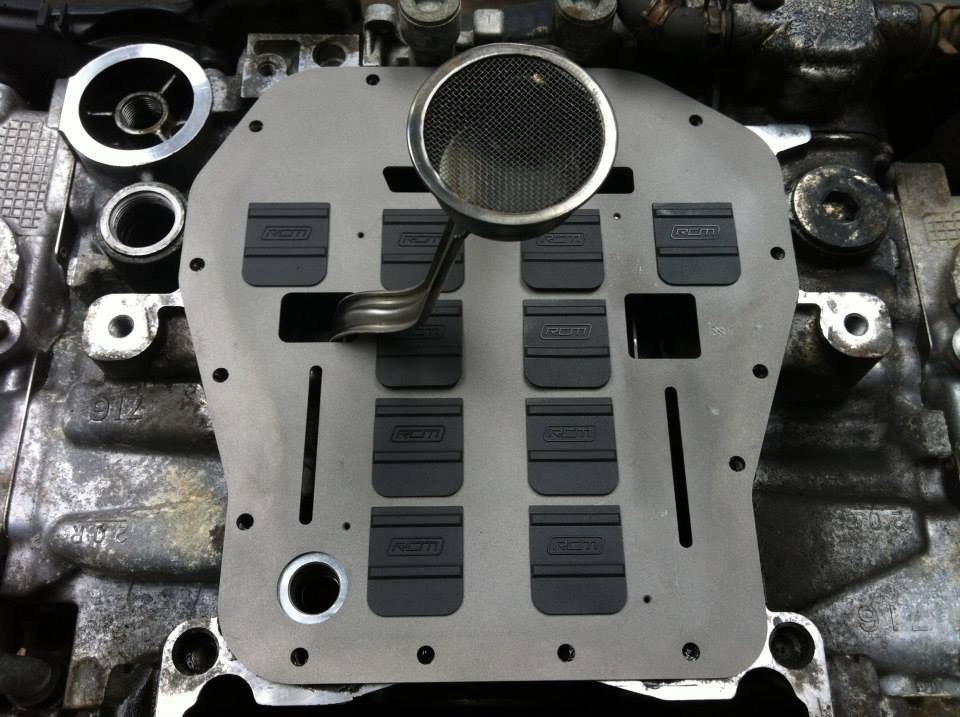

Name:  d09af79359126aa25f0d132e994c1eb4_zpsfe51ae60.jpg
Views: 0
Size:  316.3 KB

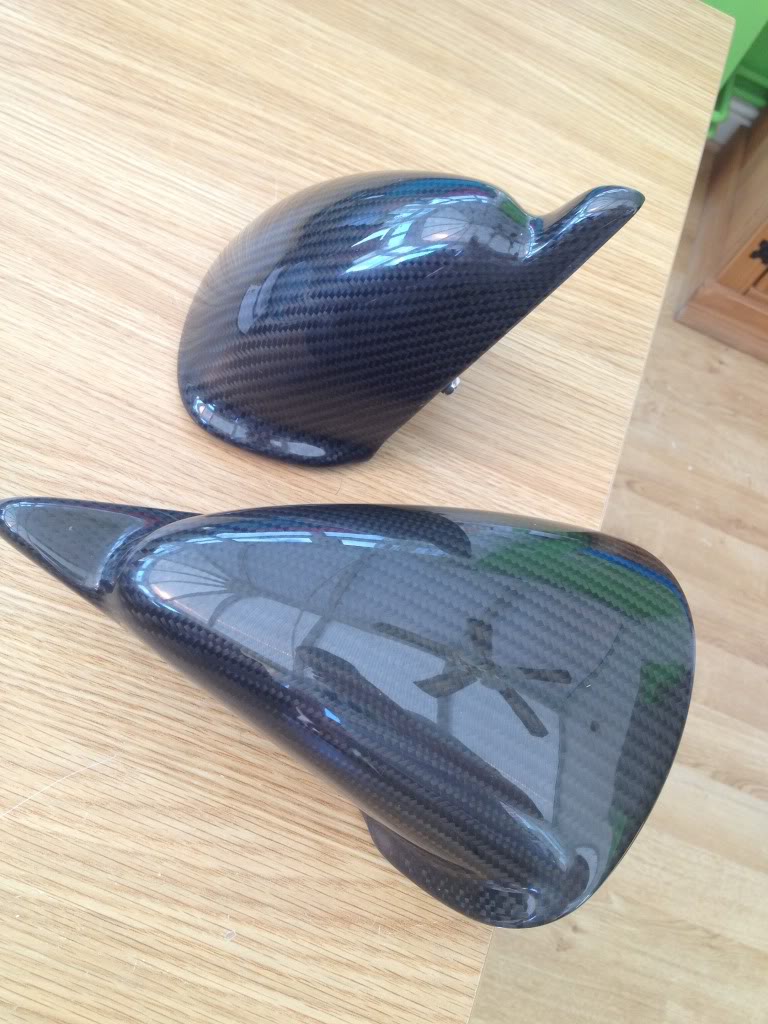

Name:  E9882F9F-75AF-49BE-BF69-3E832F953FFD-18789-00001559D32954B0_zpsdf09085f.jpg
Views: 0
Size:  125.9 KB

Name:  ABA8430B-94FB-41AE-8AFC-46FEC01110A7-18099-0000148E7C1DC4F7_zps8aaa3f34.jpg
Views: 0
Size:  127.2 KB

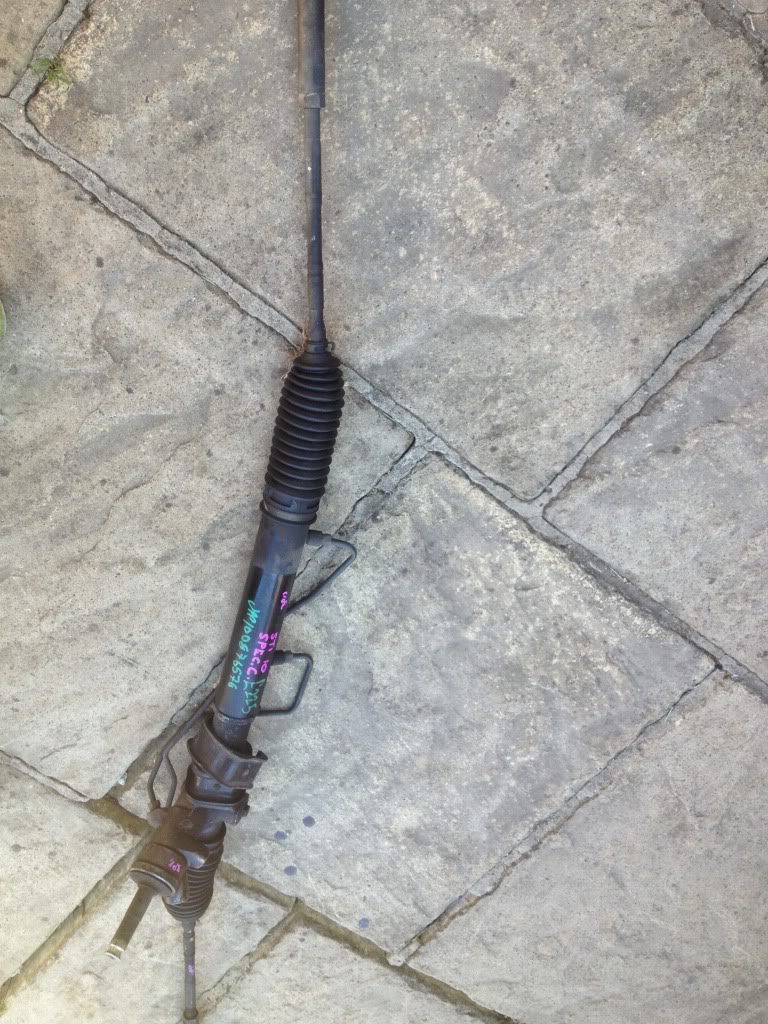

also the front end is now changed to newage sti set up, and currently being powder coated, black and green, polybushed also cusco arb and sti spec c quick rack to go in!

Name:  2E62B608-4F3F-406C-91EC-EC57F78DA79B-8059-000009CCD848055B_zps833de627.jpg
Views: 0
Size:  209.7 KB

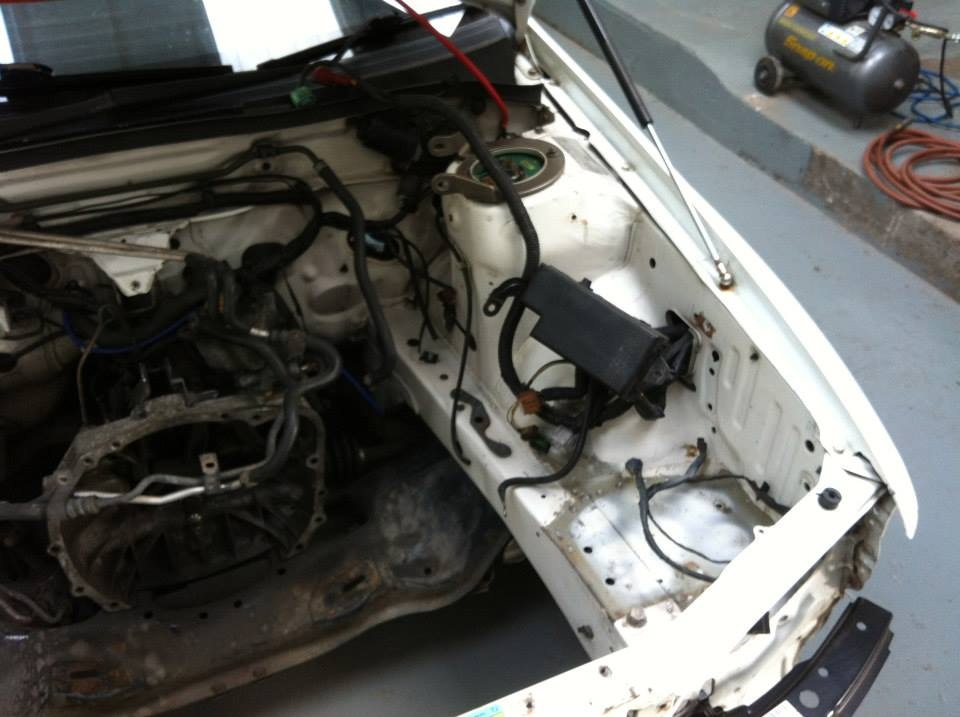

also declutting the engine bay, new battery (odessey pc680 & washer bottle) being relocted inside car so took battery tray off.

Name:  f151e12fa3b5da6c65c91995ff3d5752_zpsc3c4bd73.jpg
Views: 0
Size:  299.8 KB

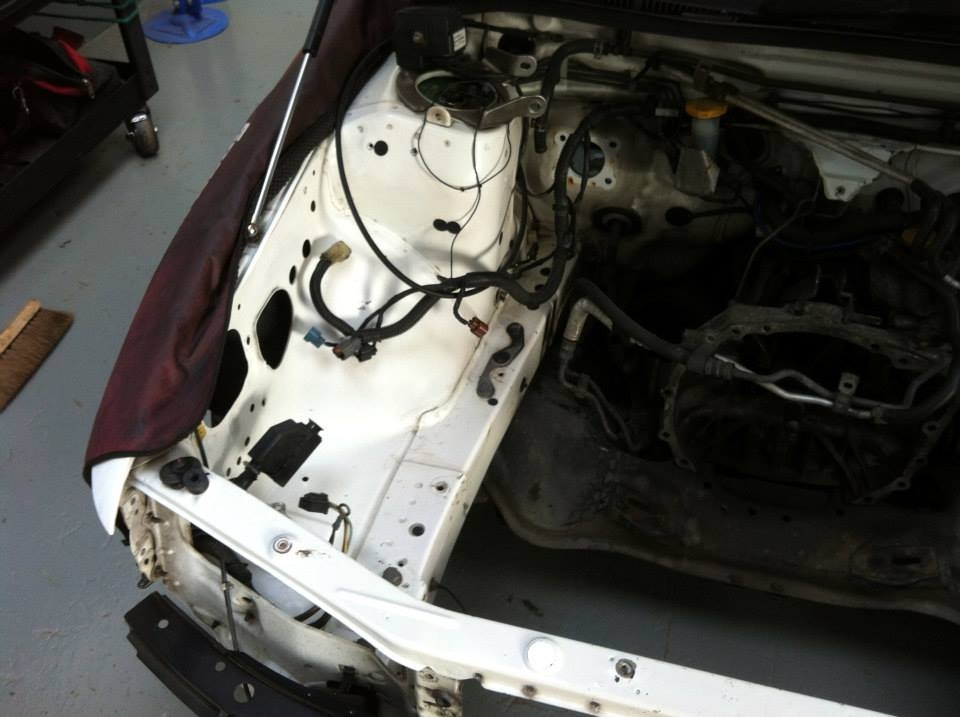

also master cylinder and brake lines being custom made using type r non abs set up with ferodo ds2500 pads right round

Name:  ad3c4bed4c2d9822c8b12c9e294b8339_zps9cdaa31b.jpg
Views: 0
Size:  264.1 KB

also new bumper bar to mount cooler, as with most they rot away

Name:  03903f9796c4ca6e9a47807d8a548c7d_zpsda2b69ac.jpg
Views: 0
Size:  381.3 KB

interior all stripped out ready for new weld in cage to be fitted

Name:  D636D8CF-1E68-4837-9960-9EEB68B7E900-840-000000D3323FEA24_zpseefd2d0d.jpg
Views: 0
Size:  87.4 KB

new wheels revolution 18s with kumho inter cut soft tyres

Name:  24237468-EC63-428F-AD73-E5065759C341-1556-000001A7D031B388_zps137db958.jpg
Views: 0
Size:  123.0 KB

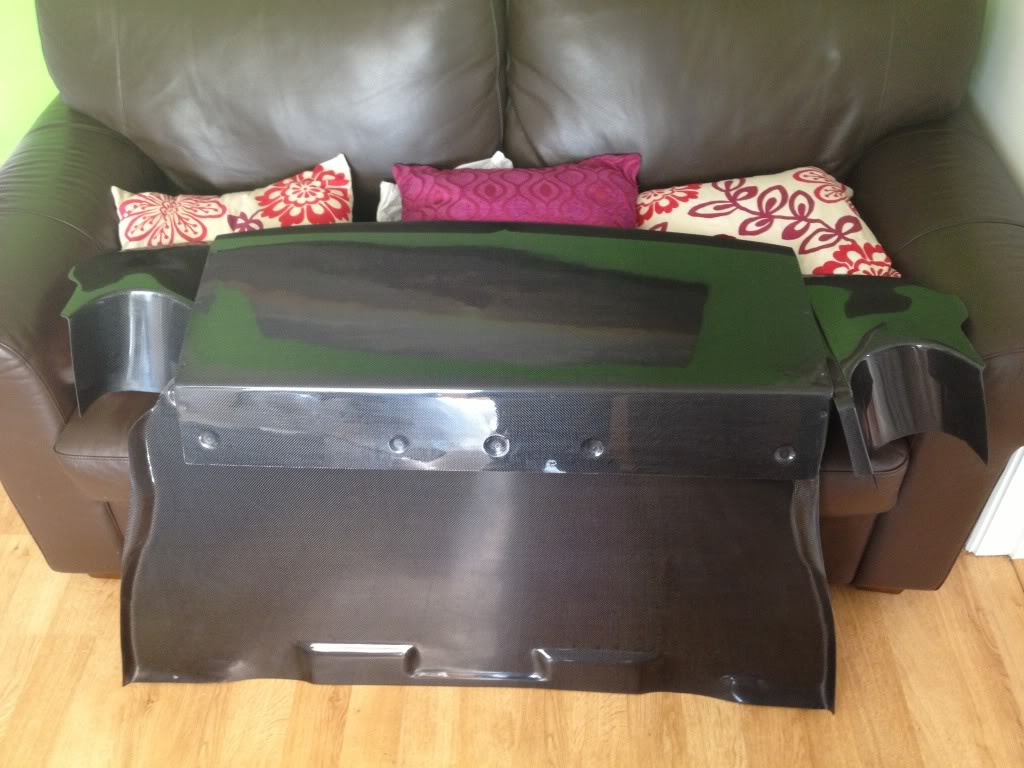

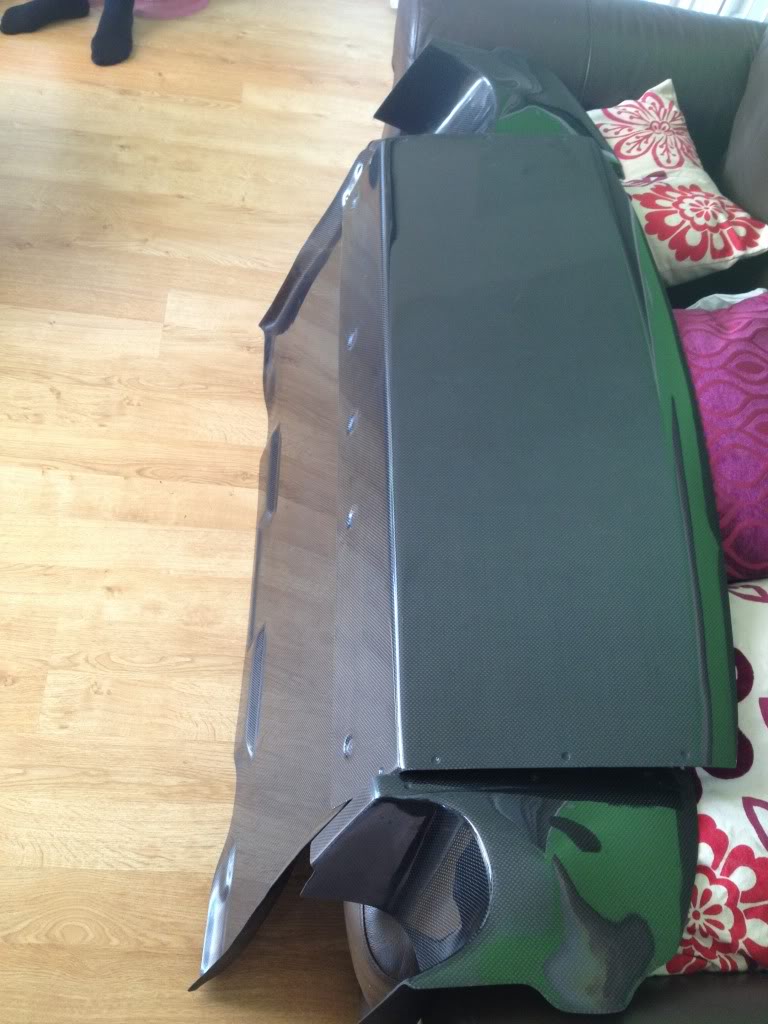

carbon firewall set up

Name:  5A268E3B-21F1-4A48-99A9-19AA50E0B082-2283-00000286F53D1560_zpsbce891ae.jpg
Views: 0
Size:  103.3 KB

Name:  83C3445F-41D2-4809-BA4D-97BD5F25F2DE-2283-000002870FF94F41_zps847d0592.jpg
Views: 0
Size:  106.0 KB

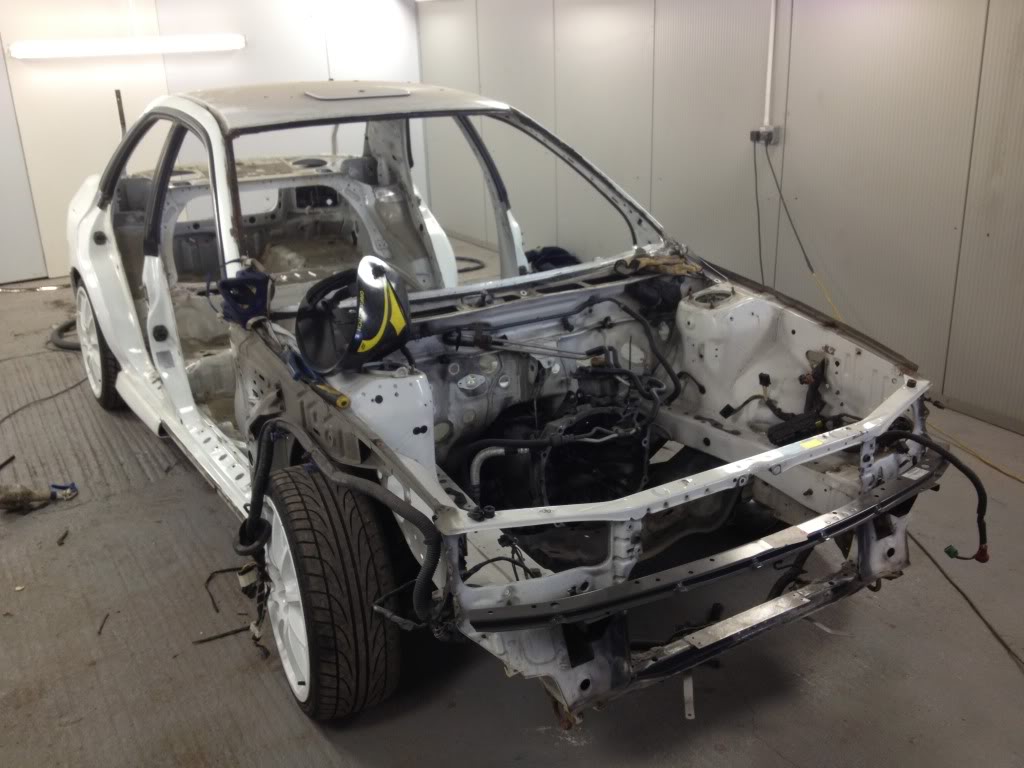

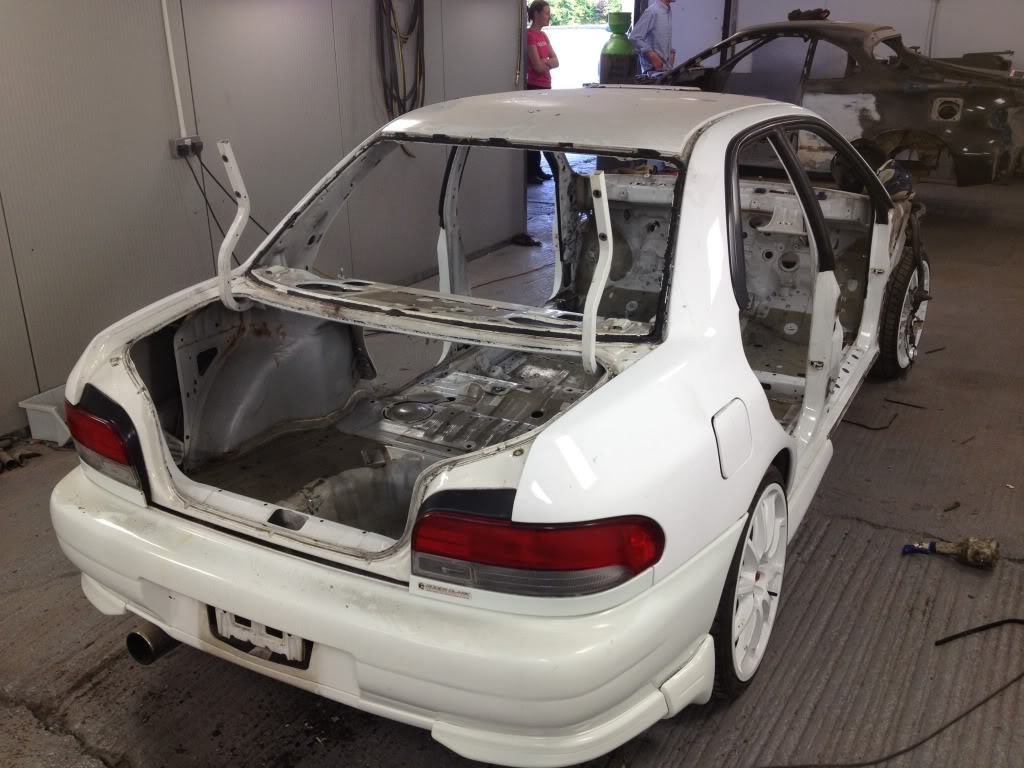

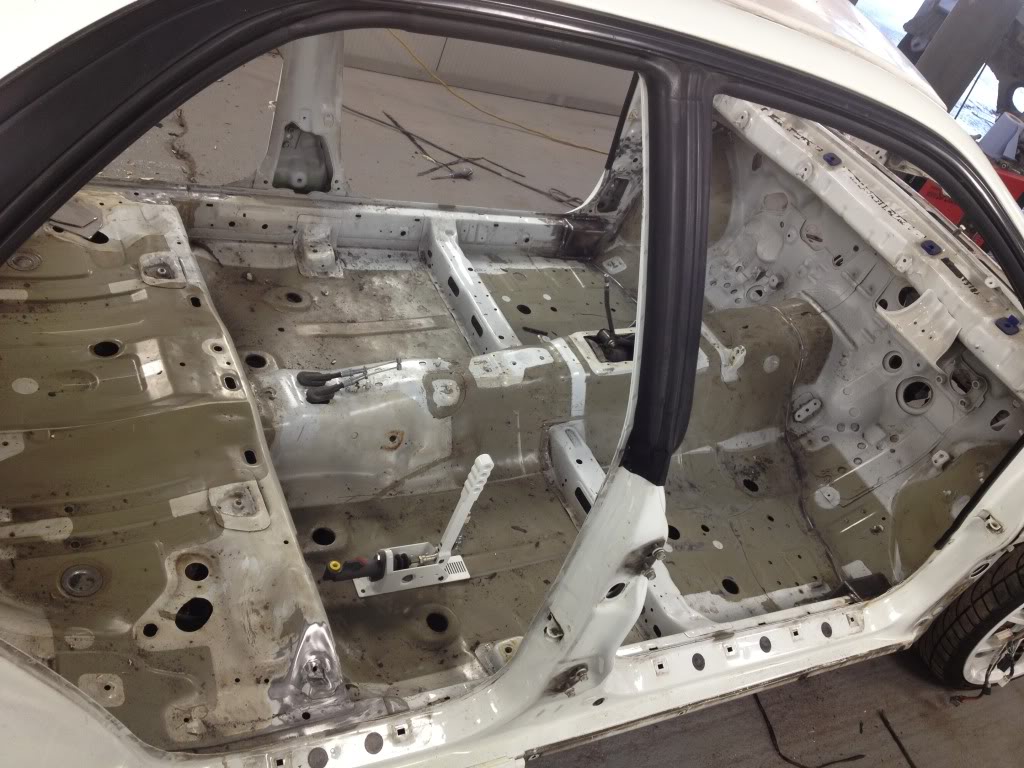

and this is how she is sitting at the moment awaiting cage,

Name:  9D89AB1B-85C0-4FA0-8803-2D64BEB682BA-1727-00000269AC9ADF0B_zps20964640.jpg
Views: 0
Size:  96.8 KB

Name:  D627E1CD-F55C-4306-BD5D-3B33B88C6EF5-1727-00000269B5395A62_zps788e976b.jpg
Views: 0
Size:  120.8 KB

Name:  1382AC1B-2DC3-4628-ABC0-C3AD1C5B4652-1727-00000269BC64B304_zpsa5494f71.jpg
Views: 0
Size:  134.6 KB

so that's if for now, theres loads to do as you can see, but will get there eventualy lol
I will update as things are fitted / made, and go from there!
she will not be to everyones taste im sure so any constructive criticism welcomed

im looking forward to getting it going and doing some hill climbs, sprints etc
cjquicksilver is offline
Old 20 June 2013, 09:09 PM
  #2
JonMc
Scooby Senior
iTrader: (51)

JonMc's Avatar

Join Date: Nov 2005
Location: Wherever I park my car, that's my home
Posts: 20,490
Default

Looking good, some choice mods and should be fun once complete
JonMc is offline
Old 21 June 2013, 12:38 PM
  #3
csibee
Scooby Regular

Join Date: Jan 2010
Posts: 63
Default

Subscribed!
csibee is offline
Old 21 June 2013, 12:51 PM
  #4
v5 man
Scooby Regular
iTrader: (4)

v5 man's Avatar

Join Date: Aug 2002
Location: High Wycombe
Posts: 4,617
Default

Very interested in this one
v5 man is offline
Old 22 June 2013, 10:14 PM
  #5
jason_2013
Scooby Regular

Join Date: Dec 2012
Location: England
Posts: 282
Default

Looking good. Do all the newage subframes and suspension parts just bolt on?
jason_2013 is offline
Old 23 June 2013, 05:31 AM
  #6
Kwik
Scooby Regular
iTrader: (10)

Kwik's Avatar

Join Date: Feb 2007
Location: Gone Dark
Posts: 6,140
Default

Loving it
btw how did you remove the battery tray? Mines a state.

Last edited by Kwik; 23 June 2013 at 06:57 AM.
Kwik is offline
Old 23 June 2013, 09:57 AM
  #7
sonic93
Scooby Regular
iTrader: (16)

sonic93's Avatar

Join Date: Oct 2009
Location: borehamwood
Posts: 3,923
Default

Looking good Cj
sonic93 is offline
Old 23 June 2013, 10:41 AM
  #8
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

Cheers guys its getting there slowly

All frames etc with bolt on direct but you need the full kit to swap

Battery tray you have to drill the spot welds and carefully cut it out, takes a good few hours!

Will update shortly wen I get some more pics
cjquicksilver is offline
Old 23 June 2013, 08:07 PM
  #9
beef-on-the-bone
Scooby Regular
iTrader: (5)

beef-on-the-bone's Avatar

Join Date: Jun 2006
Location: newquay
Posts: 6,873
Default

looking great so far!!
beef-on-the-bone is offline
Old 24 June 2013, 05:30 PM
  #10
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

cheers mate
cjquicksilver is offline
Old 25 June 2013, 10:48 AM
  #11
Firez34
Scooby Regular
iTrader: (5)

Firez34's Avatar

Join Date: Jun 2011
Location: Chesterfield
Posts: 566
Default

Love it fella.
Firez34 is offline
Old 25 June 2013, 04:13 PM
  #12
sunny1989
Scooby Regular

sunny1989's Avatar

Join Date: Aug 2010
Location: 35,000 ft
Posts: 686
Default

very nice, those Revolutions should look superb!
sunny1989 is offline
Old 25 June 2013, 05:35 PM
  #13
stonejedi
Scooby Regular
iTrader: (51)

stonejedi's Avatar

Join Date: Jan 2008
Posts: 6,987
Default

Very nice.SJ.
stonejedi is offline
Old 25 June 2013, 06:36 PM
  #14
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

Cheers guys for the comments off to see her tomorrow so will get some more pics to keep the thred updated
cjquicksilver is offline
Old 27 June 2013, 10:38 PM
  #15
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

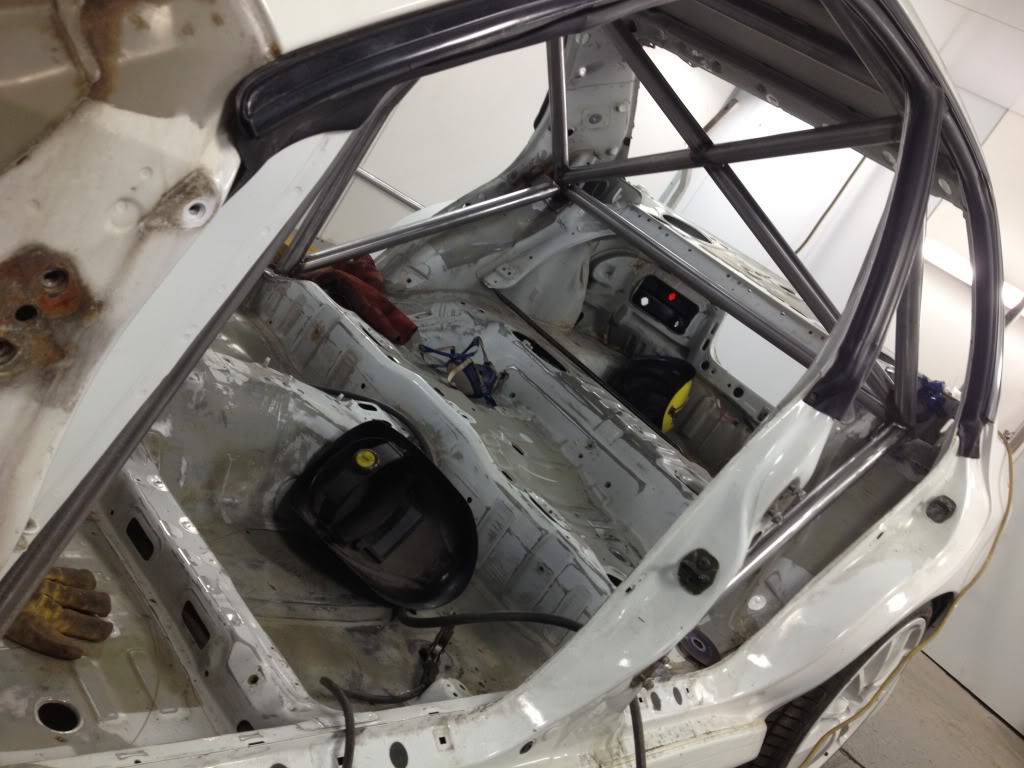

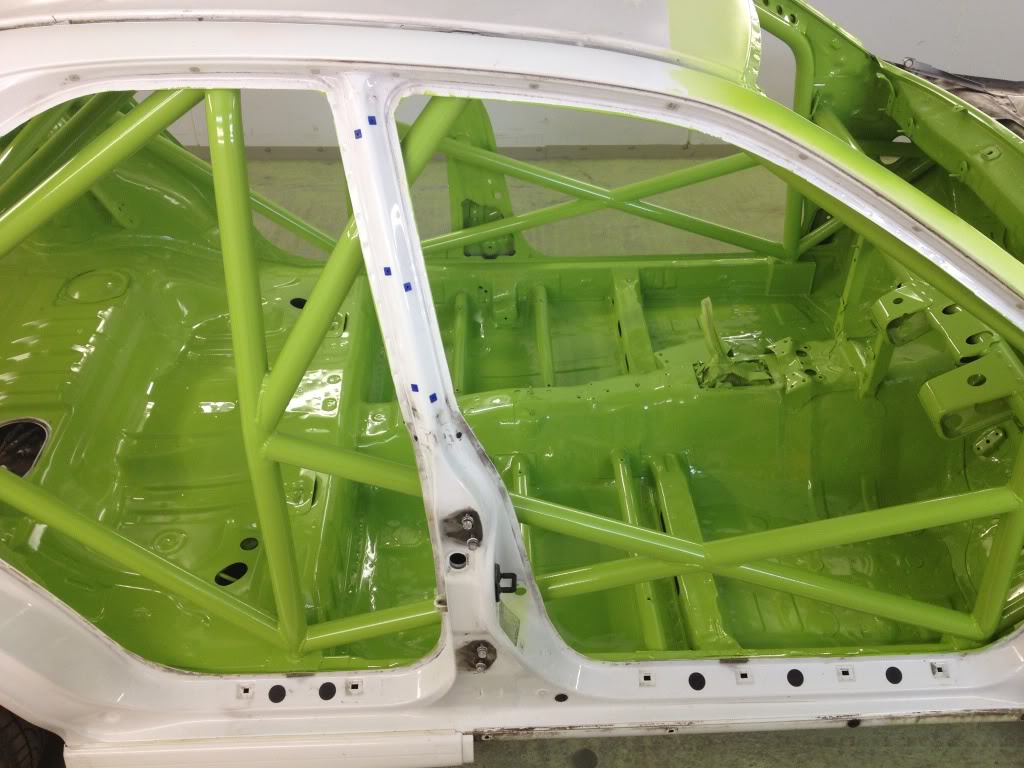

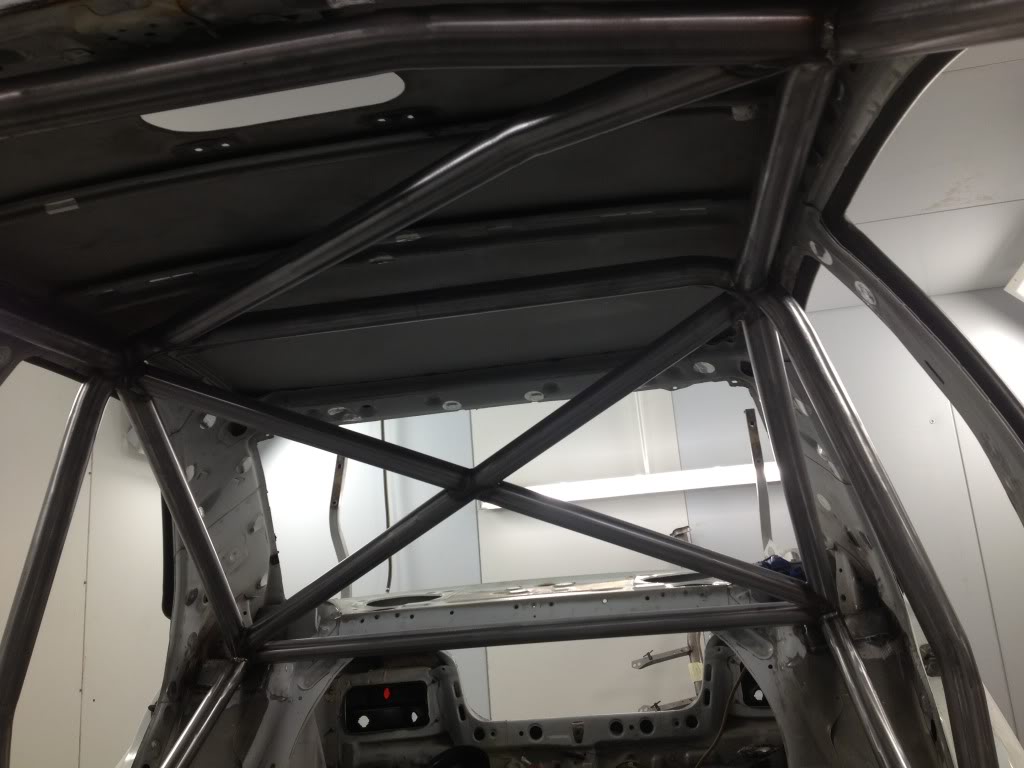

Well went to see the progress on the car today and so far so good, cage is about 50% completed and will be all sprayed up this time next week then she will have the full outside sprayed and a couple of rusty bubbles around the screen treated and looking as new again!

Few pics that I took today....

Name:  EDEB291E-42B4-4ED5-A5DA-443B2BB24367-5636-00000743CD40D08F_zps7cac6288.jpg
Views: 0
Size:  112.6 KB

Name:  16CE2454-A2C6-4703-803A-113FFA4F5CCA-5636-00000743D3C81040_zps0ea97add.jpg
Views: 0
Size:  82.2 KB

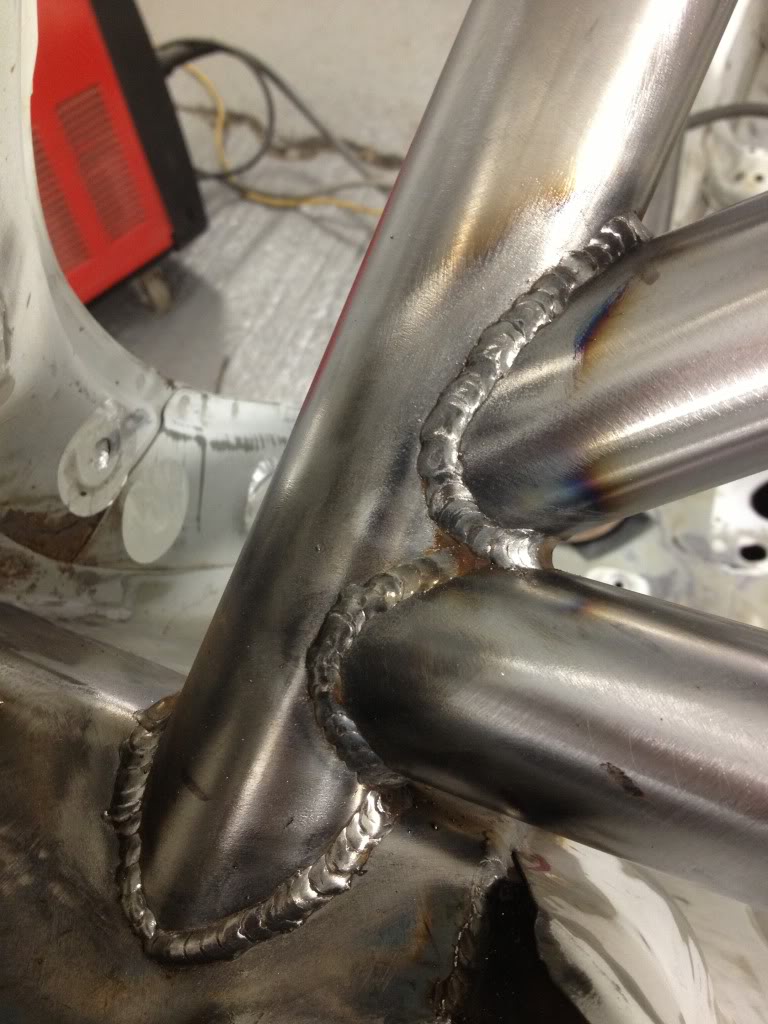

Name:  E0109FCA-E3E4-4B53-8BDE-04E8CF8DF347-5636-00000743B70FE994_zps977d7f59.jpg
Views: 0
Size:  107.0 KB

Also had my newage frame and alloy arms plus other bits back from powder coating and Nickle plating
Name:  6A0AFED6-AECC-46FA-A9B9-408B17983EB3-5636-00000743E3211C0D_zps18f8f7eb.jpg
Views: 0
Size:  32.6 KB

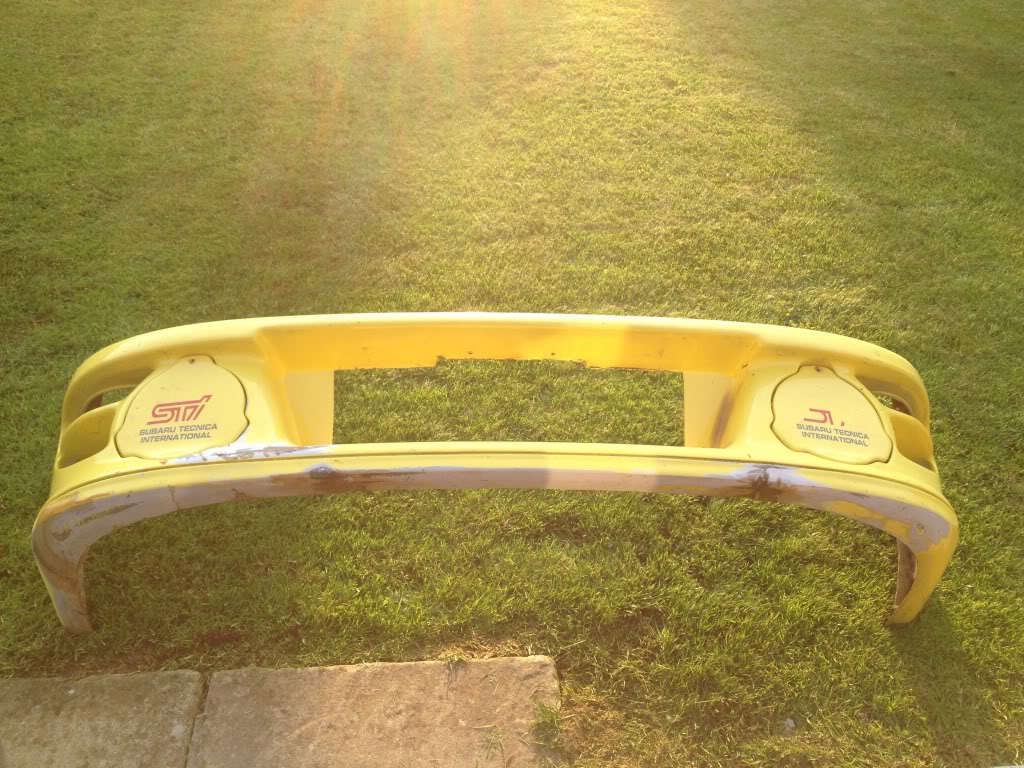

Also collected my new front bumper which I've dropped off to be repaired and painted

Name:  35C9DC08-9398-41B3-987A-0476B9A9D7A1-5636-00000743EDB46DD8_zps05ad8590.jpg
Views: 0
Size:  212.0 KB


More to come ......
cjquicksilver is offline
Old 27 June 2013, 10:43 PM
  #16
sonic93
Scooby Regular
iTrader: (16)

sonic93's Avatar

Join Date: Oct 2009
Location: borehamwood
Posts: 3,923
Default

Who done cage how much?
sonic93 is offline
Old 28 June 2013, 06:27 AM
  #17
JonMc
Scooby Senior
iTrader: (51)

JonMc's Avatar

Join Date: Nov 2005
Location: Wherever I park my car, that's my home
Posts: 20,490
Default

Nice, were did you get the nickel playing done as that is something I'm considering for bits and pieces at the moment
JonMc is offline
Old 28 June 2013, 08:19 PM
  #18
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

it was done by a company in bristol

heres a better pic of the frame and arms etc
Name:  A1CB5F65-4172-47E7-84C4-B69DEA2F4095-6331-0000080A4CED1D5E_zpsd0fd80cb.jpg
Views: 0
Size:  129.4 KB


also took the mini version out for a spin, only down side is having to clean it after lol

Name:  5A2EBF5D-3F19-4645-A8A0-71484B19C9DF-6331-0000080A5635B593_zpsf88a4b39.jpg
Views: 0
Size:  84.8 KB
cjquicksilver is offline
Old 29 June 2013, 03:36 PM
  #19
CREWJ
Scooby Regular

CREWJ's Avatar

Join Date: Mar 2008
Location: Aberdare / Daventry
Posts: 5,365
Default

Wow you really are going to town with this!

Subscribed
CREWJ is offline
Old 29 June 2013, 04:33 PM
  #20
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

Trying to mate

Had many unfinished projects in the past but promised myself if finish this one, as have got pretty much all te bits I need and what I don't nick @ car&customgarage is making/ fabricating me, cooler pipes, fuel rails, etc
cjquicksilver is offline
Old 29 June 2013, 05:15 PM
  #21
kevfawcett
Scooby Regular
iTrader: (7)

Join Date: May 2011
Posts: 1,317
Default

I bought some paint to do my Milleniums in white a couple of days ago, I think I made the right choice after seeing yours

Very nice build mate
kevfawcett is offline
Old 03 July 2013, 04:05 PM
  #22
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

cheers mate

little bit of an update, the cage is nearly finished, and is going for spray tomorrow or friday, then the outside will be sprayed and then the bolting on of bits will begin!

Name:  0996C409-30E4-457A-AE3A-B88FCDB3251C-10795-00000D5737EAAADF_zpsd291b6bc.jpg
Views: 0
Size:  92.4 KB
cjquicksilver is offline
Old 03 July 2013, 07:27 PM
  #23
BurtyBurg
Scooby Regular
iTrader: (2)

Join Date: Aug 2012
Location: West Yorkshire
Posts: 304
Default

Great build mate, well impressed so far!
BurtyBurg is offline
Old 03 July 2013, 07:52 PM
  #24
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

cheers mate
cjquicksilver is offline
Old 06 July 2013, 12:42 AM
  #25
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

Little update,

Cage now finished and painted, on to the outside now and hopfuly shell will be ready next week!!


All pointing to pillars done

Name:  FAC15BBA-5622-412C-B8E4-2A378A3764EC-12919-00000FA509E46613_zpsfb05add0.jpg
Views: 0
Size:  112.6 KB

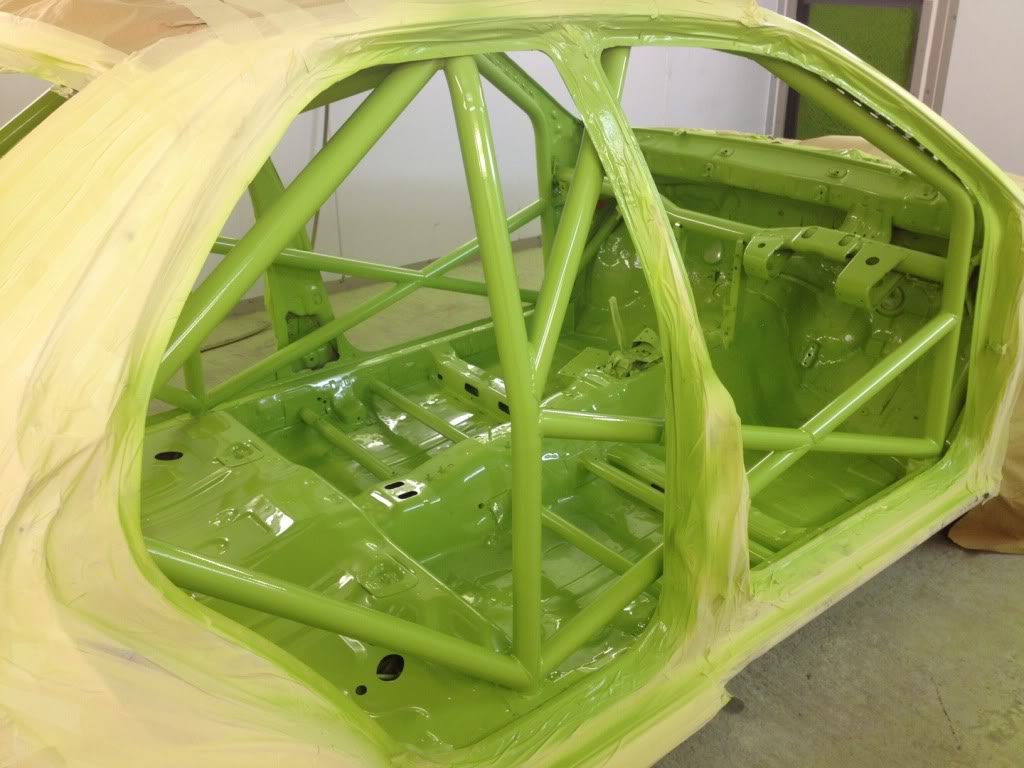

And all painted, not to everyone's taste I'm sure but so thing different from white

Name:  A4E25369-C4B9-45B9-BC1B-0EF161A1DAAC-12919-00000FA504F8F1A5_zps5b90cba7.jpg
Views: 0
Size:  96.1 KB

More to come ....
cjquicksilver is offline
Old 07 July 2013, 11:21 AM
  #26
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

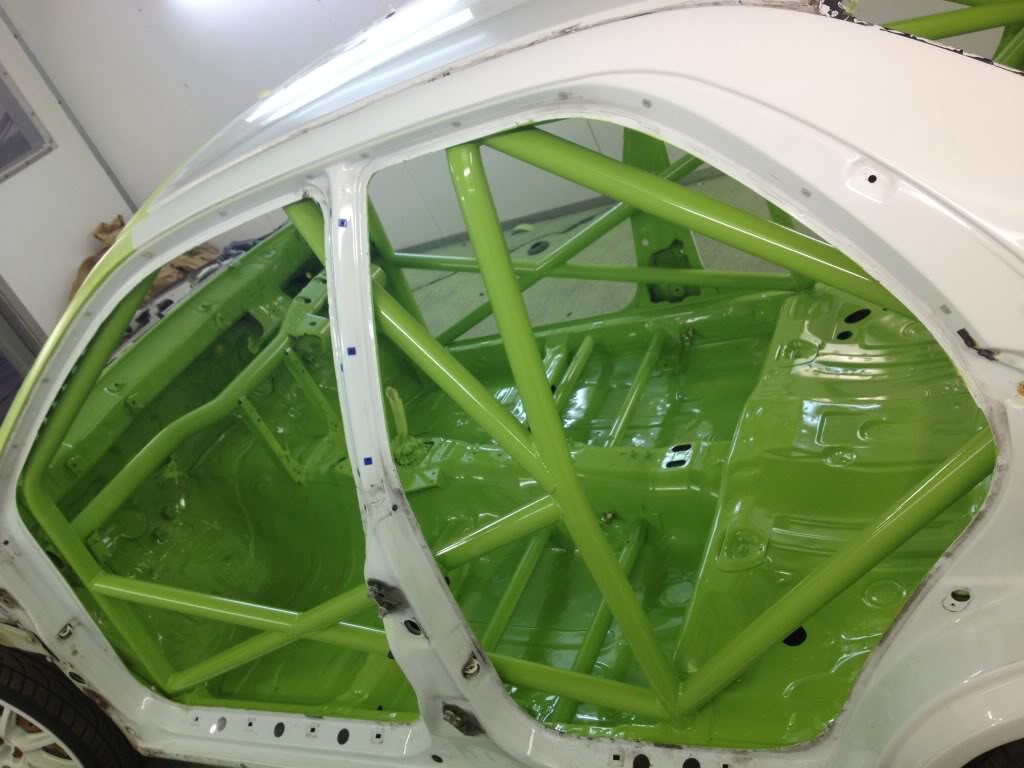

Some more pix

Name:  8B45DB9B-43D6-408A-96B3-E9649C22E591-13804-000010D4928B5611_zps75e3d85f.jpg
Views: 0
Size:  118.9 KB

Name:  B2442581-2255-4A83-A751-67C5E98A61C3-13804-000010D499D4CABF_zps1a4d47b9.jpg
Views: 0
Size:  112.6 KB
Name:  1EEA7788-ABC9-47BE-9394-3FC3032DC949-13804-000010D4A16FEA9A_zps683946ba.jpg
Views: 0
Size:  104.3 KB

Name:  EC7A4107-27ED-4B37-ACA8-2A3B0CDA4020-13804-000010D4B8F3934F_zps514a8ed9.jpg
Views: 0
Size:  92.6 KB
cjquicksilver is offline
Old 07 July 2013, 11:25 AM
  #27
prodriverules
Scooby Regular
iTrader: (52)

prodriverules's Avatar

Join Date: Jun 2010
Location: C+K MOTORS
Posts: 11,769
Default

Looking good mate but I would say I'd have gone darker on the green to match your other parts already done?
prodriverules is offline
Old 07 July 2013, 11:42 AM
  #28
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

Ye I can appreciate that but unfortunately the spray work and powder coat were done at the same time at different company's
But once the inside has the new seats, firewall etc in should be less 'in your face' if that makes sense
cjquicksilver is offline
Old 07 July 2013, 11:12 PM
  #29
STu-PiD
Scooby Regular

Join Date: Jan 2009
Location: Bristol
Posts: 31
Default

That bumper looks strangley familier!
STu-PiD is offline
Old 09 July 2013, 09:51 PM
  #30
cjquicksilver
Scooby Regular
Thread Starter
iTrader: (23)

cjquicksilver's Avatar

Join Date: Jun 2008
Location: bristol
Posts: 3,060
Default

Ye I swapped for magic beans and **** from a chap by Weston lol

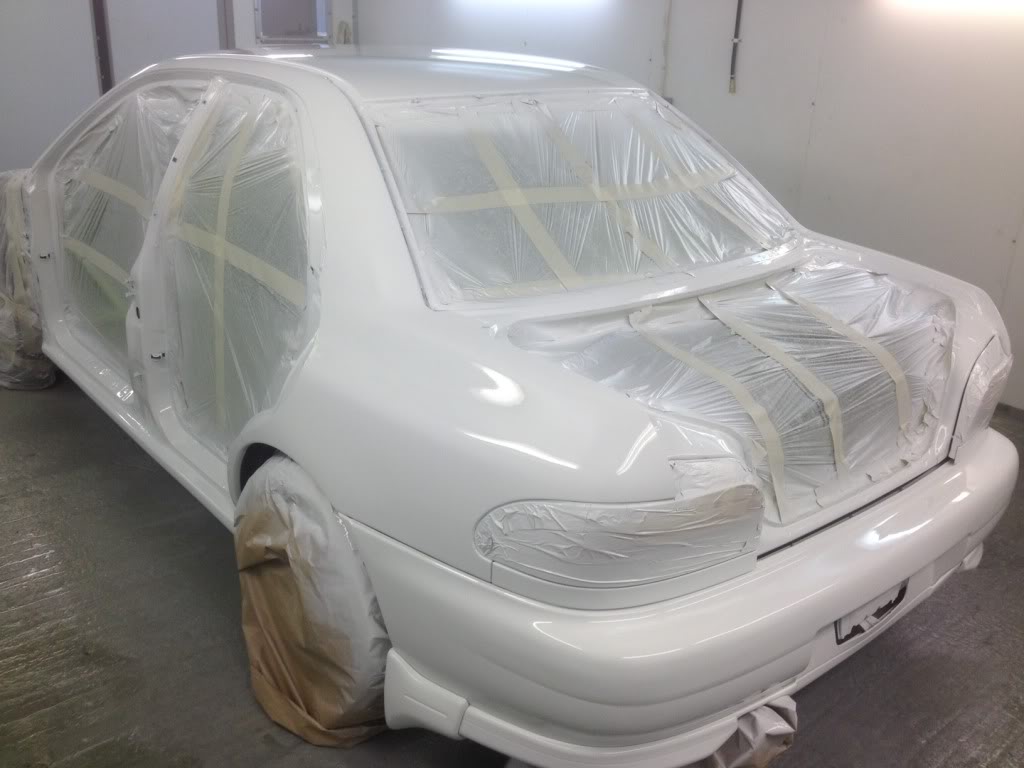

Little update outter skin just being sprayed now :-)

Name:  207E60D0-5890-4F1A-A349-3556DFF38E65-1698-000001D247546544_zps6fed8d17.jpg
Views: 0
Size:  75.5 KB
cjquicksilver is offline

Thread Tools
Search this Thread
Quick Reply: my v6 sti project..


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
