Relay parasitic draw? 2005 wrx
#1
Scooby Newbie
Thread Starter
Join Date: Oct 2020
Location: Germany
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Relay parasitic draw? 2005 wrx

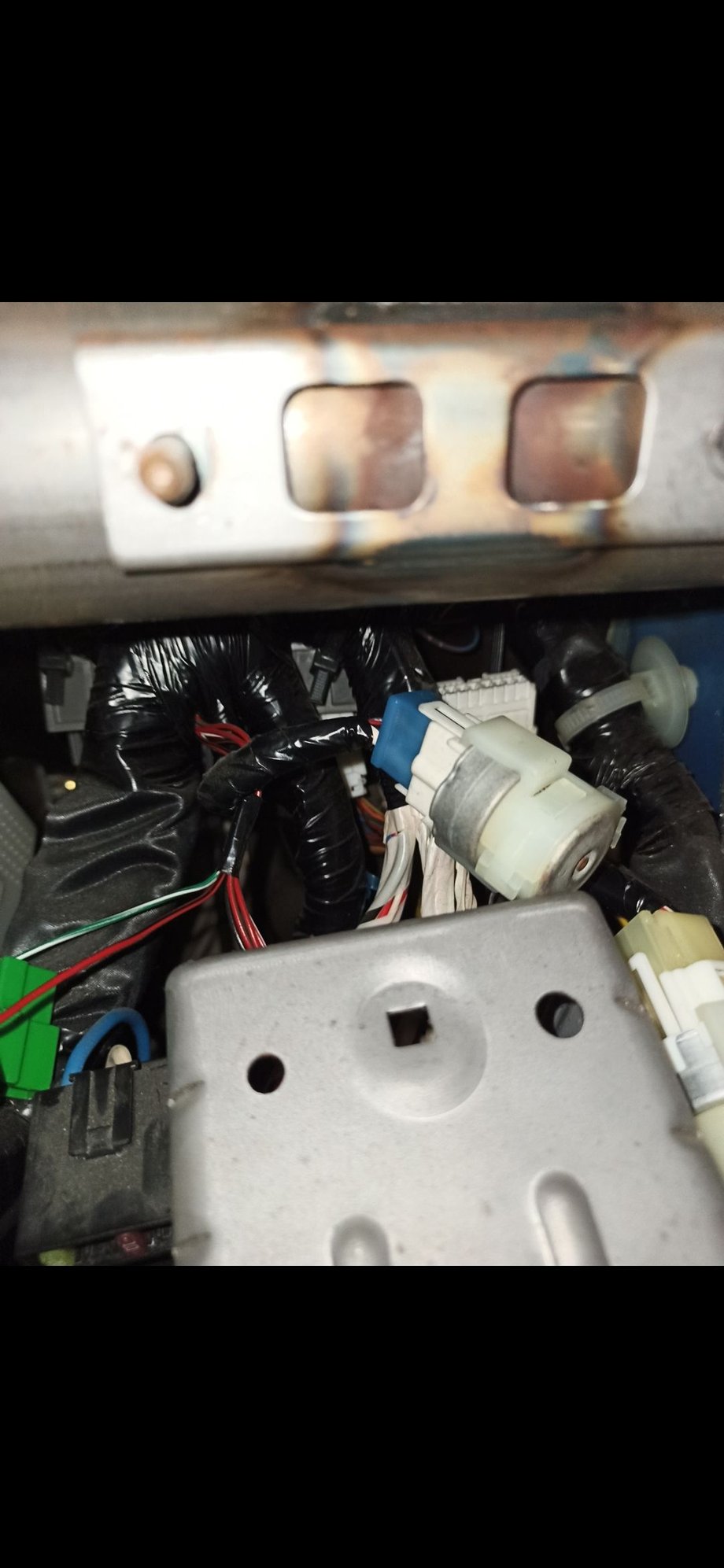

Hello everyone, i am new here and im looking for some help regarding a parasitic draw issue ive been having and cant figure out. I have narrowed it down to the 20A clock room fuse in the engine bay, and upon further investigation and disconnecting everything that i have found on that circuit, the draw was still there.. So i decided to dig under the dash and look for something that is warm therefore drawing constant power, i found a denso 5260 relay with a blue connector that is sitting ontop of the fuse box bracket( clipped in from the underside pretty much hidden away) and what do you know, it is really warm, after disconnecting it the draw fell down to an acceptable level. But i cant find anything about that relay online, and what it is there for, also tried replacing it with a new relay and it doesnt fix the issue either, looking for some input on what that thing is there for so i can run that circuit down for any possible faults..
#2
Scooby Regular
I'm assuming "2005 WRX" is a UK/European market blobeye and LHD given your location is Germany.??
As far as I can tell, the only relay located in the area of the inside cabin Fuse box/ relay block with a blue 4 pin connector is the Rear Fog Light relay
As far as I can tell, the only relay located in the area of the inside cabin Fuse box/ relay block with a blue 4 pin connector is the Rear Fog Light relay
#5
Scooby Newbie
Thread Starter
Join Date: Oct 2020
Location: Germany
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
#6
Scooby Regular
#7
Scooby Newbie
Thread Starter
Join Date: Oct 2020
Location: Germany
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts

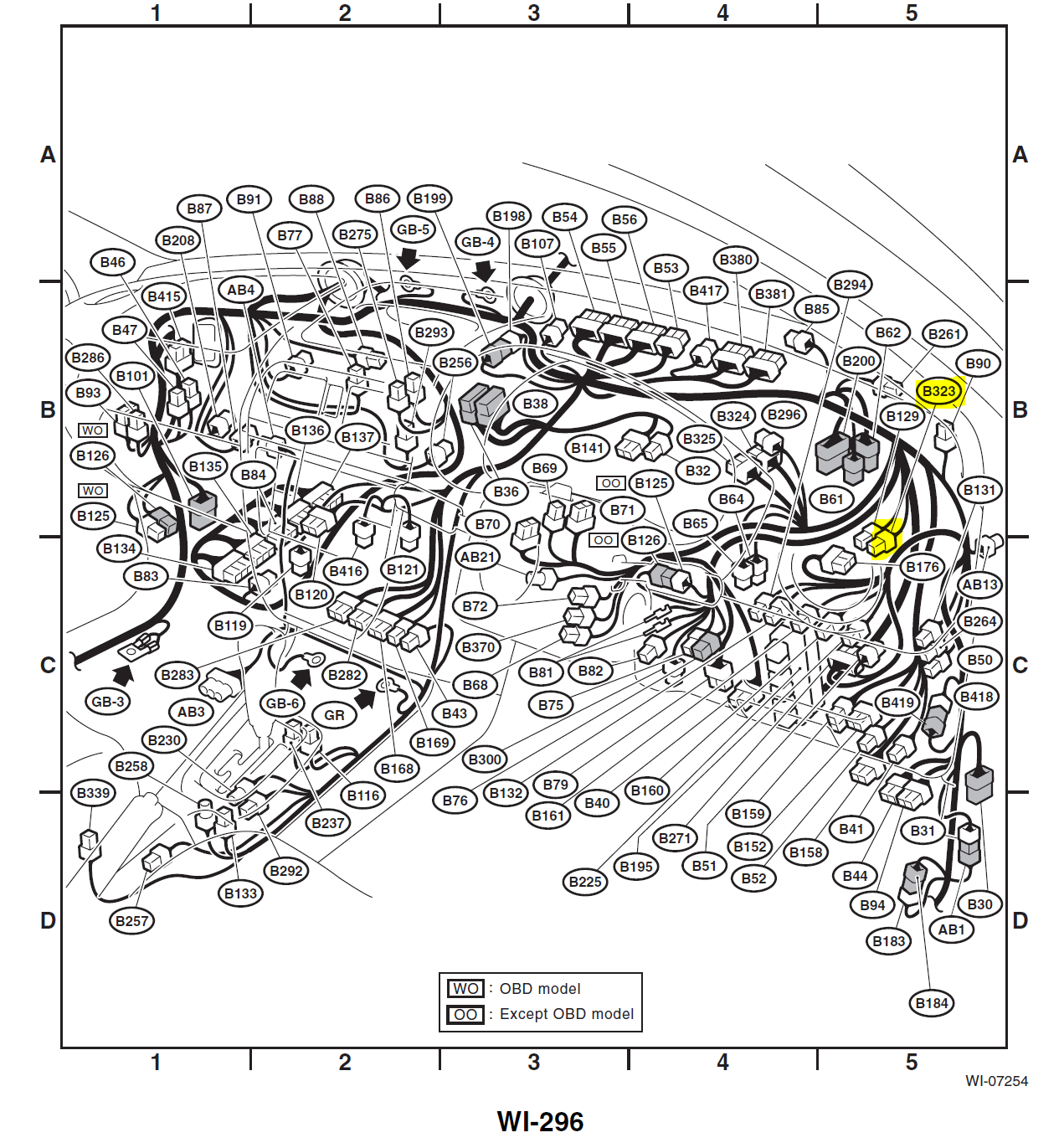

Okay thanks, i will look up if i find any common issues regarding that relay, but looking at the diagram, would it be possible that a faulty security control module would cause the prolem? Its a manual transmission car so the inhibitor switch isnt there
Trending Topics
#8
Scooby Regular
The security control module in a UK car will be it's Sigma alarm unit.
#9
I had this when I first bought my blobeye and checked everything. Eventually bought a new Bosch battery from Eurocarparts and have had no bother since and my original battery tested fine .
#10
Scooby Newbie
Thread Starter
Join Date: Oct 2020
Location: Germany
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
The battery has recently been replaced and is brand new but a current draw of 0.2Amps with everything off is too high no matter the battery condition
Last edited by Blob205; 09 October 2020 at 04:50 PM.
#11
Scooby Newbie
Thread Starter
Join Date: Oct 2020
Location: Germany
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
