What is this ?
#1
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
What is this ?

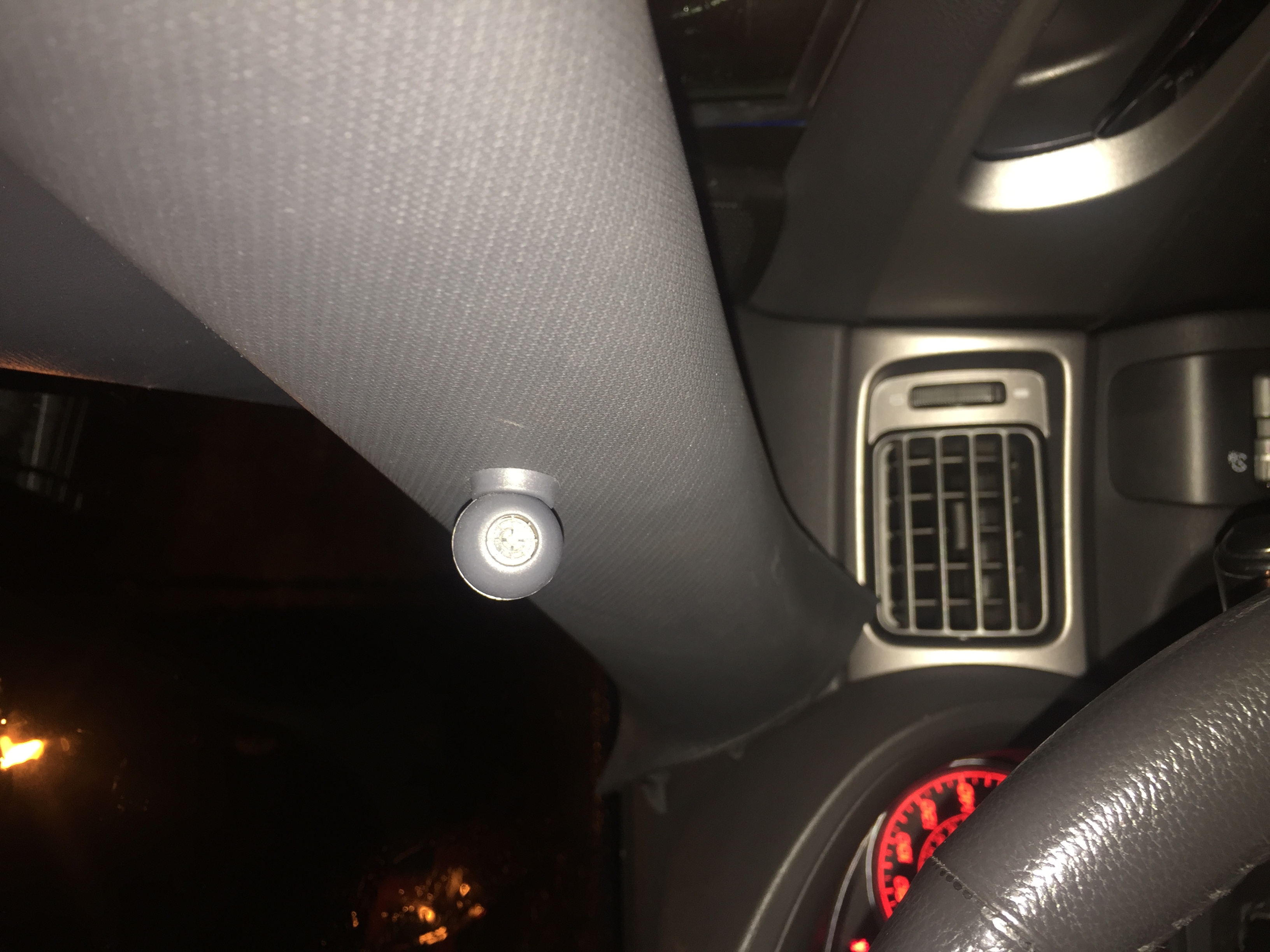

Please can somebody tell me what this is and the outcome if I cut the wire leading to it? I presume it's to do with the alarm.
#2
Scooby Regular
Yep, Sigma alarm ultrasonic interior detection sensor.
Last edited by Don Clark; 12 November 2015 at 07:31 PM. Reason: As it's on a hatch it's an S32 alarm not an M30
#3
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Ok thanks for that, I'm trying to install a different a pillar but this is mounted into my existing one and after following the cable back I've found it joins a big loom which will be a lot of work to trace. What would happen if I cut the wire and re made it afterwards?
#4
Scooby Regular
iTrader: (7)
It's an ultra-sonic, basically it covers the interior of the car for glass breaking / movement inside, if you cut it then the interior isn't covered by the alarm.
It actually plugs into your alarm control box or a smaller ultrasonic control box, if you trace the wire back you'll find where it goes, just un-plug it, clip the ultra-sonic out of its holder on the pillar, unscrew the base and it should reveal a bigger hole that the clip can be threaded back through, so no need to cut it.
You don't really want to cut it as it has very fine 2 core wire inside thats a pain to re-connect without causing a short.
It will just be taped to the car loom to look like it's part of the cars wiring, just gently slice through the insulation tape that's holding it in place with a stanley knife, taking care not to cut into any wires and trace it back to the unit.
It actually plugs into your alarm control box or a smaller ultrasonic control box, if you trace the wire back you'll find where it goes, just un-plug it, clip the ultra-sonic out of its holder on the pillar, unscrew the base and it should reveal a bigger hole that the clip can be threaded back through, so no need to cut it.
You don't really want to cut it as it has very fine 2 core wire inside thats a pain to re-connect without causing a short.
It will just be taped to the car loom to look like it's part of the cars wiring, just gently slice through the insulation tape that's holding it in place with a stanley knife, taking care not to cut into any wires and trace it back to the unit.
Last edited by ditchmyster; 12 November 2015 at 07:40 PM.
#5
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
If I do cut this will it make the alarm go off. The look it's part of is right up at the top of my dash underneath. So if I do find the alarm box I'll struggle to pull the cable back through without removing my dash. As for the a pillar there is only enough space for the cable to pass through the hole and nothing else.
