Frenchwood

Ok, so with my 12" sub in the boot of my 'loon, I have naff all space, and no, I'm not chavtastic, but the standard subaru speakers suck and can take nothing below 80hz so I have them high pass filtered from my HU, with the sub giving me all the bass until I can arrange/source something a little better.

Anyway, I digress. Has anyone come up with any "inventive" ideas or boot builds that leave a sensible amount of space?

I'm tempted to do a boot build to try and reclaim some space, but I just know I'll end up doing a twin 12" sub setup as I have another sub and amp doing nothing in my shed.

Opinions, ideas and even pictures would help!!

Thanks!

Frenchwood

BTTT

neil-h

What size enclosure you using at the moment? And is it ported?

You could always build the box into the spare wheel well. Then build a false floor over the top. That's what I did in my vxr and only lost a couple of inches depth from the boot.

Frenchwood

Hiya mate.

I'm using a 12" sealed box it's only marginally larger than the sub itself.

I did think about that, but (although its only a space-saver) the thought of running without a spare is not something I can deal with! Lol.

I may have to look into raising the floor slightly to build something in...

Thanks for the idea mate.

neil-h

So your probably looking around 1cuft for the internal displacement (a bit more when you allow for wood thickness). Any chance of a photo to see how much boot space it takes up?

Another option potentially is to find a sub that'll run IB (infinite baffle), I.e mounting the sub to the parcel shelf/backseat and using the entire boot as the enclosure (simplistically).

Frenchwood

I'll have to take a picture and post up, I'll have to take your word for it on enclosure size, as without measuring the box internally, I have no idea! Lol.

Yeah I could do. ("Free air sub" you mean?) but I don't actually want to spend much if I can get away with it!! Lol.

I don't mind spending on materials though. The sub & amp weren't expensive, and I've had them for years, so it'd be a shame to "chuck em" lol.

neil-h

Yeah free air is the same thing, would do away with the enclosure completely then.

The other option is to make something from fibreglass if ya feeling keen.

Frenchwood

Ooooh I've not played with fibreglass and resin'd my fingers together in years... That could be fun!

neil-h

If ya fancy fibreglass then building the box into one corner of the boot should save some space.

Frenchwood

Good plan batman. I'll break out the chicken wire in due course to do some "modelling".

I'll probably go mad with the acoustic mat in due course as well... I can see this getting expensive!

neil-h

Lol always the way. With all the best intentions in the world it's never cheap.

Frenchwood

And therein lies the problem! Lol.

As stated, I have another sub and amp, and I can see what's going to happen here, I'm going to end up daisy chaining them! Lol

cuprajake

iTrader: (11)

Really depends what you put in the boot

I have my hockey bag that fills the boot completely. My only option is to use the wheel well

From my rough calculations the wheel well give around 50litres of volume, add some wadding to get it up a bit and that's ample for my jl 12" sub

This is where I'm at at the moment.



Plan is to seal the wheel well and use that as the enclosure.

I'm then going to make a false floor so it's flush and either fit a grill over top if flush mount then carpet.

Other option would be a slim line band pass box along the back seat between the wheel house turrets, will give good sound and keep space for shopping, maybe not a pram though

Jake

neil-h

Now this is the more fun option

Frenchwood

That looks sweet Jake, but I don't like the thought of no spare (call me old fashioned! Lol)

Agreed, however I don't want to spend a lot, as I need to start saving for the inevitable engine rebuild that it's going to need when the 2.5 self destructs! Lol.

Seriously though; I'm going to have to do this on a budget, and I reckon if I start by calculating the airspace needed by the sub in its current enclosure, I can build two "corner" units in against the back seats, leaving the Ski hatch accessible, and sink the amps into the floor leaving vent space for heat dissipation.

That way I can keep the spare wheel and still have some bass!! Lol

cuprajake

iTrader: (11)

Aa, green flag lol bass is more important

Frenchwood

Fair point... Or take out another mortgage and get some run flats!

I'll have a think about it...

Besides, if I use the wheel well, I can only have 1 12" sub! Lol.

Beastie

iTrader: (2)

You seen these???

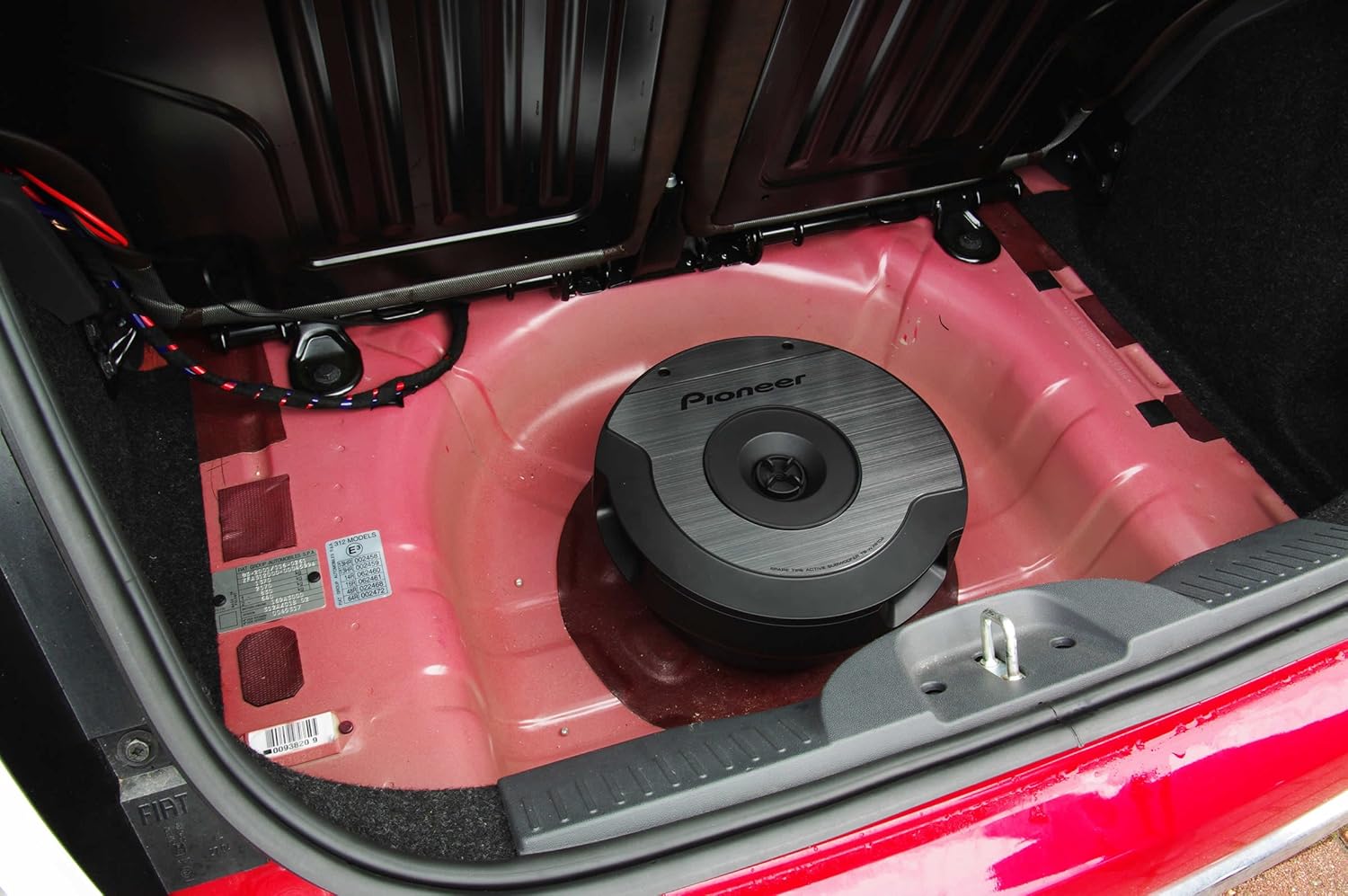

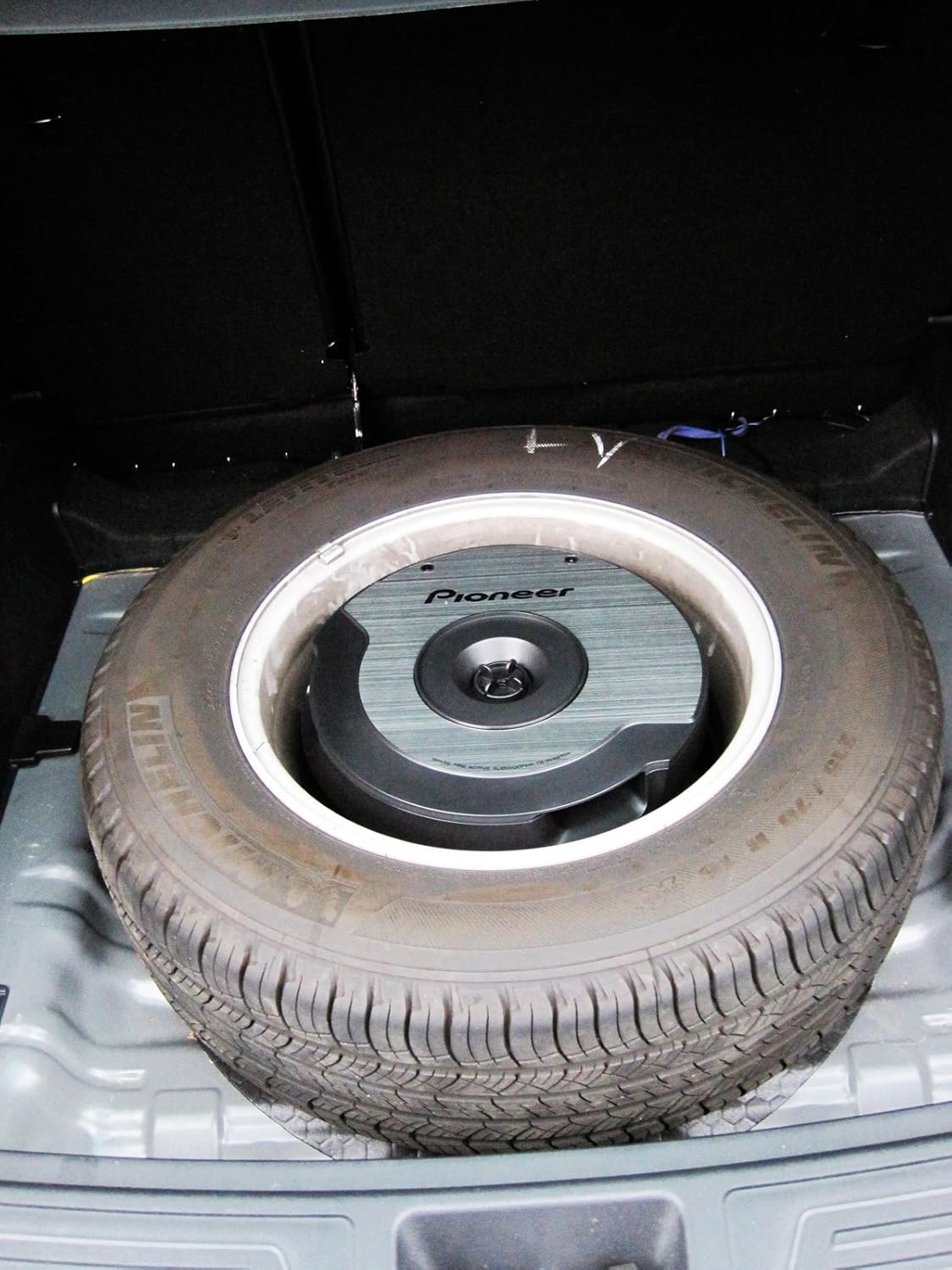

Pioneer-TS-WX610A-Bandpass-Spare-Subwoofer

Frenchwood

Hmmm... Nice concept, but in practice wouldn't it shake the shinola out of the spare wheel retaining bolt? Lol.

Besides, the hawk spare wheel doesn't have e enough depth to hold that!

I may have a look at those though, as I'm a pioneer fan!

cuprajake

iTrader: (11)

Mine finished, false floor lifts the boot height up 2" only.

Sounds great,

Frenchwood

I like that Jake.

Where is your amp hidden?

cuprajake

iTrader: (11)

under the passenger seat

Frenchwood

I do like the idea. Although if I did that to mine, I could see the grille being crushed in a matter of hours!

Scoobyn

ive got 3 10" subs and still got room for a pram in the boot of the RB5!! how much room do you need?

D4VEW557

I started my build about 3 year ago this is how it looked then




and now it looks the same, i really should finish it

Scoobyn

That looks brilliant!

t79boy

I am about to buy the pioneer ts-w610a . Anyone installed one ?
