TMIC question
#1
Scooby Regular
Thread Starter
Join Date: Sep 2009
Location: west yorks
Posts: 278
Likes: 0
Received 0 Likes
on
0 Posts
TMIC question
Hi, everyone
My intercooler has seen better days. I was wondering what uprated ones, if any are available. (Its a my 95 wrx wagon) so do i just buy a better condition standard one? or as above any uprated ones available??
Cheers
My intercooler has seen better days. I was wondering what uprated ones, if any are available. (Its a my 95 wrx wagon) so do i just buy a better condition standard one? or as above any uprated ones available??
Cheers
#2
you have a few options.
anything is better other than the original slanted type
you can fit with not too much modding upto around 2003 wrx TMIC and the matching undertray for it,you will need to either blank off the d/v port or use it/modify it to suit.
then theres the STI route which involves a bit more work, shortening of the plastic clutch reservoir bottle for it too fit
both if you want a quiet drive will require some bulkhead manipulation, the lip at the bak of the TMIC etc, it can hit/knock when driving as its bigger than the standard etc,depends how fussy you are, i was, as i hated the kadunk each time i changed gear as the engine moved
cheers
anything is better other than the original slanted type
you can fit with not too much modding upto around 2003 wrx TMIC and the matching undertray for it,you will need to either blank off the d/v port or use it/modify it to suit.
then theres the STI route which involves a bit more work, shortening of the plastic clutch reservoir bottle for it too fit
both if you want a quiet drive will require some bulkhead manipulation, the lip at the bak of the TMIC etc, it can hit/knock when driving as its bigger than the standard etc,depends how fussy you are, i was, as i hated the kadunk each time i changed gear as the engine moved
cheers
#4
I have one for sale... as per the picture. Make me an offer if you want it.
It is an APS dual entry top mount.

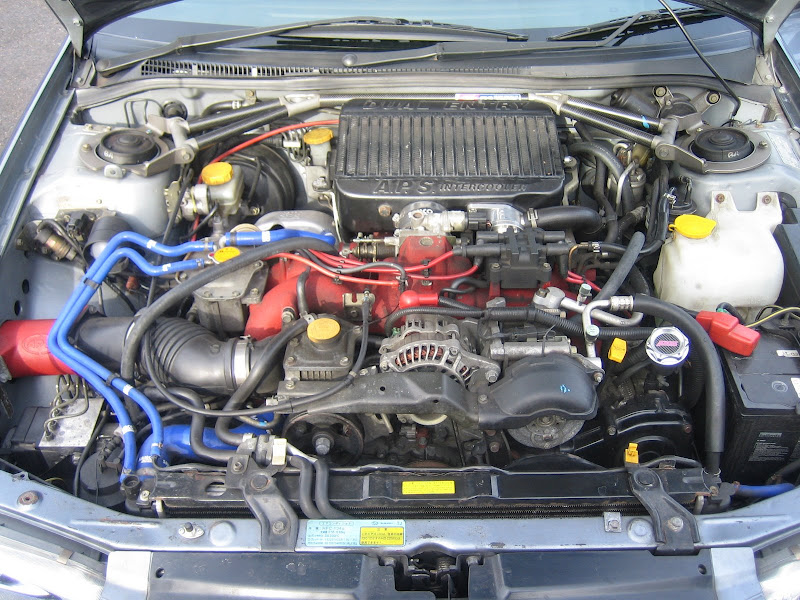

I also have an APS HPA/99 high flow air cleaner. Takes cold air from the inner wing... It all looks like this installed:
It is an APS dual entry top mount.
I also have an APS HPA/99 high flow air cleaner. Takes cold air from the inner wing... It all looks like this installed:
#5
Scooby Regular
Thread Starter
Join Date: Sep 2009
Location: west yorks
Posts: 278
Likes: 0
Received 0 Likes
on
0 Posts
i would be interseted mate, sorry but not sure what to offer, my heater mmatrix packed in today, cars been off the road for 8 months after hg failure etc.. Anyway final road test this aft to c if everything was good... Then piissssh passenger carpet soaked, anyway with summer coming the matrix is getting bypassed for now, so fingers crossed mot'd , taxed, insured.. by next week, do you know how easy/hard the intercooler will be to fit??
Last edited by chris270181; 12 May 2010 at 11:16 PM.
#7
Scooby Regular
iTrader: (3)
Join Date: Oct 2009
Location: South Wirral
Posts: 179
Likes: 0
Received 0 Likes
on
0 Posts
For your heater matrix you could try K-Seal from Kalimex. Works wonders on radiators (I have also used it to successfully stop an HG leak on an Astra but it didn't fix HG on Scooby)
Last edited by john5f; 13 May 2010 at 03:34 PM.
Trending Topics
#9
you would have to get a blanking plate for the one for sale in this thread, the 95 engine has the idle control valve in the way where the d/v is on that i/c
you`ll also need to buy a different y piece connection for underneath,from samco etc to accomodate your dumpvalve/recirc on the 95 setup,they are about £40
and yes, the mounting brackets from a later car as well
you`ll also need to buy a different y piece connection for underneath,from samco etc to accomodate your dumpvalve/recirc on the 95 setup,they are about £40
and yes, the mounting brackets from a later car as well
#11
not sure on price, around £40-£50 i would guess
the rubber part that connects to the y piece underneath is different on the 95-96 cars as the dump valve is seperate from the intercooler, as you see in the pic provided on this thread, the later type bolt to the intercooler, the 95 has an extra bit of piping on it to allow for the dump vale/recirc valve
the rubber part that connects to the y piece underneath is different on the 95-96 cars as the dump valve is seperate from the intercooler, as you see in the pic provided on this thread, the later type bolt to the intercooler, the 95 has an extra bit of piping on it to allow for the dump vale/recirc valve
