top mount question

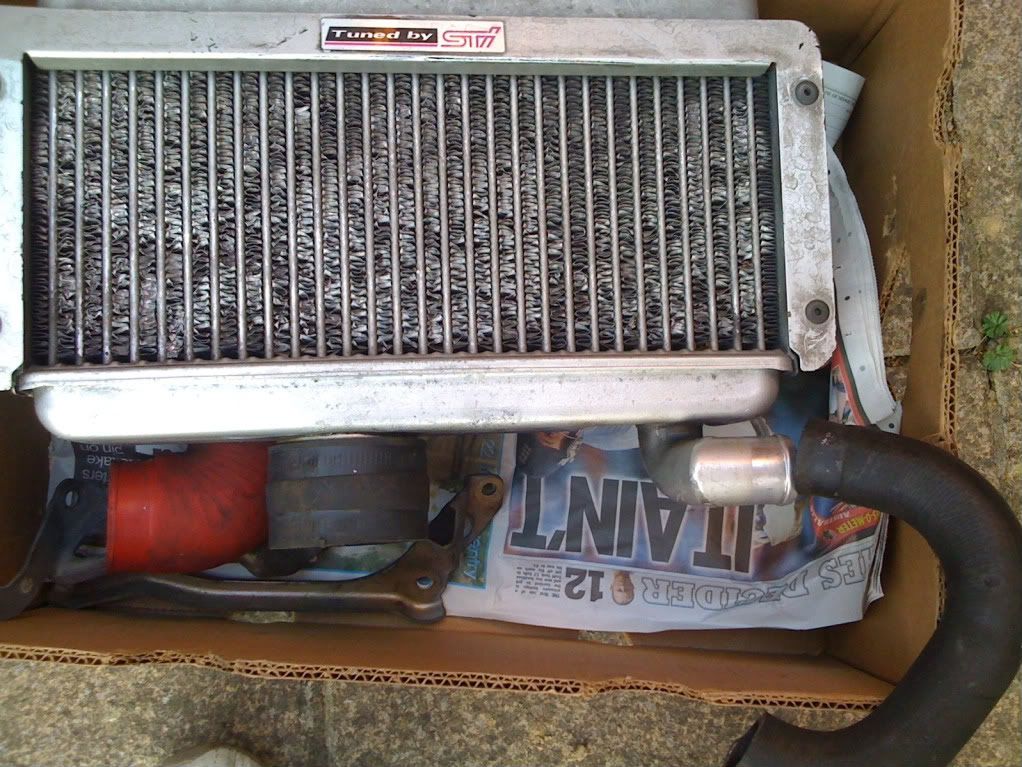

as you may be aware from previous questions, i am a bit of a novice with cars....
brought this top mount off someone who said it came with everything for direct replacement, mine has the angled tm.
so first question: whats the pipe on the right of the new tmic for?
and second: wheres the dump valve go?
brought this top mount off someone who said it came with everything for direct replacement, mine has the angled tm.
so first question: whats the pipe on the right of the new tmic for?
and second: wheres the dump valve go?
27 September 2009, 08:16 AM
#3
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Feb 2009
Posts: 181
Likes: 0
Received 0 Likes
on
0 Posts
my current tmic doesn't have the right hand pipe, where do i put the new one, or does it need blanking off?
so the red pipe pictured on the new tmic needs to be replaced for one with a pipe coming out for the dump valve?
so the red pipe pictured on the new tmic needs to be replaced for one with a pipe coming out for the dump valve?
27 September 2009, 09:38 AM
#5
theres a guide here mate https://www.scoobynet.com/projects-4...-my95-wrx.html i think theres abit of involved still to make it fit not just a straight swap
27 September 2009, 11:49 AM
#6
Scooby Regular
Join Date: Mar 2009
Location: Shire of Devon
Posts: 781
Likes: 0
Received 0 Likes
on
0 Posts
the red hose comes from the turbo, the black hose on the right is ususally to a recirc valve and the big black hose in the middle goes to the throttle body.
Those fins want straitening or it won't do it's job very well!
Those fins want straitening or it won't do it's job very well!
27 September 2009, 02:06 PM
#7
If you want to reuse your 1995 OEM "180deg" recirc DV, you'll need a silicone reducer hose. It'll be either a '34mm-to-19/20mm' or '32mm-to-19/30mm' ID -- can't remember the OD of the STi v.3/4 IC's curved DV port (on extreme RHS as you look at the pic).
You'll then need a bit of 19/20mm ID flexi silicone hose and a 19/20mm OD ally joiner, to recirc the DV's other recirc outlet port back across the bay and to turbo intake's recirc inlet port.
You'll find that the DV elbow on the new IC will foul with your ISCV though
...
You'll then need a bit of 19/20mm ID flexi silicone hose and a 19/20mm OD ally joiner, to recirc the DV's other recirc outlet port back across the bay and to turbo intake's recirc inlet port.
You'll find that the DV elbow on the new IC will foul with your ISCV though
...
Last edited by joz8968; 27 September 2009 at 02:16 PM.
Trending Topics
28 September 2009, 11:34 AM
#10
Scooby Regular
iTrader: (10)
Join Date: Jan 2008
Location: Bedfordshire
Posts: 3,071
Likes: 0
Received 0 Likes
on
0 Posts
That is a sti 3/4 tmic, so the guide above is no good.
The pipe on the right will hit the idle control valve. You need to cut it off, and weld it closed.
Also, you'll need to figure a way of fitting the dump valve, as it won't have a pipe for it now. You could run without one mind, a few on here do.
The pipe on the right will hit the idle control valve. You need to cut it off, and weld it closed.
Also, you'll need to figure a way of fitting the dump valve, as it won't have a pipe for it now. You could run without one mind, a few on here do.
28 September 2009, 12:17 PM
#11
Scooby Regular
Join Date: Oct 2008
Location: lancs
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
you need a silicone version 1 samco(or equivalent)tubo hose,it will fit on the Y pipe and allow you to use the existing dump valve.before you get well into it though take of the slanty intercooler and measure the gap as you'll find it's a bit of a squeeze.version 1 manifold's make it a pig of a fit.had to major adapt a new age one to fit it to my v1
09 October 2009, 03:17 PM
#12
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Feb 2009
Posts: 181
Likes: 0
Received 0 Likes
on
0 Posts
right so i understand i have to cut the pipe on the right side and weld it over....
the red elbow in the picture i need with a t-piece for the dump valve, where do i find this?
have looked everywhere
the red elbow in the picture i need with a t-piece for the dump valve, where do i find this?
have looked everywhere
