Boost problems-Apexi Boost control valve pictures.
I've been having some problems with my car,it's not running the boost that it should be. It should be running 1.55 bar but usually only makes around 1.1-1.2 !
I suspect the actuator on my Andy Forrest 20g is weak and Andy is going to send me a replacement one.
Before I do that,i've noticed some pipes around my Apexi boost control valve are disconnected.

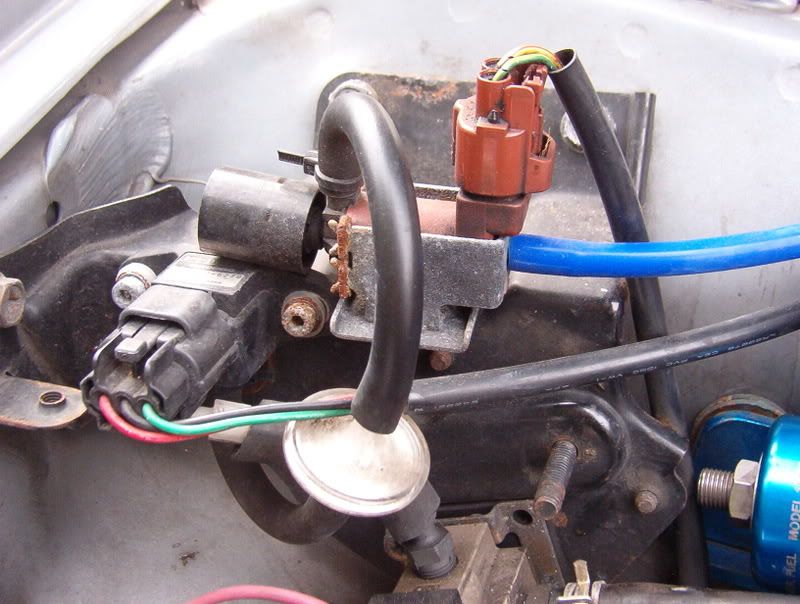

Can someone take a look at the pictures and tell me if they look ok or not.
The black pipe ontop of the Apexi valve isn't connected to anything
I suspect the actuator on my Andy Forrest 20g is weak and Andy is going to send me a replacement one.
Before I do that,i've noticed some pipes around my Apexi boost control valve are disconnected.
Can someone take a look at the pictures and tell me if they look ok or not.
The black pipe ontop of the Apexi valve isn't connected to anything
#2
Scooby Regular
Join Date: Oct 2007
Location: leeds/bradford
Posts: 387
Likes: 0
Received 0 Likes
on
0 Posts
looks right, though i would take of the barb on what should be the NC port? you are connected the right way round to the Com / NO ports right? then also where is your map sensor for the apexi? and why is your filter inline with the stock map sensor?
#7
Scooby Regular
iTrader: (2)
Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes
on
0 Posts
my black pipe is also no connected to anything dont know y.it was fiited by a repitible company, may be its not supposed to be connected to anything.???any one with sugestions?
