Default Injector Dynamics install questions

Hi,

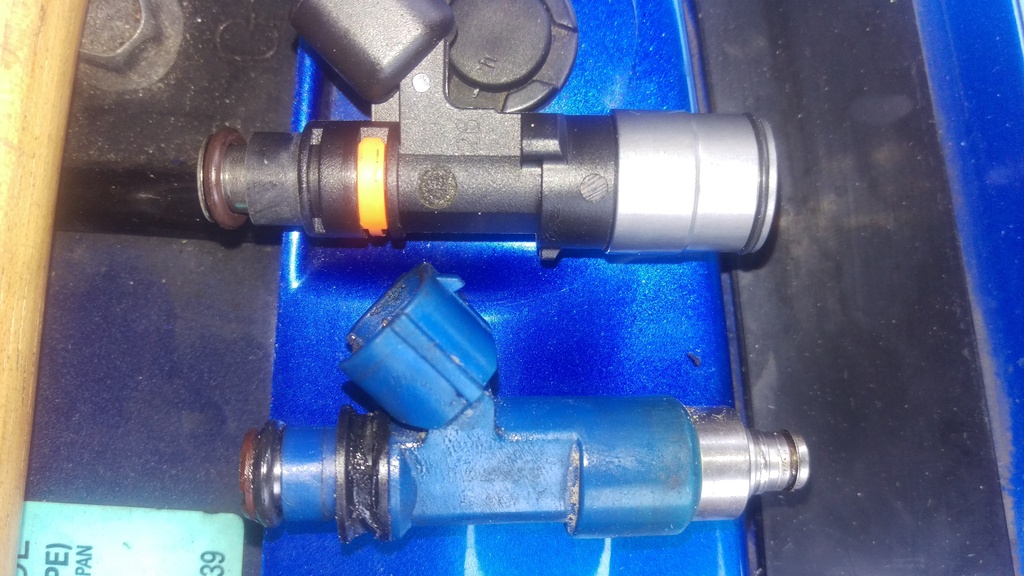

I am in the process of installing ID injectors on my car, just a quick conformation question. Does the thick o ring on the original (blue) injector closest to the electrical connection point (second one along from the left) need to be taken off and fitted to the new injector ? I have tired both ways and the fuel rail will not sit down correctly if i use the o ring but i just wanted to be sure i wasn't missing something, it fits fine if i just install the new injector as pictured.

Name:  IMAG1407_zpsty4bwwyf.jpg
Views: 0
Size:  249.3 KB

Thanks
Old 11 July 2016, 08:31 PM
  #2
SmurfyBhoy
Scooby Regular

SmurfyBhoy's Avatar

Join Date: May 2014
Location: Glasgow
Posts: 2,280
Received 77 Likes on 60 Posts
Default

Originally Posted by ZippyBobby
Hi,

I am in the process of installing ID injectors on my car, just a quick conformation question. Does the thick o ring on the original (blue) injector closest to the electrical connection point (second one along from the left) need to be taken off and fitted to the new injector ? I have tired both ways and the fuel rail will not sit down correctly if i use the o ring but i just wanted to be sure i wasn't missing something, it fits fine if i just install the new injector as pictured.



Thanks
I had issues when fitting my power enterprise as they were phisically larger.

Had to space the fuel rails out a little.

Think i used a couple m8 washers or m6.

Just as the new injectors were taller
Old 11 July 2016, 09:19 PM
  #3
Peakie
Scooby Regular

Peakie's Avatar

Join Date: May 2013
Location: Norfolk
Posts: 75
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by ZippyBobby
Hi,

I am in the process of installing ID injectors on my car, just a quick conformation question. Does the thick o ring on the original (blue) injector closest to the electrical connection point (second one along from the left) need to be taken off and fitted to the new injector ? I have tired both ways and the fuel rail will not sit down correctly if i use the o ring but i just wanted to be sure i wasn't missing something, it fits fine if i just install the new injector as pictured.



Thanks
When I fitted pe injectors I never fitted this o ring just the o rings that came with the pe injector, I then later fitted some asnu injectors and it's the same with them just fit them with the o rings they come with.
Old 11 July 2016, 09:29 PM
  #4
imprezagaz
Scooby Regular
iTrader: (2)

imprezagaz's Avatar

Join Date: Feb 2008
Location: Grimsby
Posts: 1,147
Received 7 Likes on 5 Posts
Default

On mine they had to put the top washer off the old injector under the new top one so it wouldn't push it down and leak
Old 11 July 2016, 10:10 PM
  #5
Paben
Scooby Regular
iTrader: (5)

Paben's Avatar

Join Date: Sep 2008
Location: Taken to the hills
Posts: 2,744
Likes: 0
Received 1 Like on 1 Post
Default

I just fitted 850 IDs and used what's supplied, works fine.
