another turbo questionh
Hey, I appreciate all the help this forum has gave me, I'm sorry if i seem to ask to many questions 😝

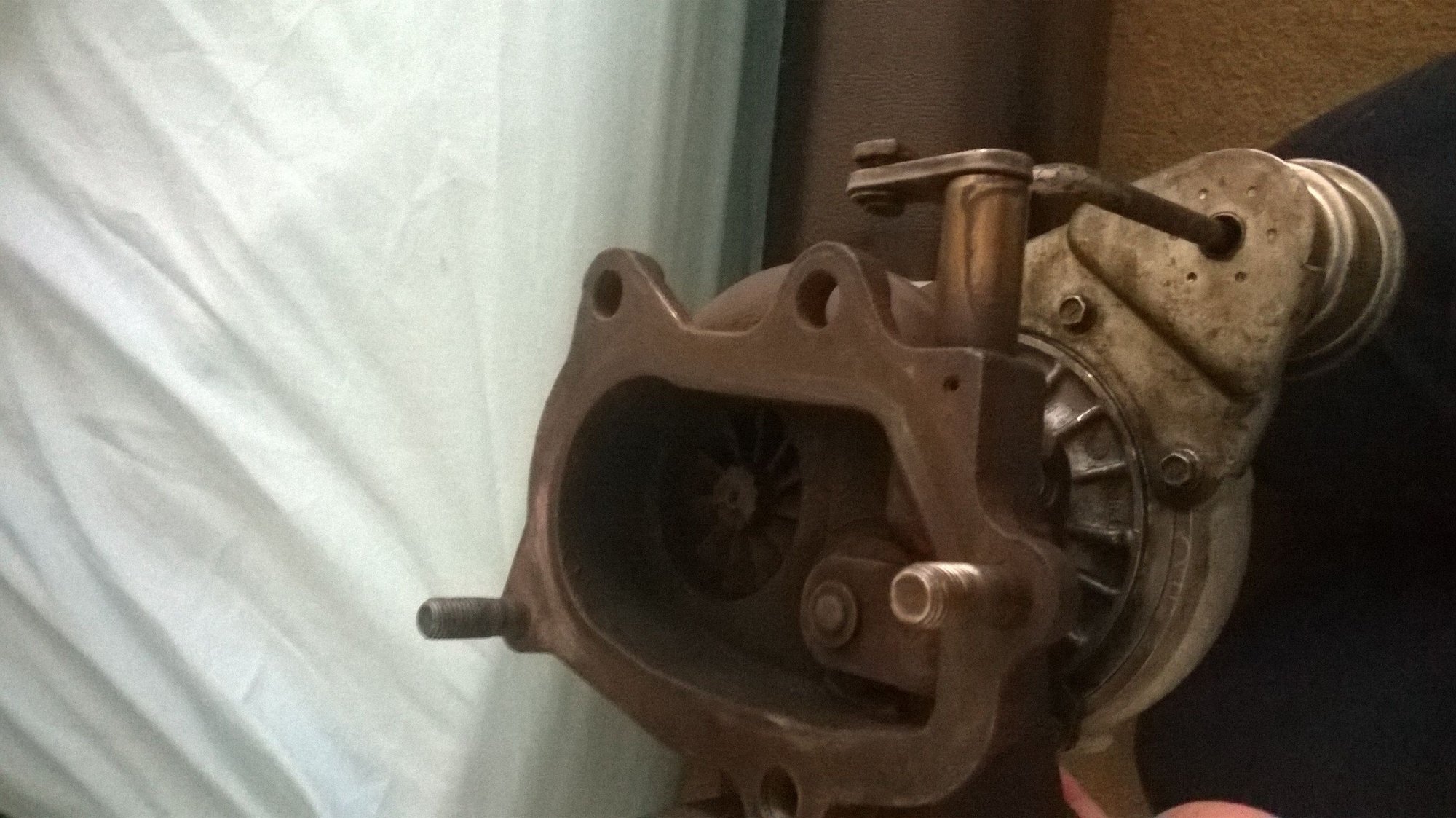

Any how, my vf35 came with 3 bolts missing on the side that the down pipe bolts on, on closer inspection it looks like 2 of the holes have no thread to screw new bolts in :-o what do I do in this situation?

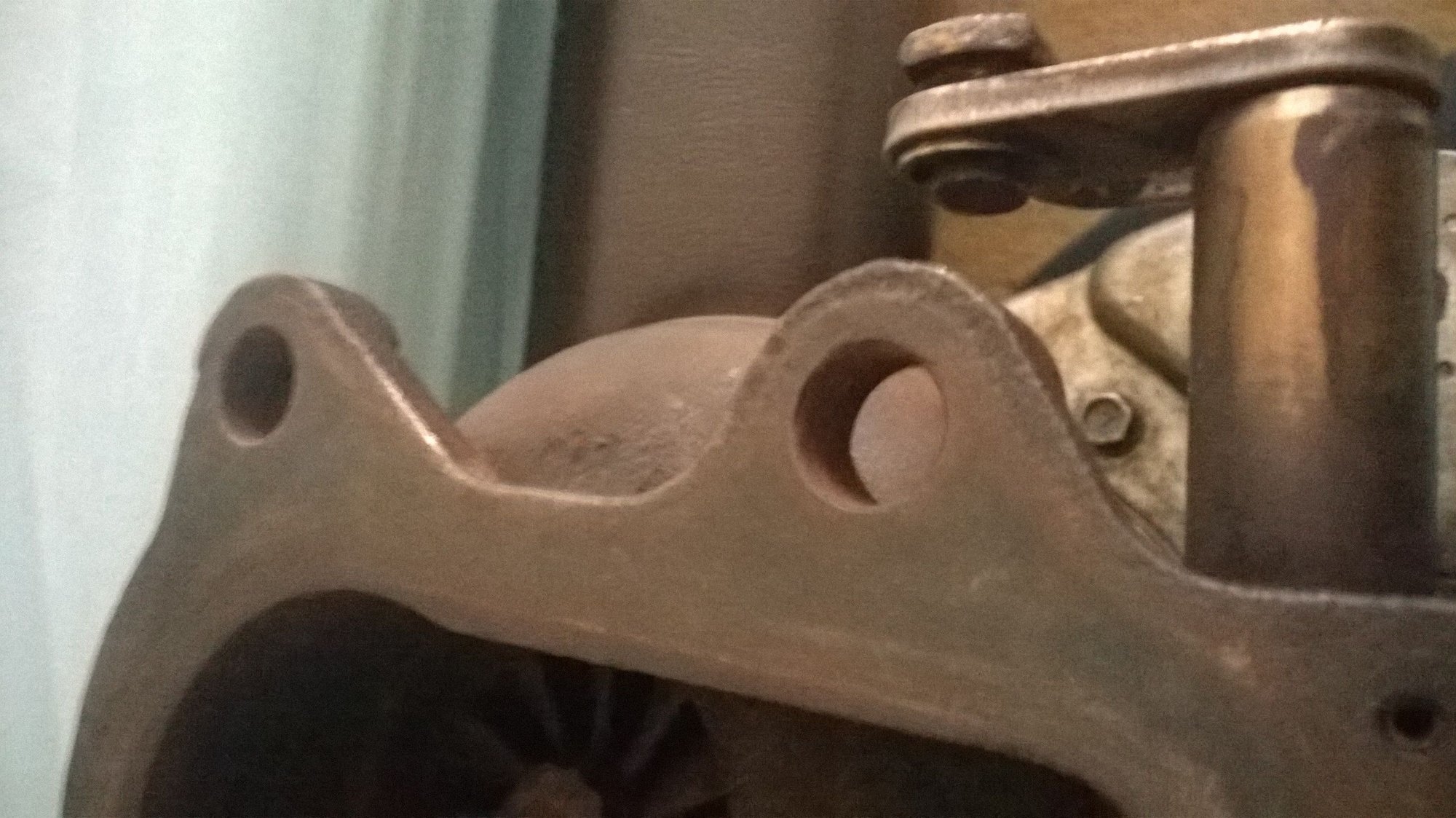

These 2 have no thread 😞
Say something about this photo
Any how, my vf35 came with 3 bolts missing on the side that the down pipe bolts on, on closer inspection it looks like 2 of the holes have no thread to screw new bolts in :-o what do I do in this situation?
These 2 have no thread 😞
Say something about this photo
#2
Scooby Regular
iTrader: (7)
Join Date: Mar 2013
Location: Belfast
Posts: 2,999
Likes: 0
Received 0 Likes
on
0 Posts
That's the way they all are, we'll certainly the three TD04s and TD05 I have anyway. The other two are normal bolts rather than studs as far as I remember.
Did you get a new stud for the other hole yet?
Did you get a new stud for the other hole yet?
Last edited by piehole1983; 23 October 2015 at 11:16 AM.
#4
Scooby Regular
Thread Starter
Join Date: Aug 2014
Location: durham
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Ah yeah I see what you mean, just looked at the turbo on the car already,
I was looking at that bolt kit but there threaded so will be no good as the holes in the turbo aren't.
I was looking at that bolt kit but there threaded so will be no good as the holes in the turbo aren't.
#6
Scooby Regular
Thread Starter
Join Date: Aug 2014
Location: durham
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
#7
Scooby Regular
iTrader: (7)
Join Date: Mar 2013
Location: Belfast
Posts: 2,999
Likes: 0
Received 0 Likes
on
0 Posts
No that's the one missing stud. The top two are just going to be normal bolts that go straight through the down pipe flange and the turbo flange. You could get M10 X 1.25 bolts for continuity though. I'd say M10 X 1.25 X 50 would be spot on.
Last edited by piehole1983; 23 October 2015 at 07:12 PM.
Trending Topics
#8
Scooby Regular
Thread Starter
Join Date: Aug 2014
Location: durham
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Cheers for that I'm with you 👍 any idea if I could use m10 x 1.25 x 50 for the flange that joins the up pipe and the manifold? Also do they have to be a special heat resistance or would normal bolts from b&q do the trick? Thanks
#9
Scooby Regular
iTrader: (7)
Join Date: Mar 2013
Location: Belfast
Posts: 2,999
Likes: 0
Received 0 Likes
on
0 Posts
As long as they have at least a rating of 8.8 really, anything less is likely to break. No special heat rating that I'm aware of.
50mm might be a bit long but at least you can cut them! I'll look at my up pipe and spare turbo in the shed to see what way it bolts up!
50mm might be a bit long but at least you can cut them! I'll look at my up pipe and spare turbo in the shed to see what way it bolts up!
#10
Scooby Regular
Thread Starter
Join Date: Aug 2014
Location: durham
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Sweet, cheers for your help pal 👍
