japspeed fmic limits, 500??
#1
Former Sponsor
Thread Starter
Join Date: Aug 2012
Location: Holywell
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
japspeed fmic limits, 500??
Just wondered if anyone has any input on what the limits of a japspeed front mount is, the blurb says up to 600, is that just blurb?
#5
Scooby Regular
iTrader: (7)
Hi there
We are run Japspeed FMIC at 490bhp plus NOS and temps has been good too,but this really depends on more factors there
I wouldn't recommend if you are going beyond 500bhp,500bhp is about right limit of the FMIC,above that I would choose HDI
On Japspeed during very hot days mainly in traffic we are suffered with heatsoak as every FMIC owner,due this we are used for cooling inlet temps WMI manual override button which has helped to reduce inlet temps...
On track days in hot weather we are not seen higher than 40-45C(if you take to quotation outside temps has been in high 20's,early 30's).But we are seen too 55C on Santa pod(mainly in traffic)when outside has been highest temps(high 30's)
For money as temporary is great kit,but on longer run I would go with HDI if you are looking break 500bhp
Hope this helps
Thanks,Jura
We are run Japspeed FMIC at 490bhp plus NOS and temps has been good too,but this really depends on more factors there
I wouldn't recommend if you are going beyond 500bhp,500bhp is about right limit of the FMIC,above that I would choose HDI
On Japspeed during very hot days mainly in traffic we are suffered with heatsoak as every FMIC owner,due this we are used for cooling inlet temps WMI manual override button which has helped to reduce inlet temps...
On track days in hot weather we are not seen higher than 40-45C(if you take to quotation outside temps has been in high 20's,early 30's).But we are seen too 55C on Santa pod(mainly in traffic)when outside has been highest temps(high 30's)
For money as temporary is great kit,but on longer run I would go with HDI if you are looking break 500bhp
Hope this helps
Thanks,Jura
#6
Former Sponsor
Thread Starter
Join Date: Aug 2012
Location: Holywell
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the input, this is the same car that I asked about the HKS supersilent exhaust a few weeks ago, it's made 420bhp at best so far and as soon as you try and go over 1.5bar it just drops power. spec is
forged 2.5 avcs heads
precision 500+ bhp turbo
japspeed fmic
63mm intercooler pipework running clockwise to avoid the 180deg bend out of the turbo
uk 1999 inlet manifold with heat spaces
rcm group N intake with rcm airfilter
3" downpipe and system
forged 2.5 avcs heads
precision 500+ bhp turbo
japspeed fmic
63mm intercooler pipework running clockwise to avoid the 180deg bend out of the turbo
uk 1999 inlet manifold with heat spaces
rcm group N intake with rcm airfilter
3" downpipe and system
#7
Scooby Regular
iTrader: (7)
Thanks for the input, this is the same car that I asked about the HKS supersilent exhaust a few weeks ago, it's made 420bhp at best so far and as soon as you try and go over 1.5bar it just drops power. spec is
forged 2.5 avcs heads
precision 500+ bhp turbo
japspeed fmic
63mm intercooler pipework running clockwise to avoid the 180deg bend out of the turbo
uk 1999 inlet manifold with heat spaces
rcm group N intake with rcm airfilter
3" downpipe and system
forged 2.5 avcs heads
precision 500+ bhp turbo
japspeed fmic
63mm intercooler pipework running clockwise to avoid the 180deg bend out of the turbo
uk 1999 inlet manifold with heat spaces
rcm group N intake with rcm airfilter
3" downpipe and system
Again that car?
What ACT temps are you seeing during the mapping session ?
Not sure why you couldn't make more on that spec?
Did you check timing on the cambelt/timing belt etc just to be sure is nothing with engine?
If everything is fine,then I would go again with HDI,has been proven on numerous cars and should be OK for yours customer car
Hope this helps
Thanks,Jura
Trending Topics
#8
I wouldnt say theintercooler would hold back 80hp....
Im using an autobahn fmic and still makig upwards of 550hp on the meth map... (they are pretty much the same thing)
Anyone who quotes "I suspect it is holding things back" after the mapper was fine with it, probably is just anecdotal evidence and I wouldnt count it towards anything....
Is the AVCS operating correctly?
Im using an autobahn fmic and still makig upwards of 550hp on the meth map... (they are pretty much the same thing)
Anyone who quotes "I suspect it is holding things back" after the mapper was fine with it, probably is just anecdotal evidence and I wouldnt count it towards anything....
Is the AVCS operating correctly?
#10
Former Sponsor
Thread Starter
Join Date: Aug 2012
Location: Holywell
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
The engine is working fine, it's making 420/460 ftlbs so we know it's working ok with those torque numbers. Steve Simpson is mapping it and I work alot with him with my cars and various customer cars so theres no bull there. It had a full 3" de-cat system fitted, the owner took the car away and has had someone else looking at it. They said my cam timing was out, re timed it and it made 20bhp less! lol. Its got a Precision 500+ bhp turbo fitted, it just seems to be a breathing issue as as soon as Steve takes the boost above 1.5 bar the temps rise and power drops off, its got RCM headers and up-pipe so the onle 2 things i'm not sure of now is the intercooler and pipe work and the intake pipe (RCM GrpN ) and RCM filter.
He has also had a compresion test done and a leakdown test, all spot on.
He has also had a compresion test done and a leakdown test, all spot on.
#11
Scooby Regular
iTrader: (7)
The engine is working fine, it's making 420/460 ftlbs so we know it's working ok with those torque numbers. Steve Simpson is mapping it and I work alot with him with my cars and various customer cars so theres no bull there. It had a full 3" de-cat system fitted, the owner took the car away and has had someone else looking at it. They said my cam timing was out, re timed it and it made 20bhp less! lol. Its got a Precision 500+ bhp turbo fitted, it just seems to be a breathing issue as as soon as Steve takes the boost above 1.5 bar the temps rise and power drops off, its got RCM headers and up-pipe so the onle 2 things i'm not sure of now is the intercooler and pipe work and the intake pipe (RCM GrpN ) and RCM filter.
He has also had a compresion test done and a leakdown test, all spot on.
He has also had a compresion test done and a leakdown test, all spot on.
Agree with Daz about the sport cat,I think he run Zerosport Downpipe and he struggled to make more power on his LM what I remember
Not sure why this is doing,but what I remember from our experience with restriction,we are run H&S twisted kit and we are couldn't make more than 490bhp on 35R,we are replaced exhaust(we are went from HKS to BuddyClub Spec IV) and Neil have look on everything,but he couldn't find anything what is wrong,on second mapping session I've spoke with Neil and he said,he probably know why this happen,we are took car there and he found our twisted Up pipe has have fitted something like Venturi,which has restricted flow and there has been marks on the wastegate ports as gases tried to escape etc,later on Stew@TFS has make for us custom up pipe etc and we are made 555.5bhp/520lb-ft on 30R
I would have look on Up pipe and headers and if they're OK and not leaking(leak should only increase lag,not decrease of the actual power),RCM induction kit should be OK,we run same on our wagon and we are been OK,although we are run custom inlet pipe
FMIC should be up to job too and should be OK for 500bhp and bit beyond
Precision turbo are sometimes hit and miss,we are run Precision SC34 on EP3 Type R and we are made on 2.25" exhaust 382bhp although,mapper tried to run bit more boost,but he couldn't go beyond 380bhp as exhaust created lots of restriction,friend has run same turbo in US and he couldn't make more than 300bhp on same boost,due this I would and I'm very careful with anything what is called Precision
Do you have any similar turbo to rule out,is the turbo or headers etc ?
If yes I would do that for sake of testing at least
Good luck there,hope so you will find this restriction
Thanks,Jura
#12
I have a similar dilemma I have an hdi but going twisted, the pipe work needs a lot of work, so it was suggested to get a jap speed as there is less modification but if it struggles above 500 what do I do?????
#14
I have the gt2 what pipes need alteration an how/ where do these need changing??
#17
#18
Former Sponsor
Thread Starter
Join Date: Aug 2012
Location: Holywell
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the input folks, what about pipe diameter? It's running the std bore as supplied with the kit, my Customer has been told by EVERYONE that ive fitted a cheap intercooler and thats the problem, hence why i'm trying to get as much info as posssible.
#19
Scooby Regular
If you mean me mate I'm not talking about the intercooler pipe , the inlet from filter to turbo inlet pipe as iv been told it's very restrictive unless you make the whole track larger from filter to turbo so iv got a 80mm inlet and matching maf housing
#20
Scooby Regular
iTrader: (2)
I would stick a thermocouple wire in the airflow post turbo and find out how much heat the turbo is creating when the boost is raised. I have one pemanently placed under the connecting pipe/ jubilee to the intercooler and it can be done cheaply.
For comparison my forged 2.5 with non avcs heads,TMIC,W/M I 450hp turbo making 466hp at 1.6bar runs temps 120-135c post compressor wheel. A bigger turbo running the same boost should produce less heat. If the outlet temps are similar but the ACT's post intercooler are raised then that would indicate the intercooler. If compressor outlet temps are much higher and I've seen 190/200c then it could be anything that's causing the turbo to work harder than it need.
Trev
For comparison my forged 2.5 with non avcs heads,TMIC,W/M I 450hp turbo making 466hp at 1.6bar runs temps 120-135c post compressor wheel. A bigger turbo running the same boost should produce less heat. If the outlet temps are similar but the ACT's post intercooler are raised then that would indicate the intercooler. If compressor outlet temps are much higher and I've seen 190/200c then it could be anything that's causing the turbo to work harder than it need.
Trev
#21
Scooby Regular
iTrader: (7)
Not sure,but we run 2.5" solid inlet as induction pipe on Syvecs and MDX321T with RCM induction kit and Japspeed FMIC and we are made 490bhp/480lb-ft
On MAF based ECU this can be issue,but not on the MAP based ECU like is Simtek/Alcatek/Syvecs or ESL etc I would say this doesn't make big difference,but this depends on turbo and inlet of the turbo etc,that's my view there
Thanks,Jura
#22
Former Sponsor
Thread Starter
Join Date: Aug 2012
Location: Holywell
Posts: 571
Likes: 0
Received 0 Likes
on
0 Posts
Thats virtually exactly how ive done the pipe work, also 63mm. It's running mafless/Simtek, with a big RCM filter and a RCM hardpipe to the turbo which is std size into the compressor housing.
#23
Scooby Regular
iTrader: (7)
As I said,we run 490bhp on that setup and on V-Power we are made 452bhp on MDX321T,exhaust we run HKS and Japspeed FMIC and due this I don't think this or those parts can cause any sort of restrictions
I would rather have look on headers and Up pipe and if those parts are OK,then I would swap the turbo,just rule out all this
Good luck with sorting this there
Thanks,Jura
#24
#25
Scooby Regular
iTrader: (7)
Hi there

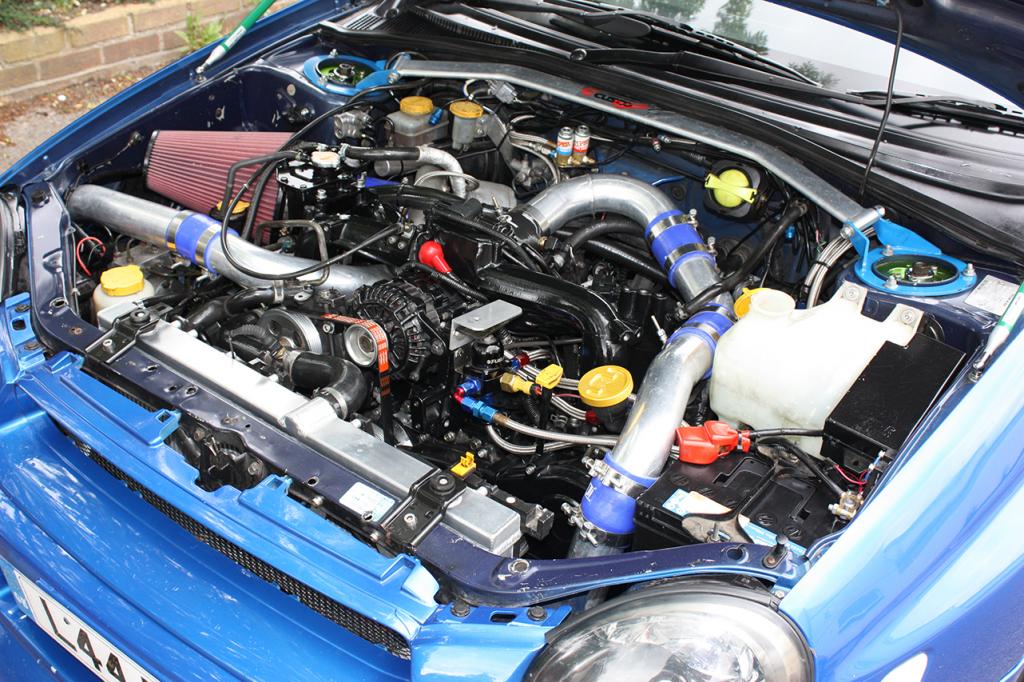

Please have look on this:

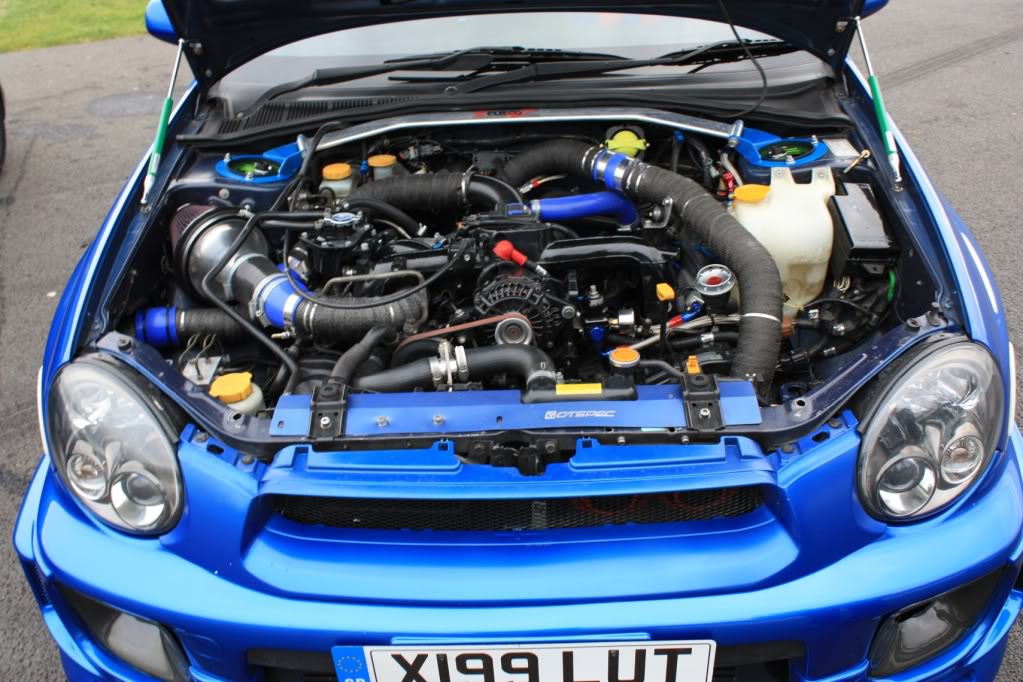

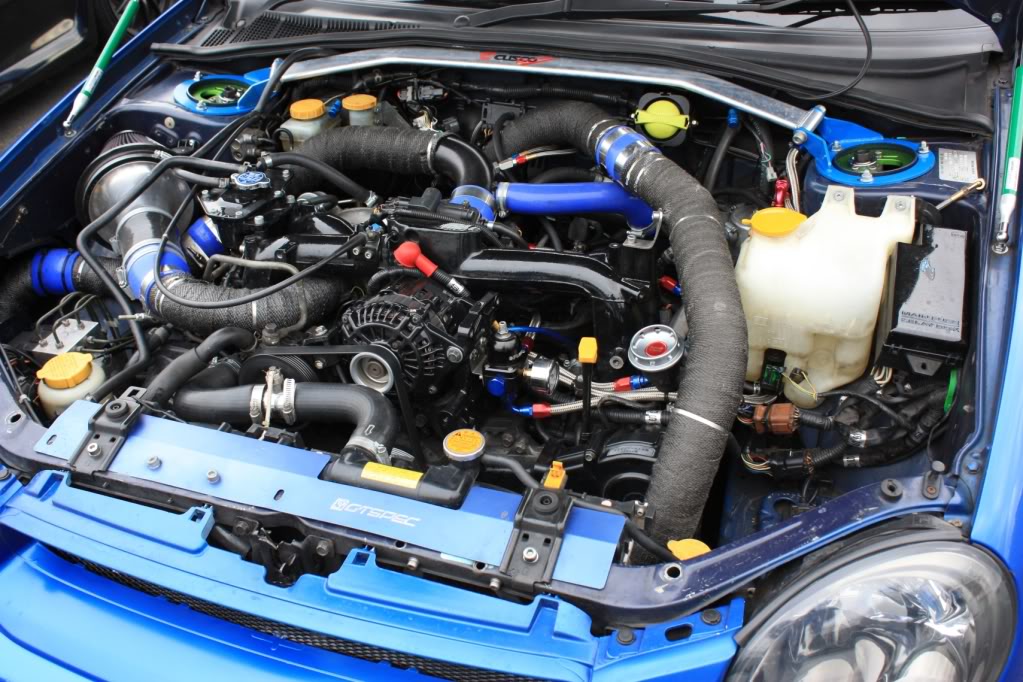

And how should looks on yours after modifying the pipework
As you can see you will need to modify two pipes at least to have Hybrid FMIC fitted on yours
Or you can try go with Hybrid from GC8 and this can make yours life bit easier as I know HDI has made two models of their FMIC(one pipe goes underneath the car and one as on Japspeed),due this if you have this model where pipe goes underneath the car this can complicate yours modifying of pipework,but its doable

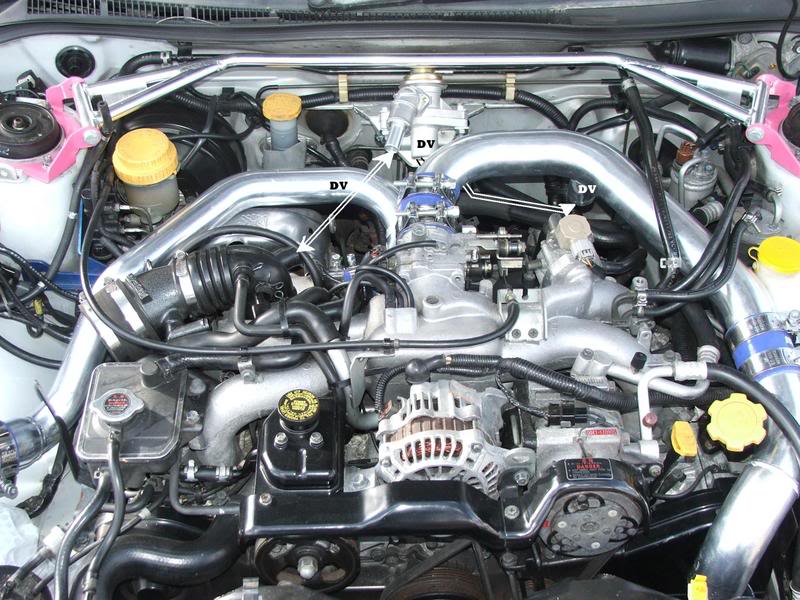

Here is older GC8 Hybrid one
Hope this helps
Thanks,Jura
Please have look on this:
And how should looks on yours after modifying the pipework
As you can see you will need to modify two pipes at least to have Hybrid FMIC fitted on yours
Or you can try go with Hybrid from GC8 and this can make yours life bit easier as I know HDI has made two models of their FMIC(one pipe goes underneath the car and one as on Japspeed),due this if you have this model where pipe goes underneath the car this can complicate yours modifying of pipework,but its doable
Here is older GC8 Hybrid one
Hope this helps
Thanks,Jura
