Jdm to UK ecu swap?
#1
Jdm to UK ecu swap?
If I was to fit a UK spec bugeye ecu into my Jdm sti bug and then had that mapped with carberry rom
would I then be able to use the torque pro app to have gauges on display etc?
As it does not work now on the jap ecu because of the Jdm ssm.
If it would work, what would need to be changed to get it to fit please?
And can you still use the torque pro app etc on a ecu with the carberry rom on?
Thanks
Ian
would I then be able to use the torque pro app to have gauges on display etc?
As it does not work now on the jap ecu because of the Jdm ssm.
If it would work, what would need to be changed to get it to fit please?
And can you still use the torque pro app etc on a ecu with the carberry rom on?
Thanks
Ian
#3
Orange Club
iTrader: (11)
Best bet might be to find a late 2002 JDM bug ecu - I think that Japan had to have OBD-II (which that app relies on) from 2002 (so I'm guessing yours is 2001).
You may actually find a 2003-on ECU works as well...but there is some inconsistency over the years between "JDM pinout" and "UK pinout" (for example my JDM 2005 had a UK pinout).
The other key thing might be MAP sensor scaling as the UK has (I think) a 2.6 bar sensor whereas JDM has a 3 bar.
Most wiring differences can be sorted as it is, usually, just a case of moving a handful of pins around.
You may actually find a 2003-on ECU works as well...but there is some inconsistency over the years between "JDM pinout" and "UK pinout" (for example my JDM 2005 had a UK pinout).
The other key thing might be MAP sensor scaling as the UK has (I think) a 2.6 bar sensor whereas JDM has a 3 bar.
Most wiring differences can be sorted as it is, usually, just a case of moving a handful of pins around.
#4
thank you all, Yes mine is a 2001.
I will be going mafless when mapped. just thought it would be nice to have a few fun toys/gauges on show.
for a late 2002 jdm bugeye, what ecu code would i need to look for please?

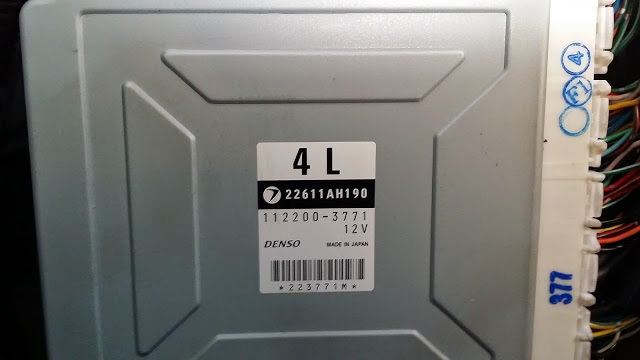

these are the codes from my ecu that is in there..
4L
22611AH190
112200-3771
12V
*223771M*
if that means anything to anyone?
thanks
ian
I will be going mafless when mapped. just thought it would be nice to have a few fun toys/gauges on show.
for a late 2002 jdm bugeye, what ecu code would i need to look for please?
these are the codes from my ecu that is in there..
4L
22611AH190
112200-3771
12V
*223771M*
if that means anything to anyone?
thanks
ian
Last edited by Ian; 29 May 2016 at 11:21 PM.
#6
Denso 6A 22611AH581 112200-5122 12V 225122E Made in Japan
Thanks!
#7
Scooby Regular
Do you have a resource that shows the country and model information for the following ECUs?Denso 5Z 22611AH740 112200-5110 12V 225110B Made in Japan
Denso 6A 22611AH581 112200-5122 12V 225122E Made in Japan
Thanks!
Denso 6A 22611AH581 112200-5122 12V 225122E Made in Japan
Thanks!

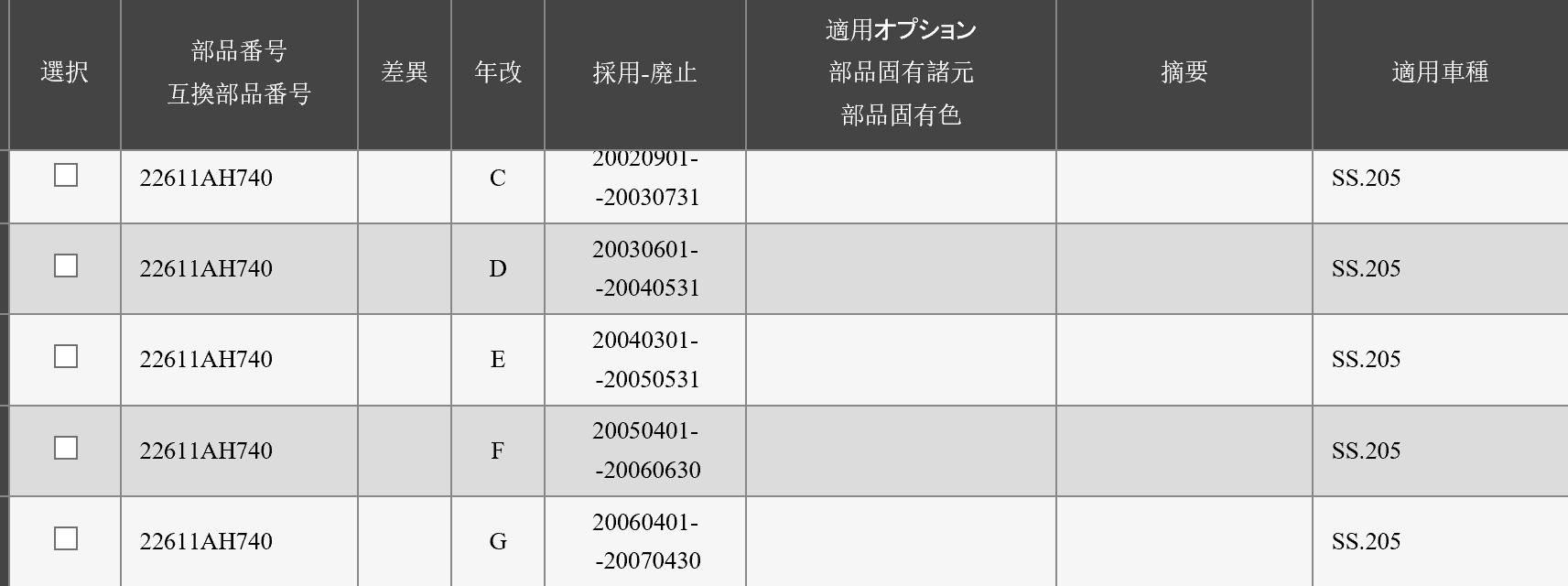

JDM WRX with "Sport Shift" Automatic transmission for the following "Revisions" - C,D,E,F&G
Subaru Part number 2611AH581
JDM WRX STI and WRXSTI V LTD for the following "Revisions" - C & D
Trending Topics
#8
Don, thank you for such a quick and informative response. I searched through all of the wiring diagrams I have collected over the years and don’t have any diagrams that are specific enough to list the car’s revision code. Is that something you have access to? If so, I would appreciate seeing the pinout diagram for those revisions. If you don’t mind, I’d like to pm you to discuss that further. I am also hoping to maximize the information output to our 2004 JDM STI gauge cluster.
#9
Scooby Regular
Don, thank you for such a quick and informative response. I searched through all of the wiring diagrams I have collected over the years and don’t have any diagrams that are specific enough to list the car’s revision code. Is that something you have access to? If so, I would appreciate seeing the pinout diagram for those revisions. If you don’t mind, I’d like to pm you to discuss that further. I am also hoping to maximize the information output to our 2004 JDM STI gauge cluster.
The "Revision" letter is used in a similar way to our (UK/European/Aus) Model Year (MY) BUT can in some cases cover two complete model years.
Information for JDM models is few and far between and i've only ever seen a couple of JDM wiring diagrams.
Wiring for JDM cars can vary significantly from UK/European models as they tend to get upgrades sooner than here, and are more similar to US models (Body Integrated Unit inclusion being one major difference).
Production dates for USDM "Newage" models

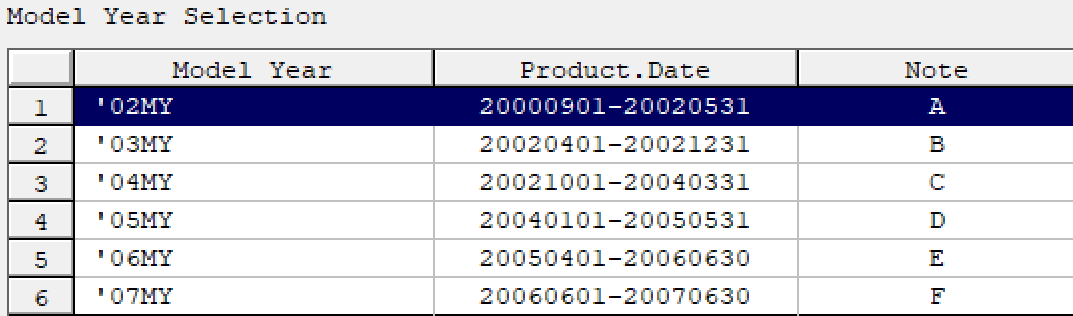

Production dates for UK/Europe/Aus/Rest of world "Newage" models

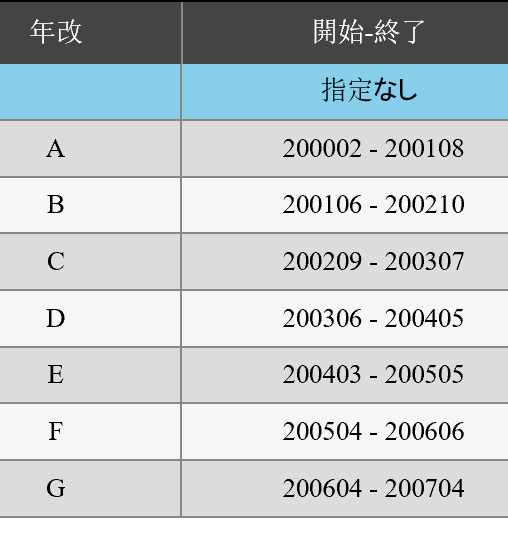

Production dates for JDM "Newage" models
Last edited by Don Clark; 26 April 2021 at 04:19 PM.
#10
Thank you for allowing me to take a class at Don Clark University! I have been using the JDM supplier version number versus the actual production dates when purchasing JDM items. Per the attached version number date ranges from iWire, the reality is that the JDM version number can be wrong due to JDM production being more granular than by year, but instead is month and day dependent as well. I imagine that I am not the only Subaru enthusiast who did not know this critical piece of information. It also demonstrates the JDM suppliers can be a bit sneaky with their part descriptions if we are not vigilant, especially as to ECMs / ECUs.
Last edited by speedster96; 26 April 2021 at 03:32 PM. Reason: typos
#11
Scooby Regular
The Revision "version" is also the 4th Character of the Applied model code eg GDBC4FH
https://jp-carparts.com/subaru/partl...022&fig_id=Z00
Japanparts.com classifies Subaru models by their Revision.......
https://jp-carparts.com/subaru/partl...022&fig_id=Z00
Japanparts.com classifies Subaru models by their Revision.......
#12
Thanks Don. I have one slightly off-topic question related to ECU swapping. In light of the availability of JDM ECU part numbers and the fact that many Subaru JDM enthusiast also swap out their dash cluster to a JDM model, why don't these individuals also swap a JDM DCCD controller into their manual transmission cars instead of using an aftermarket product? It seems like it would be better for a JDM engine and transmission management system to be used with the JDM cluster. Do you similarly have a listing of the JDM DCCD controllers that Subaru put into their JDM WRX/STi A - G revisions?
#13
Scooby Regular
https://jp-carparts.com/subaru/partl...011&fig_id=125

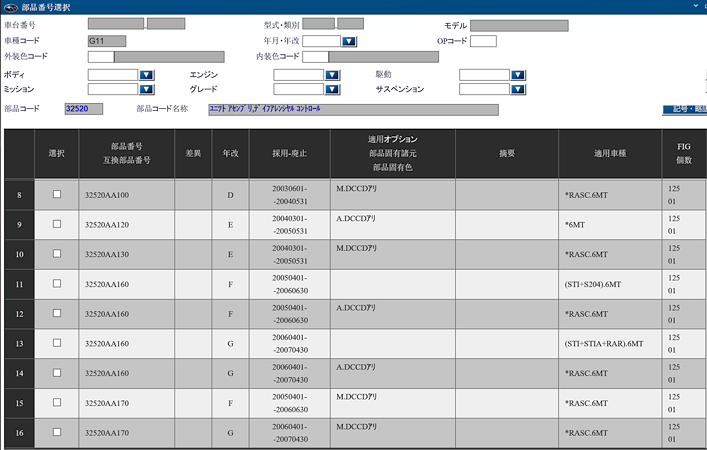

"Newage" Impreza (Vehicle Type code: G11) DCCD controllers

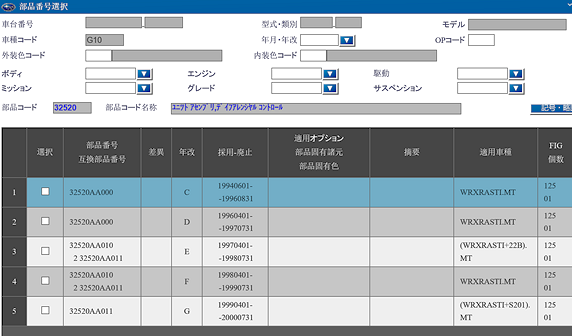

For good measure, "Classic" Impreza (Vehicle type code: G10) DCCD controllers (there is some overlap in part numbers)
"Newage" Impreza (Vehicle Type code: G11) DCCD controllers
For good measure, "Classic" Impreza (Vehicle type code: G10) DCCD controllers (there is some overlap in part numbers)
Last edited by Don Clark; 28 April 2021 at 10:17 AM.
