Gearbox gurus
#2
Scooby Regular
At a quick glance no.
TY752VB3FA - 32650AA001
TY754VB7AA - 32650AA032
Which given that TY752VB3FA is a Revision C classic box (1995/6) and TY754VB7AA is a Revision F newage box (2005/6) seems to make sense.
TY752VB3FA - 32650AA001
TY754VB7AA - 32650AA032
Which given that TY752VB3FA is a Revision C classic box (1995/6) and TY754VB7AA is a Revision F newage box (2005/6) seems to make sense.
Last edited by Don Clark; 09 February 2021 at 05:13 AM.
#3
Excellent thanks for confirming, i did have my doubts but hoped all 5 speeds used the same, never mind !
Do you have the part number for the baulk rings ? To help my search begins to see if i can actually purchase baulk rings/syncro for a vb3fa ( 1995 wrx ) gearbox..........
Do you have the part number for the baulk rings ? To help my search begins to see if i can actually purchase baulk rings/syncro for a vb3fa ( 1995 wrx ) gearbox..........
Last edited by The Rig; 08 February 2021 at 09:41 PM.
#4
Scooby Regular
https://jp-carparts.com/subaru/partl...016&fig_id=114
https://jp-carparts.com/subaru/partl...016&fig_id=115
https://jp-carparts.com/subaru/partl...016&fig_id=115
Last edited by Don Clark; 09 February 2021 at 06:02 AM.
#5
Cheers for the links Don, i struggle to navigate those parts ( doesnt help when i dont 100% know what im looking at lol ) But i found this american site, is this everything i need to replace synchros/baulk rings ?

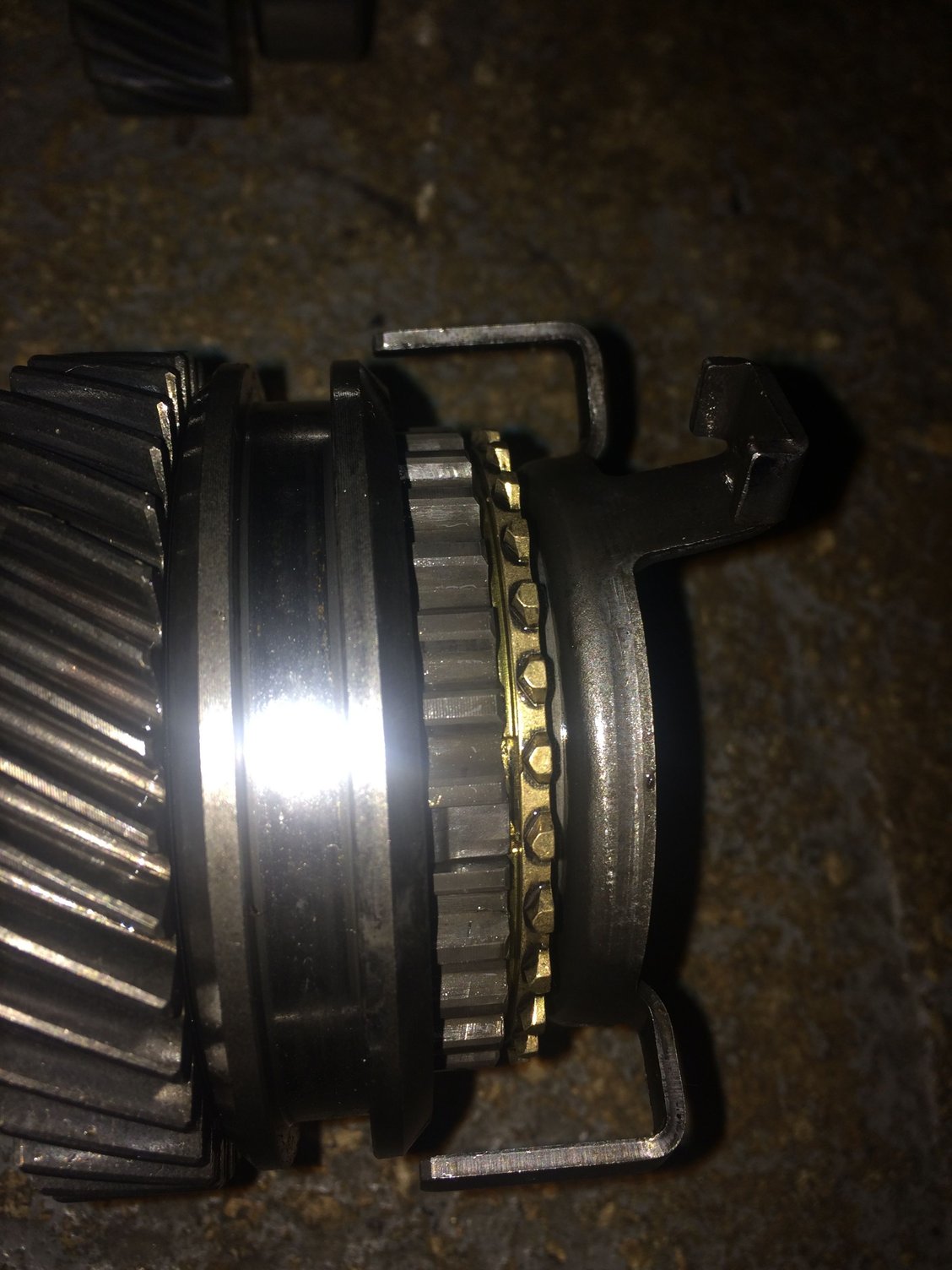

So am i buying the synchro teeth and baulk ring ? as in this pic ?? do they come as a package or do you buy sperate ?
1 Subaru 5MT Synchro 1st MY94-98 RSTR-1091B $36.75
1 Subaru 5MT Synchro 2nd MY94-98 RSTR-1092B $91.40
3 Subaru 5MT Synchro 5th used for 3rd 4th and 5th gear MY97-98 RSTR-1095B $22.77 = $68.31
http://www.rallispec.com/gea_rep_syn5mt.html
https://www.rallispec.com/shopsite/s...9056843.688226
So am i buying the synchro teeth and baulk ring ? as in this pic ?? do they come as a package or do you buy sperate ?
1 Subaru 5MT Synchro 1st MY94-98 RSTR-1091B $36.75
1 Subaru 5MT Synchro 2nd MY94-98 RSTR-1092B $91.40
3 Subaru 5MT Synchro 5th used for 3rd 4th and 5th gear MY97-98 RSTR-1095B $22.77 = $68.31
http://www.rallispec.com/gea_rep_syn5mt.html
https://www.rallispec.com/shopsite/s...9056843.688226
Last edited by The Rig; 09 February 2021 at 10:45 PM.
#6
Scooby Regular
The 3FA box was only fitted to the revision "C" WRX between dates below
(equates to MY05)
Revision C models were built between
so for two "model years"( which roughly equates to MY95/96).
However as Rallyspec assemble kits (although they don't specify which subaru part numbers are included) that would be the way to go.
Before purchasing it may be worth enquiring with them what kits would actually be needed for your specific 3FA box but from what you have listed would appear to be suitable.
(equates to MY05)
Revision C models were built between
so for two "model years"( which roughly equates to MY95/96).
However as Rallyspec assemble kits (although they don't specify which subaru part numbers are included) that would be the way to go.
Before purchasing it may be worth enquiring with them what kits would actually be needed for your specific 3FA box but from what you have listed would appear to be suitable.
Last edited by Don Clark; 10 February 2021 at 09:21 AM.
#7
Hi Dom, Many Thanks,Just to confirm with you , Rallyspec have said i need parts

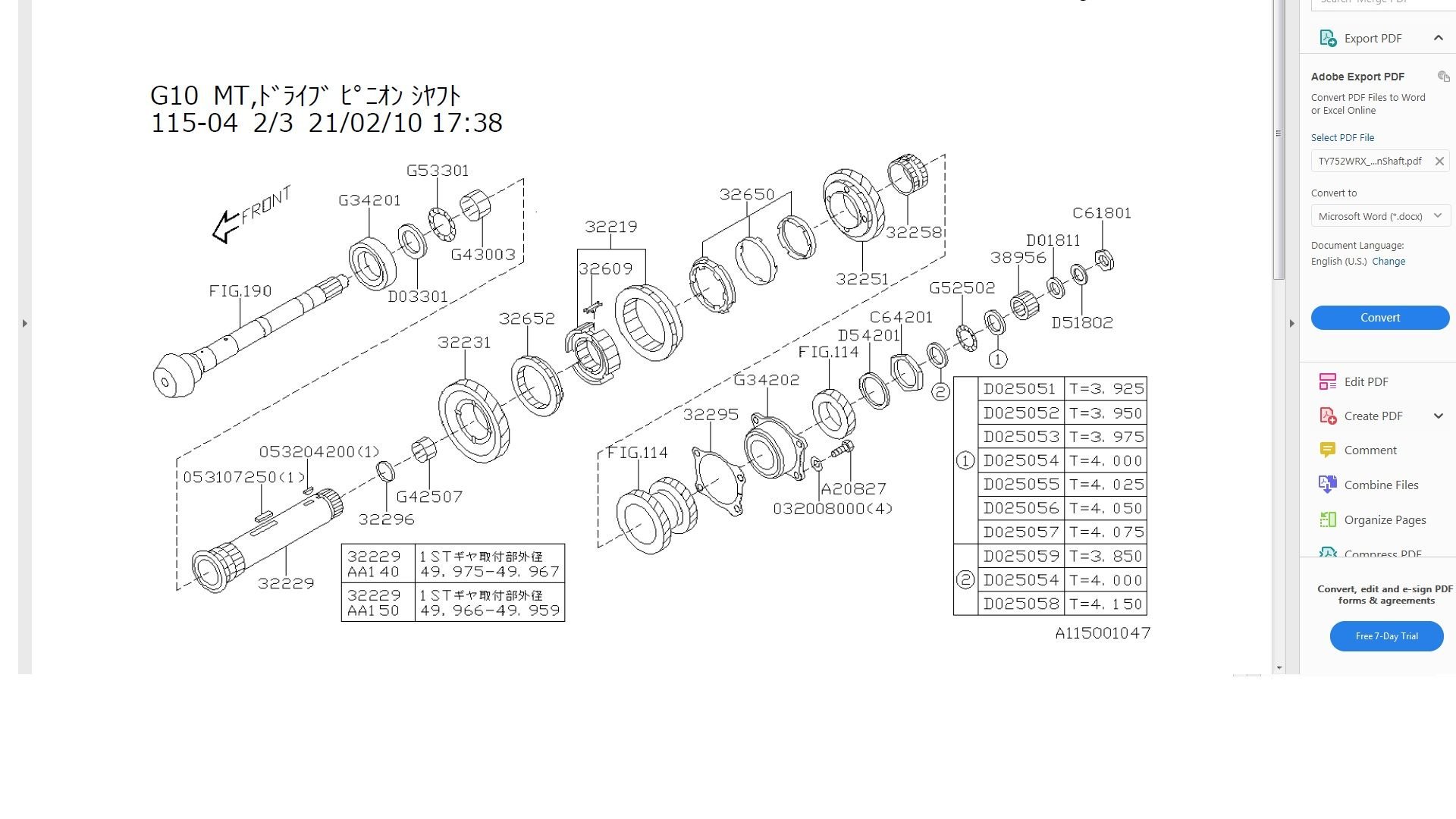

RSTR-1091B = 32652 on Driven Shaft Diagram
RSTR-1092B = 32650 on Driven Shaft Diagram (includes all 3 pieces)
RSTR-1095B = 32614*B on Main Shaft Diagram ... used for 3rd, 4th, and 5th gears.
Do you agree, those are the only parts i need to order to fit new synchros /baulkrings to the shafts to the ty752vb3fa (1995) ?
RSTR-1091B = 32652 on Driven Shaft Diagram
RSTR-1092B = 32650 on Driven Shaft Diagram (includes all 3 pieces)
RSTR-1095B = 32614*B on Main Shaft Diagram ... used for 3rd, 4th, and 5th gears.
Do you agree, those are the only parts i need to order to fit new synchros /baulkrings to the shafts to the ty752vb3fa (1995) ?
Last edited by The Rig; 11 February 2021 at 01:29 AM.
Trending Topics
#8
Scooby Regular
That would be the 64K dollar question.
I would imagine it depends what you find as you take it all apart.

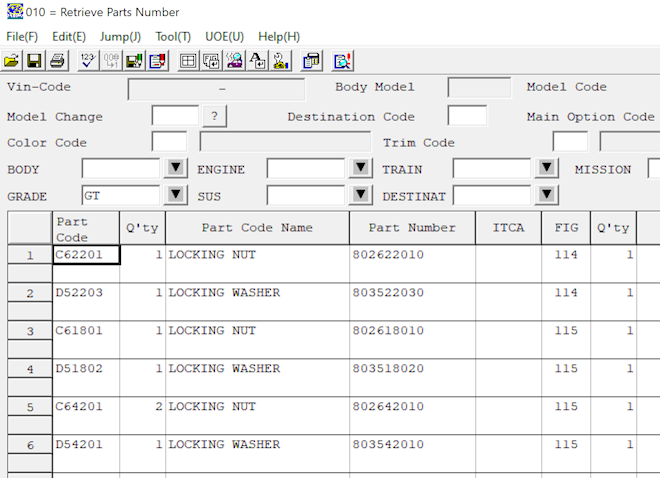

Possibly the shaft lock nuts and washers listed below
I would imagine it depends what you find as you take it all apart.
Possibly the shaft lock nuts and washers listed below
Last edited by Don Clark; 11 February 2021 at 09:20 AM.
#10
Scooby Regular

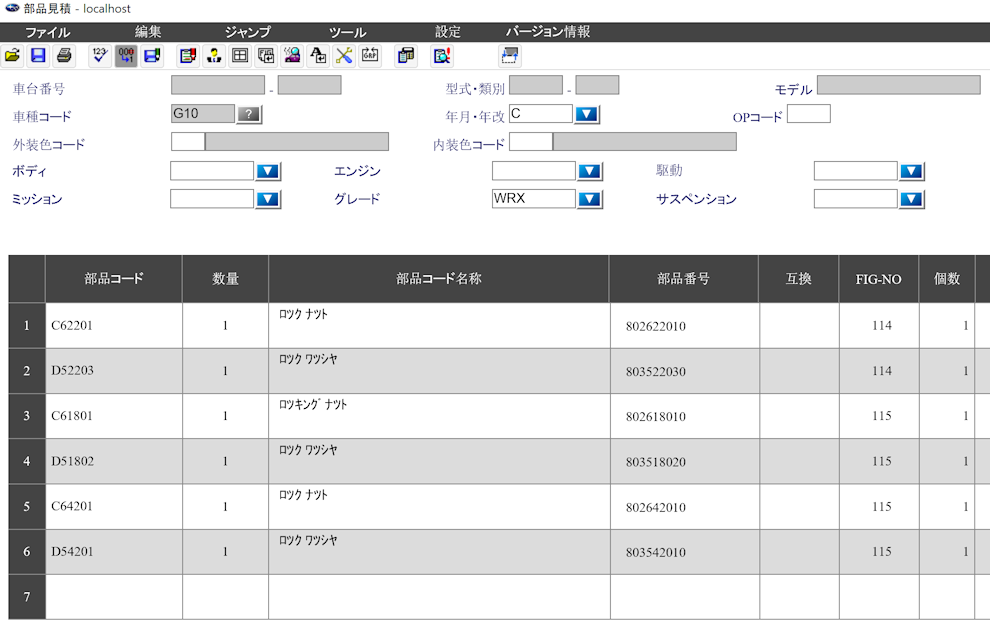

I missed off a lockwasher in list above
same part numbers as UK Turbo 2000 5MT
same part numbers as UK Turbo 2000 5MT
#11
Excellent appreciate the assistance bud, about to order all those bits, about £190 delivered ( minus custom charge )
Then its onto a company that can fit the synchros onto the loose shafts i have removed from the box, i would attempt myself but i have no way or idea on how to undo the locking nuts whilst stopping the shaft rotating ( Guess you set up a jig to hold the gears /lock them whilst you undo the nut )
cheers
Then its onto a company that can fit the synchros onto the loose shafts i have removed from the box, i would attempt myself but i have no way or idea on how to undo the locking nuts whilst stopping the shaft rotating ( Guess you set up a jig to hold the gears /lock them whilst you undo the nut )
cheers
