Astra 4wd subaru powered track/rally car
#242
Scooby Regular
Thread Starter
Well the project started with an Astra and originally thought of doing a RWD LET, but then changed my mind to 4WD as RWD would be a bit of a handful,
A couple of mates said it would be cool if it had a Subaru engine and running gear, so my challenge began...
A couple of mates said it would be cool if it had a Subaru engine and running gear, so my challenge began...
#243
Scooby Regular
Thread Starter
A little more progress… chopped up the doors taking the motors and mechs out as I will just go lexan, still weigh a fair bit so may get the hole-saw on the top inner rail
A while ago I covered the dash with flock material and to be honest it looked sh*te so decided to try again, I purchased a DIY Flock kit off the bay and after a test last week it seems pretty good so ripped the material off and a few hours sanding it back down applied the flock, the pics below still have the excess flock on it so fingers crossed looks ok next weekend when I remove the loose... also flocked the roof vent inner section…
Rear quarter filler work is now done so will start getting the outside prepped in the next few weeks ready for paint,
My Engine is also ready to pick up (cheers Paul and Tim) so busy times ahead!!!
A while ago I covered the dash with flock material and to be honest it looked sh*te so decided to try again, I purchased a DIY Flock kit off the bay and after a test last week it seems pretty good so ripped the material off and a few hours sanding it back down applied the flock, the pics below still have the excess flock on it so fingers crossed looks ok next weekend when I remove the loose... also flocked the roof vent inner section…
Rear quarter filler work is now done so will start getting the outside prepped in the next few weeks ready for paint,
My Engine is also ready to pick up (cheers Paul and Tim) so busy times ahead!!!
#245
Scooby Regular
Thread Starter
Dash turned out ok there are a few slightly bare patches, thinking back to when I did it the glue was soaking in on a few area’s as I gave it a good rub down, so if I was going to use it again I would give it a coat first an let dry or even a coat of primer,
Only took one pic and it was blurred so will take some next week…
As I want to get it more weather proof for the winter I started the rear quarter windows, I got the rubber trim off the passenger window a few weeks back which was a nightmare of a job, I cut around the glass then smashed it and picked out the small pieces with long nose pliers took hours!!!!, hard to see in this pic but it’s just the rubber,
Made a cardboard template
Cut the Lexan and as the rubber on the inside isn’t very neat I masked and sprayed a black border
Bonded in… may need a slight bend forming on the edge next to the ‘B’ post so will give it a little heat and clamp it over the bench once tiger seal has cured.
Got bored of that so decided to get the Astra wiring loom and have a trimming session as a mate has offered to help build the loom so we laid it out like it was in the car to help identify things, started off with this
Removed this lot
Leaving just the rear lighting and central locking… done the same with the front lighting but forgot pictures of that

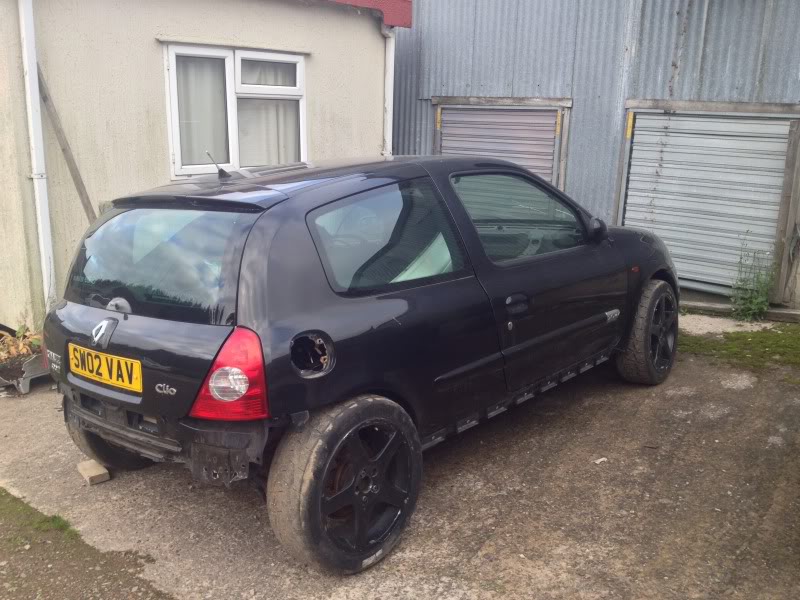

Also it has a friend for a week or two…
Only took one pic and it was blurred so will take some next week…
As I want to get it more weather proof for the winter I started the rear quarter windows, I got the rubber trim off the passenger window a few weeks back which was a nightmare of a job, I cut around the glass then smashed it and picked out the small pieces with long nose pliers took hours!!!!, hard to see in this pic but it’s just the rubber,
Made a cardboard template
Cut the Lexan and as the rubber on the inside isn’t very neat I masked and sprayed a black border
Bonded in… may need a slight bend forming on the edge next to the ‘B’ post so will give it a little heat and clamp it over the bench once tiger seal has cured.
Got bored of that so decided to get the Astra wiring loom and have a trimming session as a mate has offered to help build the loom so we laid it out like it was in the car to help identify things, started off with this
Removed this lot
Leaving just the rear lighting and central locking… done the same with the front lighting but forgot pictures of that
Also it has a friend for a week or two…
#248
Scooby Regular
Thread Starter
Yeh surprising how much crap you can get rid of, remember this is just the Astra loom to run lights ect, Subaru loom will run separate, although I have been attacking that too...
Cheers, yes will be getting a couple of camera's mounted when done
Cheers, yes will be getting a couple of camera's mounted when done
#249
Scooby Regular
Thread Starter
Engine - well it fits!!!
Done a test fit of the engine today will need to come back out for a paint up, but now gives me an idea of space I have for various parts… I’m pleased with the room at the front for rad and IC and where I though the alternator would be tight on the bonnet I have about an inch so all good.
Goes in easy just had to remove the oil filler pipe,
A few pics for different angles…
Done a test fit of the engine today will need to come back out for a paint up, but now gives me an idea of space I have for various parts… I’m pleased with the room at the front for rad and IC and where I though the alternator would be tight on the bonnet I have about an inch so all good.
Goes in easy just had to remove the oil filler pipe,
A few pics for different angles…
#251
Scooby Regular
iTrader: (6)
Join Date: May 2012
Location: Cardiff
Posts: 3,221
Likes: 0
Received 0 Likes
on
0 Posts
Fair play Ian it's been a while since I last checked in an fair play you been a busy guy lol, coming along nicely now bud, like the focus rear touch, and it's mad how low the engine seems to sit in the pics, fair play to you keep up he good work, looking forward to my next catch up
#252
Scooby Regular
Thread Starter
Cheers Jon, feels good having the engine in place, need to get on with the wiring now..
yeh been a busy few months got a weeks holiday now... (got to keep the misses happy)
Might be painted when you check in next time..
Fair play Ian it's been a while since I last checked in an fair play you been a busy guy lol, coming along nicely now bud, like the focus rear touch, and it's mad how low the engine seems to sit in the pics, fair play to you keep up he good work, looking forward to my next catch up
Might be painted when you check in next time..
#254
Scooby Regular
Thread Starter
Not a lot to show for the weekends efforts, spent a lot of time on the lighting wiring loom soldering and shrink wrapping it’s surprising how long it takes to do and had a mate helping, now have the rear loom running up to the center of the dash where the switched will be mounted.
A few pics nothing really exciting, decided to route the front light loom’s out through the inner wing then back in through the ‘A’ Pillar
The red wire in the pic below was originally the towing charge cable so I left it in place and will use for aux power in the rear may be useful for in-car cameras ect
And I picked up this bumper Friday evening it’s a fibreglass after-market one needs a couple of repairs but ideal for what I need…
Just need to trim a little more off the Subaru front lower cross member ends so the bumper goes back a little more…
A few pics nothing really exciting, decided to route the front light loom’s out through the inner wing then back in through the ‘A’ Pillar
The red wire in the pic below was originally the towing charge cable so I left it in place and will use for aux power in the rear may be useful for in-car cameras ect
And I picked up this bumper Friday evening it’s a fibreglass after-market one needs a couple of repairs but ideal for what I need…
Just need to trim a little more off the Subaru front lower cross member ends so the bumper goes back a little more…
#255
Scooby Regular
Thread Starter
#256
Scooby Regular
Thread Starter
Got a nice box of goodies from the guys at rally-tech.com we have done a sponsorship deal where some of their parts will be fitted on the car along with advertising with their decals once the car is painted,
anyone who has any of their products will agree the quality and finish is superb.
anyone who has any of their products will agree the quality and finish is superb.
#259
Scooby Regular
Thread Starter
Build thread??
Think it's going to be around march before it's on the road to get some video, still loads to do....
Last edited by IanPaskin; 19 October 2013 at 09:48 PM.
#260
Scooby Regular
Thread Starter
Got the door jams and inside of the doors painted on Saturday so I can get it a bit more weather proof…
So now I have the door rubbers and door catches fitted… doors fit well still!!
Also made some temporary windows to stop the damp and birds ect getting in as I want to bolt a seat in next weekend so I can see where to mount switches…
Some more wiring and on the drivers headlight loom done and door looms for central locking are now trimmed, tapped up and fitted,
Then did my low tech inside door handle
Next main job is to get rubbing down, I’ve changed my mind on the plain white for the outside going to do something along these lines, but replacing the Red with Blue.
Opinions??
So now I have the door rubbers and door catches fitted… doors fit well still!!
Also made some temporary windows to stop the damp and birds ect getting in as I want to bolt a seat in next weekend so I can see where to mount switches…
Some more wiring and on the drivers headlight loom done and door looms for central locking are now trimmed, tapped up and fitted,
Then did my low tech inside door handle
Next main job is to get rubbing down, I’ve changed my mind on the plain white for the outside going to do something along these lines, but replacing the Red with Blue.
Opinions??
#262
Scooby Regular
Thread Starter
will be paint, mate is doing it he does a lot of detail work so up his street, I like the red but thinking to add a little blue as I have blue seats and give it a little Subaru touch..
#265
Scooby Regular
Thread Starter
Small update had another little job yesterday morning helping out with some wiring for a Subaru kitcar,
So on mine bolted a seat back in so I can see what is reachable from a driving position,
I got hold of an indicator stalk from a Subaru but in the end I decided to use the Astra one along with the airbag/horn/radio control squid so I can have some buttons mounted just behind the steering wheel,
Next I chopped up the Astra column to get the switch/stalk mount off and had to modify it taking the bearing out and enlarging the hole to go over the Subaru column once that was done it fitted like a glove, just had to grind down the steering boss to allow clearance for the wiring
The setup now cancels the indicator which I’m happy with as it’s a pain not cancelling… just need to lower the column a bit more.
I then put some carbon wrap stuff on the door bars to protect them, looks ok...
Then I found I may have a minor issue reaching the gear stick comfortably especially 1st gear so I might go down this route… or something similar
Also finished the light circuit wiring, now all goes into the middle of the dash ready for switches.
So on mine bolted a seat back in so I can see what is reachable from a driving position,
I got hold of an indicator stalk from a Subaru but in the end I decided to use the Astra one along with the airbag/horn/radio control squid so I can have some buttons mounted just behind the steering wheel,
Next I chopped up the Astra column to get the switch/stalk mount off and had to modify it taking the bearing out and enlarging the hole to go over the Subaru column once that was done it fitted like a glove, just had to grind down the steering boss to allow clearance for the wiring
The setup now cancels the indicator which I’m happy with as it’s a pain not cancelling… just need to lower the column a bit more.
I then put some carbon wrap stuff on the door bars to protect them, looks ok...
Then I found I may have a minor issue reaching the gear stick comfortably especially 1st gear so I might go down this route… or something similar
Also finished the light circuit wiring, now all goes into the middle of the dash ready for switches.
#266
Scooby Regular
Thread Starter
Not a lot to report on from the past few weeks just been doing small jobs that don’t really make good pictures and some body prep,
I have received this fuse/relay box today it’s got some good wiring and terminal blocks so ideal and a good price, I will mount it in the center console area with a switch panel above,
I have received this fuse/relay box today it’s got some good wiring and terminal blocks so ideal and a good price, I will mount it in the center console area with a switch panel above,
#270
Scooby Regular
Thread Starter
been working out how to wire up the fuse relay box i got hold of, i decided to strip some of it out and leave just the feed wires in place and have purchased some new terminals to rewire the trigger and switch wiring and the negative to the relays as it had yellow and green when i got it so i will replace with brown to keep consistent with the rest of the car.
also been making up some wiring diagrams so i have a reference later on how it was wired, and make wiring it up easier especially if my mate Neal is helping he will have diagrams to work with
just wondering if I should fuse the headlights after the relay too??
also been making up some wiring diagrams so i have a reference later on how it was wired, and make wiring it up easier especially if my mate Neal is helping he will have diagrams to work with
just wondering if I should fuse the headlights after the relay too??
