Old 18 April 2005, 08:23 AM
  #151
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default

Floyd must be ashamed of his fingers I think, but doing a parallel fuel mod turns you like this....
After I'd done all my mods I felt I would have been quicker taking the engine out and doing it all on a stand.
I spent a lot of time re checking time and again dreading leaks close to the turbo!

All in all, I think I spent about 150 hours on mine over an 8 week period, roughly 20 hours a week. Lucky for me my wife likes cars too!
Graham.
911 is offline
Old 18 April 2005, 08:48 AM
  #152
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

I had office fingers before this round of mods They were all soft and clean but now they are cut and ingrained with dirt with skin peeling off - eewww!

I rekon in all that I've spent around 100 hours on the car since I got it. At garage rates that's £5000!!!

I do feel most guilty about my wife and kids as I've really had to shut myself in the garage and finish the car My misses had to introduce me to them yesterday as the 'man who lives in the garage'

More pictures tonight hopefully.
F
Floyd is offline
Old 18 April 2005, 08:29 PM
  #153
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Arrow Parallel fuel feed II + other bits!

This should be called Floyd's method to losing a wife and family while breaking your back and mashing your hands

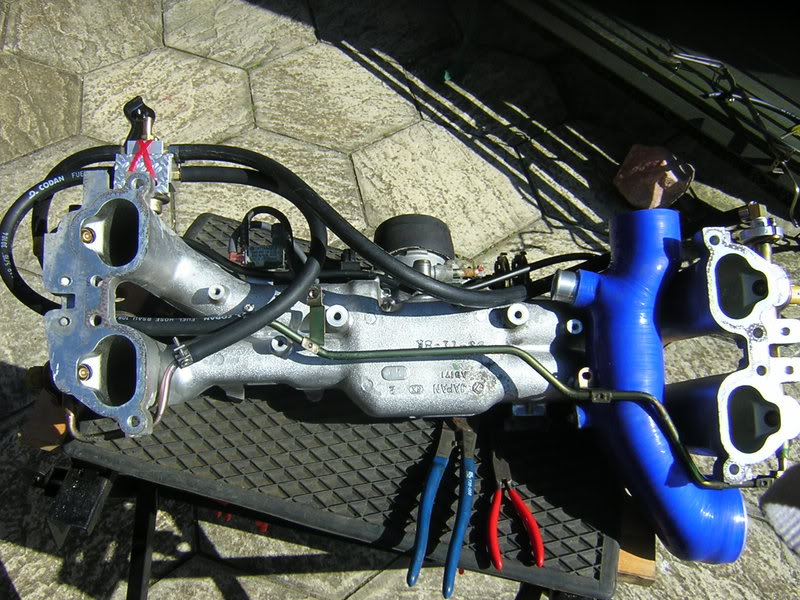

Anyway, The finished pipework feeds 3+4 and returns on 1+2 (I think!):
Name:  DSCN1866.jpg
Views: 0
Size:  129.0 KB

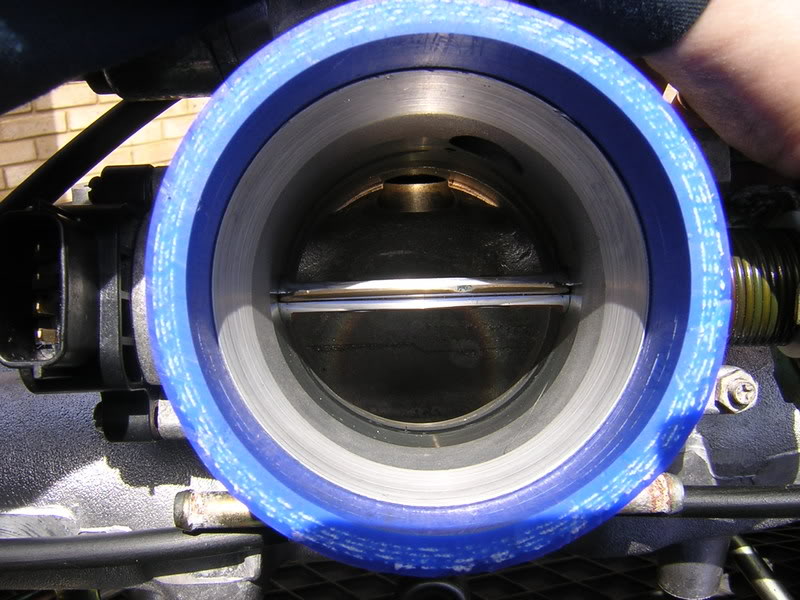

No cutting is necessary and pipe lengths are roughly similar. While the manifold was off I stuck the throttle body on with the new Samco connector -Smooooth :
Name:  DSCN1869.jpg
Views: 0
Size:  95.6 KB
This also gave me a chance to really sort the DV return. I'm really glad I did this off the car as it would have been a real effort to sort in the engine bay and took several attempts to get right. Here's the method using original parts -result

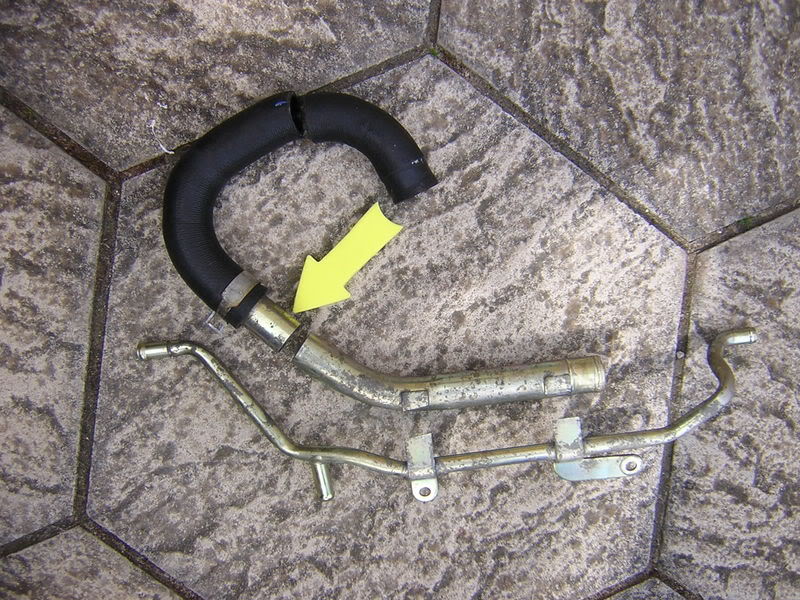

Cut the old hard pipe off the cam breather hard pipe and chop about 2 inches of the end:
Name:  DSCN1871.jpg
Views: 0
Size:  149.5 KB

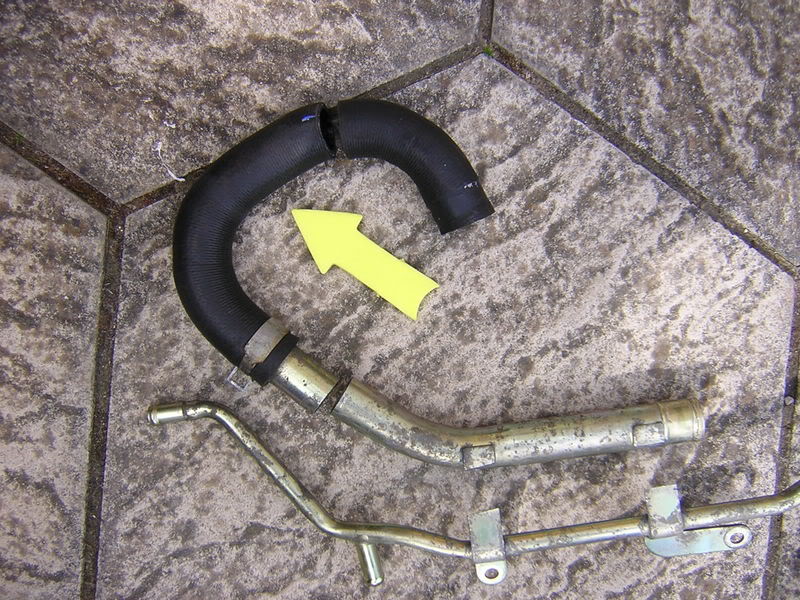

Stick the old rubber DV hose on the end and chop just before the bend:
Name:  DSCN1870.jpg
Views: 0
Size:  147.6 KB

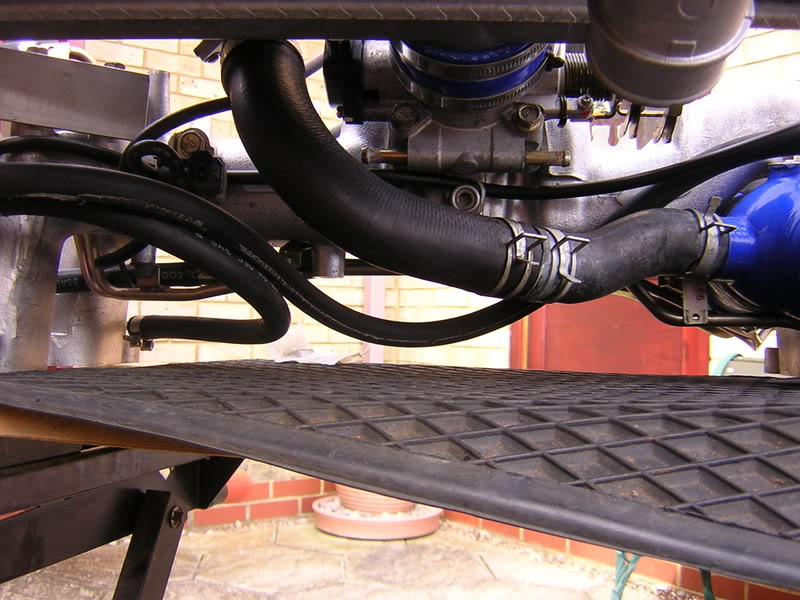

The last bit is a b1tch. Enlarge the hose to about half the depth internally of the hose wall and file if you can to make smooth. This is to make a chamfer to be able to slip it over the DV exit pipe, which is bigger than the classic one You will also need to file the lip off the DV exit pipe and chamfer this down as much as you can. Now WD40 the hose and swear a lot as you push it on. It will go but make sure you jubilee it afterwards. The DV is left connected to the return pipe and will be connected once the TMIC is put back on:
Name:  DSCN1872.jpg
Views: 0
Size:  97.4 KB

F

Last edited by Floyd; 18 April 2005 at 08:32 PM.
Floyd is offline
Old 19 April 2005, 01:48 PM
  #154
Aztec Performance Ltd
www.superhids.co.uk
iTrader: (234)

Join Date: Jan 2003
Location: Over 500ft/lbs of torque @ just 1.1bar
Posts: 14,406
Default

Originally Posted by Floyd
I had office fingers before this round of mods They were all soft and clean but now they are cut and ingrained with dirt with skin peeling off - eewww!
F
That sounds familiar

Originally Posted by Floyd

I rekon in all that I've spent around 100 hours on the car since I got it.
And I cheated....got tweenierob to fit the turbo, headers, clutch flywheel, FPR, fuel pump, spark plugs and cambelt He did it comfortably in a day. I took longer than that fitting the i/c and induction

Originally Posted by Floyd
( My misses had to introduce me to them yesterday as the 'man who lives in the garage'


F

PMSL
Aztec Performance Ltd is offline
Old 19 April 2005, 07:37 PM
  #155
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default

Remember to get the Brownie points back up to the right level.

Flowers, meals out, wash the cars and do the gardens.
Don't go to the pub, only bring home the mates she actually like (if you have any)
Graham.
911 is offline
Old 20 April 2005, 12:27 AM
  #156
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Post

Mates, mates, what are they? I lost them long ago when I got introduced to Subaru tuning

I finished putting the turbo on tonight and fitted the down pipe. I had a bit of a job getting the water feed hose back on as well as the oil feed. The turbo heat shield was another problem all together

I also refitted the water header tank and made some plastic insulator brackets to detatch it from the inlet manifold. What's the best way to refill the rad?

Next on the list is to make a new shield for the STi8 clutch reservoir and then finally, the TMIC - yeah! Oh and the fuel pump for the second time...

F
Floyd is offline
Old 20 April 2005, 01:16 AM
  #157
Tim W
Scooby Regular
iTrader: (1)

Join Date: Feb 1999
Posts: 2,852
Default

Floyd, still trying to find the lambda sensor for you, didn't seem to be down in Kent, so I'm going to have to have a more thorough look up here...

Anyway for the rad you need to fill it through the header tank pumping the hoses like you would on a mini then once your happy that there's a fair bit of water in the system start the car up, with the header tank cap removed and keep topping it up with the engine running until the level doesn't drop anymore. The biggest drop will occur when the thermostat opens...
Tim W is offline
Old 20 April 2005, 08:41 AM
  #158
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default

Agree with Tim on the rad fill.
I filled mine by the same way but took a l o n g time over doing it while doing other jobs in the engine bay. Spent an hour doing it. I also set the heater on full heat and with the fan on. A cold heater is a sure sign the air is trapped.

When convinced all is full, fit the cap and keep running for another 3 mins and check the level in the small tube by the battery. Top-up to suit (hard to see the levels).

Graham.
911 is offline
Old 20 April 2005, 08:57 AM
  #159
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Question

Tim, I bought a new Lambda from Subaru just in case so don't worry too much and thanks for looking. Anyone know if I can re-thread the old Lambda? I haven't fitted it yet as I only remembered this morning in the shower that I hadn't done it yet. If it was completed last night I would have started it with it removed and then I would have realised

I drained 2 ltrs of coolant to do the turbo swap and I lost a cup full as well. I re filled with the 2 ltrs by topping up the header and pumping as Tim says. I put the rest in the top up tube - why did they make this so hard to see where the level is, darh?

Does anyone else climb on the engine to do stuff? My knees hurt now

And another thing, I can't find via search, how to connect the 3 port Do I need the restrictor still? Which wire goes where? Help? Is there a connector adapter?

F

Last edited by Floyd; 20 April 2005 at 09:23 AM.
Floyd is offline
Old 20 April 2005, 09:35 AM
  #160
StickyMicky
Scooby Regular

Join Date: Feb 2003
Location: Zed Ess Won Hay Tee
Posts: 21,612
Default

lol @ climbing on the engine

yea i have done that as well, i had an old jumper zip tied to my knee

im to tall and the car is to low to do engine jobs without killing my back
StickyMicky is offline
Old 20 April 2005, 01:25 PM
  #161
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

Right then, I've researched the 3 port and this time I spelt solenoid correctly
The one bit I can't find though is which wire to connect?

What I found out as well was that some believe that the 3 port is unecessary up to certain boost levels. IMO Prodrive would not have bothered with it on the WR1 and PPP upgrades if that was the only reason. I think the ability to completely open or close the wastegate will give better control with my mods and hopefully provide the sort of power delivery that I'm after.

What say you lot?

F
Floyd is offline
Old 20 April 2005, 02:04 PM
  #162
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default

I went through this.
1
Connection: all detailed on Carl's thread with his usual great pics too.
2
I used a 3 port as AndyF said it was better for boost control over 1.3 bar. Got a new one from MarkA, direct swop if you follow the above (as I did).

They come up for sale every now and then. Just clean it before it goes on as it may be full of oil...

If i were you i would fit and forget.

Graham.
911 is offline
Old 20 April 2005, 02:30 PM
  #163
Aztec Performance Ltd
www.superhids.co.uk
iTrader: (234)

Join Date: Jan 2003
Location: Over 500ft/lbs of torque @ just 1.1bar
Posts: 14,406
Default

Is a straightforward swap. Didnt actually end up fitting mine in the end but I believe it is detailed in Carls' thread as Graham says.

I would say that the boost control will be all over the place with a 3-port before mapping so I would leave it dis-connected and fit a dawes until Andy starts mapping it. Or you can leave it as the last thing 'to do' on the day of mapping.

Bob
Aztec Performance Ltd is offline
Old 20 April 2005, 02:34 PM
  #164
Aztec Performance Ltd
www.superhids.co.uk
iTrader: (234)

Join Date: Jan 2003
Location: Over 500ft/lbs of torque @ just 1.1bar
Posts: 14,406
Default

It was the 3-ports' (in)ability to control boost with seasonal changes that put me off it. I was going to go for a AVC-R but the car was happy and very nice to drive with just the dawes in the end (on my car anyway).

Bob
Aztec Performance Ltd is offline
Old 21 April 2005, 01:56 PM
  #165
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

I should have mentioned that the red cable ties on my parallel fuel rail mod do look a little naff but what you may not see is an aluminium plate underneath that supports and locates them. The ties were a quick solution as I am/was running out of time to get it completed. I did contemplate drilling holes but I couldn't thread them easily and I didn't know if I had long enough screws to suit either I will be tidying a lot of things that I had planned to do but did not have time to.

I felt it was a good solution to place the blocks where I did because it gives future flexibility to re-route the flow and to add a different regulator at a later date.

As for progress, well I've re routed some breathers (again), done some tidying and finally fitted the TMIC. I managed to insert a thermocouple in the TB as well. Pictures later.

Today I have worked on the scoop undertray and it looks very 'bling' so lets hope it does the job! Tonight will be the Walbro (again ) and start the car. Yeah!

F
Floyd is offline
Old 21 April 2005, 02:01 PM
  #166
Aztec Performance Ltd
www.superhids.co.uk
iTrader: (234)

Join Date: Jan 2003
Location: Over 500ft/lbs of torque @ just 1.1bar
Posts: 14,406
Default

Going good F.

Did you make a 'spare' undertray by any chance?

Bob
Aztec Performance Ltd is offline
Old 21 April 2005, 02:02 PM
  #167
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default

Rumble rumble, zapp, varoooom!

Good luck, always a high ponit (or bloody scarey) restarting after a good modding session

Graham.
911 is offline
Old 21 April 2005, 02:07 PM
  #168
Aztec Performance Ltd
www.superhids.co.uk
iTrader: (234)

Join Date: Jan 2003
Location: Over 500ft/lbs of torque @ just 1.1bar
Posts: 14,406
Default

If it goes BANG, clatter, clatter, clatter, then something has gone wrong
Aztec Performance Ltd is offline
Old 21 April 2005, 02:24 PM
  #169
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

Quivers in nervousness....

F
Floyd is offline
Old 21 April 2005, 05:12 PM
  #170
flat4
\m/ ^_^ \m/

Join Date: Dec 2001
Location: 2010 Time Attack Club Pro Champion - Powered by ScoobyClinic
Posts: 36,815
Default

i have every faith it will start first time
flat4 is offline
Old 21 April 2005, 11:42 PM
  #171
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

It didn't The battery was flat even after a few hours charge. I turned the engine over a few times to get some oil moving but then it gave up before I could connect the crank sensor.

The batt is 5 yrs old and has been left for weks without charge. I guess I've killed it

Is Halfords the cheapest and most convenient? Or will Subaru suprise me? Any ideas?
F
Floyd is offline
Old 21 April 2005, 11:45 PM
  #172
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

I also changed the walbro tonight, which was quite straight forward. I primed the system and discovered a leak. Arrgh! The fuel rail adapter didn't have enough ptfe on it and was weeping onto the turbo bracket...

I managed to remove it and re do. Seems dry. I did have a moment when I thought the pressure had subsided but when I removed the hose Fuel all over the bonnet. Luckily it didn't catch me in the face. Any tips on reducing the pressure?

F
Floyd is offline
Old 21 April 2005, 11:55 PM
  #173
Tim W
Scooby Regular
iTrader: (1)

Join Date: Feb 1999
Posts: 2,852
Default

Floyd, the standard Subaru Battery is something like 80 quid from the main dealer and from Halfrauds, in the end I bought a smaller battery that had a slightly lower AH rating but the same cranking current, terminal size and position (I think it was for an Escort ) for about 40 quid left me with a bit more space in the bay and worked fine for a year or so before I took the car of the road again...

Looked like this I think you can read the specs off the pic
Tim W is offline
Old 22 April 2005, 12:36 AM
  #174
mef
Scooby Regular

Join Date: Dec 2003
Location: Lancashire
Posts: 358
Default

"I had office fingers before this round of mods They were all soft and clean but now they are cut and ingrained with dirt with skin peeling off - eewww!"

Blaady Sathern softeee!

I like those pointing arrows, are they actual cardboard cut-outs sprayed yellow or photo-shopped? Very professional anyway!

Regarding the leaking fuel rail adaptor, I would normally have used loctite and tightened the fitting very tightly on it's tapered thread but as I didn't know which way yours needed to point I had to leave it loose for you to fine-tune! Hope the ptfe tape has done the job, should be OK.

I got a battery for mine from a mates Motor Factors shop, it's a Varta, D27W 560-068-039, 60AH, 390A (EN) cost about £30ish, has been fine, correct terminals etc.

Martin
mef is offline
Old 22 April 2005, 02:06 AM
  #175
flat4
\m/ ^_^ \m/

Join Date: Dec 2001
Location: 2010 Time Attack Club Pro Champion - Powered by ScoobyClinic
Posts: 36,815
Default

Originally Posted by flat4
i have every faith it will start first time
D'oh!!



got my battery off a new corsa from my local scrapper for a tenner half the size and weight
flat4 is offline
Old 22 April 2005, 08:11 AM
  #176
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default

3 years ago bought a battery off a Ford Artic I think by the size of it. Fills the battery tray for sure....£80 (sums up my approach to cars)

Batteries die surprisingly quickly left to stand cols for a month or two.

Graham.
911 is offline
Old 22 April 2005, 08:55 AM
  #177
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Default

Thanks chaps, I'll try to get a Varta then. There's a local motor factor where I work so I'll try there at lunchtime. I did consider using my 'battlebus' battery, which happens to be a Ford Escort, so it would probably have fitted!

Martin, I hope it's OK now, not your fault at all but me being a sarvern softee and not doing it up enough. I tried a couple of times to get the right amount of PTFE on the thread - just enough for the thread to bite and seal the bloody thing. It's a pain but not impossible to get at

Once the batt is fitted the only other concern will be the TPS sensor. It's roughly in the same place as when I removed it (a degree or so) but I'm not sure how sensitive it will be to positioning?

No one got any ideas on lowering fuel presure prior to fuel pipe removal then?

F
Floyd is offline
Old 22 April 2005, 09:00 AM
  #178
mef
Scooby Regular

Join Date: Dec 2003
Location: Lancashire
Posts: 358
Default

Floyd,

I usually find that the actual fuel pressure is not all that excessive anyway after several hours since priming, just get a cloth underneath the connector you intend removing and gently presuade the pipe off, at the same time get the cloth around the pipe to absorb the spray and excess of fuel.

Martin
mef is offline
Old 23 April 2005, 12:37 AM
  #179
Floyd
Scooby Regular
Thread Starter
iTrader: (9)

Join Date: Apr 2000
Posts: 5,449
Thumbs up

It's ALIVE I'm off to see 'uncle Bob' as they say in the Terminator so fingers crossed that all will hold together. I took it around the block and there were no knocking or strange noises and no spanners fell out of the engine bay When I stopped though I had plumes of smoke from the WD40 on all the stuborn nuts

One disaster that I did have was my STi7 scoop was being prepared for fitment when a gust of wind took it and threw it on the patio - ****! and double ****! I'll have to ask DRM if they can fix it.

My scoop undertray looks the dogs, even if I say so myself Update with pics later.

F
Floyd is offline
Old 23 April 2005, 03:39 PM
  #180
911
Scooby Regular

Join Date: May 2004
Posts: 11,341
Default


Graham
911 is offline

Thread Tools
Search this Thread
Quick Reply: Floyd’s ‘economy’ Stage III


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
