MY2015 WRX STI - Updates
The following 2 users liked this post by Danjo:
#182
Scooby Regular
Thread Starter

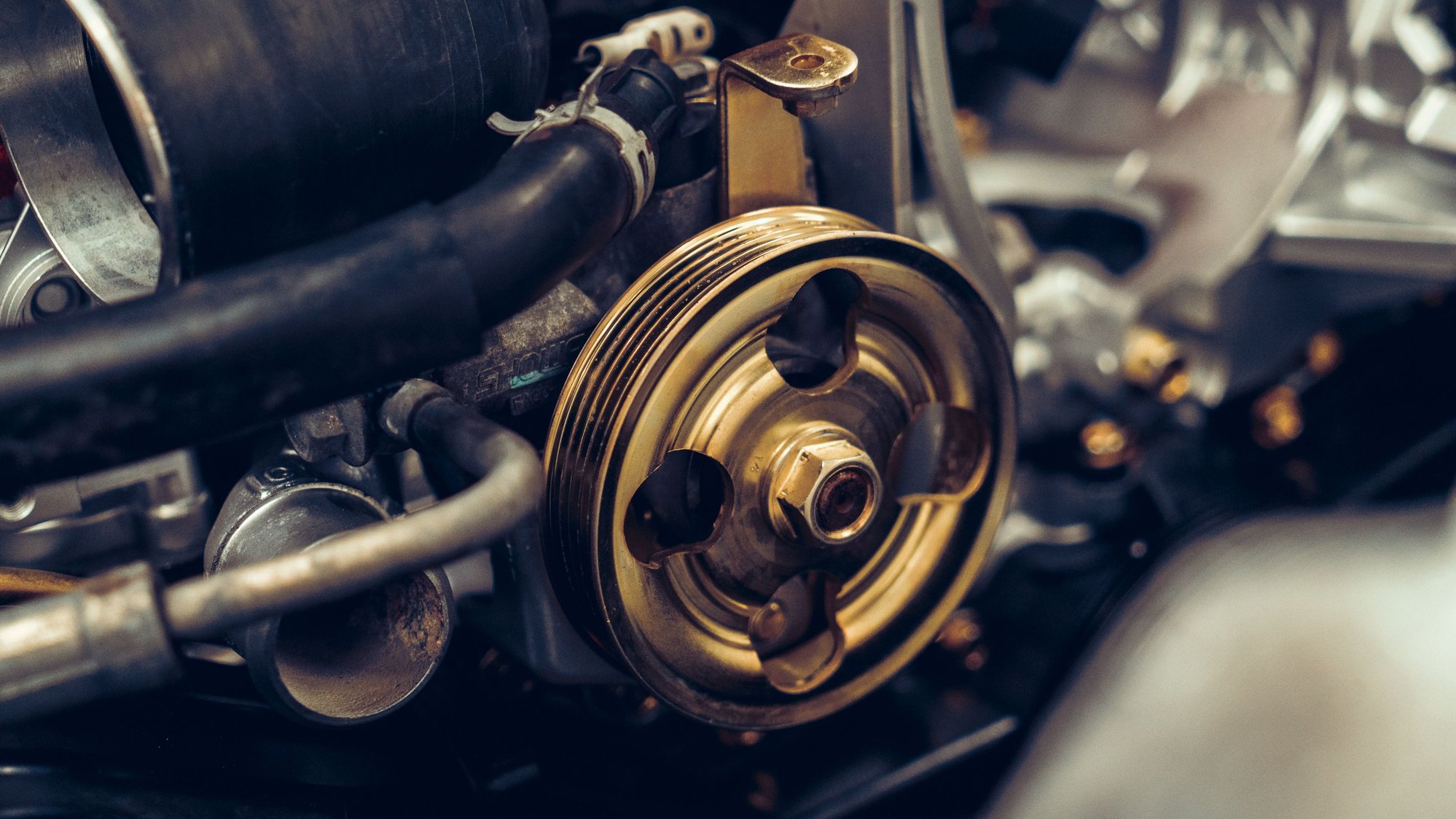

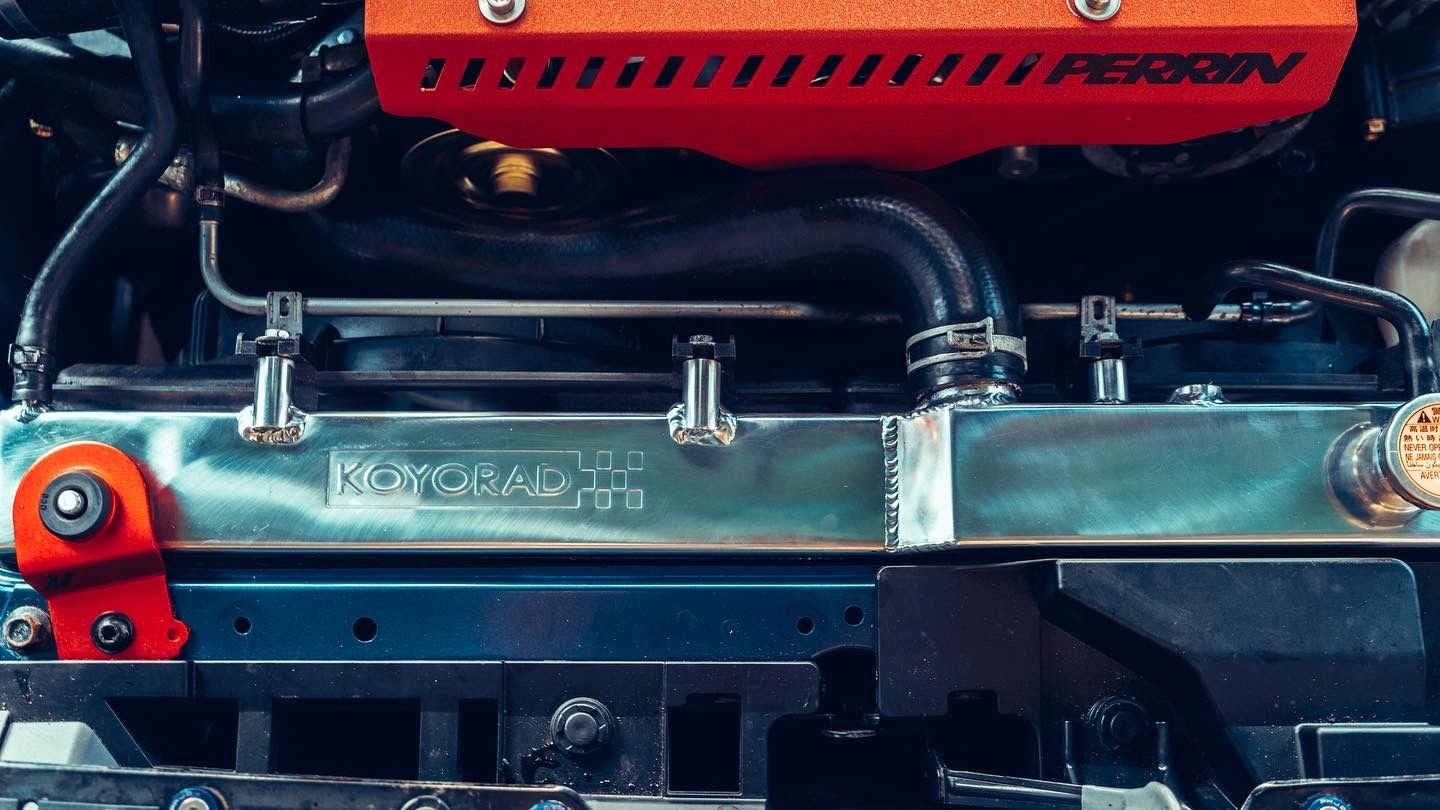

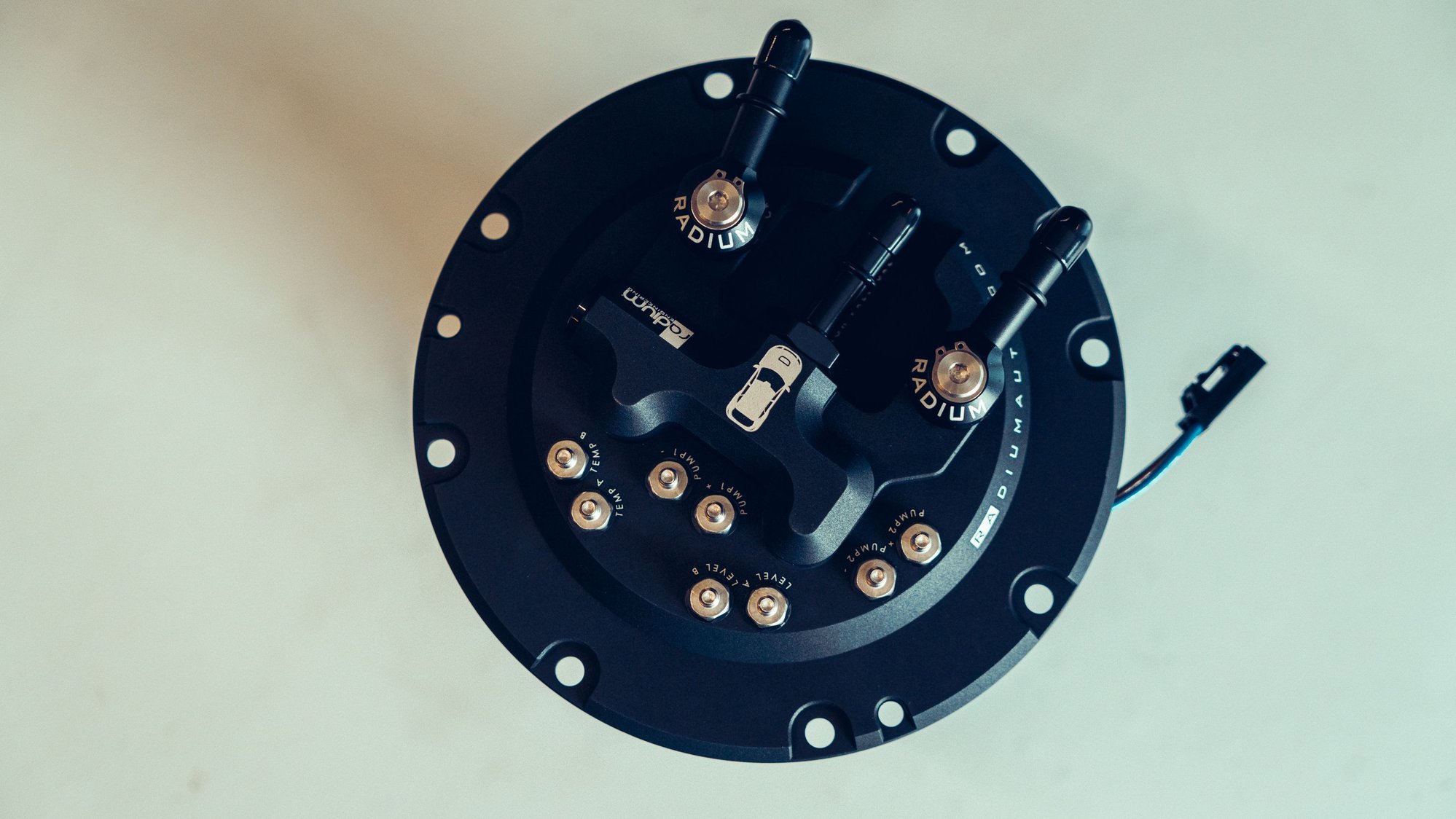

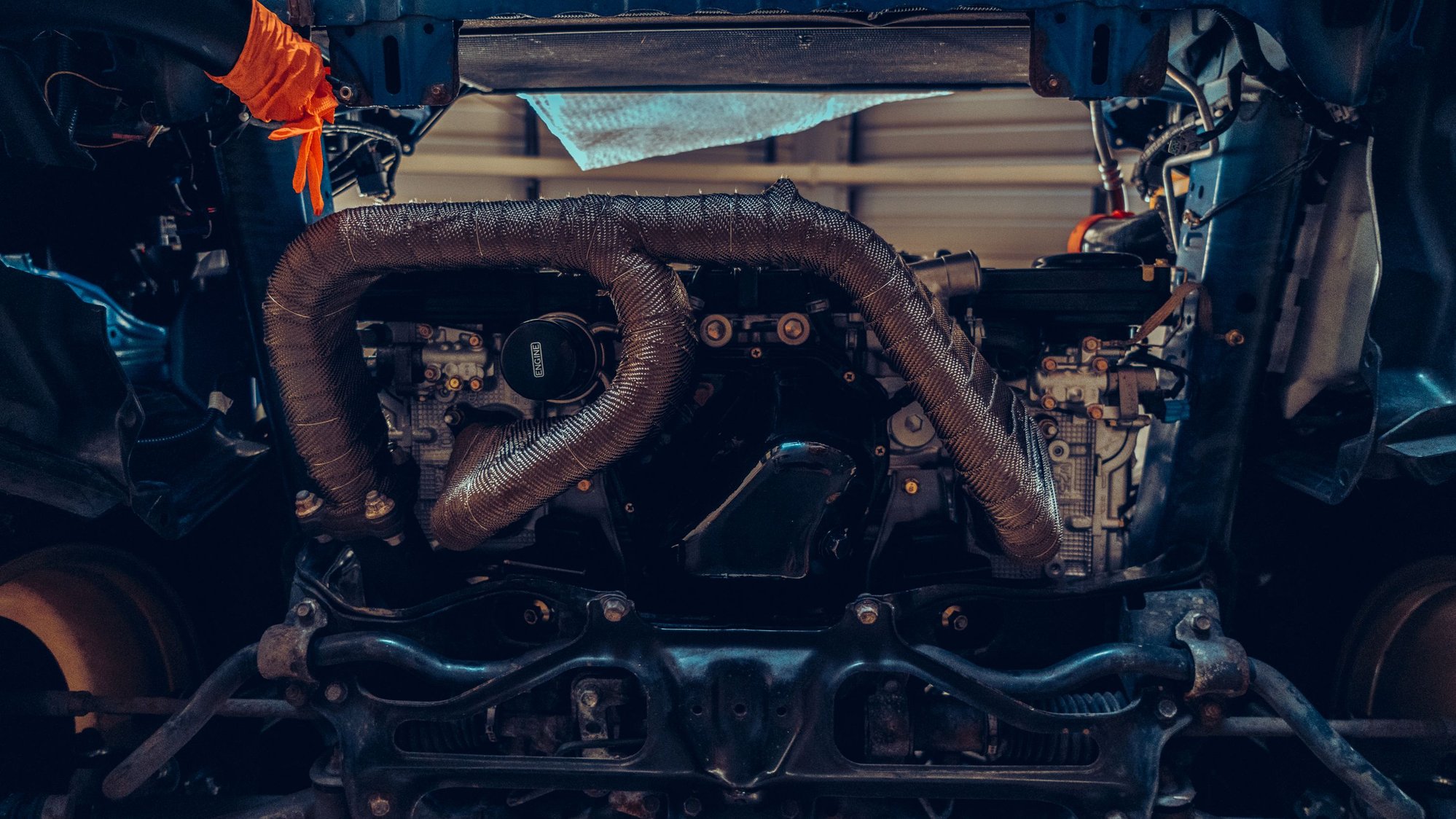

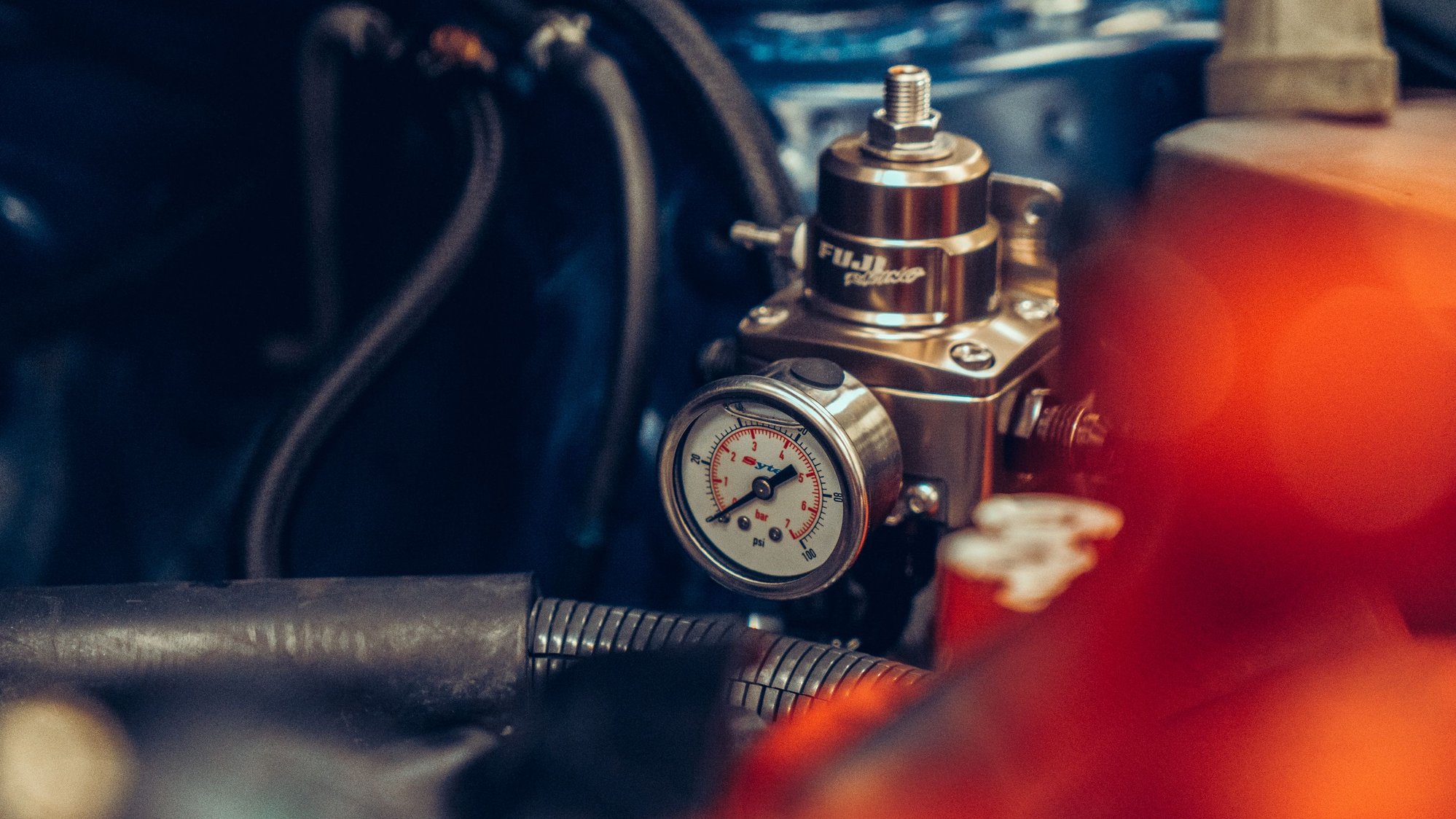

Just a little photo dump of some of Enginetuner’s work. Still running the Precision 5530 for the time being to do the initial running in.
The following 3 users liked this post by Danjo:
The following 4 users liked this post by Danjo:
#186
Scooby Regular
Thread Starter
The following users liked this post:
#187
Scooby Regular
Thread Starter
The following 3 users liked this post by Danjo:
The following users liked this post:
#189
Scooby Regular
Thread Starter
That’s very kind of you to say. Yes very much so, it’s been a while since I’ve been in it and I’m itching to get out in it. It’ll be 1000 miles and then back to ET to fit the rotated kit and then final mapping.
#190
Looking forward to reading feedback on its performance after the running in period.
#191
Scooby Regular
Thread Starter
The following users liked this post:
#192
Scooby Regular
Looks like a great build.
I've only recently picked up my Evo from having an engine build at ET. Took a good while but have to say I'm very happy with the results.
I've only recently picked up my Evo from having an engine build at ET. Took a good while but have to say I'm very happy with the results.
#193
Scooby Regular
Thread Starter
media, looks a very nice build! Yes it has taken a long time for one reason or another. Some of it down to sourcing parts such as the standalone ECU that came from Australia, and some of the machining work to insert the sleeves (again down to materials shortages, not down to AS Performance who did the work and were fantastic). Some of it was down to ET just being so busy and in demand, and they’ve been down one technician for some time now. I’m sure it will be worth it in the long run though.
The following users liked this post:
#194
Re-sleeving 2.5
re-sleeving a 2.5 block to 97.5mm "correctly" with HD custom liners is in general far more cost effective that the current costs of the EJ22 blocks and also has the benefit of retaining the 8 bolt bell housing fixings which resists them flexing in extreme builds .............
totally different to simply de-stroking a 2.5 which doesn't make it any stronger than a normal 2.5 and IMO is of no benefit
or you could simply install custom HD 99.5mm liners in the 2.5 block and have the benefit of the extra capacity and security
totally different to simply de-stroking a 2.5 which doesn't make it any stronger than a normal 2.5 and IMO is of no benefit
or you could simply install custom HD 99.5mm liners in the 2.5 block and have the benefit of the extra capacity and security
#197
Last edited by joelle king; 27 September 2022 at 05:09 PM.
#199
Scooby Regular
Thread Starter
Quick update…

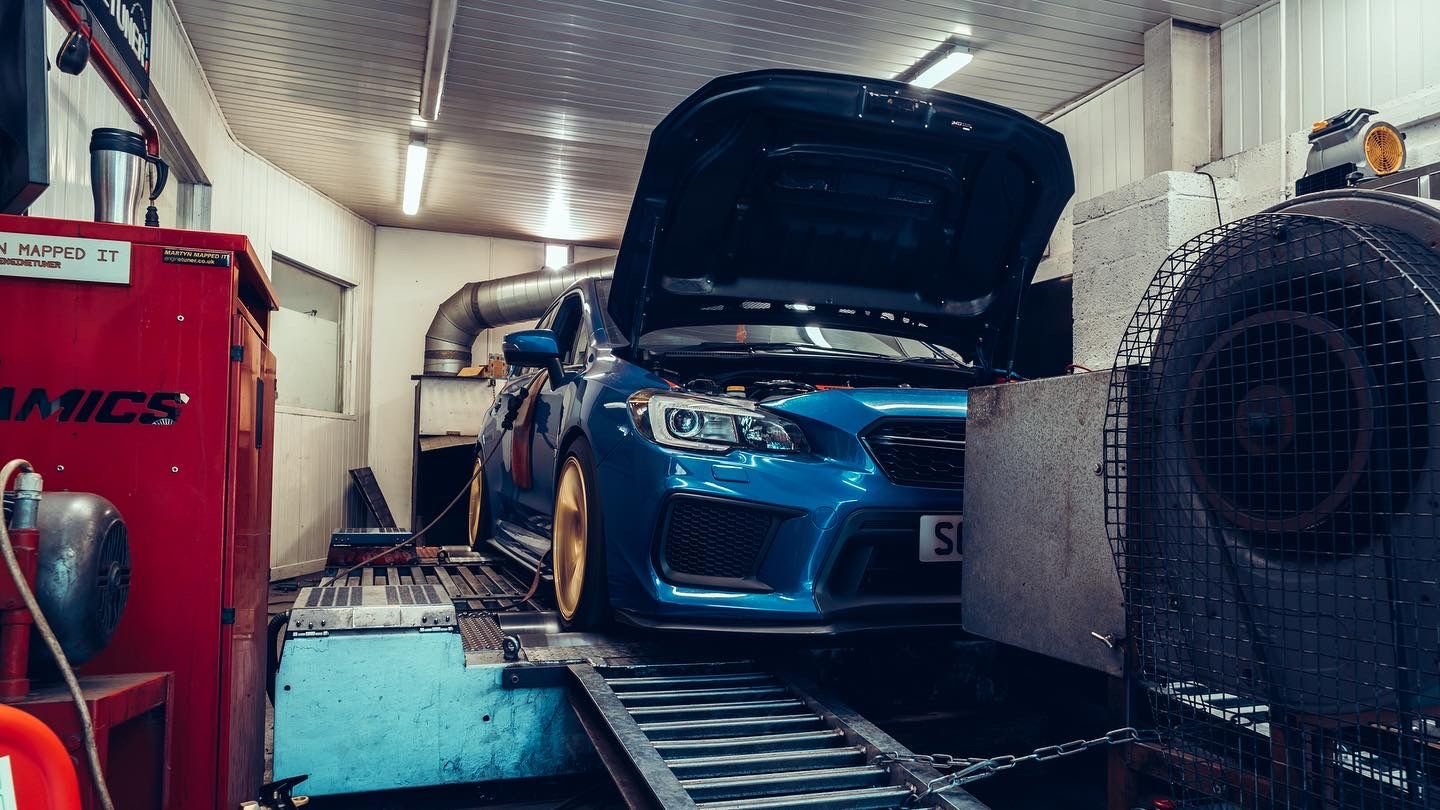

I decided to let ET complete the running in miles for me. They took the car to a couple of shows to check all was ok and in doing so put nearly 500 miles on it. Seeing as I’m an 8 hour round trip from them, it made sense to let them continue with the running in and I’ll pick it up when it’s completed. The 1000 miles will be completed this weekend and the car is booked on to the rolling road for final mapping tomorrow.
I’m sticking with the Precision 5530 turbo for the time being, the rotated turbo will be going on in a few months (it’s sat in my garage currently) but I want to use the car for a bit and see how it is on the current setup. ET said they made 580bhp with meth on a 2.1 with good heads/cams, I’d be elated with a similar figure. We will certainly have no issues pushing that turbo on this setup.
We also swapped the Perrin AOS out for an RCM Track Attack as the Perrin has certain design issues that would likely be a problem at this power level (it uses the crank case vent as a breathing point AND an oil drain, which could see oil being blown back up into the AOS). We could have got round it by modifying the Perrin, but I thought it better to just swap it out for something proven.
With all being well, and no issues with mapping tomorrow, I should be able to collect the car Friday, so keeping fingers crossed. I’ll put up the RR graph as soon as I have a copy of it.
One final piece is a “Hand built by Engine Tuner” plaque in the engine bay that ET are going to put on all their special builds. Mine is the first which I thought was a nice touch.
I decided to let ET complete the running in miles for me. They took the car to a couple of shows to check all was ok and in doing so put nearly 500 miles on it. Seeing as I’m an 8 hour round trip from them, it made sense to let them continue with the running in and I’ll pick it up when it’s completed. The 1000 miles will be completed this weekend and the car is booked on to the rolling road for final mapping tomorrow.
I’m sticking with the Precision 5530 turbo for the time being, the rotated turbo will be going on in a few months (it’s sat in my garage currently) but I want to use the car for a bit and see how it is on the current setup. ET said they made 580bhp with meth on a 2.1 with good heads/cams, I’d be elated with a similar figure. We will certainly have no issues pushing that turbo on this setup.
We also swapped the Perrin AOS out for an RCM Track Attack as the Perrin has certain design issues that would likely be a problem at this power level (it uses the crank case vent as a breathing point AND an oil drain, which could see oil being blown back up into the AOS). We could have got round it by modifying the Perrin, but I thought it better to just swap it out for something proven.
With all being well, and no issues with mapping tomorrow, I should be able to collect the car Friday, so keeping fingers crossed. I’ll put up the RR graph as soon as I have a copy of it.
One final piece is a “Hand built by Engine Tuner” plaque in the engine bay that ET are going to put on all their special builds. Mine is the first which I thought was a nice touch.
Last edited by Danjo; 09 October 2022 at 11:03 AM.
The following 8 users liked this post by Danjo:
The following users liked this post:
#201
Scooby Regular
Thread Starter
The following users liked this post:
#202
Scooby Regular
Thread Starter
Well the car has now been mapped, and I’m VERY happy with the result. There’s a reason I went linered 2.5 over 2.35, and that’s because I wanted to retain as much torque as possible. Not only did Martyn not disappoint, he’s blown my mind.
With a meth mix and a “little” Precision 5530 stock location turbo it’s made 560bhp and 600lbft of torque! The torque curve on the graph is mental. Far, far exceeded my expectations!!
With a meth mix and a “little” Precision 5530 stock location turbo it’s made 560bhp and 600lbft of torque! The torque curve on the graph is mental. Far, far exceeded my expectations!!
The following 3 users liked this post by Danjo:
#203
Scooby Regular
Well the car has now been mapped, and I’m VERY happy with the result. There’s a reason I went linered 2.5 over 2.35, and that’s because I wanted to retain as much torque as possible. Not only did Martyn not disappoint, he’s blown my mind.
With a meth mix and a “little” Precision 5530 stock location turbo it’s made 560bhp and 600lbft of torque! The torque curve on the graph is mental. Far, far exceeded my expectations!!
With a meth mix and a “little” Precision 5530 stock location turbo it’s made 560bhp and 600lbft of torque! The torque curve on the graph is mental. Far, far exceeded my expectations!!
The following 2 users liked this post by johno01:
The following users liked this post:
#205
Scooby Regular
that spools better than owens twinscroll . Would like to see 2.1 graph for comparison.
The following users liked this post:
The following users liked this post:
#208
Scooby Regular
Thread Starter
The following users liked this post:
#209
Scooby Regular
Looks like equal lenght headers helps to spool it so early.
Last edited by JdmSti2006; 11 October 2022 at 06:42 PM.
#210
Scooby Regular
Thread Starter
The following users liked this post:
