2.35, 2.4, or 2.5 Stroker
#62
Ej22t closed deck block (customer supplied)
EJ257 Crankshaft (heat treated)
Rear thrust conversion
14mm headstud threads
Rebored and faces skimmed
RCM 97.50mm stroker pistons
Ej257 heat treated crank
RCM/Arrow H beam rods
Acl race bearings
11mm RCM oilpump
ASP 14mm headstud kit
Block bolts sets
Block seal set
Crank seals
RCM ej22 MLS headgaskets
RCM waterpump
Cosworth cambelt kit
RCM baffled sump
Supertech valve set
Heads skimmed, valve seat re-cut, clearances adjusted
£750 extra if I go for the billet 81mm crank I think its made by Maxspeeding?
£1500 extra if I got for a 79mm Billet crank made by Arrow/RCM
EJ257 Crankshaft (heat treated)
Rear thrust conversion
14mm headstud threads
Rebored and faces skimmed
RCM 97.50mm stroker pistons
Ej257 heat treated crank
RCM/Arrow H beam rods
Acl race bearings
11mm RCM oilpump
ASP 14mm headstud kit
Block bolts sets
Block seal set
Crank seals
RCM ej22 MLS headgaskets
RCM waterpump
Cosworth cambelt kit
RCM baffled sump
Supertech valve set
Heads skimmed, valve seat re-cut, clearances adjusted
£750 extra if I go for the billet 81mm crank I think its made by Maxspeeding?
£1500 extra if I got for a 79mm Billet crank made by Arrow/RCM
Last edited by juggers; 12 November 2016 at 09:29 PM.
#63
Scooby Regular
Join Date: Oct 2016
Location: Pinching one out
Posts: 561
Likes: 0
Received 0 Likes
on
0 Posts
#64
#65
Scooby Regular
iTrader: (5)
Ej22t closed deck block (customer supplied)
EJ257 Crankshaft (heat treated)
Rear thrust conversion
14mm headstud threads
Rebored and faces skimmed
RCM 97.50mm stroker pistons
Ej257 heat treated crank
RCM/Arrow H beam rods
Acl race bearings
11mm RCM oilpump
ASP 14mm headstud kit
Block bolts sets
Block seal set
Crank seals
RCM ej22 MLS headgaskets
RCM waterpump
Cosworth cambelt kit
RCM baffled sump
Supertech valve set
Heads skimmed, valve seat re-cut, clearances adjusted
£750 extra if I go for the billet 81mm crank I think its made by Max speed?
£1500 extra if I got for a 79mm Billet crank made by Arrow/RCM
EJ257 Crankshaft (heat treated)
Rear thrust conversion
14mm headstud threads
Rebored and faces skimmed
RCM 97.50mm stroker pistons
Ej257 heat treated crank
RCM/Arrow H beam rods
Acl race bearings
11mm RCM oilpump
ASP 14mm headstud kit
Block bolts sets
Block seal set
Crank seals
RCM ej22 MLS headgaskets
RCM waterpump
Cosworth cambelt kit
RCM baffled sump
Supertech valve set
Heads skimmed, valve seat re-cut, clearances adjusted
£750 extra if I go for the billet 81mm crank I think its made by Max speed?
£1500 extra if I got for a 79mm Billet crank made by Arrow/RCM
Put the 1500 towards other stuff
#67
#70
Scooby Senior
iTrader: (68)
This was my full engine spec
- EJ22T block
- EJ257 79mm nitrided crank
- Wiseco stroker pistons
- Crower stroker rods
- ACL main and big end bearings
- Cosworth 12mm high flow oil pump
- 14mm head stud conversion
- avcs heads ported and knife edge polished
- 1mm oversize Cosworth Inlet and Exhaust valves
- supertech titanium retainers
- supertech double valve springs
- supertech valve seats
- 272 inlet and exhaust cams
- Adjustable exhaust cam pulleys
- Kevlar timing belt
- cosworth billet timing belt guide
- Cosworth high flow inlet manifold
#72
This was my full engine spec
- EJ22T block
- EJ257 79mm nitrided crank
- Wiseco stroker pistons
- Crower stroker rods
- ACL main and big end bearings
- Cosworth 12mm high flow oil pump
- 14mm head stud conversion
- avcs heads ported and knife edge polished
- 1mm oversize Cosworth Inlet and Exhaust valves
- supertech titanium retainers
- supertech double valve springs
- supertech valve seats
- 272 inlet and exhaust cams
- Adjustable exhaust cam pulleys
- Kevlar timing belt
- cosworth billet timing belt guide
- Cosworth high flow inlet manifold
#74
Scooby Regular
Join Date: Oct 2016
Location: Pinching one out
Posts: 561
Likes: 0
Received 0 Likes
on
0 Posts
Know anyone who has actually used them yourself? Soon as i see £150 turbos i get ebay special chinese nock off shudders.
But as said nitrided will do the job (as banny shows), a known quantity and cheaper.
#76
And what is nitriding if it isnt heat treatment?! 🤔
#84
Scooby Senior
iTrader: (68)
I ran an exedy twin plate clutch and I preferred the pedal feel to the ACT I had in the type r I just sold but then again the twin is almost double the price.
#85
Former Sponsor
iTrader: (4)
it is but totally different process to "std" heat treatment.................
to better explain

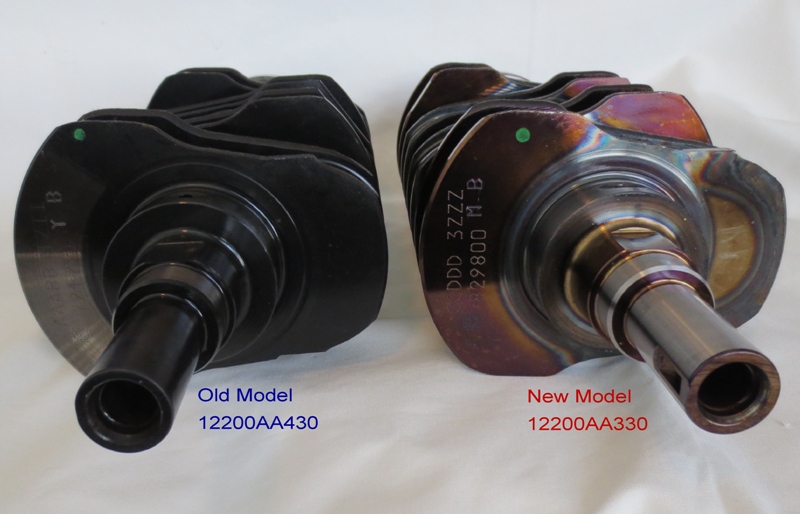

the EJ20 STi cranks are still manufactured in "nitrided" form and have a matt BLACK appearance.......
the EJ257 crank is no longer available in nitrided (ceased approx 4-5yrs ago!!) and is supplied these days in a std "heat treated" form and have a mainly steel finish with heat / rainbow marks
to better explain
the EJ20 STi cranks are still manufactured in "nitrided" form and have a matt BLACK appearance.......
the EJ257 crank is no longer available in nitrided (ceased approx 4-5yrs ago!!) and is supplied these days in a std "heat treated" form and have a mainly steel finish with heat / rainbow marks
Last edited by AS Performance; 11 November 2016 at 03:40 PM.
#86
it is but totally different process to "std" heat treatment.................
to better explain
the EJ20 STi cranks are still manufactured in "nitrided" form and have a matt BLACK appearance.......
the EJ257 crank is no longer available in nitrided (ceased approx 4-5yrs ago!!) and is supplied these days in a std "heat treated" form and have a mainly steel finish with heat / rainbow marks
to better explain
the EJ20 STi cranks are still manufactured in "nitrided" form and have a matt BLACK appearance.......
the EJ257 crank is no longer available in nitrided (ceased approx 4-5yrs ago!!) and is supplied these days in a std "heat treated" form and have a mainly steel finish with heat / rainbow marks
Are nitrided the ones to have then?
#88
Well the car is long since dead (engine is going strong in a mk1 escort ran by CAMS) I drove it for a year as a daily to work and back 14 miles round trip and was a pleasure to drive and no issues in traffic.
I ran an exedy twin plate clutch and I preferred the pedal feel to the ACT I had in the type r I just sold but then again the twin is almost double the price.
I ran an exedy twin plate clutch and I preferred the pedal feel to the ACT I had in the type r I just sold but then again the twin is almost double the price.
Last edited by juggers; 11 November 2016 at 10:49 PM.
#90
£150 sounds dear! My £125 td0520g is performing excellently, recently pushed my newage into the low 12's.
