So looks as though this 2.xx build is going to kick off. I am looking for as much advice from those who have done it previously.

Objective: Quick spool, 550bhp/550ltb and reliable.

So the spec as follows:

EJ22 Block

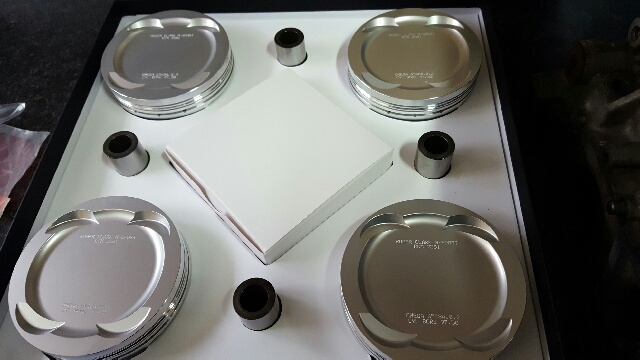

RCM Omega Pistons
RCM Arrow rods (Is it worth going for the M2700)

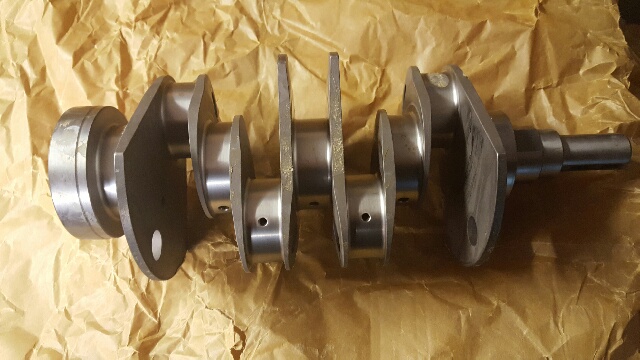

Arrow Billet Crank 79mm
RCM Baffle sump
RCM Oil pump

Anybody got any recommendations and things to look out for?

Rbon91

iTrader: (6)

Andy Williams from WMS built mine pal. 2.35 stroker. And I've lit a rotated Borg Warner turbo on the car. Hoping for 550/550 when mapped

JGlanzaV

iTrader: (3)

Dont waste money on a billet crank.... no need for itm

banny sti

iTrader: (68)

cant use a 83mm crank without block work, if you're using an Ej22 block then keep it simple and use a 79mm crank and go 2.35. Its proven and it works, build with high compression and use good fuel i.e v power + meth to get the best from the high compression and you cant go wrong

juggers

iTrader: (1)

Andys doing my build to

If I go Billet I can get a 83mm crank in taking it from a 2.35 to 2.5 which will give me more torque

juggers

iTrader: (1)

Just the man!

Banny I don't want to go Meth I can't be pottering about with it in the boot and have kids in the car.

When you say block work - what is involved?

Also being a vet in this area what would be your ideal spec? Granted the objective is fast road car and not a track car.

JGlanzaV

iTrader: (3)

And if im not mistaken a lesser rev range...?

As banny says - dont bother. Costs involved vs gains are minimal...

banny sti

iTrader: (68)

Bro you're not sparing any expense get a flex fuel sensor on it, it will only need mapping with the mixture and then auto adjust there after when you choose to use it (syvecs of course)

J is right to some extent you will lose some top end as the increased air flow from the larger capacity will shift the power band to left i.e quicker spool but tails off quicker at top. Yes you can run a bigger turbo to shift it more to the right again. However its a fine balance and you have to have a firm idea in your head exactly how you wan the car to drive.

In regards to modding the block from my conversations with Mikee it needs modifying to accomodate such a big crank and no matter how to cut it a bigger crank will not feel as revvy as a shorter stroke. I never got into specifics about the mods as it wasnt worth it with whats already out there.

JGlanzaV

iTrader: (3)

Youre talking about notching the block out and all sorts. Its a big job.

Because you are taking the engine "out of square" it will not rev as freely as a shorter throw.

Rbon91

iTrader: (6)

This is the engine Andy built for me

EJ22 block
block bored and faces skimmed
Rear thrust conversion
acl main bearings (race series)
Mahle motorsport big end bearings
ej257 heat treated crank
11 oil pump
Crower rods
Crower bolts
Ceramic omega pistons
New crank seals
14mm head stud conversion
AS Performance twinscroll baffled sump*
SPEC C Big port heads ported and polished

juggers

iTrader: (1)

You guys running 79mm cranks then?

You guys think the billet crank is overkill?

Rbon91

iTrader: (6)

Probably don't need the Billet crank pal. My engine will do 600+ easy that's when the heads will run out. But bottom end is good for more than that. Maybe in a year or two I will get Andy to do me some heads

Ryan

banny sti

iTrader: (68)

I ran a factory 79mm crank on mine and got up to 668bhp and there was no issues, pretty sure Andy F has ran close 900bhp with one. Billet crank is if you have deep pockets and dont mind over speccing for the sake of it.

Forget the baffle plate its pointless, best off going for a full on baffled sump and a decent return to sump catch can setup

juggers

iTrader: (1)

Thanks for the advice lads it's much appreciated.

matt-c

iTrader: (5)

Subscribed.

On-the-bog

closed deck 2.5 will do 550 without shatting itself, maybe chuck the cosworth 2.7 kit at it. (pretty sure it was cosworth)

No replacement for displacement

boosted

Agreed, can't beat a big engine. No expense spared then get it linered

On-the-bog

for only 550 not even sure you'd need to go that extent. Although wouldn't hurt

matt-c

iTrader: (5)

Agree, objectives can be achieved in a simpler way, which is always handy when you are looking for reliability.

banny sti

iTrader: (68)

https://www.scoobynet.com/general-te...sion-woos.html

Rbon91

iTrader: (6)

Thought about a 2.7 myself. Something different and out there

Mark10sti

iTrader: (2)

Interesting thread, I have already done a 2.5 rotated build, looking at minor changes will be looking on at this

Rbon91

iTrader: (6)

Just finished my 2.35 Borg rotated build. Just waiting to save for mapping now.

joe v3sti

iTrader: (8)

Go with what is tested. 2.0 2.1 2.35.
There's a reason why all the big boys build to these specs. Because it works!

IainMilford

iTrader: (15)

This

The Pink Ninja

iTrader: (23)

Agreed but not because it works...because there are less failures in general

joe v3sti

iTrader: (8)

But all of the above do work don't they. They are all tried and tested

juggers

iTrader: (1)

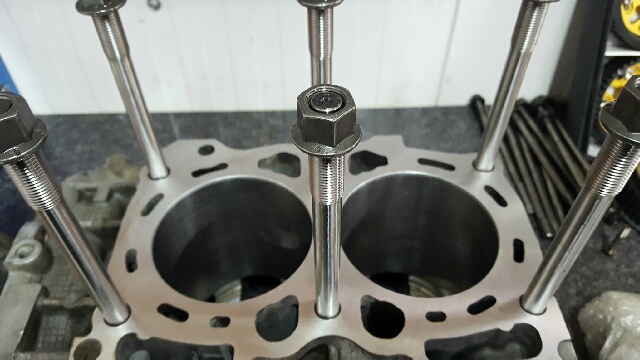

The block has gone off for machining and Andy is going to provide me with a couple of different spec options.

Theres a lot of advice which is great, but a tad confusing to. I will posts some pics of the block once Andy sends them over.

juggers

iTrader: (1)

Agh ok I didn't know this was possible I assumed it had to have several maps.

Is this the same as an RCM baffled sump setup or different?

On-the-bog

Just to throw another possible option in there. How about a billet block?
