New WRX shock pivot thinner than original? (With photo)

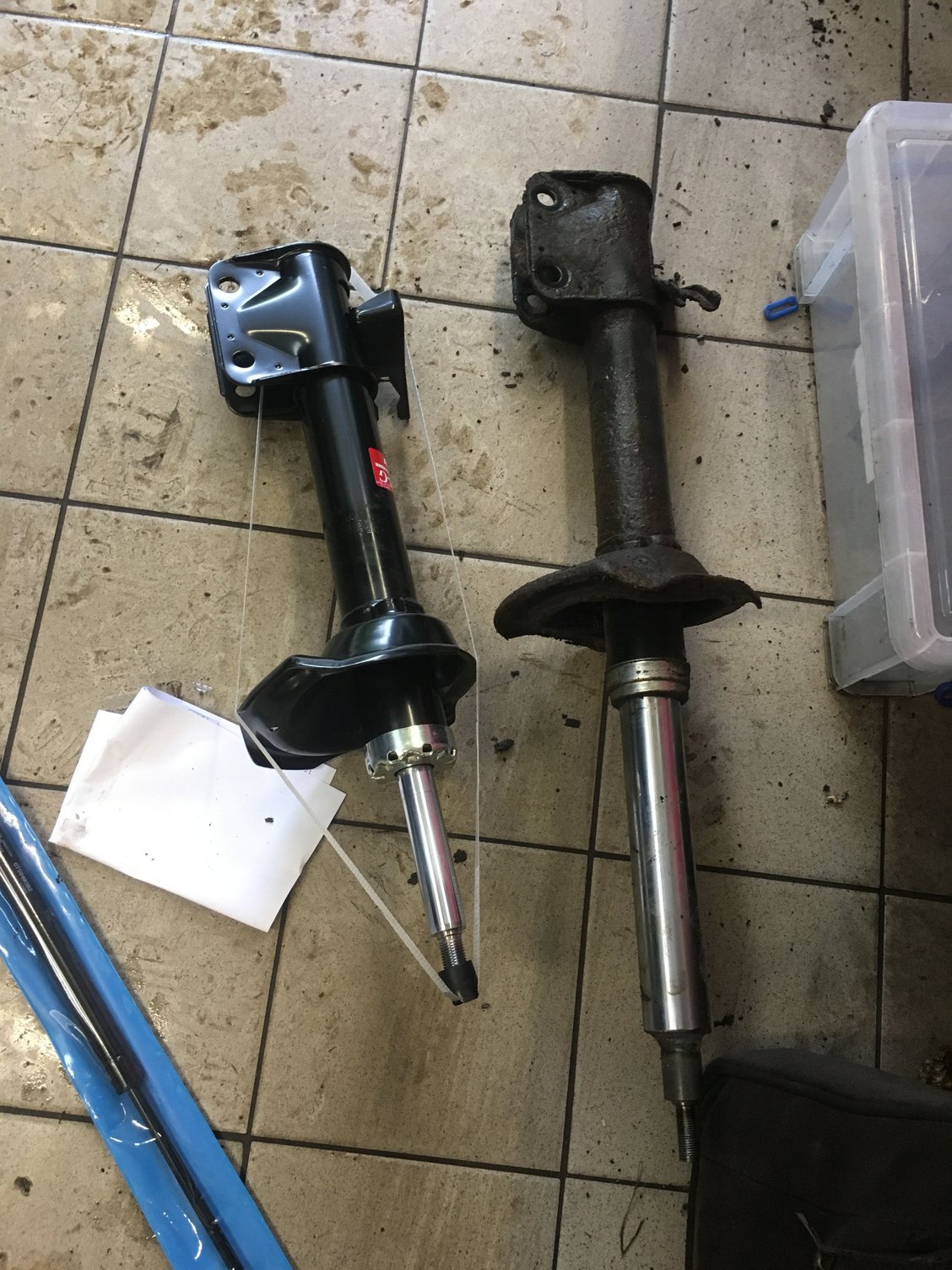

hi guys just fitted some KYB Excel G rear shocks to my car at the weekend and my first thoughts was how much thinner the inner strut is compared to my original is this normal or do I need the ultra Sr's mine is a 2005 Impreza WRX so though only STI's had the sr's. Thanks for any help just want to check there correct. Iv added a photo thanks lee
#6
Scooby Regular
Thread Starter
Join Date: Feb 2015
Location: lake district
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Just found these are they correct? http://vi.raptor.ebaydesc.com/ws/eBayISAPI.dll?ViewItemDescV4&item=311828185750&cat egory=174092&pm=1&ds=0&t=1500914557390&cspheader=1
Thanks for your help mate
Thanks for your help mate
#7
Scooby Regular
Thread Starter
Join Date: Feb 2015
Location: lake district
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Or these?
http://m.ebay.co.uk/itm/REAR-AXLE-KYB-SHOCK-ABSORBER-DUST-COVER-BUMP-STOP-KIT-KYB910046-/272220164106?fits=Model%3AImpreza&hash=item3f61961 00a%3Ag%3AuygAAOSw3mpXGeUe&_trkparms=pageci%253A16 6c4da4-708f-11e7-a1f1-74dbd180fea4%257Cparentrq%253A757a8b6115d0ab1d1174 0757fffc75d7%257Ciid%253A5
http://m.ebay.co.uk/itm/REAR-AXLE-KYB-SHOCK-ABSORBER-DUST-COVER-BUMP-STOP-KIT-KYB910046-/272220164106?fits=Model%3AImpreza&hash=item3f61961 00a%3Ag%3AuygAAOSw3mpXGeUe&_trkparms=pageci%253A16 6c4da4-708f-11e7-a1f1-74dbd180fea4%257Cparentrq%253A757a8b6115d0ab1d1174 0757fffc75d7%257Ciid%253A5
Trending Topics
#16
Scooby Regular
iTrader: (3)
The wagon struts you've listed use the rear blob/hawk top mounts, dust covers and bump stops as used in this thread. See post 17:
https://www.scoobynet.com/suspension...ar-struts.html
The spring will also have a smaller top diameter coil.
Bug rear springs are not tapered and use the same 90mm rear stop shown in the thread, but a different dust boot - KYB 910072 - that kit does both rears.
They use this style of rear top mount
http://rogerclarkmotorsport.co.uk/st...ount-2000-2002
These fit the struts I listed.
https://www.scoobynet.com/suspension...ar-struts.html
The spring will also have a smaller top diameter coil.
Bug rear springs are not tapered and use the same 90mm rear stop shown in the thread, but a different dust boot - KYB 910072 - that kit does both rears.
They use this style of rear top mount
http://rogerclarkmotorsport.co.uk/st...ount-2000-2002
These fit the struts I listed.
Last edited by 2pot; 25 July 2017 at 08:25 PM.
#17
Scooby Regular
iTrader: (1)
The wagon struts you've listed use the rear blob/hawk top mounts, dust covers and bump stops as used in this thread. See post 17:
https://www.scoobynet.com/suspension...ar-struts.html
The spring will also have a smaller top diameter coil.
Bug rear springs are not tapered and use the same 90mm rear stop shown in the thread, but a different dust boot - KYB 910072 - that kit does both rears.
They use this style of rear top mount
http://rogerclarkmotorsport.co.uk/st...ount-2000-2002
These fit the struts I listed.
https://www.scoobynet.com/suspension...ar-struts.html
The spring will also have a smaller top diameter coil.
Bug rear springs are not tapered and use the same 90mm rear stop shown in the thread, but a different dust boot - KYB 910072 - that kit does both rears.
They use this style of rear top mount
http://rogerclarkmotorsport.co.uk/st...ount-2000-2002
These fit the struts I listed.
#19
Scooby Regular
iTrader: (1)
Thanks for your patience, it's a bit of a minefield matching all these parts up.
Last edited by Fishbowlhead; 25 July 2017 at 09:11 PM.
#20
Scooby Regular
iTrader: (3)
If you've got bugeye rear top mounts (in which case you've got bug springs) you need kyb 334302 & 334303 and kyb 910072
If you've got blob/hawk rear top mounts (in which case you've got blob/hawk springs) you need kyb 334356 & 334357 and kyb 910046
If you've got blob/hawk rear top mounts (in which case you've got blob/hawk springs) you need kyb 334356 & 334357 and kyb 910046
Last edited by 2pot; 25 July 2017 at 09:40 PM.
#21
Scooby Regular
Thread Starter
Join Date: Feb 2015
Location: lake district
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
#22
Scooby Regular
iTrader: (1)
Got my excel-g fitted yesterday and what a difference. Good job I got new top mounts regardless as they were rotten when they came off.
Its also solved 90% of the rattling, knocking and creaks coming form the rear so that's good as well.
Its also solved 90% of the rattling, knocking and creaks coming form the rear so that's good as well.
