200 MPH self built Impreza
12 February 2012, 08:48 PM
#1
Subaru Tuning Specialist
Thread Starter
Join Date: Jun 2002
Location: 7.74 @179 mph 1/4 mile - road legal
Posts: 6,654
Likes: 0
Received 1 Like
on
1 Post
200 MPH self built Impreza
This is the target I hope to achieve at Marham in just under 5 weeks time, on the 18th of March 2012.
The only other Impreza ever to have achieved over 200mph was my old car back in 2006, that car now lives in Poland so the new car I started building in 2010 is looking to take up the challenge.
The car is currently stripped to a shell and is at RA Motorsports for a fresh coat of paint, I should have it back on Wednesday for putting back together if all goes well.
Below is a brief history of the project to date, the full project thread can be found here "9 second scoob in 30 days" http://bbs.22b.com/cgi-bin/ultimateb...c;f=1;t=006038 on 22b.com if you want to see more detail!

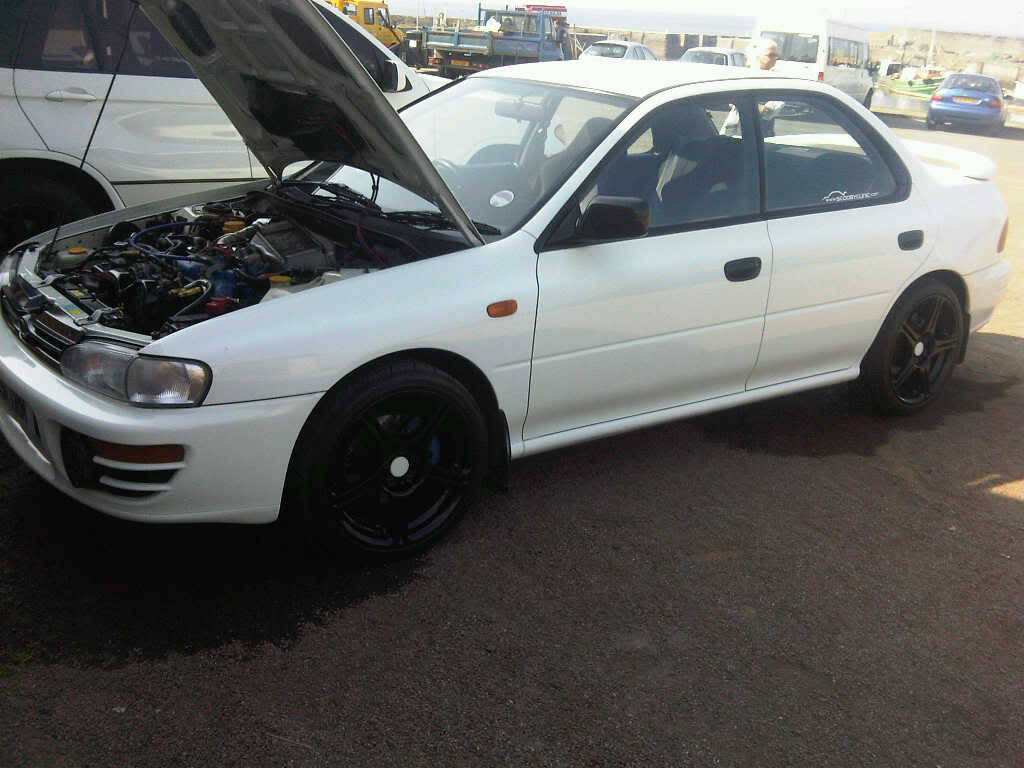

It all started in September 2010 when this unsuspecting little RA was purchased for £2k as a std car.

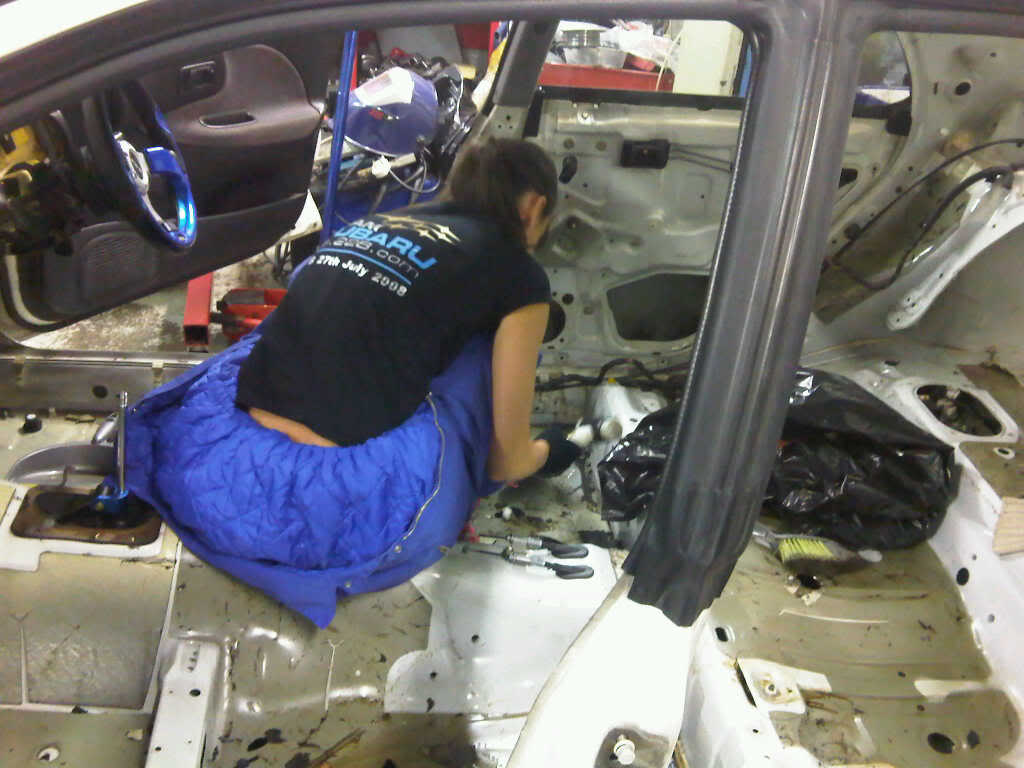

Lisa set about helping me strip the weight out the car

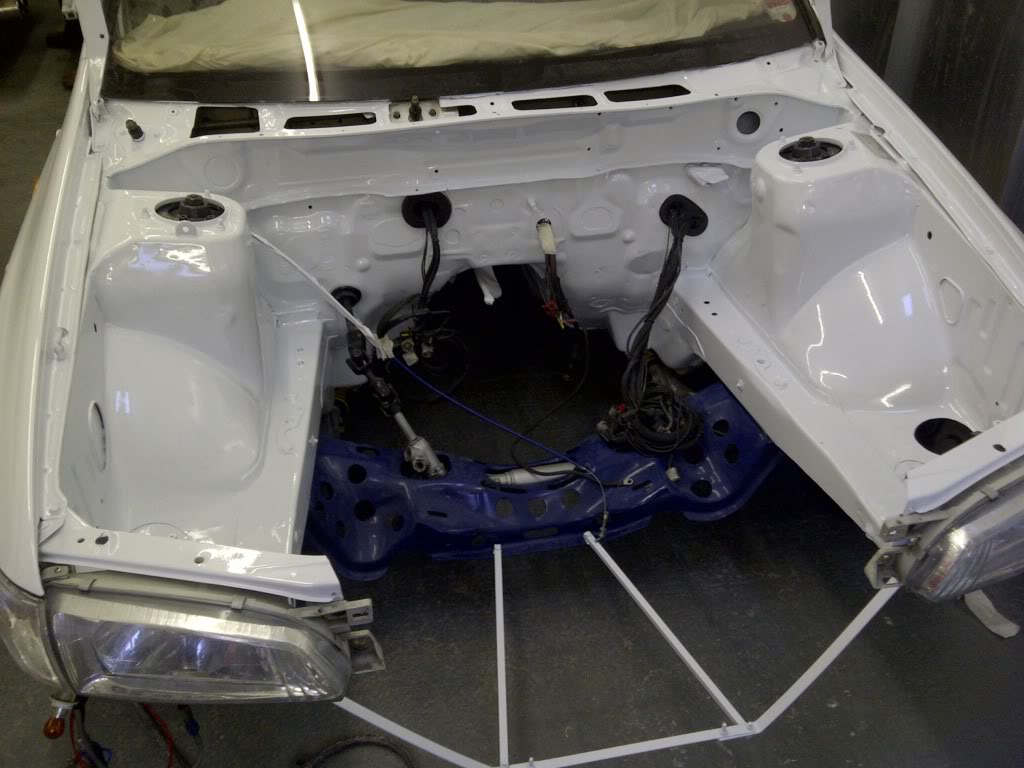

Engine bay was stripped and painted ready for the incoming EG33 H6 lump

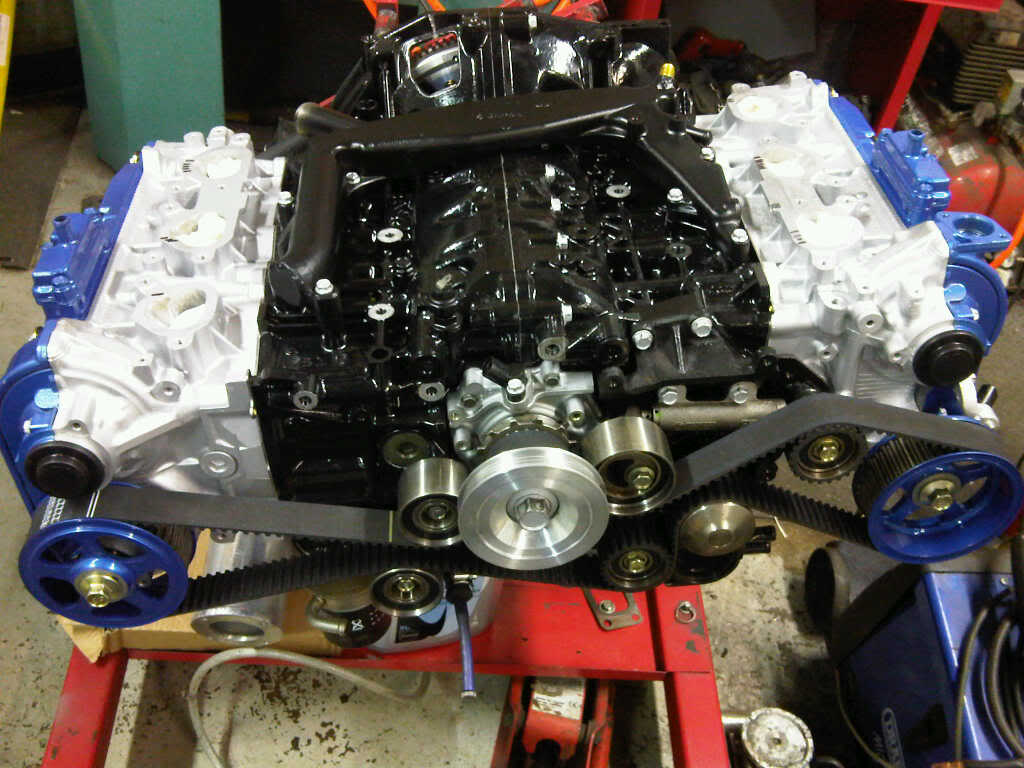

1st engine build
Engine installed and ready to run at Scoobyshootout, 30 days from buying the std car

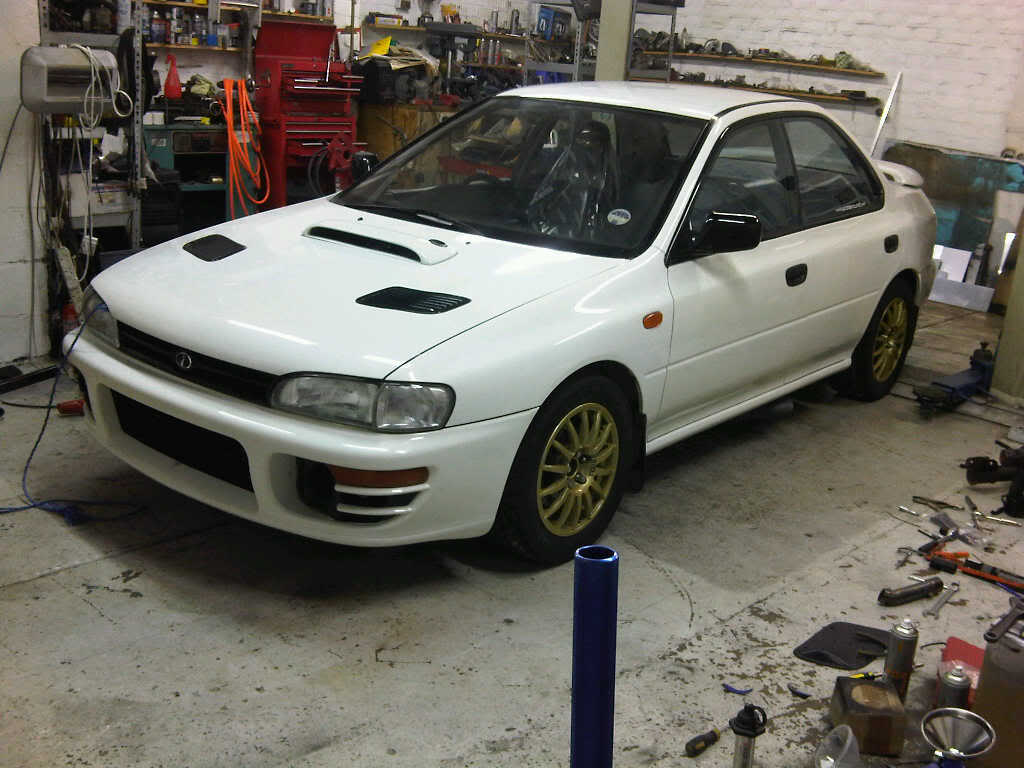

Car ready to run, looking 'almost' std!

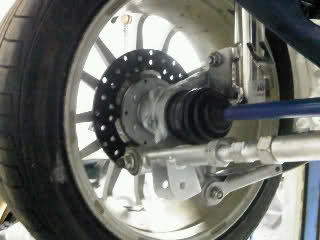

Under the skin were hiding some lightweight rear brakes
And similar at the front
The only other Impreza ever to have achieved over 200mph was my old car back in 2006, that car now lives in Poland so the new car I started building in 2010 is looking to take up the challenge.
The car is currently stripped to a shell and is at RA Motorsports for a fresh coat of paint, I should have it back on Wednesday for putting back together if all goes well.
Below is a brief history of the project to date, the full project thread can be found here "9 second scoob in 30 days" http://bbs.22b.com/cgi-bin/ultimateb...c;f=1;t=006038 on 22b.com if you want to see more detail!
It all started in September 2010 when this unsuspecting little RA was purchased for £2k as a std car.
Lisa set about helping me strip the weight out the car
Engine bay was stripped and painted ready for the incoming EG33 H6 lump
1st engine build
Engine installed and ready to run at Scoobyshootout, 30 days from buying the std car
Car ready to run, looking 'almost' std!
Under the skin were hiding some lightweight rear brakes
And similar at the front
12 February 2012, 09:13 PM
#5
Subaru Tuning Specialist
Thread Starter
Join Date: Jun 2002
Location: 7.74 @179 mph 1/4 mile - road legal
Posts: 6,654
Likes: 0
Received 1 Like
on
1 Post

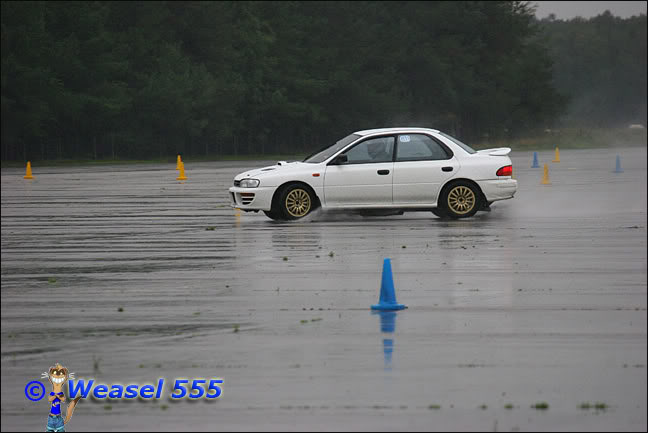

This is the car on track at at Elvington with the 3.3 H6, 30 days from purchase.

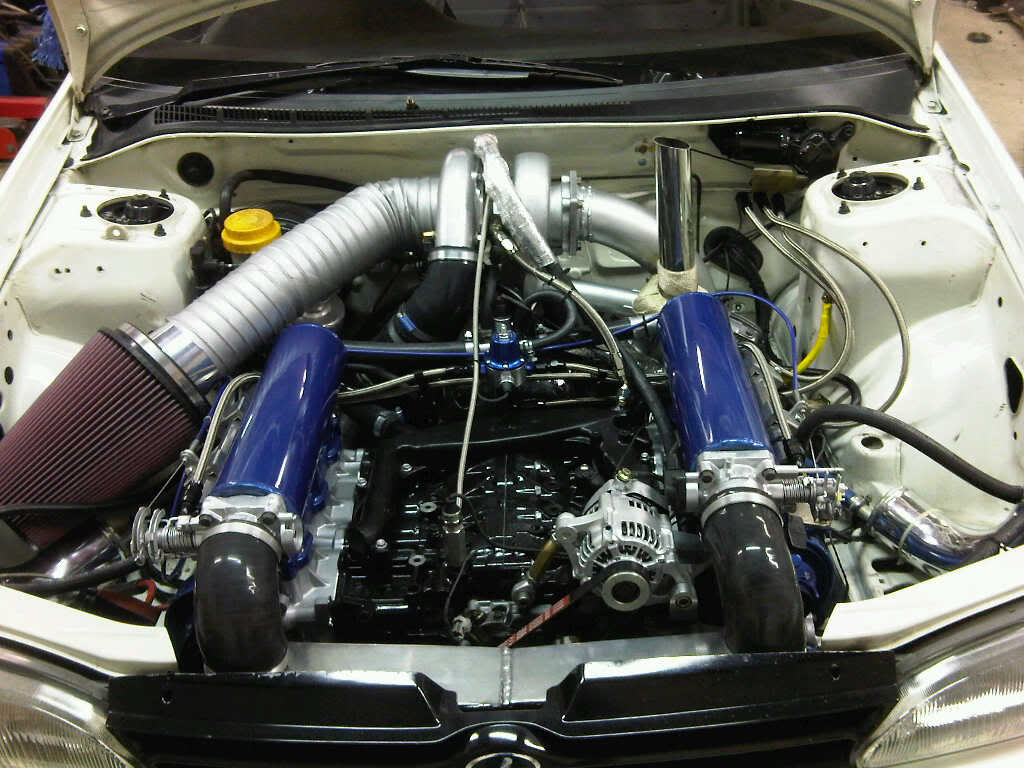

This was the revised engine bay for the cars first ever outing in the dry at Elvington where it done a 9.99 second 1/4 mile at 1.0 bar of boost
Short video of a dyno run from May 2011 running on twin GT28 turbos making 800bhp and 780lbft of torque running 1.4 bar of boost
H6 Impreza twin turbo

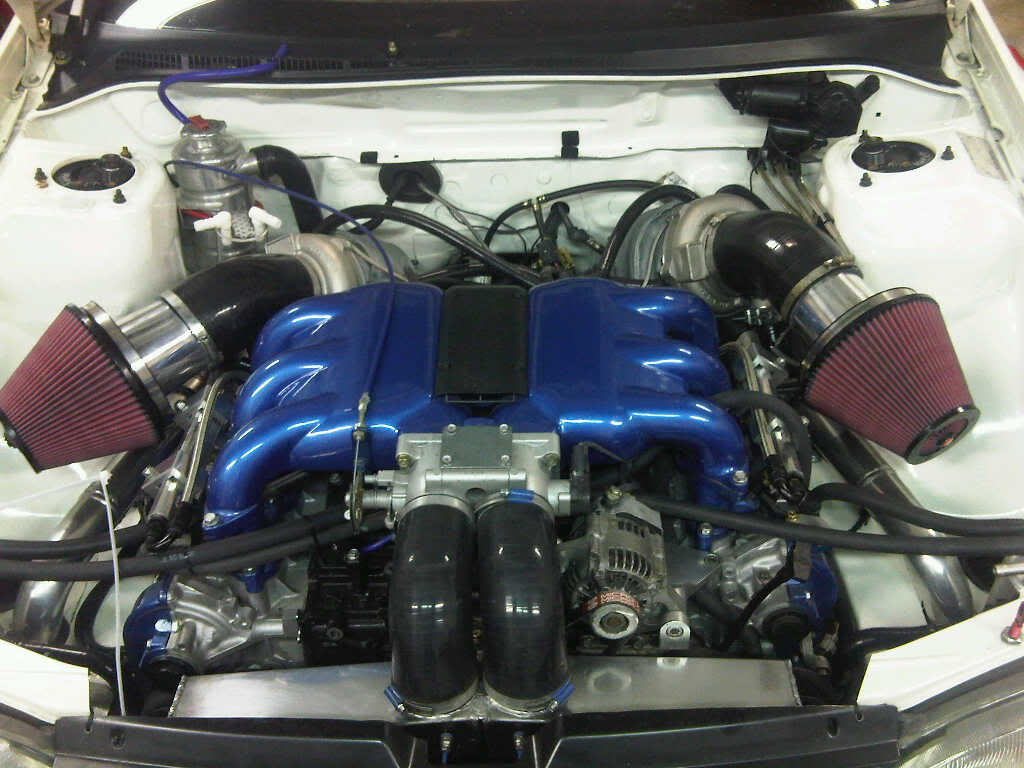

This spec was updated again mid 2011 season to run twin GT30 turbos
In this spec the car was the fastest car on the 1/4 mile at TOTB with a 9.22 second run at 1.5 bar boost.
http://youtu.be/9JU2btEQ0ec
And then went on to run a 9.00 1/4m at Santa pod late last year
http://www.youtube.com/watch?v=KWErm...eature=related
This was the revised engine bay for the cars first ever outing in the dry at Elvington where it done a 9.99 second 1/4 mile at 1.0 bar of boost
Short video of a dyno run from May 2011 running on twin GT28 turbos making 800bhp and 780lbft of torque running 1.4 bar of boost
H6 Impreza twin turbo
This spec was updated again mid 2011 season to run twin GT30 turbos
In this spec the car was the fastest car on the 1/4 mile at TOTB with a 9.22 second run at 1.5 bar boost.
http://youtu.be/9JU2btEQ0ec
And then went on to run a 9.00 1/4m at Santa pod late last year
http://www.youtube.com/watch?v=KWErm...eature=related
Last edited by Andy.F; 12 February 2012 at 09:59 PM.
Trending Topics
12 February 2012, 09:25 PM
#8
Subaru Tuning Specialist
Thread Starter
Join Date: Jun 2002
Location: 7.74 @179 mph 1/4 mile - road legal
Posts: 6,654
Likes: 0
Received 1 Like
on
1 Post

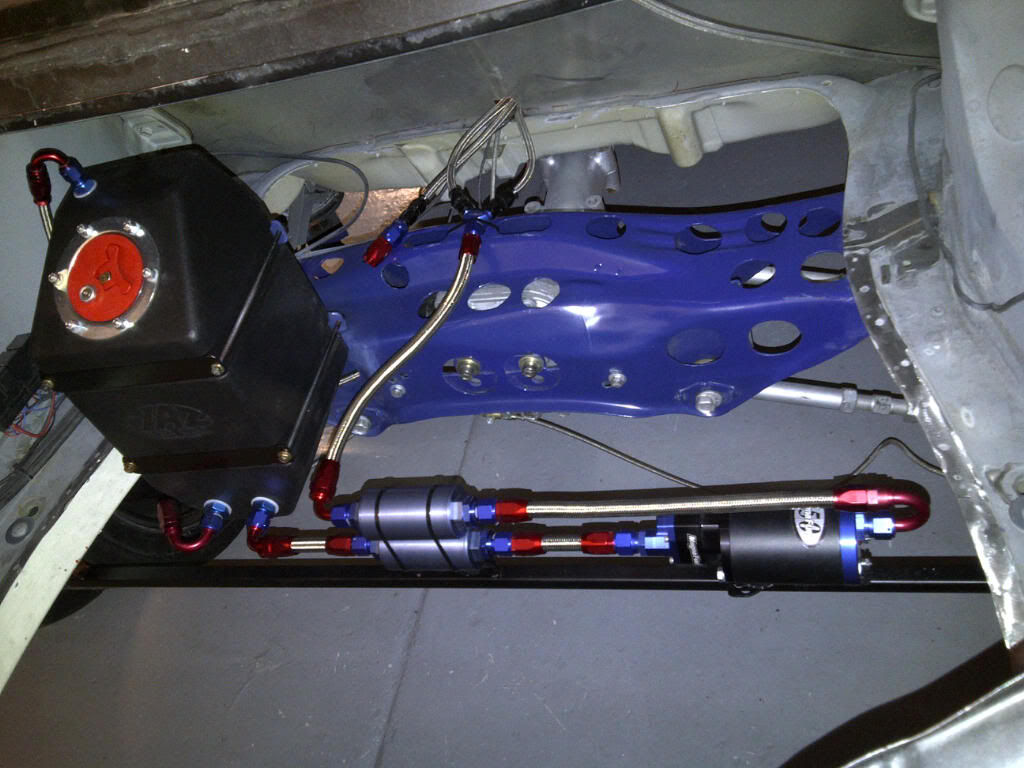

Some weight has been saved by chopping away at the boot floor and rear subframe and also installing a new fuel system

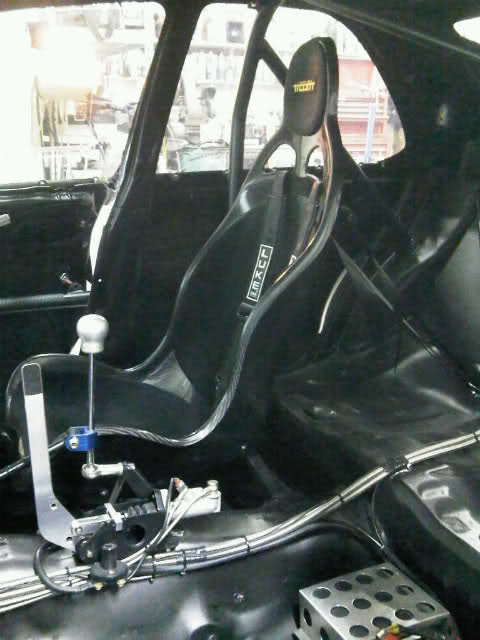

The interior will be the same 'basic' spec as last year.
And thats us nearly up to date with spec. New stuff for 2012 includes....

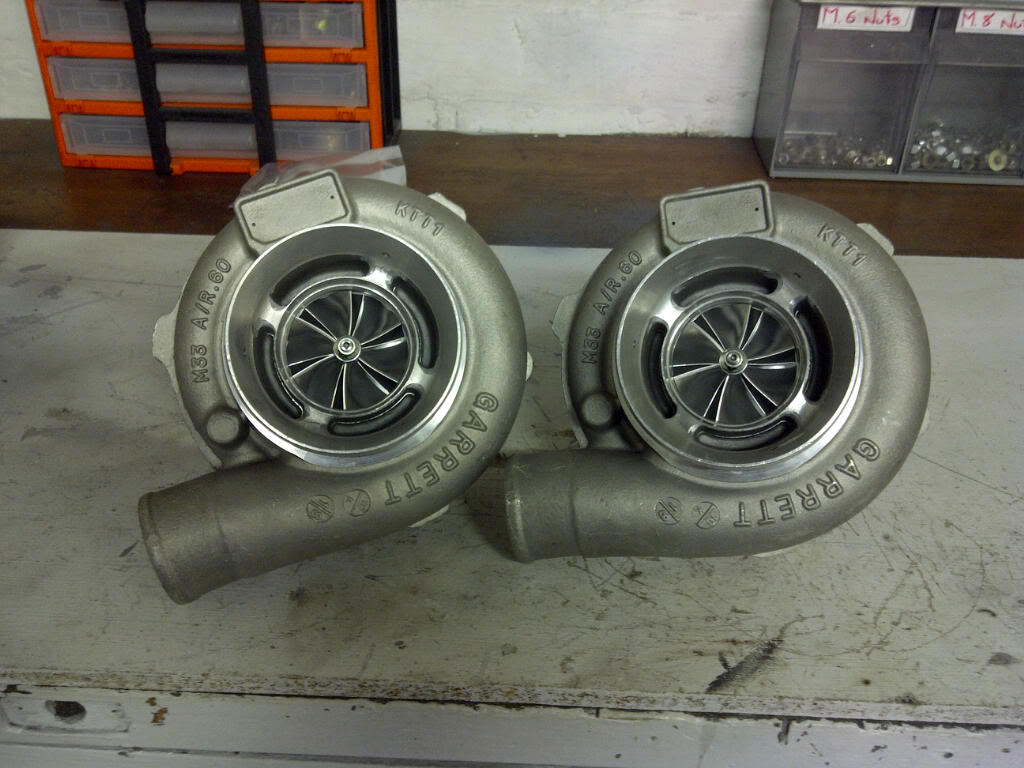

The latest engine which is on the bench for building later next week, the newly refurbished and upgraded to twin Billet 30's thanks to Scoobyclinic and will also be using new High Compression pistons from Mark at Lateral performance. The blocks have also been closed decked by Alyn at AS Performance (pics later)
The interior will be the same 'basic' spec as last year.
And thats us nearly up to date with spec. New stuff for 2012 includes....
The latest engine which is on the bench for building later next week, the newly refurbished and upgraded to twin Billet 30's thanks to Scoobyclinic and will also be using new High Compression pistons from Mark at Lateral performance. The blocks have also been closed decked by Alyn at AS Performance (pics later)
Last edited by Andy.F; 12 February 2012 at 09:37 PM.
12 February 2012, 09:43 PM
#12
Subaru Tuning Specialist
Thread Starter
Join Date: Jun 2002
Location: 7.74 @179 mph 1/4 mile - road legal
Posts: 6,654
Likes: 0
Received 1 Like
on
1 Post
Thanks for the comments guys, looking for somewhere over 1000bhp on the turbo's alone but then have a 300bhp Wizard of Nos set up available at various percentages as controlled by the Syvecs S6 at the flick of a switch.....should it be required
13 February 2012, 07:32 AM
#20
Scooby Regular
Good luck Andy, we have every faith you'll achieve your targets
13 February 2012, 05:18 PM
#22
Scooby Regular
iTrader: (16)
Join Date: Apr 2003
Location: Curlew FPSO
Posts: 2,771
Likes: 0
Received 0 Likes
on
0 Posts
I'm sticking by the fact that your a crazy mad man. 200mph shouldn't be an issue. Just hope you don't have to stop in a hurry
Last edited by Ciaran; 13 February 2012 at 05:20 PM.
13 February 2012, 06:24 PM
#25
Unmapped 12.4s @ 105
iTrader: (29)
Join Date: Apr 2005
Location: Newcastle. 330bhp-289lb/ft @ 1bar boost - 12.4s @ 105mph
Posts: 11,776
Likes: 0
Received 4 Likes
on
4 Posts
Look forward to seeing this seasons results, Andy.
Last edited by mickywrx; 13 February 2012 at 06:27 PM.
13 February 2012, 08:46 PM
#29
Subaru Tuning Specialist
Thread Starter
Join Date: Jun 2002
Location: 7.74 @179 mph 1/4 mile - road legal
Posts: 6,654
Likes: 0
Received 1 Like
on
1 Post
You would be surprised how quickly a car slows down from 200+mph when you just lift off the throttle! Brakes are unlikely to be applied until below 150mph and I know I can stand it on its nose from that speed no problem, its just sustained use they can't cope with.
13 February 2012, 09:28 PM
#30
Made me chuckle when I first saw the thread title without looking at the OP:
'200 mph Self built impreza'
I just thought it was some chav who had bought an old classic and was going to bolt a load of second hand parts on it....
Neil.
'200 mph Self built impreza'
I just thought it was some chav who had bought an old classic and was going to bolt a load of second hand parts on it....
Neil.
