Right, after searching for a while and getting nowhere, I thought it would be best to grab the bull by the horns and start this on my own.

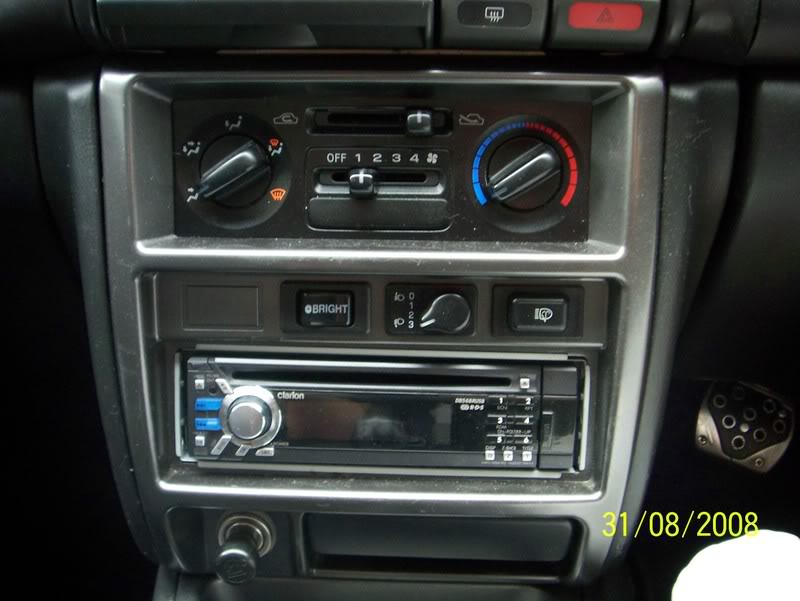

What I want to do is to convert a UK Single DIN stereo slot, to a JDM Double DIN. This will allow me to fit either a Double DIN headunit, a TV screen or two single DIN sized units. In my case its going to be my aftermarket headunit and a PSi3 SECS unit.
My initial thoughts were its best to use the JDM heater controls, as well as the Double DIN fascia. I was then told by the supplier of the double din surround, that a UK's heater controls use cables for adjusting the fan speed temperature etc, and a JDM uses electrics. Its very unlikely that the wiring loom would be in a UK car for this, and I confirmed it when dismantling.
So, I've got this:
Got it from Grade A Subaru, the day after I orders it. 27 quid

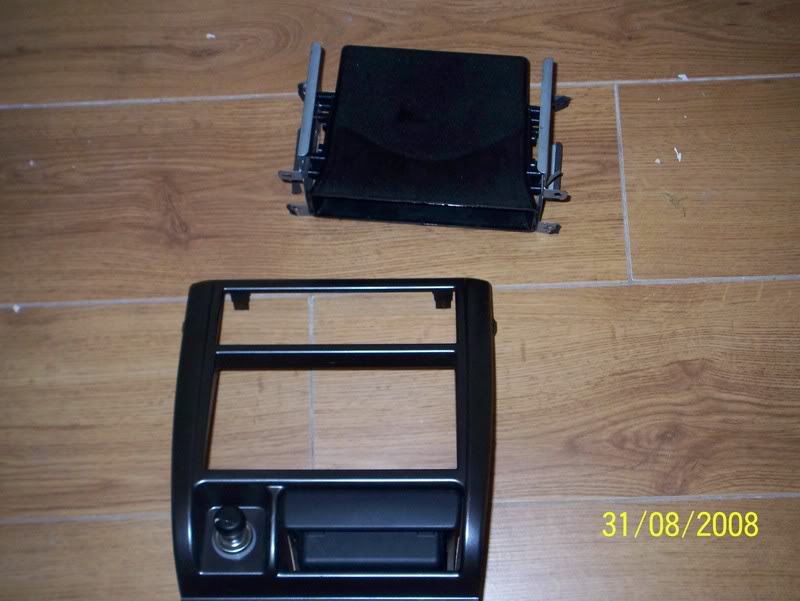

I want that surround here:
So lets get the old one off.

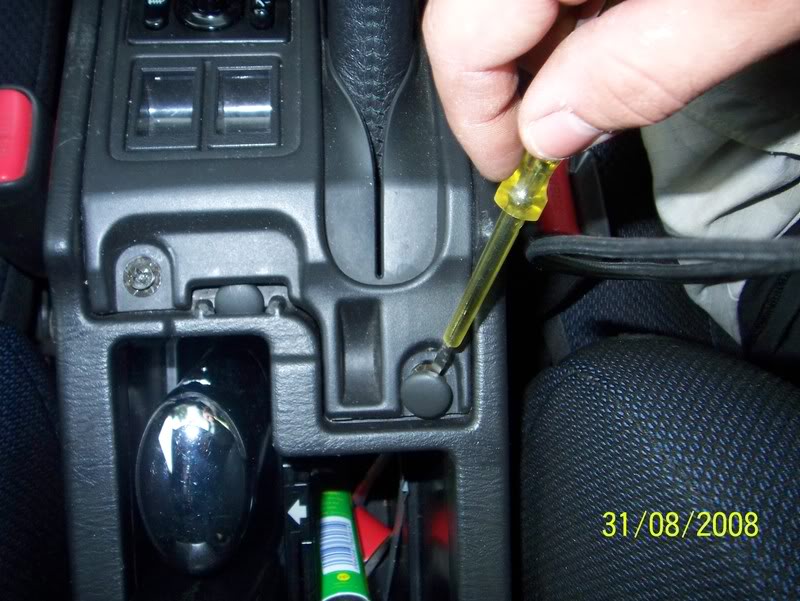

First step, lift the centre console storage area and take the caps off two screws and remove the screws themselves:

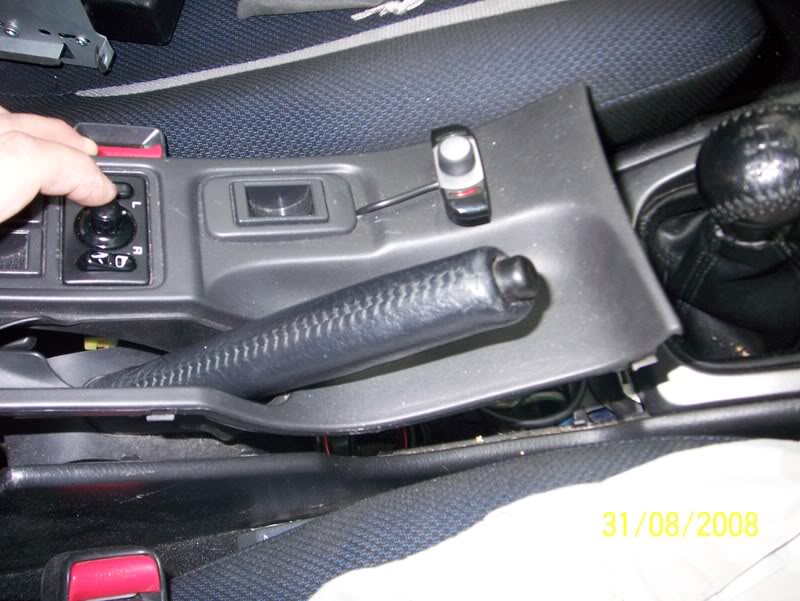

This allows you to lift the handbrake surround:

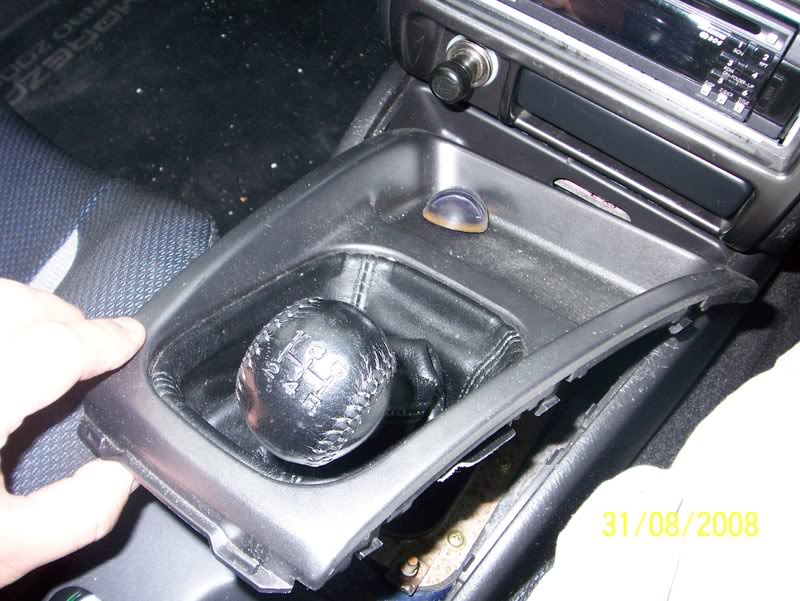

Which allows you to remove the gearstick surround:

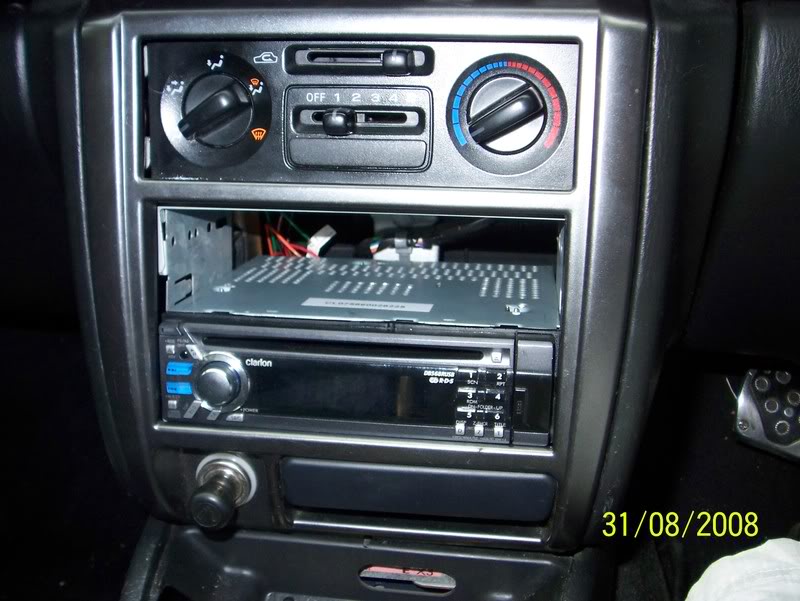

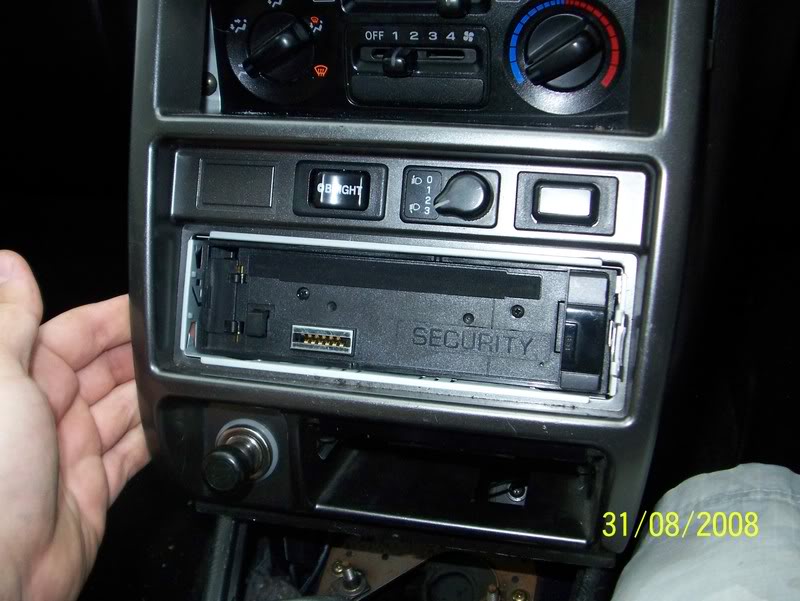

Which finally allows you to remove the stereo surround/fascia:
There are no screws holding it on, just pull it from the bottom and then a bit from the top. Take your headunit out, its easier.

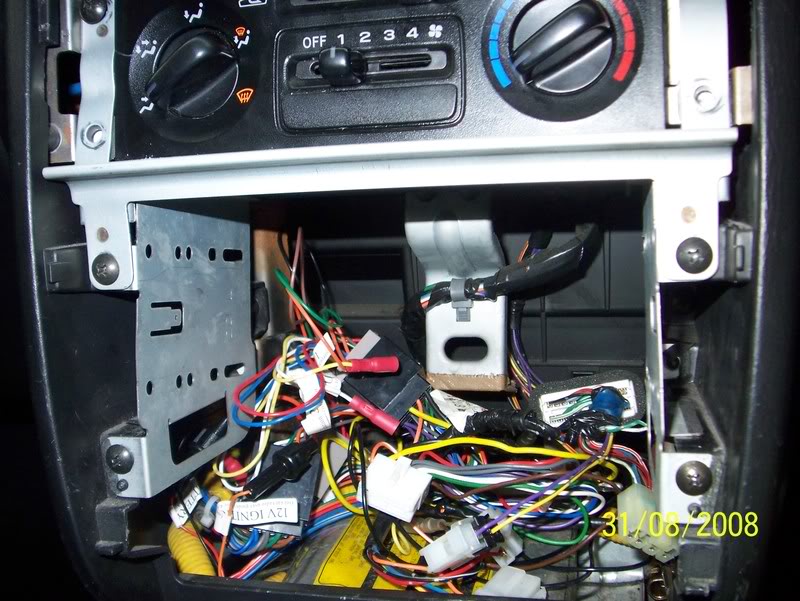

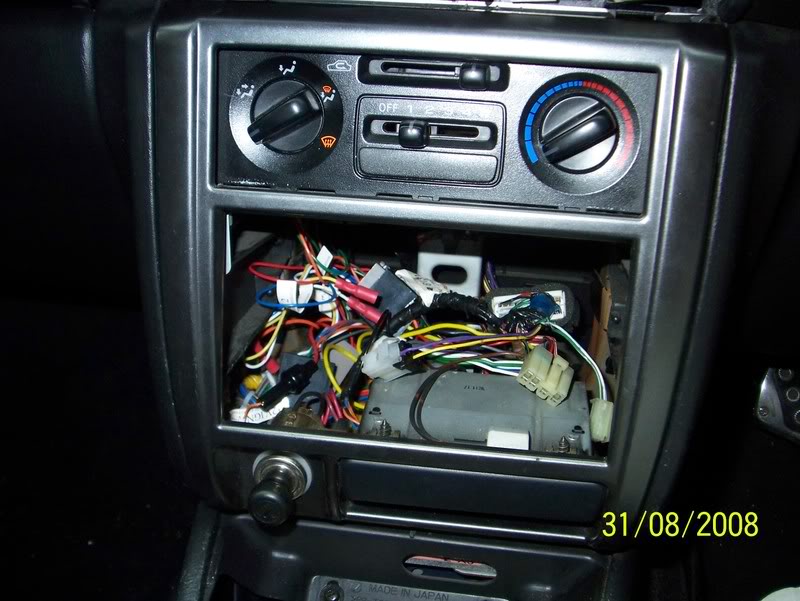

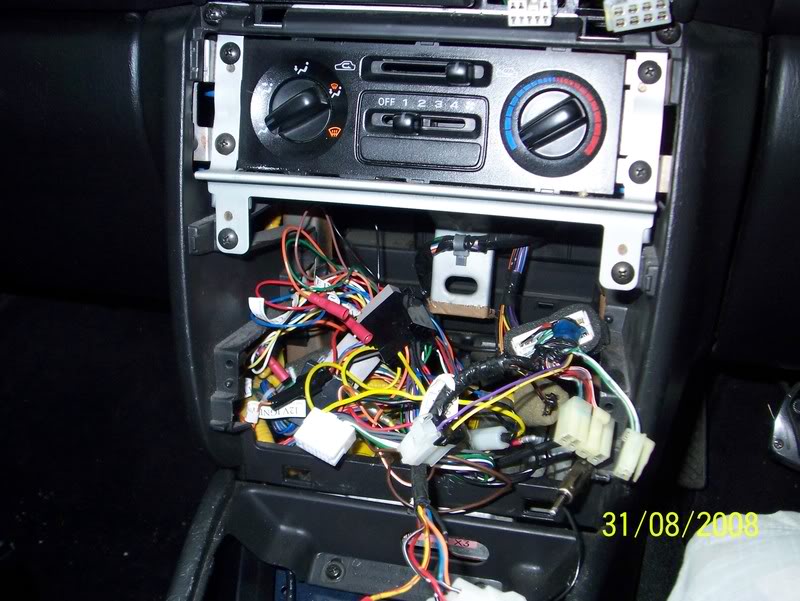

This is what you'll see (well maybe not that much, I have loads of hansfree wiring in there) :
What I want to do is to convert a UK Single DIN stereo slot, to a JDM Double DIN. This will allow me to fit either a Double DIN headunit, a TV screen or two single DIN sized units. In my case its going to be my aftermarket headunit and a PSi3 SECS unit.
My initial thoughts were its best to use the JDM heater controls, as well as the Double DIN fascia. I was then told by the supplier of the double din surround, that a UK's heater controls use cables for adjusting the fan speed temperature etc, and a JDM uses electrics. Its very unlikely that the wiring loom would be in a UK car for this, and I confirmed it when dismantling.
So, I've got this:
Got it from Grade A Subaru, the day after I orders it. 27 quid
I want that surround here:
So lets get the old one off.
First step, lift the centre console storage area and take the caps off two screws and remove the screws themselves:
This allows you to lift the handbrake surround:
Which allows you to remove the gearstick surround:
Which finally allows you to remove the stereo surround/fascia:
There are no screws holding it on, just pull it from the bottom and then a bit from the top. Take your headunit out, its easier.
This is what you'll see (well maybe not that much, I have loads of hansfree wiring in there) :
#2
Here is a test fitting of the Double DIN:

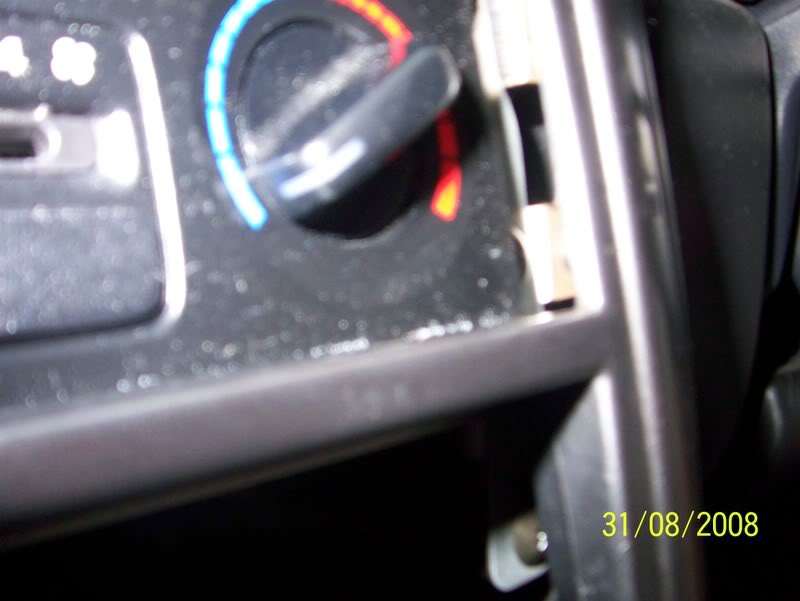

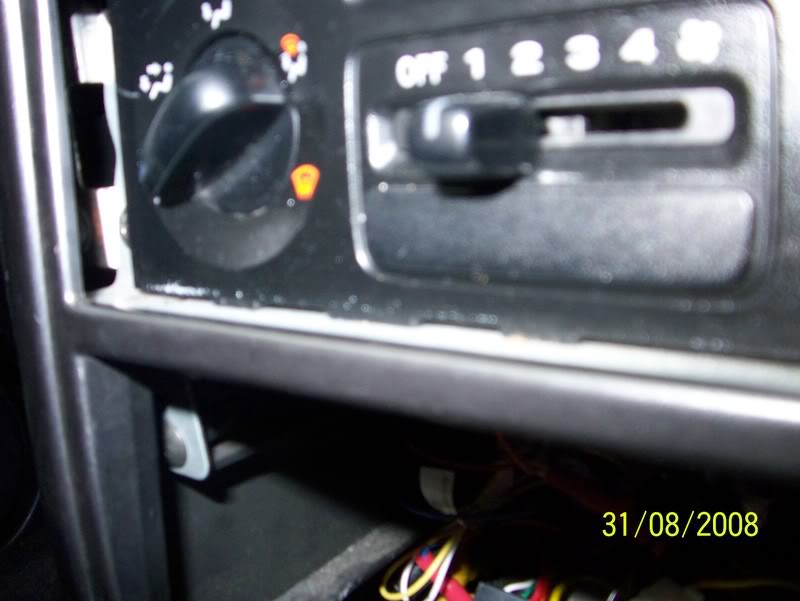

Looks good so far, apart from this which I read about on some of my previous searches. They were old threads so none of the pictures worked. But as you can see, there is a gap around the edge of the heater controls:
This is because the UK surround has recess and the JDM one doesnt:
I'll leave that issue for now. I'm open to suggestions. One thing I thought about was cutting off that whole yop part of the UK surround, and mating it to a JDM one.
I didn't know too much about Double Din fitting, but what I've found out is that my stereo, won't slide out of this surround like a UK one. Neither does it use a cage. You have to put the Double DIN brackets on your headunit, and then behind the surround.
I didn't know that at first, so I've only got a picture of the mounts in first, which is wrong:
Heres the HU resting in place:
Thats all I have at the moment. This is going to be a Work in Progress.
I'm currently sourcing a single DIN surround for my PSi3, as I took it out of the Subaru top mount.
All comments welcome.
Looks good so far, apart from this which I read about on some of my previous searches. They were old threads so none of the pictures worked. But as you can see, there is a gap around the edge of the heater controls:
This is because the UK surround has recess and the JDM one doesnt:
I'll leave that issue for now. I'm open to suggestions. One thing I thought about was cutting off that whole yop part of the UK surround, and mating it to a JDM one.
I didn't know too much about Double Din fitting, but what I've found out is that my stereo, won't slide out of this surround like a UK one. Neither does it use a cage. You have to put the Double DIN brackets on your headunit, and then behind the surround.
I didn't know that at first, so I've only got a picture of the mounts in first, which is wrong:
Heres the HU resting in place:
Thats all I have at the moment. This is going to be a Work in Progress.
I'm currently sourcing a single DIN surround for my PSi3, as I took it out of the Subaru top mount.
All comments welcome.
#4
Scooby Senior
Join Date: Feb 2003
Location: West Midlands
Posts: 1,903
Likes: 0
Received 0 Likes
on
0 Posts
It does not look that bad.
I suppose you could try the plastic surrounds that you get on some cd/mp3 single din players and adapt that around the heater control part. Maybe a bit of diy with some fibreglass?
Where are you going to mount the addtional headlight controls etc.
I suppose you could try the plastic surrounds that you get on some cd/mp3 single din players and adapt that around the heater control part. Maybe a bit of diy with some fibreglass?
Where are you going to mount the addtional headlight controls etc.
#5
Yeah I could try that.
Switches have been relocated to centre console, allthough I haven't wired them up yet, the headlight adjuster has quite a few wires to extend. The headlight washers I may aswell keep but the bright switch is no good to me, as I broke it some time ago.

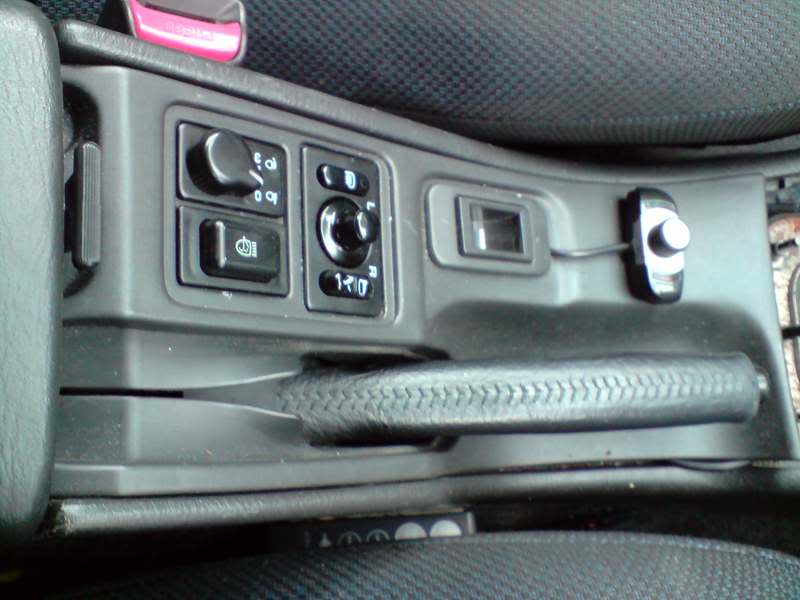

Pic:
Switches have been relocated to centre console, allthough I haven't wired them up yet, the headlight adjuster has quite a few wires to extend. The headlight washers I may aswell keep but the bright switch is no good to me, as I broke it some time ago.
Pic:
#7
No. I had to abort the mission.
The double DIN headunit I had, I just couldn't get it to physically fit in the radio slot area even I after I removed a piece of metal that stops the UK stereo sliding back. After 4 months of no stereo, I just gave up and went back to the single DIN.
I dremelled a lot off the Double Din Surround in an attempt to make it fit, but it wasn't so.
The double DIN headunit I had, I just couldn't get it to physically fit in the radio slot area even I after I removed a piece of metal that stops the UK stereo sliding back. After 4 months of no stereo, I just gave up and went back to the single DIN.
I dremelled a lot off the Double Din Surround in an attempt to make it fit, but it wasn't so.
