Default Interior light on dash
Hi , interior light on my 01 bugeye dash flickers on and off , traced it to a bad wire on the rear drivers door switch ,wiggle it and it goes off , question is how do I get to it thanks.
Hd1966 is offline
Reply Like
Old 04 June 2021, 09:04 PM
  #2
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 7,558
Received 746 Likes on 619 Posts
Default
What do you wiggle, the door switch?? or the actual wire supplying the switch??




Don Clark is offline
Reply Like
Old 05 June 2021, 08:20 AM
  #3
Hd1966
Scooby Newbie
Thread Starter

Hd1966's Avatar

Join Date: Apr 2021
Location: Uk
Posts: 29
Received 2 Likes on 1 Post
Default Interior light
The wire
Hd1966 is offline
Reply Like
Old 05 June 2021, 09:02 AM
  #4
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 7,558
Received 746 Likes on 619 Posts
Default
Originally Posted by Hd1966
The wire

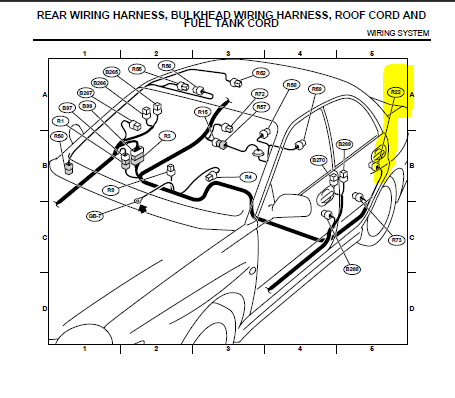

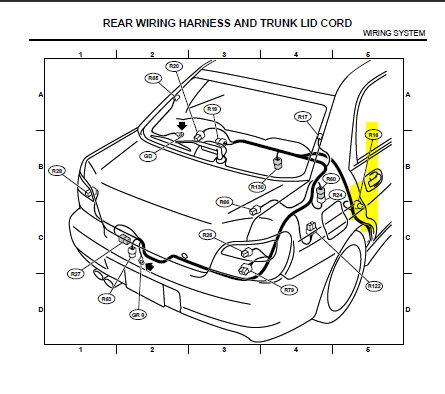

Rear door switch locations and loom directions

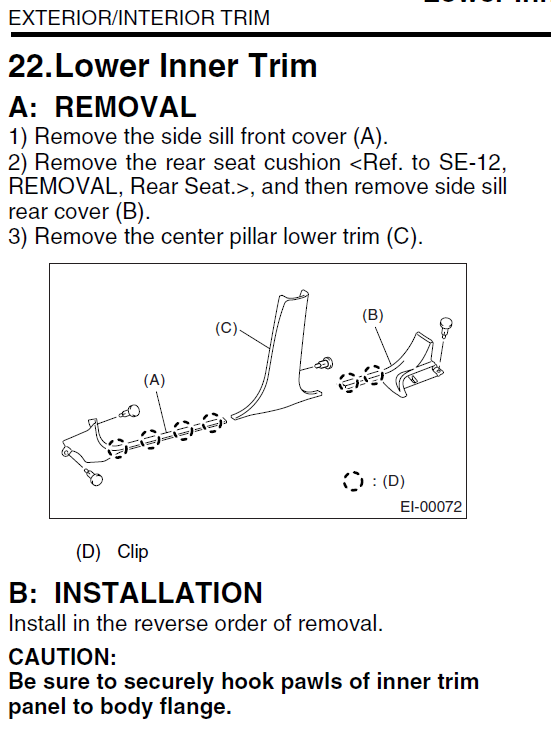

I would image taking out the rear seat base would be a good start plus the rear lower trim and lower quarter trim




Don Clark is offline
Reply Like
Old 05 June 2021, 10:44 AM
  #5
Hd1966
Scooby Newbie
Thread Starter

Hd1966's Avatar

Join Date: Apr 2021
Location: Uk
Posts: 29
Received 2 Likes on 1 Post
Default Interior light
Many thanks
Hd1966 is offline
Reply Like
Old 07 June 2021, 01:08 PM
  #6
Hd1966
Scooby Newbie
Thread Starter

Hd1966's Avatar

Join Date: Apr 2021
Location: Uk
Posts: 29
Received 2 Likes on 1 Post
Default Interior light
Update on interior light , took the back seats out and side trim and found a break in the insulation, fixed 👍,
