Hi
ive got a 2004 blobeye jdm,this door open light is on dash all the time.ive checked door sensor buttons ok.its got a sigma arlarm and black jack fitted.
has anyone got any thoughts to what it mite be please.its driving me mad
thanks if you can tell me anything .



Just thought I'd mention that ive had syvecs fitted.could this cause this.



Boot



Thanks for ur reply.
ive had door and boot sensors checked and apparently all ok.the bonnet doesnt have one.
how do you check them for not working.



Have you tried all the door latches on the body work. One might be loose?



No,not tryed that.
is there a modular that has something to do with the central locking,behind the dash that could be at fault??



I had this. Checked all the sensors were working and all good. Turned out a rear door lock was missing a screw and wasn't connecting with the clip on the body correctly as it was moving.

At least the sensors did there job and let me know something was wrong so worth checking at least.



Well it could be anything if a loose screw can cause it
.am gunna after investigate more into this.
i appreciate all ur replys.
please keep replying, somebody will hit the nail on the head.if they already havent.
I will look into these that have been mentioned and update the thread
thanks again

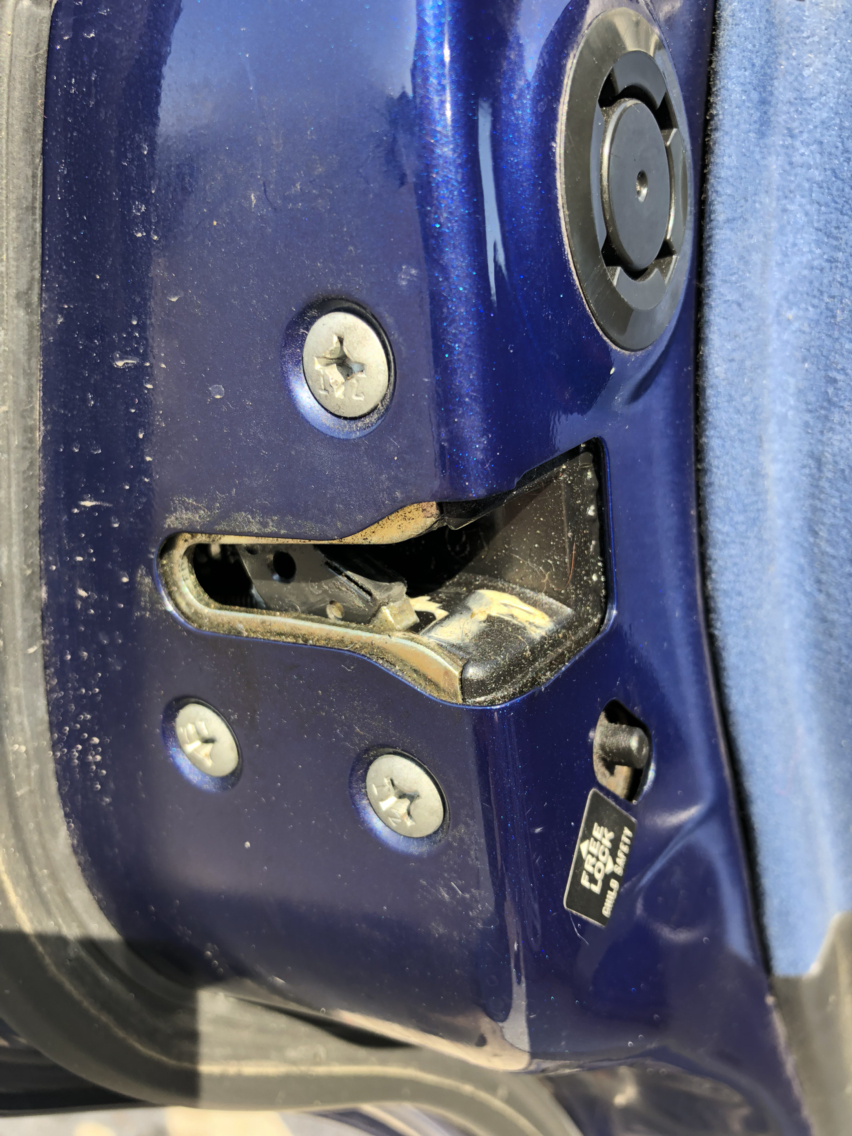

So this is the bit that was causing the sensor to go off on mine. 1 screw was missing and the other 2 were loose so it was rattling around tripping the sensor intermittently. Everything is worth looking at before delving into wiring and the dash.



Update!
checked all switches and latches again.
all seam ok
spoke to an auto electrician,i asked about a bad earth.carnt be that as it needs a earth for the light to come on.
any ideas!
ive been trying to locate the central locking modular,under the drivers side dash.
i see a white box above fuses but no part number on.

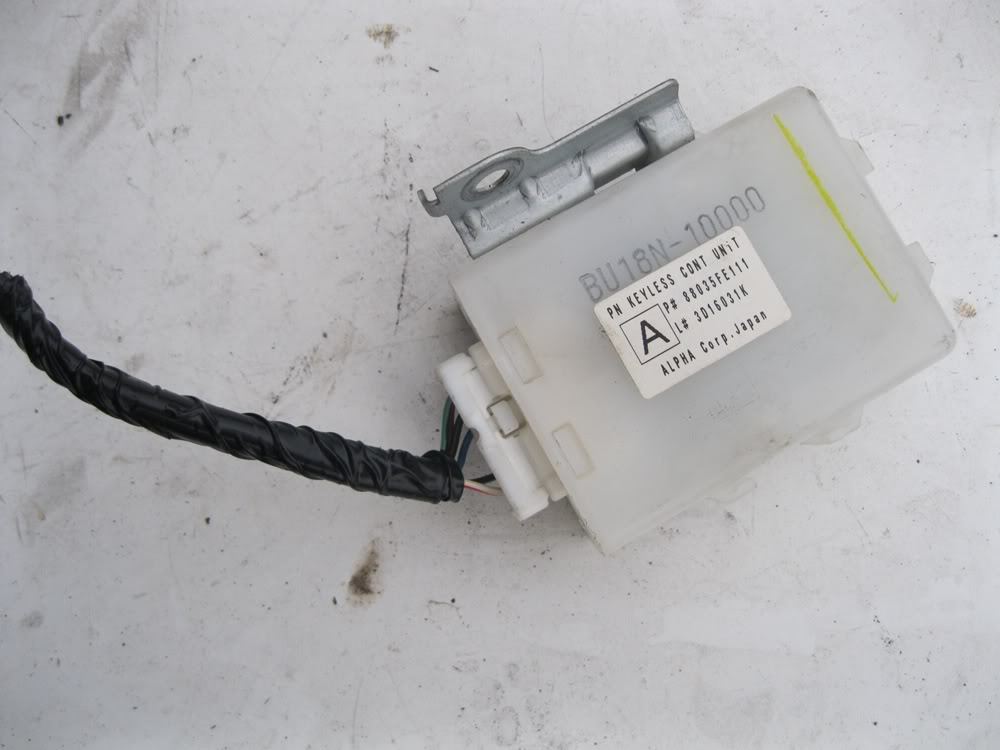

Keyless Entry control module - JDM STi revisions A to E P/N# 88035FE111 (sits to right of steering column)





The following, although not JDM, may give you or your autoelectrician a clue (no double lock module fitted to JDM).









I'd still put it down to one of these



Hi
thanks for ur information,
could it be the keyless entry modular ,i un pluged this and light still on.???



Which would seem to suggest a door switch or door switch wiring.



thanks,dom
am gunna get a new switch first and go from there.
thanks for all ur replys
i will update as to what it is.



Update!
ive got new boot and door senors,and its not them.
the boot light is on as well as interior light.
any ideas people
am total cheesed off with this
