Speed Sensitive Power Steering
11 February 2007, 07:58 PM
#1
Scooby Regular
Thread Starter
Join Date: Feb 2003
Location: Zed Ess Won Hay Tee
Posts: 21,611
Likes: 0
Received 0 Likes
on
0 Posts
Speed Sensitive Power Steering
how does this work on the impreza?
the engine turns the pump, but how does the speed of the car effect how much power assistance there is?
the engine turns the pump, but how does the speed of the car effect how much power assistance there is?
11 February 2007, 08:49 PM
#2
Scooby Regular
Join Date: Dec 2006
Location: at the petrol station again!!!
Posts: 1,213
Likes: 0
Received 0 Likes
on
0 Posts
not sure on impreza but on my old 206 there was a speed controlled switch in the hydraulic line that presumably restricted fluid pressure when at speed
maybe impreza got similar set up
maybe impreza got similar set up
12 February 2007, 08:45 PM
#5

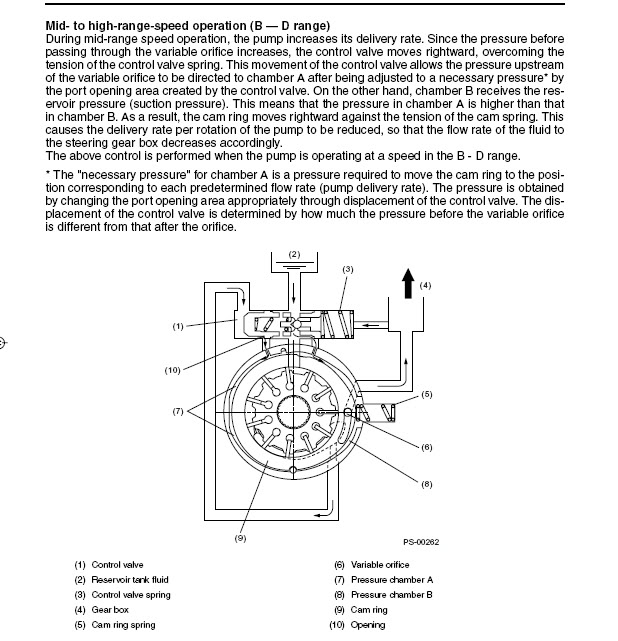

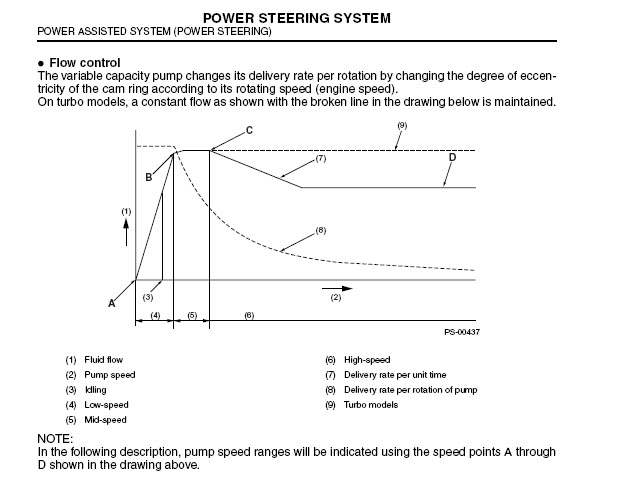

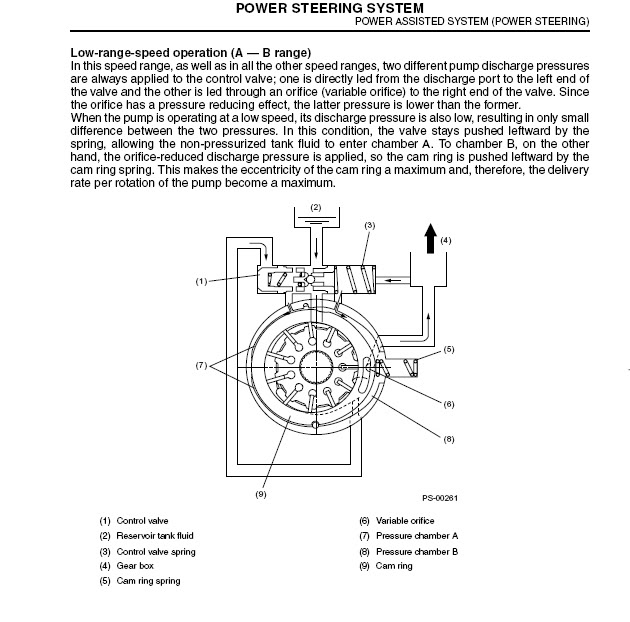

The System uses a Variable capacity pump on the later models(2003 on),the Variable being controlled by an eccentric ring in the pump.
Will post some pics up later.
ps - Turbo model is not speed sensitive
Will post some pics up later.
ps - Turbo model is not speed sensitive
Last edited by merlin24; 12 February 2007 at 08:55 PM. Reason: Spelling
