Question Diff LSD or not?

Guys,
How you can recognize if differential is LSD or not?
2006 Cross Sports 2.0T JDM.


Reply
Old Oct 15, 2021 | 06:54 AM
  #2
hedgecutter's Avatar
hedgecutter
Scooby Regular
15 Year Member
Liked
Loved
Community Favorite
iTrader: (5)

Joined: Sep 2010
Posts: 3,881
Likes: 701
From: far, far west
Default

Type serial number into Google.
Reply
Old Oct 15, 2021 | 07:01 AM
  #3
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,815
Likes: 823
From: Harpenden
Default

Lookup the part number


Reply
Old Oct 15, 2021 | 01:23 PM
  #4
Hauntednsk's Avatar
Hauntednsk
Thread Starter
Scooby Regular

Joined: Sep 2021
Posts: 135
Likes: 20
From: Canada
Default

@Don Clark @hedgecutter Guys, car is on the way from Japan. I dont have a long 14\17 digit VIN number. There is a kind of number on the auction list. SG5-093929 is it the number?


Reply
Old Oct 15, 2021 | 02:09 PM
  #5
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,815
Likes: 823
From: Harpenden
Default

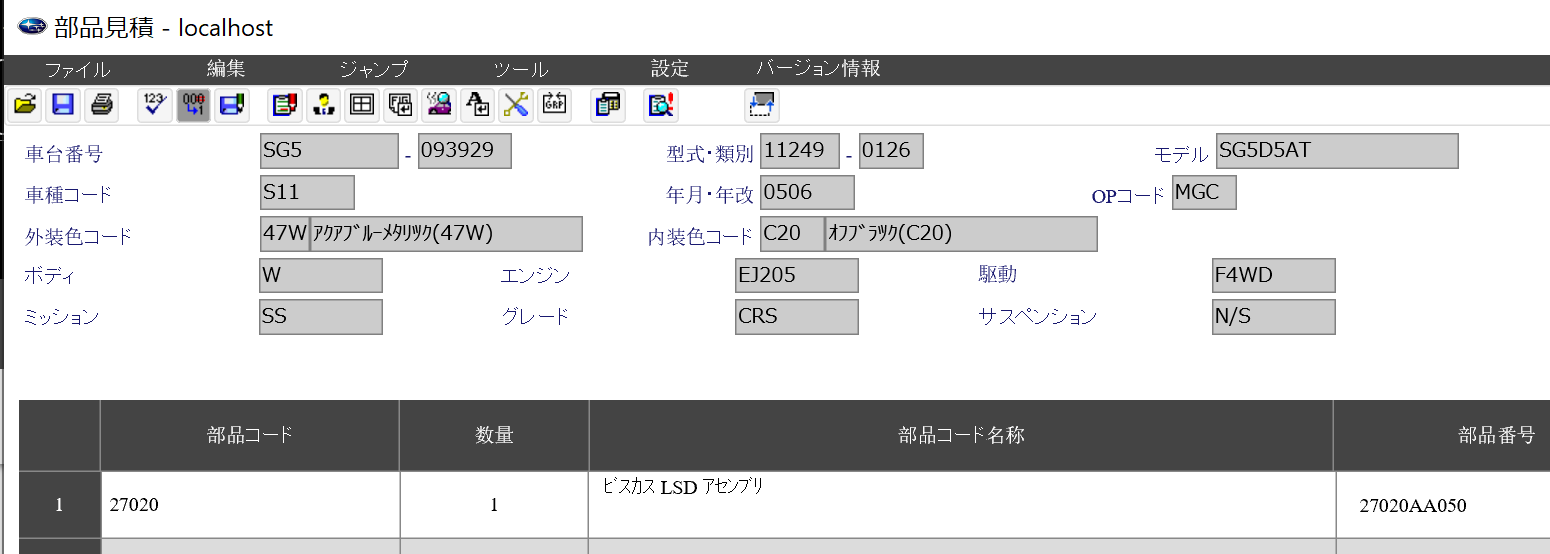

If you look at my post again, you will see the image has Japanese writing on it - JDM Parts Database.

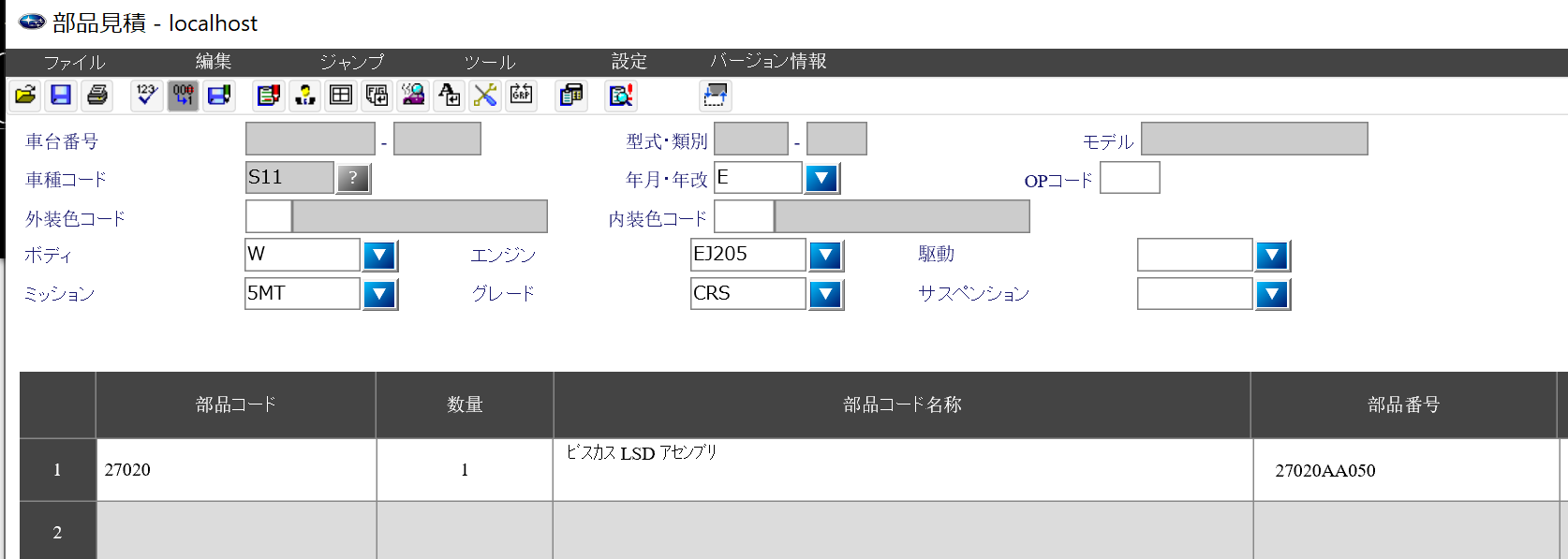

S11 - SG Forester
E - 2006
CRS - Cross sport 2.0T

27020 - Rear Diff assembly - LSD - part number 27020AA050

Just to make it clear





Translation



Reply
Old Oct 15, 2021 | 03:45 PM
  #6
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,815
Likes: 823
From: Harpenden
Default

As an aside the UK seems to be a favorite place for Cross Sports to end up.
A number of UK members post in the European Forum of Foresters.org
https://www.subaruforester.org/forums/europe.75/
Reply
Old Oct 16, 2021 | 01:13 AM
  #7
Hauntednsk's Avatar
Hauntednsk
Thread Starter
Scooby Regular

Joined: Sep 2021
Posts: 135
Likes: 20
From: Canada
Default

@Don Clark THANK YOU VERY MUCH!

I checked part numbers and its Viscous LSD. As far as I understand, two viscous small clutches are enclosed and have their own fluid inside, so any differential oil 75w90 can be used withOUT LS litera. Am I right?
if it was open type LSD, LS oil would have to be used.

Last edited by Hauntednsk; Oct 16, 2021 at 01:29 AM.
Reply
Old Oct 16, 2021 | 07:40 AM
  #8
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,815
Likes: 823
From: Harpenden
Default

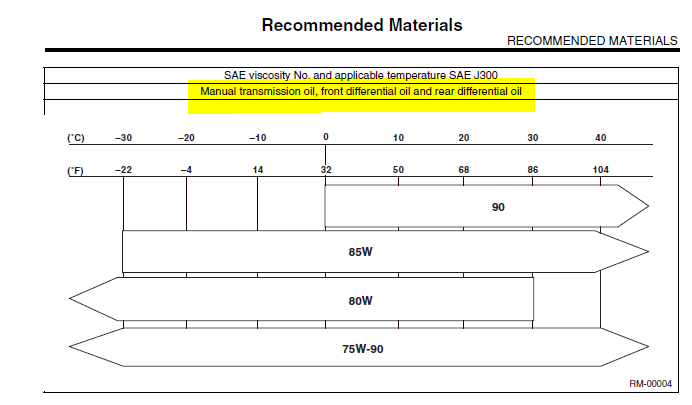

Yes, no additive is required. Any 75W90 oil that conforms to GL5 standard.


Attached Files
File Type: pdf
Subaru LSD.pdf (824.8 KB, 0 views)
Reply
Old Oct 16, 2021 | 07:45 AM
  #9
Hauntednsk's Avatar
Hauntednsk
Thread Starter
Scooby Regular

Joined: Sep 2021
Posts: 135
Likes: 20
From: Canada
Default

@Don Clark Thank you! You are so knowledgeable.
