Newage Impreza EJ207 Spec C Breather / PCV / AOS System
#1
Scooby Regular
Thread Starter
Newage Impreza EJ207 Spec C Breather / PCV / AOS System
Hi All,
In the middle of making a load of change's to my GRB Spec C Hatchback in the aim for more power & reliability where possible!
Mods are:
I have yet to fit the turbo, injectors, TGV Deletes and 3" intake. A IAG V3 Competition AOS Will be going on while its all apart which is where my questions come in!
The whole point / idea of the IAG AOS Is to prevent oil from going in the intake tract. I know the stock system isn't the greatest and the AOS sets to fix that.
However the AOS kit doesn't state what to do with the OEM Turbo Intake/Inlet pipes breathers and what they are now doing! There are 3 or 4 different 3" inlet pipes available and some of them have differing designs on the breathers. My car has the stock red Group N intake/inlet pipe with the same (5) breather inlets (I think) the same as the Tomei pictured below (4 breathers and 1 for the recirc valve):
YET Some of the other intakes (Perrin, Mamba have different setups, mainly being the rear breather closest to the turbo is missing?
What is that one for??
So my main question is, cant i remove most of these? And if i am buying a new inlet do i want one with the full 5 breathers?? Looking at the mamba one as it is very basic and a lot cheaper.
Probably massively overthinking it and it may make more sense to route it when i have the engine bay in front of me but before i order an intake it would be good to know what people think!
Thankyou
In the middle of making a load of change's to my GRB Spec C Hatchback in the aim for more power & reliability where possible!
Mods are:
- RCM Twinscroll headers
- RC 3" Decat downpipe into 3" exhaust
- 340lph Fuel Pump
- 3 Port Boost Solenoid
- Mishimoto Intake
- GTX29 Twinscroll Turbo (unfitted)
- Unknown 3" Inlet pipe (unfitted)
- 750cc EV14 Injectors (unfitted)
- IAG TGV Deletes (unfitted)
- IAG V3 Competition Air / Oil Seperator (unfitted)
I have yet to fit the turbo, injectors, TGV Deletes and 3" intake. A IAG V3 Competition AOS Will be going on while its all apart which is where my questions come in!
The whole point / idea of the IAG AOS Is to prevent oil from going in the intake tract. I know the stock system isn't the greatest and the AOS sets to fix that.
However the AOS kit doesn't state what to do with the OEM Turbo Intake/Inlet pipes breathers and what they are now doing! There are 3 or 4 different 3" inlet pipes available and some of them have differing designs on the breathers. My car has the stock red Group N intake/inlet pipe with the same (5) breather inlets (I think) the same as the Tomei pictured below (4 breathers and 1 for the recirc valve):
YET Some of the other intakes (Perrin, Mamba have different setups, mainly being the rear breather closest to the turbo is missing?
What is that one for??
So my main question is, cant i remove most of these? And if i am buying a new inlet do i want one with the full 5 breathers?? Looking at the mamba one as it is very basic and a lot cheaper.
Probably massively overthinking it and it may make more sense to route it when i have the engine bay in front of me but before i order an intake it would be good to know what people think!
Thankyou
#2
Scooby Regular
Your terminology in the thread title is slightly misleading - "Newage Impreza" only refers to Gen2 MY01-07 GD* and GG* Imprezas not the Gen3 MY08 GR*/GF* Hatch/Saloon and later.
Subaru PCV system
Basic operation is shown in this post on NASIOC
https://forums.nasioc.com/forums/sho...3&postcount=24
This is probably the nearest to the IAG setup
https://blog.edgeautosport.com/hs-fs...OS%20Setup.png
This thread is probably worth a read
https://www.scoobynet.com/scoobynet-...ti-advise.html
When reading up on installing these systems remember that US models have an additional sensor and a re-located PCV valve in the PCV "Y" piping setup that UK/Europe/JDM models don't have.
US
Uk/Europe/JDM
Subaru PCV system
Basic operation is shown in this post on NASIOC
https://forums.nasioc.com/forums/sho...3&postcount=24
This is probably the nearest to the IAG setup
https://blog.edgeautosport.com/hs-fs...OS%20Setup.png
This thread is probably worth a read
https://www.scoobynet.com/scoobynet-...ti-advise.html
When reading up on installing these systems remember that US models have an additional sensor and a re-located PCV valve in the PCV "Y" piping setup that UK/Europe/JDM models don't have.
US
Uk/Europe/JDM
The following users liked this post:
#3
Scooby Regular
iTrader: (5)
If you have a strut tower bar, it's going to be hard fitting the can high enough to return the separated oil; I'd like to see your finished mounting point for my own use. Remember that American aos's are for left hand drive, so get extra pipe and clips.
Personally, ( Cos some here might think it's "just" a spec C that you have) I think you're going to lose the essence of your car with all those mods, from past reports of those who have gone this route before, but that's all part of the fun of modding. There's a guy doing much the same to a RA R at the moment.
Personally, ( Cos some here might think it's "just" a spec C that you have) I think you're going to lose the essence of your car with all those mods, from past reports of those who have gone this route before, but that's all part of the fun of modding. There's a guy doing much the same to a RA R at the moment.
#4
I have the mamba inlet and a dual cc/aos setup, on mine the larger port by the turbo is blanked off, then it goes to that little round thing i can never remember the name of, then pcv and finally aos return.
My aos/catch can setup goes:
Crank Case Breathers > T piece > AOS > Catch Can > Turbo Inlet
My pcv goes into the turbo inlet and is not "caught" but would probably be better if it was. I might do that while the engines out actually. I have the cans mounted just under the strut brace with a bracket as there's already a few screws there holding up some piping. This is on a blob, but besides space constraints it's not much different
My aos/catch can setup goes:
Crank Case Breathers > T piece > AOS > Catch Can > Turbo Inlet
My pcv goes into the turbo inlet and is not "caught" but would probably be better if it was. I might do that while the engines out actually. I have the cans mounted just under the strut brace with a bracket as there's already a few screws there holding up some piping. This is on a blob, but besides space constraints it's not much different
The following users liked this post:
#5
Scooby Regular
iTrader: (1)
If you have a strut tower bar, it's going to be hard fitting the can high enough to return the separated oil; I'd like to see your finished mounting point for my own use. Remember that American aos's are for left hand drive, so get extra pipe and clips.
Personally, ( Cos some here might think it's "just" a spec C that you have) I think you're going to lose the essence of your car with all those mods, from past reports of those who have gone this route before, but that's all part of the fun of modding. There's a guy doing much the same to a RA R at the moment.
Personally, ( Cos some here might think it's "just" a spec C that you have) I think you're going to lose the essence of your car with all those mods, from past reports of those who have gone this route before, but that's all part of the fun of modding. There's a guy doing much the same to a RA R at the moment.
Very close
But not touching, also not on a spec c
#6
Scooby Regular
My car has the stock red Group N intake/inlet pipe
Spec C comes from factory with standard black plastic inlet pipe (JDM: 14459AA520; UK: 14459AA560)
Only the R205 and S206 come with a red inlet pipe (ST14459ZR030) as below
Group N version is part number 14459ZR010 which requires a restictor to complete the turbo connection (no recirc connector)
As to connections............
YET Some of the other intakes (Perrin, Mamba have different setups, mainly being the rear breather closest to the turbo is missing?
What is that one for??
What is that one for??
Last edited by Don Clark; 14 May 2021 at 11:27 AM.
#7
Scooby Regular
Thread Starter
Your terminology in the thread title is slightly misleading - "Newage Impreza" only refers to Gen2 MY01-07 GD* and GG* Imprezas not the Gen3 MY08 GR*/GF* Hatch/Saloon and later.
Subaru PCV system
Basic operation is shown in this post on NASIOC
https://forums.nasioc.com/forums/sho...3&postcount=24
This is probably the nearest to the IAG setup
https://blog.edgeautosport.com/hs-fs...OS%20Setup.png
This thread is probably worth a read
https://www.scoobynet.com/scoobynet-...ti-advise.html
When reading up on installing these systems remember that US models have an additional sensor and a re-located PCV valve in the PCV "Y" piping setup that UK/Europe/JDM models don't have.
US
Uk/Europe/JDM
Subaru PCV system
Basic operation is shown in this post on NASIOC
https://forums.nasioc.com/forums/sho...3&postcount=24
This is probably the nearest to the IAG setup
https://blog.edgeautosport.com/hs-fs...OS%20Setup.png
This thread is probably worth a read
https://www.scoobynet.com/scoobynet-...ti-advise.html
When reading up on installing these systems remember that US models have an additional sensor and a re-located PCV valve in the PCV "Y" piping setup that UK/Europe/JDM models don't have.
US
Uk/Europe/JDM
Some good insight there, i have noticed they yanks have a more complex setup for sure.
If you have a strut tower bar, it's going to be hard fitting the can high enough to return the separated oil; I'd like to see your finished mounting point for my own use. Remember that American aos's are for left hand drive, so get extra pipe and clips.
Personally, ( Cos some here might think it's "just" a spec C that you have) I think you're going to lose the essence of your car with all those mods, from past reports of those who have gone this route before, but that's all part of the fun of modding. There's a guy doing much the same to a RA R at the moment.
Personally, ( Cos some here might think it's "just" a spec C that you have) I think you're going to lose the essence of your car with all those mods, from past reports of those who have gone this route before, but that's all part of the fun of modding. There's a guy doing much the same to a RA R at the moment.
And i know what you mean, its a fairly special car BUT my intentions (which i think will be fairly nailed on when i am done) is to enhance the car really. With most cars i have owned i look to simplify setups and improve reliability, so for this it means:
- Removing emissions devices and increasing flow/power as a result so cats, air pump, PCV systems, TGV bodies etc removed.
- "Unlocking" potential, so in this case, the fairly small OEM Turbo that once the above bits have been done leave the car lacking up top (Turbo isnt huge, max 430ish HP compared to the OEM Unit that has made 390 hp or so. This should mean it wont lose any response down low, still has OEM rear housing, and modernizes the turbo system a bit while bringing in the top end power that chokes the car as it is
- Simplifying! So thats the emissions system, breathing, complexity etc which i have been doing as i go. (Still keeping TMIC, Intercooler spray etc)
For me, if the car makes low 400Hp with even more driveability/reliability the stock car misses out on i have accomplished my task Almost OEM+ (Hate that saying) if the STi engineers had a bit more free reign, i would imagine they would build something like this
I have the mamba inlet and a dual cc/aos setup, on mine the larger port by the turbo is blanked off, then it goes to that little round thing i can never remember the name of, then pcv and finally aos return.
My aos/catch can setup goes:
Crank Case Breathers > T piece > AOS > Catch Can > Turbo Inlet
My pcv goes into the turbo inlet and is not "caught" but would probably be better if it was. I might do that while the engines out actually. I have the cans mounted just under the strut brace with a bracket as there's already a few screws there holding up some piping. This is on a blob, but besides space constraints it's not much different
My aos/catch can setup goes:
Crank Case Breathers > T piece > AOS > Catch Can > Turbo Inlet
My pcv goes into the turbo inlet and is not "caught" but would probably be better if it was. I might do that while the engines out actually. I have the cans mounted just under the strut brace with a bracket as there's already a few screws there holding up some piping. This is on a blob, but besides space constraints it's not much different
So you have a positive pressure outlet for your can? I was tempted to do this as the competition spec AOS Which i have doesnt have a feed, just vents under the car.
In an ideal world, i was thinking something like 2x head breathers to T Piece > 1x block breather straight to can > can top vent to intake on one line just to pull a bit on the can.
But then that leaves me a bit stumped on what the 4 remaining pipes on the inlet do.... I will no doubt be removing the breather lines running over the TMIC so it still leaves me wondering do i go MAMBA/PERRIN Inlet with the 3 breathers of 4 of the SAMCO type one....
How did you find the MAMBA Inlet? Had a few bits of theres and it is good quality!
Trending Topics
#9
Scooby Regular
Thread Starter
Not fitted as stock.
Spec C comes from factory with standard black plastic inlet pipe (JDM: 14459AA520; UK: 14459AA560)
Only the R205 and S206 come with a red inlet pipe (ST14459ZR030) as below
Mine is indeed an R205 Don BUT I did assume even the SPEC C came with it! Top knowledge there!
Group N version is part number 14459ZR010 which requires a restictor to complete the turbo connection (no recirc connector)
As to connections............
Spec C comes from factory with standard black plastic inlet pipe (JDM: 14459AA520; UK: 14459AA560)
Only the R205 and S206 come with a red inlet pipe (ST14459ZR030) as below
Mine is indeed an R205 Don BUT I did assume even the SPEC C came with it! Top knowledge there!
Group N version is part number 14459ZR010 which requires a restictor to complete the turbo connection (no recirc connector)
As to connections............
THAT^^^^ Was what i was looking for, that makes a lot more sense! So as the rear breather on that pic closest to the compressor is from the PCV Y pipe (Which im 99% my car has, even on the red inlet pipe?) I wont need an inlet with that on?! As the AOS System effectively bypasses that piece?
Appreciate the insight Don.
#10
Scooby Regular
THAT^^^^ Was what i was looking for, that makes a lot more sense! So as the rear breather on that pic closest to the compressor is from the PCV Y pipe (Which im 99% my car has, even on the red inlet pipe?) I wont need an inlet with that on?! As the AOS System effectively bypasses that piece?
Appreciate the insight Don.
Appreciate the insight Don.
#11
Scooby Regular
Thread Starter
#12
Scooby Regular
Why would you want to change the inlet pipe when the STI one fitted to the R205/S206 is probably the best out there??
#13
Scooby Regular
Thread Starter
space for a bigger inlet
The following users liked this post:
#15
Scooby Regular
Thread Starter
Hahahaha, i think i will be keeping it as for the reasons above matey! Its good to keep the OEM stuff just in case i need/want to put it back to standard. The perrin ones are supposed to be a nice fit in 2.4" oem size?
You got round to fitting that exhaust yet?
You got round to fitting that exhaust yet?
#16
Thanks mate, so you have a vent to atmosphere BOV? Im retaining mine, it was more the inlets that had another breather back there near the compressor outlet i was unsure of also.
So you have a positive pressure outlet for your can? I was tempted to do this as the competition spec AOS Which i have doesnt have a feed, just vents under the car.
In an ideal world, i was thinking something like 2x head breathers to T Piece > 1x block breather straight to can > can top vent to intake on one line just to pull a bit on the can.
But then that leaves me a bit stumped on what the 4 remaining pipes on the inlet do.... I will no doubt be removing the breather lines running over the TMIC so it still leaves me wondering do i go MAMBA/PERRIN Inlet with the 3 breathers of 4 of the SAMCO type one....
How did you find the MAMBA Inlet? Had a few bits of theres and it is good quality!
I've just realised that although I've wrote that out like 4 times I'm pretty sure it's actually breathers > catch > aos > turbo inlet, I really should know considering I took it and the engine out 2 days ago lol. I'll look at teeing the pcv in to the separator when I put it back.
Mamba stuff is on both ebay and Aliexpress. Inlet has been pretty solid tbh, it seems no less stable than the samco I had on my previous car and is just as thick walled, can't say it's wired like they are tho, turbo has no play or leaks from what I could see when I took it off and it's always boosted as it should.
#17
Scooby Regular
Thread Starter
I do yeah, springs 1.4 tho so I don't hear it unless I'm really going for it, thought about blanking it off but I'm not sure my turbo would take it and I can't afford another if it doesn't to be trying it just yet lol. The turbo is also a mamba.
I've just realised that although I've wrote that out like 4 times I'm pretty sure it's actually breathers > catch > aos > turbo inlet, I really should know considering I took it and the engine out 2 days ago lol. I'll look at teeing the pcv in to the separator when I put it back.
Mamba stuff is on both ebay and Aliexpress. Inlet has been pretty solid tbh, it seems no less stable than the samco I had on my previous car and is just as thick walled, can't say it's wired like they are tho, turbo has no play or leaks from what I could see when I took it off and it's always boosted as it should.
I've just realised that although I've wrote that out like 4 times I'm pretty sure it's actually breathers > catch > aos > turbo inlet, I really should know considering I took it and the engine out 2 days ago lol. I'll look at teeing the pcv in to the separator when I put it back.
Mamba stuff is on both ebay and Aliexpress. Inlet has been pretty solid tbh, it seems no less stable than the samco I had on my previous car and is just as thick walled, can't say it's wired like they are tho, turbo has no play or leaks from what I could see when I took it off and it's always boosted as it should.
And thanks mate many thanks, i will have a good luck at how i can make it work once i get it all in bits.
#18
I'm at 1.8-1.9 bar so it is heard lol
#19
Scooby Regular
Thread Starter

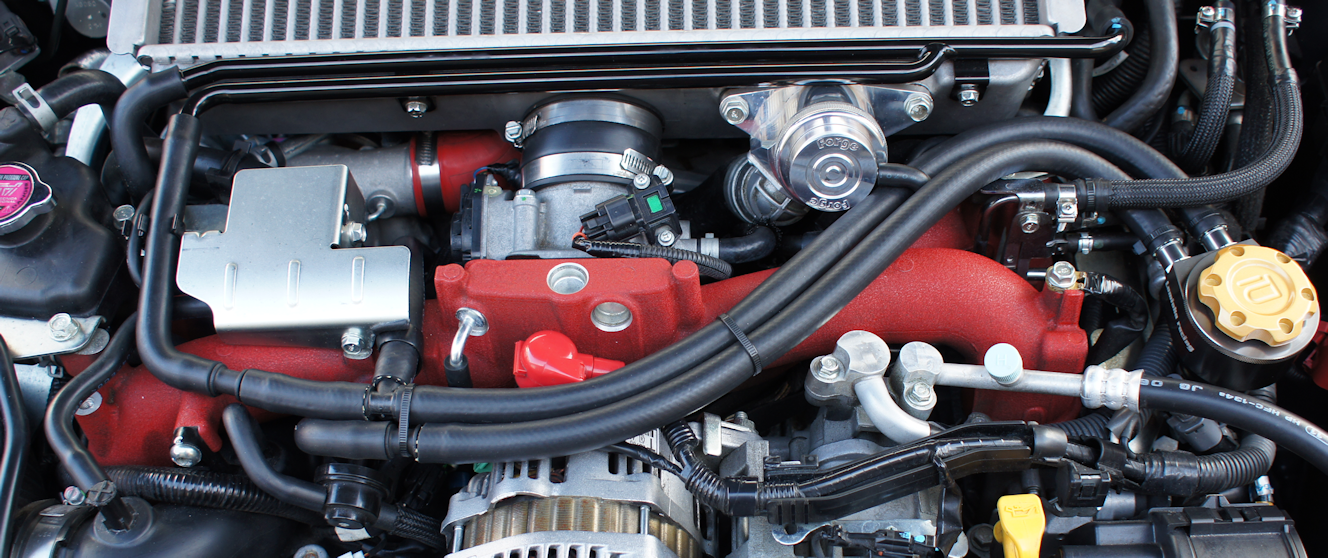

Little update, With some longer hoses and some head scratching induced pipe routing i managed to get the AOS To fit within the engine bay with the stock top mount intercooler & strut brace. I relocated the engine harness plug a bit closer to the strut tower with a custom bracket, and with the AOS Sat up against the scuttle the return line is just above horizontal so the oil drain will work.
Ballache to say the least!
Ballache to say the least!
