Car won't start
#1
Car won't start, How to replace a Sigma keypad
So Impreza won't start. Has been playing up for a while, when trying to disarm the immobilizer. Thought it might be fobs, so changed batties a few times then seems to work fine. Now stopped and no fob will work with new batteries. Can you get the immobilizer bypassed?
Last edited by jaygsi; 15 May 2021 at 11:42 PM.
#2
Scooby Regular
Had the same problem couple of wks ago, finally got hold of sigma code which worked but then had to recode both keys
#4
Scooby Regular
#5

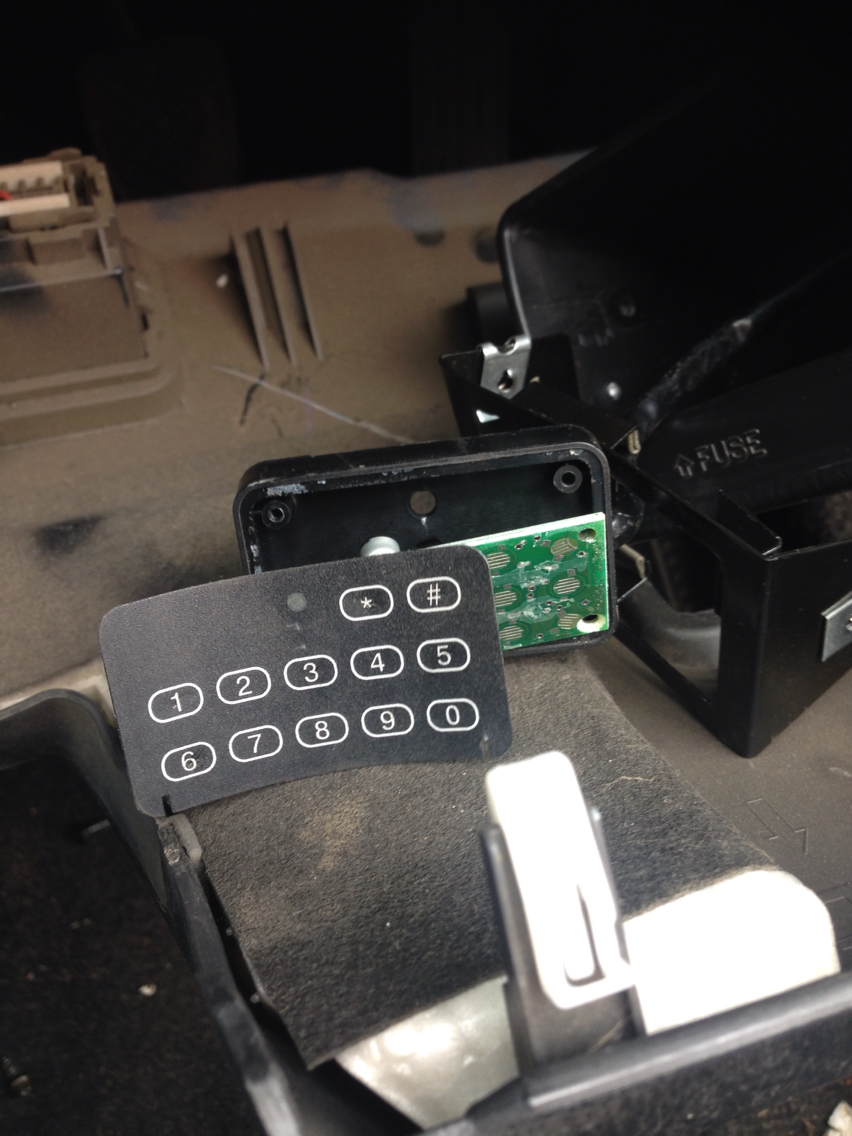

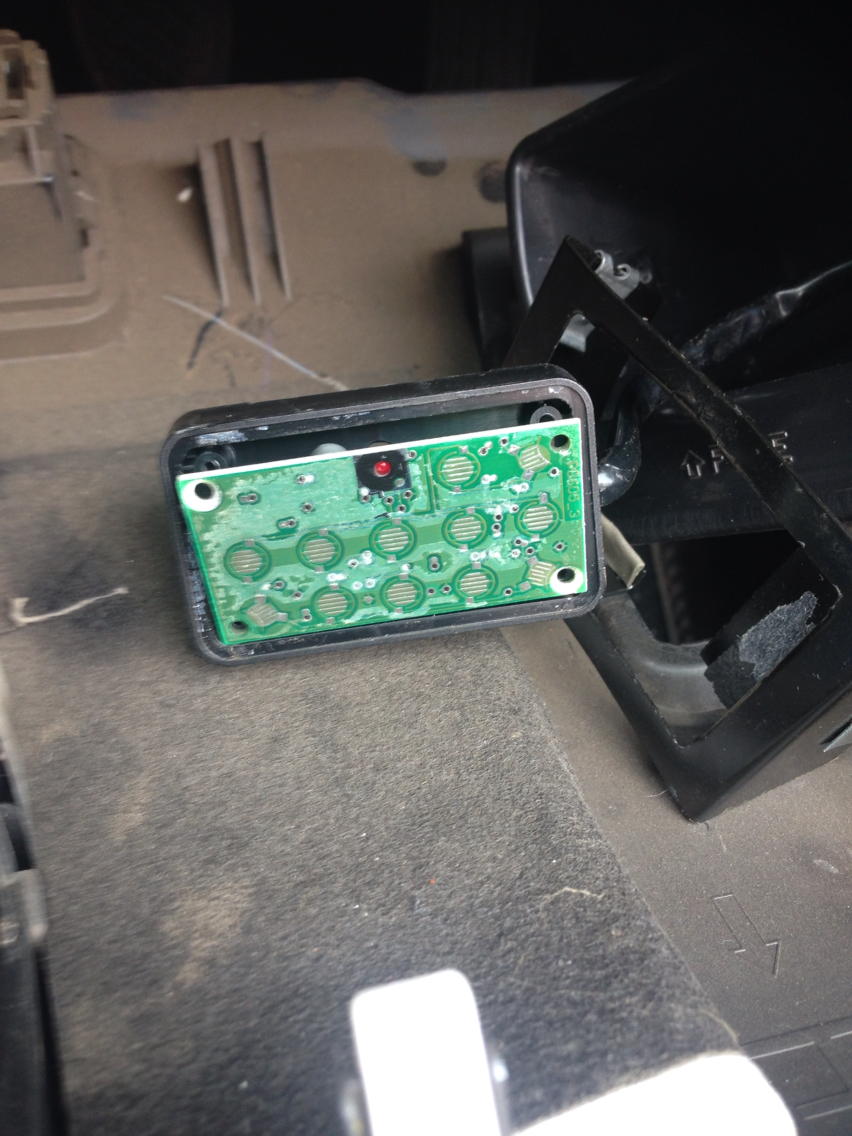

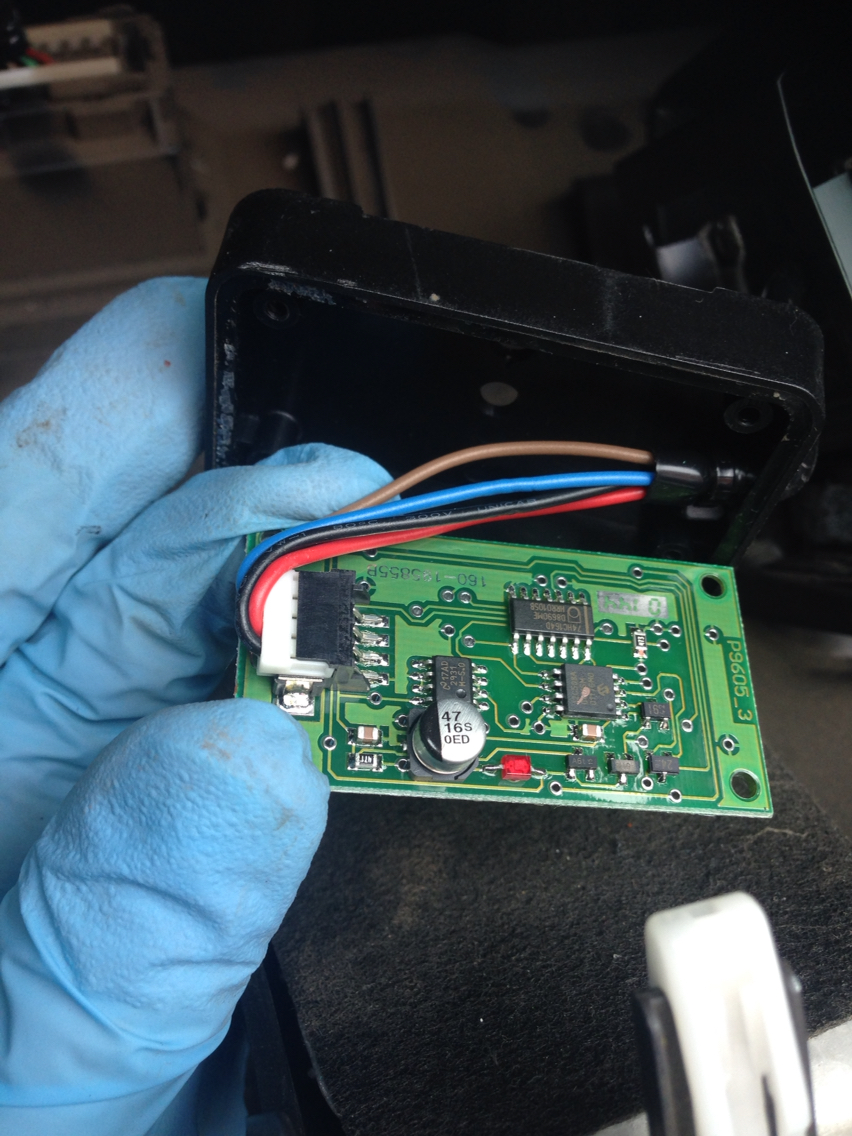

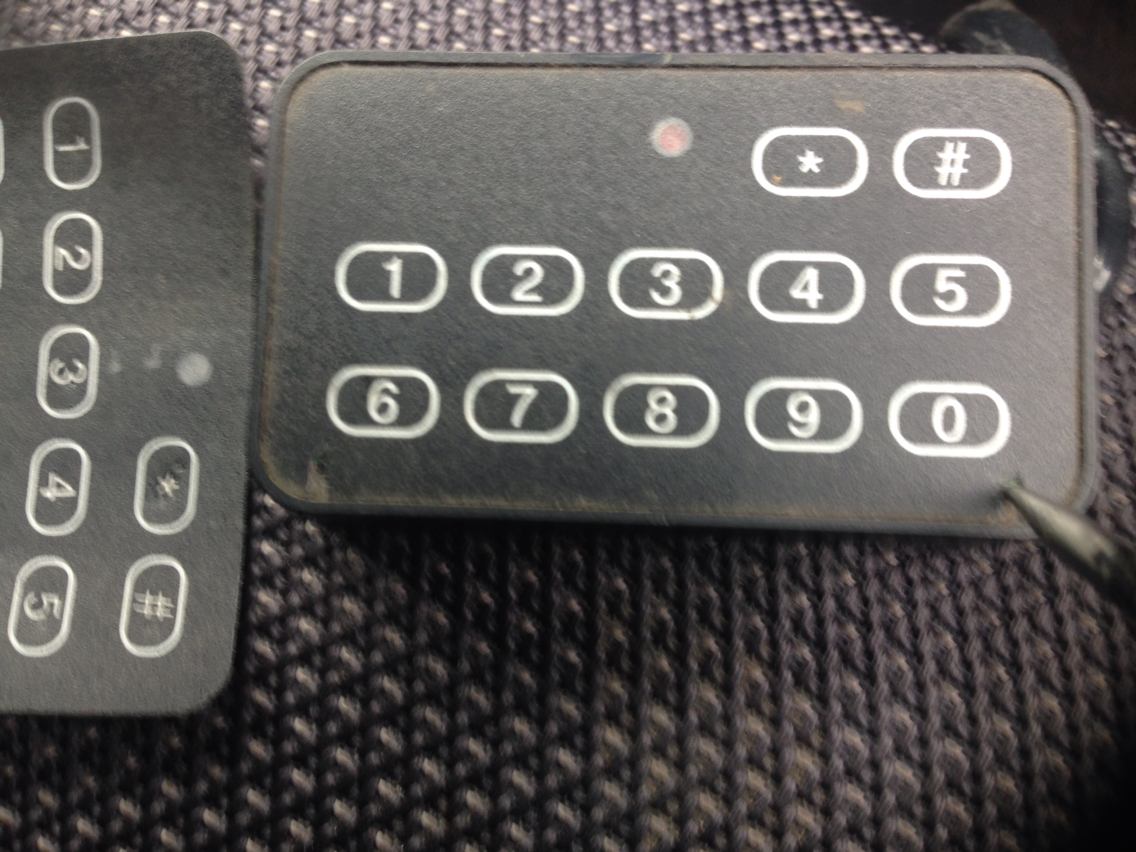

Ah my keypad is done for, i used a pen and think i damaged the control pad. So going have to buy another one.
Not sure if i can buy the mk1 pad, looks loads better to operate.
https://www.ebay.co.uk/itm/SIGMA-SUB...temCondition=4
Not sure if i can buy the mk1 pad, looks loads better to operate.
https://www.ebay.co.uk/itm/SIGMA-SUB...temCondition=4
#7
Scooby Regular
The following users liked this post:
Trending Topics
#8
Scooby Regular
#14
Scooby Regular
I just followed the link i found when i done a search on here regarding recoding of keys and it worked fine, i think there's a member on here who's user name is MR TOAD INSTALLER who may be able to help haps, if not im sure Don Clark can point you in the right direction no doubt, did you have no joy dropping Rob84 a PM🤔
#15
Scooby Regular
Only problem is can't get the fobs working now, even after trying to reprogram them back into the system.
As per page 16 of the attached sigma M30 manual??
#17
Scooby Regular
#19
Ah ok, no not pm'd Rob84 yet, i tried the @rob84 trick, it sends them a message to the post like so @ted bass
I just followed the link i found when i done a search on here regarding recoding of keys and it worked fine, i think there's a member on here who's user name is MR TOAD INSTALLER who may be able to help haps, if not im sure Don Clark can point you in the right direction no doubt, did you have no joy dropping Rob84 a PM🤔
#20
Scooby Regular
iTrader: (5)
Better late than never I have arrived.
To reprogram the fobs, you need to enter your 4 digit pin code to arm the system, Then enter the 4 digit pin code again to deactive the system
Then enter the following sequence.
*17856*91*2# then press each fob to be programmed once. the alarm should chirp after each fob press to indicate it has learnt. the number 2 represents the amount of fobs to be programmed so if you only had one fob then change the 2 to a 1
The following users liked this post:
#21
Great thanks Rob, what's the 17856 for?
Originally Posted by rob84
Better late than never I have arrived.
To reprogram the fobs, you need to enter your 4 digit pin code to arm the system, Then enter the 4 digit pin code again to deactive the system
Then enter the following sequence.
*17856*91*2# then press each fob to be programmed once. the alarm should chirp after each fob press to indicate it has learnt. the number 2 represents the amount of fobs to be programmed so if you only had one fob then change the 2 to a 1
To reprogram the fobs, you need to enter your 4 digit pin code to arm the system, Then enter the 4 digit pin code again to deactive the system
Then enter the following sequence.
*17856*91*2# then press each fob to be programmed once. the alarm should chirp after each fob press to indicate it has learnt. the number 2 represents the amount of fobs to be programmed so if you only had one fob then change the 2 to a 1
#22
Scooby Regular
iTrader: (6)
*17856*91*2 Is the specific instruction code for the action you are wanting to perform - in this instance setting fobs
here is another similar instruction that id used previously when i had my classic years ago to reset the PIN as i didnt know mine. youll notice it also uses 17856 and then 92 is the specific instruction code
A.Using a working Radio Key:
- Arm and then Disarm the system using a working Key fob.
- Within 30 seconds of disarming, type into the keypad- *17856*92*wxyz*wxyz# (where wxyz is your new PIN code)
- Arm the system with the key fob
- You should now be able to disarm the system using the new PIN code
here is another similar instruction that id used previously when i had my classic years ago to reset the PIN as i didnt know mine. youll notice it also uses 17856 and then 92 is the specific instruction code
A.Using a working Radio Key:
- Arm and then Disarm the system using a working Key fob.
- Within 30 seconds of disarming, type into the keypad- *17856*92*wxyz*wxyz# (where wxyz is your new PIN code)
- Arm the system with the key fob
- You should now be able to disarm the system using the new PIN code
#23
So the code Rob gave me, resets the pin? As i just want to code key fobs back into the system?
*17856*91*2 Is the specific instruction code for the action you are wanting to perform - in this instance setting fobs
here is another similar instruction that id used previously when i had my classic years ago to reset the PIN as i didnt know mine. youll notice it also uses 17856 and then 92 is the specific instruction code
A.Using a working Radio Key:
- Arm and then Disarm the system using a working Key fob.
- Within 30 seconds of disarming, type into the keypad- *17856*92*wxyz*wxyz# (where wxyz is your new PIN code)
- Arm the system with the key fob
- You should now be able to disarm the system using the new PIN code
here is another similar instruction that id used previously when i had my classic years ago to reset the PIN as i didnt know mine. youll notice it also uses 17856 and then 92 is the specific instruction code
A.Using a working Radio Key:
- Arm and then Disarm the system using a working Key fob.
- Within 30 seconds of disarming, type into the keypad- *17856*92*wxyz*wxyz# (where wxyz is your new PIN code)
- Arm the system with the key fob
- You should now be able to disarm the system using the new PIN code
#24
Scooby Regular
#26
Cheers Rob, tried it today again as didn't work with one fob, so tried it with a brand new fob and a used one and has now coded the new fob in but not the other used fob, so will try again later.
Better late than never I have arrived.
To reprogram the fobs, you need to enter your 4 digit pin code to arm the system, Then enter the 4 digit pin code again to deactive the system
Then enter the following sequence.
*17856*91*2# then press each fob to be programmed once. the alarm should chirp after each fob press to indicate it has learnt. the number 2 represents the amount of fobs to be programmed so if you only had one fob then change the 2 to a 1
To reprogram the fobs, you need to enter your 4 digit pin code to arm the system, Then enter the 4 digit pin code again to deactive the system
Then enter the following sequence.
*17856*91*2# then press each fob to be programmed once. the alarm should chirp after each fob press to indicate it has learnt. the number 2 represents the amount of fobs to be programmed so if you only had one fob then change the 2 to a 1
#27
So strange thing, but bought new fob, can code only one fob into the system? Followed all instructions and coded one fob fine but second fob doesn't code, tried multiple times always codes the first key but not the 2nd. Do I need to press something in between?
#28
Buttons on key pad not working
For reference I have a 2005 impreza wrx.
thanks for any help I appreciate it.
#29
Straight swap mate, I wished I'd upgraded to the later key pad, but if memory serves me well, it had different connection.
But best to just swap pads over, not whole cable as buried into the dash.
But best to just swap pads over, not whole cable as buried into the dash.
Originally Posted by Luke K
I am having issues which sound similar to yours, when you swapped the key pad over did you need to re program the key pad or is it just a straight swap.
For reference I have a 2005 impreza wrx.
thanks for any help I appreciate it.
For reference I have a 2005 impreza wrx.
thanks for any help I appreciate it.
#30
Have you maybe got to many keys programmed in ? A remember when adding keys the manual said something like up to 4 at a time ? Maybe ur at the limit need to wipe it start again ,am sure it flashes to tell you how many keys are on the system
