Parasite draw
#1
Scooby Regular
Thread Starter
Parasite draw
Hi Does anyone know what this relay does? It is the one that clips to the very top of metal housing that the beige relay box sits into. It is warm even though car has not been used, when removing it the car won't turn over, interior lights come on as normal but they go out when trying to turn over car
. I swapped it but the other gets warm too. My parasite draw goes away when this relay is removed.
. I swapped it but the other gets warm too. My parasite draw goes away when this relay is removed.
Last edited by ajones3217; 02 January 2021 at 03:57 PM. Reason: extra info
#3
Scooby Regular

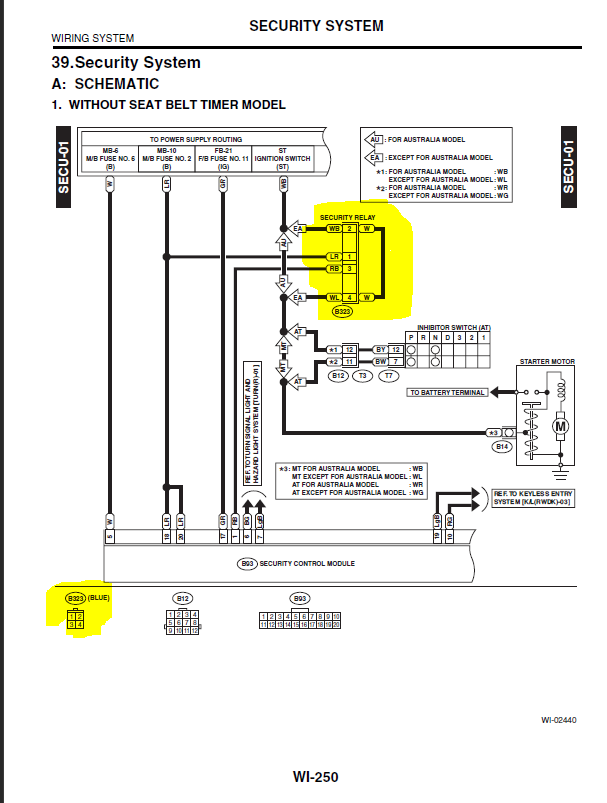

There is also a "Security Relay" back there with a 4 pin blue plug
Last edited by Don Clark; 02 January 2021 at 05:10 PM.
The following 2 users liked this post by Don Clark:
#5
Scooby Regular
With the ignition on it will be continuously energised to hold the contacts in for the starter solenoid circuit as and when needed. (key - start position)
When the car is alarmed it should drop out being one of the immobilised circuits controlled by the alarm ECU.
It is fed direct from the battery via fuse No2 in the main fuse board under the bonnet.
When the car is alarmed it should drop out being one of the immobilised circuits controlled by the alarm ECU.
It is fed direct from the battery via fuse No2 in the main fuse board under the bonnet.
Last edited by Don Clark; 02 January 2021 at 05:31 PM.
