Just finishing putting a UK 2000 turbo back together and I’ve come to plumbing in all the boost hoses, finding a large amount of conflicting diagrams and maps and I’m wondering if anybody can help me out with a map of what they are currently running ? Much appreciated .



Would be helpful if you could clarify the Model Year (not year of registration) as "Turbo 2000" was used as the UK Imprezas marketing name.



Boost/vacuum lines varied depending upon Model Year MY94-96; MY97-98; and MY99-00

If it is a MY00 (2000) then


With the turbo detail





Beyond that not too sure on what "if anybody can help me out with a map of what they are currently running ?" actually relates too......
map as a diagram or map as what is mapped into the ECU ????

Hence probably the lack of response



thanks for the response , yea It was a late night attempt after a long time trying to sift through various diagrams to no avail. It’s a 98 , and by map I meant diagram . It’s more for the whole fuel emmisons system involving the charcoal box and purge valves. Can’t really find anything on that. Thanks for the information,
Alex.

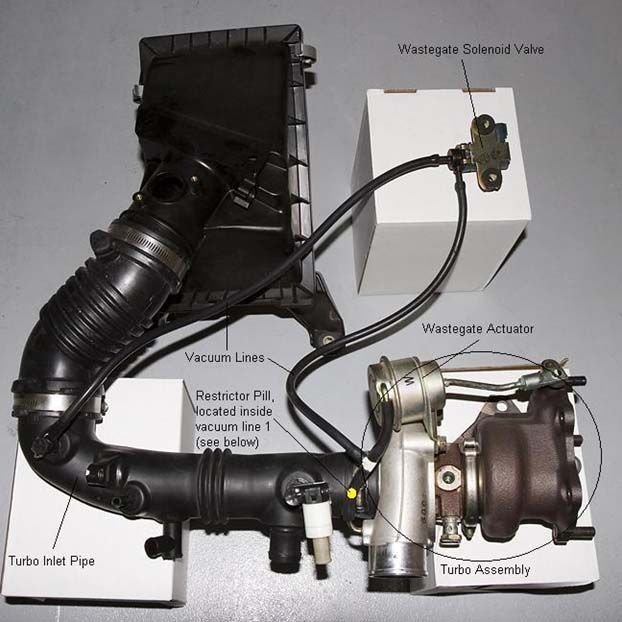

MY98 boost control system similar to later models as per below

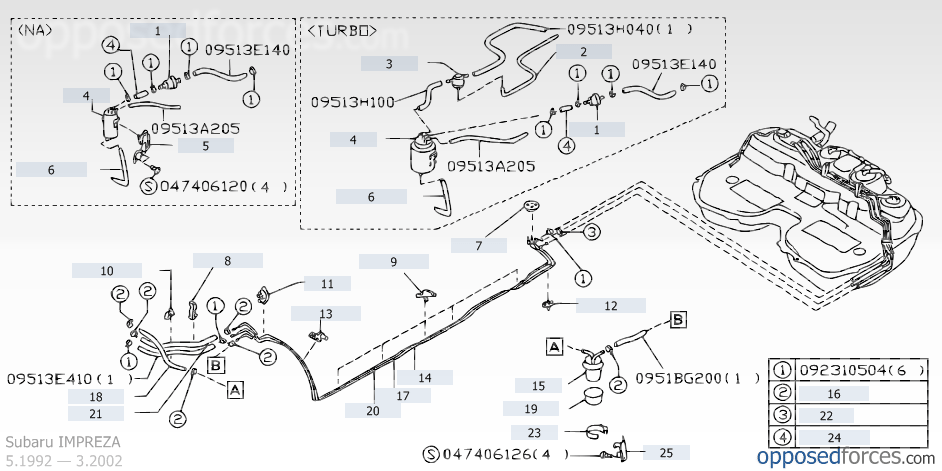

Below is the canister and EE control system arrangement for 97/98




http://opposedforces.com/parts/impre...llustration_2/
