Headlight height, ic spray button colour change

Old 13 October 2018, 02:50 PM
  #1
seanvx
Scooby Regular
Thread Starter

Join Date: Sep 2016
Location: kent
Posts: 301
Default Headlight height, ic spray button colour change

hi has anyone changed the colour of these buttons on a newage or is there any guides
seanvx is offline
Old 13 October 2018, 03:45 PM
  #2
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,844
Default

Assume you mean the switch illumination??

Just change the bulbs

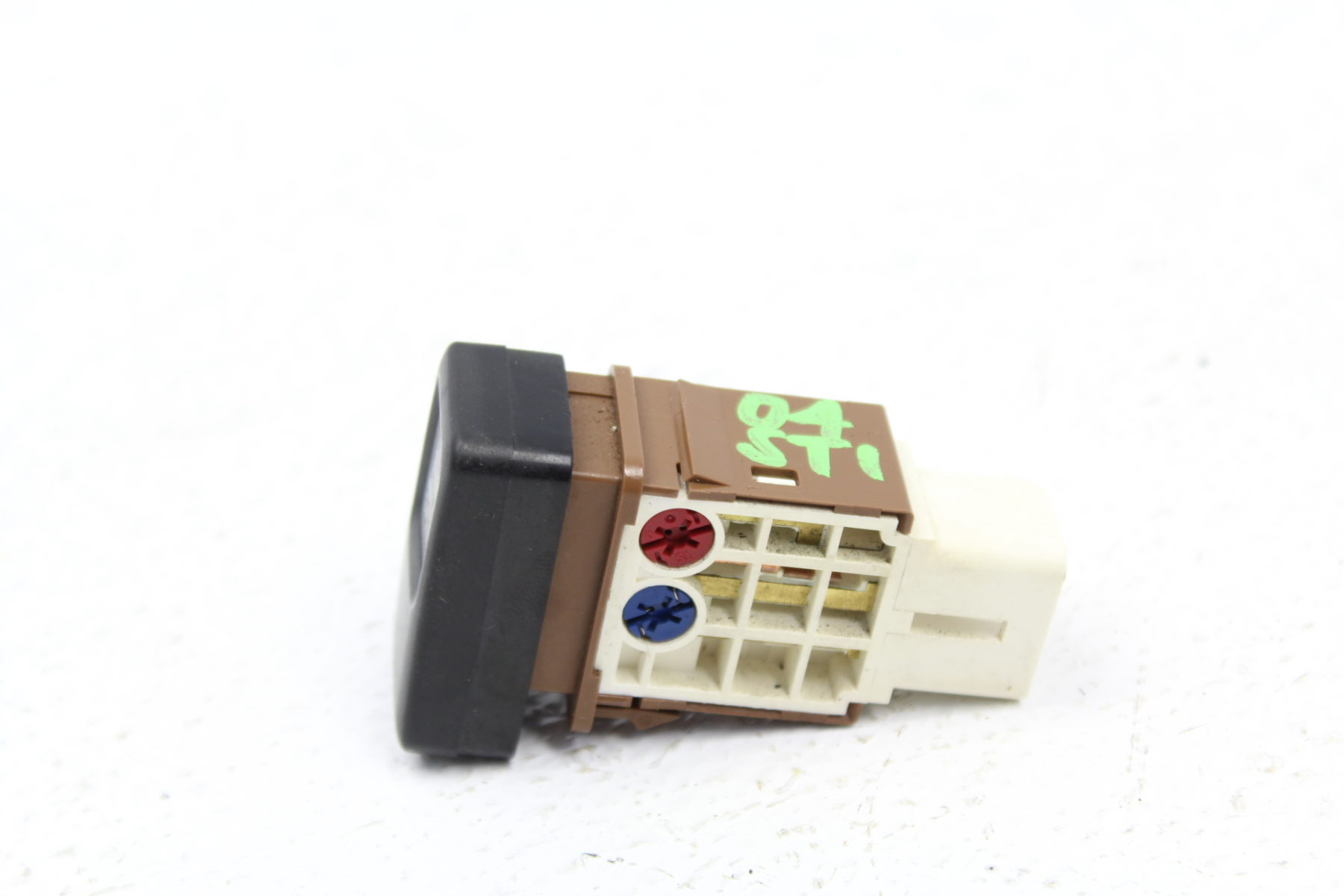

IC spray - Blue bulb holder has a bulb fitted)

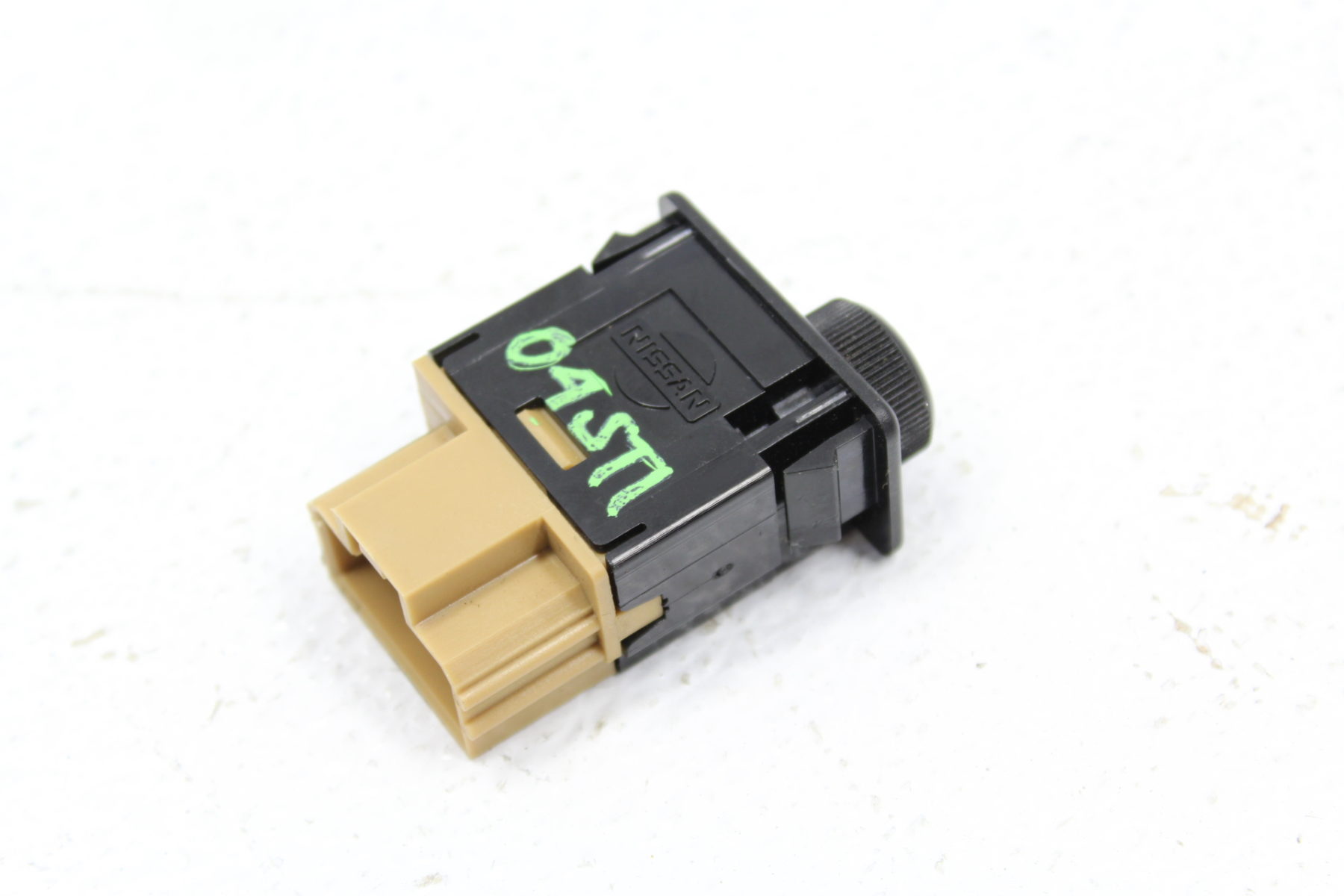

although the headlight leveller switch may need some careful taking apart

Last edited by Don Clark; 13 October 2018 at 03:47 PM.
Don Clark is offline
Old 13 October 2018, 03:53 PM
  #3
seanvx
Scooby Regular
Thread Starter

Join Date: Sep 2016
Location: kent
Posts: 301
Default

Thanks don I have changed the bulbs but they don't seem to work
seanvx is offline
Old 13 October 2018, 07:13 PM
  #4
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,844
Default

Originally Posted by seanvx View Post
Thanks don I have changed the bulbs but they don't seem to work
What have you changed them for ? LED's?


Looking back through some of your posts we appear to be talking about an 03 JDM STi (Revision C or D) ??
According to the JDM parts database it uses the same switches as a UK car.
However looking at the various UK and US wiring diagrams there is a variance on which switches are illuminated, the H/L beam leveller being one that may or may not be illuminated on the JDM model.

UK wiring diagrams


Beam leveler illumination on pins 2 and 8


Beam leveler only illuminated with bright switch (UK cars?) - if variable brightness then maybe not.

Don Clark is offline
Old 14 October 2018, 07:08 AM
  #5
seanvx
Scooby Regular
Thread Starter

Join Date: Sep 2016
Location: kent
Posts: 301
Default

Ok thanks again Don yes it's a jdm blob the headlight level switch has 4 dome leds that I need to cut of and re solder red ones on I think I haven't tried this Yeats but it's the other switches , ic spray and ic spray auto iv taken the bulbs out (those little blue and red round plastic bits) and replaced them with red dome leds done the same way with twisting the metal bits around the base.When iv put them back in they don't light up iv tried turning them the opposite way and still nothing
seanvx is offline
Old 14 October 2018, 09:55 AM
  #6
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,844
Default

If they don't light up either way around, and they work "on the bench", have you checked the loom plug for 1) the illumination circuit wiring (plug/switch pinouts shown on wiring diagrams) and 2) if it's there, (jdm's may have different wire colours to UK cars), is there power?

From another thread
https://www.scoobynet.com/780153-i-c...ml#post8845887

Last edited by Don Clark; 14 October 2018 at 10:01 AM.
