Turbo question for gurus (gt30 a/r.60 m24)
#1
Turbo question for gurus (gt30 a/r.60 m24)
Guys need your help.
Garret gt30 A/R.60 m24 2-1/1
Any info would be good. Don't think it's a 3076(r) as that's probably the best one but info on above needed ASAP, as to spool, peak/recommend power etc.
Cheers.
Garret gt30 A/R.60 m24 2-1/1
Any info would be good. Don't think it's a 3076(r) as that's probably the best one but info on above needed ASAP, as to spool, peak/recommend power etc.
Cheers.
#3
Scooby Regular
iTrader: (7)
Hi there
This turbo is bit small,I know friend running something similar on the S13 and on K20 too,power wise he making not sure,friend on K20 making on this turbo around 300bhp at 0.7bar and on S13 he is making 350bhp at 1.5bar
I would go with different turbo there
Thanks,Jura
This turbo is bit small,I know friend running something similar on the S13 and on K20 too,power wise he making not sure,friend on K20 making on this turbo around 300bhp at 0.7bar and on S13 he is making 350bhp at 1.5bar
I would go with different turbo there
Thanks,Jura
#4
Really!?
It was apparently making 380hp at 1 bar on a 2.5 engine.
I presumed it was simlar to a 3071 with a smaller housing hence good spool but limited to around 450max?
Here's the sale thread https://www.scoobynet.com/subaru-par...-5-engine.html
It was apparently making 380hp at 1 bar on a 2.5 engine.
I presumed it was simlar to a 3071 with a smaller housing hence good spool but limited to around 450max?
Here's the sale thread https://www.scoobynet.com/subaru-par...-5-engine.html
#6
Scooby Regular
iTrader: (7)
Really!?
It was apparently making 380hp at 1 bar on a 2.5 engine.
I presumed it was simlar to a 3071 with a smaller housing hence good spool but limited to around 450max?
Here's the sale thread https://www.scoobynet.com/subaru-par...-5-engine.html
It was apparently making 380hp at 1 bar on a 2.5 engine.
I presumed it was simlar to a 3071 with a smaller housing hence good spool but limited to around 450max?
Here's the sale thread https://www.scoobynet.com/subaru-par...-5-engine.html

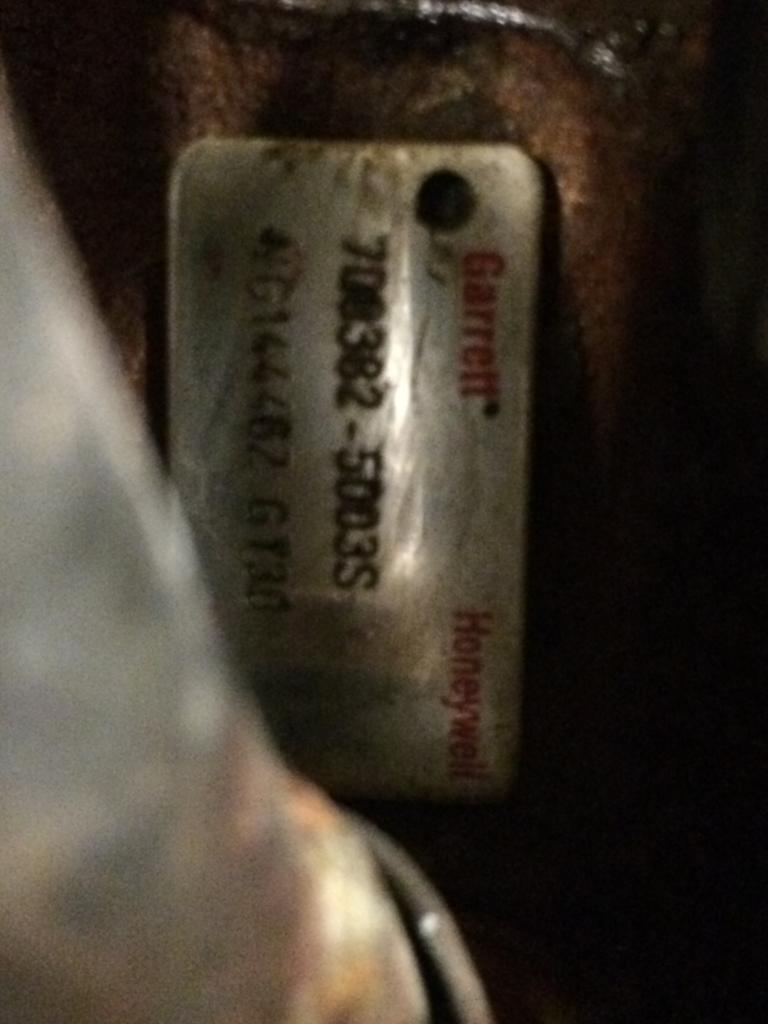

When you look on the part number 700382-5003S,this part number pointing to the GT3071R and those turbo are pretty well suited on 2.0L or 2.1L or 2.5L
Power wise,not sure,but all SC42 onward using Garrett GT3071 core same core using too MDX range,only compressor or turbine wheel is different
I would suspect will make 450bhp with right boost,but what is right boost hard to tell
Thanks,Jura
#7
When you are said its M24 which are pretty common eBay turbos,but this link which you are included now its different story,because is genuine GT30
When you look on the part number 700382-5003S,this part number pointing to the GT3071R and those turbo are pretty well suited on 2.0L or 2.1L or 2.5L
Power wise,not sure,but all SC42 onward using Garrett GT3071 core same core using too MDX range,only compressor or turbine wheel is different
I would suspect will make 450bhp with right boost,but what is right boost hard to tell
Thanks,Jura
When you look on the part number 700382-5003S,this part number pointing to the GT3071R and those turbo are pretty well suited on 2.0L or 2.1L or 2.5L
Power wise,not sure,but all SC42 onward using Garrett GT3071 core same core using too MDX range,only compressor or turbine wheel is different
I would suspect will make 450bhp with right boost,but what is right boost hard to tell
Thanks,Jura
Is it a .60 housing then as apprised to .76? Better spool then but with less peak power? As I know the 76 wheel give a tad over 500hp
Trending Topics
#8
Scooby Regular
iTrader: (7)
Ah perfect Jura, was just quoting the numbers given, didn't know the other numbers meant anything, so yes it is the 3071 then as I thought.
Is it a .60 housing then as apprised to .76? Better spool then but with less peak power? As I know the 76 wheel give a tad over 500hp
Is it a .60 housing then as apprised to .76? Better spool then but with less peak power? As I know the 76 wheel give a tad over 500hp

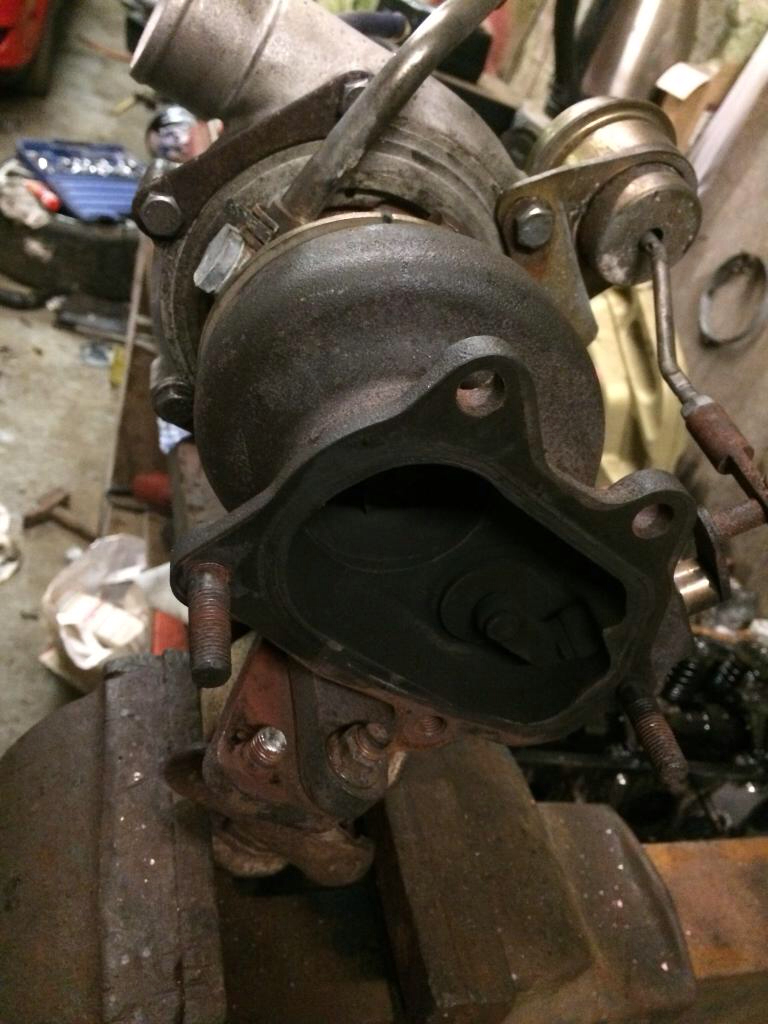

Yes that's correct,but in yours case,this turbo doesn't use 4 bolt T3/T4 housing and using standard Subaru housing(usually all companies using VF arnge exhaust housing,I think only Blouch/ScoobyClinic using their own) which will dictate spool up,bigger exhaust housing means as usually will spool slower and smaller exhaust housing will help sooner,but not will make power as with bigger housing
Thanks,Jura
#12
Scooby Regular
iTrader: (7)
Exhaust housing is more important than intake I would say,if housing is too big can cause lag
Hope this helps there
Thanks,Jura
#13
This 60 A/R means is 60 trim turbo,most of the standard location GT30 using 60 A/R like is MDX321 series or ScoobyClinic and many other companies
Exhaust housing is more important than intake I would say,if housing is too big can cause lag
Hope this helps there
Thanks,Jura
Exhaust housing is more important than intake I would say,if housing is too big can cause lag
Hope this helps there
Thanks,Jura
Is there any way to find out the housing size so I know the spool charaistics as the seller doesn't know much?
#14
Scooby Regular
iTrader: (7)
Really depends what housing is used if its used VF/TD range then should be number cast into the housing on the scroll on the back like 070 = 7cm2, 080 = 8cm2
Please have look on this thread
http://forums.nasioc.com/forums/show....php?t=1692611
On 2.0L engine I would go with 7cm housing
What turbo is this? Or where this seller bought the turbo?
Thanks,Jura
