veerinder9

iTrader: (1)

Just after somr advice. Ive gone for a rotated gt30. I have a fmic off my old setup which obv wont fit but I will be using tbe same fmic with pipework. Noe I just wanted to know is how can I bend the pipework. What can I use. Or is there any specialist places who can bend the pipework for me on the cheap dont want to be paying silly money. Any advice is appreciated. Thanks

stonejedi

iTrader: (51)

Bend!!!you will need new pipe work made up mate.SJ.

veerinder9

iTrader: (1)

Oh lol ok erm so do where do I go to get it done from?

stonejedi

iTrader: (51)

Or chopped up with adequate hosing to link the pieces but my first statement above is the way to go.SJ.

veerinder9

iTrader: (1)

Would chopping it and welding bends be any good? Or just best to get a whole piece made. Its only from the turbo to the wing side. The rest will stay the same as im not going reverse Inlet

stonejedi

iTrader: (51)

Hayward and Scott can do it for you but so can must fabricators,mandrel bending is nice well made pipes with welded pieces once done right looks nice if your running standard position inlet manifold should be easier and maybe you could recycle your existing pipe work.SJ.

stonejedi

iTrader: (51)

The only thing that you have to decide is where you want the pipe routed,over the rotated turbo set up or under both give different looks in your engine bay,and where to route your filter and header tank will most proberly need repositioning,quite a few things to think about really.SJ.

gussy

iTrader: (2)

Try ASH (auto silicon hoses) for your alloy intercooler pipework they do different sizes and bends mark them up and cut them to suit your application then take them to your local fab shop and they can weld them up for you,similar to this

gazney101

iTrader: (5)

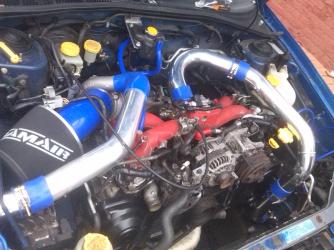

Heres mine








I bought the 45degree piece from ebay and everything else is japspeed, im running no dumpvalve and speed density conversion.
I had some issues with the pipework rubbing on the bonnet but a little trimming and adjustment and its all good

banny sti

iTrader: (68)

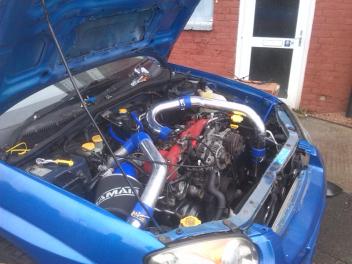

On the cheap with reused pipework

veerinder9

iTrader: (1)

Hmm cheers lads. Im thinking like bannys. Looks easier. Obv going parallel so I can route the pipe underneath the inlet and leave my header tank where it is. Saves me shifting things about
