Old 14 August 2015, 08:48 PM
  #211
JGlanzaV
Scooby Regular
iTrader: (3)

Join Date: May 2009
Posts: 5,021
Default

Everyone likes big deliveries of shiny bits!
JGlanzaV is offline
Old 17 August 2015, 06:31 PM
  #212
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

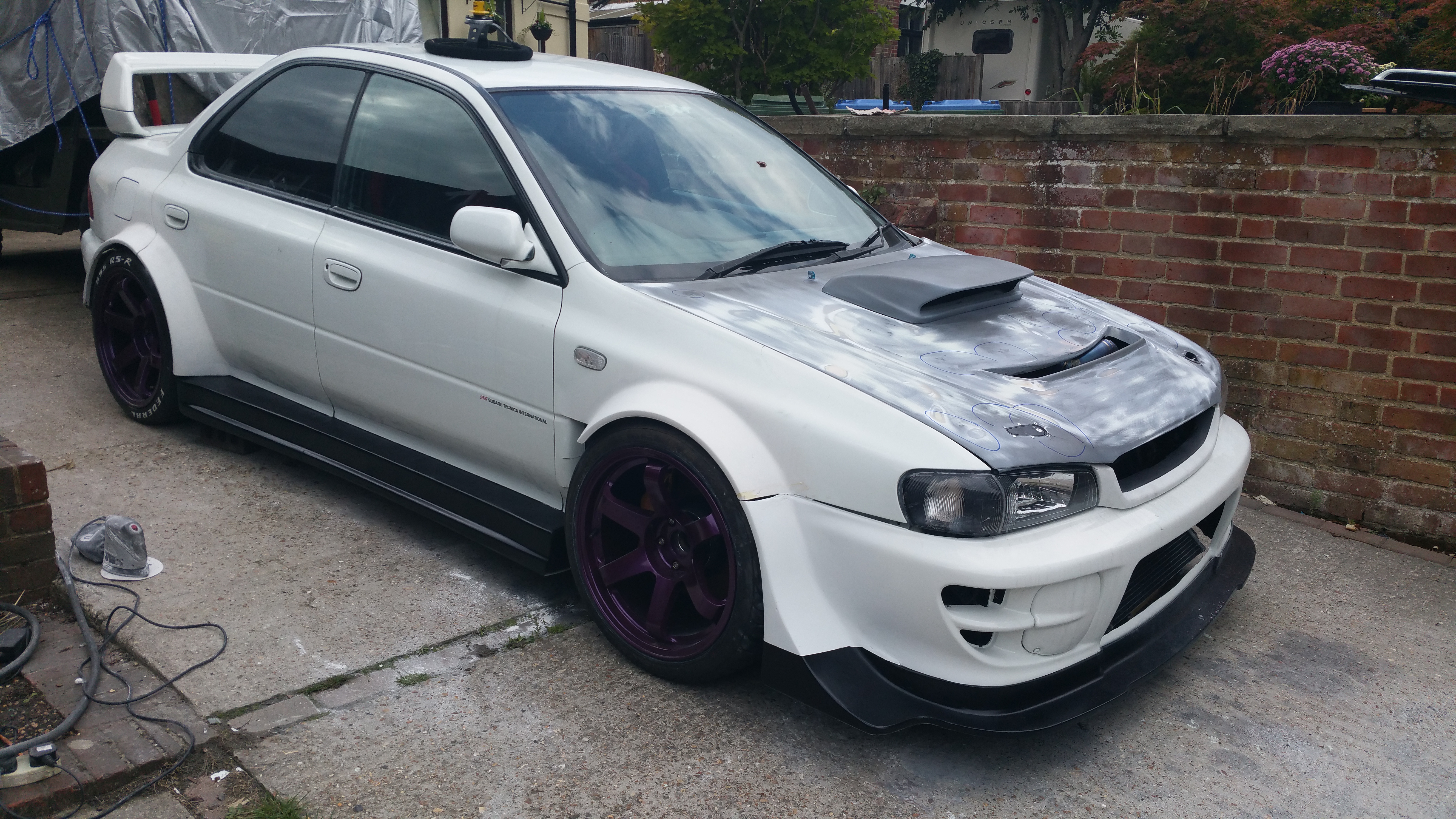

Bearing in mind I'm still prating about with body work I have employed some dark primer in areas to get an idea of possible additional colour areas. Well not colours. Black bits so this is my thinking. Next stop is finish the bonnet and then paint it for the final time.

Name:  20150816_122058_zpsrelqe4cr.jpg
Views: 0
Size:  5.95 MB

Last edited by seventune; 17 August 2015 at 07:03 PM.
seventune is offline
Old 22 October 2015, 04:41 PM
  #213
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

Very little time to do anything on this since the last post. I've done a bit more of the body but not a lot. Will try to get back on her in the next few weeks and get the old girl running..... front end ready for paint though....

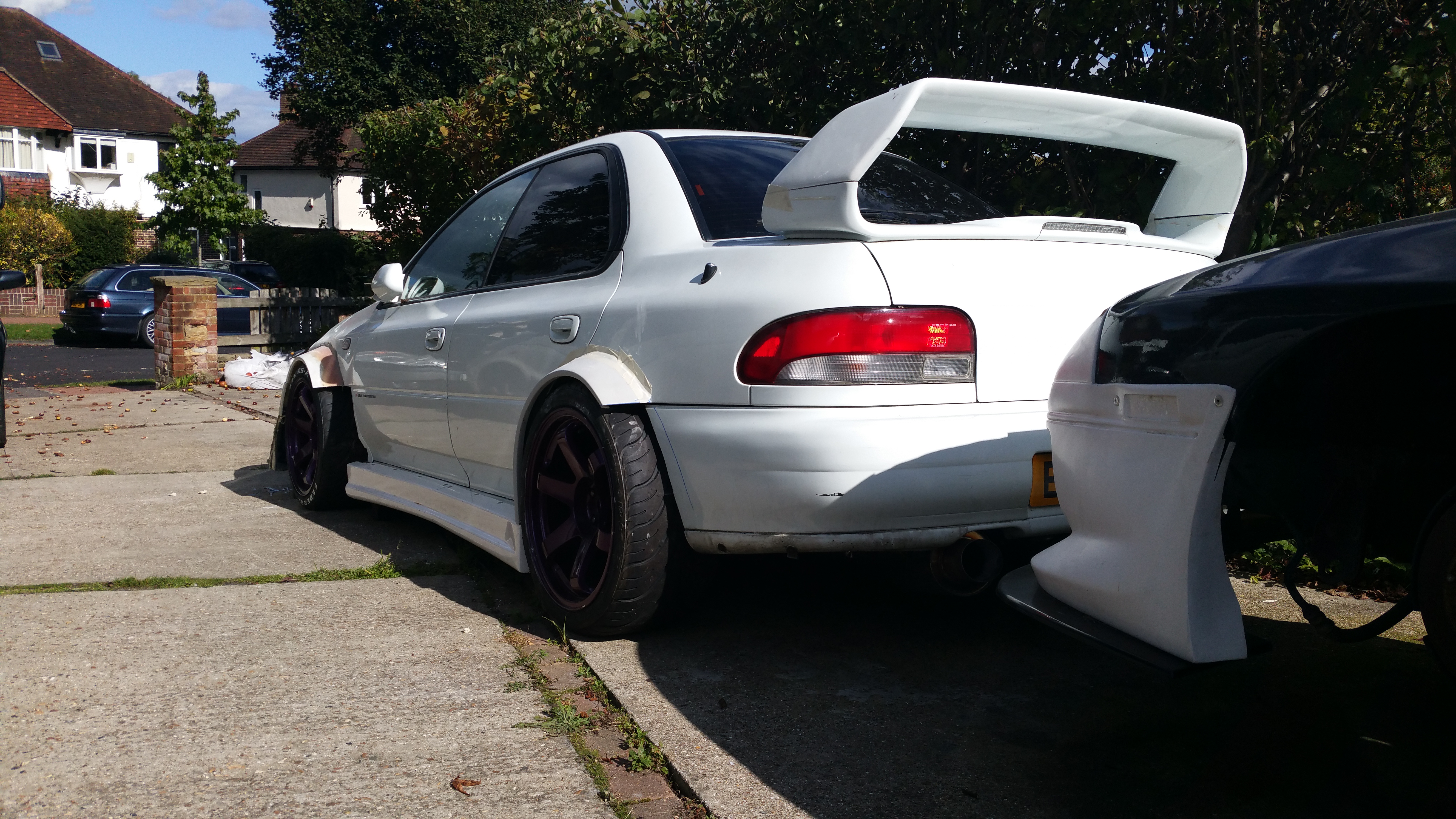

With the passenger arches all mocked on with skirts:


Name:  20150925_133721_zpspxknol8j.jpg
Views: 0
Size:  5.42 MB

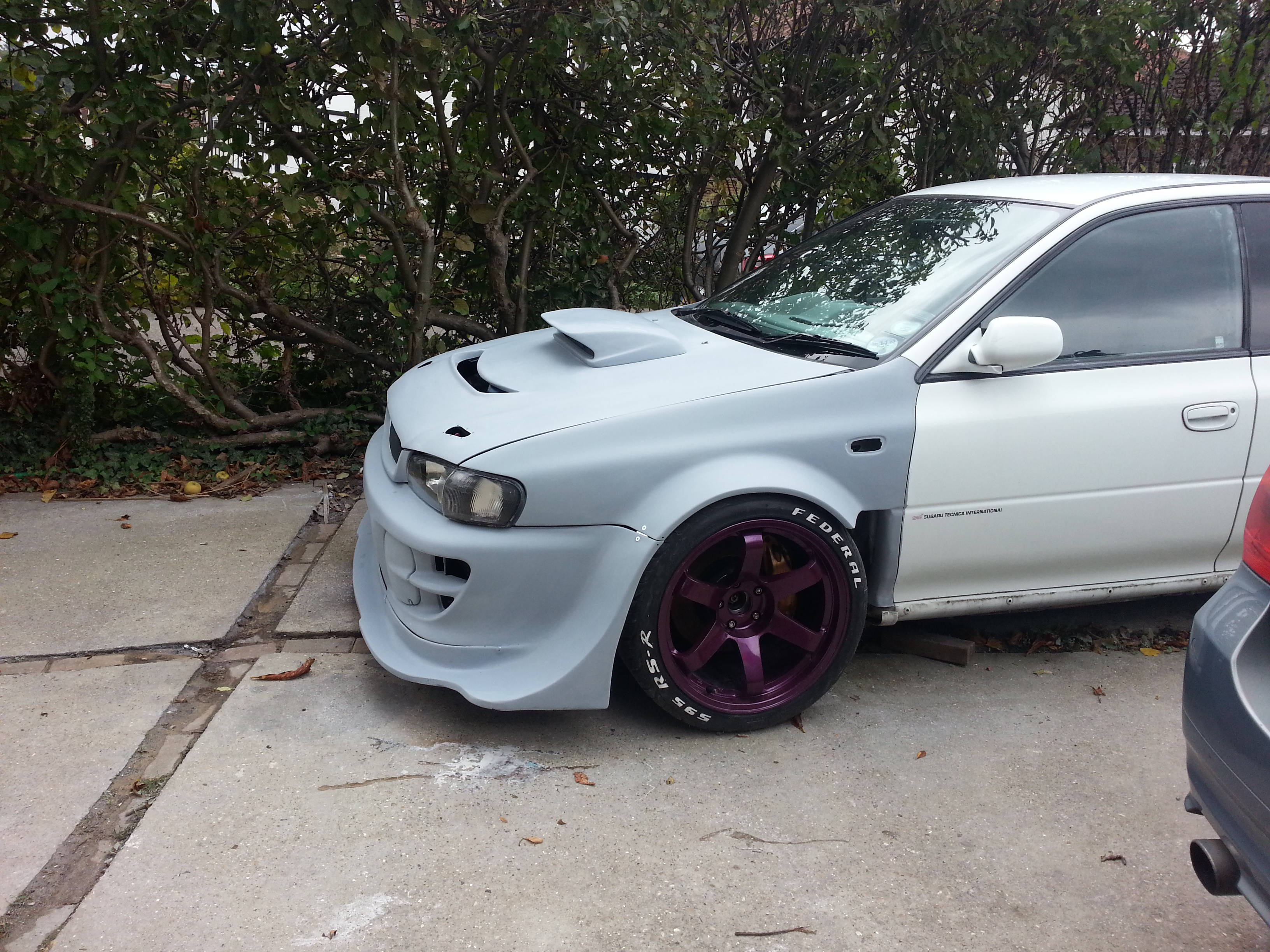

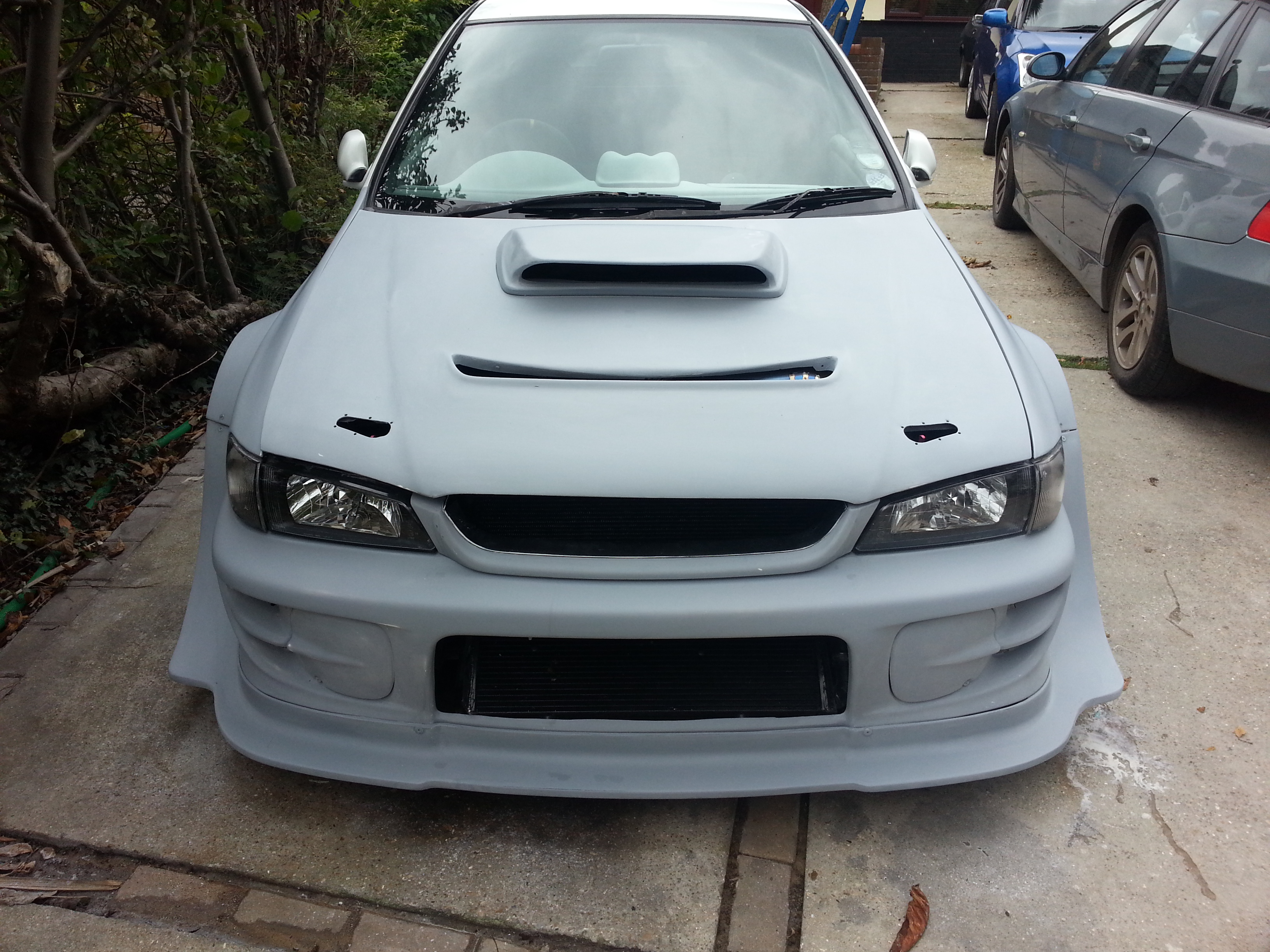

The we have the front end. Finally all in Primer ready for paint. Skirts are all finished now too but not on in the pics!


Name:  20151016_113702_zpskstri2xt.jpg
Views: 0
Size:  3.05 MB

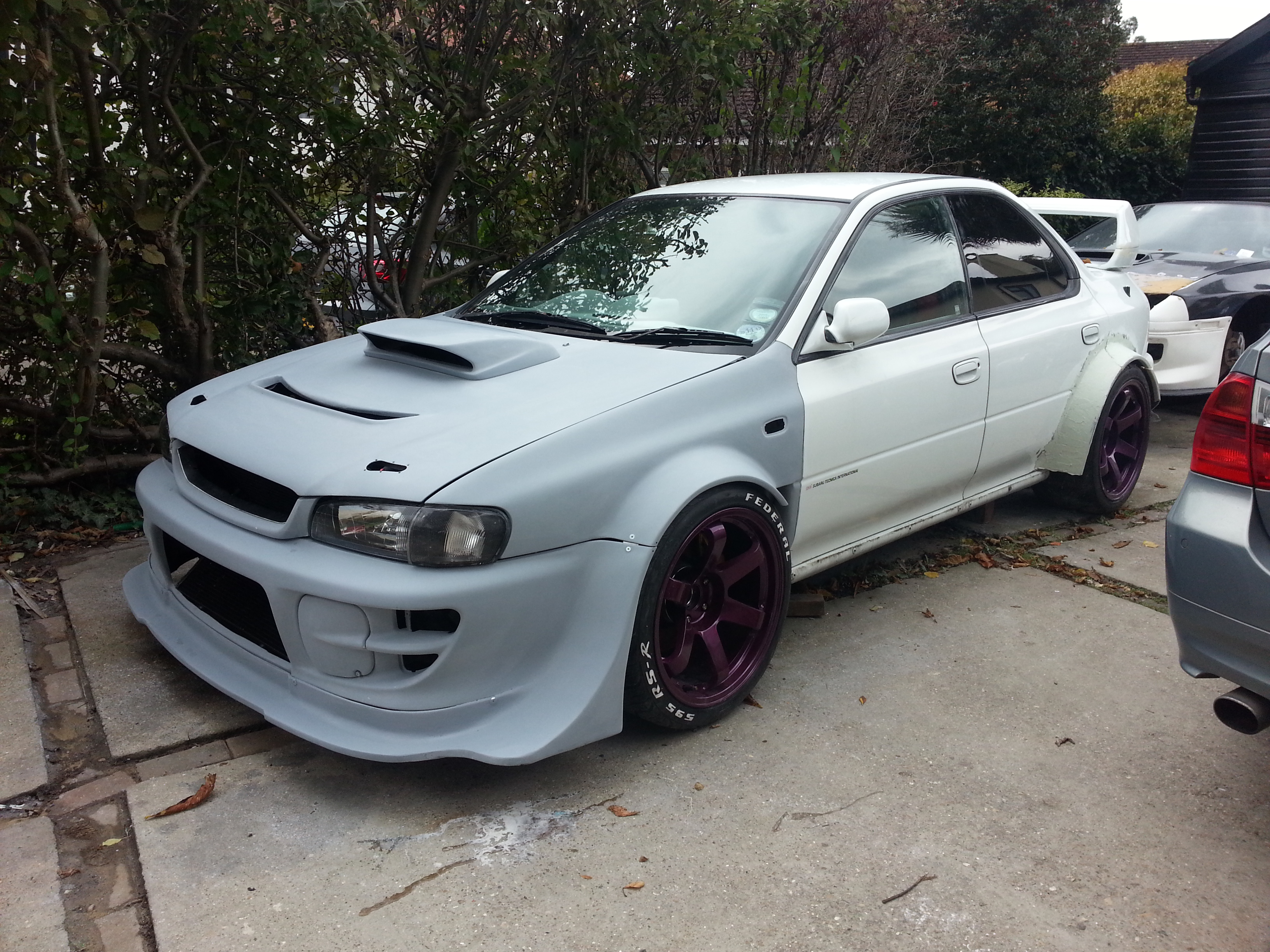

Name:  20151016_113655_zpsffr95qob.jpg
Views: 0
Size:  2.88 MB


Name:  20151016_113719_zpstesqwrgk.jpg
Views: 0
Size:  2.45 MB


I will be adding some carnards/winglets to the front end but i'm but going through a few ideas to make sure it keeps in with the styling so they don't appear just thrown on as such. Nearly there then onto interior and wiring

Last edited by seventune; 22 October 2015 at 04:54 PM.
seventune is offline
Old 22 October 2015, 05:02 PM
  #214
stonejedi
Scooby Regular
iTrader: (51)

stonejedi's Avatar

Join Date: Jan 2008
Posts: 6,986
Default

It's coming along well mateSJ.
stonejedi is offline
Old 03 August 2016, 01:23 PM
  #215
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

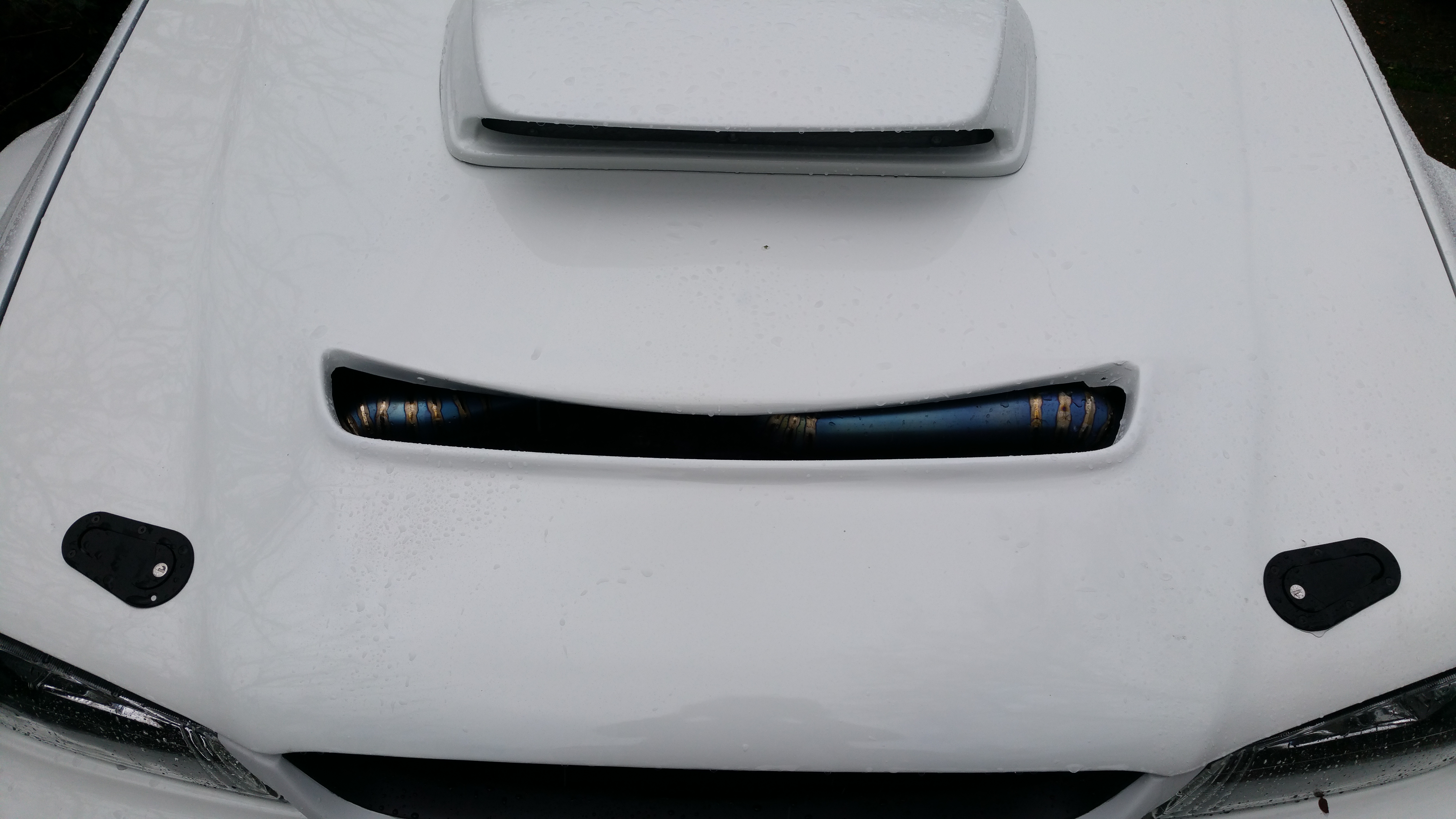

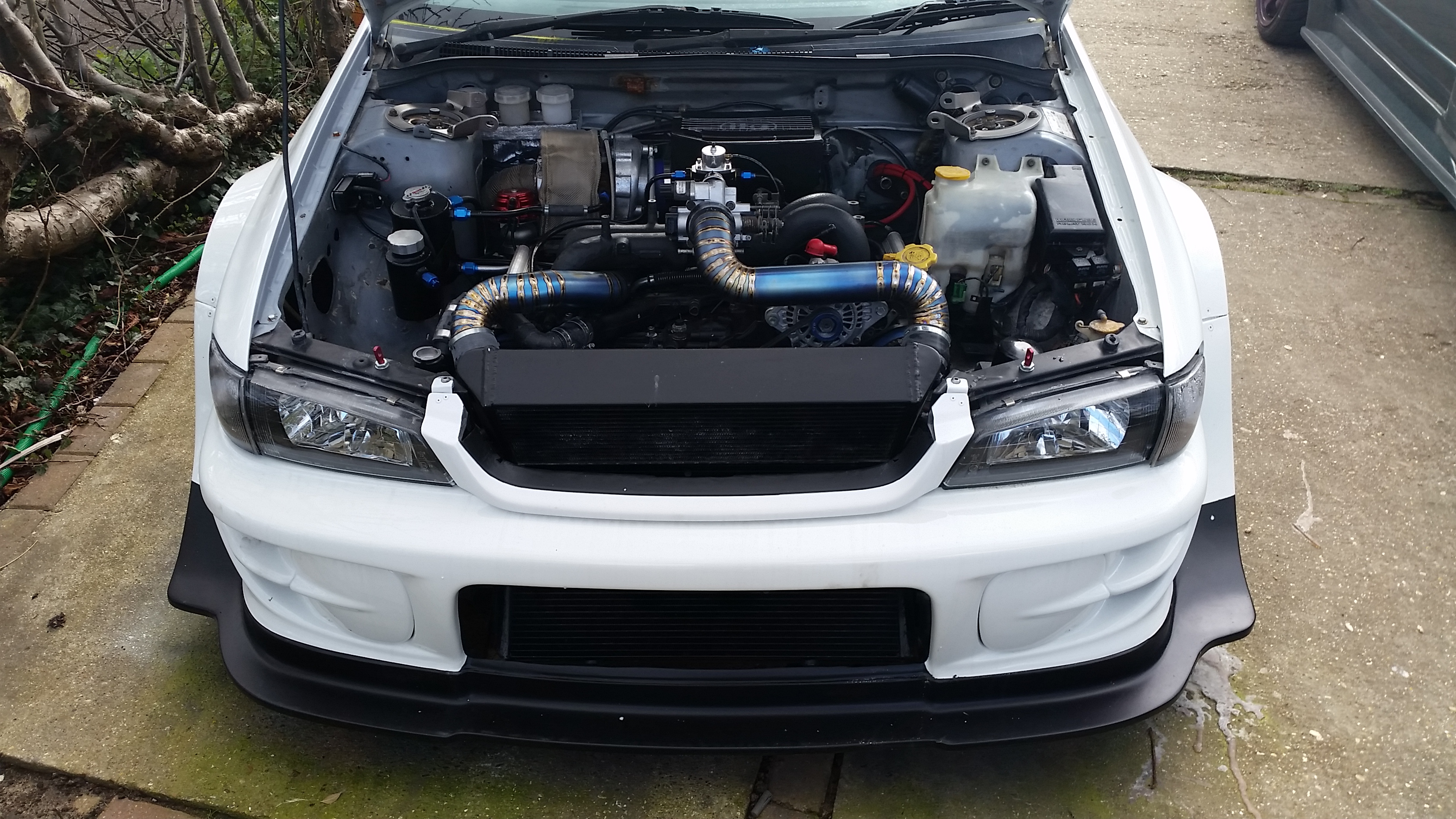

Its been a while since I have updated this thread..... The beast is still going though not running yet unfortunately.... Due to a ton of personal stuff since last August I just haven't had a chance to get anything done on the car.... well nothing significant anyway.... I have all the wiring components now so will get on with that soon.... there are a few other things to address first.... first of which was that I nearly fogot what it actually looked like under here

Name:  20151227_122631_zps8uiigksg.jpg
Views: 0
Size:  3.80 MB

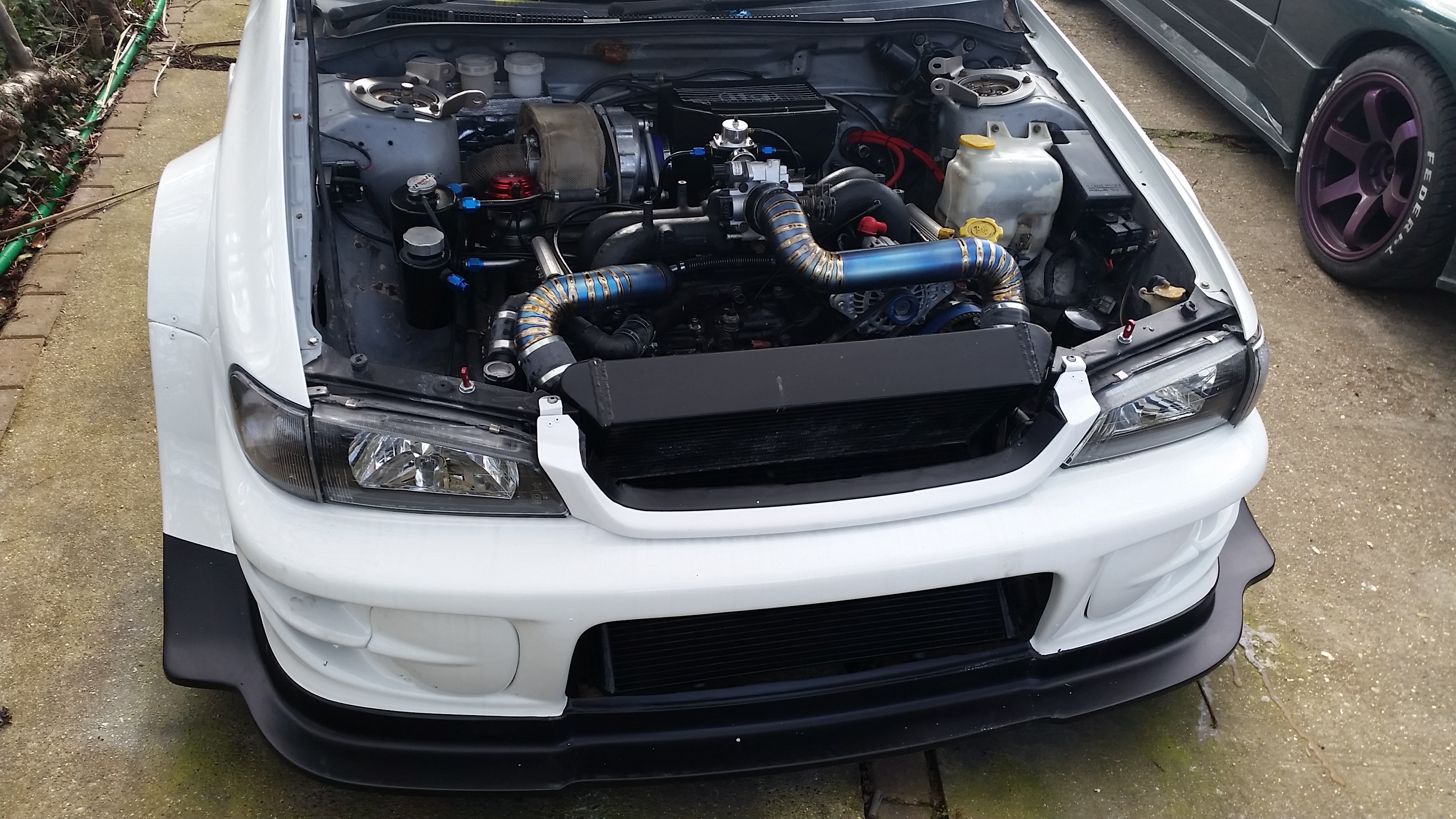

Name:  20160307_134648_zpsuxhjxqyy.jpg
Views: 0
Size:  2.12 MB

Name:  20160307_134703_zpsfjzwyjnb.jpg
Views: 0
Size:  2.05 MB

Now while the car has been sitting.... it became very apparent just how much water gets into the air box. Whilst for a race car this, I belive, is still a very good set up. On the road in this country with our weather.... its just not practical.... Air box fills up, there was water in the compressor cover... and not a small amount.... So I will be moving the turbo position. Still across the back of the engine bay but rotated through 180 degrees to face the other way. The air box will now be located in the more conventional position on the drivers side of the engine bay. A couple of advantages to this new position. The airbox isn't over the one biggest heat source, the engine. There is now a lot more room to run two wastegates as opposed to the one big one which offers mild benefits over the one big single one in terms of boost control. The down pipe will now run over the gearbox and down the passenger side of the engine bay. Currently the down pipe comes off the turbo and goes into an immediate tight 180 degree bend to get back down to meet the exhaust. Now the down pipe will come out the turn in a dear straight line for about 24" before dropping down to meet the system vastly improving flow... So that is in the process before I wire the car...

The electric power steering pump is being ditched as that will be going on my GTR so stock pump will go back on. This was originally removed to make way for the intercooler pipe work which is now being rerouted due to new turbo position...

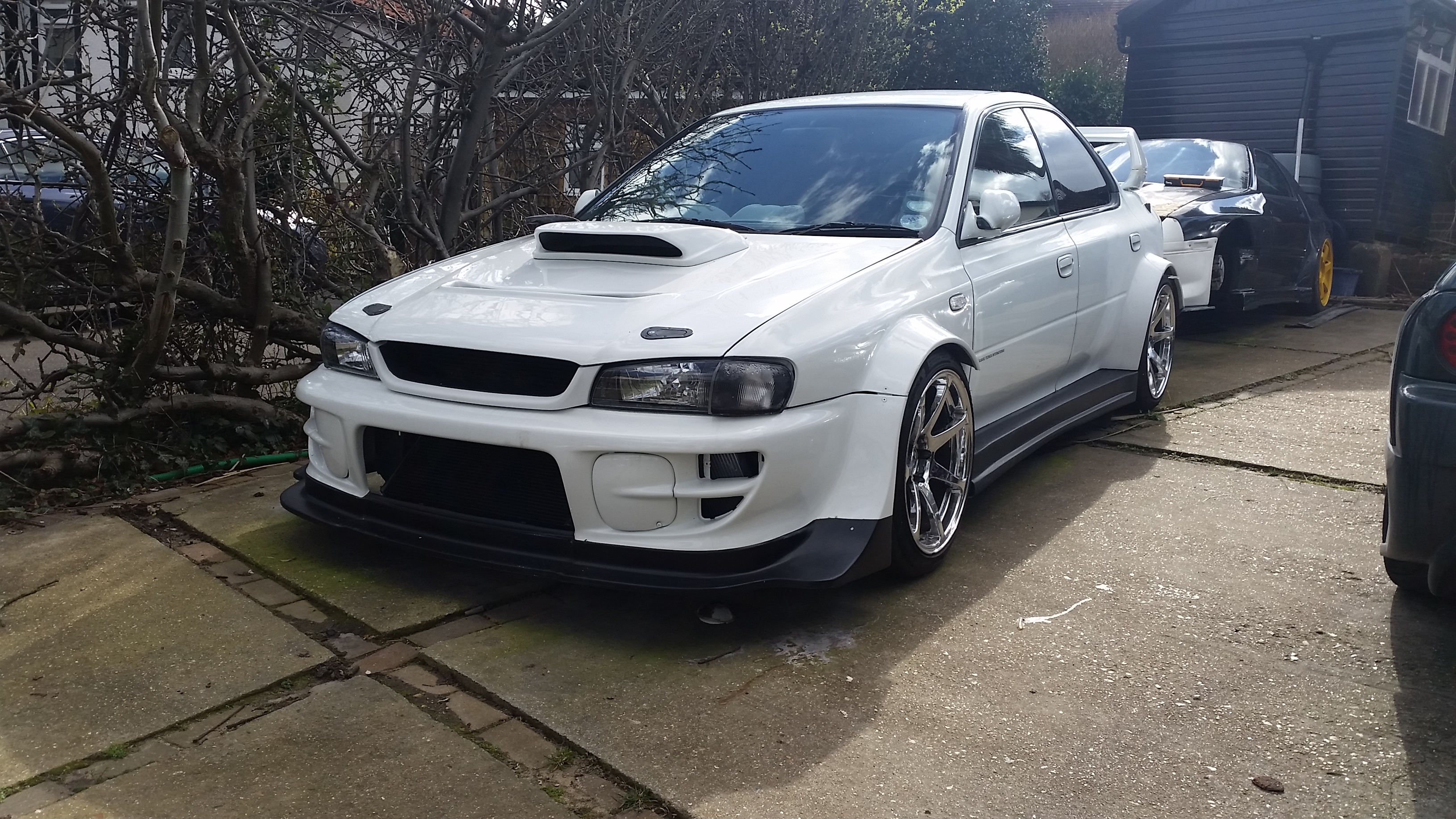

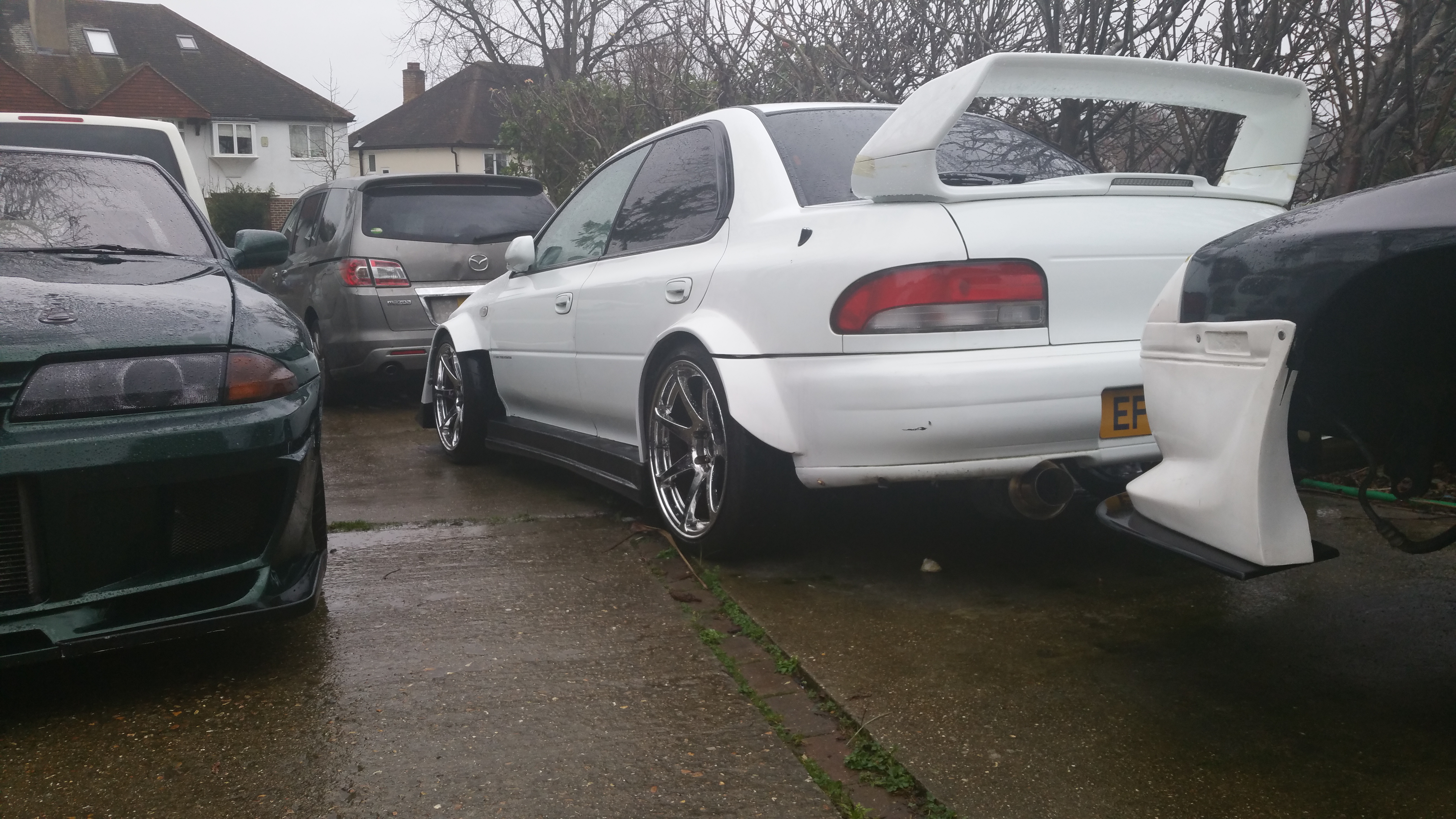

Given this is becoming a more focused car there has also been a wheel change. They are currently a rather vial chrome but they will be going off to be stripped so I can repaint them.... may keep the purple colour I had on the Rotas but I tempted to go with a real bright red instead.... will see how we go They are still 18X10 I would suggest they are an ET20 as the sit a few mill further in the arch than the rotas but not by much... They also need new rubber as they currently have "stretched" tyres on them so some 265's need to be employed to do that job at some stage.... The reason for the change is they are a lot lighter than the Rotas and will still look pretty cool....

Name:  20160307_124622_zpsqvwbdqm0.jpg
Views: 0
Size:  2.44 MB

Name:  20151227_122416_zps6g5n2f2f.jpg
Views: 0
Size:  4.97 MB

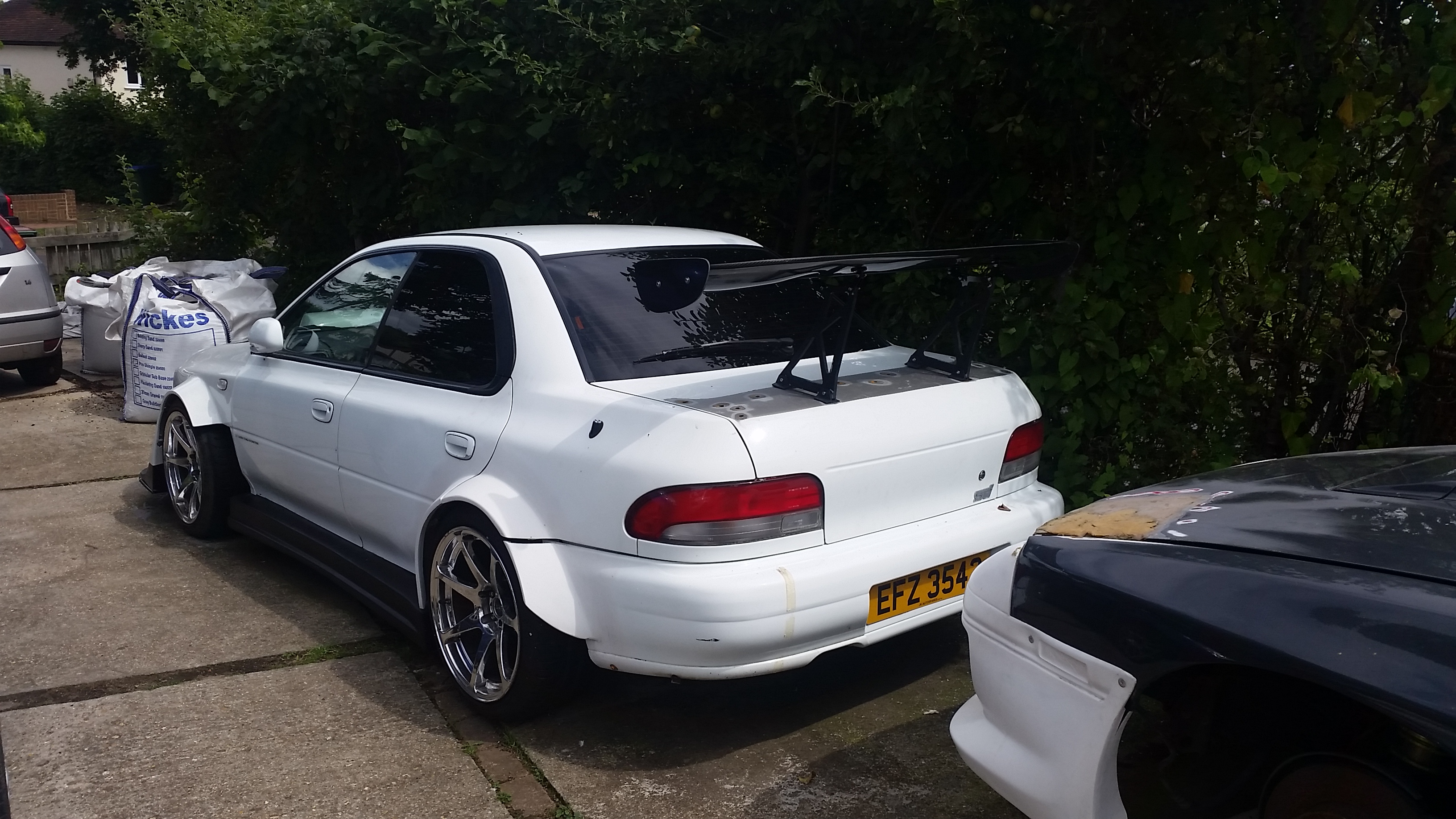

Looking forward the STI 6 wing has been ditched for a Carbon wing. Fortunately I had one laying around so that has been used get an eye in for how that will look. This one isn't quite wide enough so I will be changing this out for the wider Aerokit unit once I have the other bots sorted out which I 10" wider overall than the one fitted.... With aero in mind I have fitted a larger splitter. I also got the cardboard out and had a play with potential canard ideas so fibreglass one to follow soon once I decide what way to go...

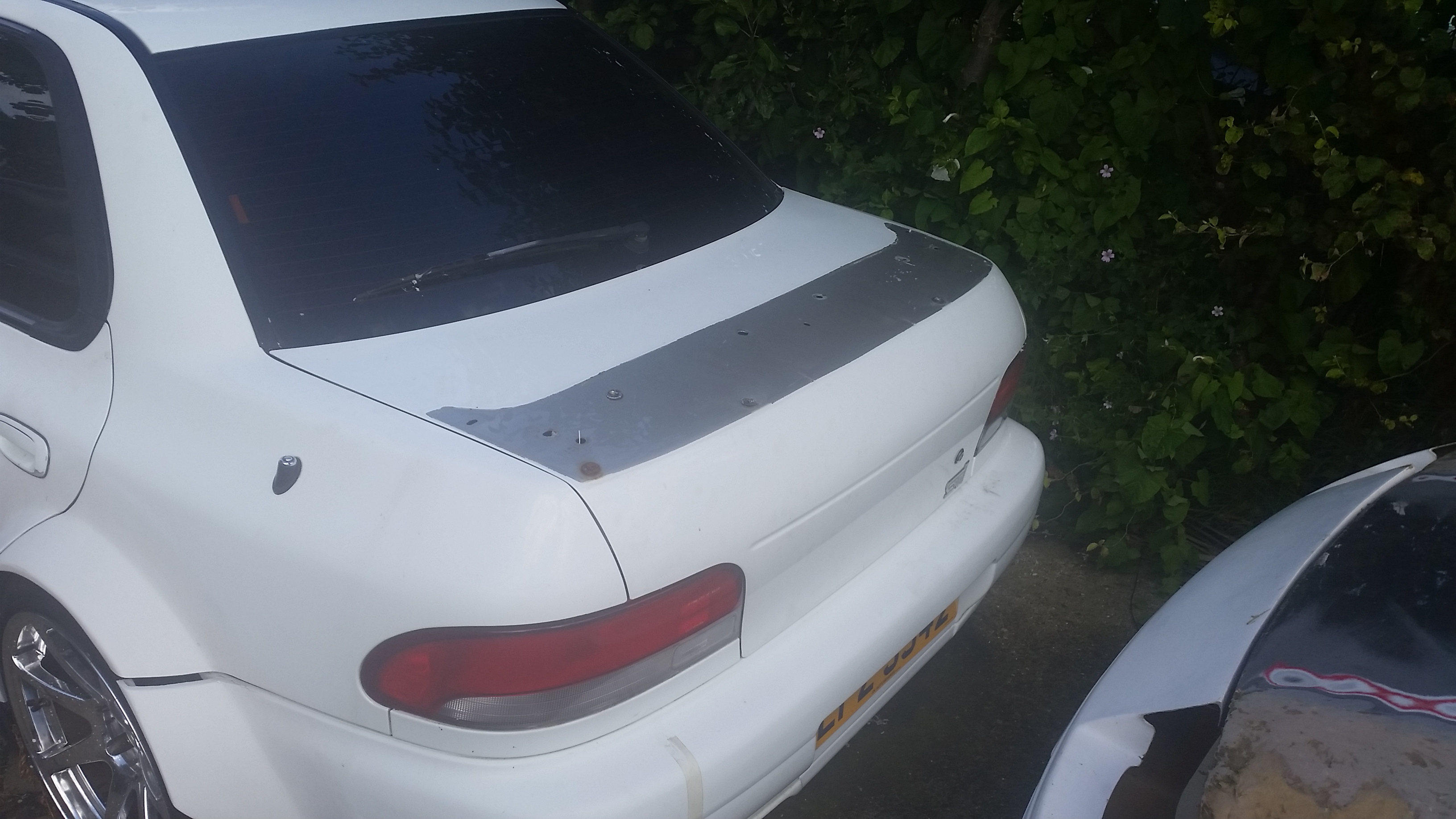

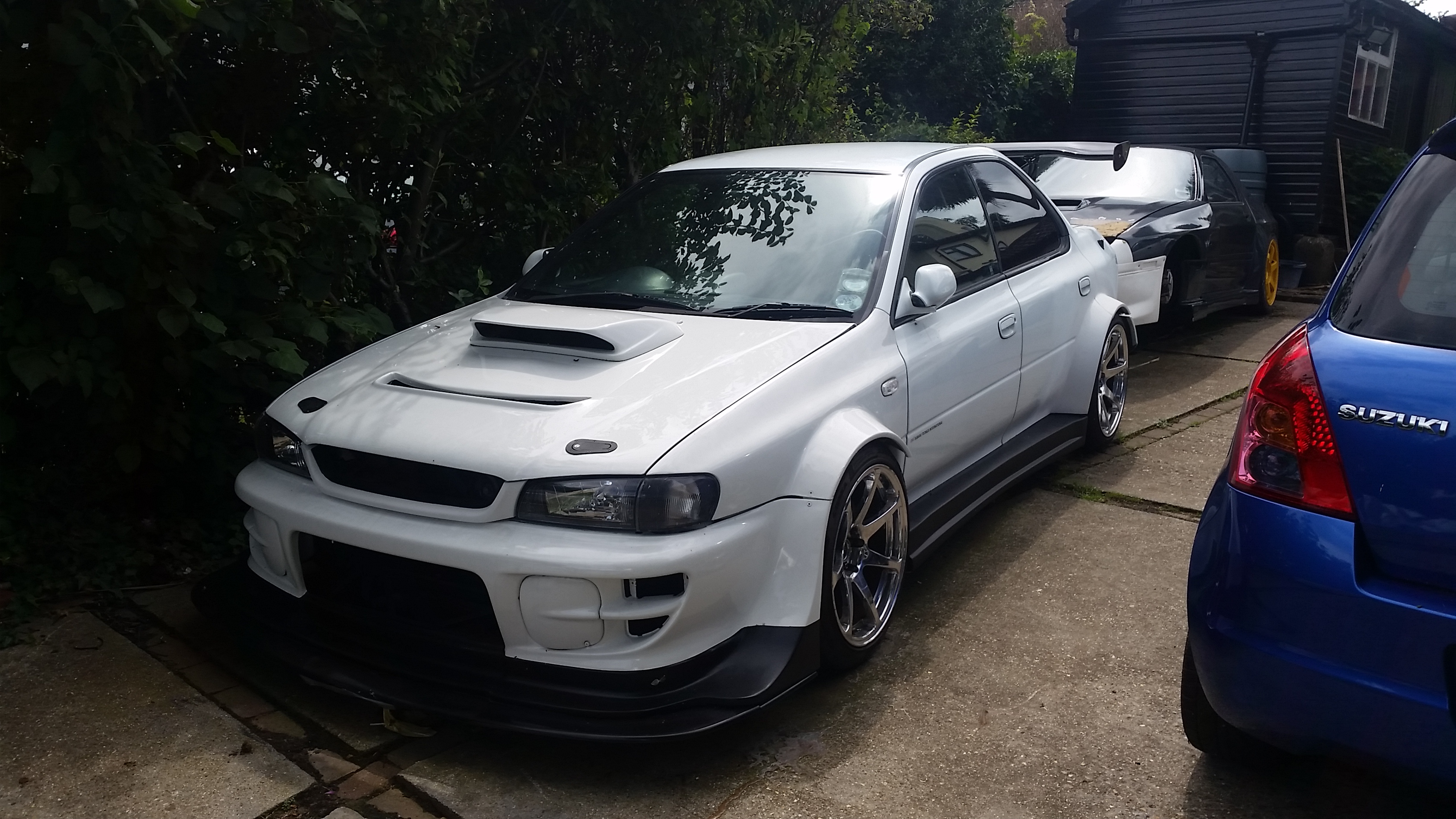

Mildly annoying:

Name:  20160705_165603_zpsgqoza1i3.jpg
Views: 0
Size:  1.36 MB

Name:  20160803_131224_zpscq8hdgld.jpg
Views: 0
Size:  1.76 MB

Name:  20160803_131204_zps9evfjssn.jpg
Views: 0
Size:  1.84 MB

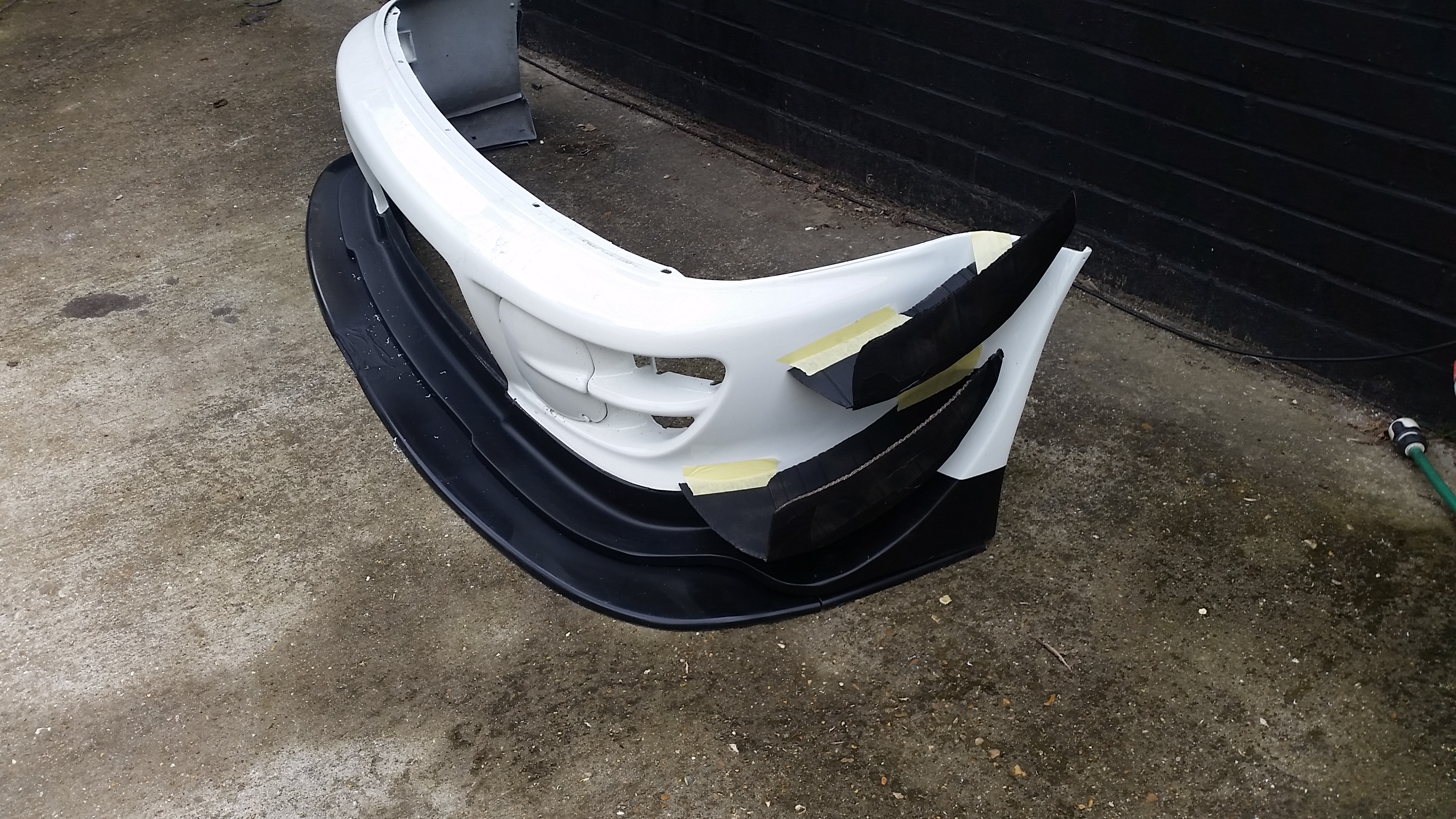

Name:  20160616_134711_zpseqbqlaip.jpg
Views: 0
Size:  2.39 MB

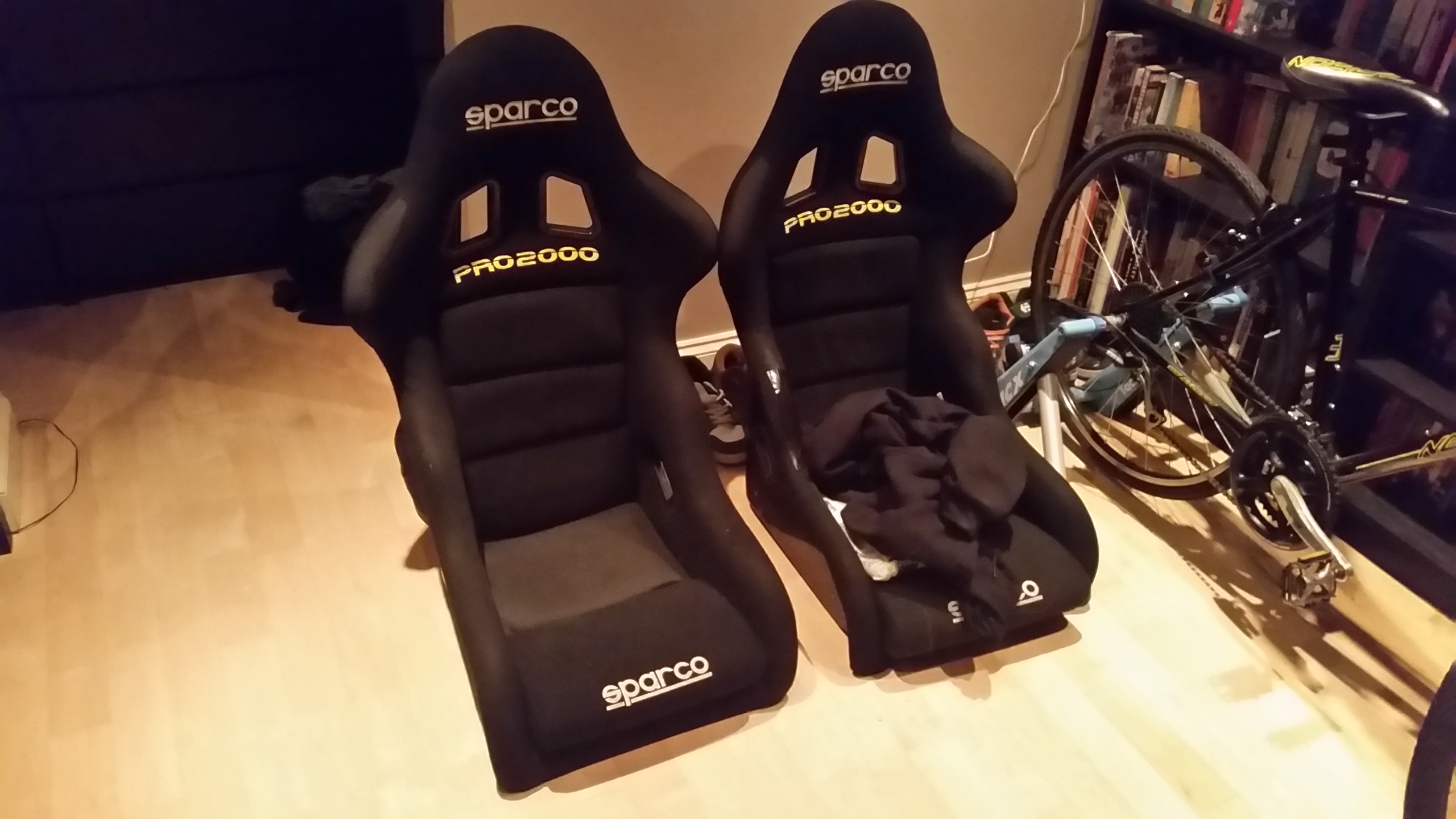

I also managed to bag a couple of Sparcos which are considerably lighter than the stock seats...

Name:  20160301_220842_zps6g7ezovs.jpg
Views: 0
Size:  1.16 MB

So really its back on it between other jobs to finally get this thing up and running get it on the road and track and have a laugh in it.... Its been 2years since the engine first popped and is long over due....
seventune is offline
Old 09 August 2016, 11:57 AM
  #216
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 1,036
Default

about time this got back underway! keep it coming mate. cant wait to see it turn a wheel in anger!
Ste333 is offline
Old 02 January 2017, 01:34 PM
  #217
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

right so not done much on this in recent weeks but I have done a few bits to start thinking about getting the aged old girl back up and running again


I think I mentioned before I wasn't totally happy with the down pipe situation being as tight as it turned out to be so in an effort to aid the issue I dismantled the manifold, ordered a few new bits and turned the turbo through 180 degrees to get a far better exit on the exhaust....

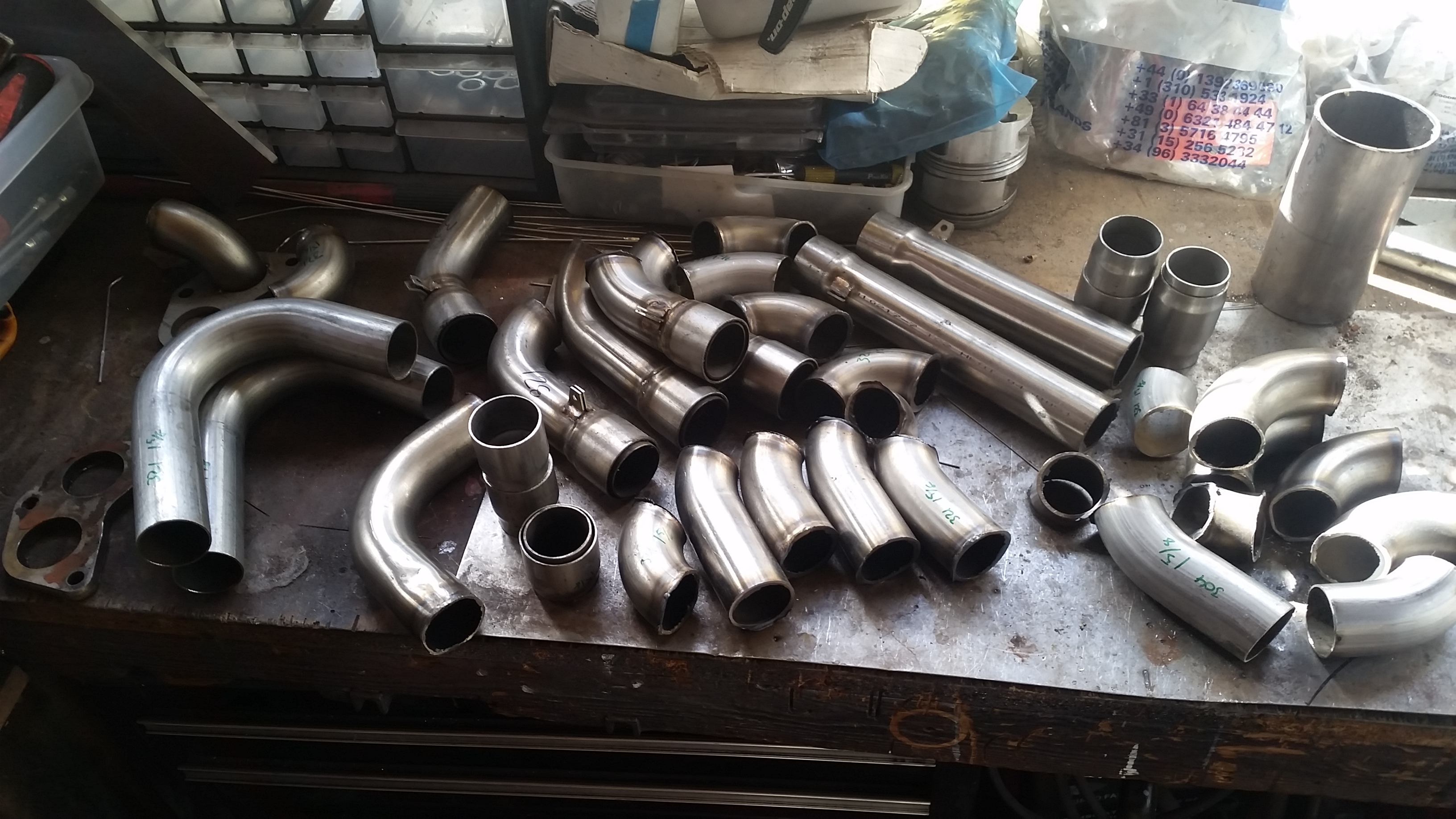

Old manifold chopped ready for trimming and clean up plus a few extra bits. Again all in 321 stainless, there are a couple of 304 bits in there that were from the old MVR single wastegate outlet, these were removed due to the new twin MVS set up.......


Name:  20160930_113055_zps6gyrki1l.jpg
Views: 0
Size:  1.65 MB

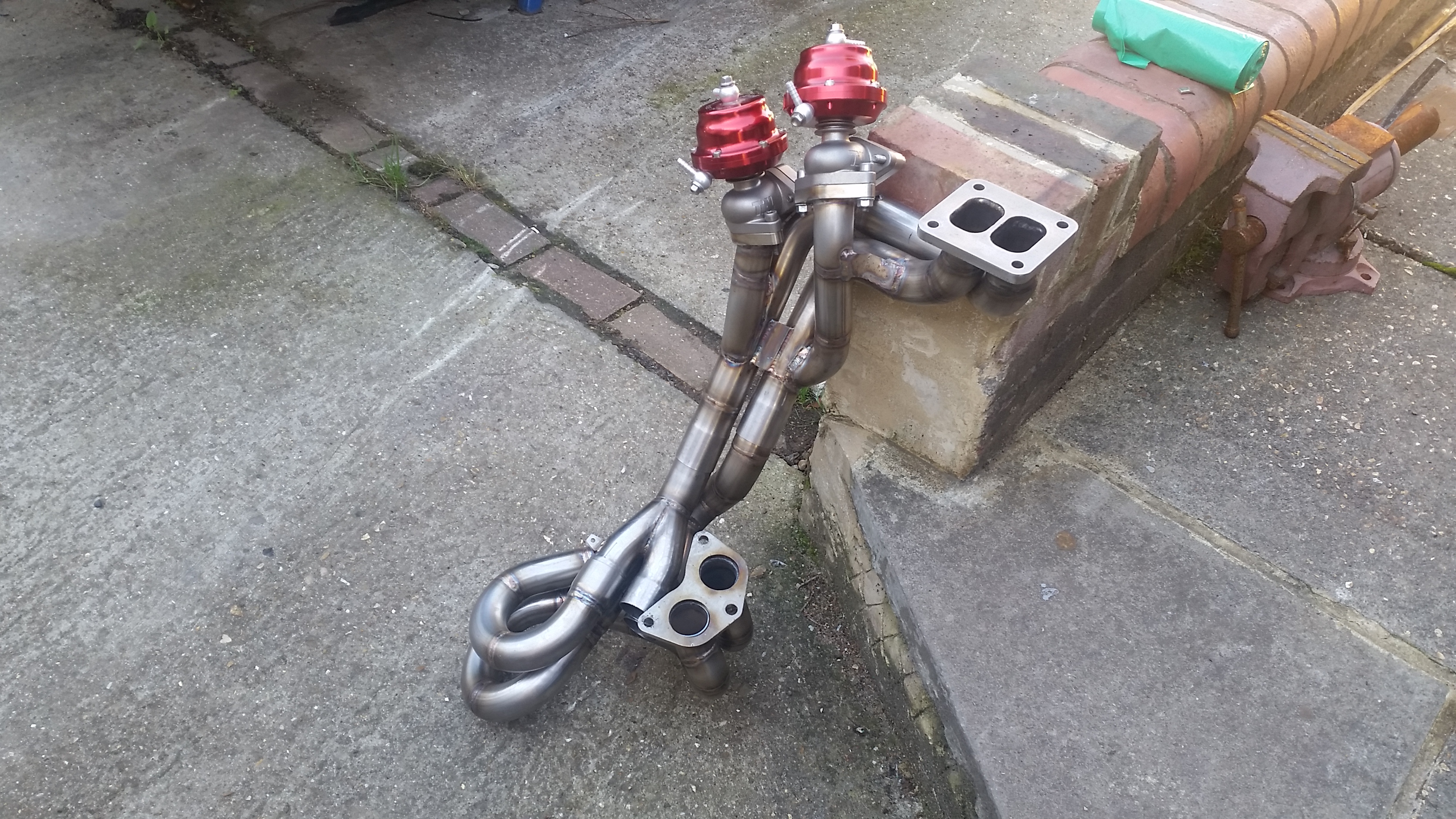

New up pipes with the twin MVS units...


Name:  20161003_143215_zpsazycbekl.jpg
Views: 0
Size:  2.45 MB

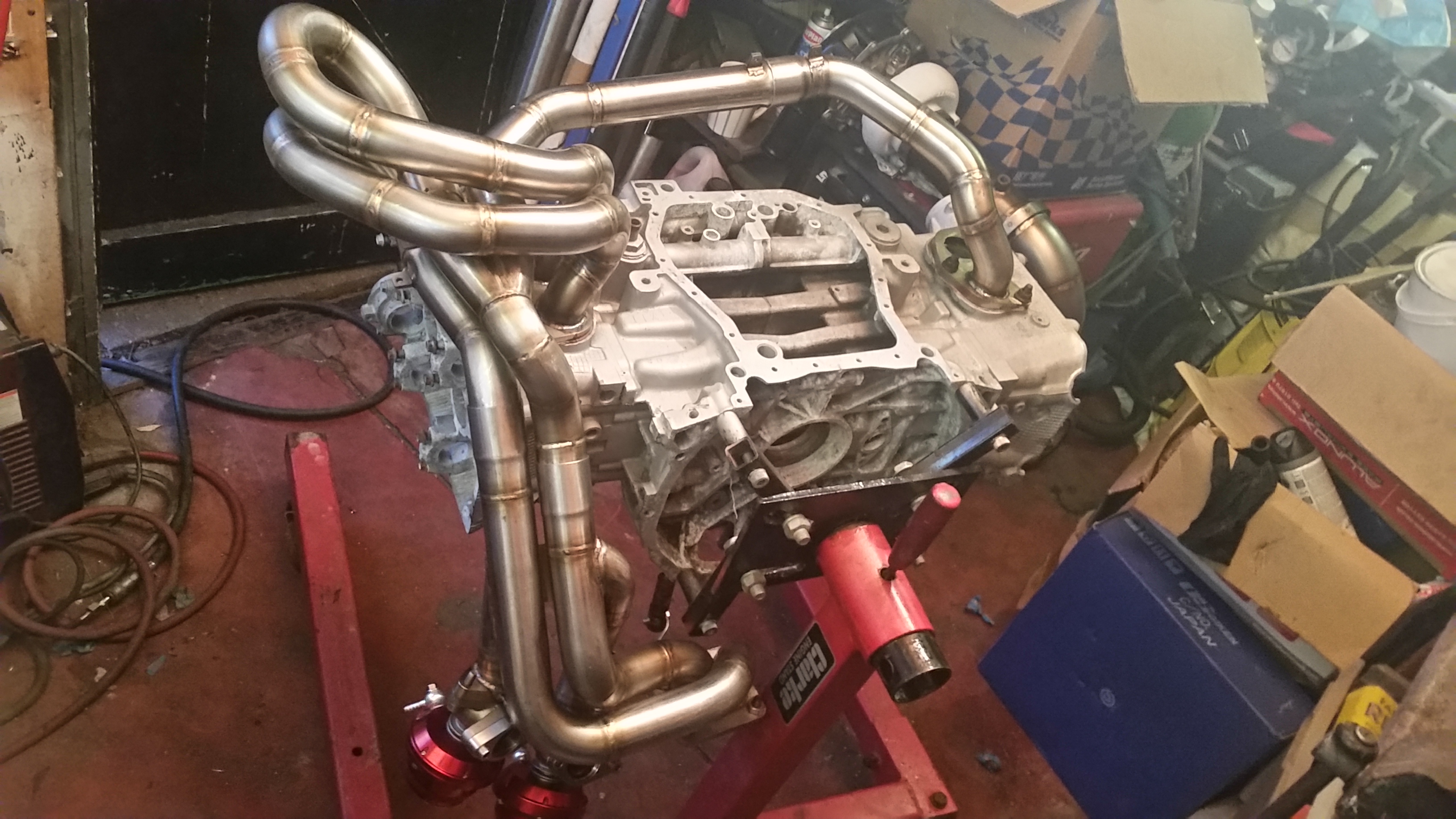

and the rest of the revised header on the dumby block in the shed .....


Name:  20161003_183753_zpsxsz7rbjg.jpg
Views: 0
Size:  1.54 MB

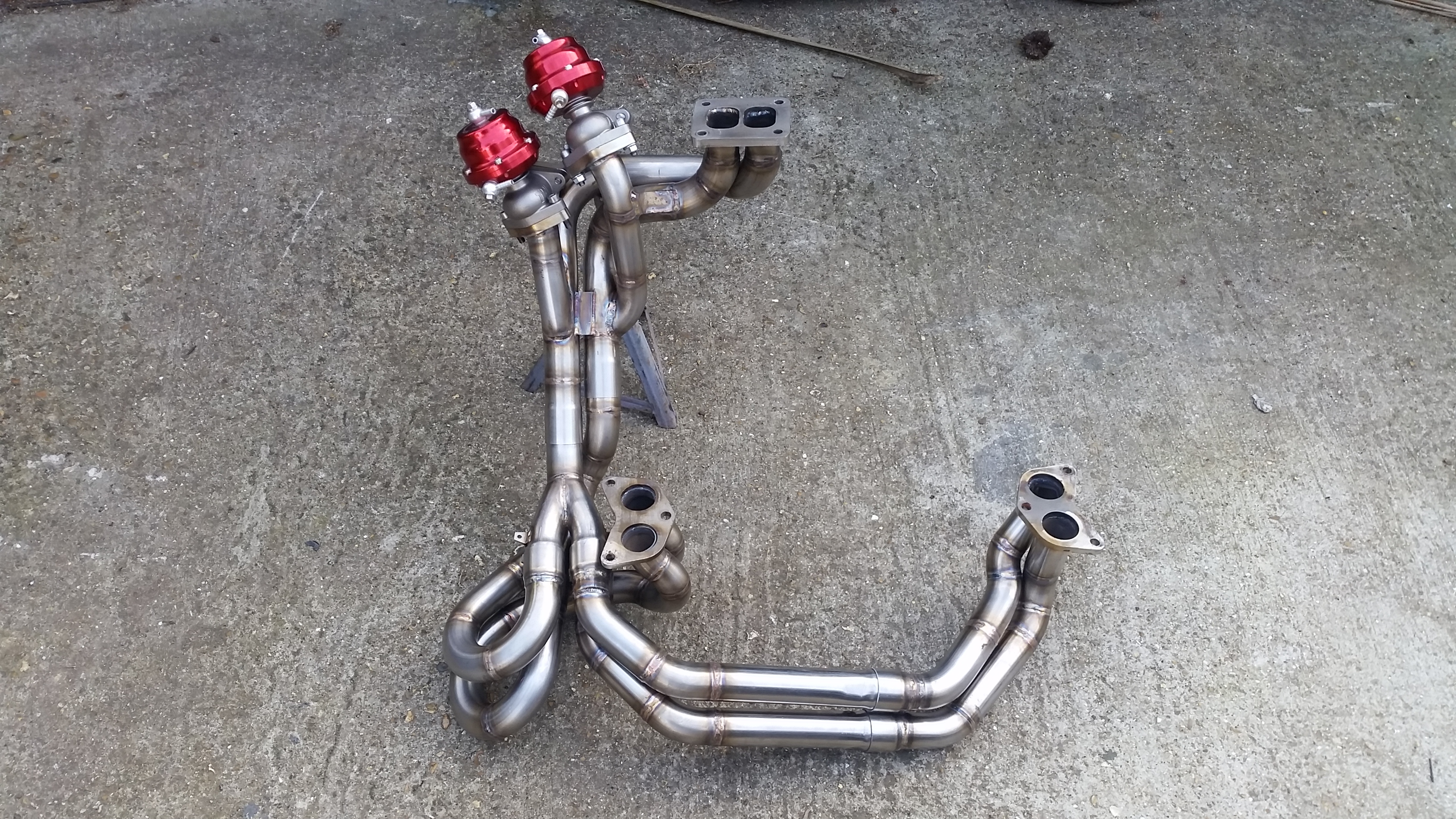

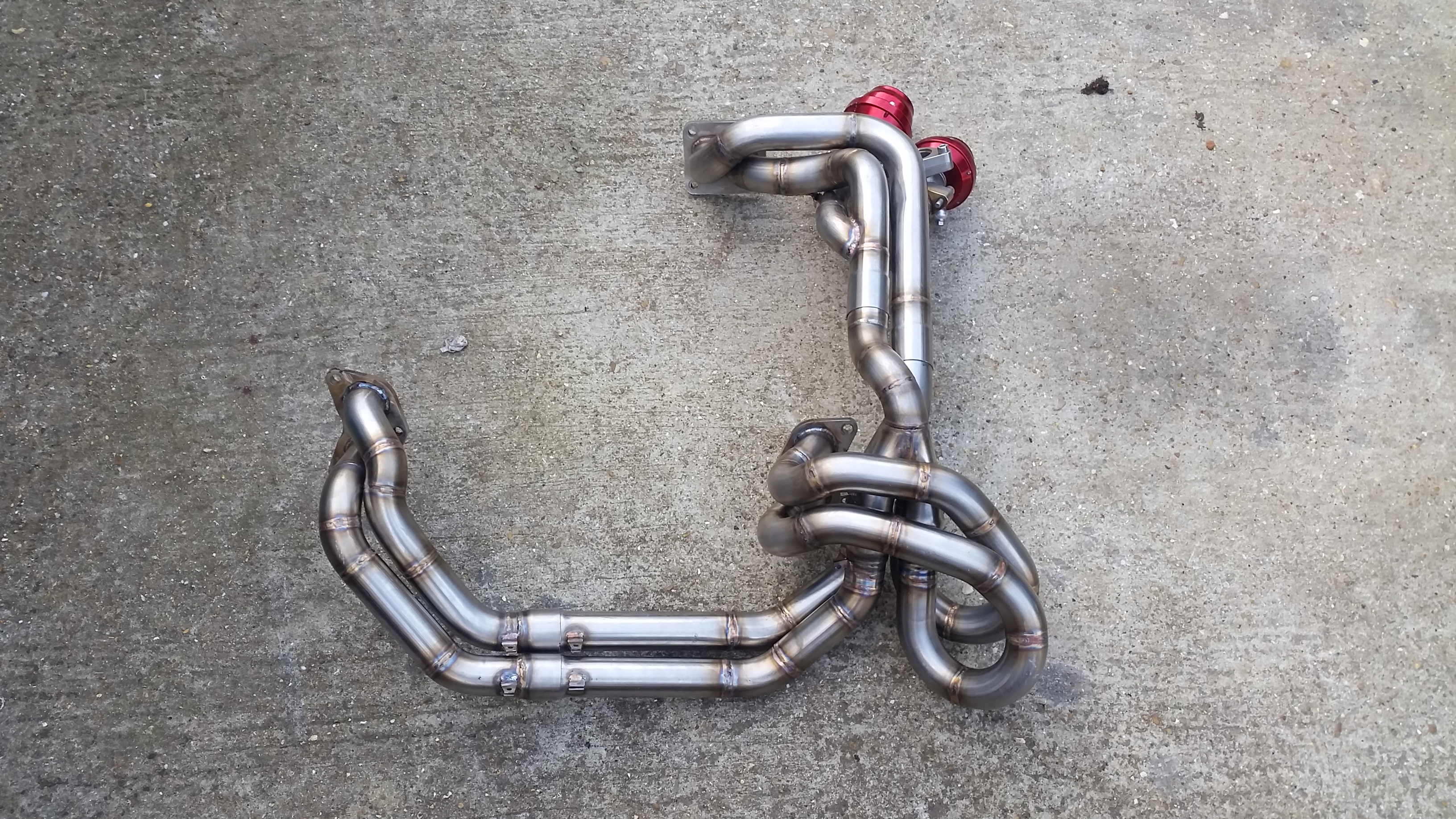

virtually finished up with the gates fitted:


Name:  20161004_150524_zpspcy19izn.jpg
Views: 0
Size:  2.81 MB


Name:  20161004_150700_zpsqcyigstb.jpg
Views: 0
Size:  2.70 MB

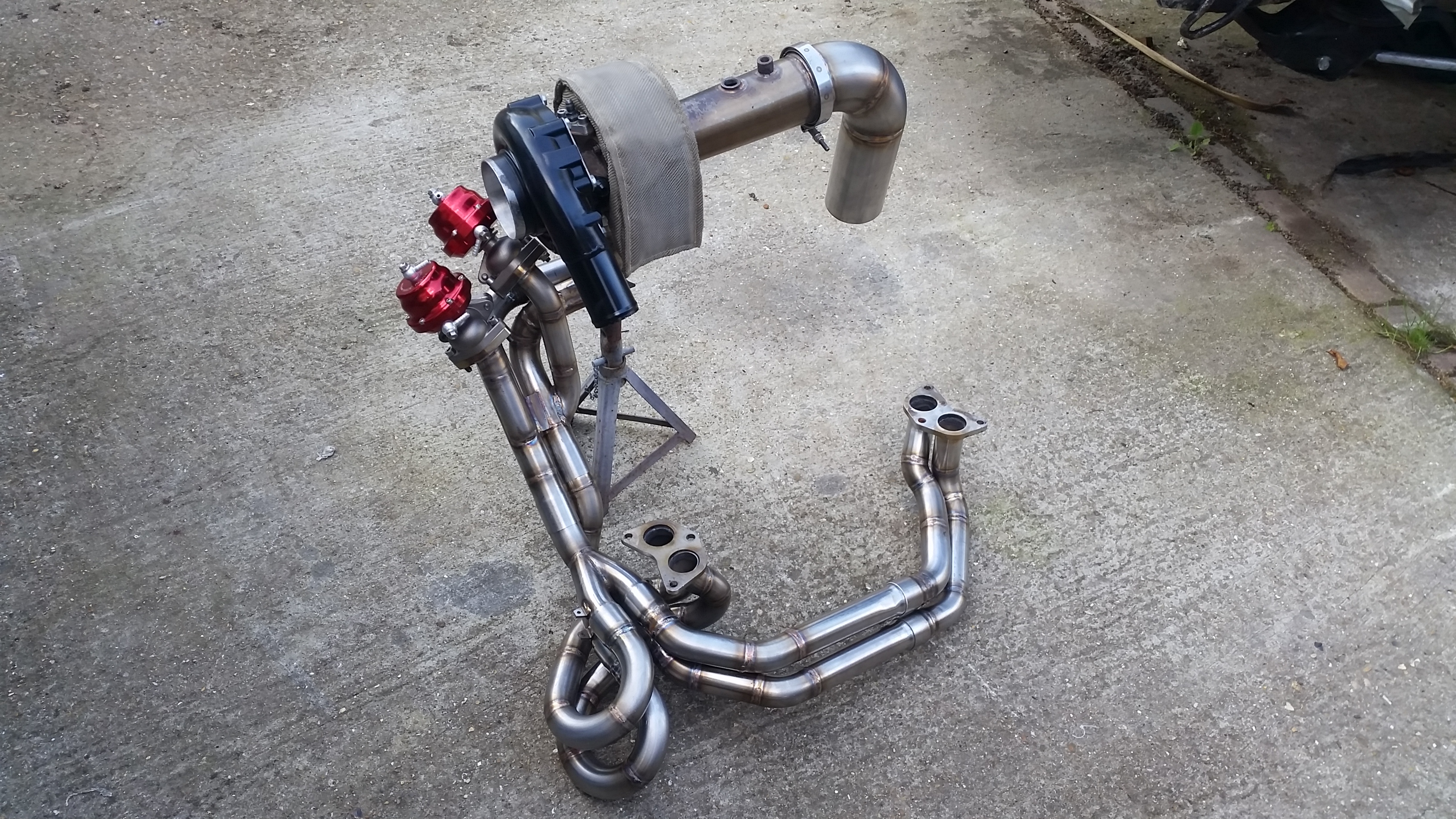

And a test fit just for a pic with the turbo and 76mm to 89mm for the down pipe....


Name:  20161004_151014_zpscip88nt0.jpg
Views: 0
Size:  2.57 MB

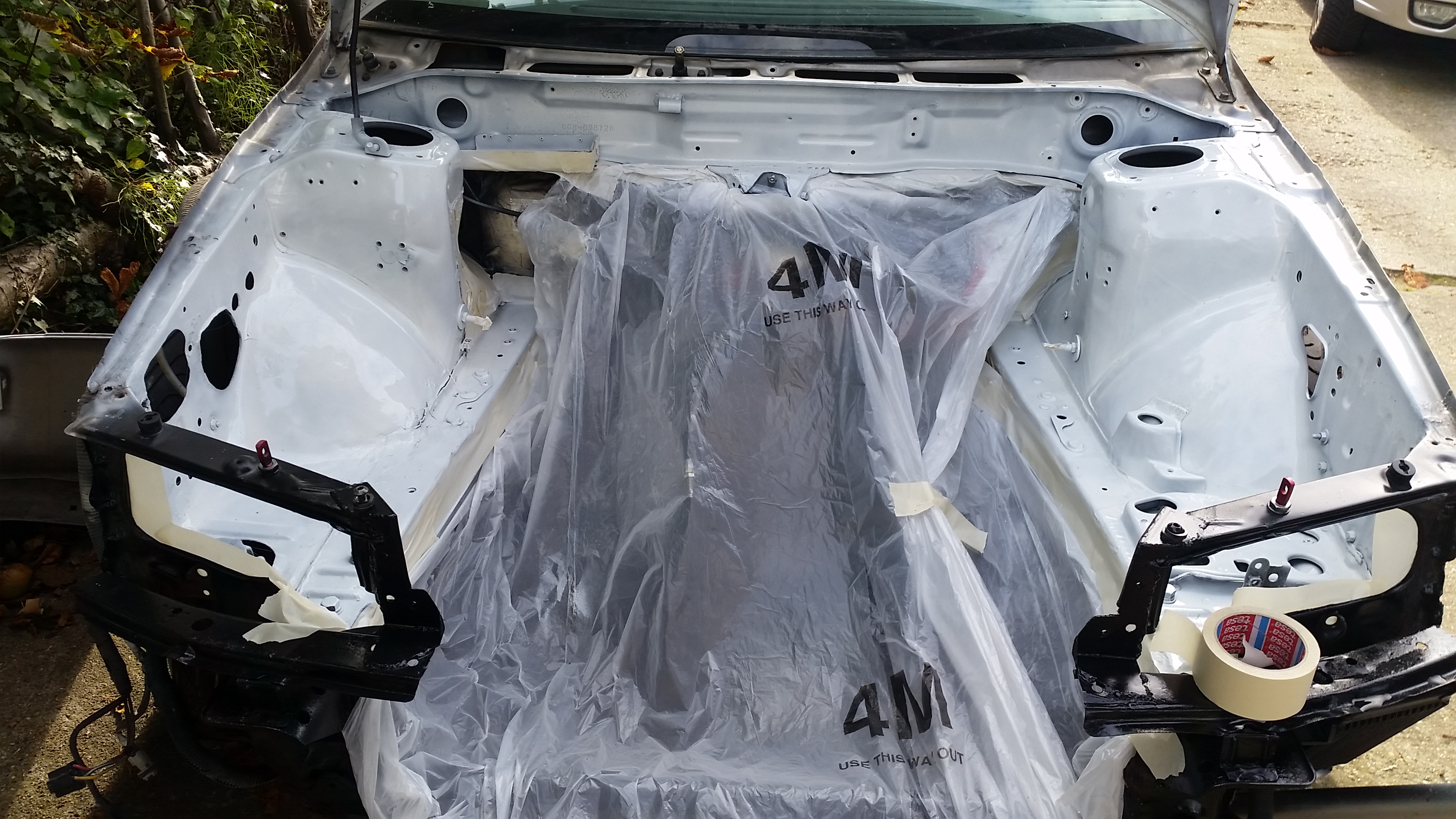

It was also time to give the engine bay a refresh with a lick of paint.... the car was painted white from silver before I bought it and the engine bay was never done so high time it happened.....

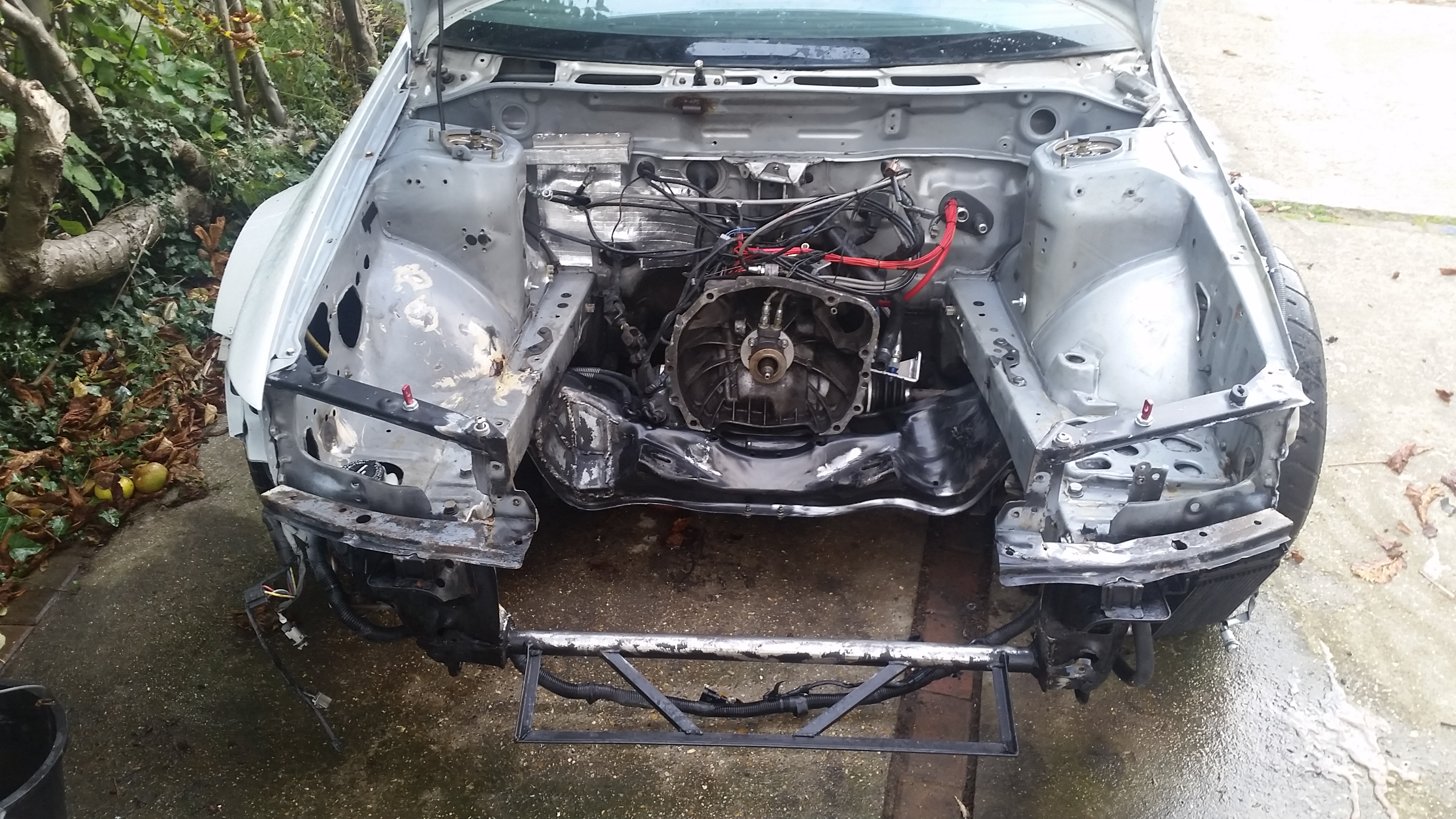

Engine out and bay being prepped....


Name:  20161024_161006_zpshcydk2kj.jpg
Views: 0
Size:  2.09 MB

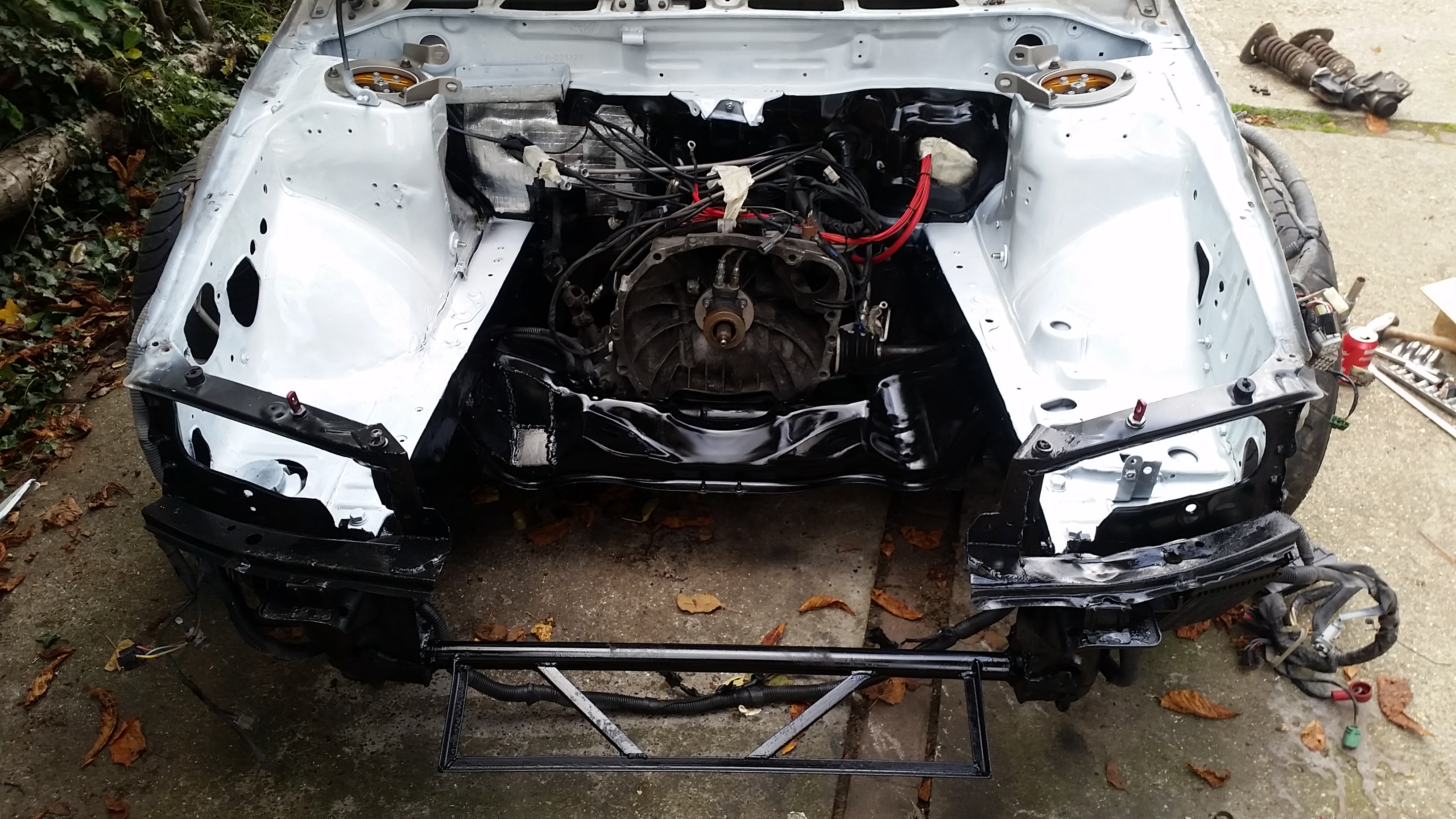

A bit of white followed by a bit of black ...


Name:  20161026_142106_zpsipbkdbfq.jpg
Views: 0
Size:  1.92 MB


Name:  20161026_155602_zpsakukc3fs.jpg
Views: 0
Size:  2.02 MB

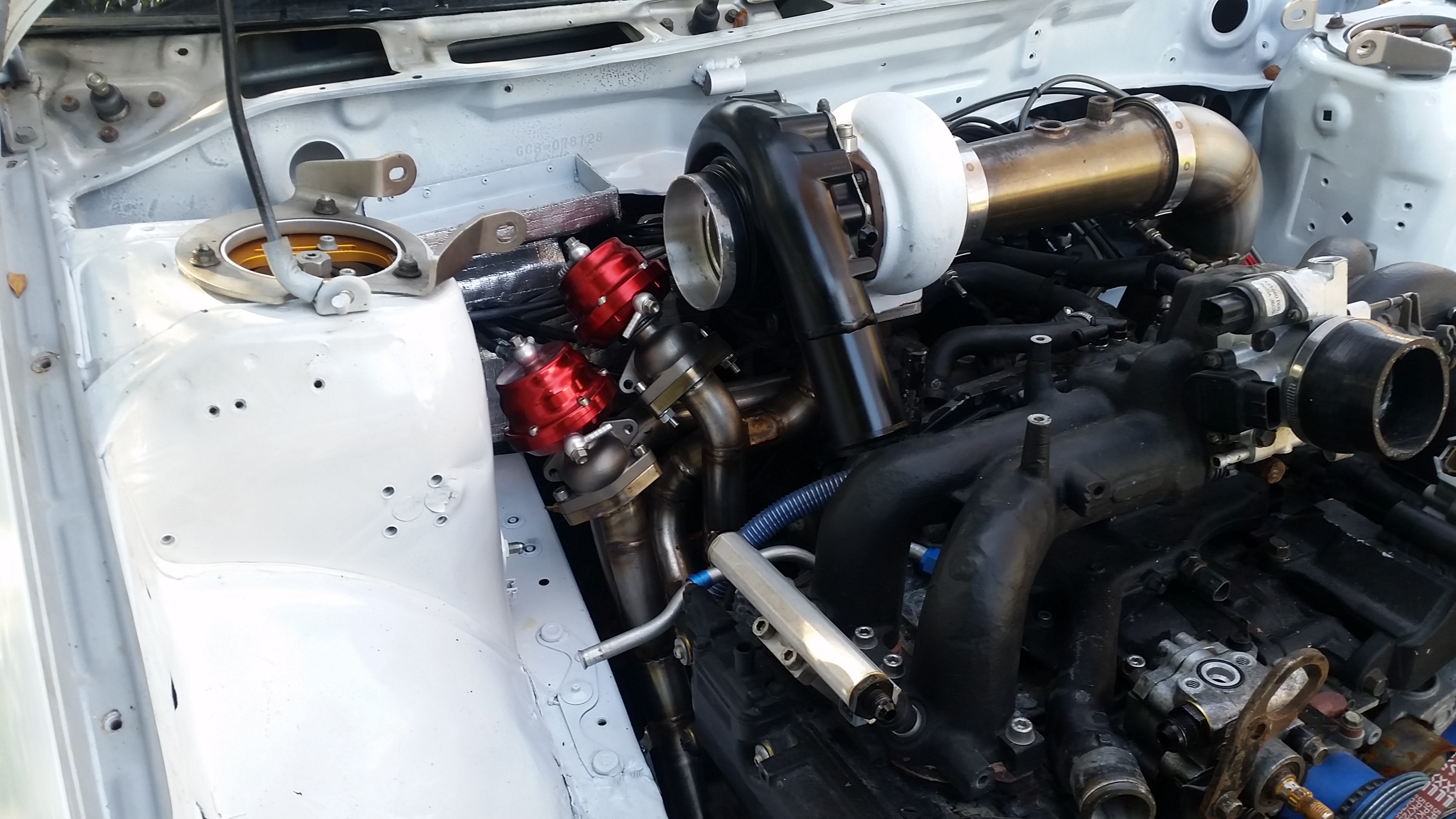

Then its just a case of getting the whole thing back together..... new pullies are on route also... few other hings will have to change like the header tank location and PS reservoir which I will remake one the ait filter/ air box is in... new PS lines and cooler will need to go in as I will go back to using the stock PS pump and use the electric one for the GTR...


Name:  20161102_111825_zpsvlnadocd.jpg
Views: 0
Size:  1.55 MB

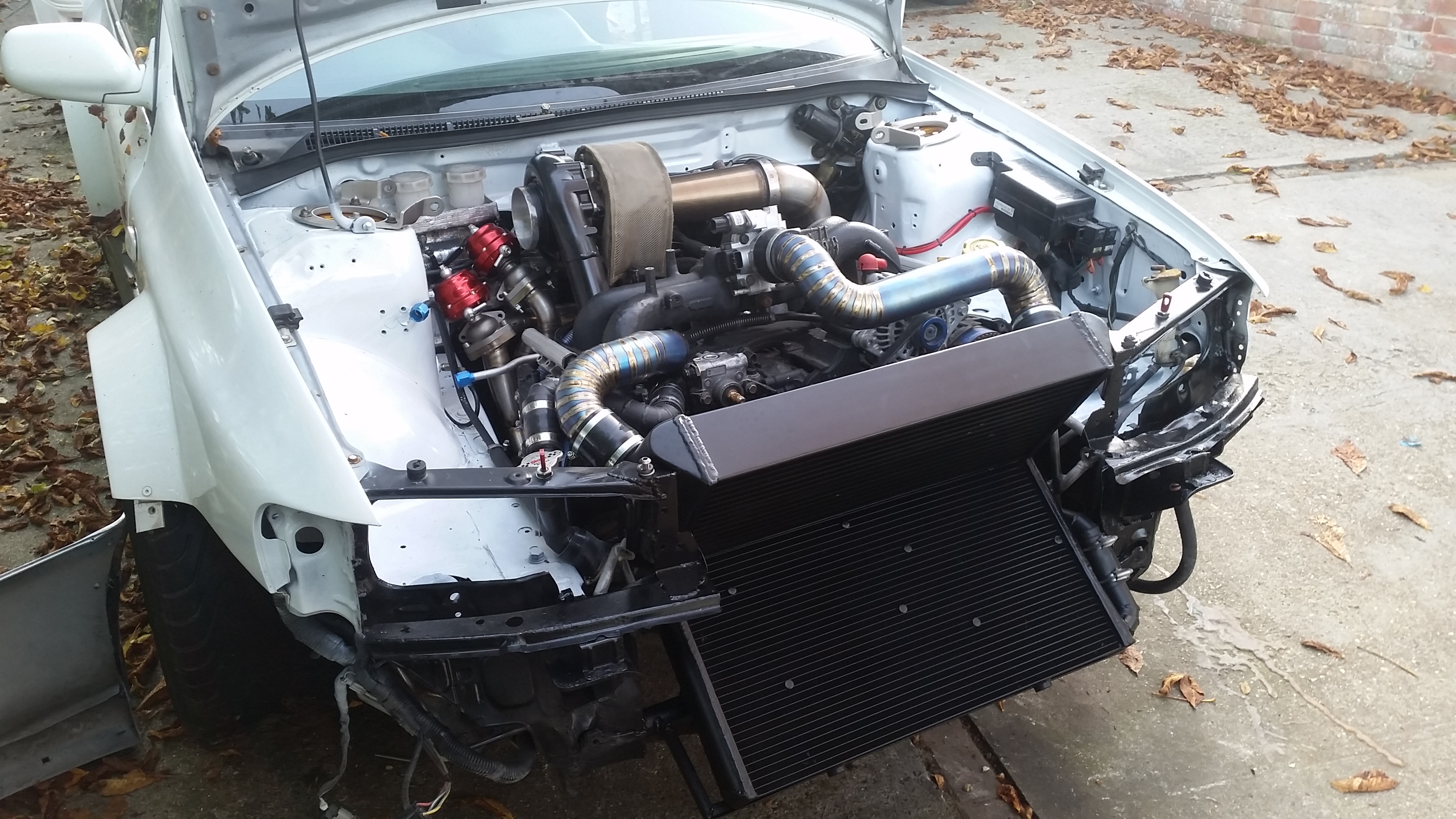

engine, intercooler and rad back in....


Name:  20161102_153011_zpsjaqucdrz.jpg
Views: 0
Size:  1.91 MB

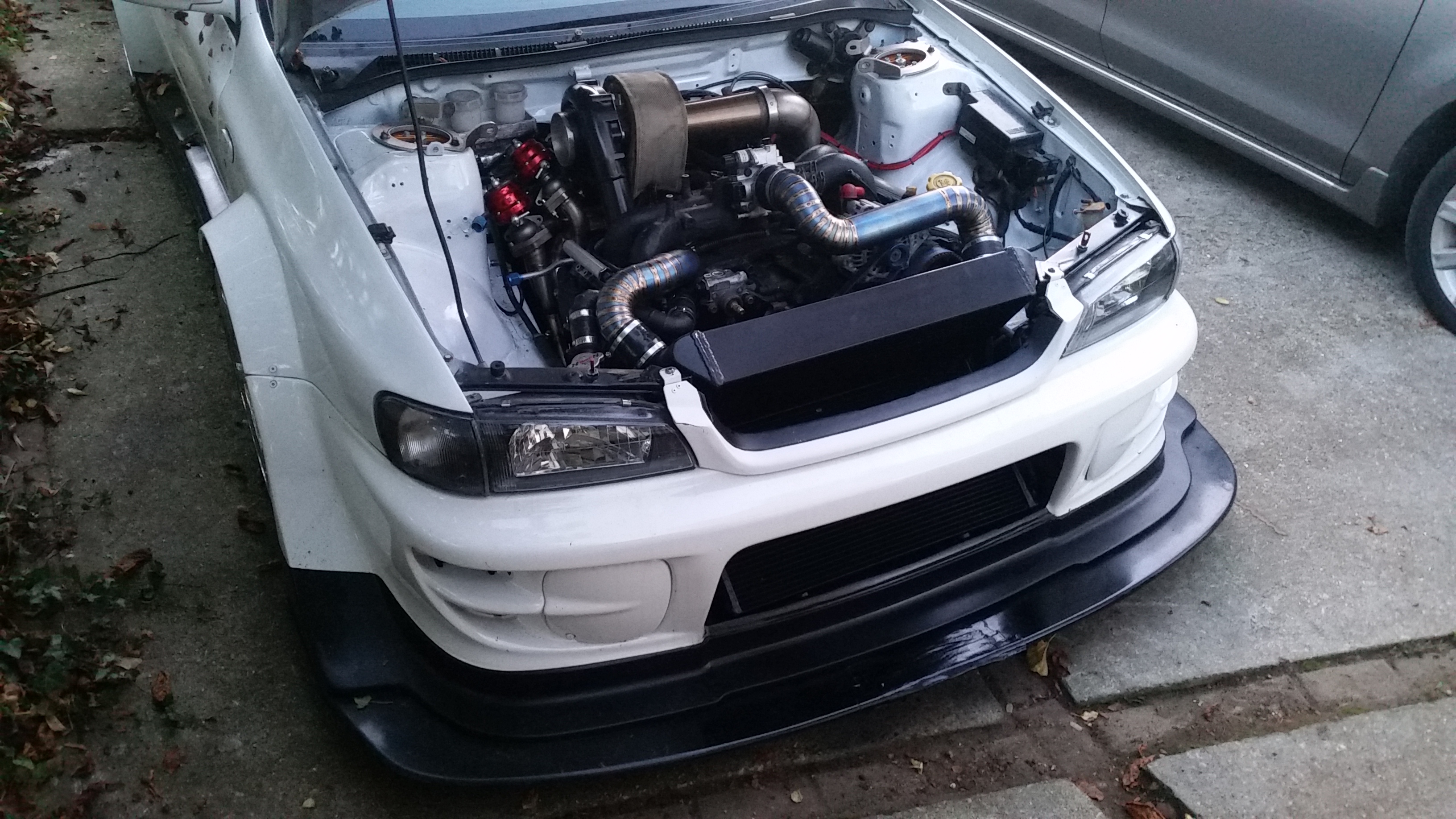

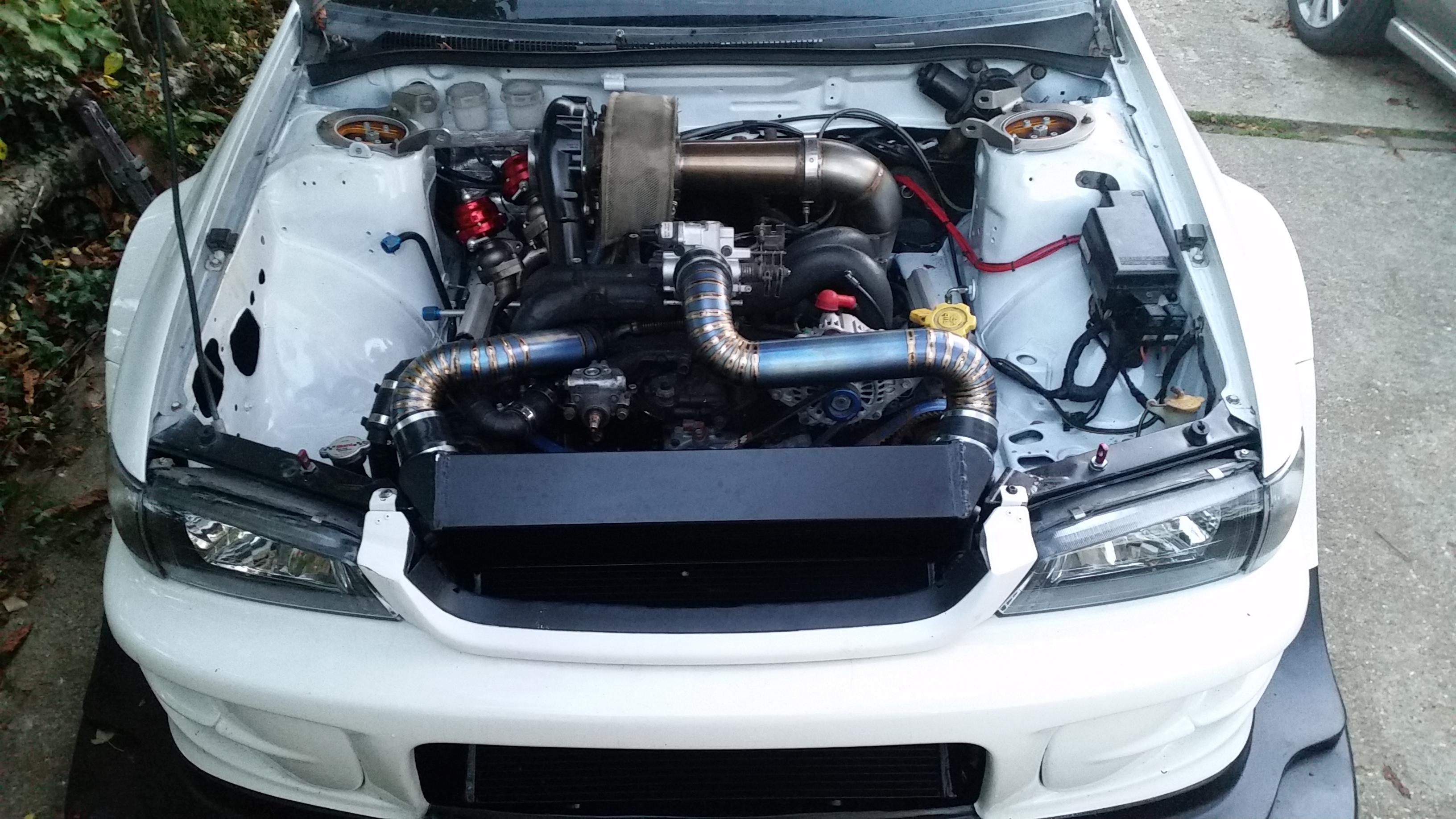

lights and bumper re fitted....


Name:  20161102_162213_zpsznyjhkad.jpg
Views: 0
Size:  1.74 MB


Name:  20161102_162423_zpslsirehsi.jpg
Views: 0
Size:  1.78 MB




Now to make a big long to do list
seventune is offline
Old 02 January 2017, 09:49 PM
  #218
jonnyricer2
Scooby Regular
iTrader: (9)

Join Date: Aug 2007
Location: bexhill east sussex
Posts: 1,342
Default

That looks pretty awesome love the headers!!
jonnyricer2 is offline
Old 03 January 2017, 10:32 AM
  #219
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 7,854
Default

Looks really good. Very nice.
BrownPantsRacing is offline
Old 03 January 2017, 01:00 PM
  #220
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 1,036
Default

header **** indeed
Ste333 is offline
Old 04 January 2017, 11:05 AM
  #221
orangeman
Scooby Regular

Join Date: Jul 2011
Location: Scotland
Posts: 112
Default

just read threw this thread was a good read. a lot off effort and work has gone into these projects. really wish I had welding skills lol. will be good to see them both finished.
orangeman is offline
Old 05 January 2017, 12:49 PM
  #222
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

Thanks guys, slowly but surely catchy monkey and all that


Originally Posted by orangeman View Post
just read threw this thread was a good read. a lot off effort and work has gone into these projects. really wish I had welding skills lol. will be good to see them both finished.


Yeah they have both been off the road way too long. The 7 especially. Its just sat under a cover for about a year now. Gets a wash ever now and then. The scoob is getting there at last thankfully, shouldn't be too long now.

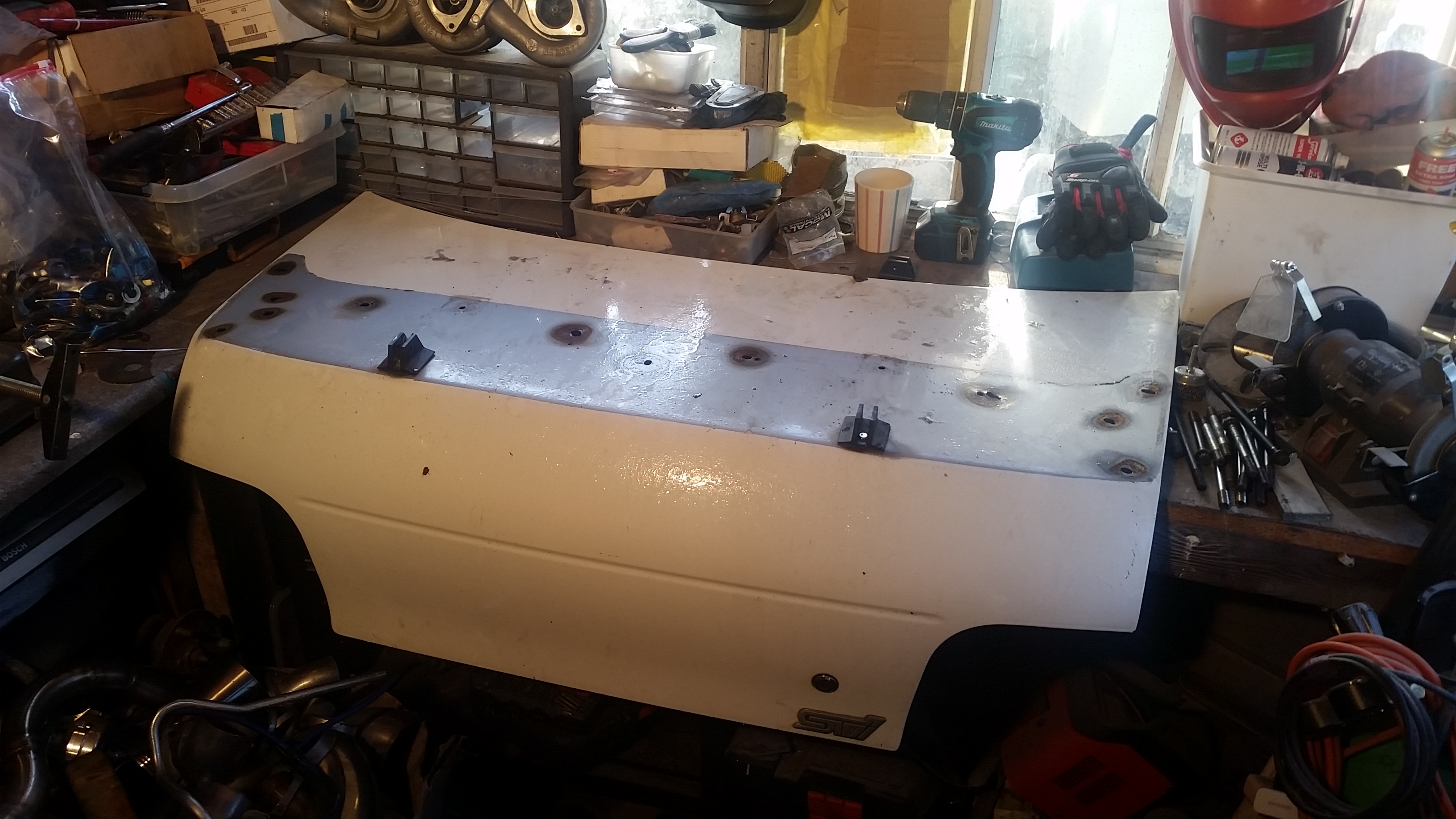

As for todays agenda, the boot lid.... exciting right? no not really its a boot lid, with holes in it.... and who paints a bootlid with the spoiler still attached!!!


Name:  20170105_120419_zpsslkjyfpa.jpg
Views: 0
Size:  1.52 MB
seventune is offline
Old 05 January 2017, 05:25 PM
  #223
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

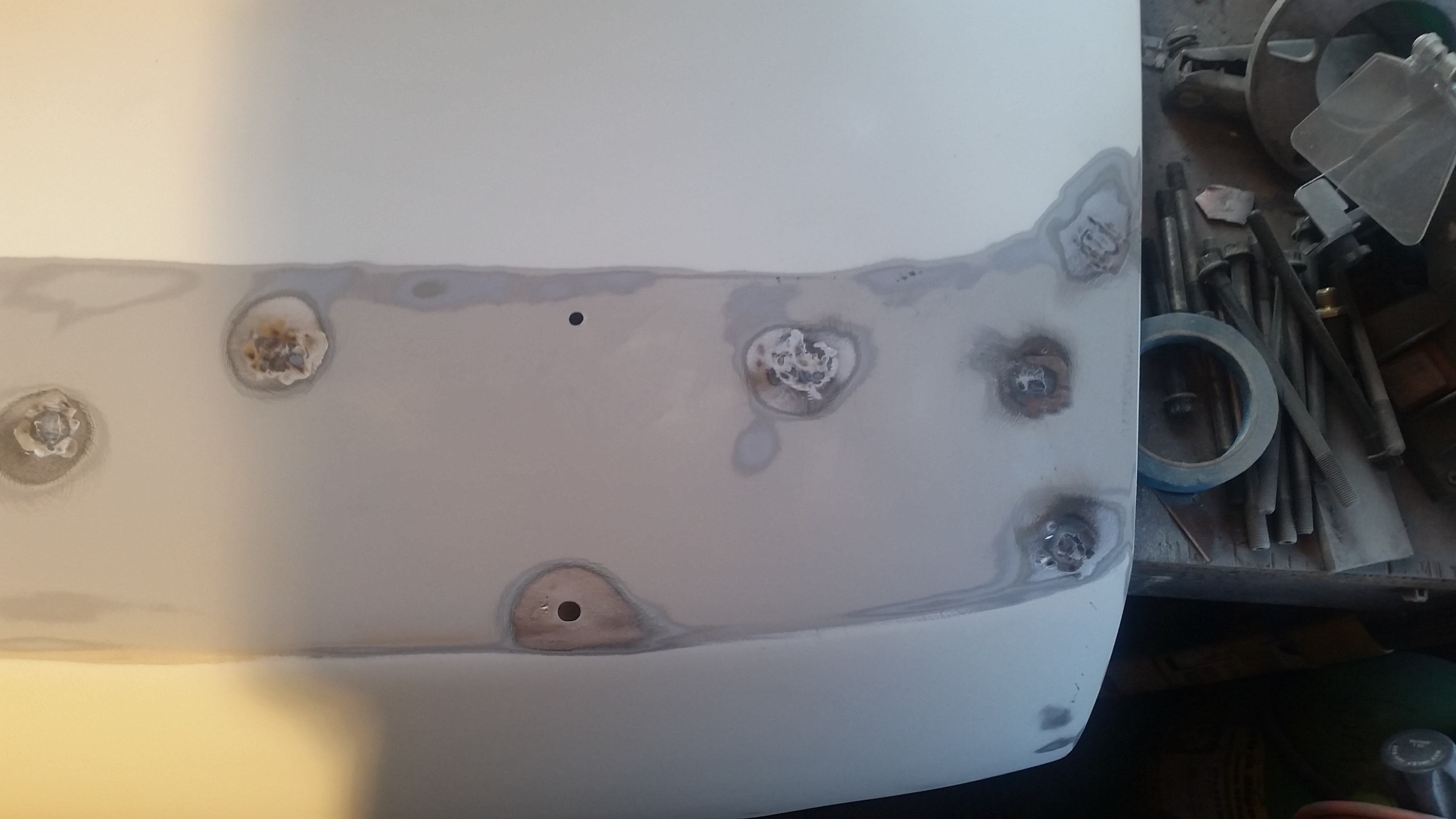

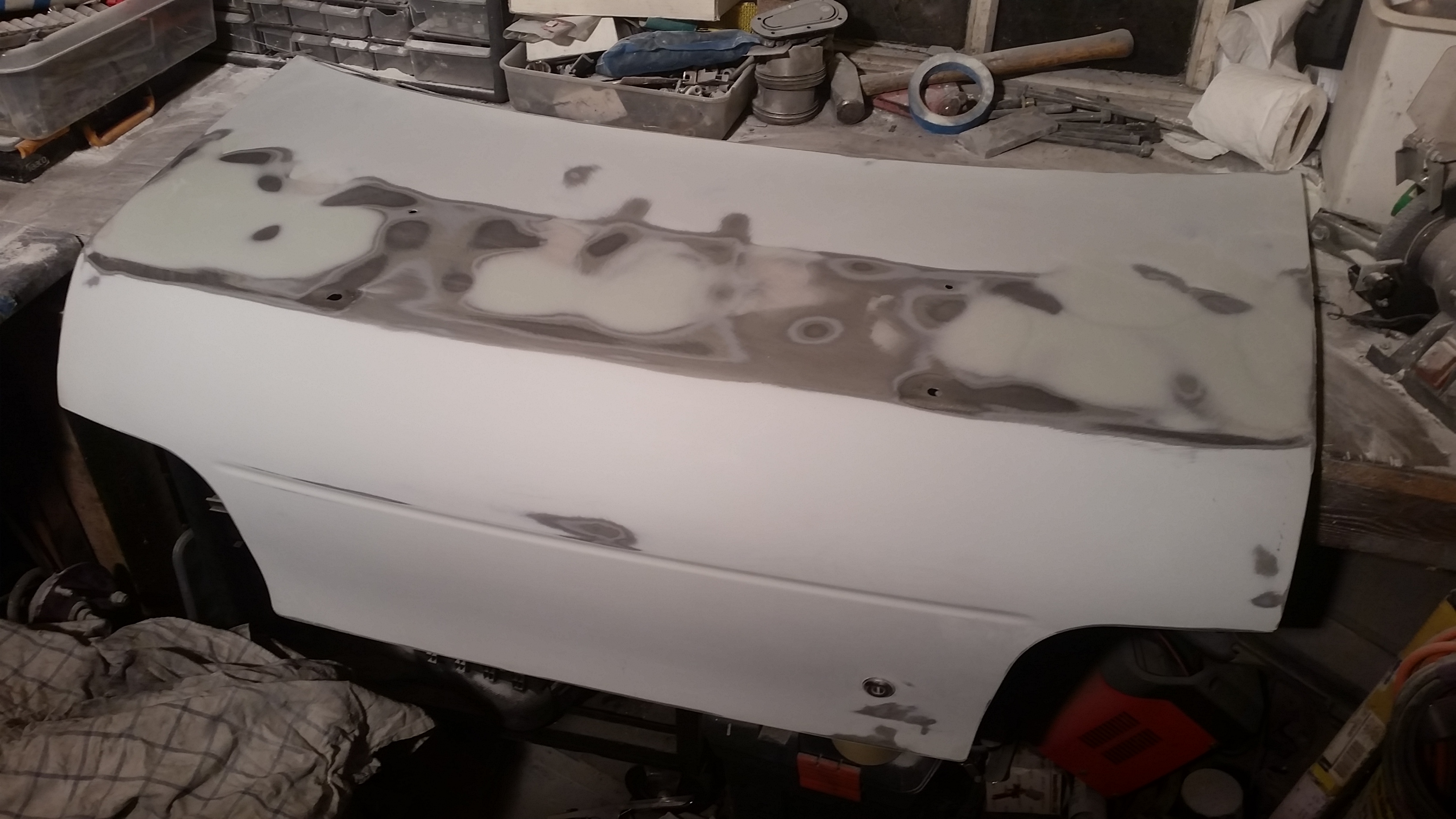

well that was a very wobbly boot lid, but welded and smoothed bar the ones for the wing, Will prime and paint tomorrow....


Name:  20170105_141708_zpsj42rpr3g.jpg
Views: 0
Size:  1.16 MB


Name:  20170105_171216_zps3h8ikvum.jpg
Views: 0
Size:  1.28 MB
seventune is offline
Old 05 January 2017, 08:31 PM
  #224
mickywrx
Unmapped 12.4s @ 105
iTrader: (29)

mickywrx's Avatar

Join Date: Apr 2005
Location: Newcastle. 330bhp-289lb/ft @ 1bar boost - 12.4s @ 105mph
Posts: 11,777
Post

Bin the boot lock, whilst you're on. Will look cleaner, IMO.

Don't bin it, if the in car release doesn't work though!
mickywrx is offline
Old 07 January 2017, 04:15 PM
  #225
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

Originally Posted by mickywrx View Post

Don't bin it, if the in car release doesn't work though!

No it doesn't, another thing to fix

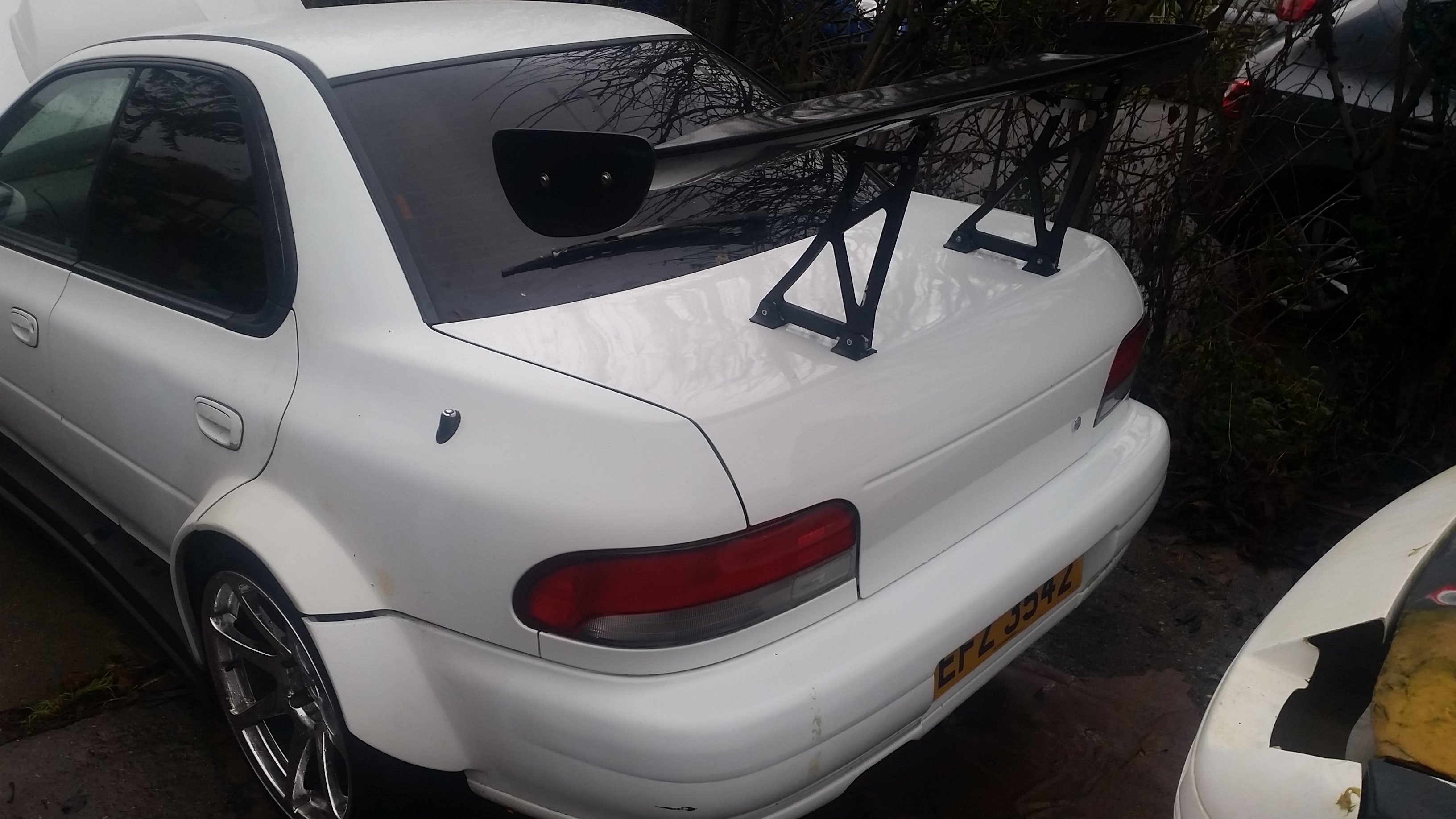

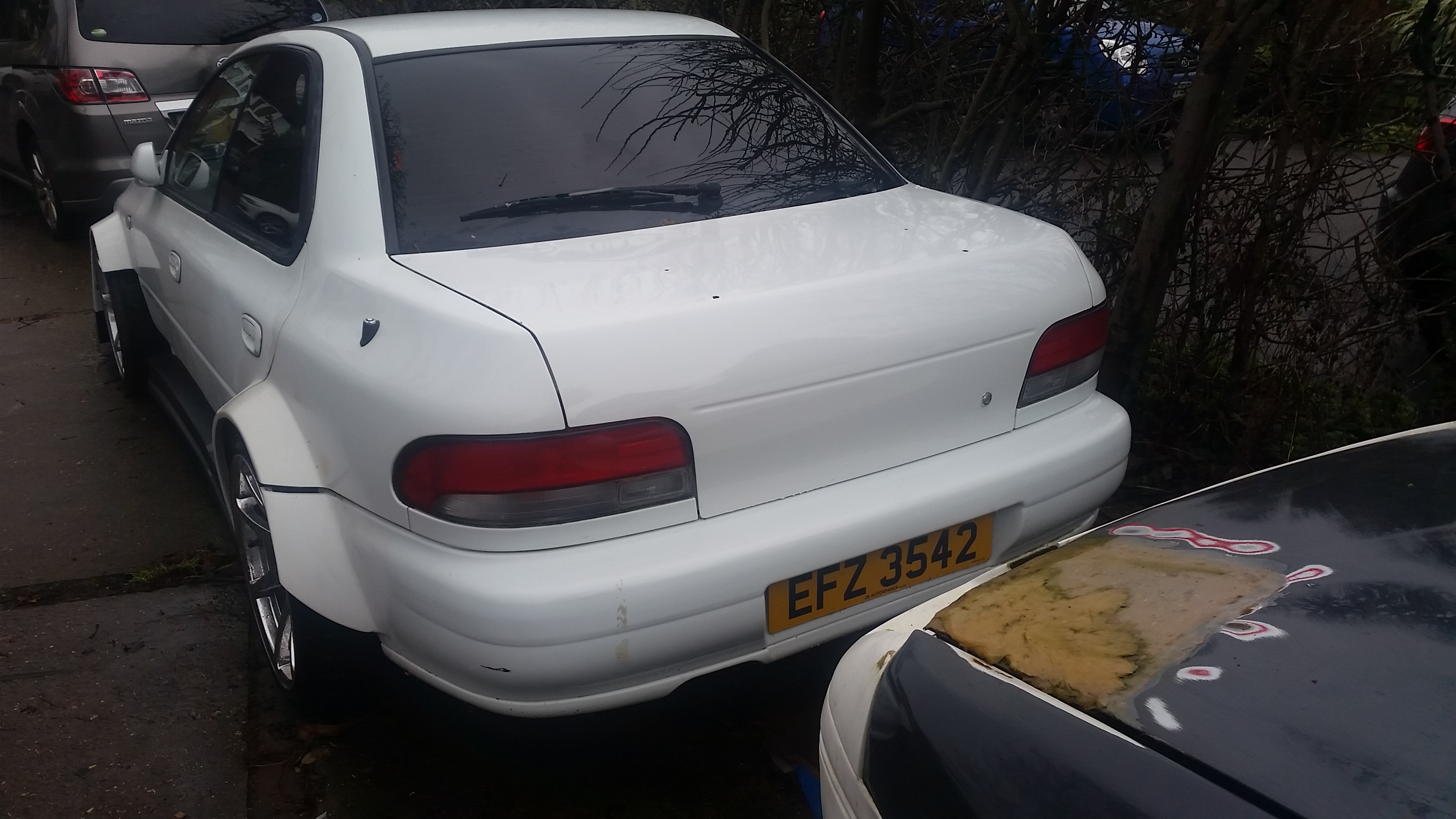

Much better:


Name:  20170107_131434_zpslzm0kx9t.jpg
Views: 0
Size:  1.52 MB


Name:  20170107_140057_zpsb8go7duv.jpg
Views: 0
Size:  1.43 MB
seventune is offline
Old 08 January 2017, 08:51 PM
  #226
wrighty338
Scooby Regular
iTrader: (33)

Join Date: Jul 2007
Location: E Yorks
Posts: 4,791
Default

wrighty338 is offline
Old 09 January 2017, 08:55 AM
  #227
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 7,854
Default

Much better!
BrownPantsRacing is offline
Old 09 January 2017, 04:36 PM
  #228
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

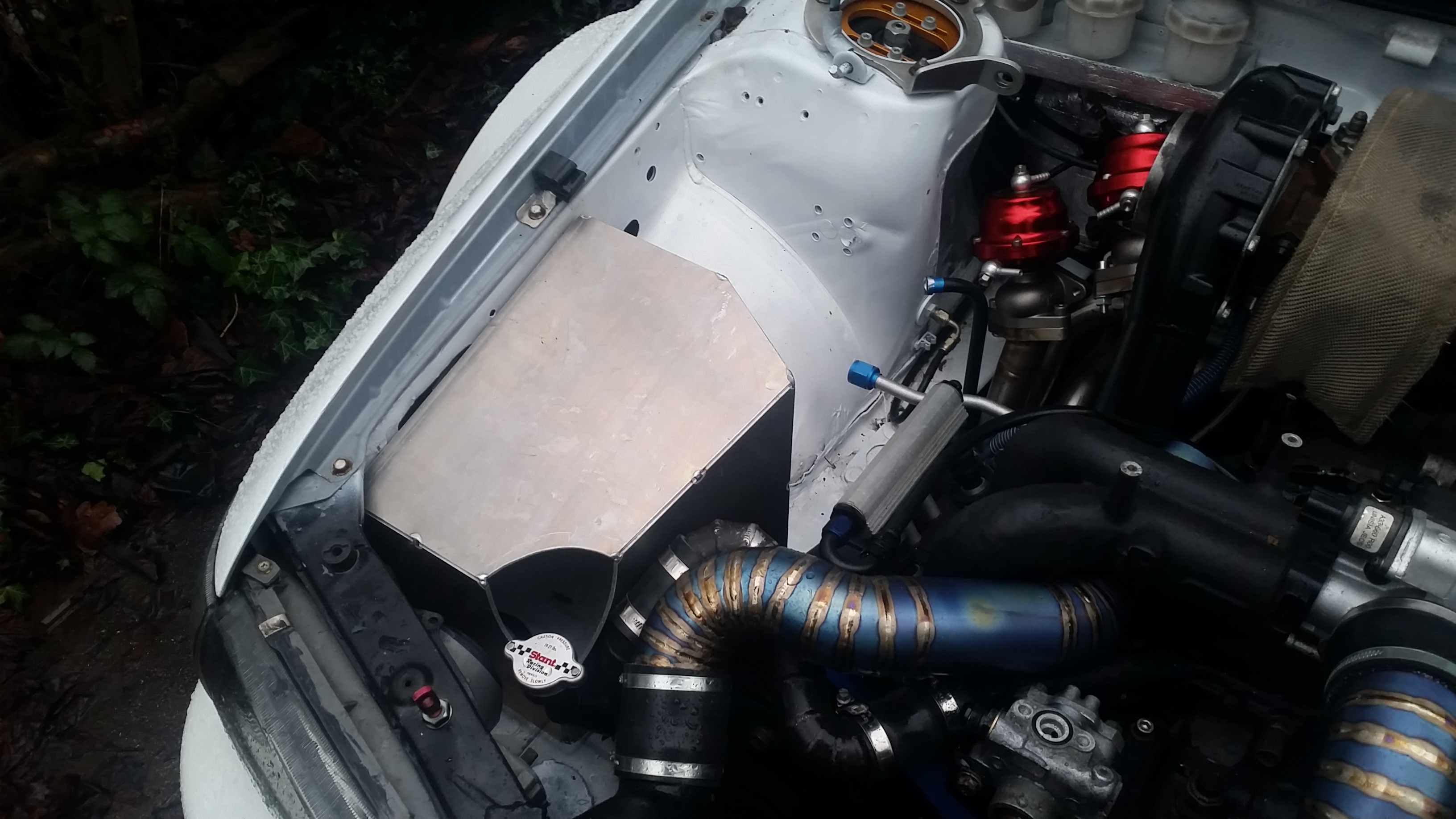

As I mentioned before with the turbo still being located at the rear of the engine bay but now facing the opposite was a new air box was needed. I/m still going to use a B&M cone filter with cold feeds but just inside a box to try and limit heat soak into the filter.


Where the original front mount used to be there is a hole through, and also where I had located the electric PS pump (no longer using) there is also a hole that can be used. Once all that is in I will pull the front bumper off and make a duct from there also leading to the filter box. So with 3 entry points and the B&M its about the best I can do with it.

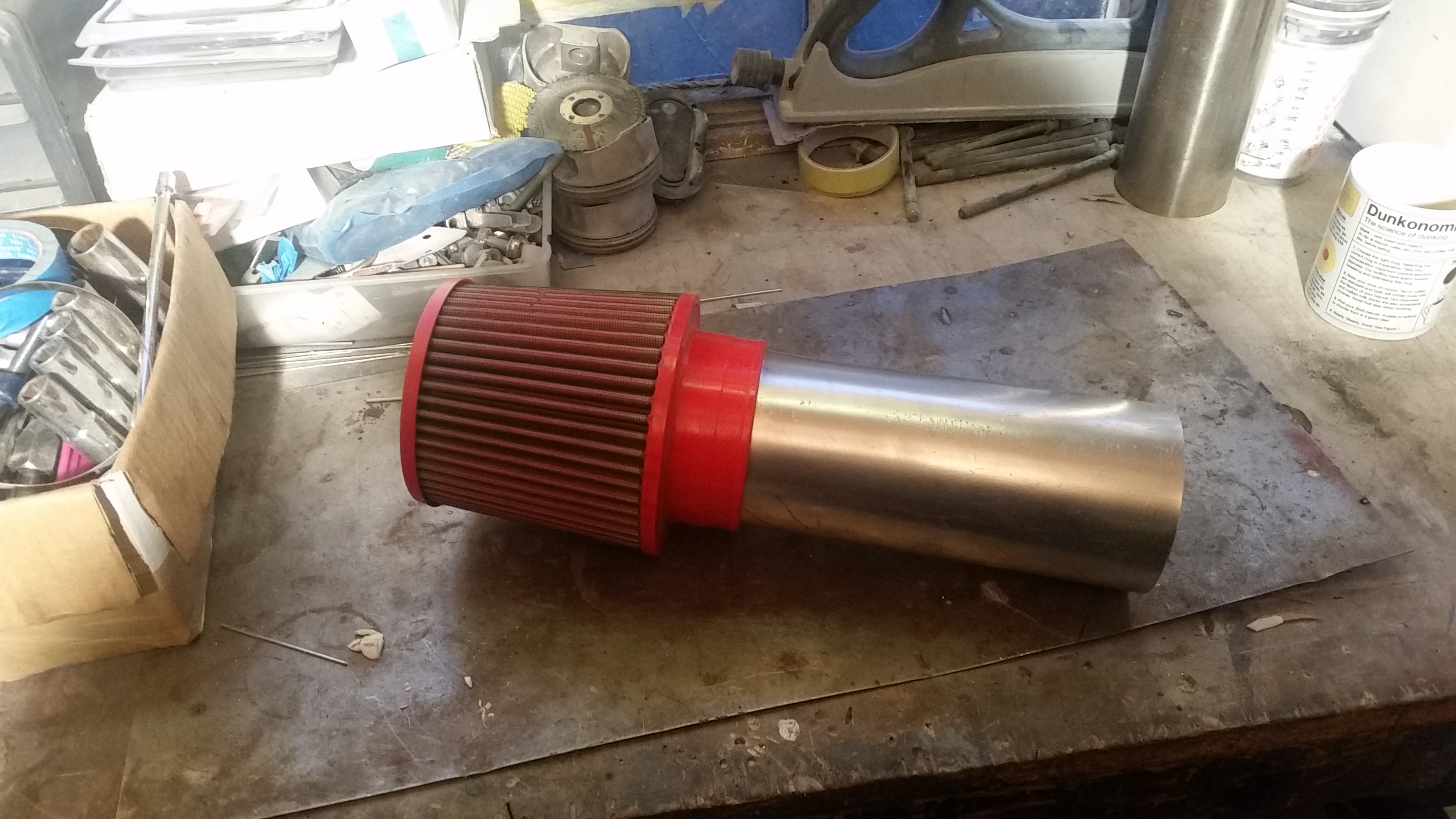

I thought I had some 4" ally pipe, turned out I didn't so I rolled a short piece just to mount the filter in side; this will protrude the rear of the box where the Titanium pipe will link the box to the compressor cover, so this is where it is so far....


Filter and the 4" ally tube


Name:  20170109_154726_zpsyvho9mju.jpg
Views: 0
Size:  1.55 MB

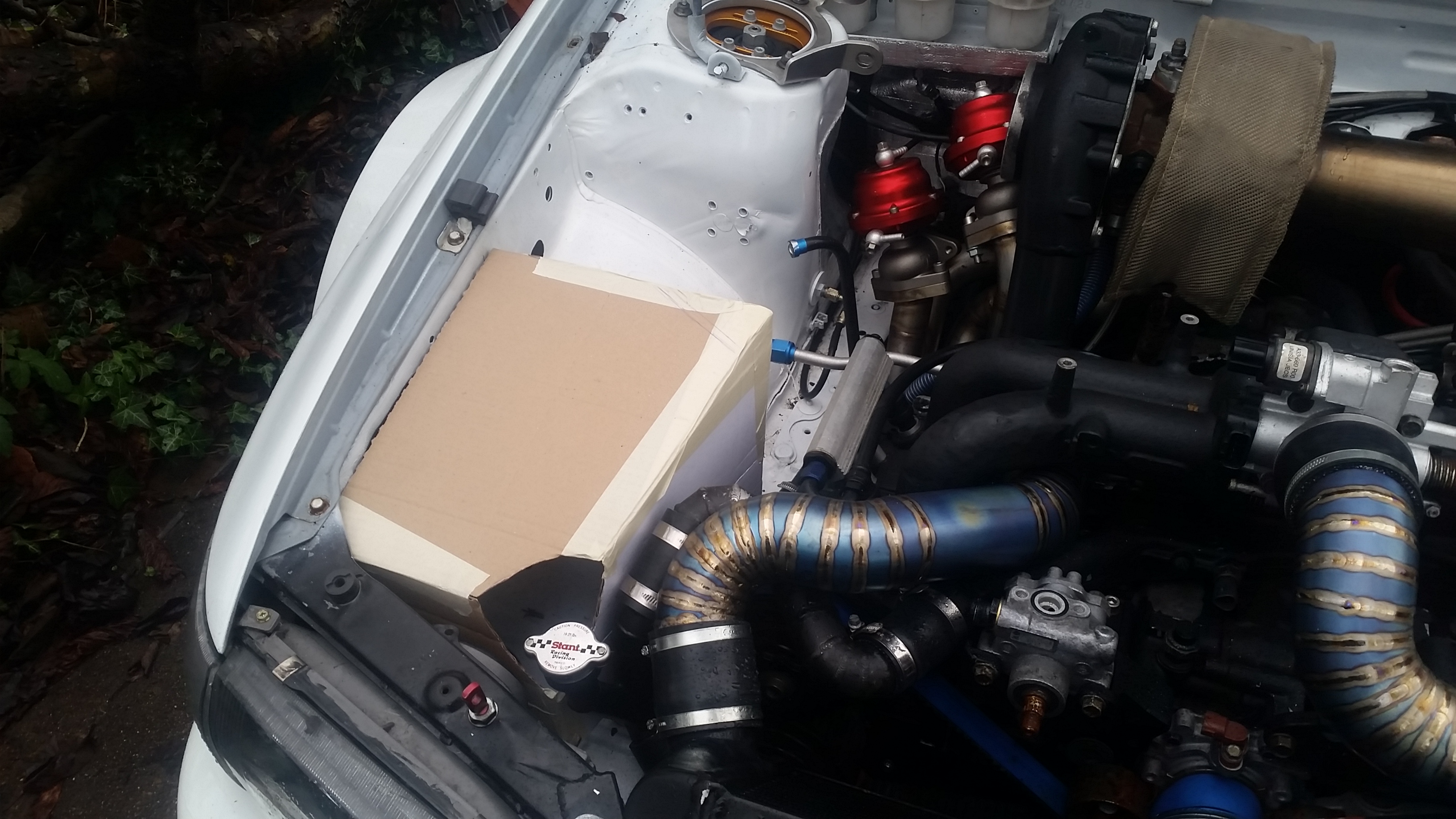

Then the mock to get the sizing and the Sheet metal tacked. There is a scallop around the filler cap so you can get it on and off without messing about so that still need to be cut and shaped...


Name:  20170107_150425_zpsohmuhd5h.jpg
Views: 0
Size:  1.50 MB


Name:  20170109_153723_zpshrkiogc6.jpg
Views: 0
Size:  1.49 MB
seventune is offline
Old 10 January 2017, 06:13 PM
  #229
neil-h
Scooby Regular

Join Date: Apr 2013
Location: Berks
Posts: 4,224
Default

I've just read through this whole thread and the work you've done on that car is seriously impressive. That engine bay could quite easily be on a works rally car. On that subject, have you ever considered trying a 'rocket' ALS (as per the rally car)? Looks like you've got the skills to build it.
neil-h is offline
Old 12 January 2017, 07:04 AM
  #230
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 1,036
Default

any more pics of the FC as well? Has it had any further progress, or is it just completely on the backburner for now?
Ste333 is offline
Old 12 January 2017, 10:11 AM
  #231
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

I've not had a chance to do anything to the FC.... she gets a clean every now and then. I need to get the scoob done then I can really focus on it.
seventune is offline
Old 13 January 2017, 10:34 AM
  #232
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 1,036
Default

Im excited to see the FC progress too. I was following the build on another forum (I think)...and the header/exhaust work on that was arguably even more impressive than the Subaru! keep at it
Ste333 is offline
Old 14 January 2017, 11:12 PM
  #233
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

Yeah I do keep looking at it and feeling a bit guilty about not getting more done!!!!


bit more scoob process but rain stop play so I couldn't et finished what I wanted too today. So air box is complete for the most part just needs some tidying up. There is one more hole to chop into it but I need to make the front duct first. The connecting pipe from turbo to air box also still needs to be made but I'm waiting on material for that.

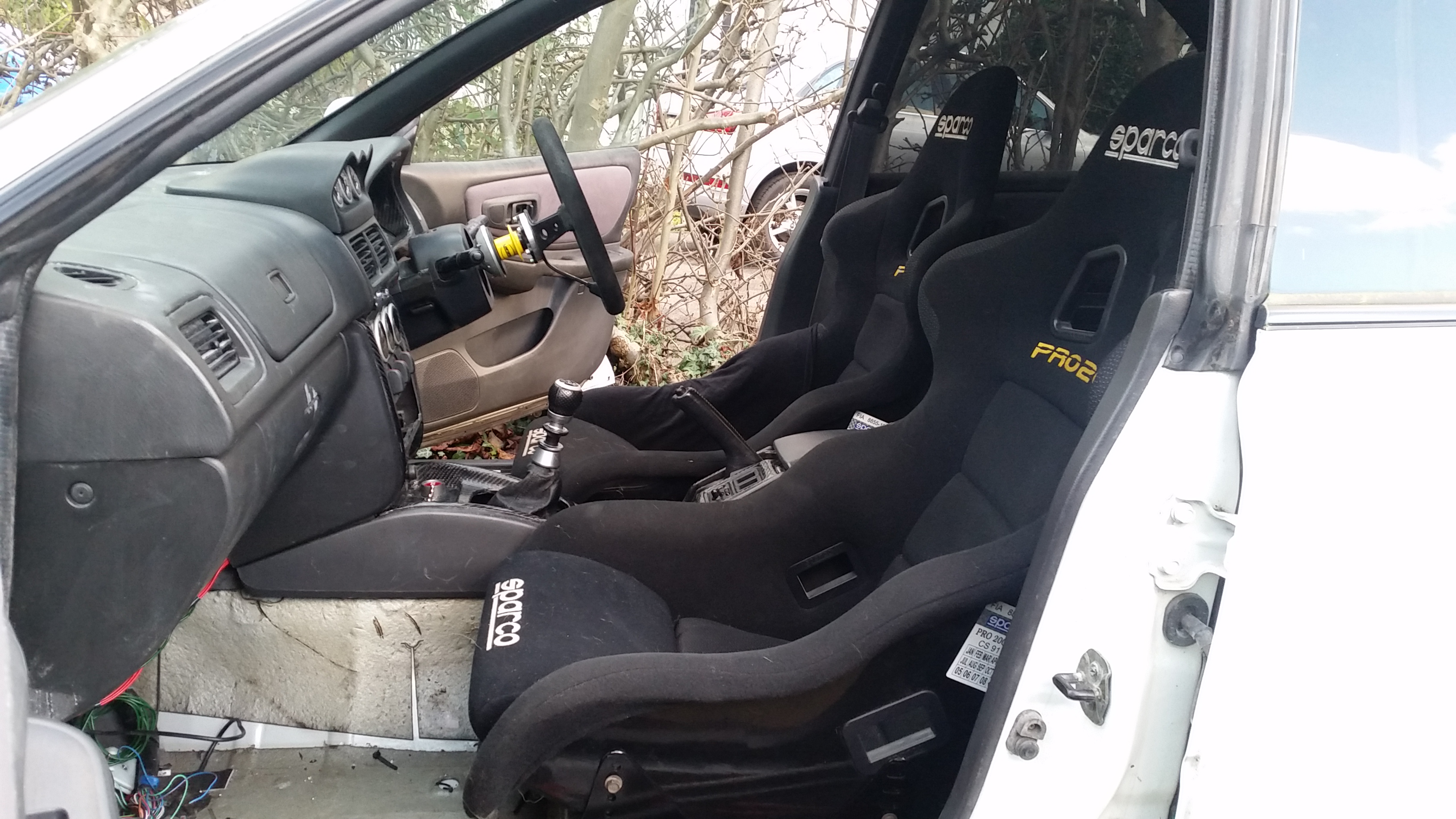

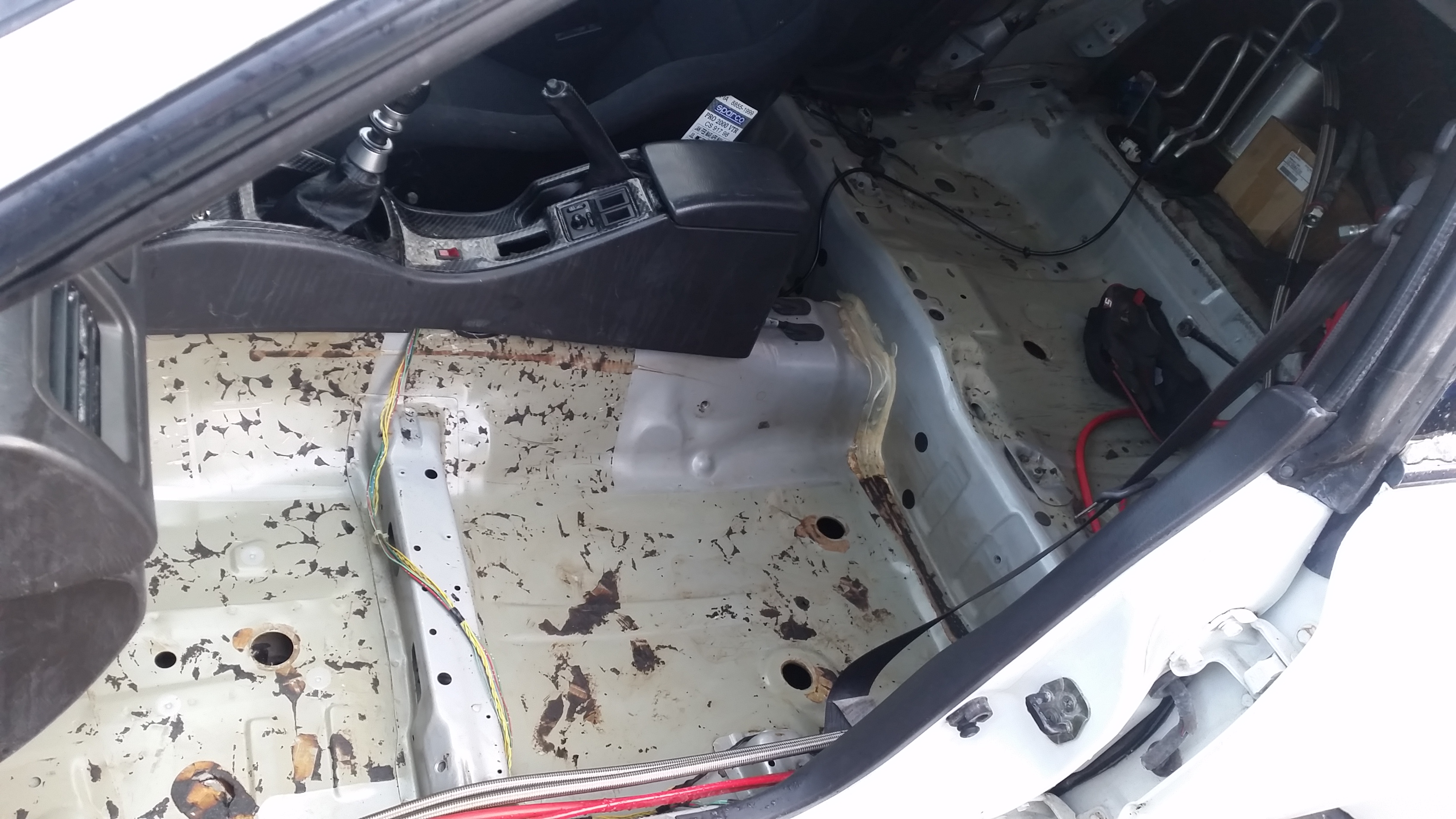

I also set about the interior. Well first stages. So carpet and stock seats out along with a few more unnecessary bits. Also knocked out the sound deadening. There is some still to remove in the boot and some more on the bulk head but I will tackle that when I pull the dash out. Test fit of the Sparcos too.

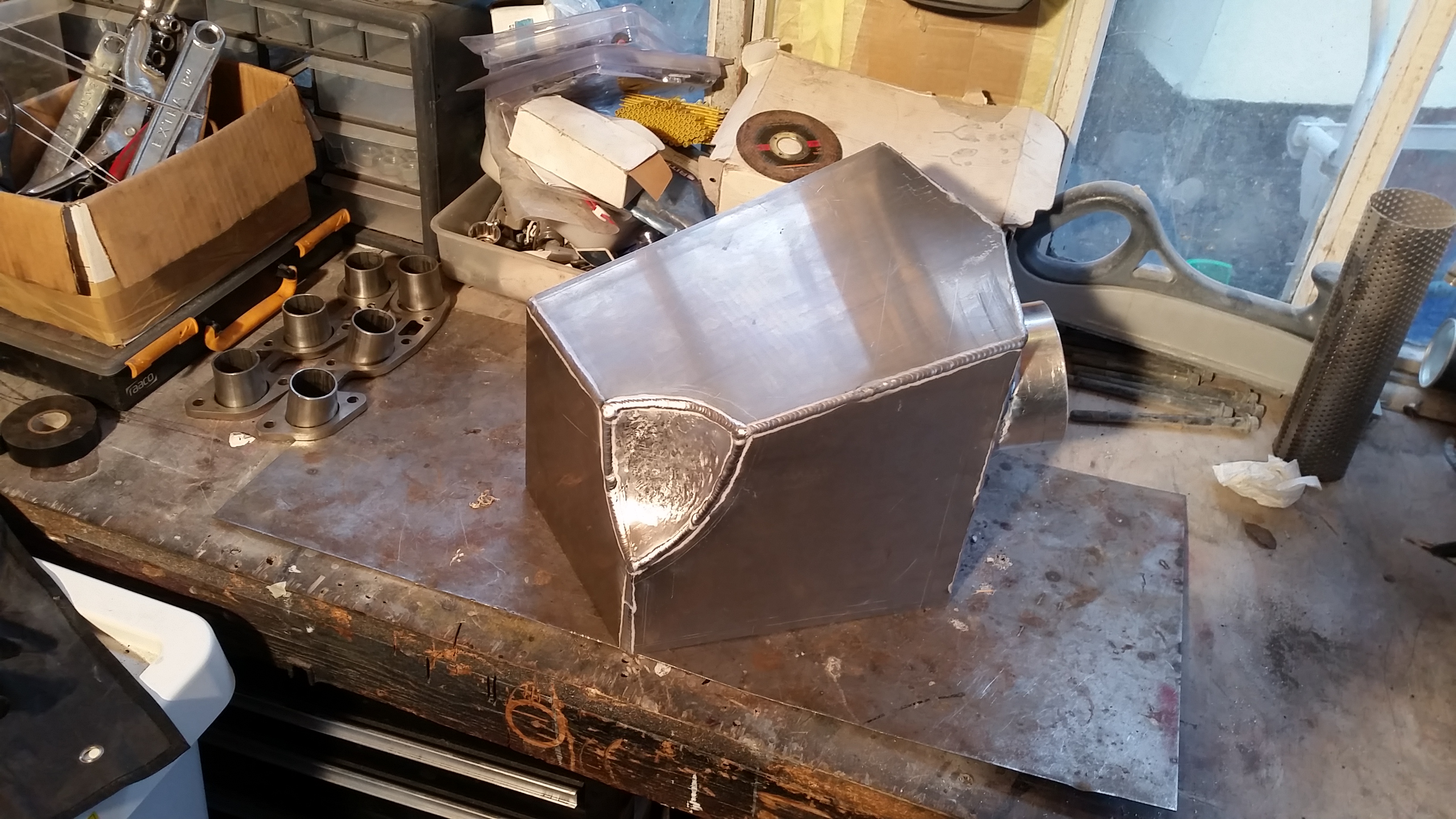

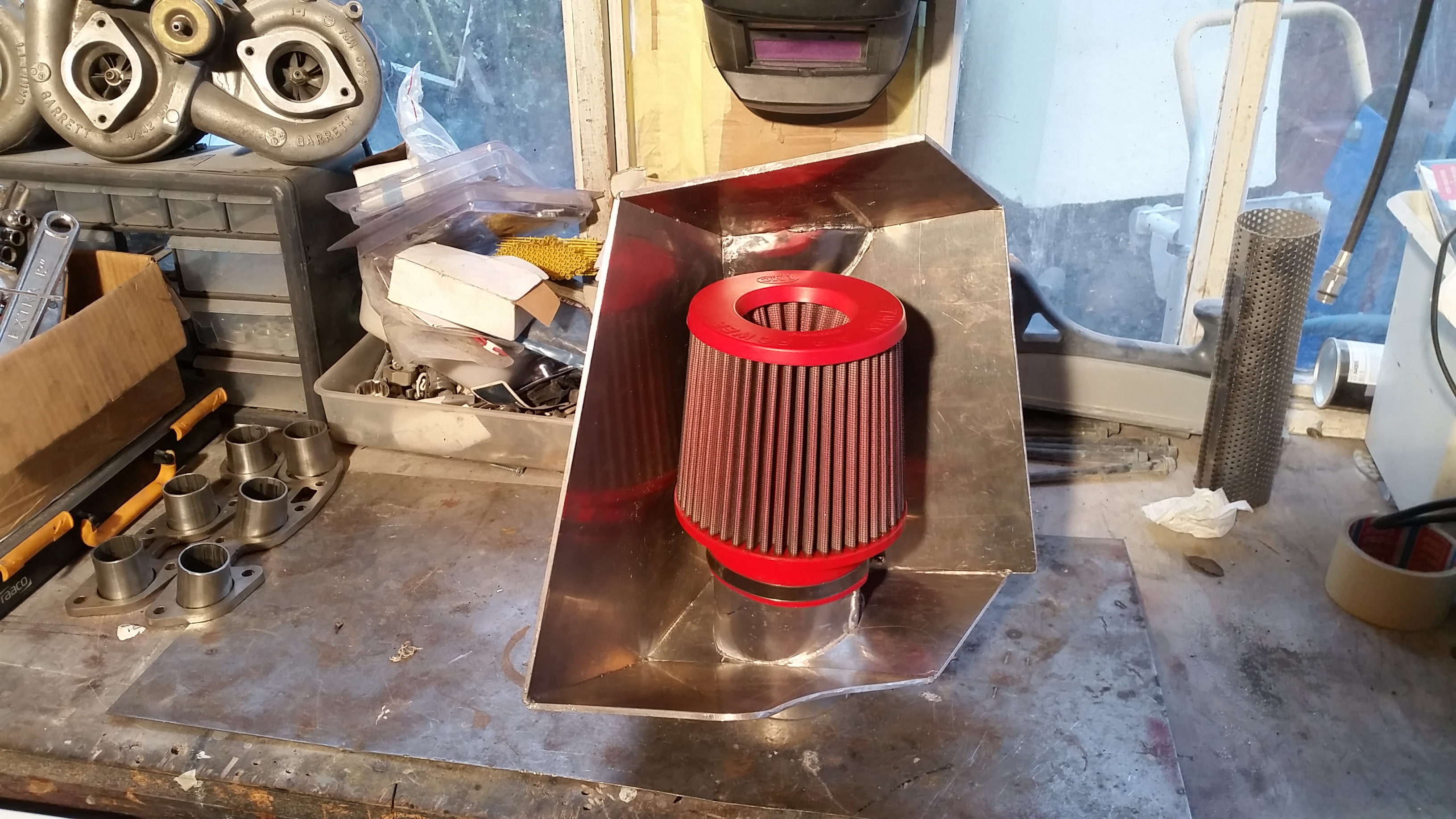

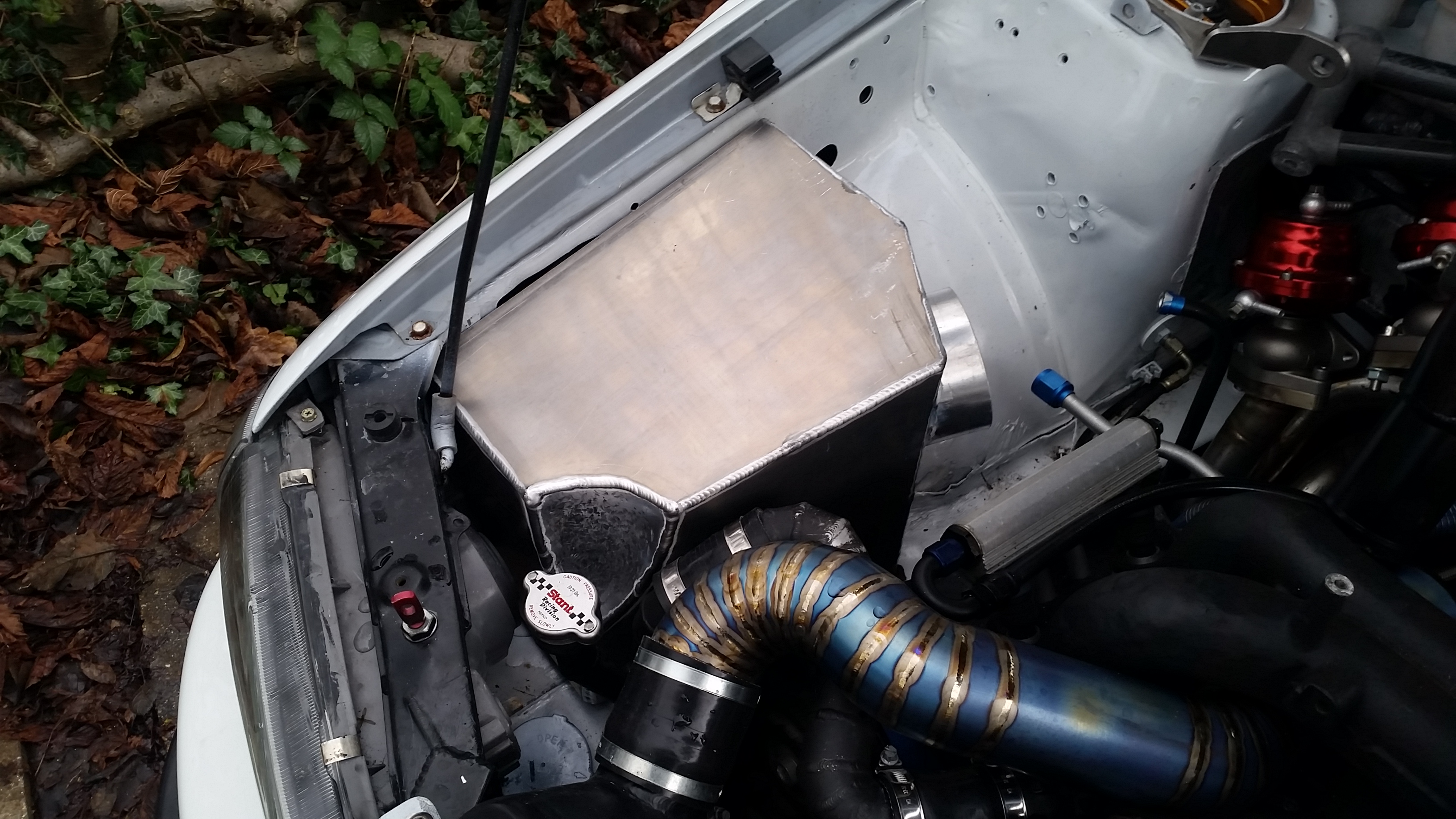

Air box:


Name:  20170113_145824_zpsyhyowxfm.jpg
Views: 0
Size:  1.93 MB


Name:  20170113_145859_zpsliqhvtgz.jpg
Views: 0
Size:  1.78 MB


Name:  20170113_150001_zpsb9cvcqfv.jpg
Views: 0
Size:  1.61 MB


Then the interior:


Name:  20170111_152520_zpsfoqr6zps.jpg
Views: 0
Size:  1.56 MB


Name:  20170113_115245_zpsoao4xgrg.jpg
Views: 0
Size:  1.48 MB


LOADS TO DO!!!!!
seventune is offline
Old 15 January 2017, 08:19 PM
  #234
mickywrx
Unmapped 12.4s @ 105
iTrader: (29)

mickywrx's Avatar

Join Date: Apr 2005
Location: Newcastle. 330bhp-289lb/ft @ 1bar boost - 12.4s @ 105mph
Posts: 11,777
Post

Name:  Unknown_zps336a9e89.jpeg
Views: 0
Size:  2.0 KB
mickywrx is offline
Old 16 January 2017, 11:06 AM
  #235
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 7,854
Default

Mmmmmm... Welding ****.....
BrownPantsRacing is offline
Old 16 January 2017, 05:09 PM
  #236
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

Cheers man, to be honest my ally welding isn't amazing but passible


Minor alteration today as its still friggin' raining.....


I wanted to change the pipe from the compressor to the intercooler. I had no particular issues with it under the inlet manifold but with the stock power steering pump being used going under the there with the PS pipe work makes more sense and there isn't room for both. Another aesthetic reason for changing the IC pipe is that it now runs along the same angles as the air box and also the Air filter pipe once I've made it... and we all like a little symmetry ever now and then


I chopped the old pipe to save a bit of time and effort then cut come more Ti for the new section,

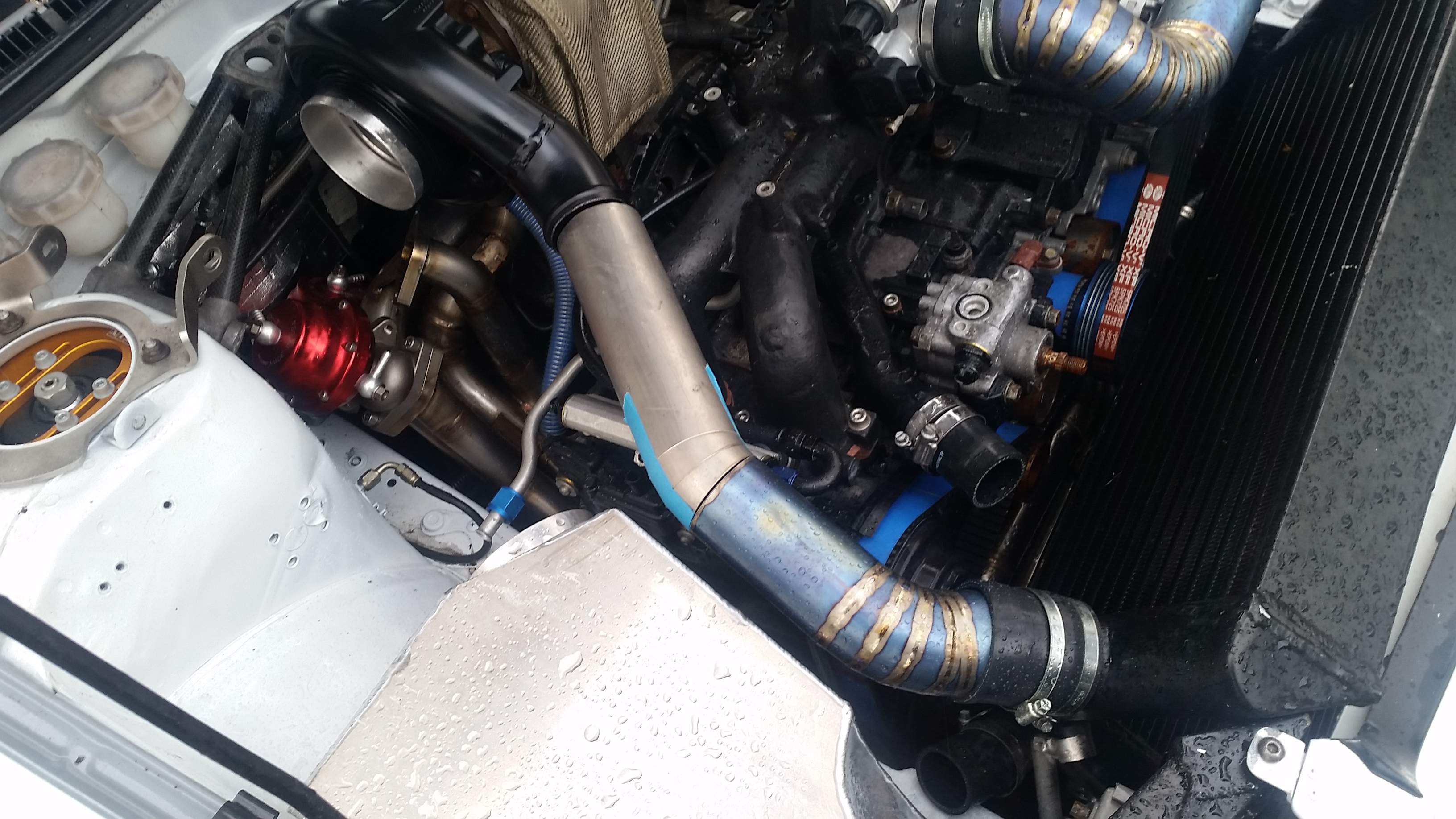

Name:  20170116_133852_zps6qt30trm.jpg
Views: 0
Size:  1.72 MB


once correct it go the heat applied to it so it matches the other pipe work,


Name:  20170116_143601_zpsa7jcqw8g.jpg
Views: 0
Size:  1.68 MB

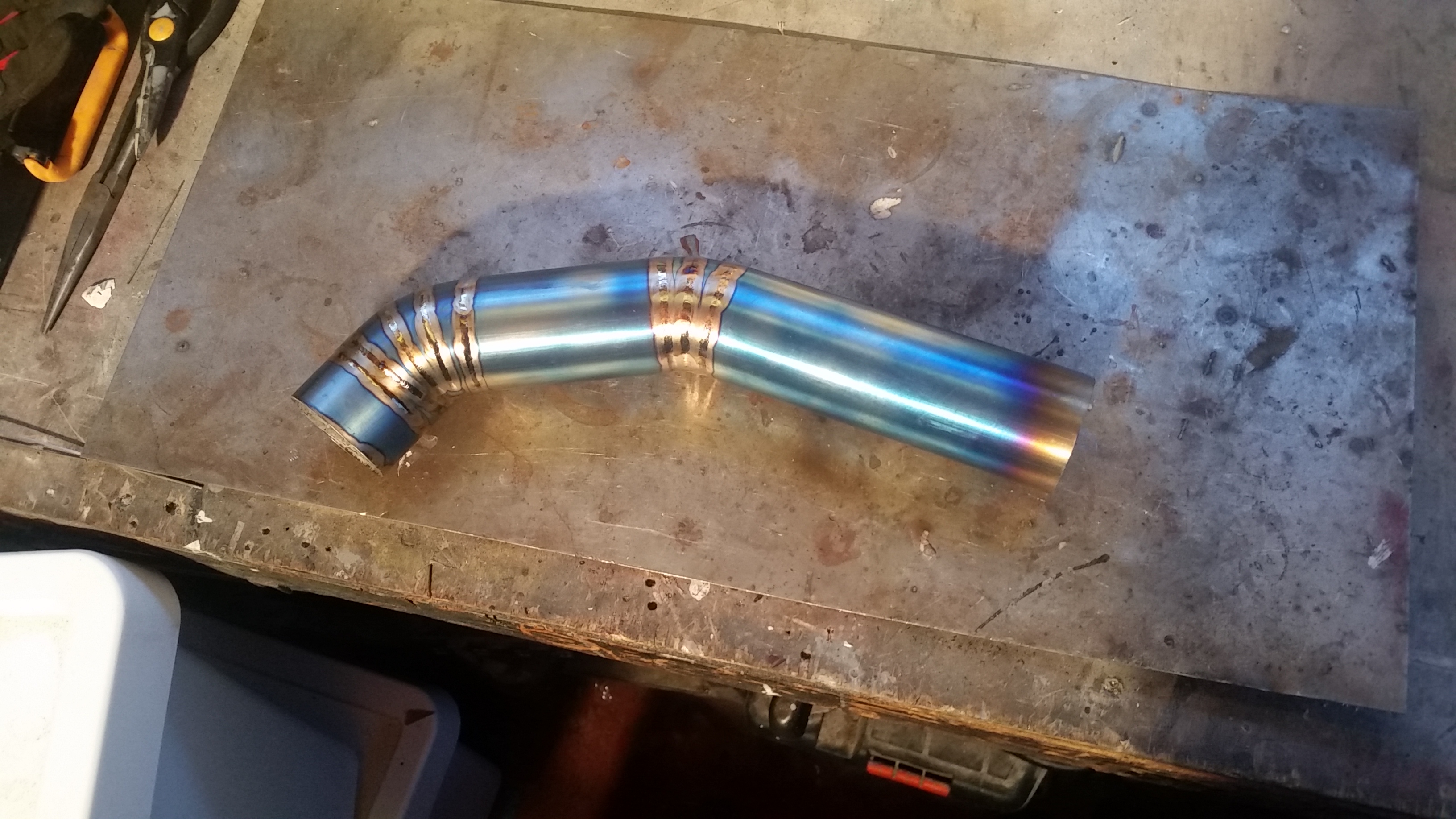

Welded up,


Name:  20170116_152906_zpsanc1bp72.jpg
Views: 0
Size:  1.54 MB

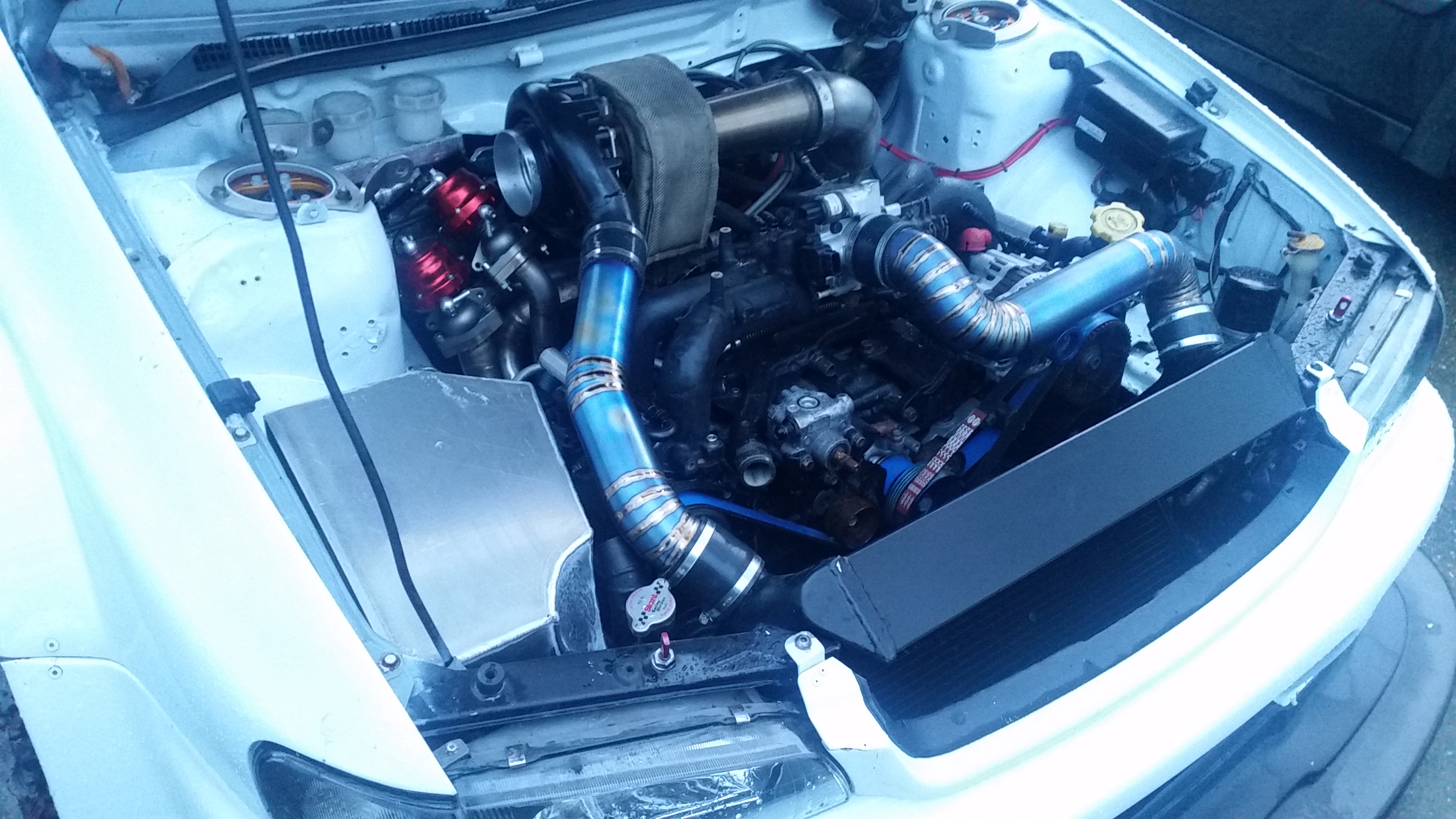

and fitted up


Name:  20170116_161454_zpsuhtqhncx.jpg
Views: 0
Size:  1.69 MB

Last edited by seventune; 16 January 2017 at 05:11 PM.
seventune is offline
Old 16 January 2017, 06:06 PM
  #237
RAGGY DOO
Scooby Regular
iTrader: (1)

RAGGY DOO's Avatar

Join Date: Sep 2015
Location: Avoid bob Rawle
Posts: 2,565
Default

What a thread this is , not liking any of the body mods at all
But the engine work is a thing of beauty
Fair play
RAGGY DOO is offline
Old 16 January 2017, 08:11 PM
  #238
mickywrx
Unmapped 12.4s @ 105
iTrader: (29)

mickywrx's Avatar

Join Date: Apr 2005
Location: Newcastle. 330bhp-289lb/ft @ 1bar boost - 12.4s @ 105mph
Posts: 11,777
Post

I'm going to have to click the RTM button. There's far too much **** on this thread.
mickywrx is offline
Old 26 February 2017, 05:03 PM
  #239
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 214
Default

Seat rail Sunday.....

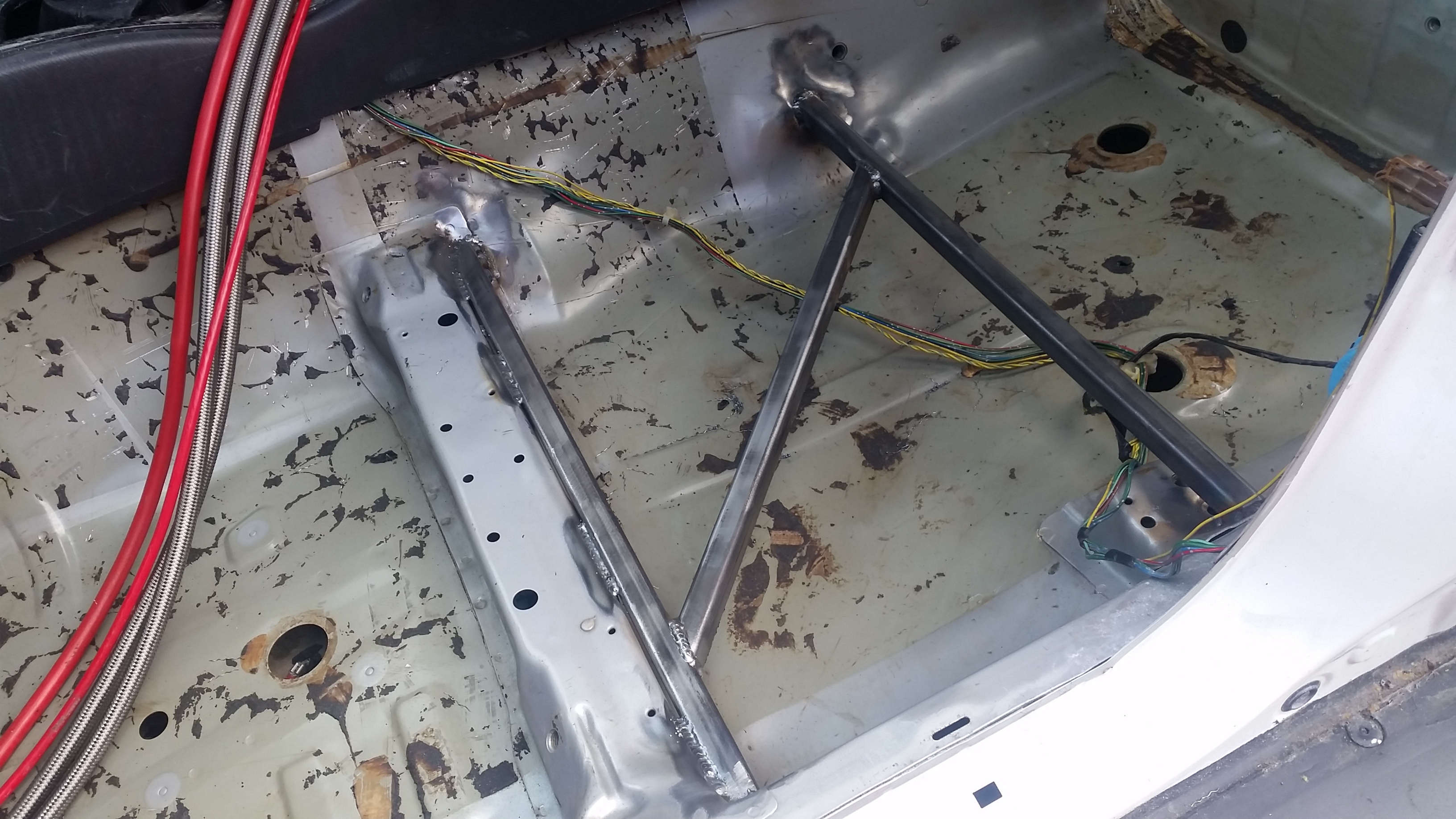

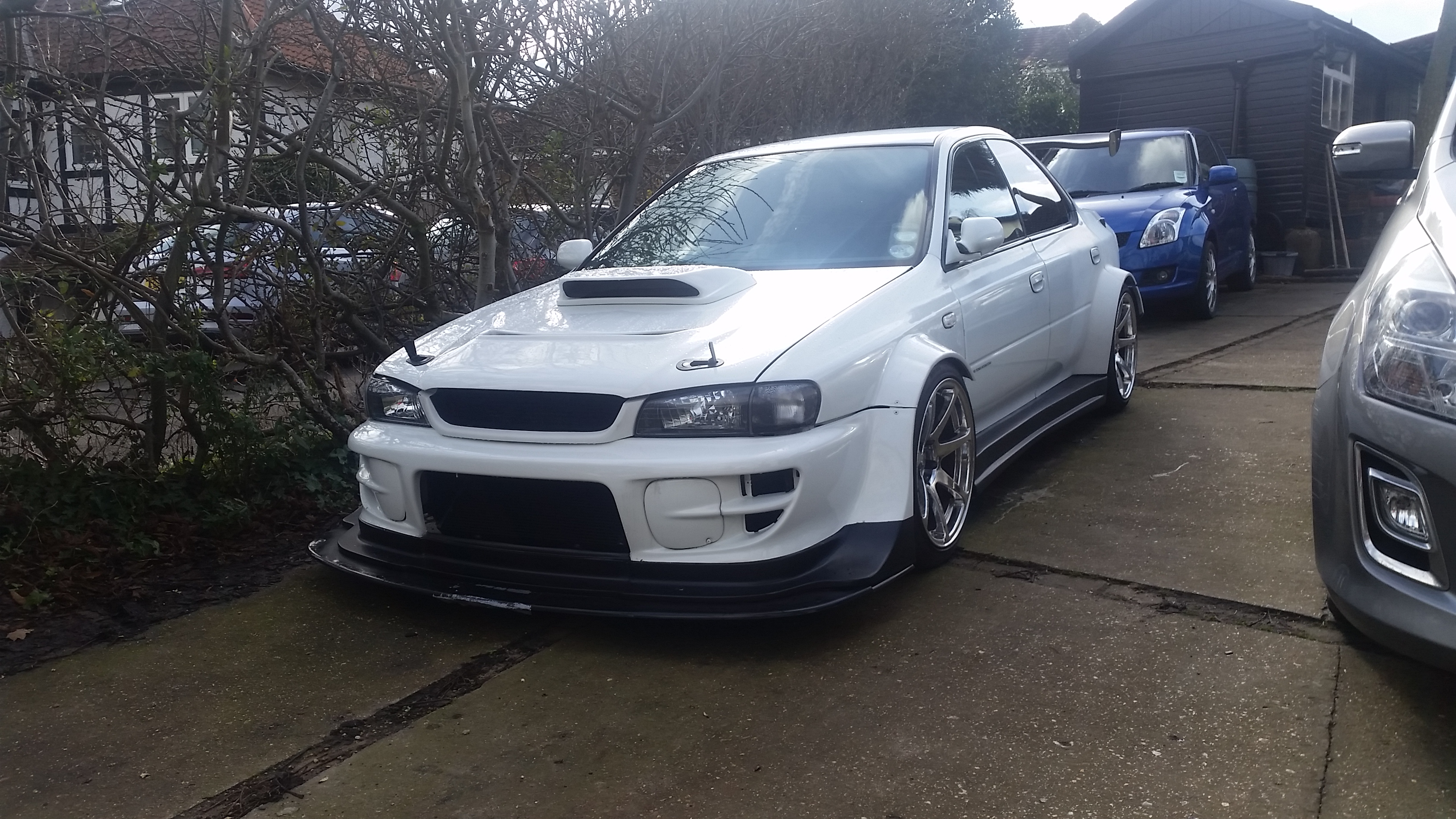

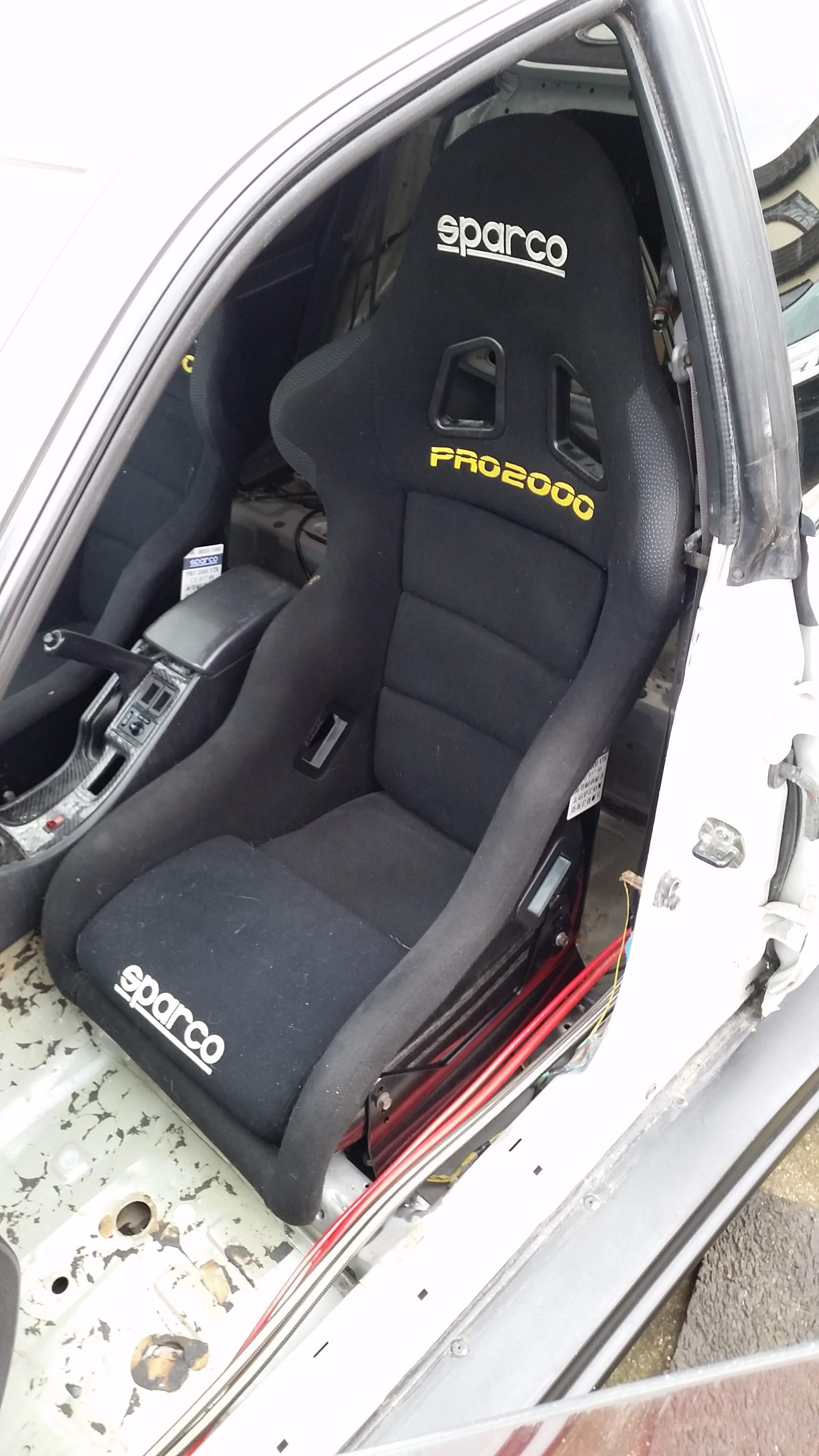

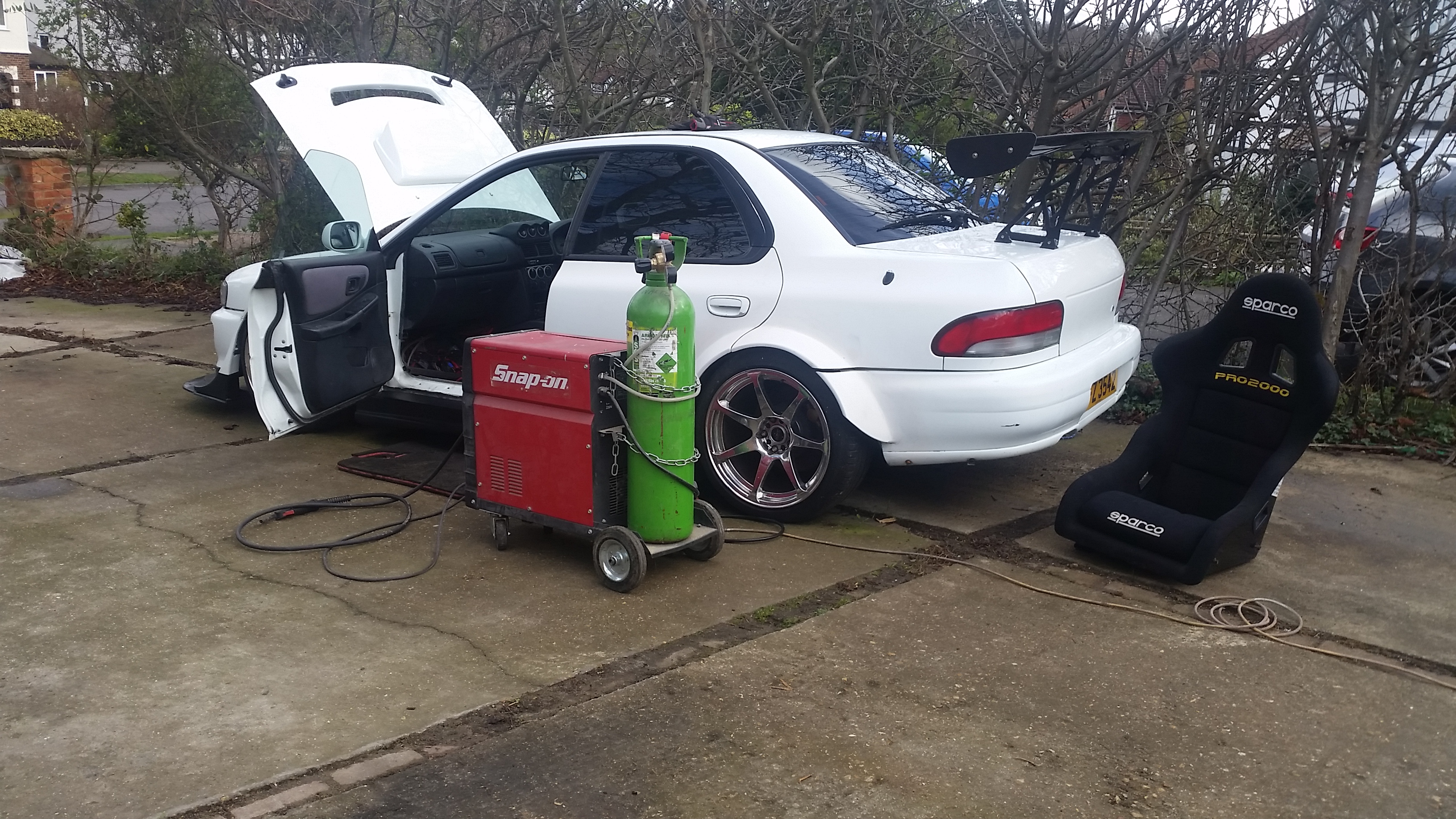

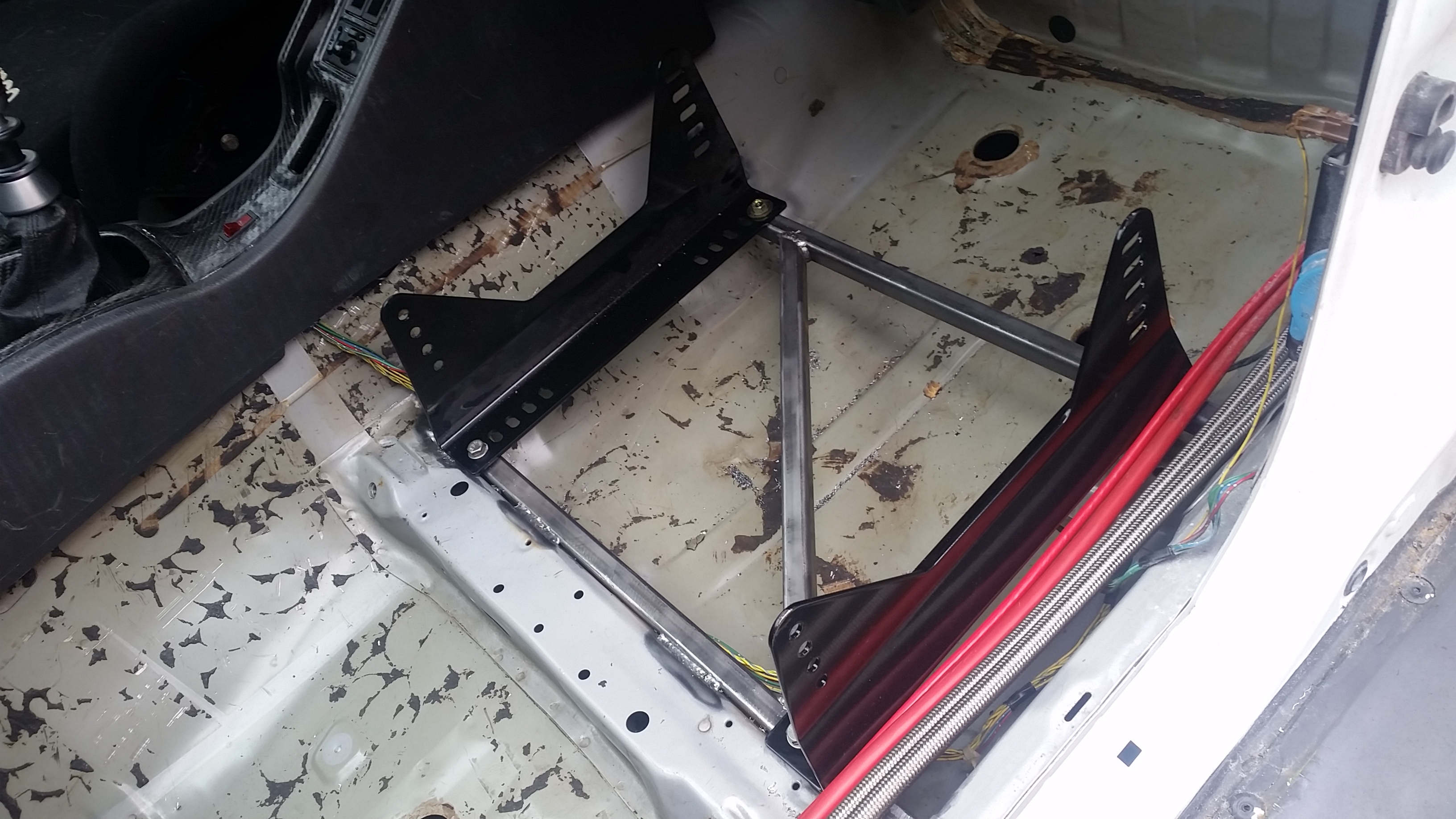

Name:  20170226_115846_zpsguhmg0gv.jpg
Views: 0
Size:  2.10 MB

Name:  20170226_122626_zpsab7tkei8.jpg
Views: 0
Size:  2.34 MB

Name:  20170226_132552_zps1halsn2y.jpg
Views: 0
Size:  1.67 MB

Name:  20170226_135332_zpsksnskgwj.jpg
Views: 0
Size:  1.59 MB

Name:  20170226_140551_zps7viii79h.jpg
Views: 0
Size:  1.32 MB

Last edited by seventune; 20 June 2018 at 10:37 AM.
seventune is offline
Old 26 February 2017, 05:38 PM
  #240
96sti
Scooby Regular

Join Date: Jan 2014
Location: ashford kent
Posts: 492
Default

Originally Posted by seventune View Post
Seat rail Sunday.....









Looking smart mate 🖒
96sti is offline

Thread Tools
Search this Thread
Quick Reply: The Four and the Rotary


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
