Tiny update today.......

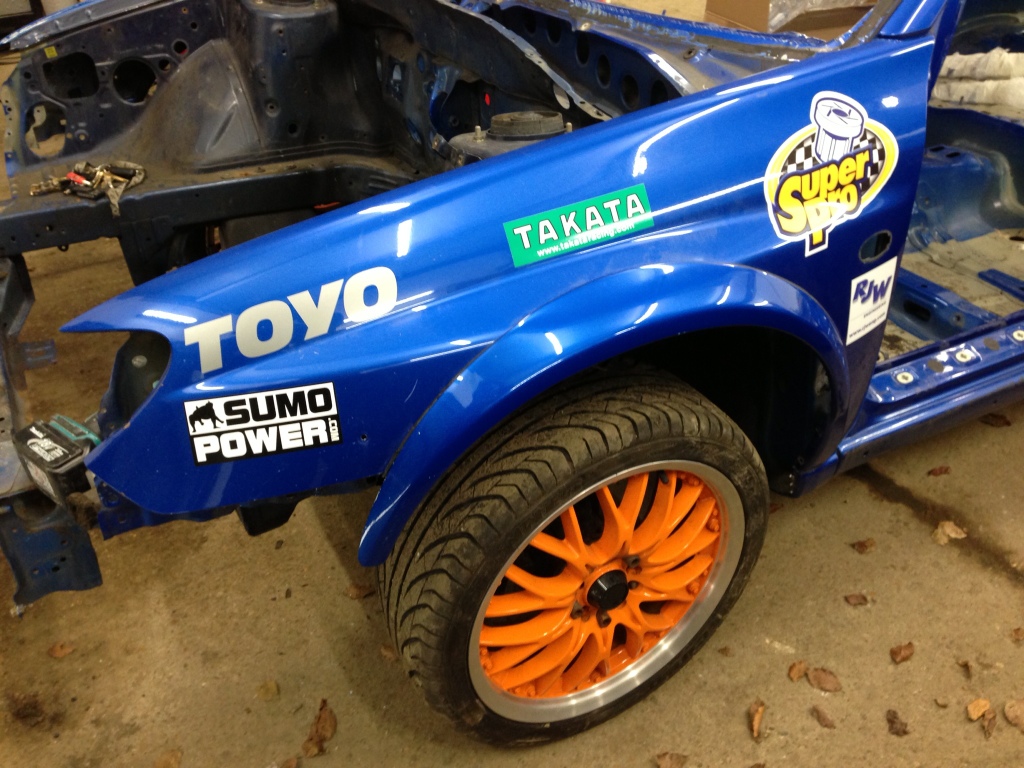

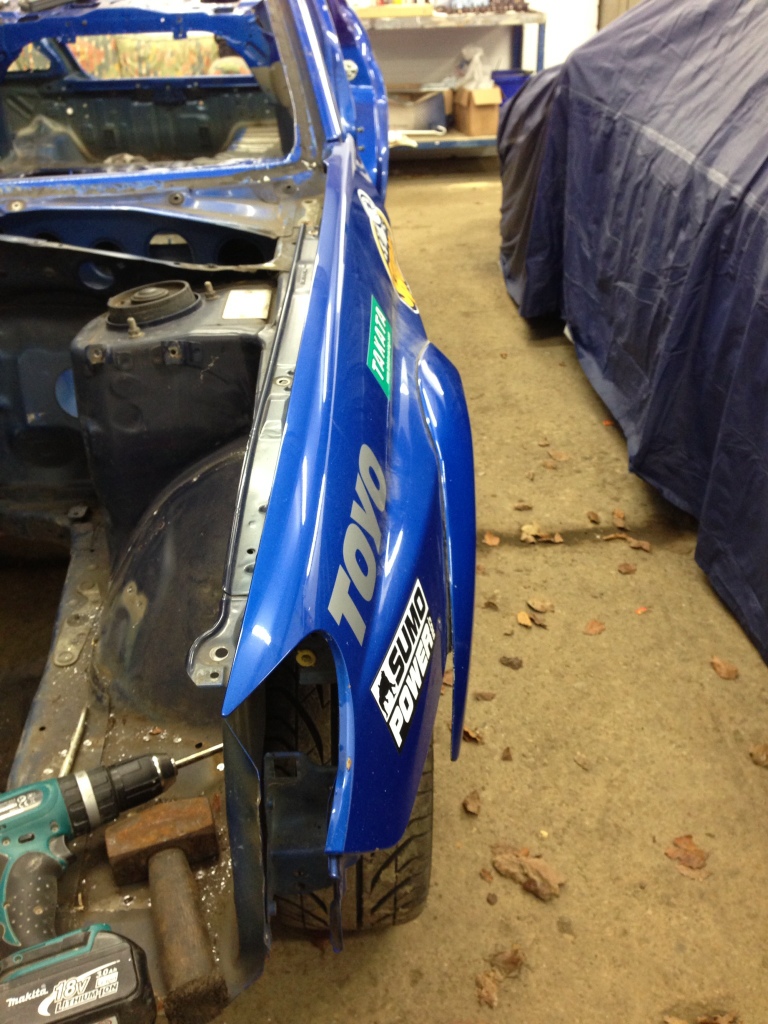

Trial fit of wide arched wings purchased from a member on here....
Name:  3357530F-19B4-4F13-AF31-6FF8F02F0A13-142-00000385A546FF76_zps07e7e820.jpg
Views: 0
Size:  322.3 KB
Name:  E6874CED-51D2-43B8-9F7F-64EBF44E4067-142-00000385AC73F6BD_zps419ae822.jpg
Views: 0
Size:  305.8 KB

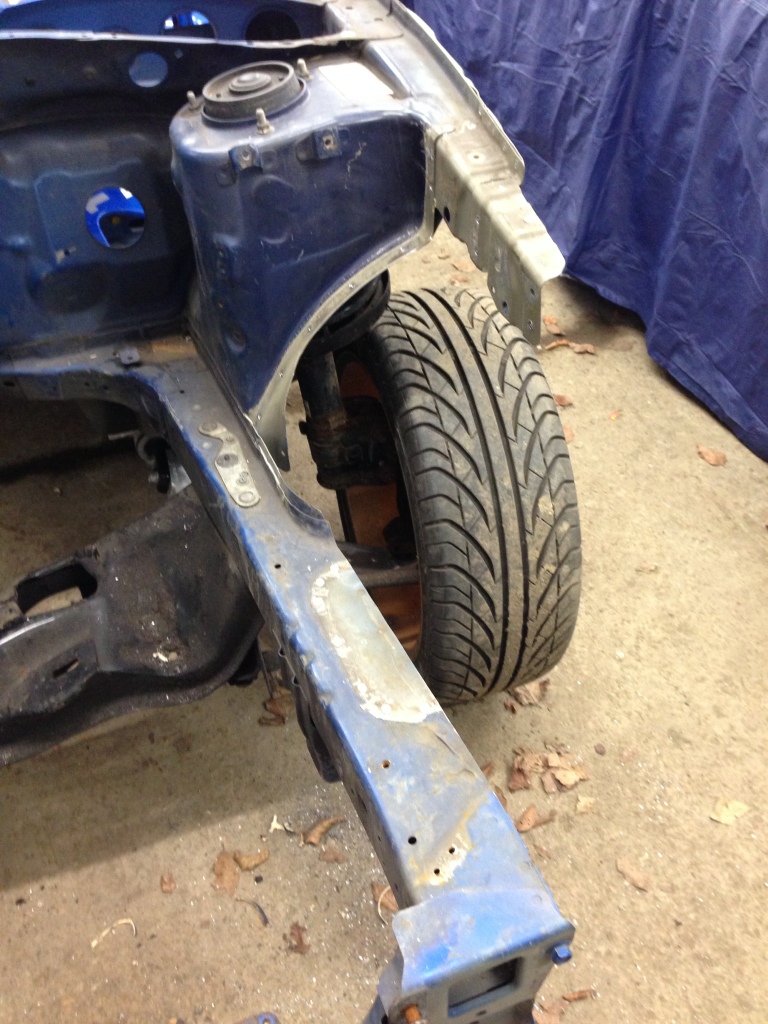

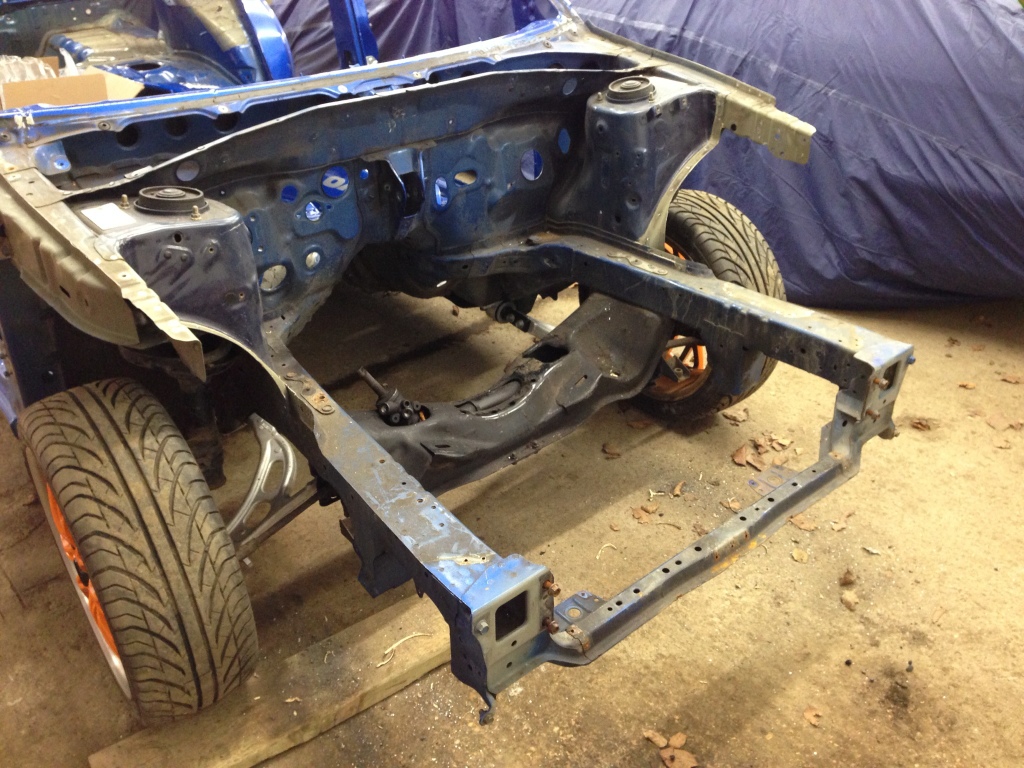

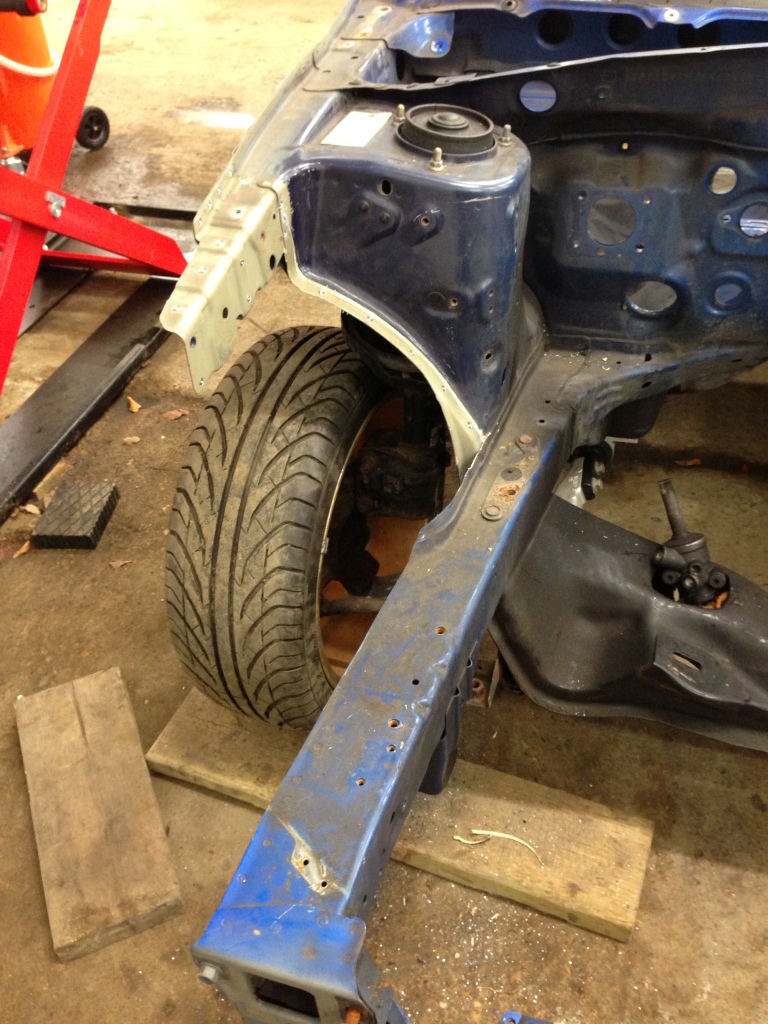

Then used a spot weld drill bit to remove blob inner arch panels ready for the replacement hawk items...
Name:  3203AC9C-BEBF-4D85-915E-E34957FE6BC4-142-00000385B2D3DE92_zps5dc34a88.jpg
Views: 0
Size:  359.6 KB
Name:  8CC3B9A5-2840-4E73-9277-A88E998F32BA-142-00000385B9F3DDC8_zpsf9448ca7.jpg
Views: 0
Size:  333.6 KB
Name:  33D859EF-D58E-4580-B523-1CBC419BE6F8-142-00000385C01FDC9D_zps84c1344f.jpg
Views: 0
Size:  315.1 KB

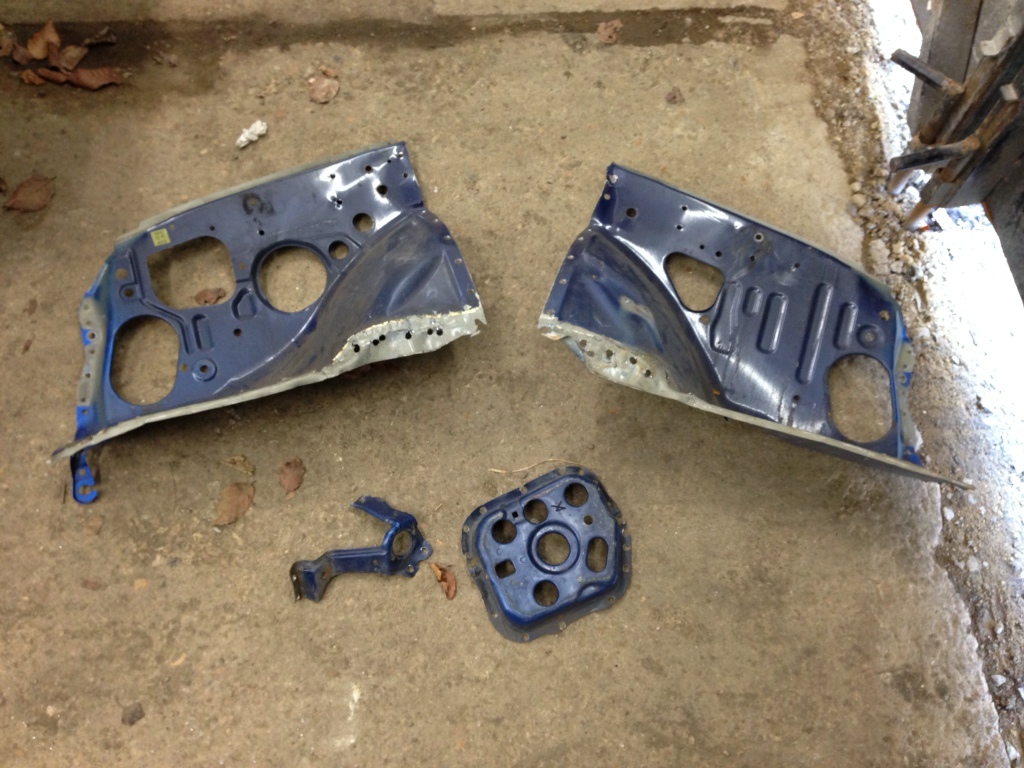

Some un-needed parts
Name:  E69FC473-9F9D-4843-8B35-82CF02B98E13-142-00000385C6273299_zpse0deaa4b.jpg
Views: 0
Size:  306.1 KB

The shell goes off for cage fabrication on Monday!
Reply
Old Mar 2, 2013 | 10:26 PM
  #63
JonMc's Avatar
JonMc
Scooby Senior
iTrader: (51)

Joined: Nov 2005
Posts: 20,491
Likes: 2
From: Wherever I park my car, that's my home
Default

So that's were Toffee's arches went

Are you space-framing or just smoothing the inner wings

Great work
Reply
Old Mar 2, 2013 | 10:30 PM
  #64
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

They maybe smoothed, not sure yet. The main reason is i'm converting from blob to hawk, they are slightly different. You can just cut the blob ones to suit but i want to do it properly
Reply
Old Mar 4, 2013 | 07:49 PM
  #65
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

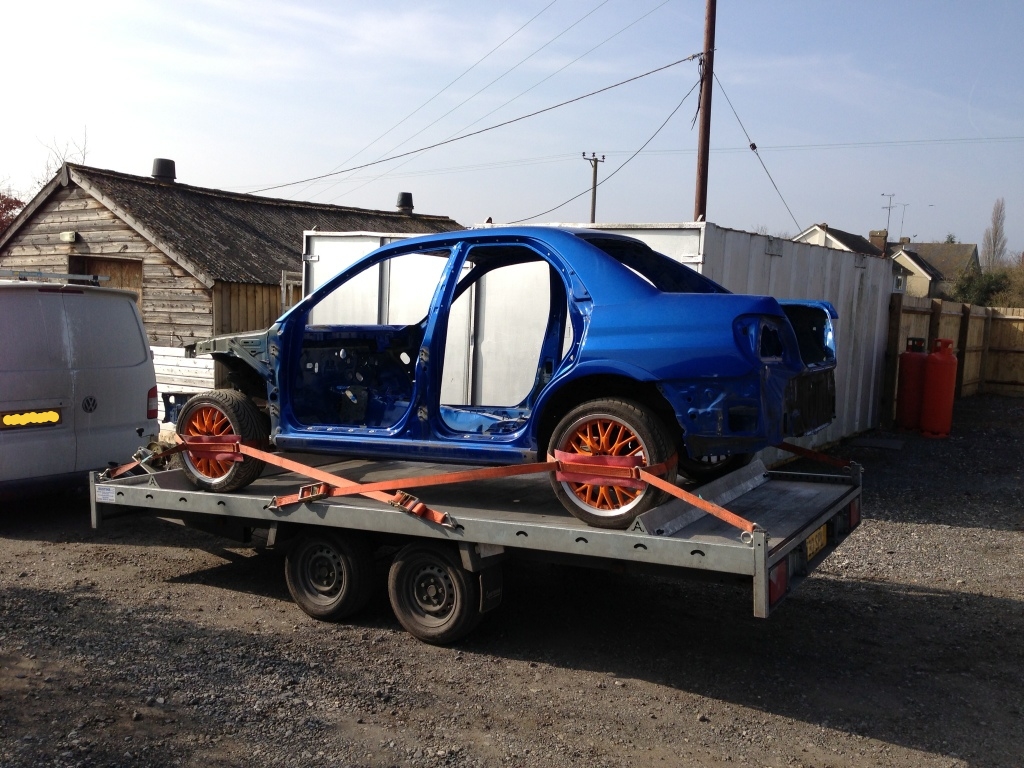

Sooo, i took the shell for a road trip down to Surrey today to have the cage made & fitted. Should be done in around 3-4 weeks time. Updates to follow...

Name:  5CF39C39-28C5-4140-87D1-567CD4D2302D-142-000004A34B16459B_zpse0742862.jpg
Views: 0
Size:  525.6 KB
Reply
Old Mar 14, 2013 | 07:42 PM
  #66
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

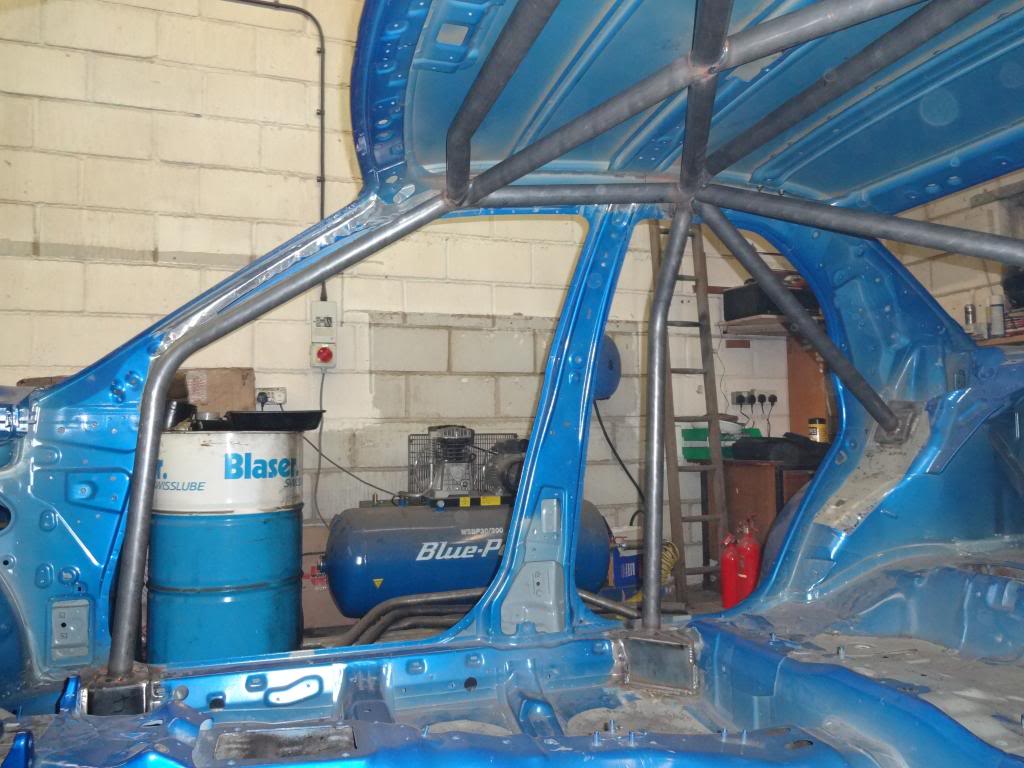

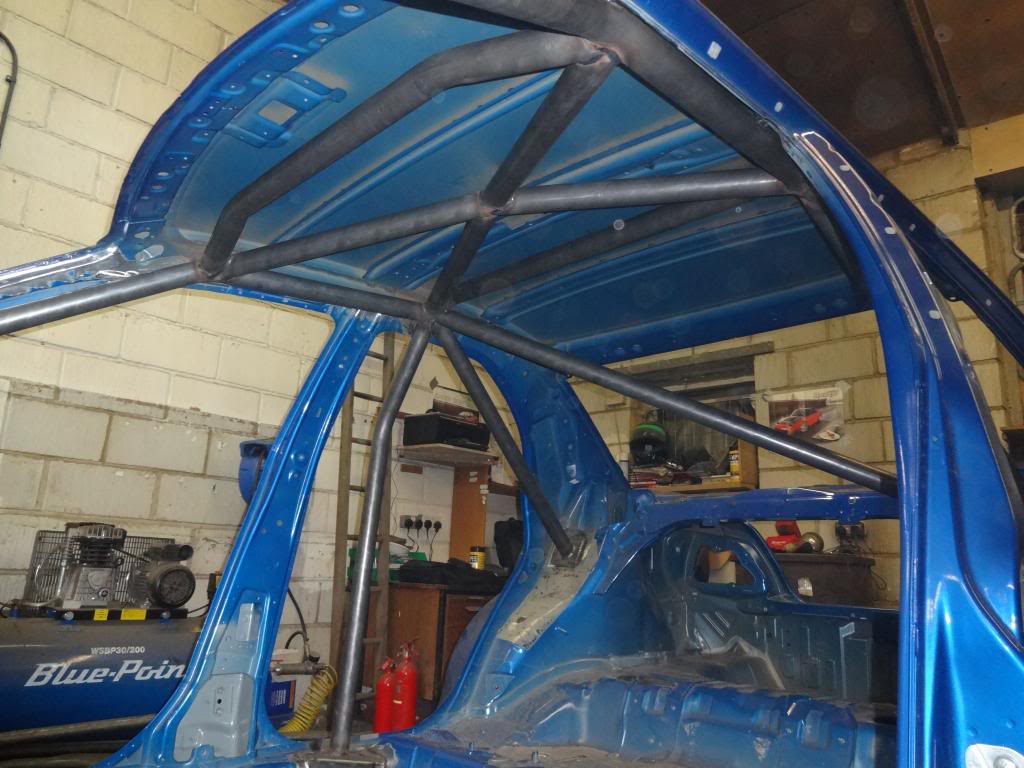

The cage build has begun......

Name:  Image_zps422efe46.jpg
Views: 0
Size:  106.8 KB

Name:  Image1_zps94394dc6.jpg
Views: 0
Size:  107.9 KB
Reply
Old Mar 14, 2013 | 07:43 PM
  #67
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default





More updates to follow as the cage takes shape.
Reply
Old Mar 20, 2013 | 11:45 PM
  #68
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

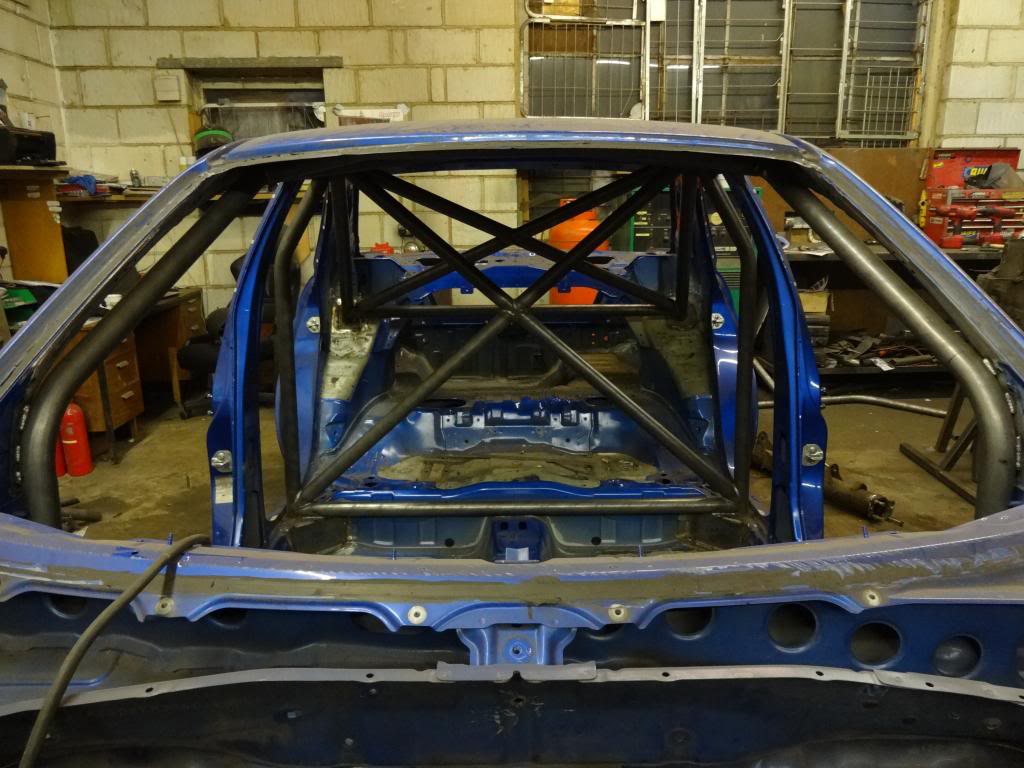

Update....

Name:  Image-2_zps2b230f38.jpg
Views: 0
Size:  120.9 KB



Name:  Image3_zps4a18bfb8.jpg
Views: 0
Size:  113.8 KB
Reply
Old Mar 20, 2013 | 11:52 PM
  #69
IanPaskin's Avatar
IanPaskin
Scooby Regular

Joined: Jun 2012
Posts: 324
Likes: 0
From: Bridgnorth
Default

Coming on nice mate...
Reply
Old Mar 21, 2013 | 12:06 AM
  #70
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Originally Posted by IanPaskin
Coming on nice mate...
Cheers
Reply
Old Mar 23, 2013 | 08:46 PM
  #71
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

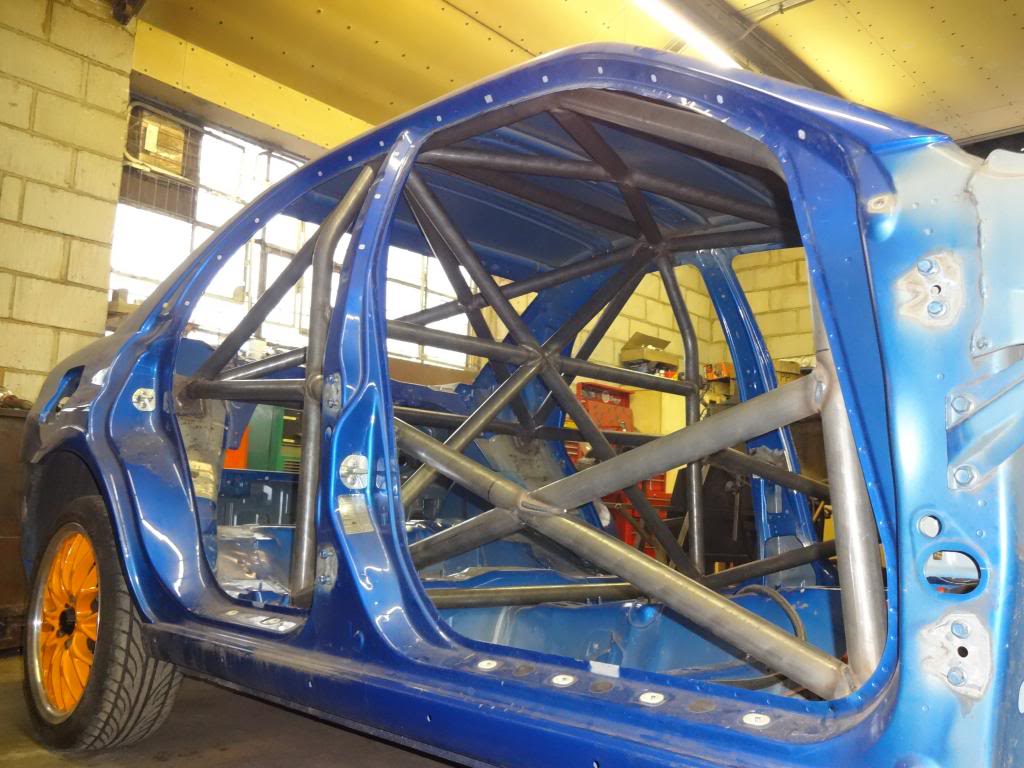

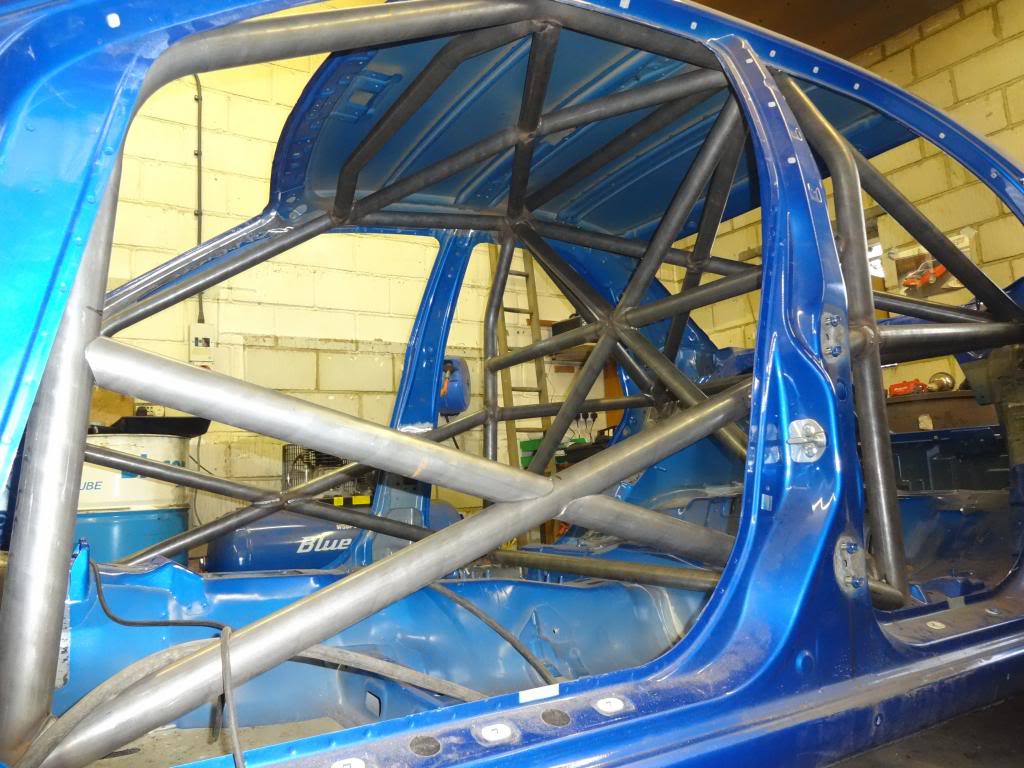

More cage now in, Nick is doing a great job..

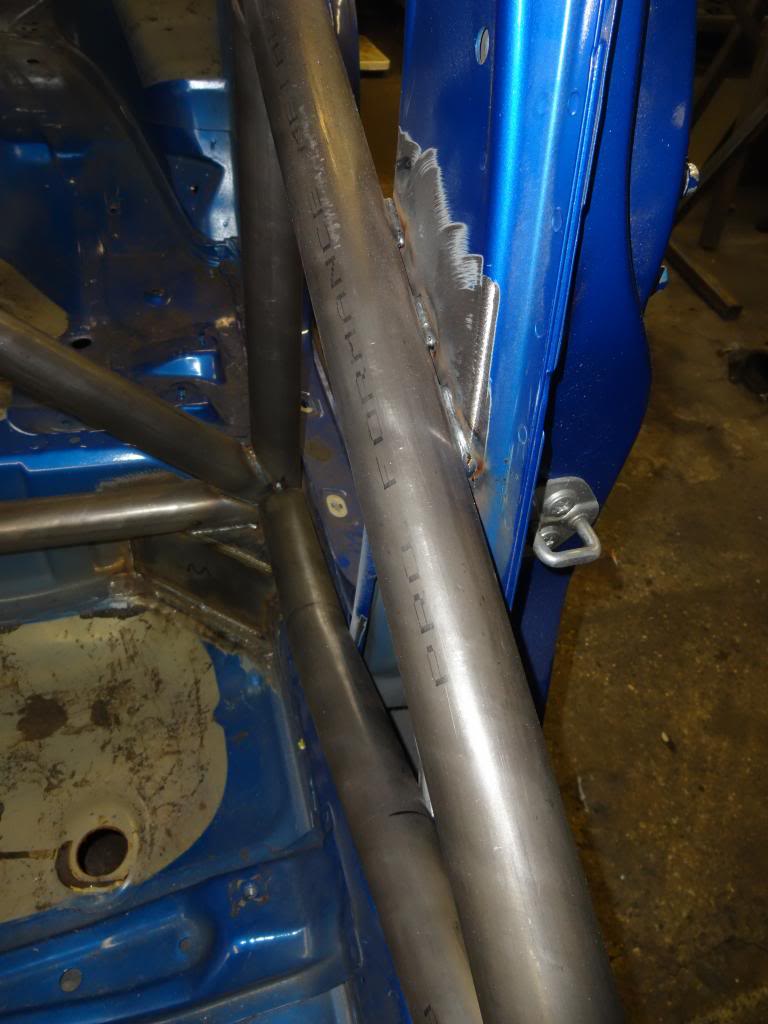

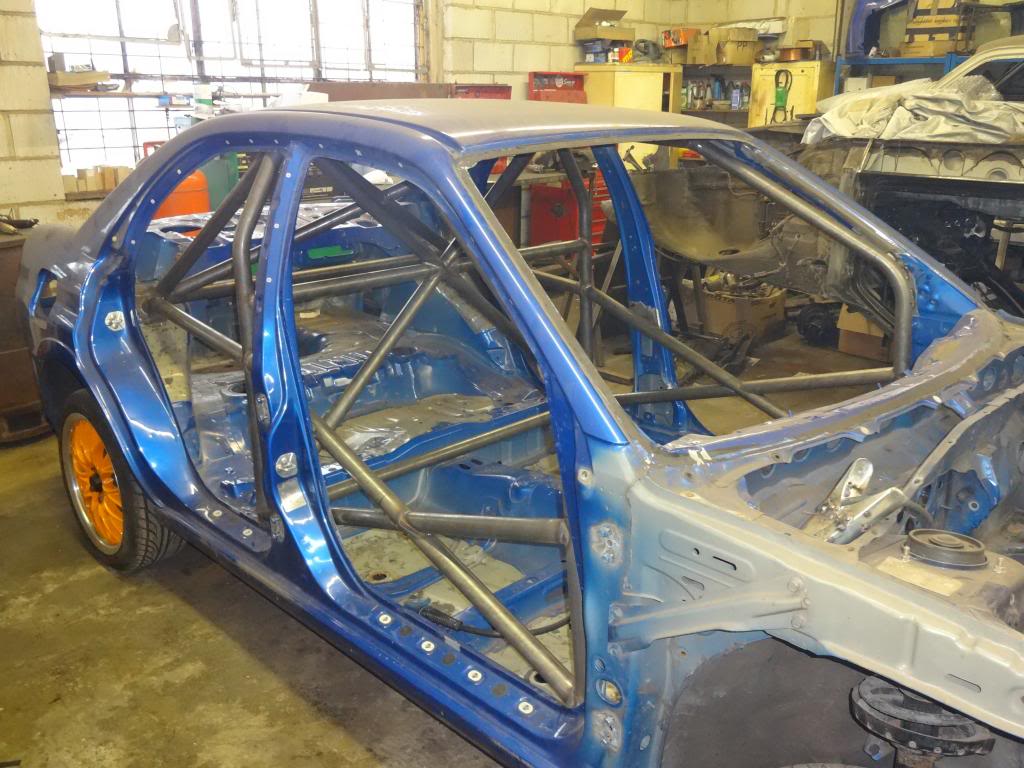

Door bars & harness bars now in
Name:  Image5_zps4555e265.jpg
Views: 0
Size:  124.6 KB

Name:  Image6_zps988aa363.jpg
Views: 0
Size:  115.0 KB

Name:  Image7_zpsecc2ecd4.jpg
Views: 0
Size:  123.9 KB

Name:  Image8_zpsd96de218.jpg
Views: 0
Size:  75.6 KB
Reply
Old Mar 25, 2013 | 08:07 AM
  #72
Shaks-STI's Avatar
Shaks-STI
Scooby Regular
iTrader: (7)

Joined: Aug 2009
Posts: 1,877
Likes: 0
From: Leicester
Default

Very nice
Reply
Old Apr 11, 2013 | 09:37 PM
  #73
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

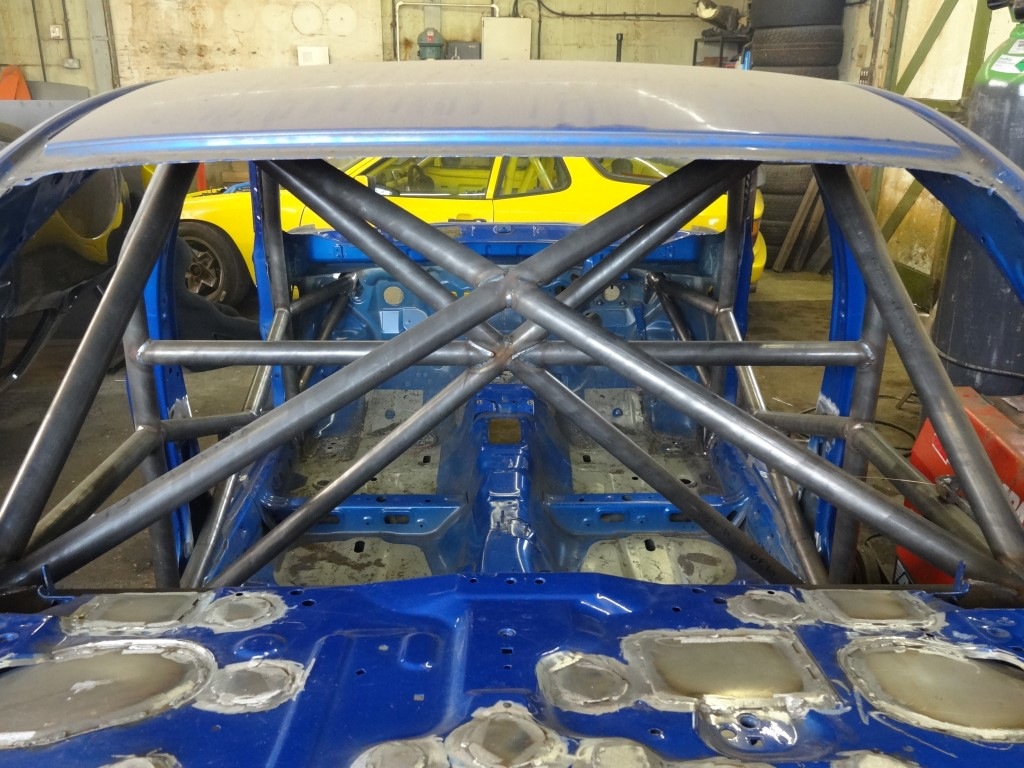

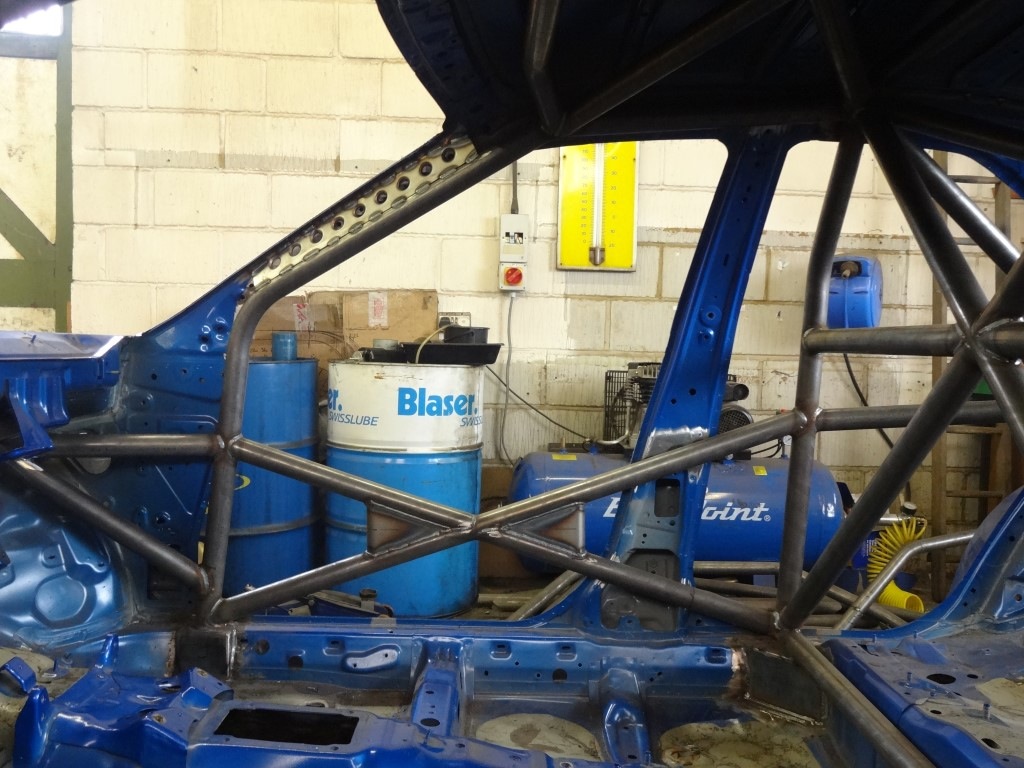

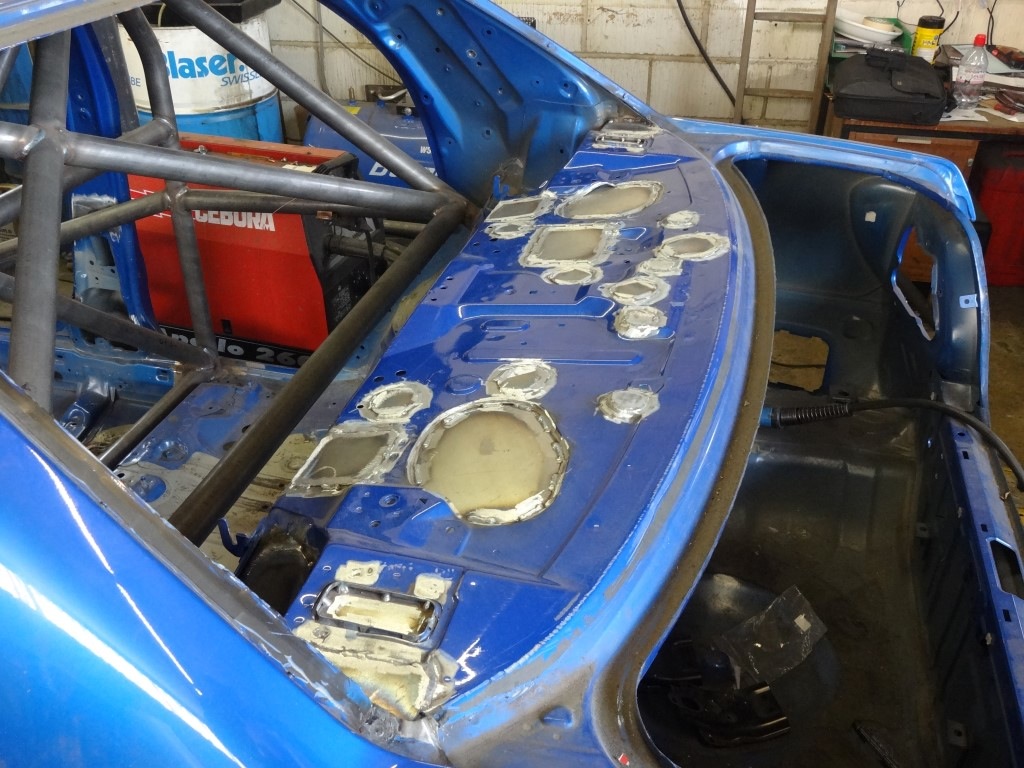

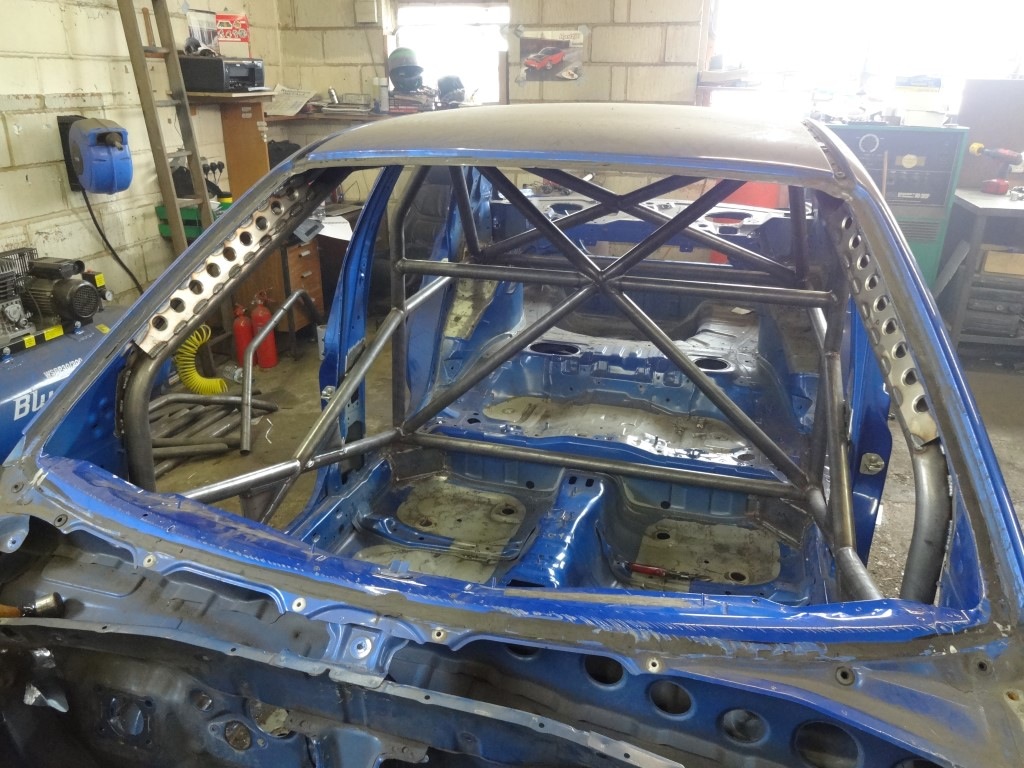

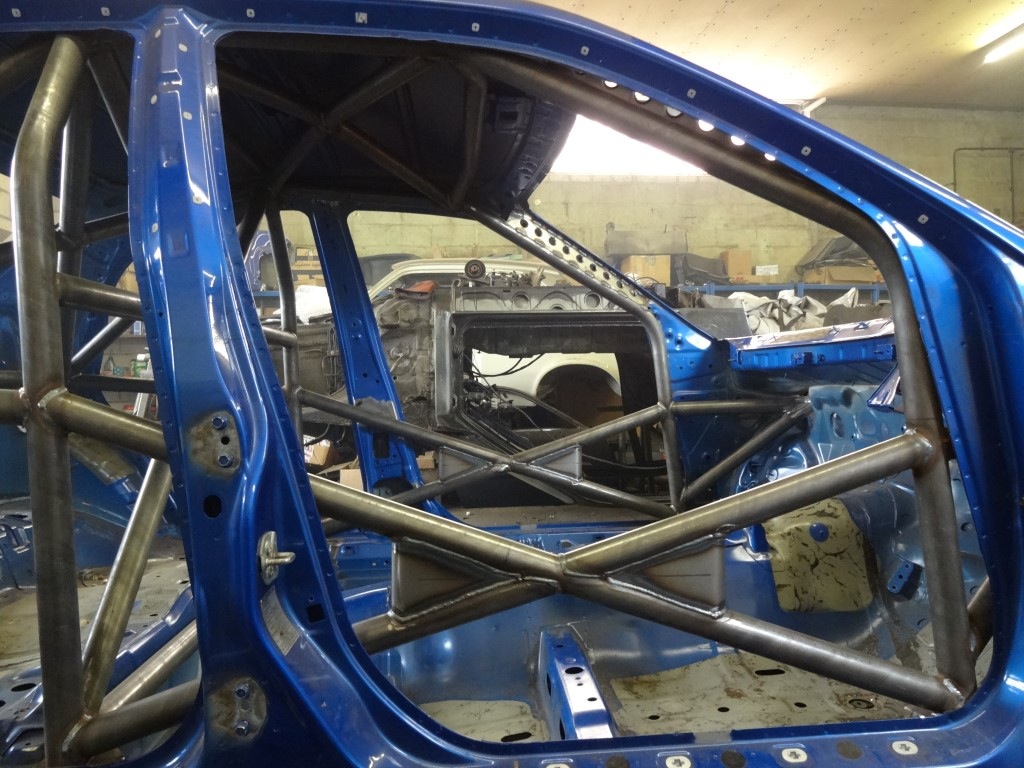

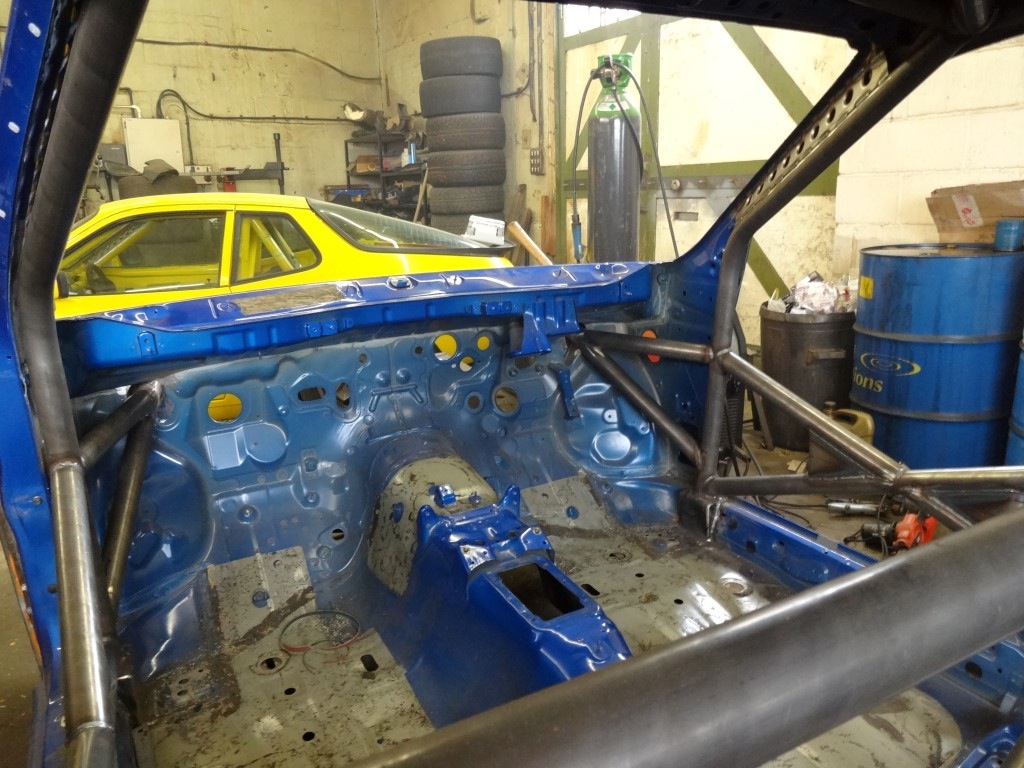

Update:

Name:  Image-2_zps1237dafd.jpg
Views: 0
Size:  230.8 KB

Name:  Image1_zps69f633c2.jpg
Views: 0
Size:  244.6 KB

Name:  Image2_zpsf82c7da6.jpg
Views: 0
Size:  225.7 KB
Reply
Old Apr 11, 2013 | 09:39 PM
  #74
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Name:  Image3_zps1e83e2c3.jpg
Views: 0
Size:  217.0 KB





Name:  Image6_zps06b8fe12.jpg
Views: 0
Size:  234.6 KB
Reply
Old Apr 11, 2013 | 09:40 PM
  #75
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Name:  Image7_zps35337272.jpg
Views: 0
Size:  239.3 KB
Reply
Old Apr 11, 2013 | 09:45 PM
  #76
IanPaskin's Avatar
IanPaskin
Scooby Regular

Joined: Jun 2012
Posts: 324
Likes: 0
From: Bridgnorth
Default

Looking really great.... Like the gusset work on the door bars and happy to see the front triangulation is similar to mine as I wasn't sure how was best to do it.
Reply
Old Apr 12, 2013 | 09:14 PM
  #77
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Thanks.
Reply
Old Apr 23, 2013 | 09:30 PM
  #78
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

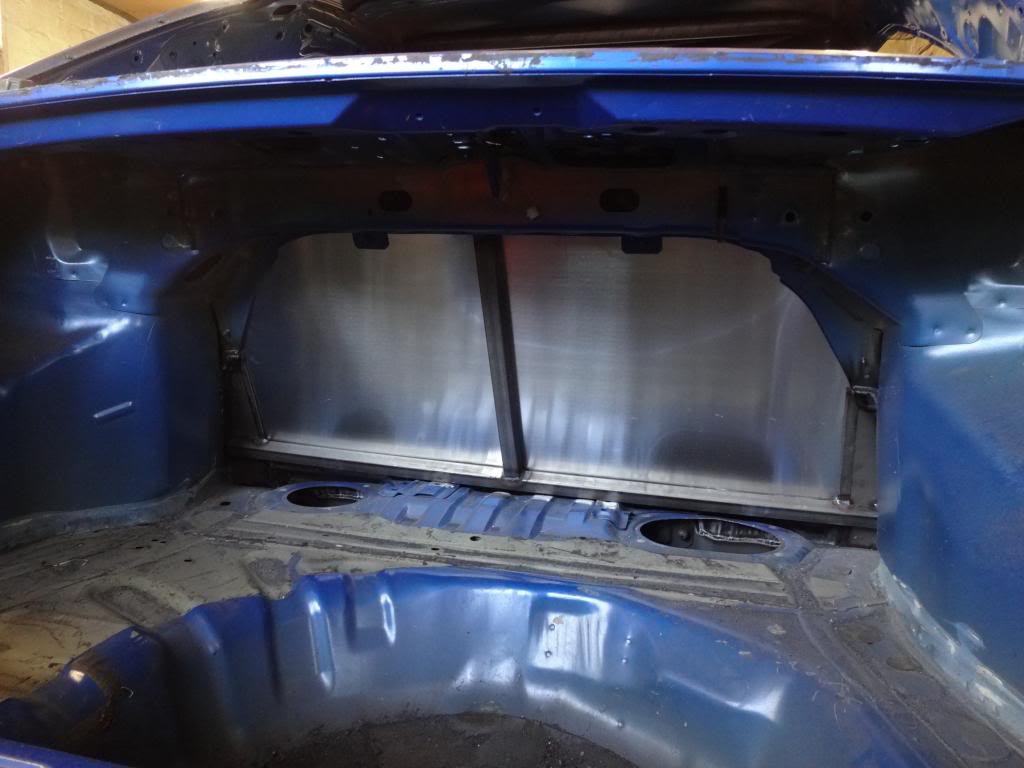

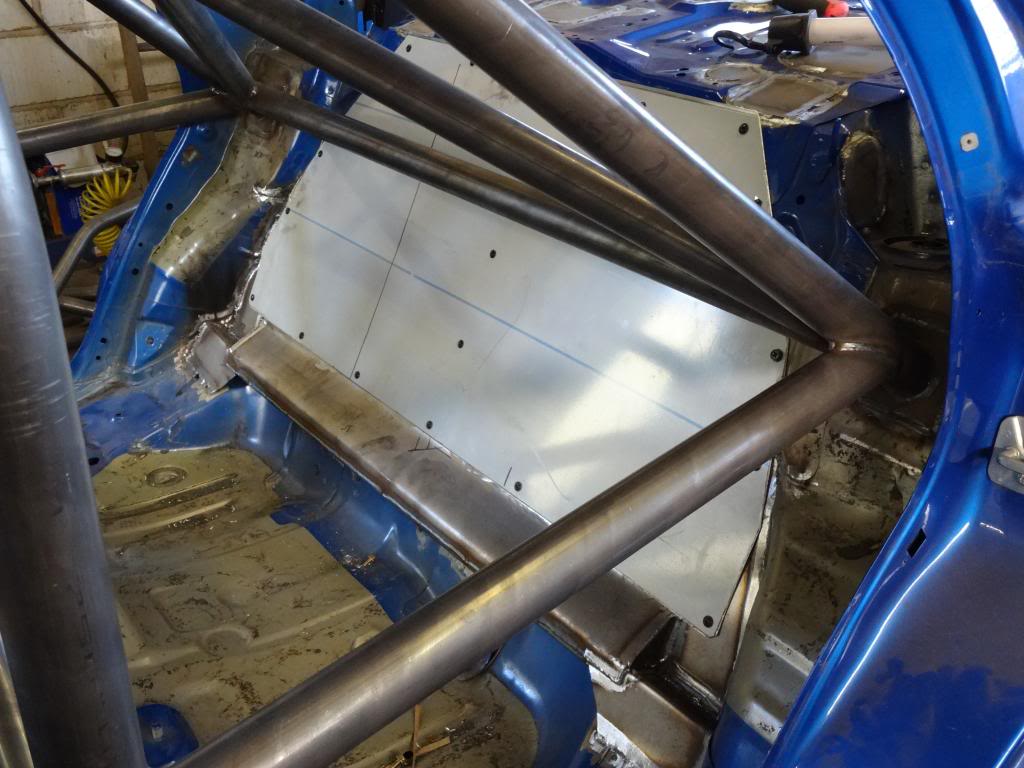

Fire wall in place

Name:  Image2_zps6f484db7.jpg
Views: 0
Size:  96.7 KB
Name:  Image-2_zps7e4f0496.jpg
Views: 0
Size:  70.1 KB
Reply
Old Apr 24, 2013 | 07:47 PM
  #79
morrison20's Avatar
morrison20
Scooby Regular

Joined: Jun 2011
Posts: 119
Likes: 0
From: bristol
Default

It looks great mate...may I ask how much was the cage?
Reply
Old Apr 24, 2013 | 08:09 PM
  #80
IanPaskin's Avatar
IanPaskin
Scooby Regular

Joined: Jun 2012
Posts: 324
Likes: 0
From: Bridgnorth
Default

Have you got it back from cage builders? When do you think you will get some paint on it?
Reply
Old Apr 24, 2013 | 08:37 PM
  #81
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Originally Posted by morrison20
It looks great mate...may I ask how much was the cage?
Cost depends on spec but this one was about £2k but i'm having lots of extras done at the same time. Contact Nickson Motorsport for more information on their pricing

Originally Posted by IanPaskin
Have you got it back from cage builders? When do you think you will get some paint on it?
Not back just yet mate, still have boot floor to do and sill stands to be made, he is mainly doing it in between other work as i said i was in no rush. Paint will be next in the list once i collect it.
Reply
Old Apr 24, 2013 | 08:55 PM
  #82
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

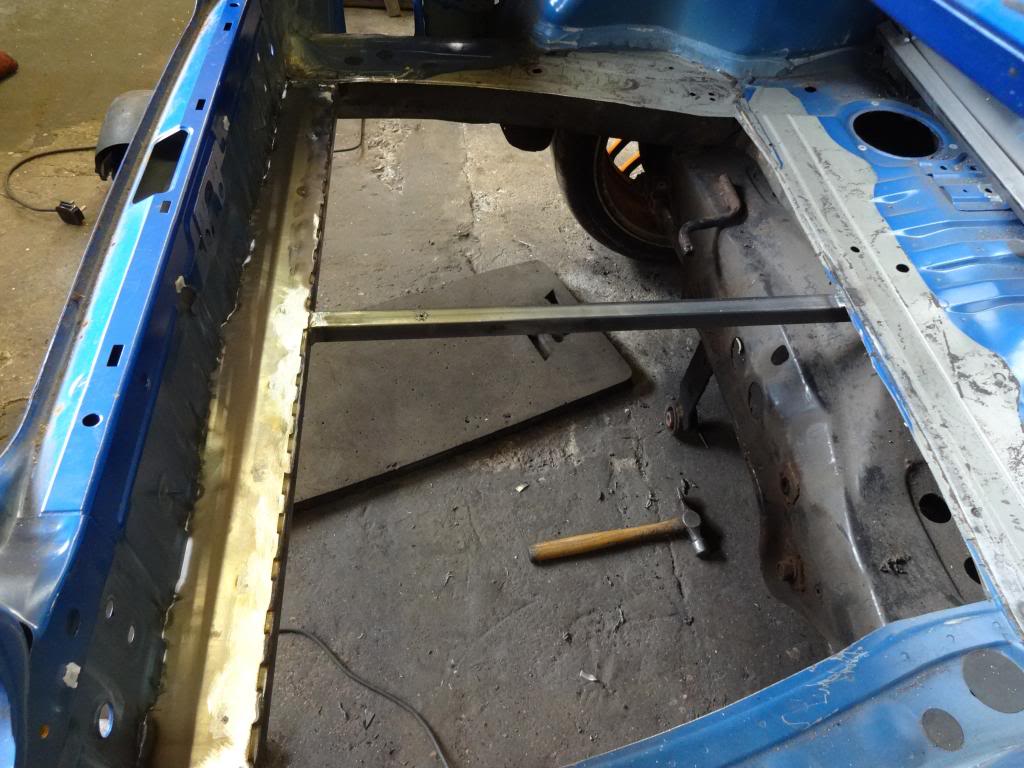

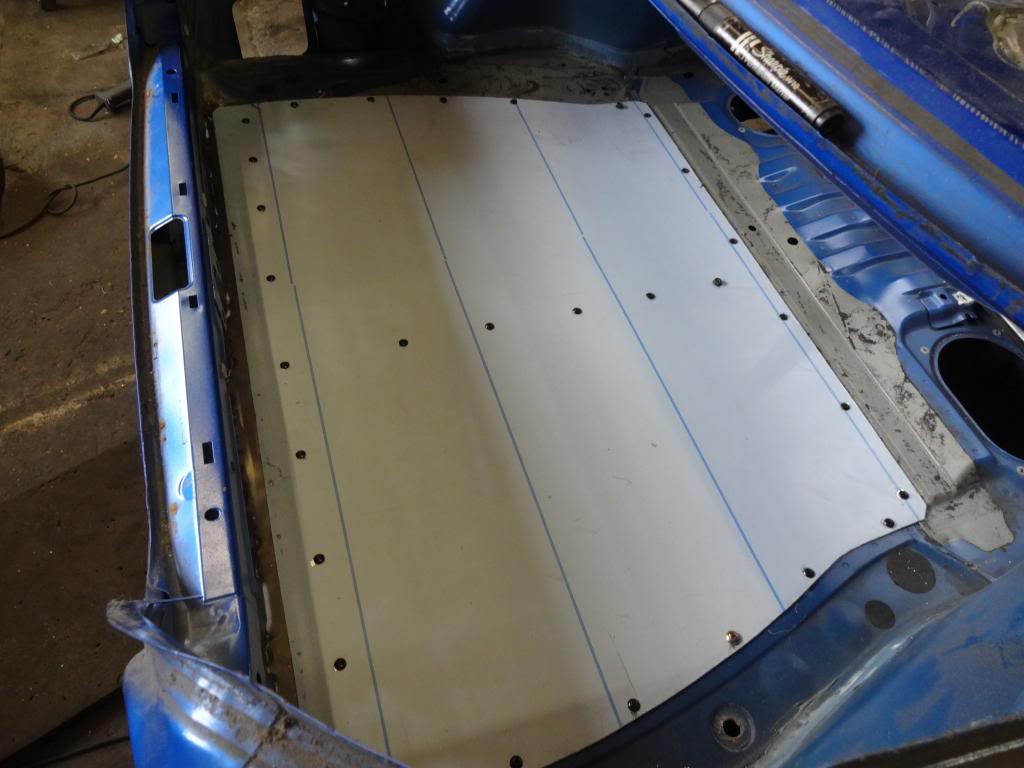

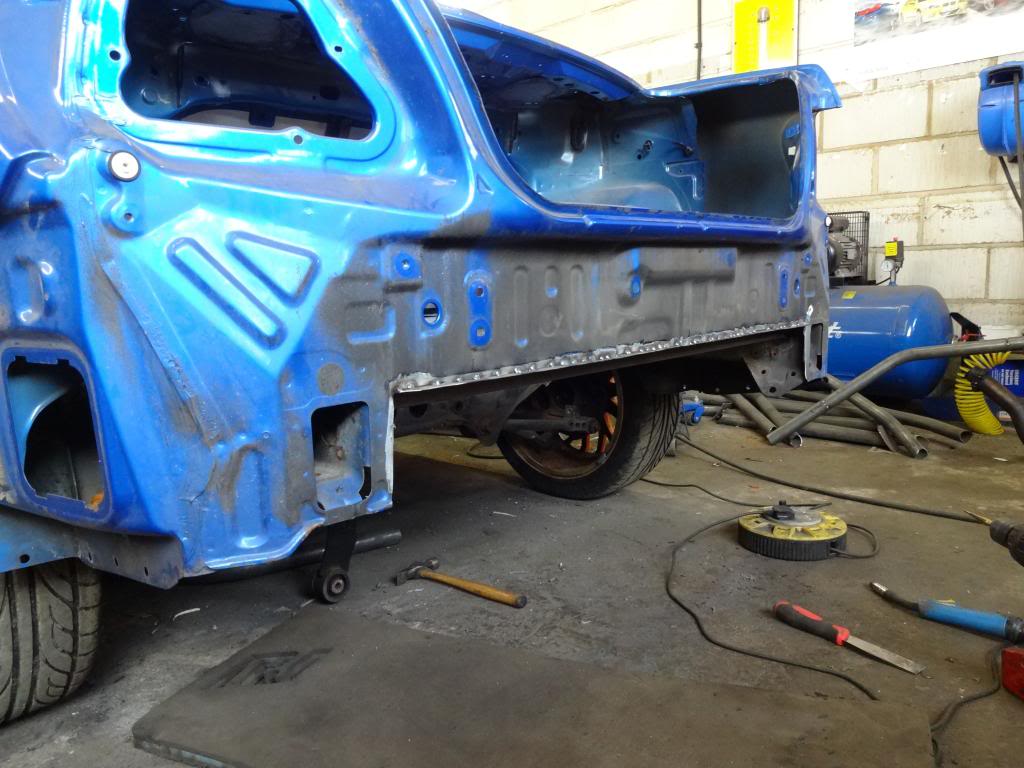

And on that note, todays update:

Name:  Image6_zpsd41b8e28.jpg
Views: 0
Size:  108.0 KB
Name:  Image5_zpsba5be8c1.jpg
Views: 0
Size:  70.7 KB
Name:  Image4_zps996b82a5.jpg
Views: 0
Size:  103.2 KB


Reply
Old Apr 24, 2013 | 09:02 PM
  #83
JonMc's Avatar
JonMc
Scooby Senior
iTrader: (51)

Joined: Nov 2005
Posts: 20,491
Likes: 2
From: Wherever I park my car, that's my home
Default

Are you going to seam weld the fire wall and boot floor or just leave them screwed in
Reply
Old Apr 24, 2013 | 09:03 PM
  #84
sonic93's Avatar
sonic93
Scooby Regular
iTrader: (16)

Joined: Oct 2009
Posts: 3,939
Likes: 2
From: borehamwood
Default

Nice will u get certificate with that cage?
Reply
Old Apr 26, 2013 | 05:32 PM
  #85
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Originally Posted by JonMc
Are you going to seam weld the fire wall and boot floor or just leave them screwed in
Screwed for now.

Originally Posted by sonic93
Nice will u get certificate with that cage?
The cage is built to msa blue book, and so will be fine to use in any msa/fia series but this is a weekend toy, i don't plan on competing at this stage.
Reply
Old May 5, 2013 | 05:43 PM
  #86
Billet's Avatar
Billet
Scooby Regular
iTrader: (60)

Joined: Apr 2010
Posts: 2,567
Likes: 0
From: West Mids
Default

Looking great mate! On the hunt for a widetrack shell myself now to start my build! It was too early for me when I sold this to you. Anyway good luck. Subscribed!
Reply
Old May 6, 2013 | 03:38 PM
  #87
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

Cheers mate.

I collected the car on Friday and brought it back home, i'm really happy with the quality of the work. More picture updates to follow soon.
Reply
Old May 7, 2013 | 08:20 PM
  #88
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

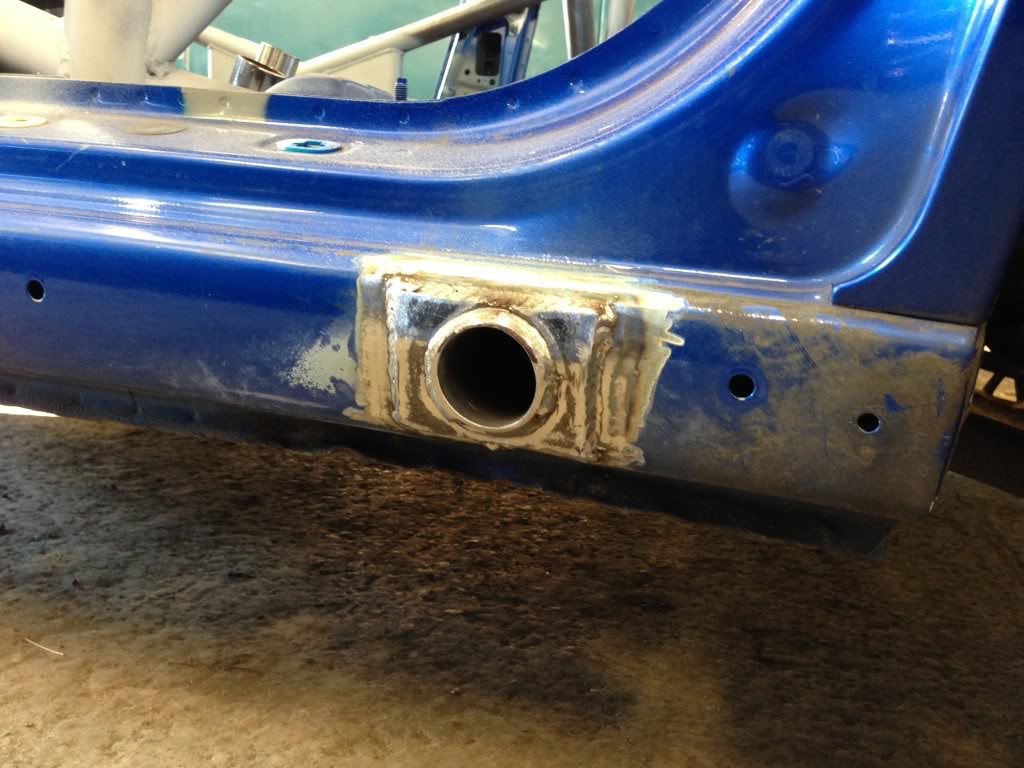

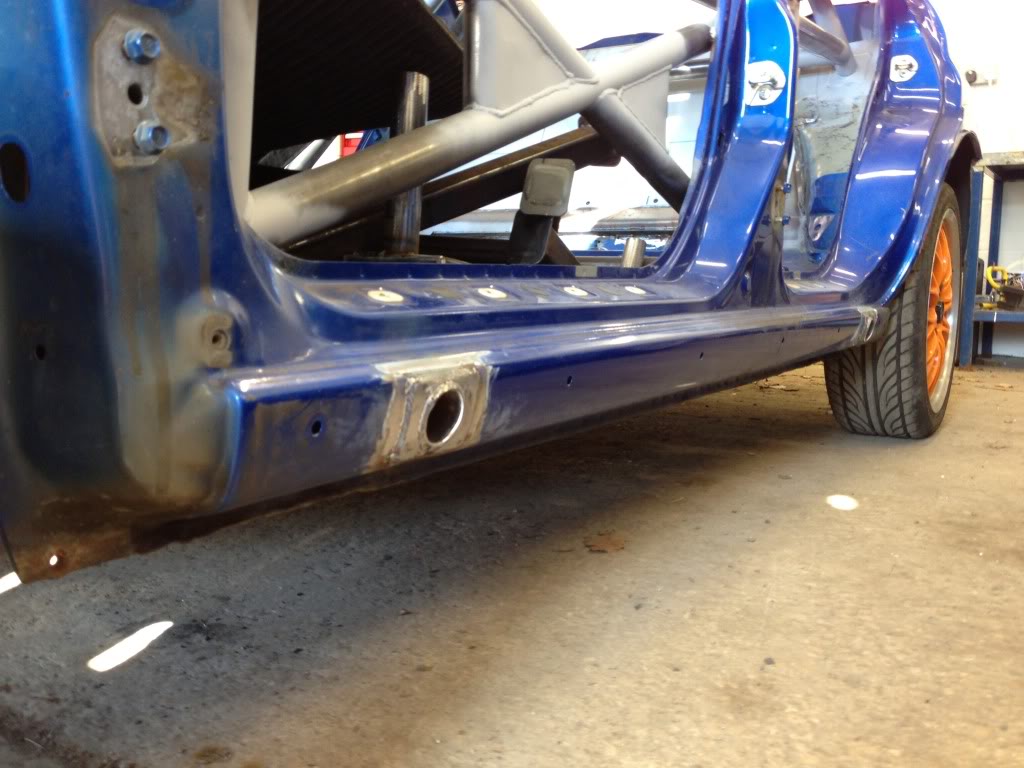

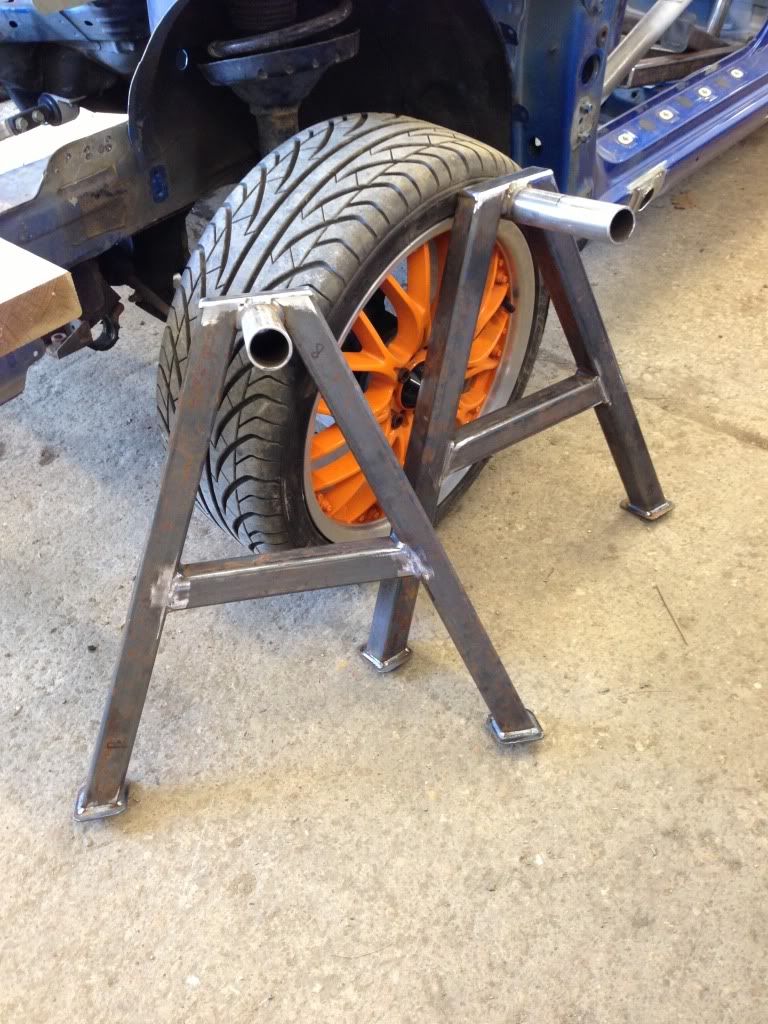

Some piccy's of the sill stands

Name:  1F1115D2-85A3-4B30-B130-36E813AB7114-26203-0000116B565A90EE_zps0bd4a3ba.jpg
Views: 0
Size:  101.7 KB
Name:  82C1C381-81CA-469F-8285-7A0FED23C873-26203-0000116B4FBD1382_zps7ba0989e.jpg
Views: 0
Size:  122.4 KB
Name:  3DB2B080-F154-4716-9B45-890EE4D57FCA-26203-0000116B5CA95806_zpsc3b8f071.jpg
Views: 0
Size:  165.9 KB
Reply
Old May 13, 2013 | 04:37 PM
  #89
super_ted's Avatar
super_ted
Thread Starter
Scooby Regular
iTrader: (30)

Joined: Dec 2008
Posts: 2,602
Likes: 0
From: Oxfordshire
Default

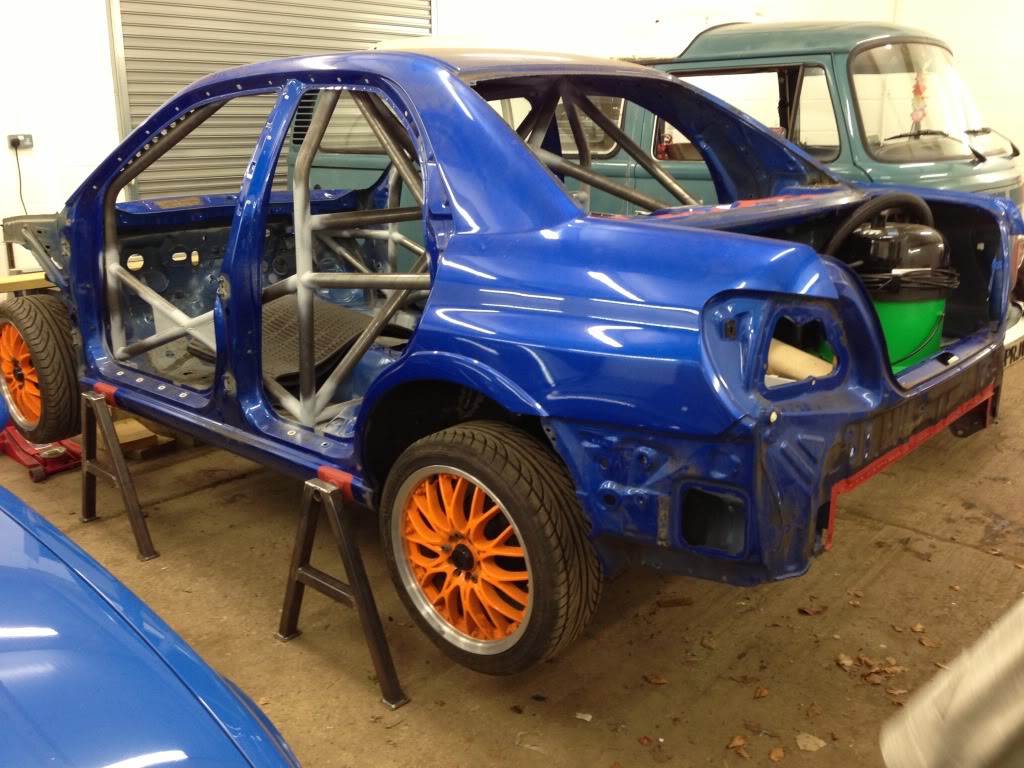

Sill stands in action. Now to prepare for bodywork & paint.
Name:  CA106FD3-15E8-449F-8C06-A9E2E65CC885-108-0000000066ACD2B1_zps88aaec09.jpg
Views: 0
Size:  135.9 KB
Reply
Old May 21, 2013 | 11:17 PM
  #90
BrownPantsRacing's Avatar
BrownPantsRacing
Scooby Regular
iTrader: (6)

Joined: Oct 2010
Posts: 8,701
Likes: 128
From: Herts & Bucks
Default

Nice progress. I love a good cage!!!
